Wireless Mouse in a Nes Gamepad 3
by champx in Circuits > Computers
22554 Views, 198 Favorites, 0 Comments
Wireless Mouse in a Nes Gamepad 3

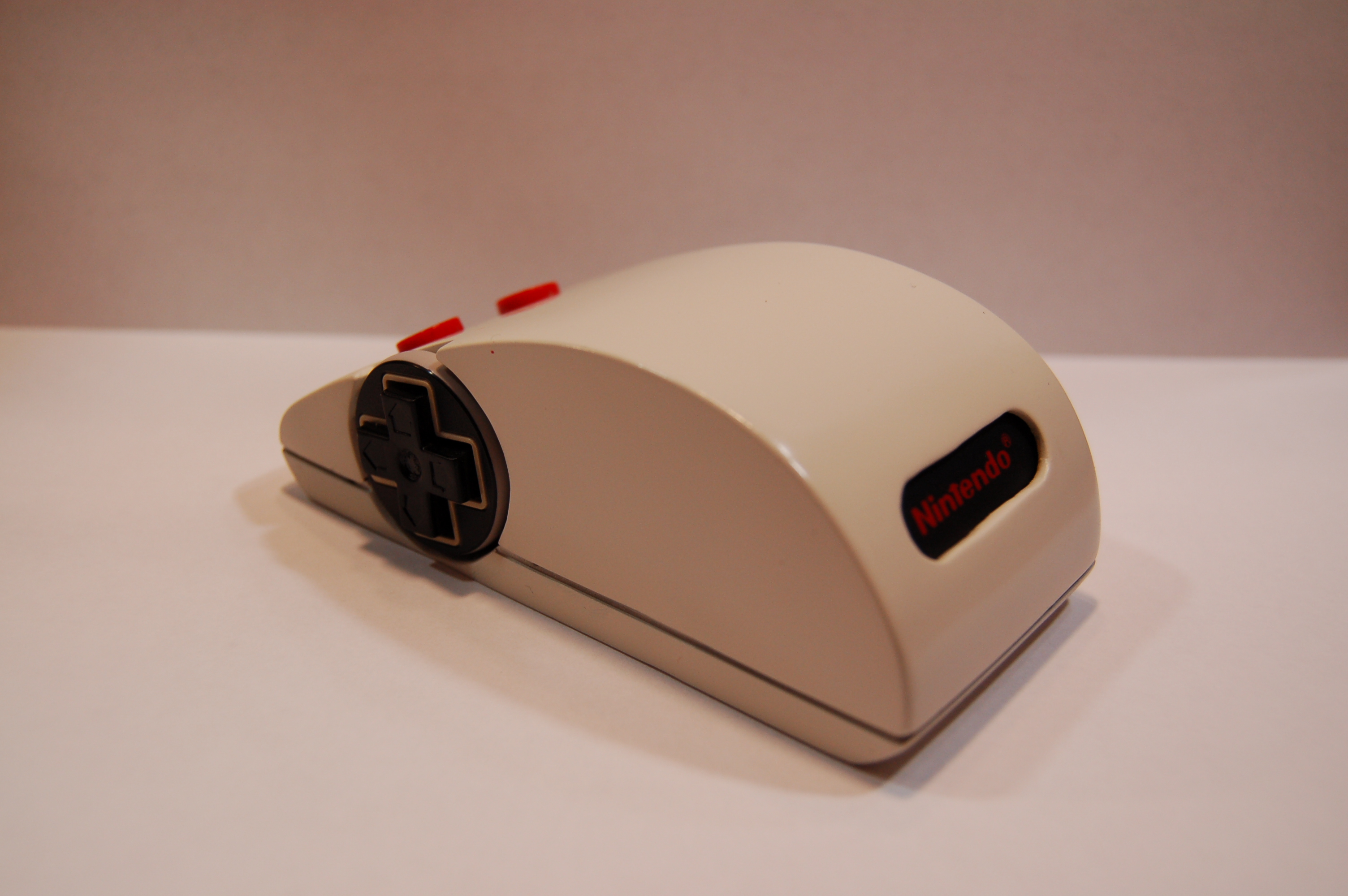

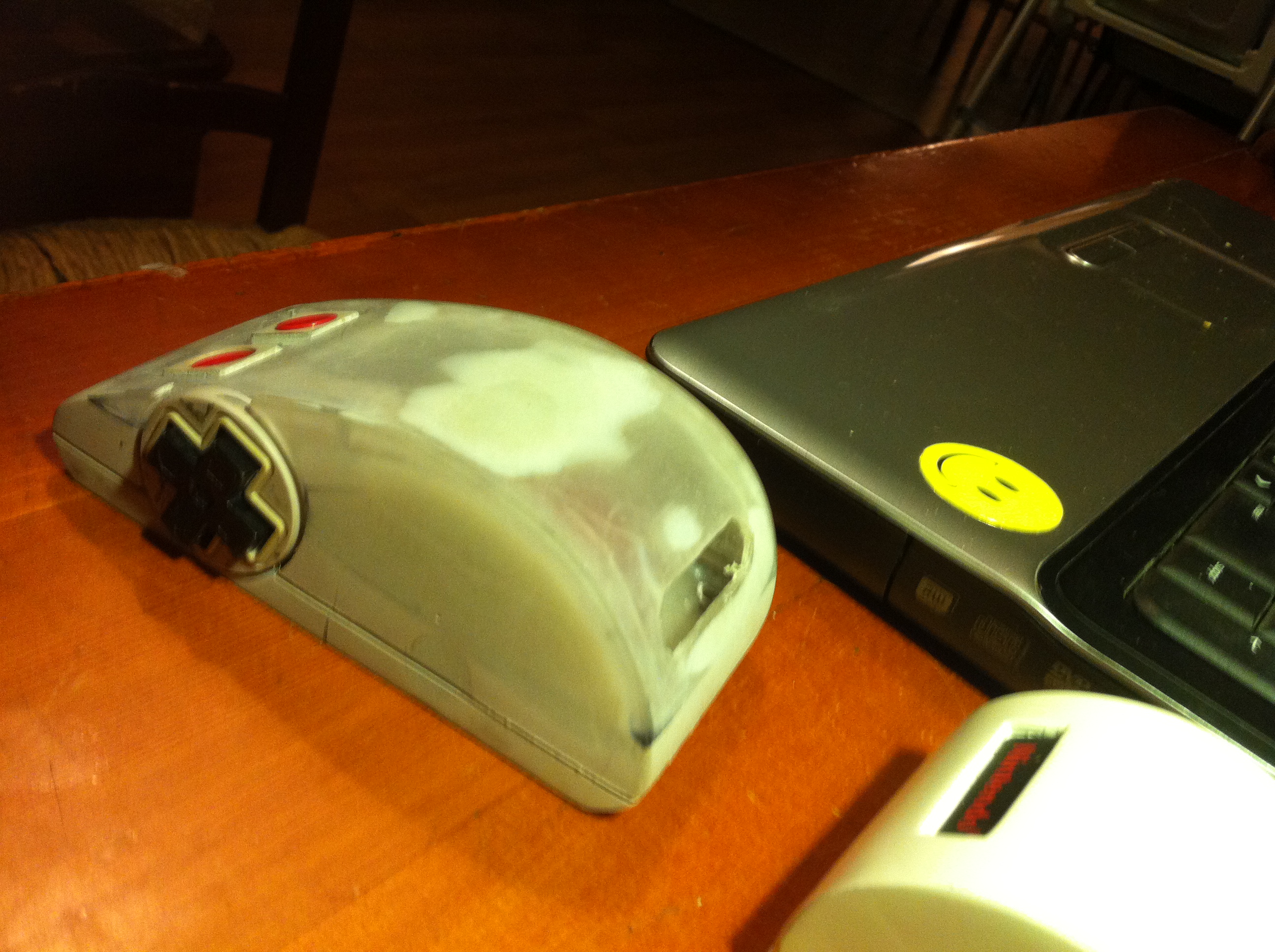

Here is my third version of the mouse nes
the original nes mouse was made by
http://threepercentdone.com/#12
it is shorter, better design, more ergonomic than my V2 and with logitech electronics
the original nes mouse was made by
http://threepercentdone.com/#
it is shorter, better design, more ergonomic than my V2 and with logitech electronics
first, cut and keep the necessary elements
that is to say, the d-pad and buttons housing
shortening the chassis 1 cm

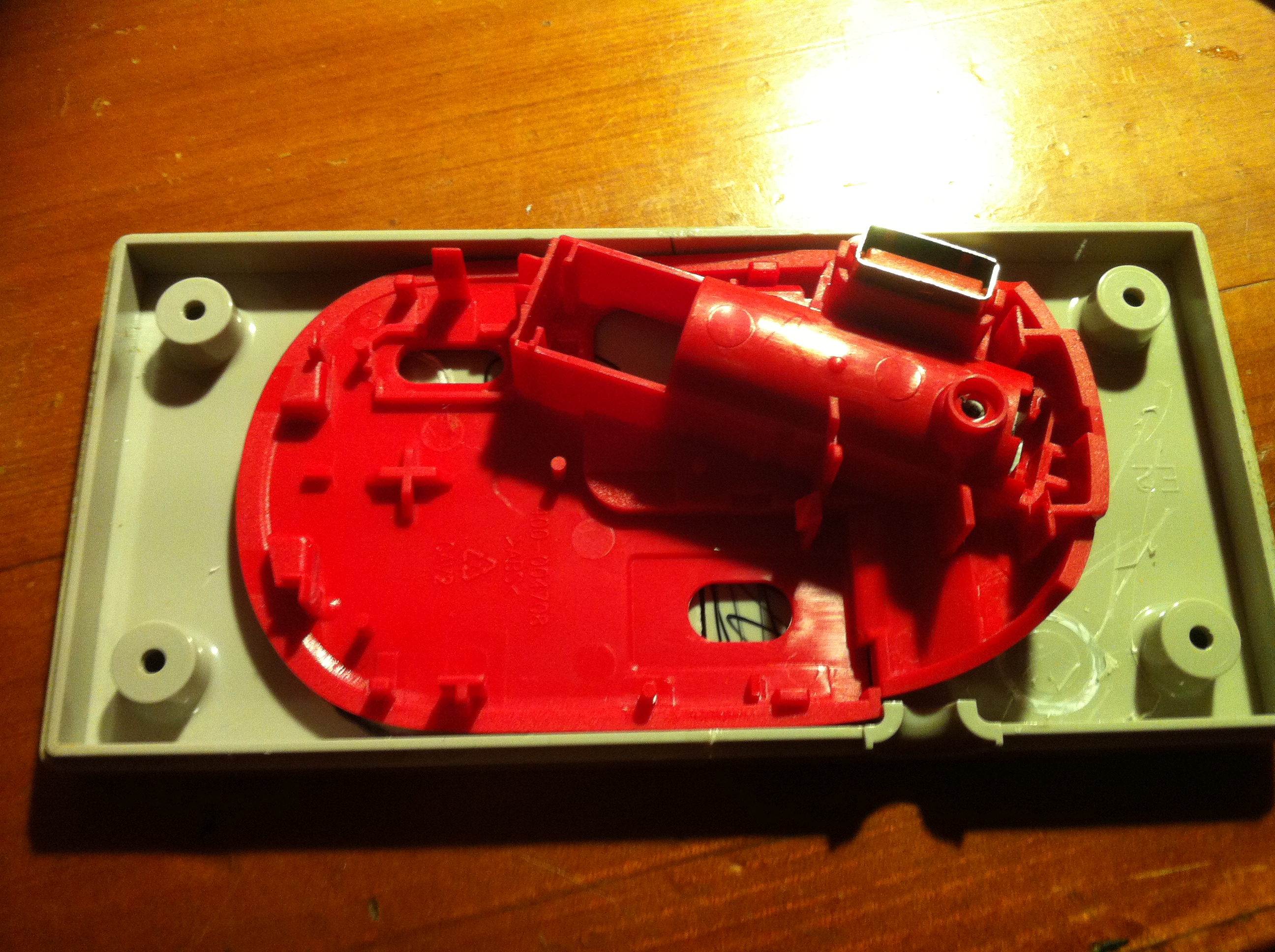

remove a bothersome pieces inside, turning with tongs
it is easily
that is to say, the d-pad and buttons housing
shortening the chassis 1 cm
remove a bothersome pieces inside, turning with tongs
it is easily
trace the periphery of the base of the mouse
(in my case, I drew the following without the battery door)
cut bottom of gamepad
I use a jigsaw and then gently while going after a lime
(in my case, I drew the following without the battery door)
cut bottom of gamepad
I use a jigsaw and then gently while going after a lime

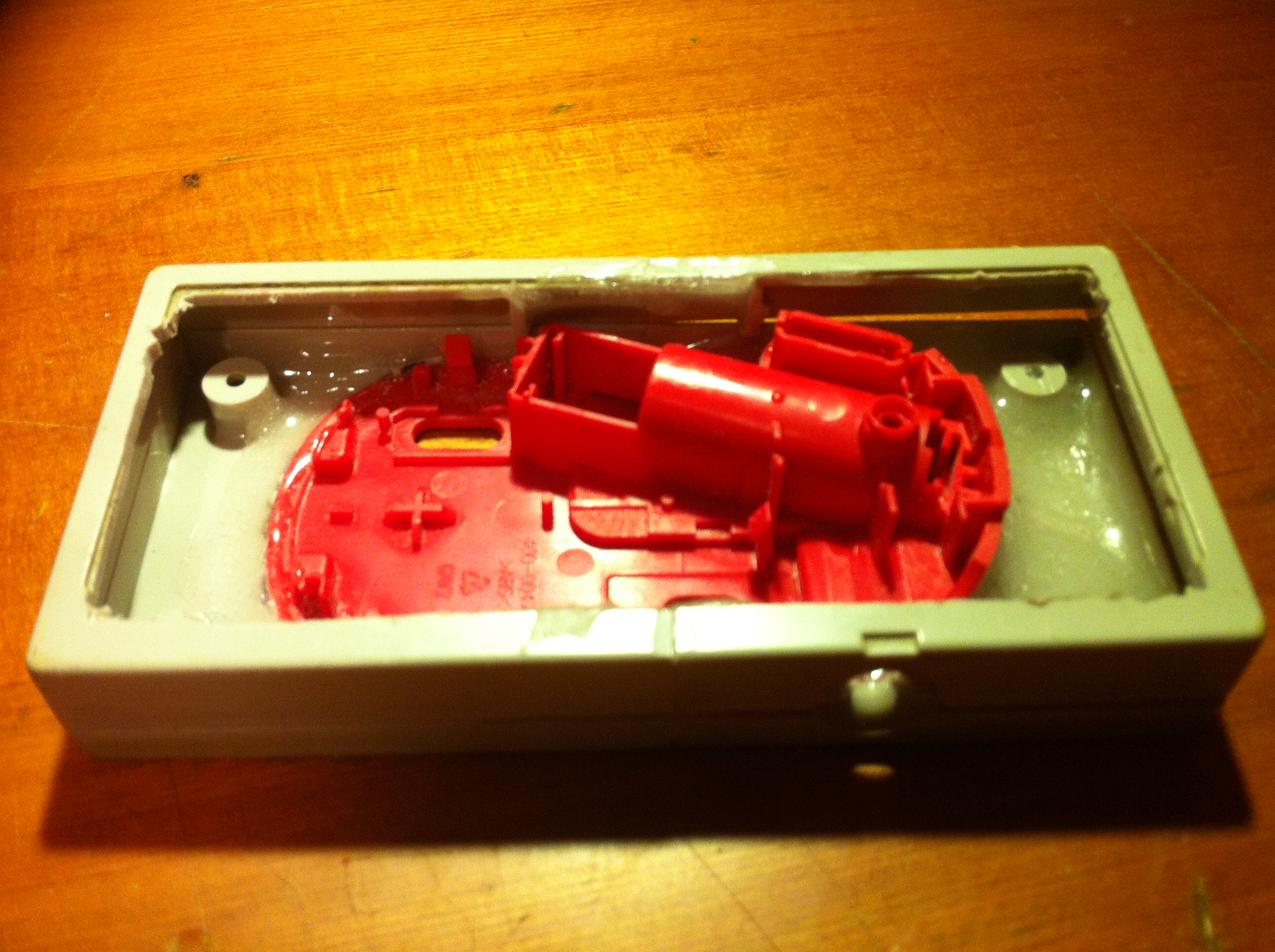

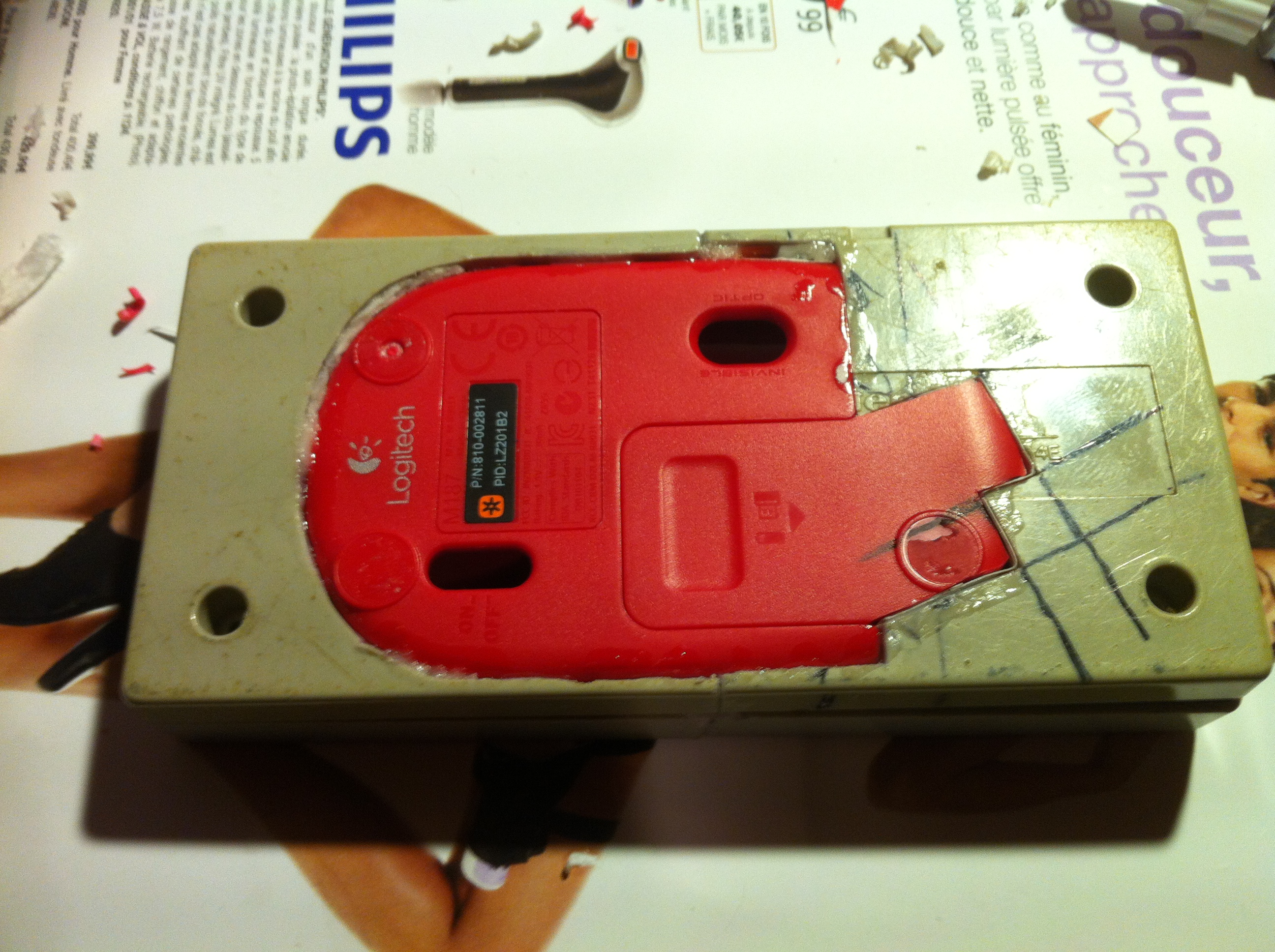

use of glue (cyanoacrylate) to hold Elements quickly
in this case, I cut the battery door to fit in the etched
I finished pasting everything with epoxy glue two components (to take longer but very resistant)
in this case, I cut the battery door to fit in the etched
I finished pasting everything with epoxy glue two components (to take longer but very resistant)
I use polycarbonate (Makrolon) to form the outer
it warms in the oven at 160 ° celsius becomes soft enough to take the desired rounded shape
(TAKE GLOVES HIGH TEMPERATURE BECAUSE IT IS VERY HOT!)
pmma not take the smell is strong because it is brittle and
cut a little the upper frame of the gamepad, paste and cut the sides drawn a good shape
positioning the upper heated beforehand and stick with glue some point
trace the location of the button
several drill hole, cut between the hole with a clamp and finish with a lime
it warms in the oven at 160 ° celsius becomes soft enough to take the desired rounded shape
(TAKE GLOVES HIGH TEMPERATURE BECAUSE IT IS VERY HOT!)
pmma not take the smell is strong because it is brittle and
cut a little the upper frame of the gamepad, paste and cut the sides drawn a good shape
positioning the upper heated beforehand and stick with glue some point
trace the location of the button
several drill hole, cut between the hole with a clamp and finish with a lime
for the scrollwheel, it depends on the system in the donor mouse
for my V2 is a mechanical system and my V3 it is an optical system

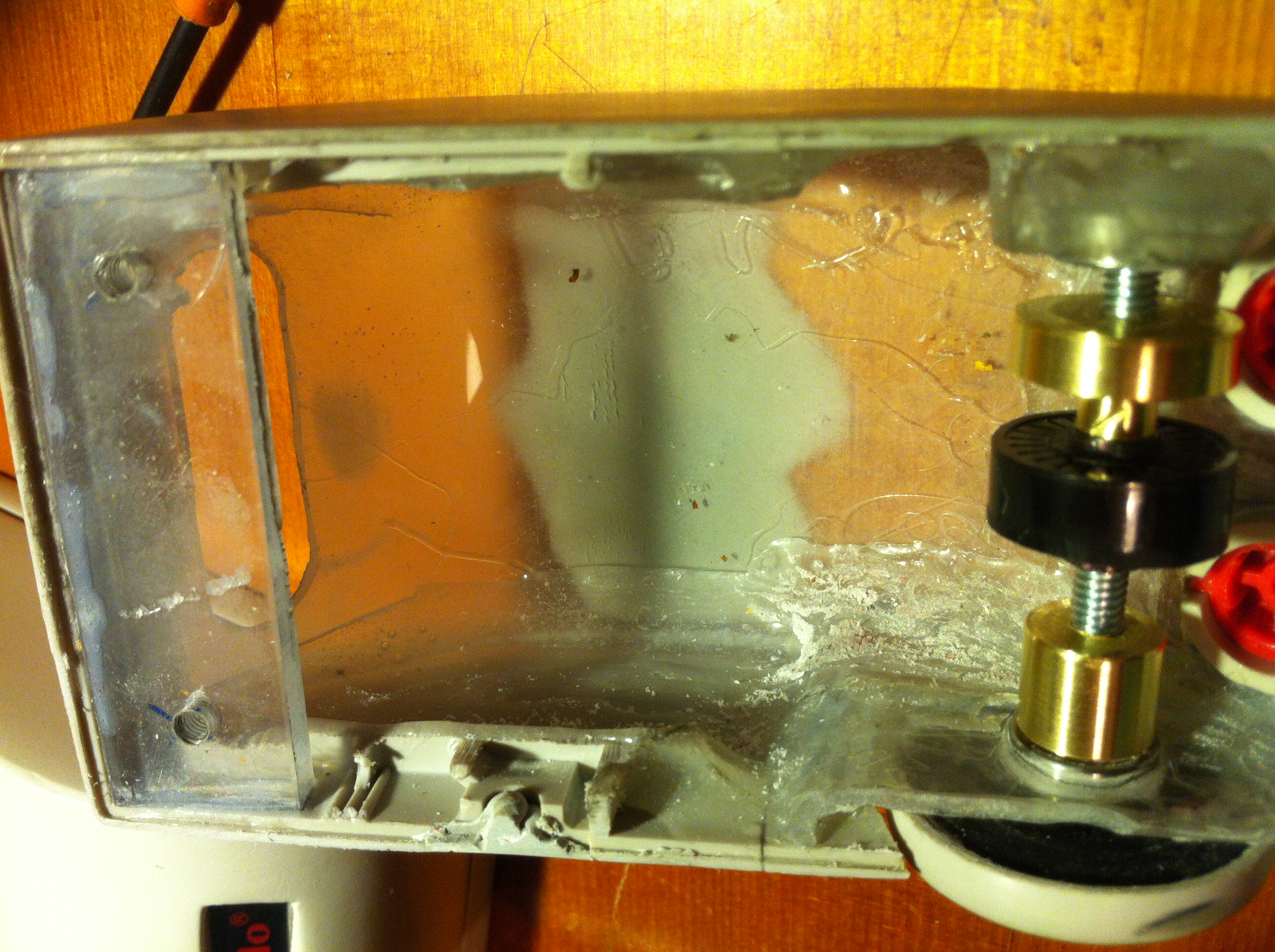

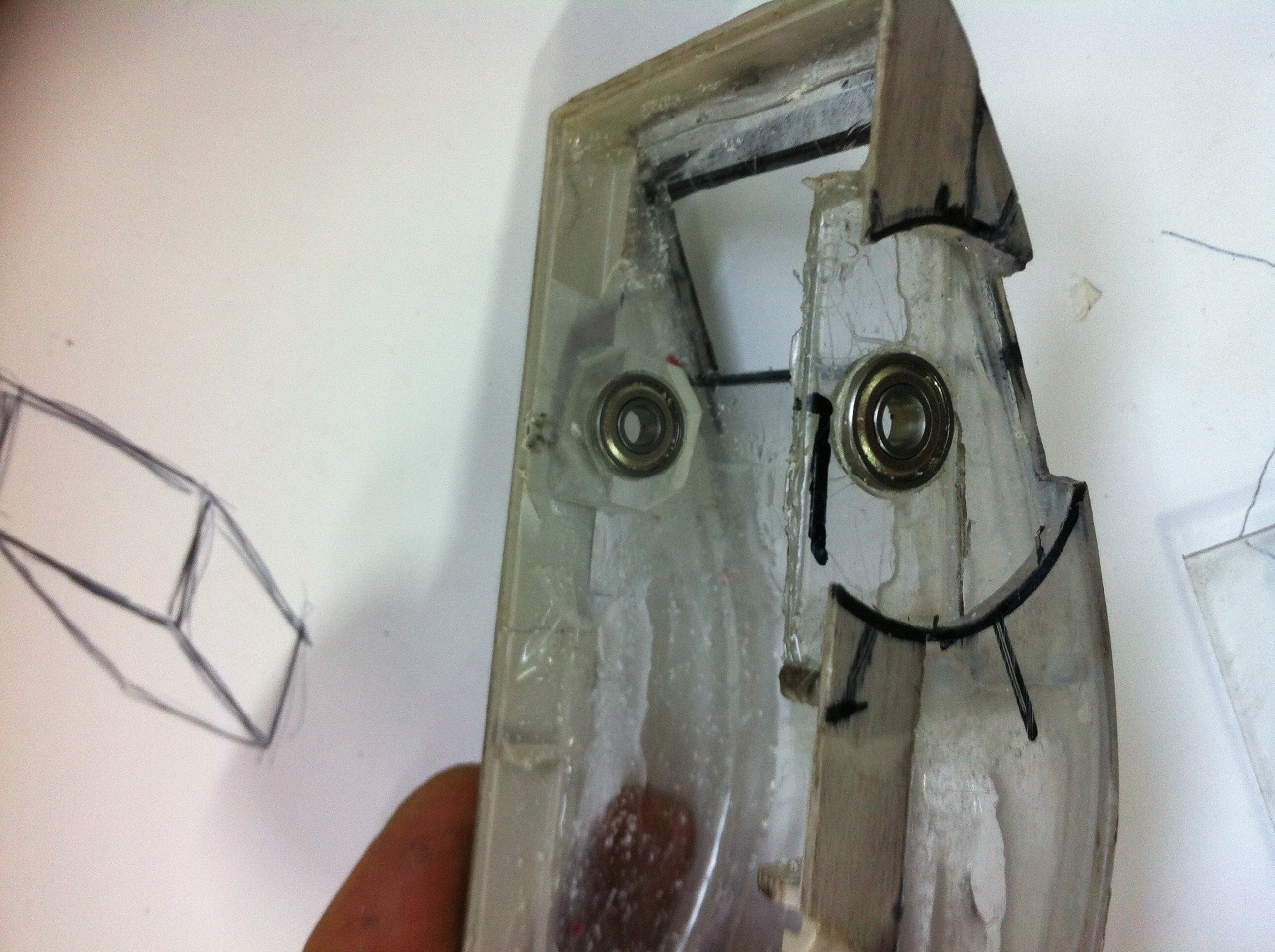

in any case, I made a frame in which I put a small bearing
I pierce the d-pad to put a threaded rod
the parts are brass for more inertia
for my V2 is a mechanical system and my V3 it is an optical system
in any case, I made a frame in which I put a small bearing
I pierce the d-pad to put a threaded rod
the parts are brass for more inertia
I added a piece of Makrolon and a small latch to close the battery door

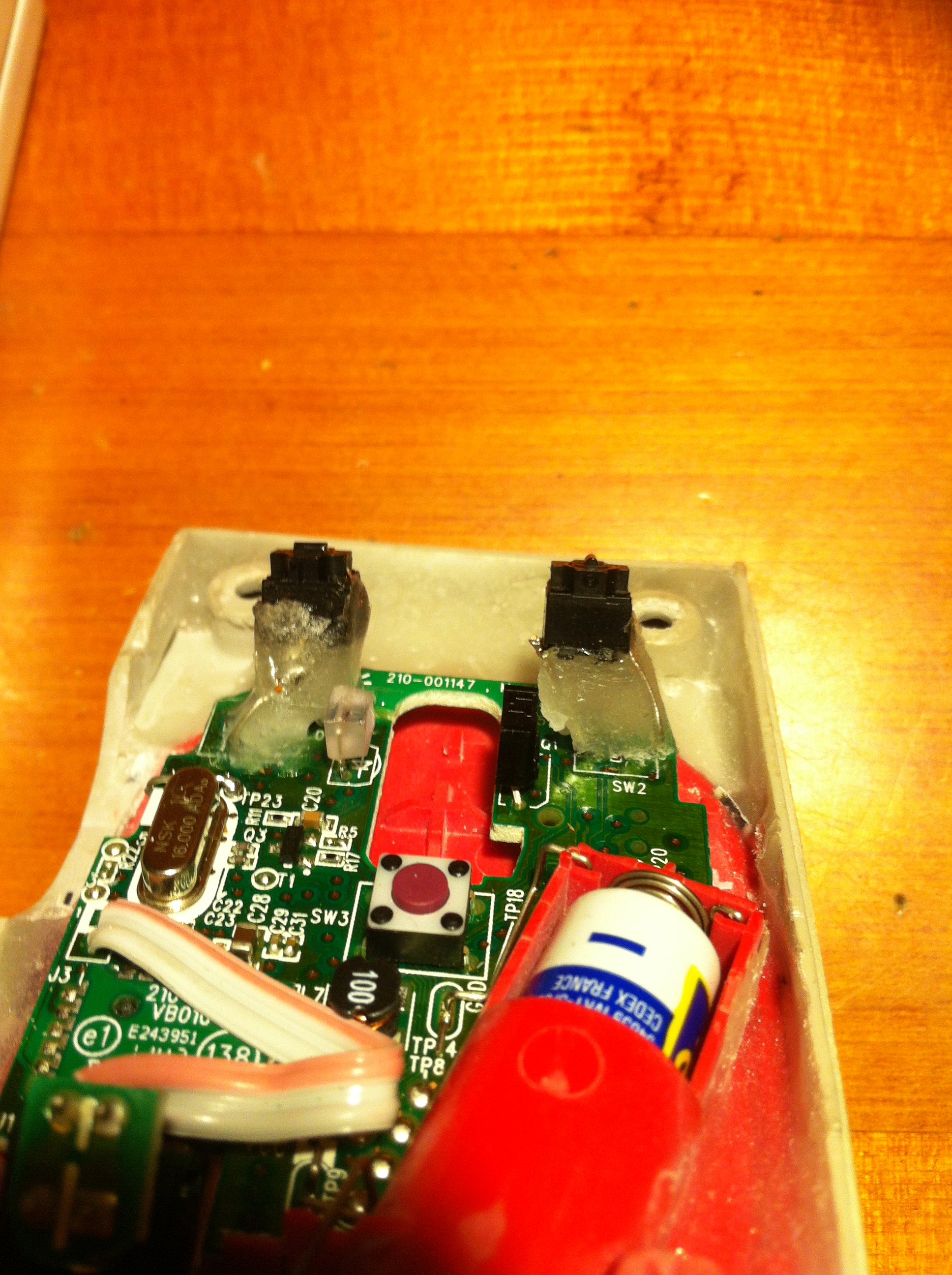

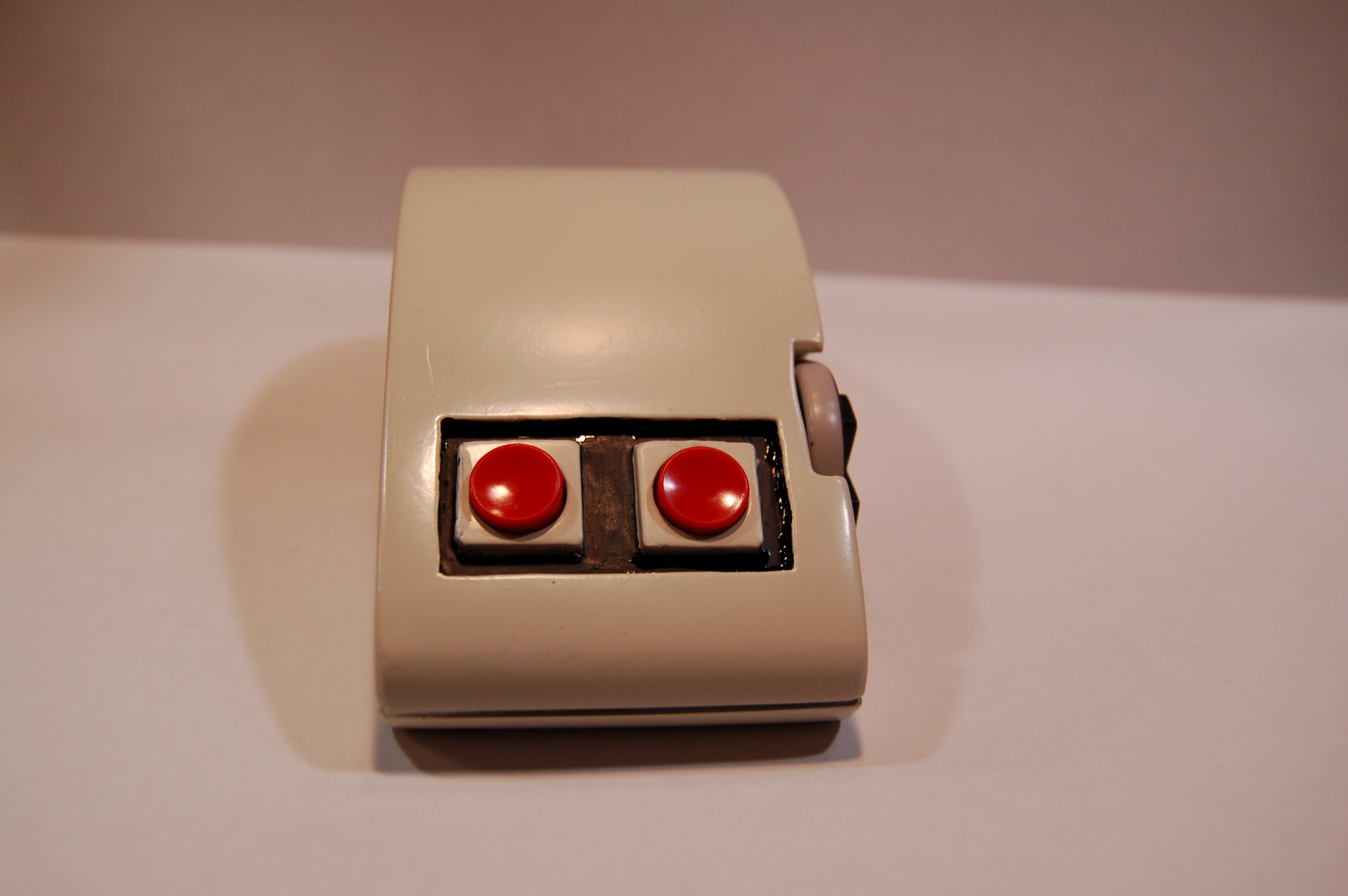

for buttons, I extend the legs switch and I put the switch in front of the hole and secure with hot glue
for buttons, I extend the legs switch and I put the switch in front of the hole and secure with hot glue

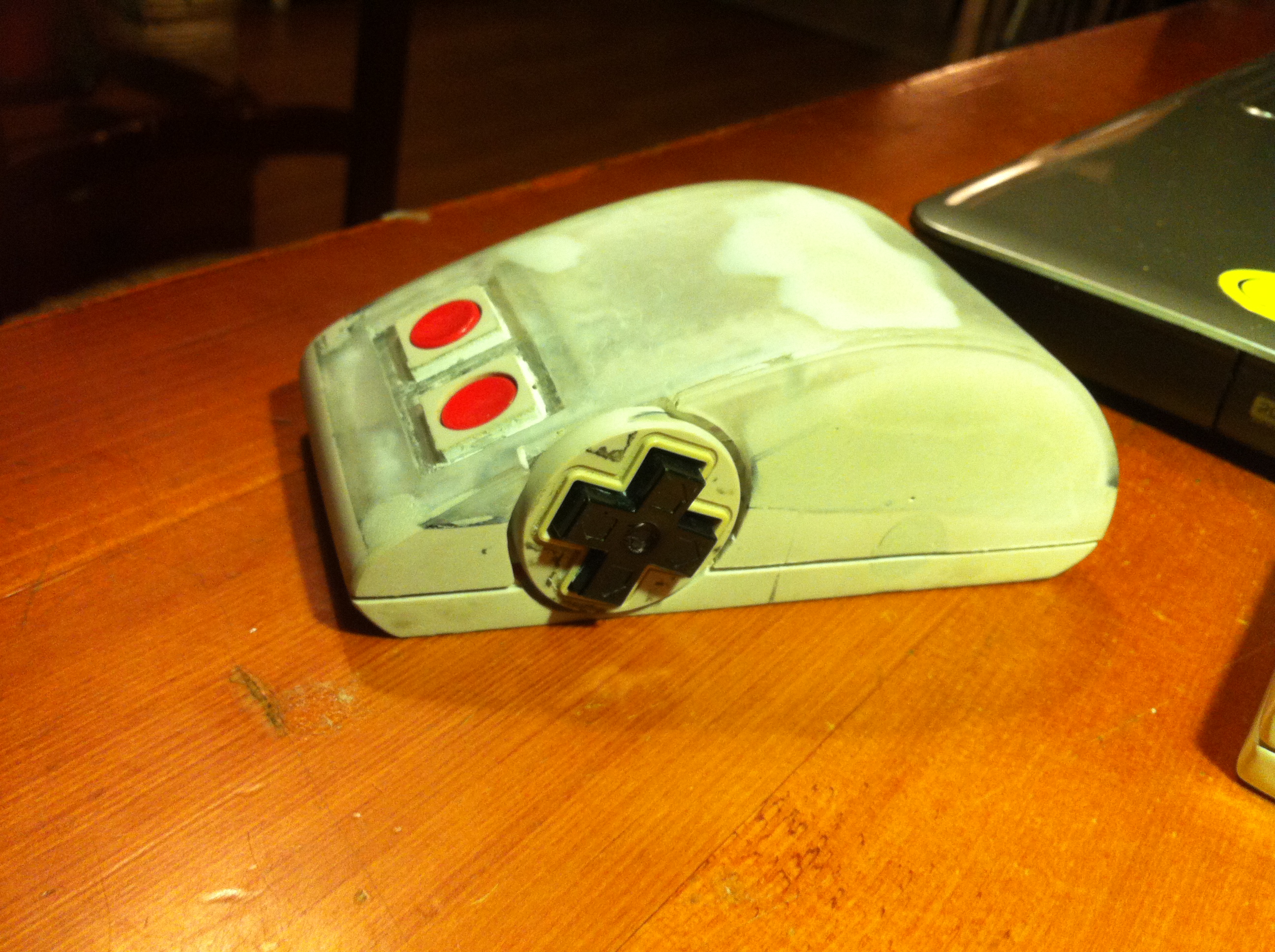

Finally, I used mastic, sanding paper, the primer and paint
for color, I made a bit of gray beige to make used gamepad
for color, I made a bit of gray beige to make used gamepad
Finally, I used mastic, sanding paper, the primer and paint
for color, I made a bit of gray beige to make used gamepad
for color, I made a bit of gray beige to make used gamepad
