Support to Place Smartphone in the Car (three Versions)
++++more pictures of this project in my last entry integrated smartphone car control panel
I used a DVD box (transparent film also of the box) and clamp a car freshener to put in soffit vent
materials
dvd box
scissors
tape
Car freshener spent
optional dremel
cardboard
Decorative vinyl carbon fiber
to make cuts the flat side of the dvd box with the measurements of your smartphone, before separating the plastic wrap box
placed over your phone and cut the film leaving a more flaps to stick with tape from behind.
according to your dresser adapt clip at the top as you see, I use the dremel to make a hole and put the clamp
after try in my case did not fit,
version 2
with the same case and using an old support other phone you stick with double sided tape and you're done, I've seen this on you tube
version 3 final
in a recess on the control panel of my car I was cut by a piece of paperboard to make it fit within

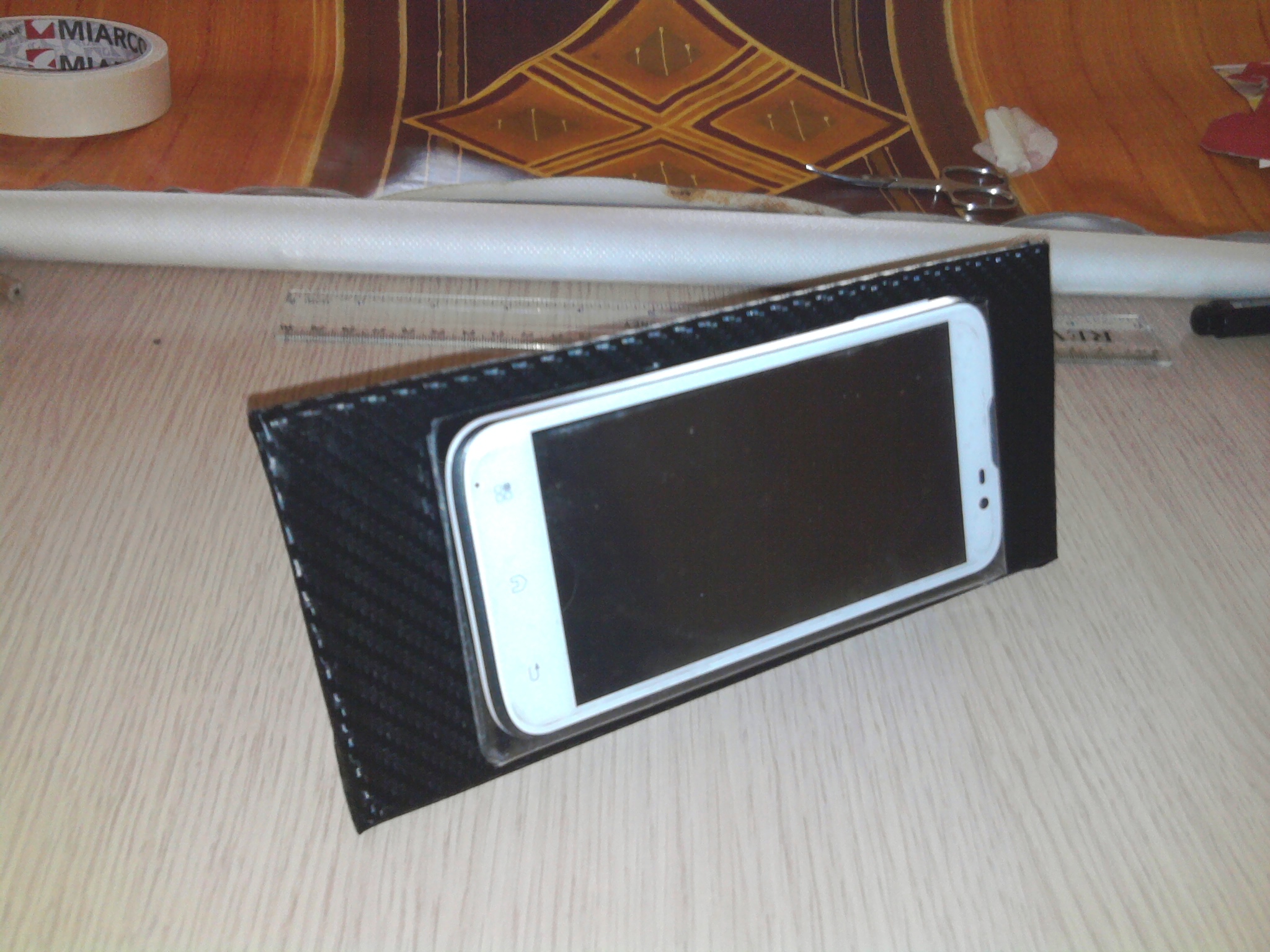

after I've lined with a vinyl sleeve and I glued on the piece of cardboard with double-sided tape.
you can put between the glass and the top panel of the car if you have no a hole in your panel
looks good
hope you like
greetings to all
sorry for the google translation
