Solar Joule Thief

hey there i am back!.This solar joule thief is my 3rd project. my solar pannel was working good but it wasn't full filing my power needs so i buit a solar joule thief.

Electronic components needed-
transistor- 2n3904
resistance -1oo ohm/1kilo ohm
choke
pcb
wires
led
solar pannel


tools and equipment needed -
soldering iron
soldering wire
nipper
wet sponge
multimeter
etc.

Here's the schematic-

the choke has 3 wires now the junction of two wires is one ,except that one, solder a 1 k ohm resistor to any of the 2 wires. (ECCEPT THE 2 WIRE JUNCTION ONE).

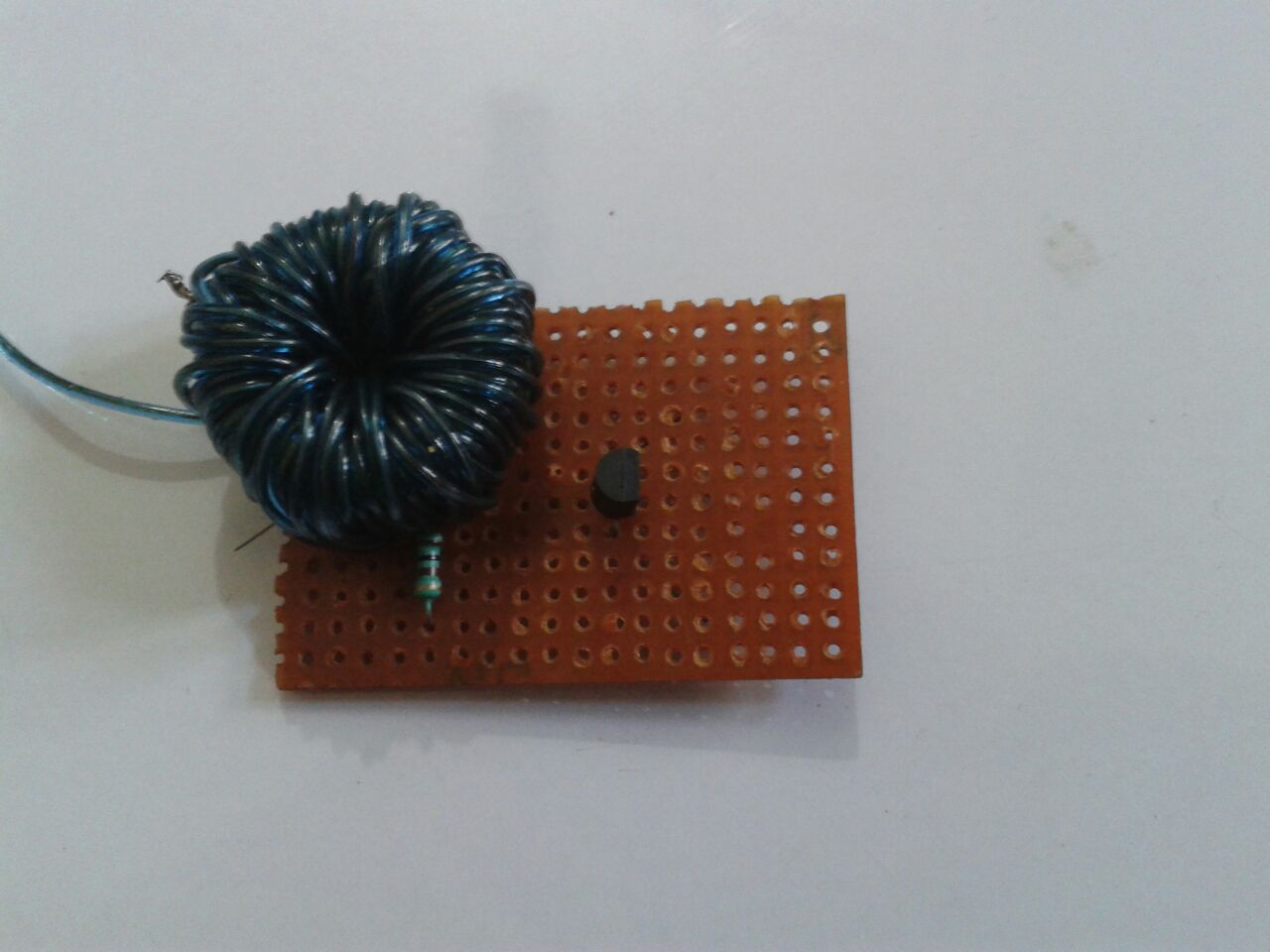

take your transistor 2n3904 and then solder its base or the middel wire to the resistor.

take your led and then solder its negative terminal to the emitter of the transistor and then its possitive terminal to the collector of the transisitor. also solder a wire to led's possitive terminal.

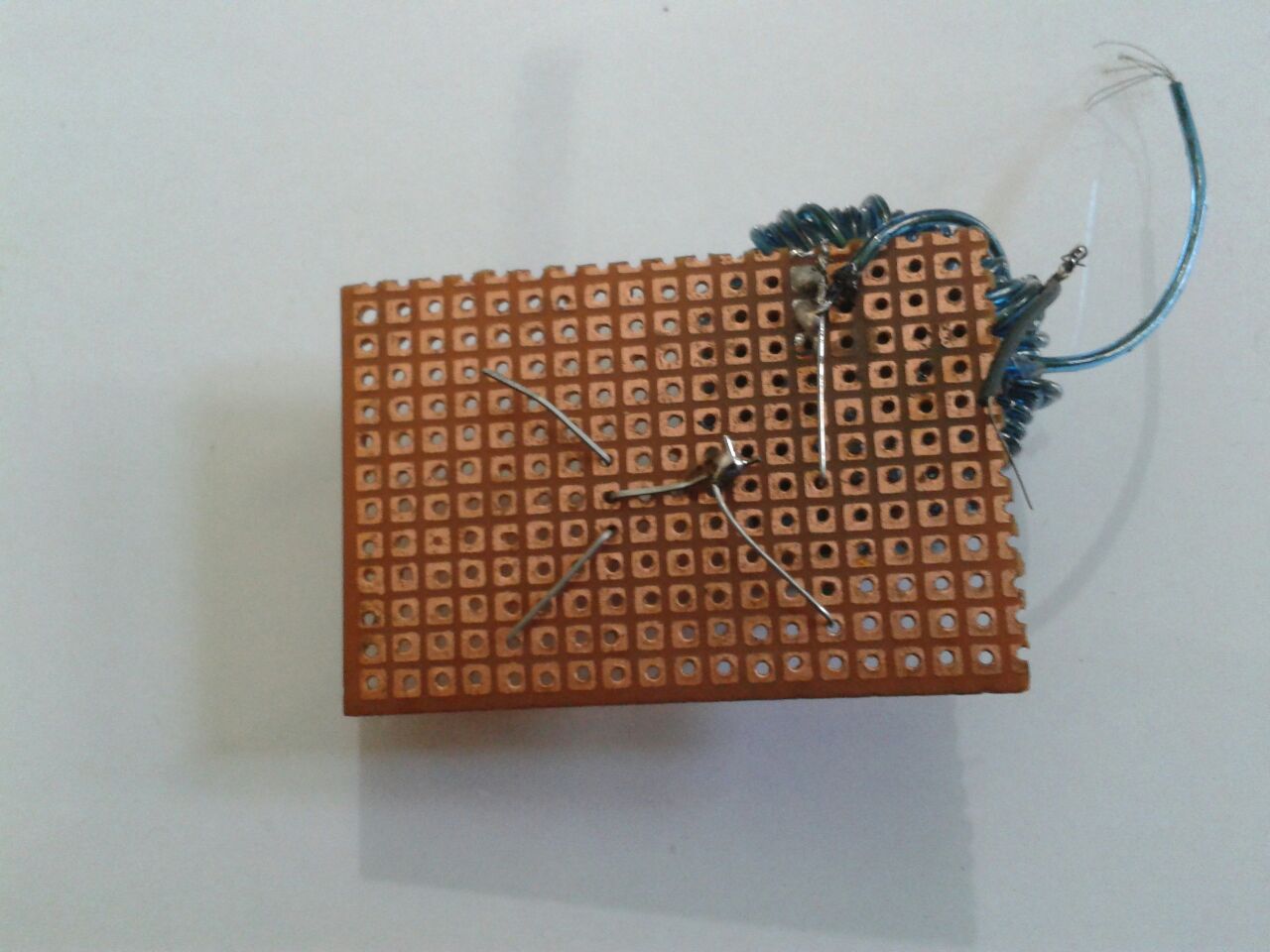

now this is looking like a circuit . after it take a wire and then solder it to the negative terminal of the led. and you've almost completed!

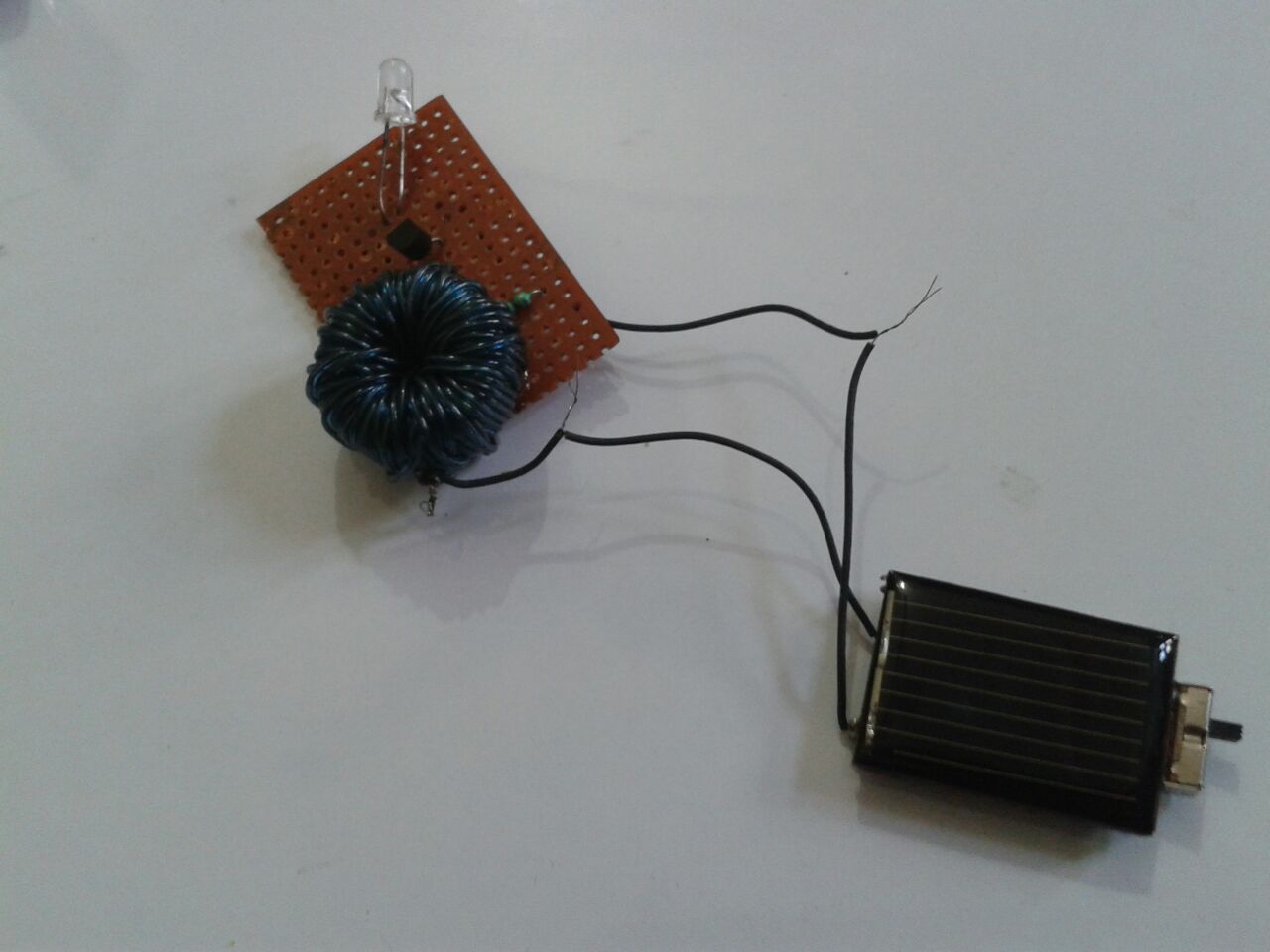

now connect the 2 wire junction to the possitive terminal of solar pannel and then the led wire to the negative terminal of the solar pannel. and paste the pannel to pcb with hot glue.

after you have done your testing by glowing the led then murder it by the nipper and then solder 2 wires in place of the led signifying output wires.

now hot glue everything to make the circuit waterproof .
enjoy! you've successfully created your solar joule thief .
use it to power other things.
