Sixpence 3D Scanning Kit

Over the weekends, I thought of an idea of making dirt cheap 3D scanning with existing items. What I mean existing items, are items on my desk such as an android mobile phone, arduino, and servo. While researching on cloud computing and it's application, I discovered a really cool website http://apps.123dapp.com/catch/ that leverages on cloud computing to generate a 3D model based on multiple pictures of an object. Taking (at most 70) pictures of an object at 360 degrees manually without a rig is really tiring. So, my weekend project for the 3D scanning kit to automatically take pictures at 360 degrees of a subject without human intervention can be decomposed to 4 sub parts. part1: I need a turntable of some sort to rotate my subject 360degress. part 2: There must be some sort of communication channel between my turntable and the picture taking apparatus. part3: picture taking apparatus must be capable of receiving commands. part4: upload pictures to 123D catch to generate the 3D model.
part1: turntable

turntable with subject container

this user guide is also publish here http://shin-ajaran.blogspot.com/2013/11/sixpence-3d-scanning-kit.html

manually to take pictures

if you wonder what is the pen doing there
Parts needed. An arduino, full rotation servo, code.
The full rotation servo (FRS) I got on hand was picked up from a rubbish dump. Upon testing, it is still functioning, how lucky. Here comes the interesting problem. With the use of the example code of sweep from arduino, the FRS is behaving erratically. It does not stop exactly at 15 degrees and continue to spin. Reason being, the servo is modify; the "horn" on a gear inside the servo is broken off. tough luck using standard code. So, I have to come out with a scheme to stop the FRS at every 15degrees via code.

parts needed: android device (API level 17 onwards), OTG cable
Reluctant quite I am, to purchase a bluetooth shield for arduino for communication. Furthermore, I am using an android phone running android 4.3 (API level 19). In this particular version, it supports direct USB connection from say a keyboard or mouse to the android phone via microUSB or OTG cable ( USB typeA female to microUSB male). It is much more cost effective for me to use OTG than the bluetooth shield.
A quick look at the opensource community, I stumble upon this github https://github.com/dtbaker/android-arduino-usb-se... i believe was forked from https://github.com/dtbaker/android-arduino-usb-se... Many thanks to the open source contributors for allowing me to quickly try out code for USB serial from android <--> arduino. Just a point to note, the baud rate for the android is 115200, so arduino must setup serial at the same baudrate.
combining part1 and 2, I have devised a scheme for my 3D scanning kit. Arduino turn the turntable for 15degrees, send ASCII characters to android device to take a picture
The code for arduino is here

#include <Servo.h>

Servo myservo;
int buttonPin = 3;
int buttonState = 0;
void setup()
{
  pinMode(buttonPin, INPUT);
   Serial.begin(115200);
  //myservo.attach(9);
 // myservo.writeMicroseconds(1500);  // set servo to mid-point
}

void loop() {

moveServo();
buttonState = digitalRead(buttonPin);
  while(buttonState!=HIGH){
    //infinite loop untill buton press to restart cycle
  }

}//end loop

void sendSerial(){
    Serial.print("AAA");//tell android to take picture
    delay(2000);//guesstimate time for picture taken
}//end sendSerial

void moveServo(){
  for(int i = 0; i < 31; i ++){
    myservo.attach(9);
    scheduleStop();
    delay(10000);//let camera complete picture taking
    sendSerial();
  }//end for
}//end moveServo

void scheduleStop(){
  myservo.writeMicroseconds(1000);//run
  delay(100);//100msec is about 15deg
  myservo.detach();//stop
}//end scheduleStop

Another point to note: print out the serial data received on android to prove the assumption that it is going to be the same as per received on hyper terminal. I learnt it the hard way.

There are excellent tutorials such as this and this for writing manual code to use the android device's camera to take ONE picture. Having wrote my last android app from scratch on my HTC magic, android 1.6 (API level 4), I assumed that I would have not any issues using the API for android 4.3 (API level 19). Besides that, having use MIT app inventor for mockup and POC without writing code from ground up and using the standard features following the standard way have left me jaded when it comes to developing app. The S.O.P for taking a picture on android device via camera API is quite straightforward. Create an activity. Add a button to listen to a an event to take a picture. Add a view to the frame layout for the preview from the camera. Save the picture to the device's memory. After picture is taken, refresh the preview. I assumed that I would only spend 4 hours max after office hours to write a piece of code that would automatically take multiple pictures without user intervention. Little did I for see I would stare at the code for a few nights finding out where are the crashes, because the nature of pictureCallBack(), onPictureTaken(), and refresh the preview was supposed to be used. The experience and amount of code I have tried to challenge my assumptions such as race condition, critical section, multi threading that I thought might be the cause of the crashes warrant for a lengthy post by itself.

The code to the app is hosted on github
https://github.com/teos0009/uploadmy3dscanningkit

Combing part1,2,3, setup a stand for the android device to take pictures.

copy the 31 images from android phone to be uploaded to the 123D catch

Generate a 3D model from the pictures uploaded


Note: no model generated yet, and I have waited for close to 30min to save the project but without success.
Some fine tuning is required: I noticed the picture taken by my android device was out of focus. Maybe that is the reason why the model was not generated. to be updated.

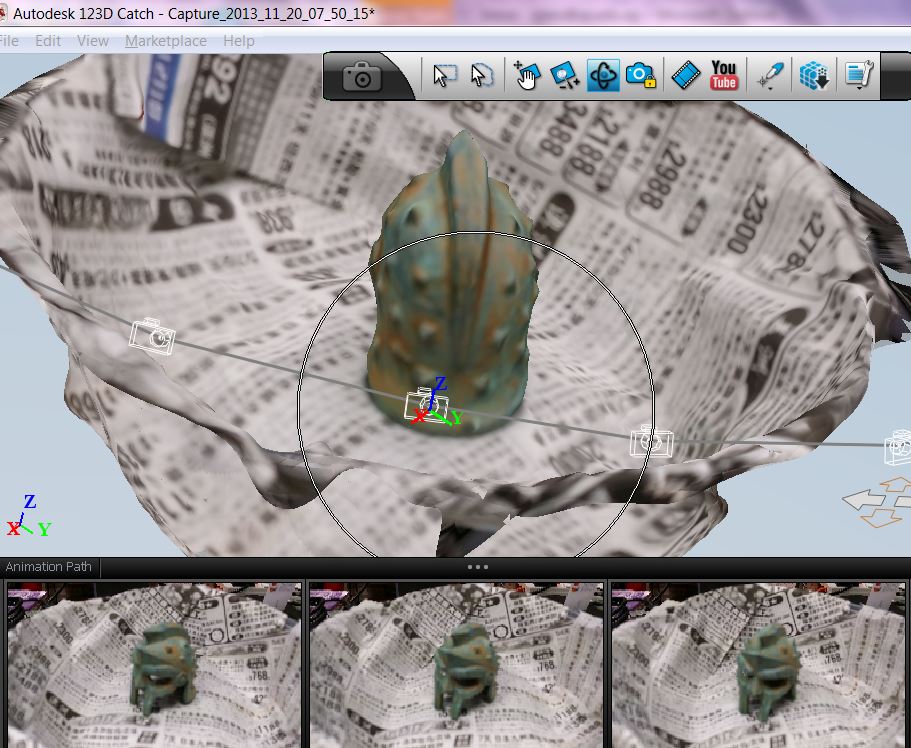

Edit: For some weird reasons, 123D catch online version does not work on my laptop. I have left it running over night and the next day I check my computer, still no model generated. However, the 123D offline version does work, using the pictures generated by sixpence 3D scanning kit.

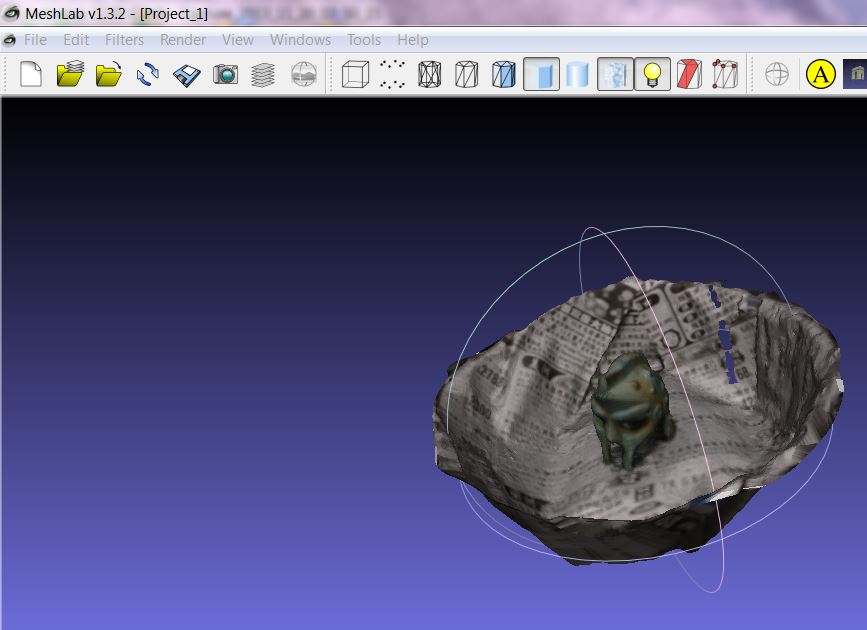

Use MeshMixer to select the news paper portion, delete by pressing the "x" key.
subsequently touch up to become a watertight model.
