Remote Control F-117A Stealth Bomber
by Trask b in Circuits > Remote Control
3447 Views, 28 Favorites, 0 Comments

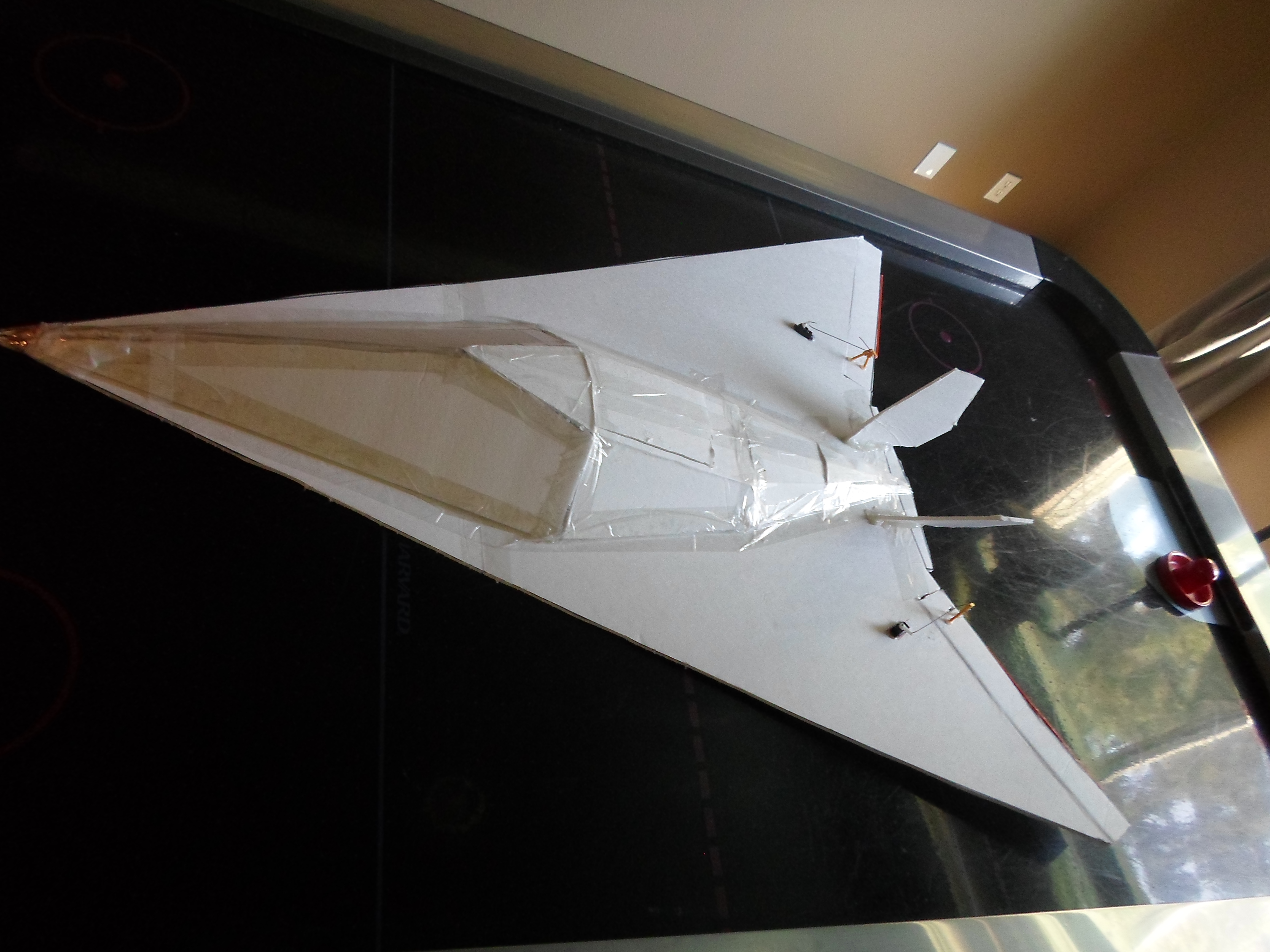

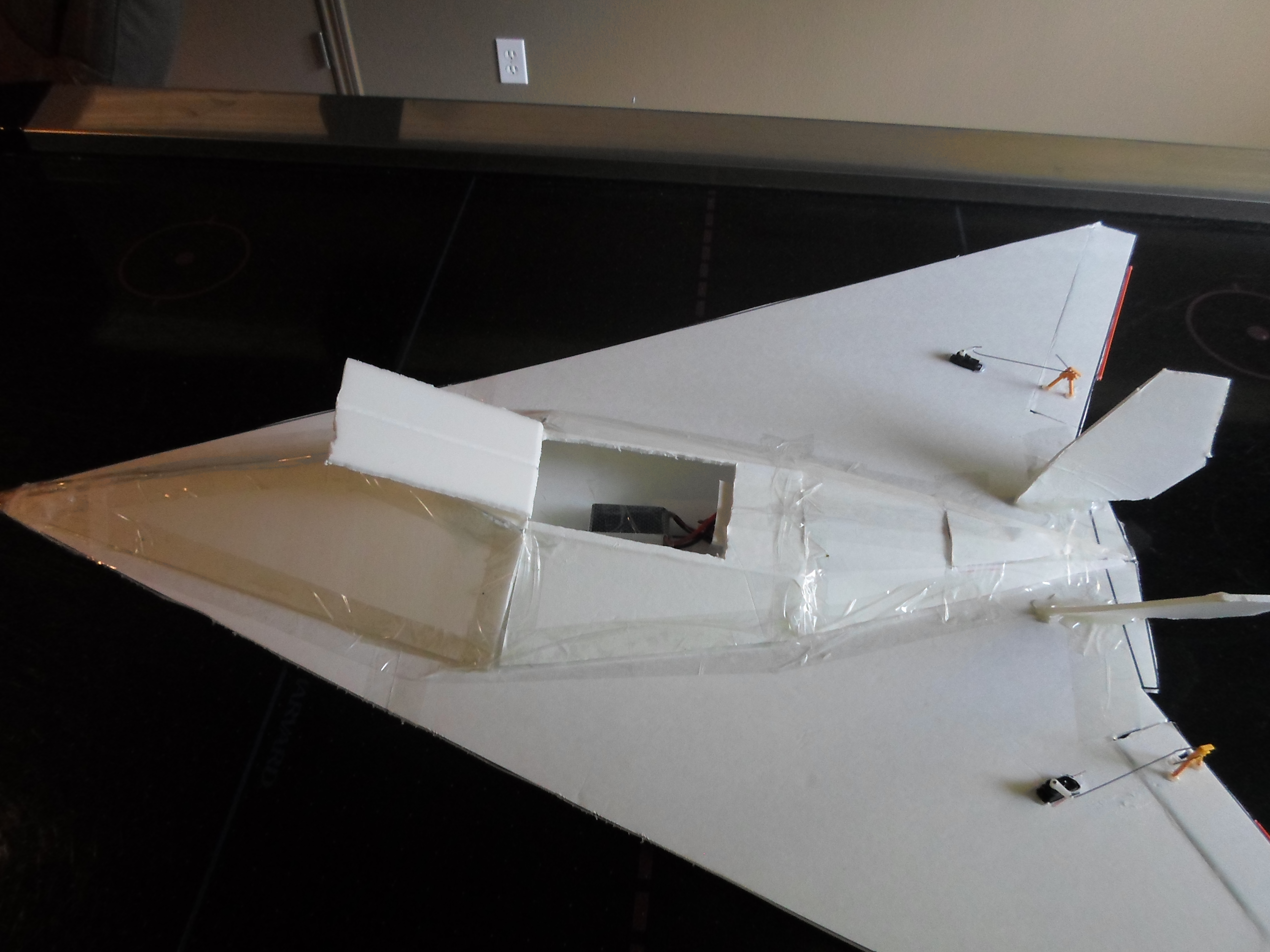

Remote Control F-117A Stealth Bomber
![SAM_0445.JPG](/proxy/?url=https://content.instructables.com/FZ3/9J61/HXMKRXPV/FZ39J61HXMKRXPV.jpg&filename=SAM_0445.JPG)
![SAM_0446.JPG](/proxy/?url=https://content.instructables.com/F5J/OSNC/HXMKRXUC/F5JOSNCHXMKRXUC.jpg&filename=SAM_0446.JPG)
![SAM_0440.JPG](/proxy/?url=https://content.instructables.com/FTX/8M82/HXMKRXAY/FTX8M82HXMKRXAY.jpg&filename=SAM_0440.JPG)
![SAM_0443.JPG](/proxy/?url=https://content.instructables.com/FTN/9WSC/HXMKRXJB/FTN9WSCHXMKRXJB.jpg&filename=SAM_0443.JPG)
![SAM_0442.JPG](/proxy/?url=https://content.instructables.com/F79/9UD3/HXMKRXGY/F799UD3HXMKRXGY.jpg&filename=SAM_0442.JPG)
![SAM_0444.JPG](/proxy/?url=https://content.instructables.com/FCG/YJH1/HXMKRXNM/FCGYJH1HXMKRXNM.jpg&filename=SAM_0444.JPG)
![SAM_0441.JPG](/proxy/?url=https://content.instructables.com/FSI/CP1U/HXMKRXE3/FSICP1UHXMKRXE3.jpg&filename=SAM_0441.JPG)
I made this f-117A stealth bomber because I wanted a cool looking jet glider and I had some extra electronics laying around so I threw this together and i have had lots of fun with it. I made it with dollar tree foam, packing tape and hot glue.
specs.
- wing span:44"
- length:46"
- high:8"
- the longest flight was about 150' just throwing it
![trask poop.png](/proxy/?url=https://content.instructables.com/FC1/8XQW/HXLMQ2AY/FC18XQWHXLMQ2AY.png&filename=trask poop.png)
step.
- first you need to glue and tape the three peaces of dollar tree foam together
- next you need to draw a line down the center
- then you need to measure 14 inches down from the top
- from the 14 inch mark you need to draw a line down to the far corners
- then draw a line five inches from the bottom of the boards that is parallel to the bottom that is 10 inches long
- then take a ruler and make two lines from the edges of the 10 inch line and draw a inch up
- connect the corner of the wings to the top of the inch marks
- from the center of the 10 inch line draw a line one inch down
- connect the sides of the line to the new inch mark
![trask poop2.png](/proxy/?url=https://content.instructables.com/FQG/SF8V/HXLMQ2AZ/FQGSF8VHXLMQ2AZ.png&filename=trask poop2.png)
- cut out your airplane
- take the scraps from under the wings and cut it in half
![trask poop3.png](/proxy/?url=https://content.instructables.com/FVK/ZRFW/HXMUZ3IF/FVKZRFWHXMUZ3IF.png&filename=trask poop3.png)
- take the peaces and cut and place so they fit nicely glue that down
