Recycling an Old Soldering Iron Into a Heated Knife

Have you ever needed a tool, that you don't have? This happened to me, but instead of stumping me, it inspired me into making my own version of this tool. I had an old soldering iron that was no longer capable of melting solder, so I put two and two together and got this. I made a heated knife for cutting through styrofoam. Everybody uses this tool differently for different projects and my purpose for it may or may not appear on instructables. Regardless, this is a great tool to have and has some great modifications that I decided to add to it, such as the wooden shaft and the silicone gel handle grip. So lets hop into this awesome project!

All that you are going to need is this:

materials:

soldering iron

nail

silicone

corn starch

tools:

hammer

screwdriver

drill

maybe a couple other misc. tools to help you

Start by disassembling your soldering iron, it has a removable tip then you can just remove that (unless you want to make the handle) and your good. You need to get rid of the tip for future replacement with the nail.

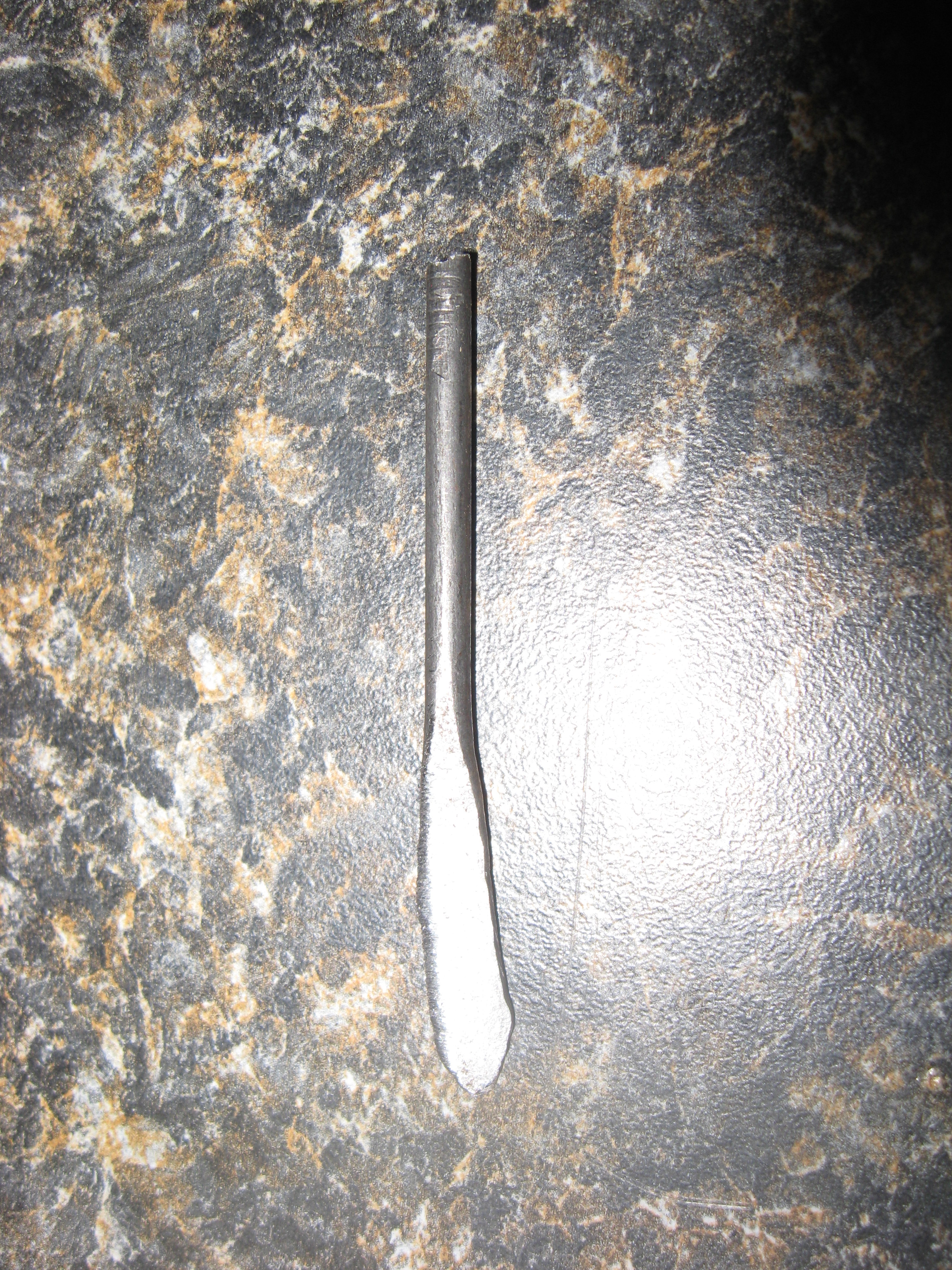

For, the blade, just take a nail (with a small enough shaft to fit in the removable tip of the heater, if you have a removable tip) cut off the head of the nail (I used a hacksaw) and hammer the tip to get it flat. Once it is flat enough then you can take a file and start sharpening one side (I also filed down the tip so it wouldn't be as sharp, you don't usually need a sharp tip anyway). Once the desired tip is formed then you can move on.

Now you just reassemble you new knife. But remember to leave the handle off if you want to make a custom one.

First I found a wooden broom handle and cut off a little bit. Then I found a drill bit that was about the same size as the knife. Then just drill a hole in the middle of the wood handle and slide your knife in. (mine had a convenient split that i could slide the wires right through but you might not be as lucky, so you can cut and re-solder the wire)

It is now time to patch up any flaws in our handle. As I stated in the last step, mine had a convenient split, so I used silicone to glue it back together and keep it solid.

Now you need to get some silicone, a container, and your cornstarch. Put the silicone in the container and then also put in some cornstarch. Then mix it up. If you need a thicker consistency then just add more cornstarch. Basically I made a sugru substitute, it was made by Mikey77 (who calls the substitute Oogroo) in this instructable here. It would be smart to check out his explanation because he explains it a lot better than me.

In theory, you can dye Oogroo with a little bit of food coloring, be warned though, it takes a lot of work to mix it all in, I gave up after a little while so mine was only partially dyed. You guys tell me if it does work if you figure it out.

Using the Oogroo,we are going to form your custom handle for your knife. It is really nice to have a bowl of water close by to put your hands in so the silicone doesn't stick to your wet hands and makes the whole process easier. Just pile on the Oogroo and shape it to the desired shape and then set it out to cure. I used a vice to hold the handle so it wouldn't touch anything and hinder the shape of the handle. Now you have your silicone gel handle done.

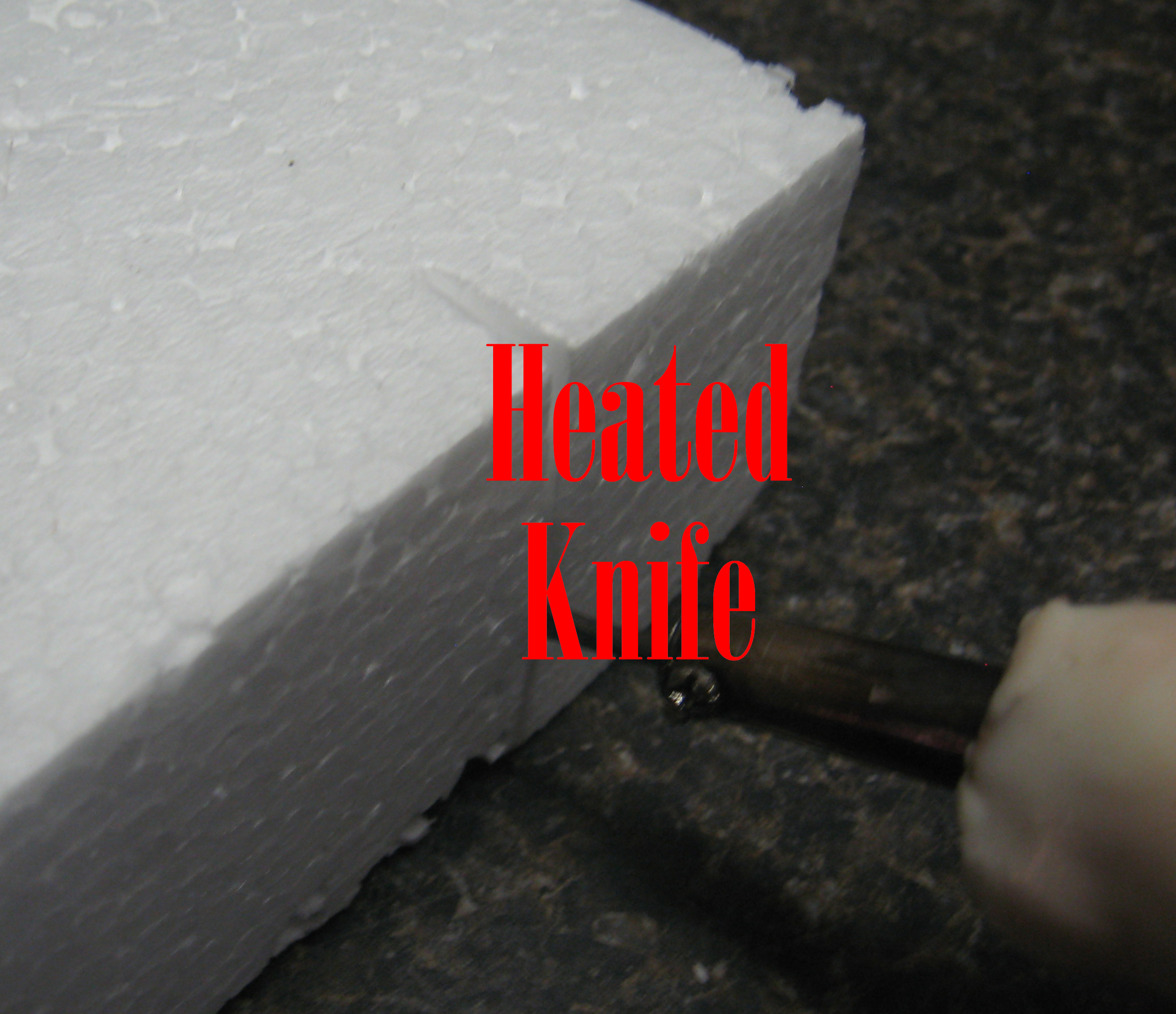

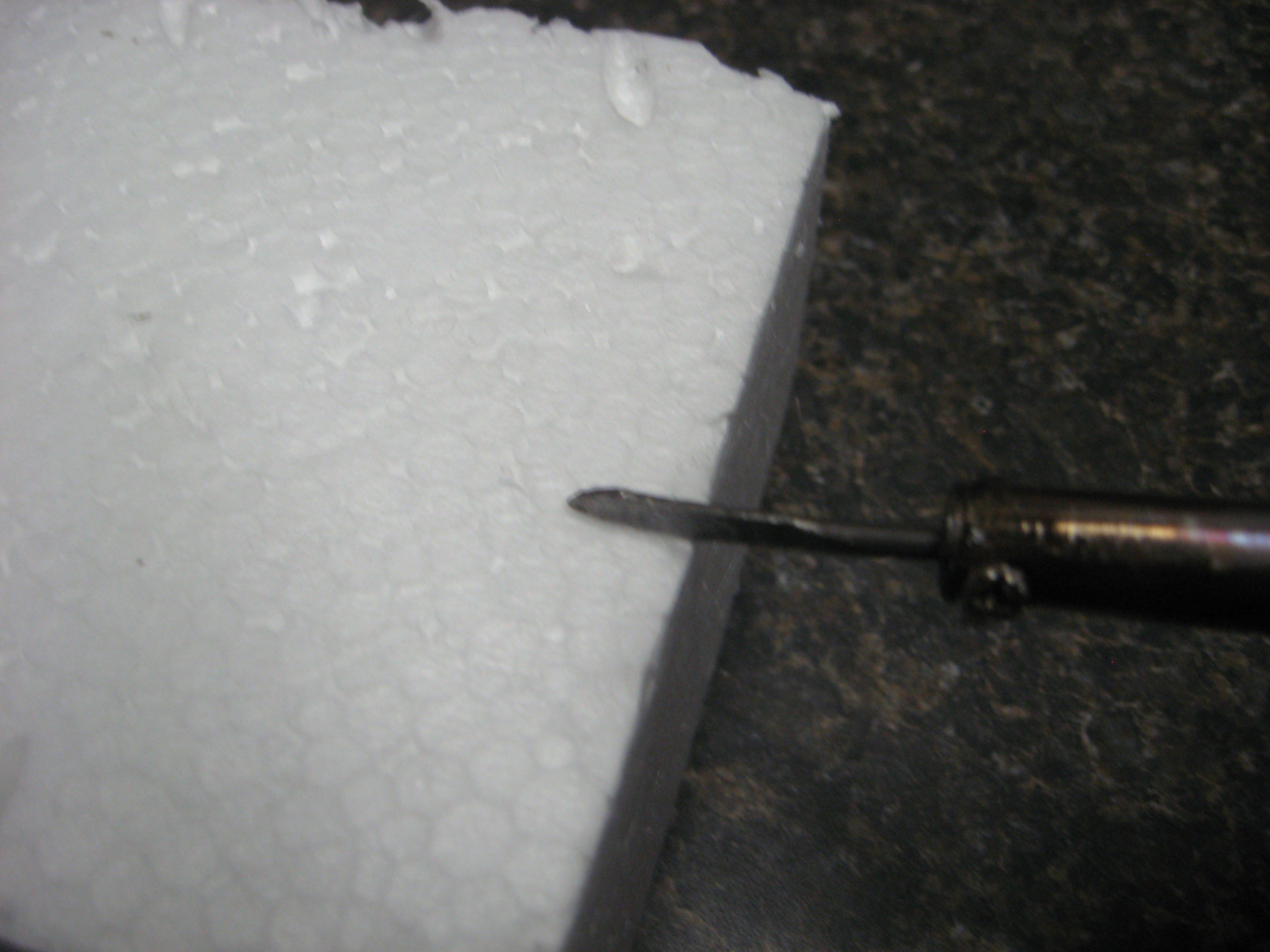

Your heated knife is done. I hope you enjoy and don't forget to vote!
