here making my media center in which I put a raspberry pi, a key android hdmi, usb hub, switch hdmi and external disk
First of all, I do not put the details of making box

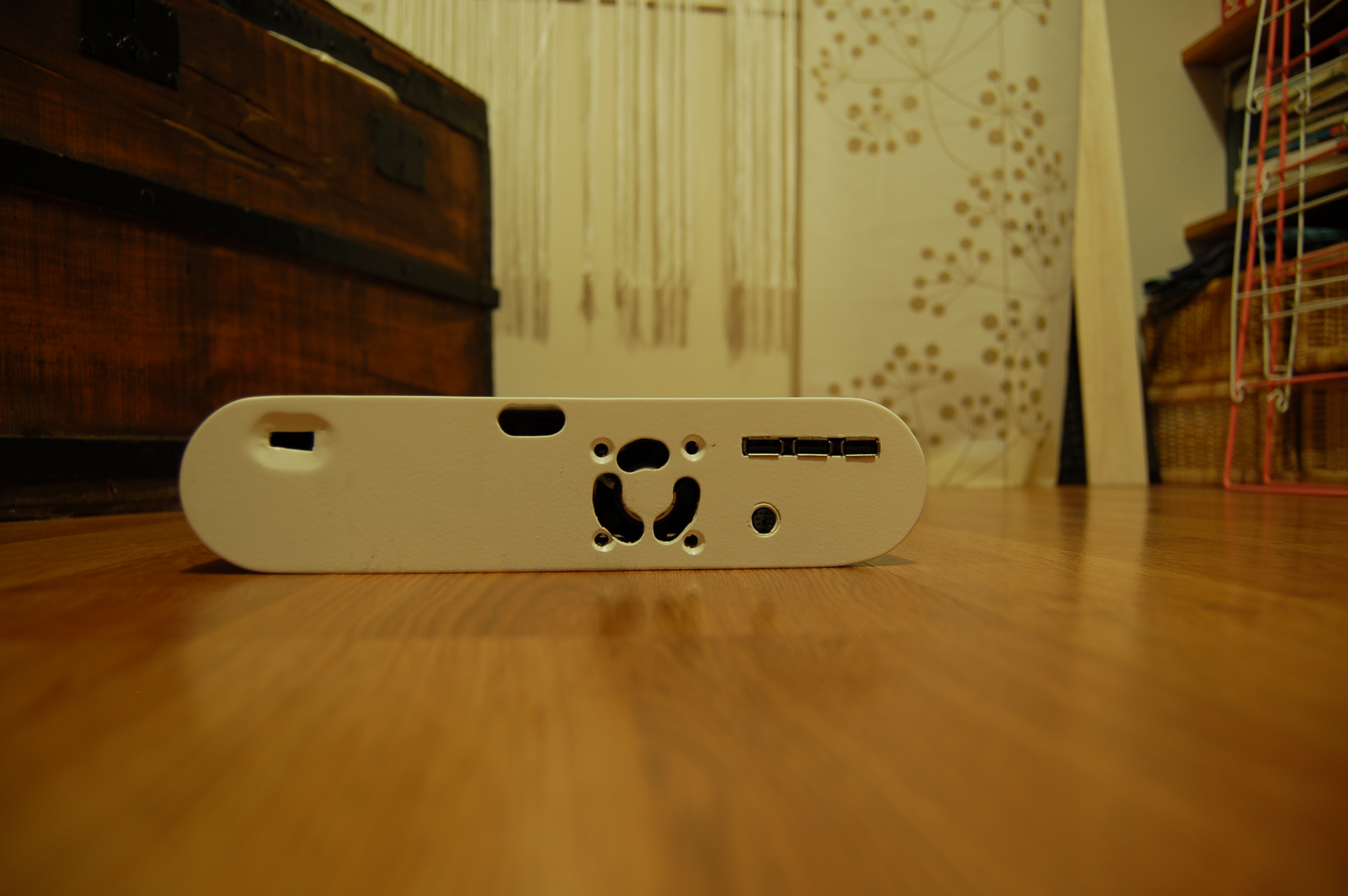

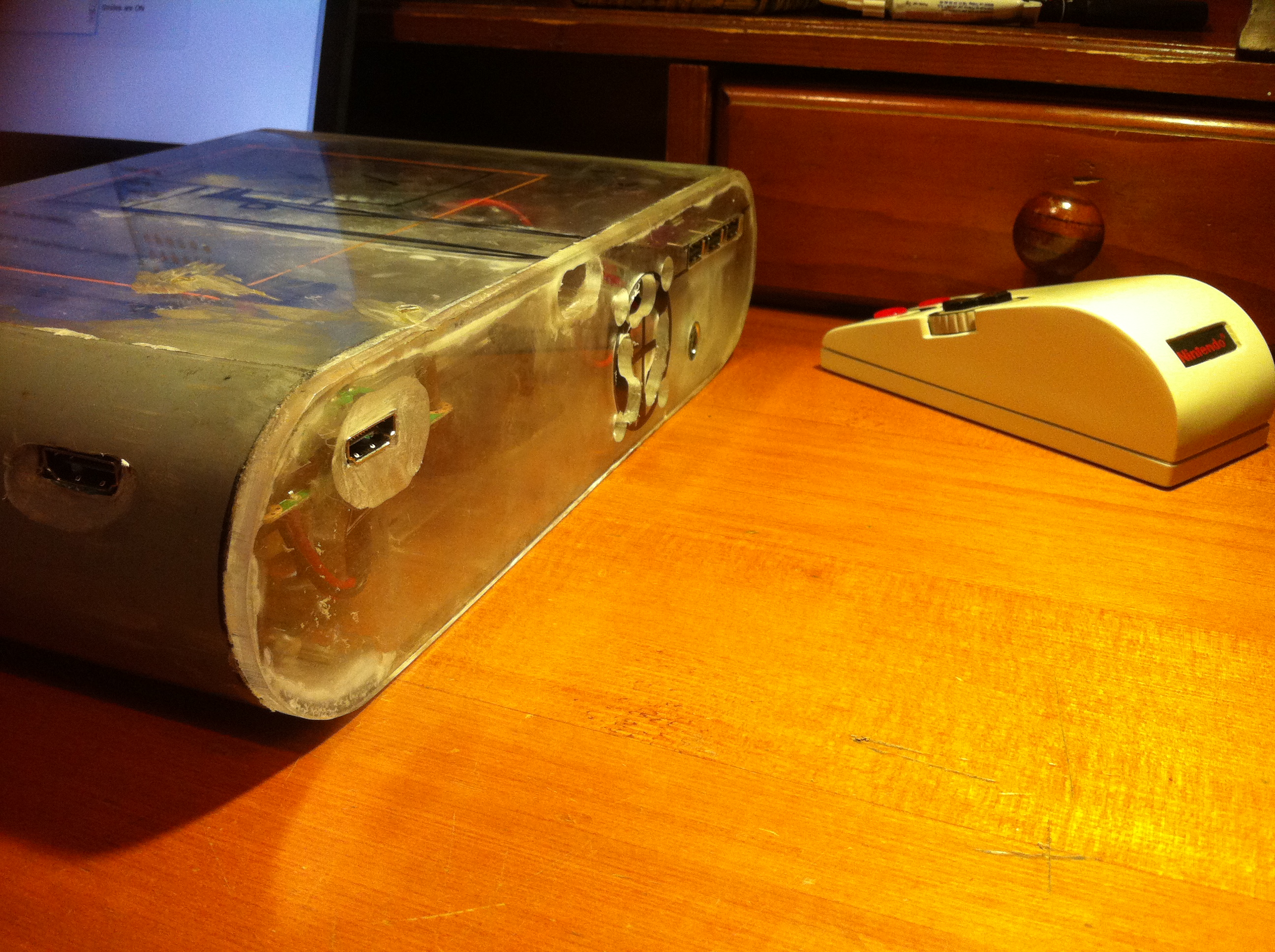

I can only say that the edges are rounded pvc pipe cut in half
the rest of the body is PMMA (Makrolon)
everyone is free to make the shape that suits
what we are interested in solutions to integrate a maximum of thing in a reduced space!

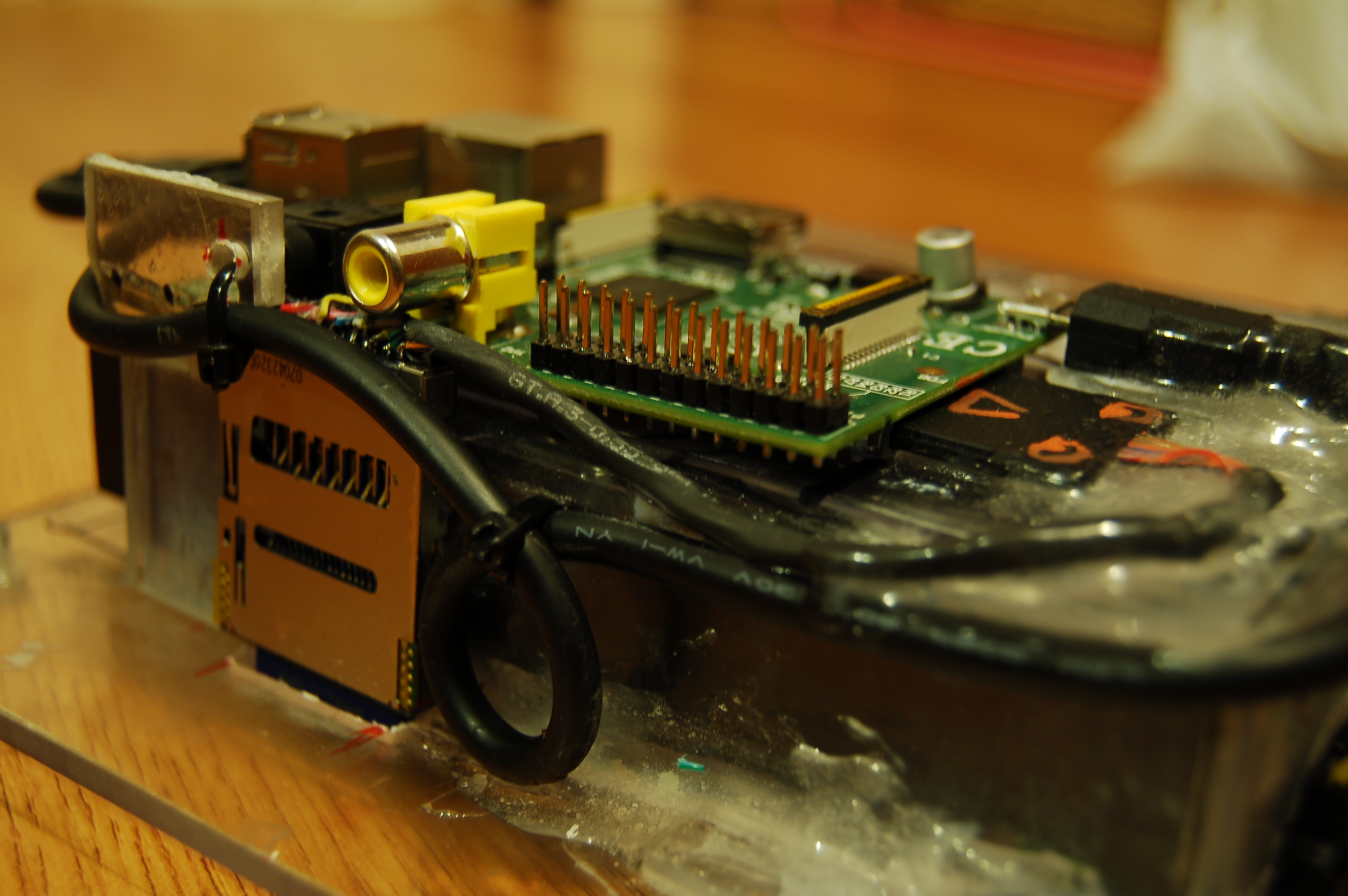

taking a micro adaptater, cut the location of the micro sd and welding wire going up a netbook sd dock that is placed or you want

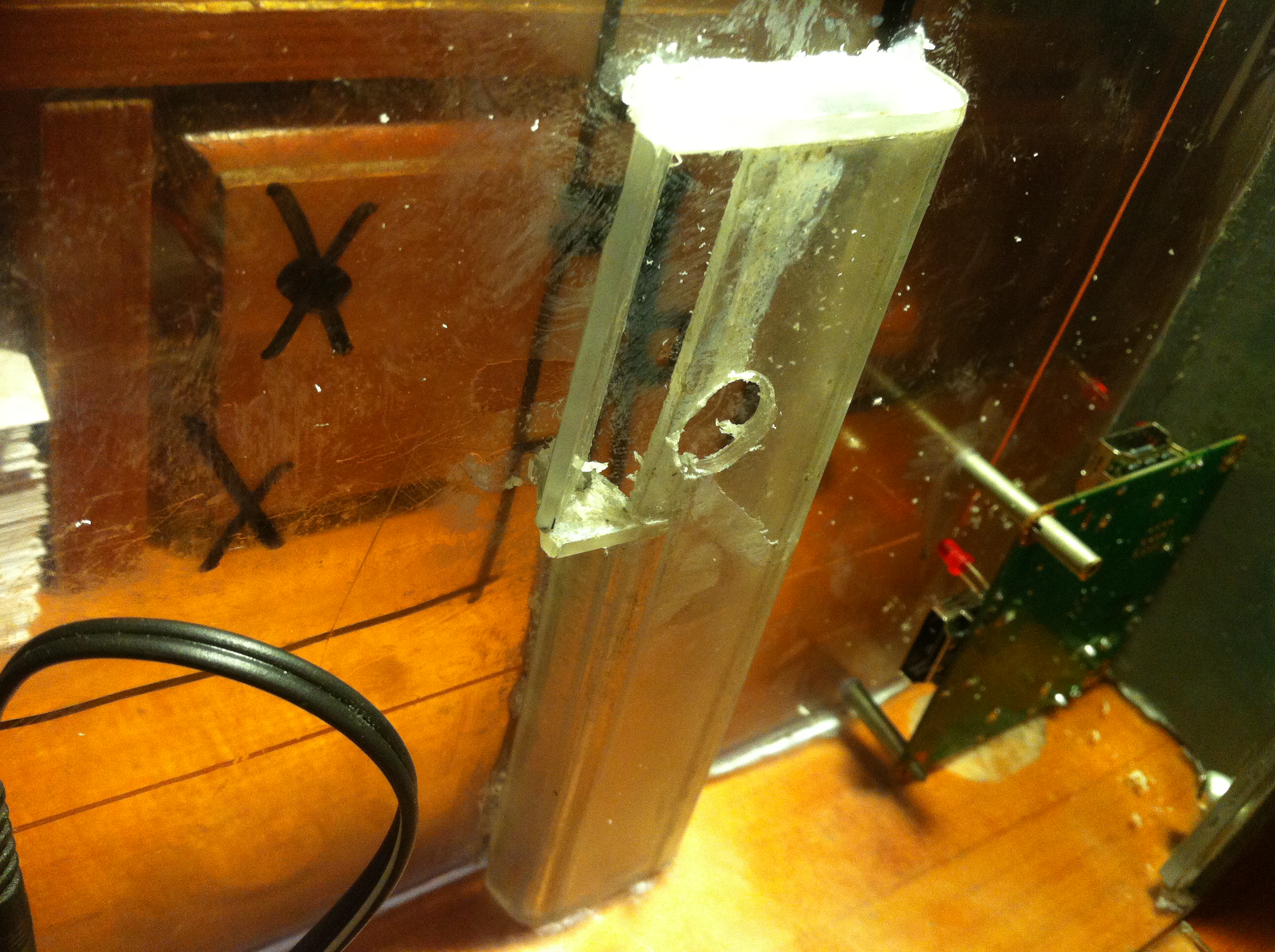

use of polycarbonate, and behind the wide angle LEDs to better distribute the light

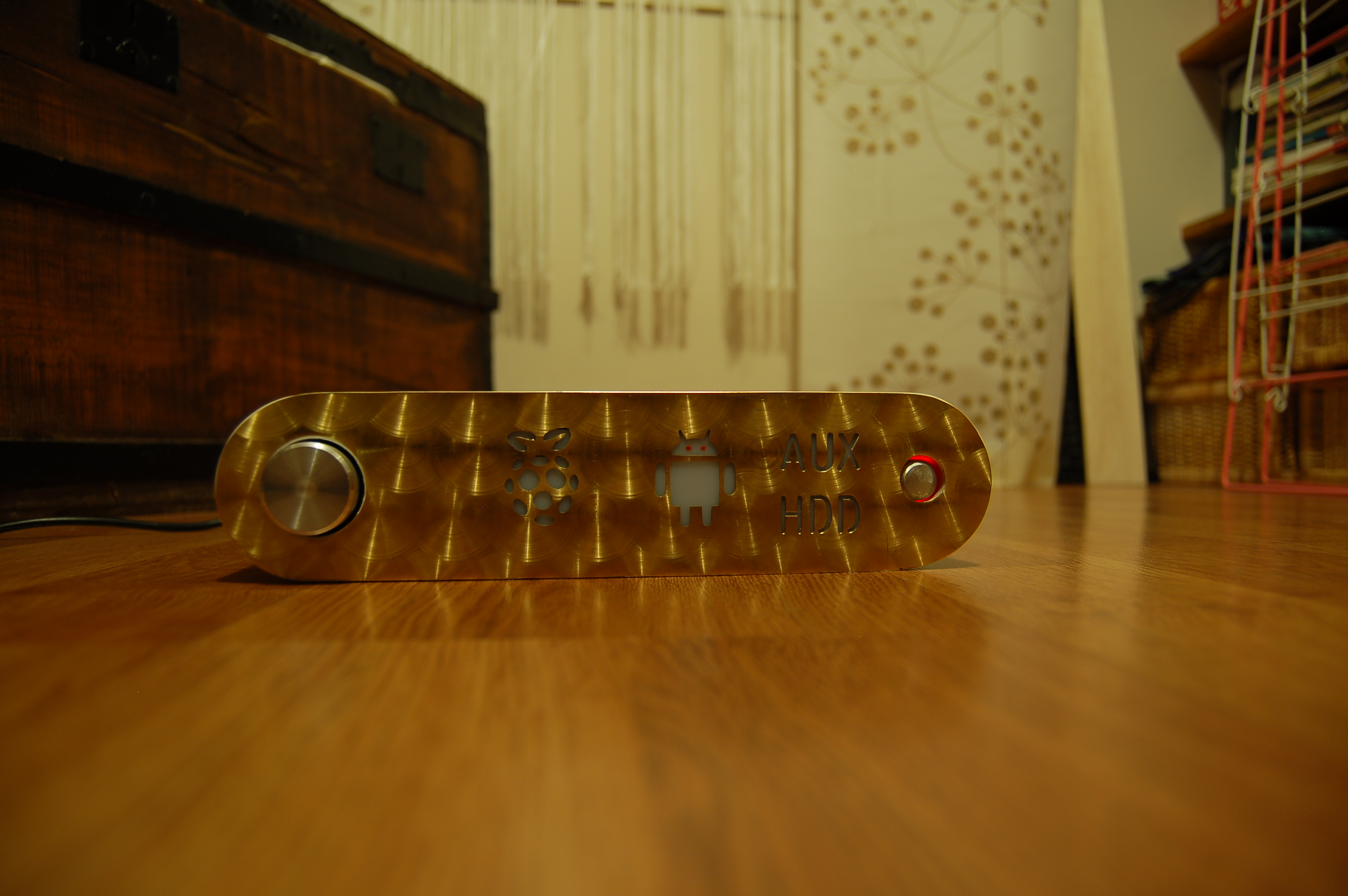

a brass plate easily machined by hand to the desired pattern

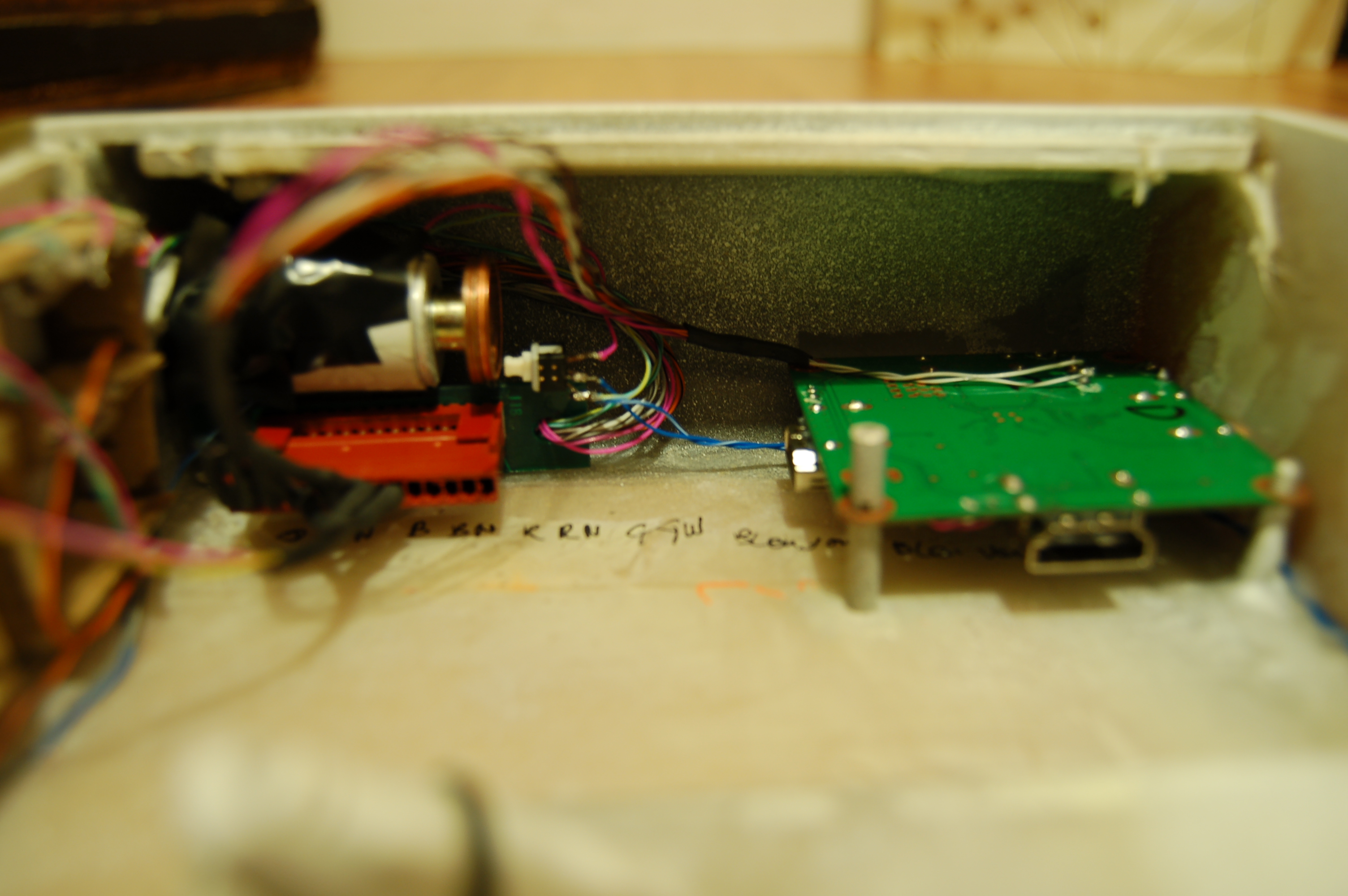

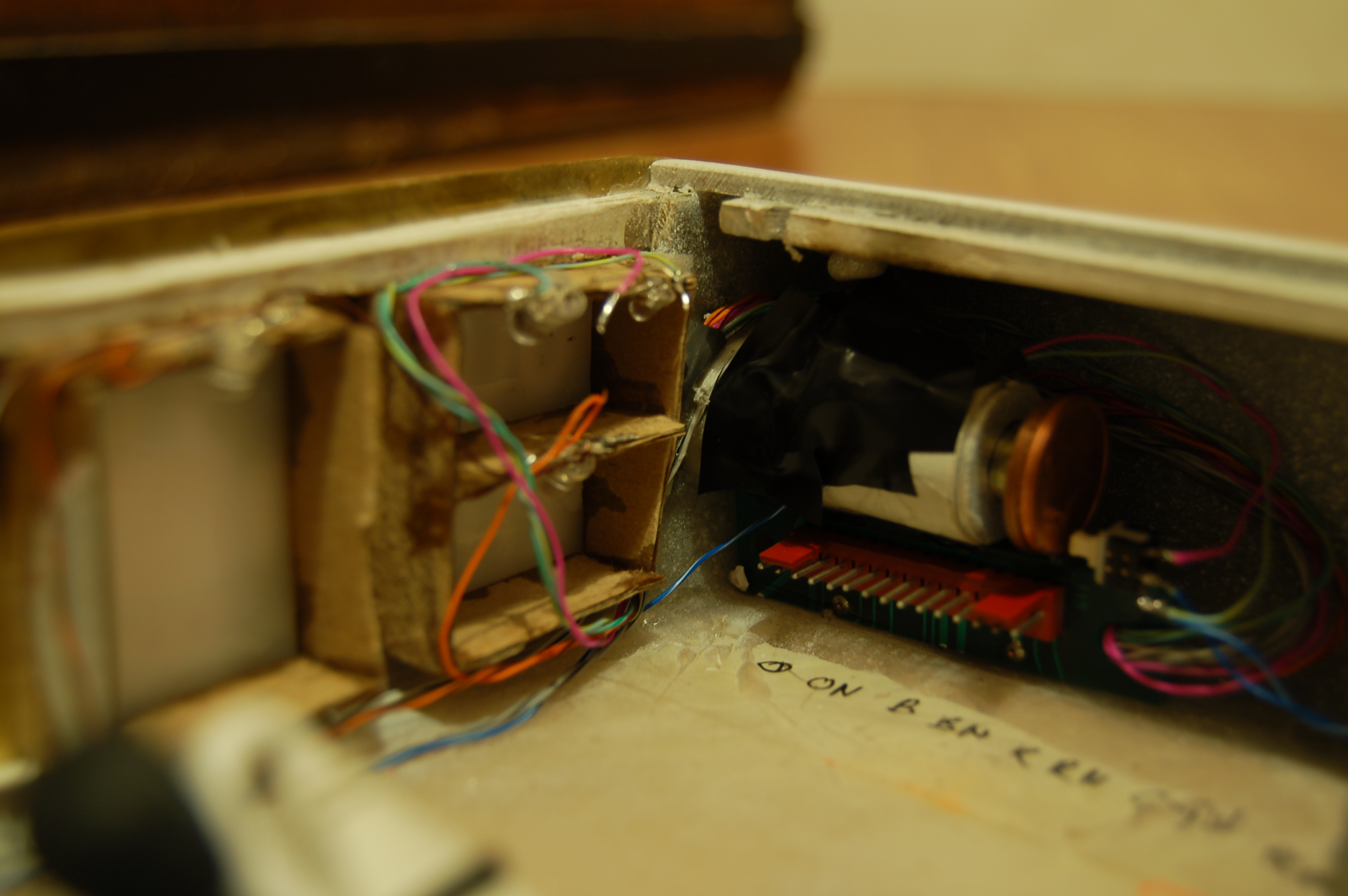

pieces of cardboard to isolate colors

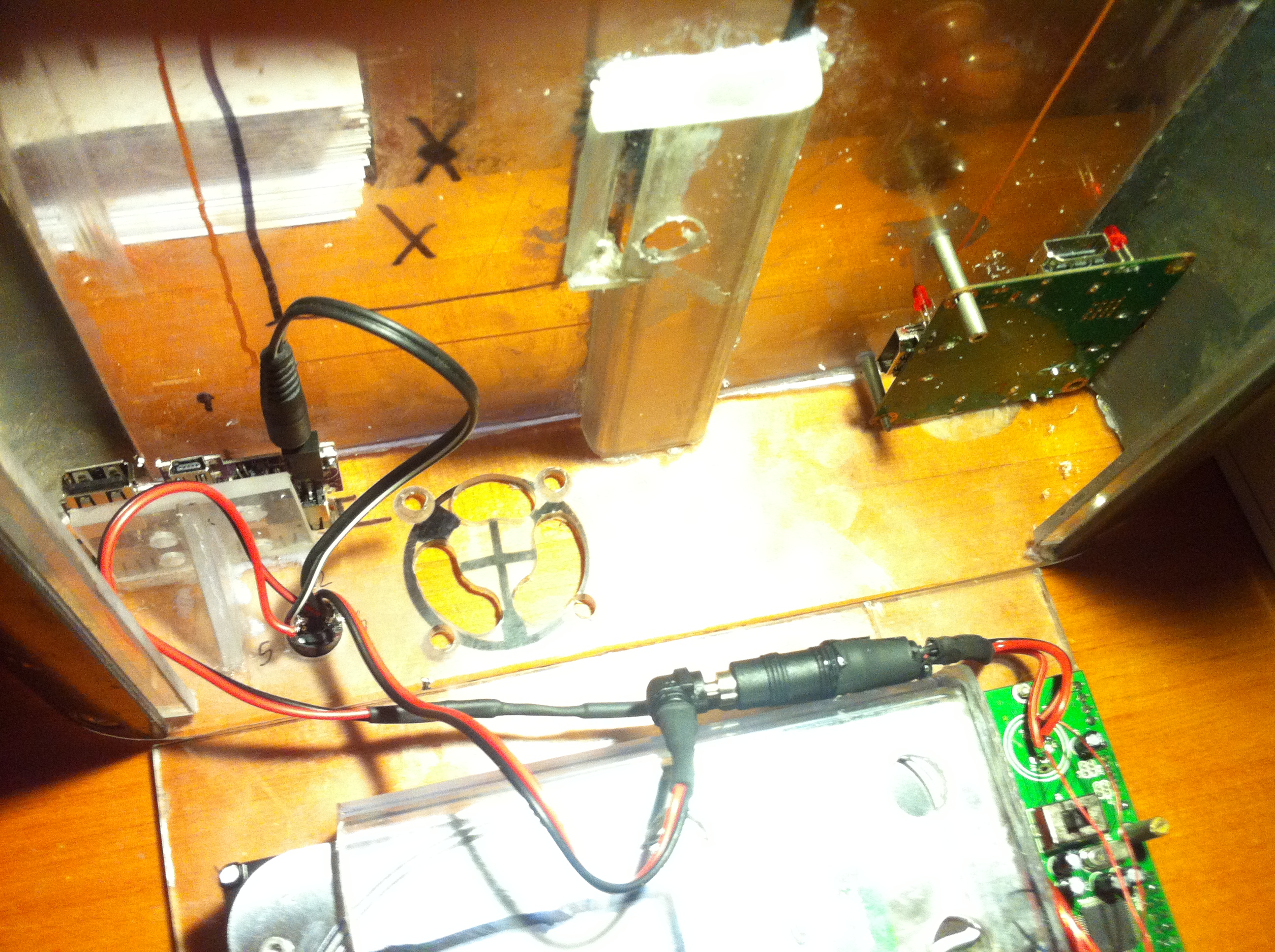

paste the sdcard and power extension of pi on the chassis hard disk

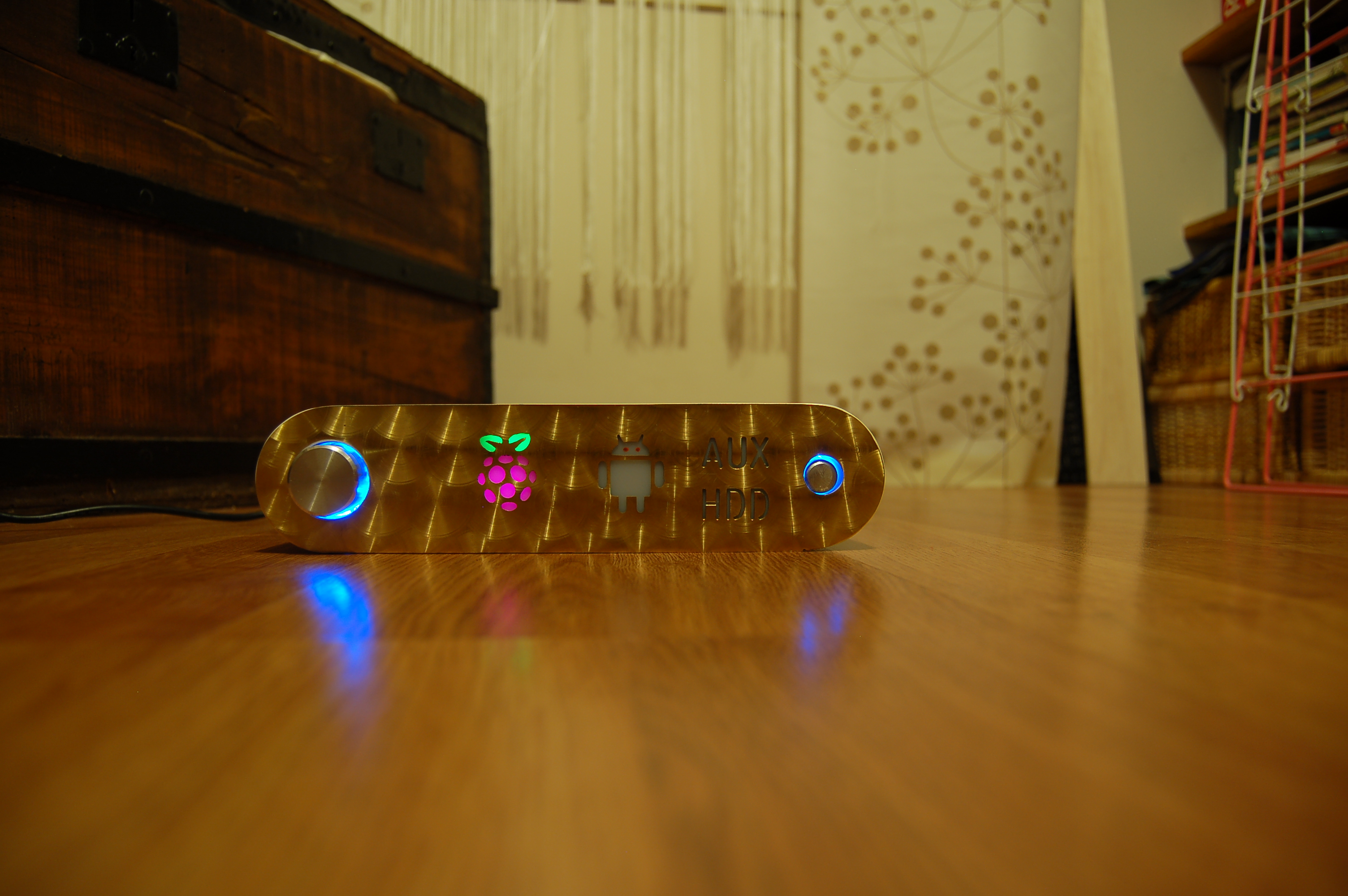

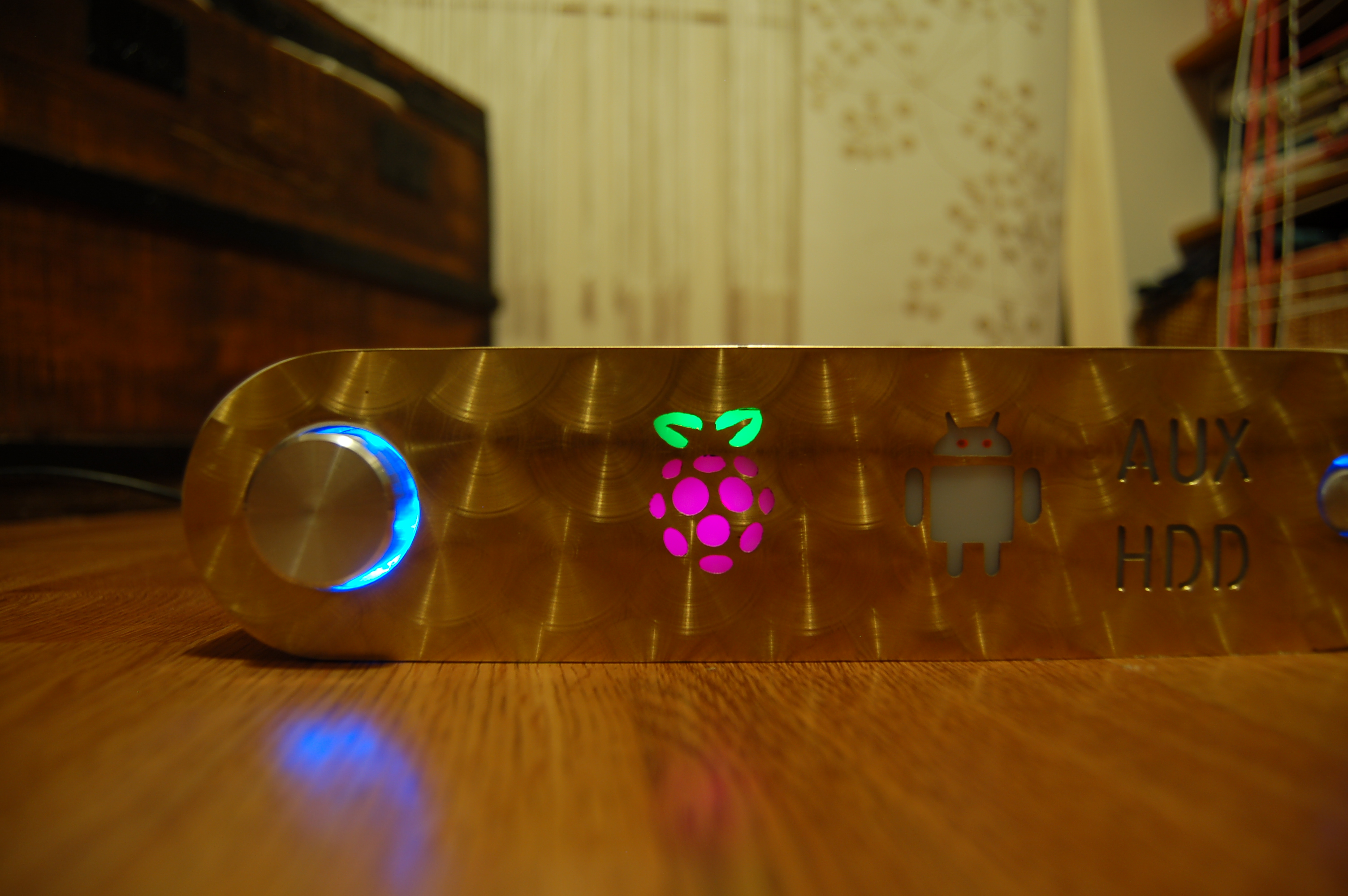

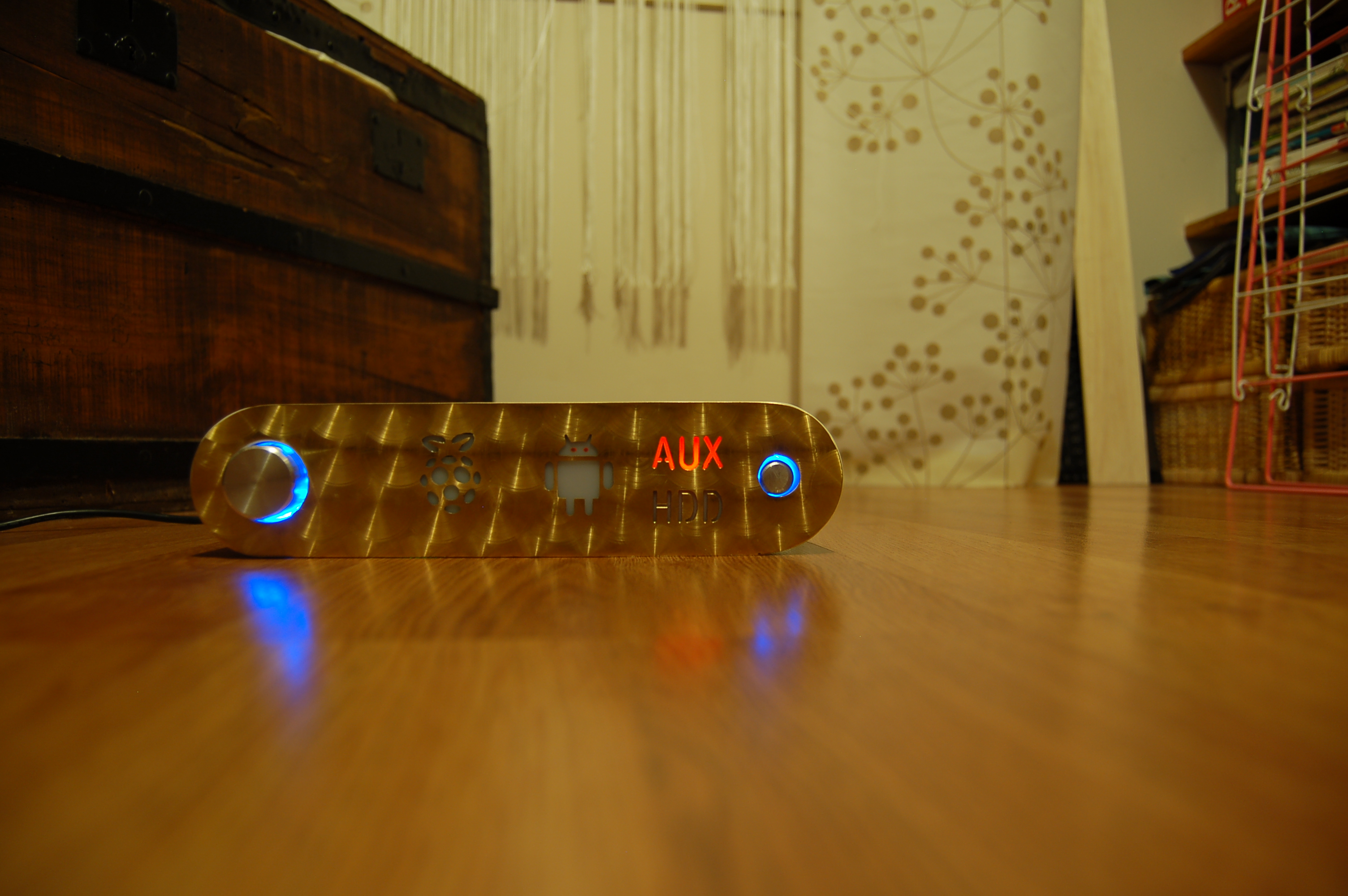

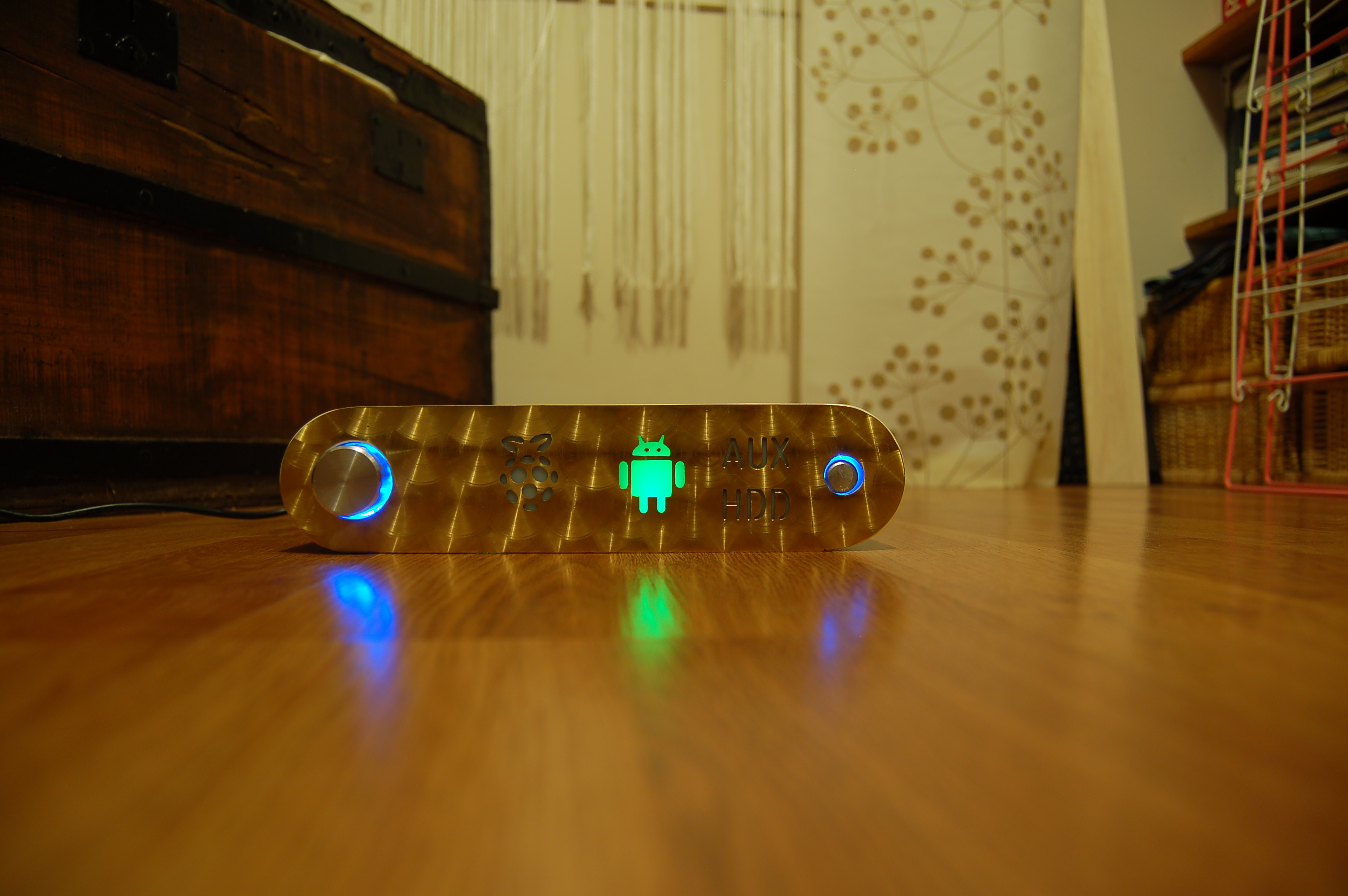

switch LEDs are replaced by color LEDs to illuminate the facade following the AV
usb cables are easy to shorten

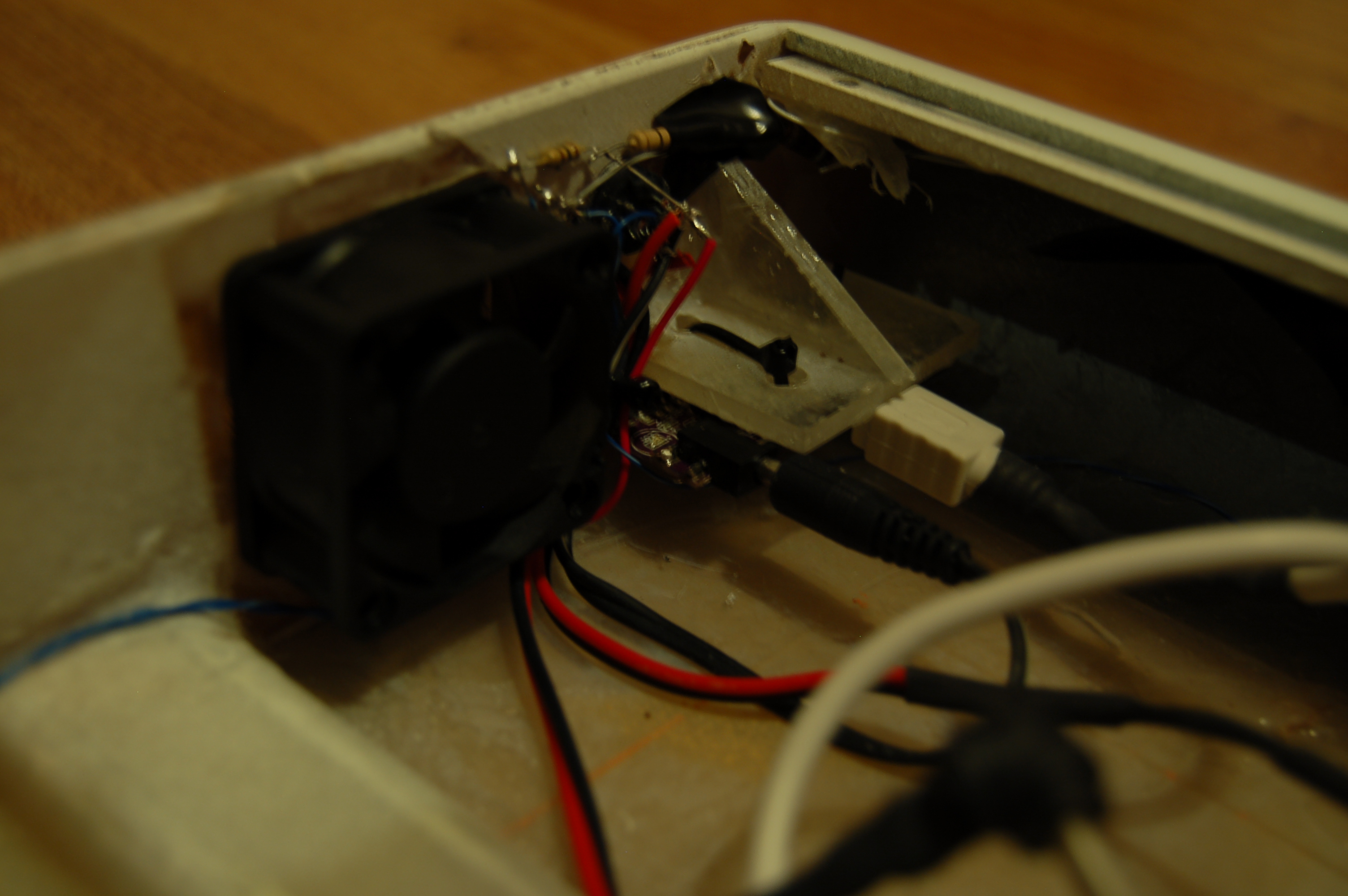

use the power of the hard disk:
-12v fan and hard drive
-5v for hard drive, usb hub, Pi, android tv, button LEDs (with resistors)
cyanoacrylate glue to set up and epoxy glue to hold everything firmly
electric wire cable to Computer monitor: inside they are plenty and they are very small
