Portable Mister

I love seeing all the designs created by others - Thank you !! This is my first so please bare with me and let me know what additional info should be added..

We had a trip planned to the coast and we do a lot of tail gating so I wanted to build an affordable mister that was portable.

Items needed :

2 - 5 gallon buckets. Firehouse sub sells their food grade pickle buckets for 2.00 and donates the money to local fire stations.

micro mister - I used MistyMate 15006 it has a 10' mist line. $15.00

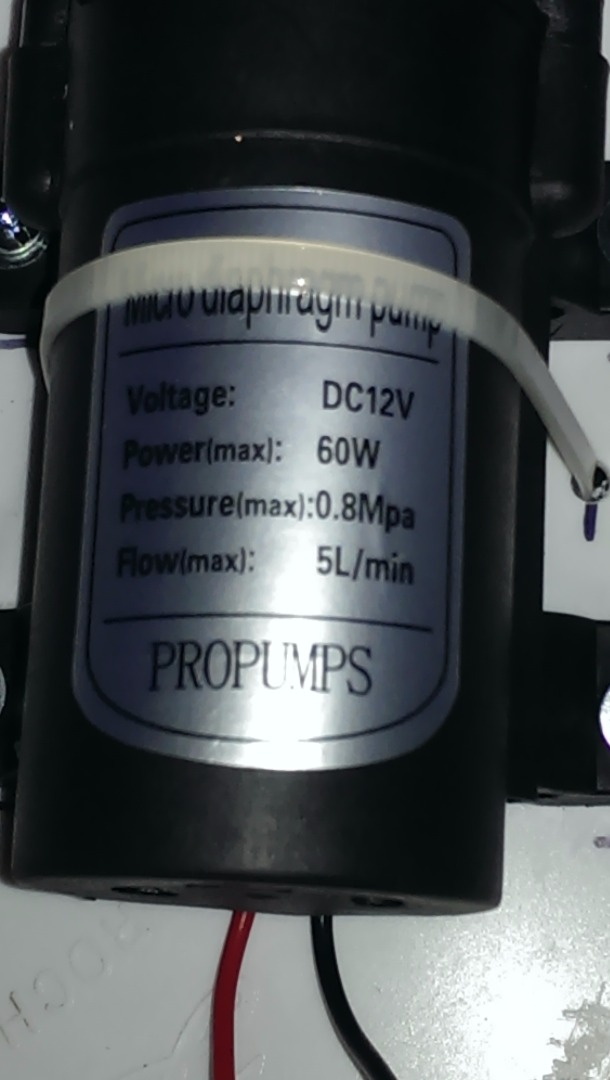

12v micro diaphragm pump - i used Estone 12V DC 5L/min 60W Micro Car Diaphragm High Pressure Water Pump Automatic Switch. it has a operation range around 80 psi. The mister had a min. of 60 psi. $20.00

12v battery - I used a U1 tractor battery from Walmart 20.00 (choose it so i could use it as a spare for my mower)

2' 3/8 tubing 1-2.00

alligator clips 1.00

waffle ball - free

old sock - free

tie wraps - free

radiator clamp - 1.00

3/8 to GHT adapter - 3.00

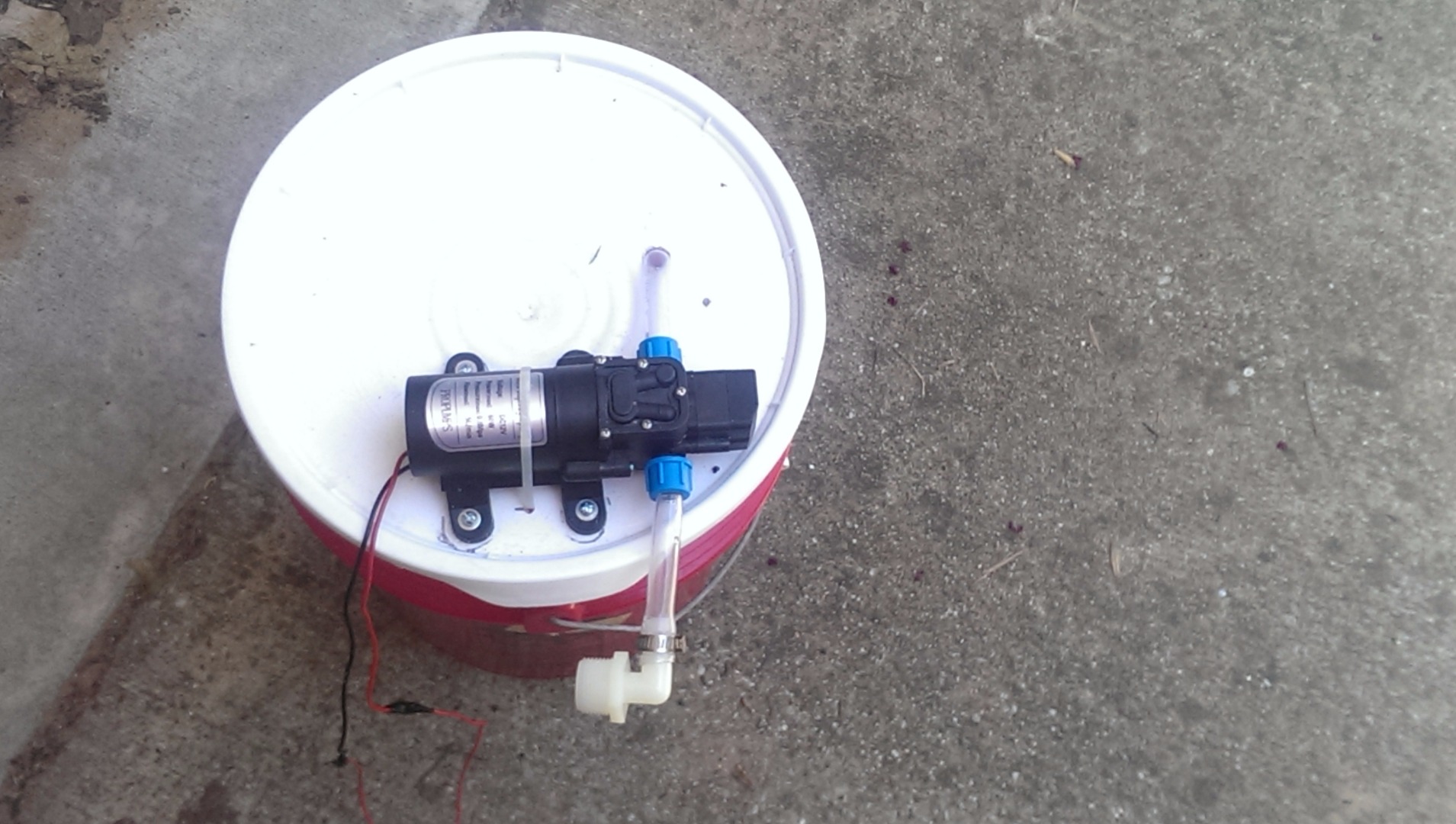

I drilled 4 holes in the lid to screw the motor onto, and 2 more holes to strap a tie wrap around the motor to secure it to the lid.

1 more hole to run the inlet tube thru.

I cut a hole in the top of the waffle ball and used an old sock as a filter.

To put the tube on the 3/8 barb I needed to heat it first. I first used a tie wrap but it didn't last long so ended up adding a radiator hose clamp to secure the outlet hose.

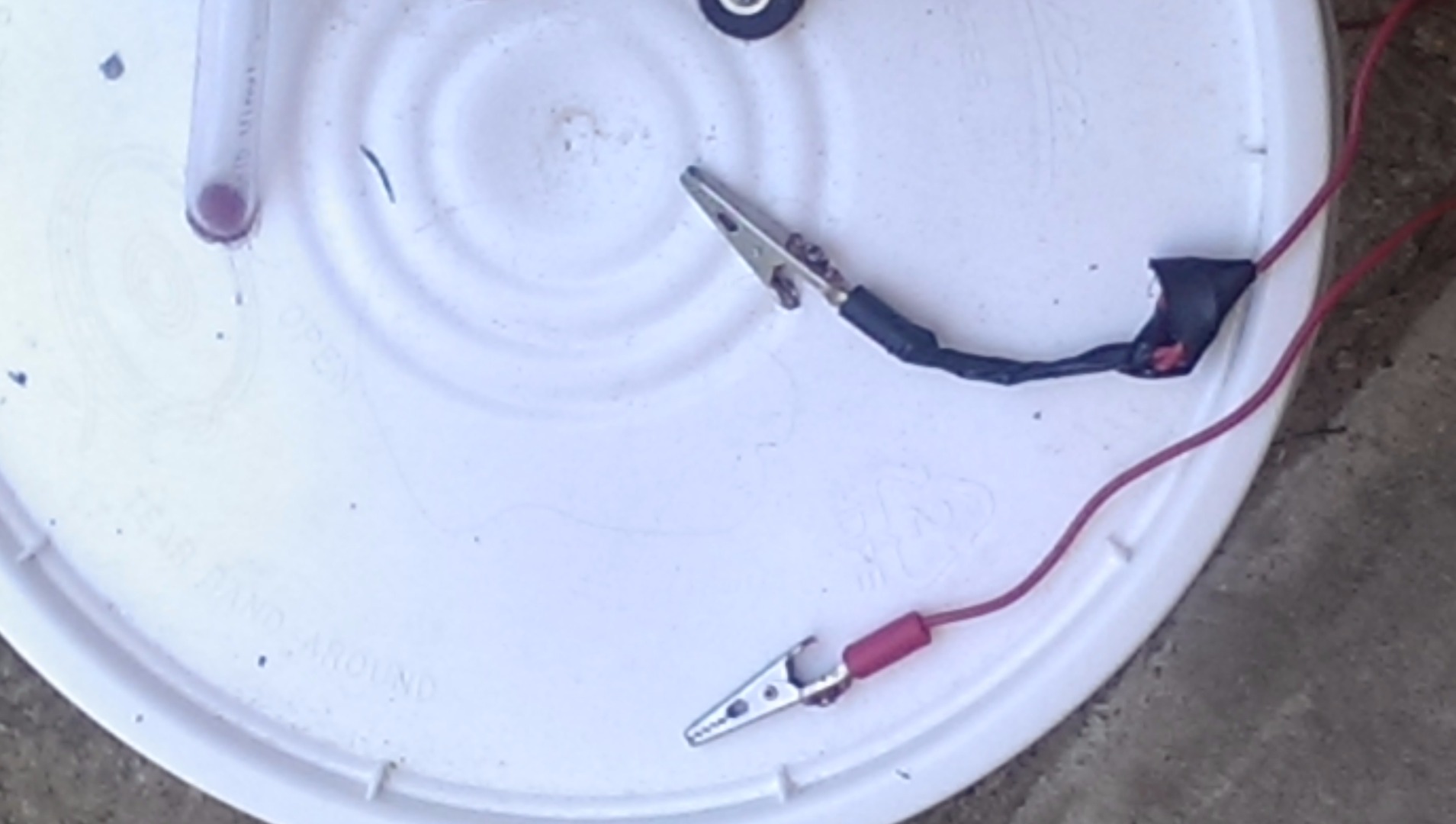

I had to finish while on the beach so took a short cut. I just added alligator clips. next improvement will be to add a switch. I only ran it about 15-20 min at a time and would manually unclip it. Will run it longer for tail gating.

I had 2 buckets with the intent to swap them out or use the 2nd to fetch water.

I ended up using the 2nd bucket to hold the battery so it was out of the sand.

The motor was a little loud but 5 feet away on the beach and we didn't notice it at all.

My expectation was that the motor would cycle on\off with the pressure switch but never did. The motor is probably overkill and could have used one with a lower PSI.

In my head i was going to cut a hole in the side of the 2nd bucket and add a bulkhead adapter so the 2nd bucket would keep it filled and allow for sediment to settle before going into primary bucket - but we ended up not running it long enough to go thru a bucket.

over all it worked awesome. The mister hose and battery would all fit in the bucket so it was self contained for storage\carrying. We were able to use it on the beach and in the area where we were boiling and frying shrimp :) where it made a huge difference.

Looking forward to running it longer during tailgate season to see how long the battery will last between re-charges and to go thru 5 gallons.
