Paint Your House Address on the Curb
My neighborhood has the addresses painted on the curb, mostly so emergency services can find your house in the case of an, um, emergency. The one in front of my house was getting quite worn, so I decided to repaint it.
Items needed:
spray paint (gloss white, reflective, and semi-gloss or flat black)
template
masking tape
newspaper for masking
TechShop (for making template)
Items needed:
spray paint (gloss white, reflective, and semi-gloss or flat black)
template
masking tape
newspaper for masking
TechShop (for making template)
Make a Template
I used the computers at TechShop, since they also have Laser cutters for the next steps. Also, I don't have Corel Draw on my Mac, and it's available on all of TechShop's computers.
I used Corel Draw to sketch a 4" tall set of house numbers. I selected a font I liked, placed the numbers, then used Corel's convert to curves feature to get the outline of the numbers.
I originally cut them out in heavy paper, but decided I wanted a truly reusable set, as the numbers fade on the curb after a couple of years. Therefore I used a piece of scrap acrylic for the final version.
I used Corel Draw to sketch a 4" tall set of house numbers. I selected a font I liked, placed the numbers, then used Corel's convert to curves feature to get the outline of the numbers.
I originally cut them out in heavy paper, but decided I wanted a truly reusable set, as the numbers fade on the curb after a couple of years. Therefore I used a piece of scrap acrylic for the final version.
Measure the Curb for the Template Bend

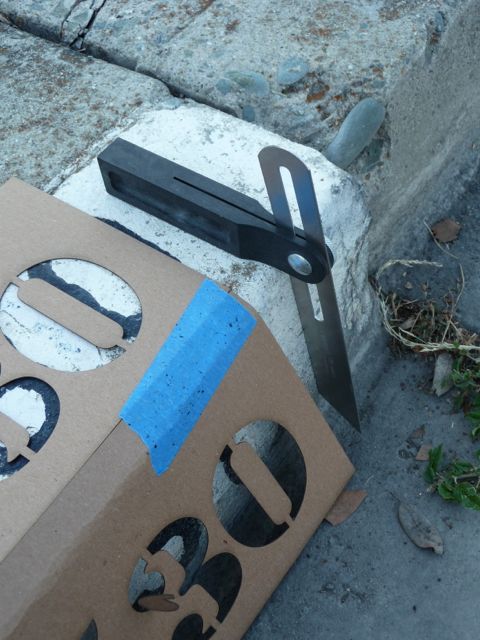

Back at home I used the cardboard version to verify position, and also measured the angle of the curb, since the acrylic needs to conform to this angle.
Cut the Template Out of Acrylic, Bend It to Fit the Curb
Back at TechShop I used the laser cutter to cut out the letters in acrylic. After warming up the Heat Strip Bender, I transferred the angle measurement to a protractor, and set the angle of the cooling form to match the curb angle.
I marked the bend location, heated it up and then bent it. The cooling jig allows you to hold the part at a set angle until the plastic cools and sets. (The heat strip photo is from another project).
I marked the bend location, heated it up and then bent it. The cooling jig allows you to hold the part at a set angle until the plastic cools and sets. (The heat strip photo is from another project).
Prepare the Curb and Paint a Base Coat
Mask the curb with newspaper and masking tape.
Spray a coat (or two or three) of the gloss white spray paint.
When it is dry, coat the base layer with the reflective coating paint.
Spray a coat (or two or three) of the gloss white spray paint.
When it is dry, coat the base layer with the reflective coating paint.
Place the Template and Mask It, and Paint the Numbers
Once the reflective layer is dry, place the template on the curb, mask the edges and paint thru it using the semi-gloss black paint.
Remove the template, clean up the masking, and you're done!

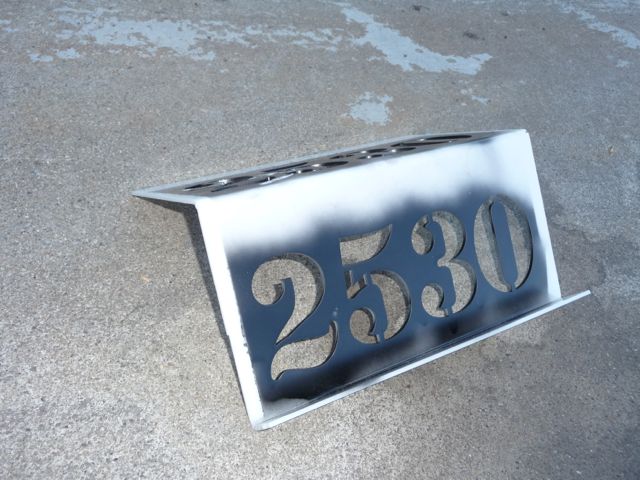

The Template is ready to use whenever the numbers start looking sketchy again.
Remove the template, clean up the masking, and you're done!
The Template is ready to use whenever the numbers start looking sketchy again.
