Make Your Power Supply to Fit in a Full Power Strip

by eurgeli in Circuits > Assistive Tech

1347 Views, 7 Favorites, 0 Comments

Make Your Power Supply to Fit in a Full Power Strip

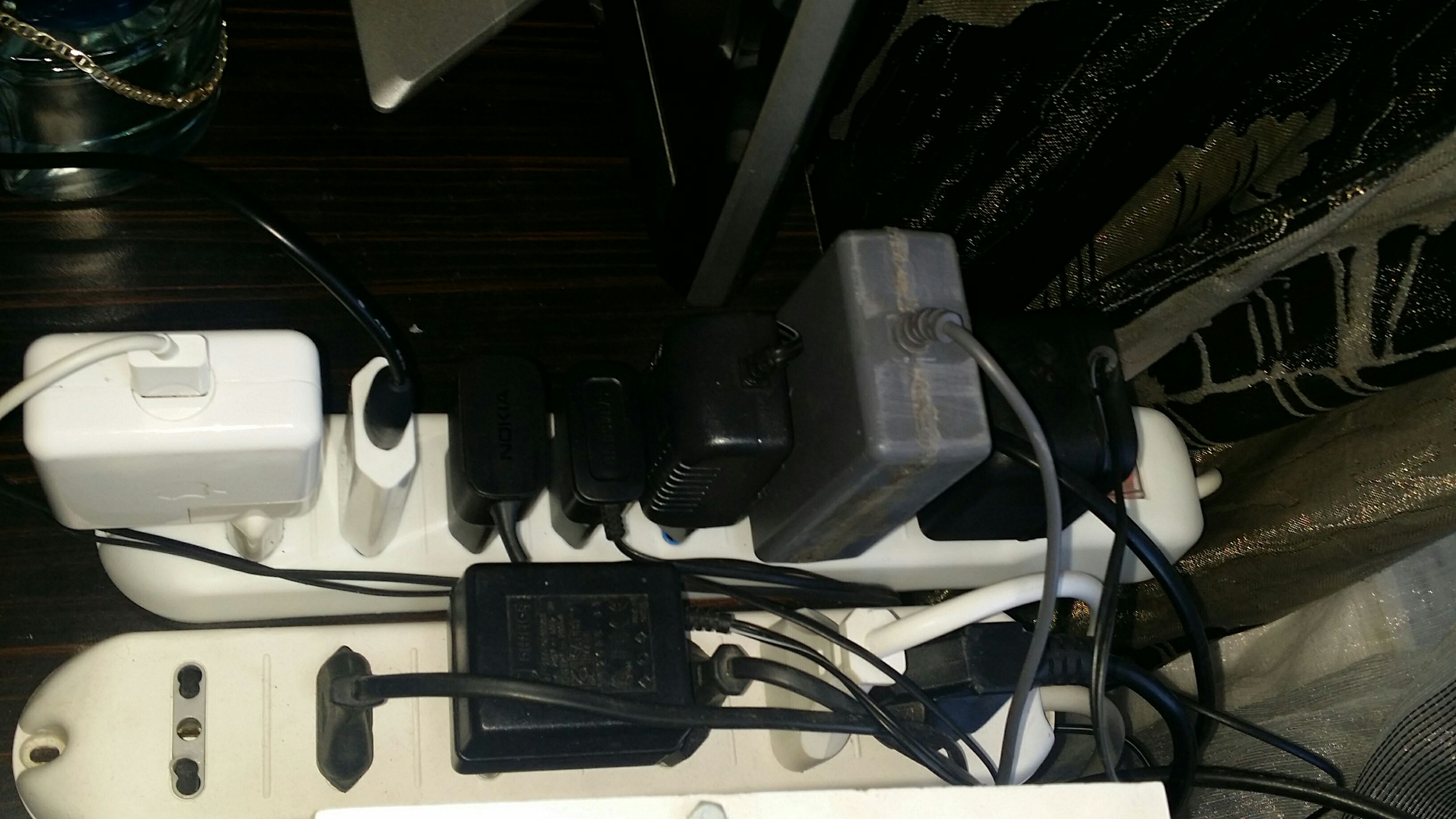

usually when your power strip is full
u cant add a lot of power supply so this will help u

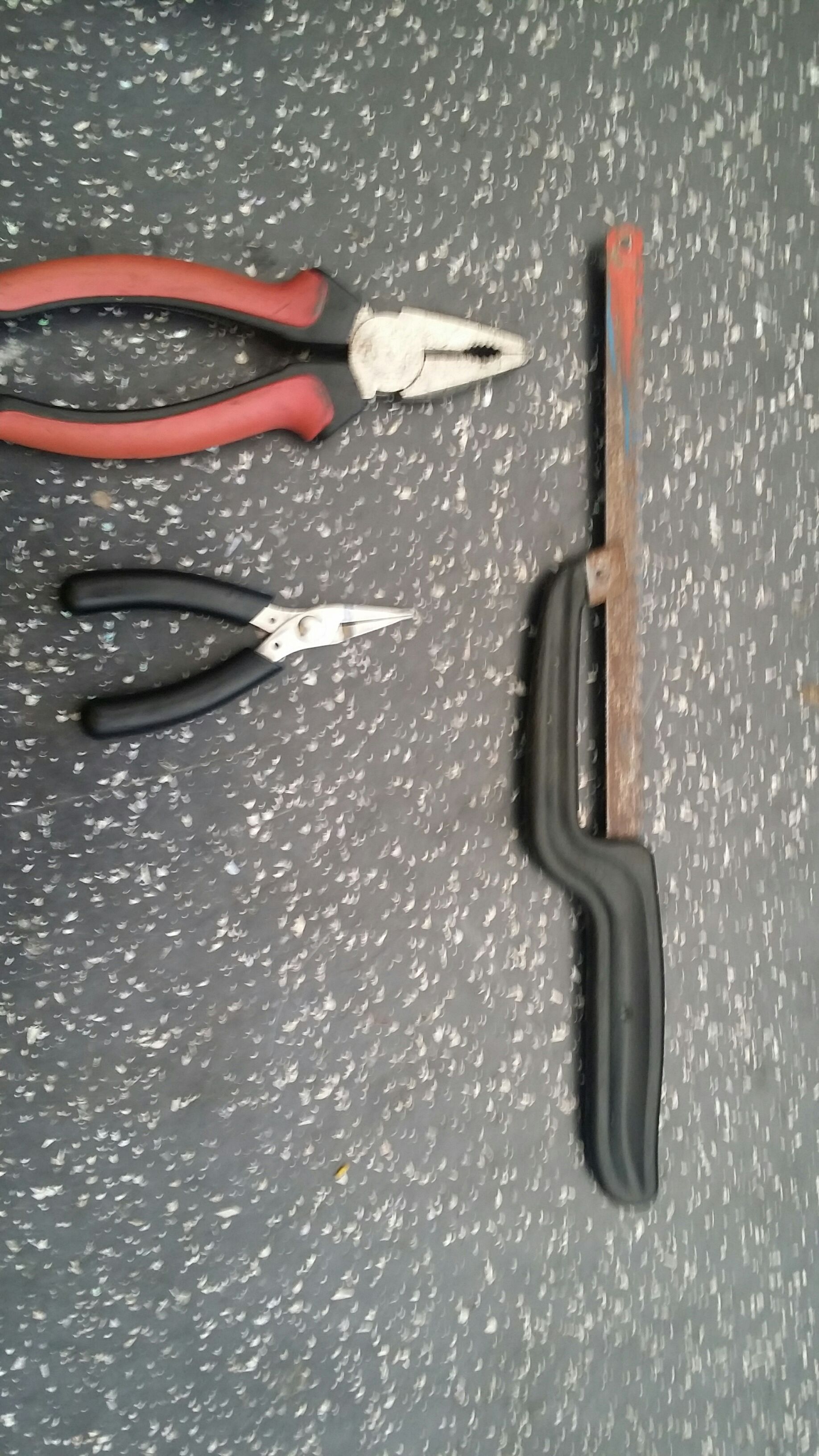

Tools U Will Need


Get the Head Off

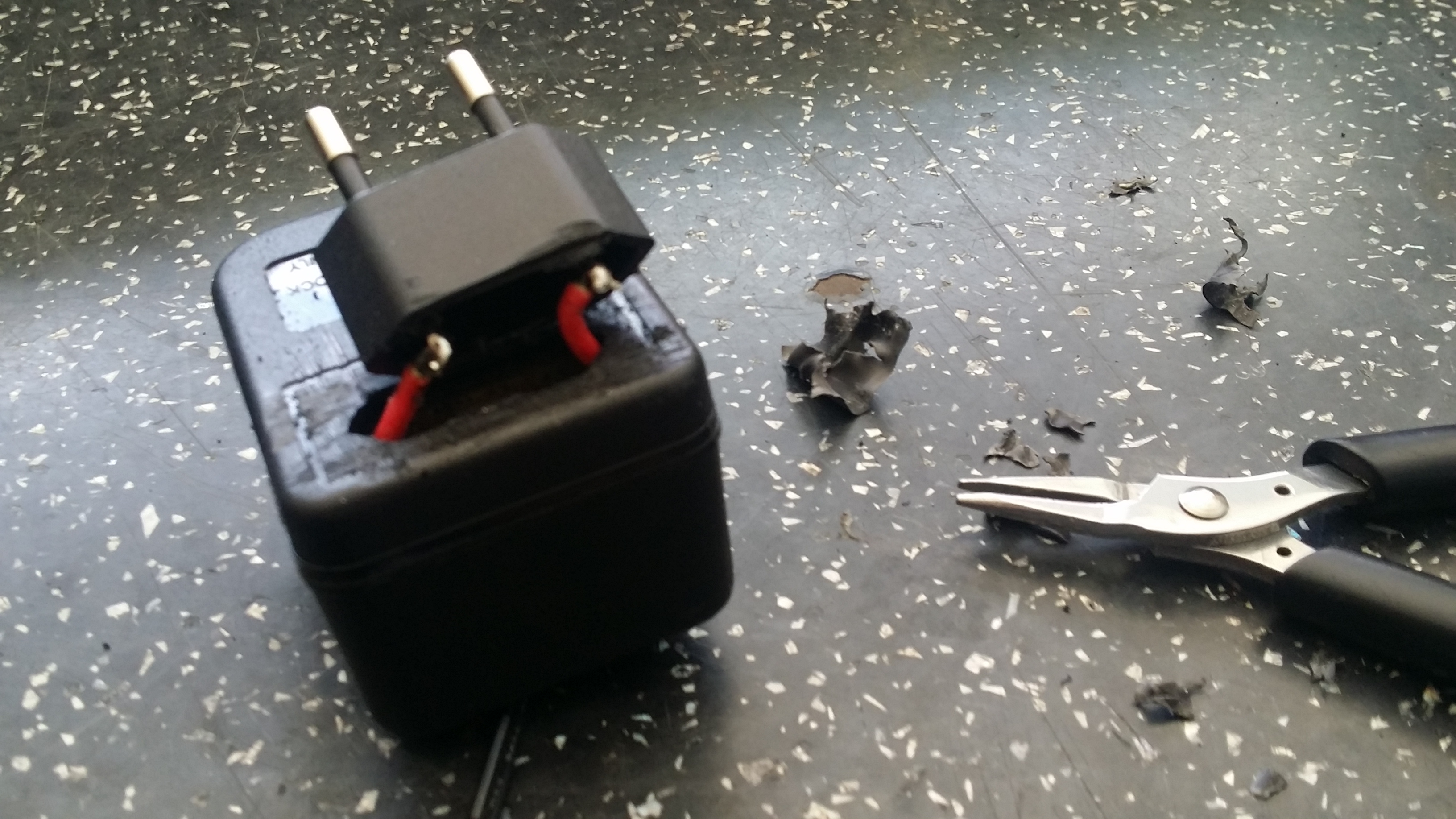

start by removing the head using a saw

Clean Things

first clean the table then remove the heat-shrink tubing

Make the Holes

u need to make 2 holes at the front of power supply use your solder or a drill

Connecting the Head

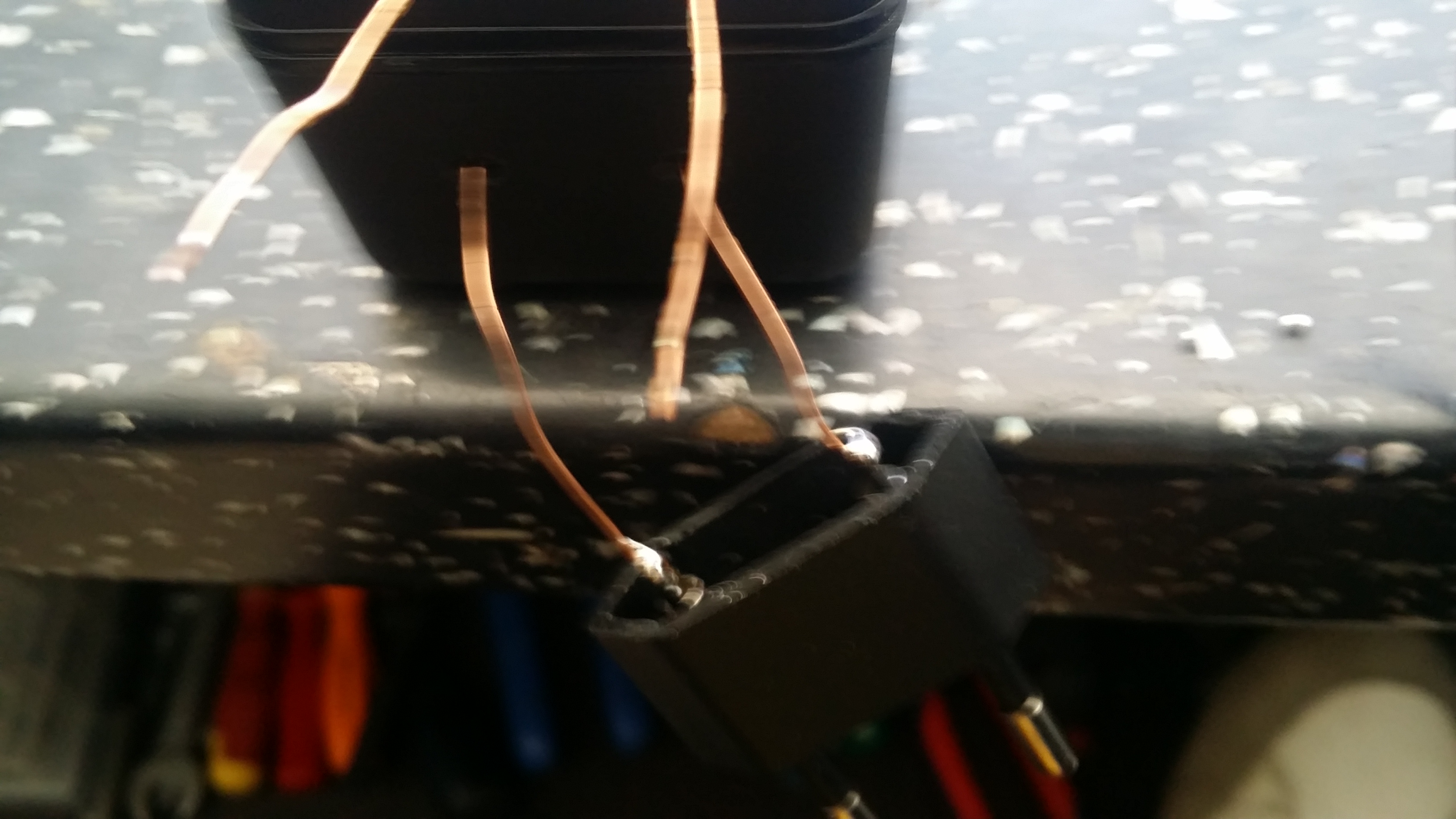

put 2 short wires in the holes you just made and solder the wires in the head connectes

Hot Glue

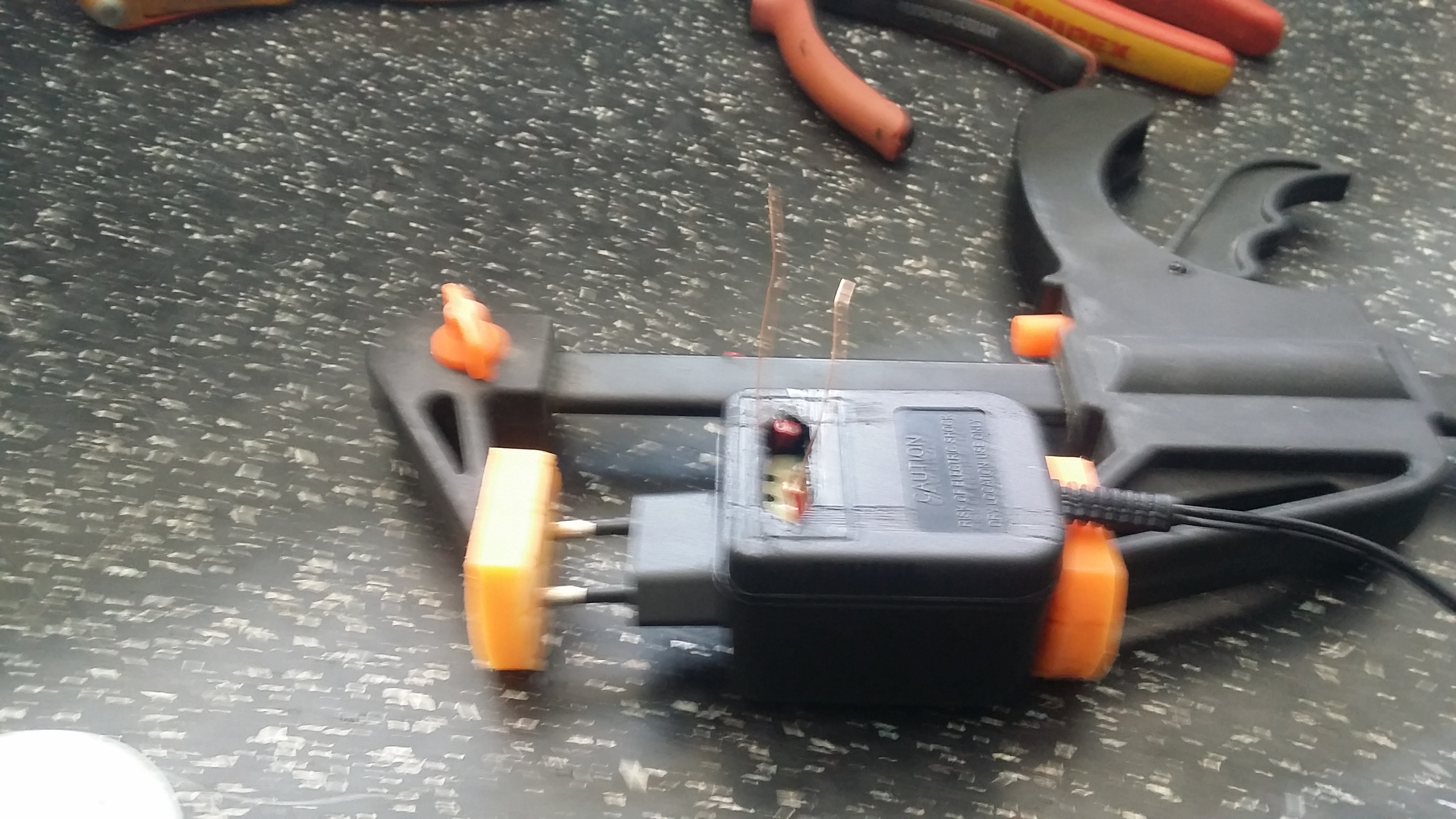

fill the head with hot glue and place that as u see in the photo

Finish the Connection

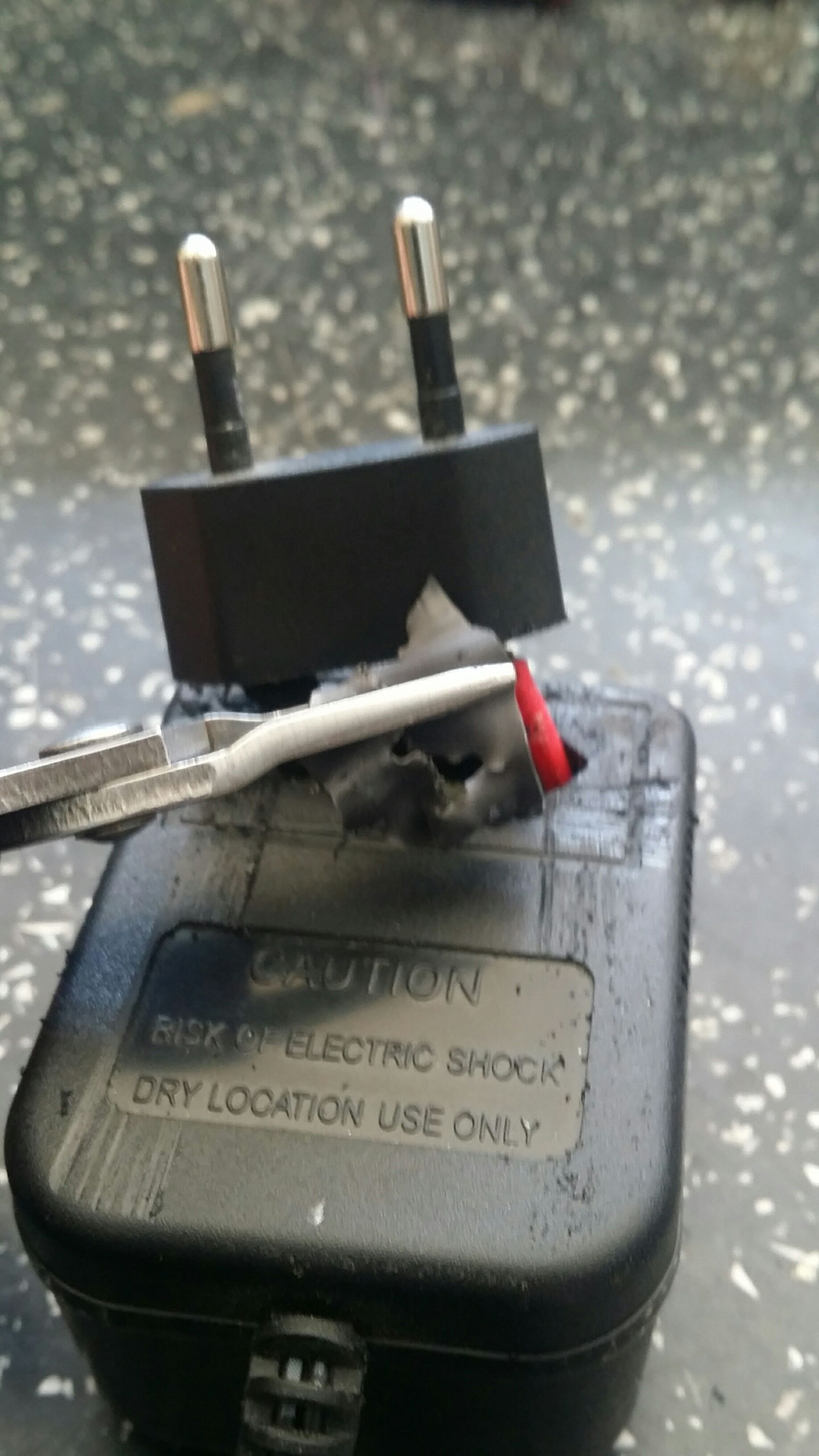

connect the wires with the transformer inside the power supply and secure them with hot glue

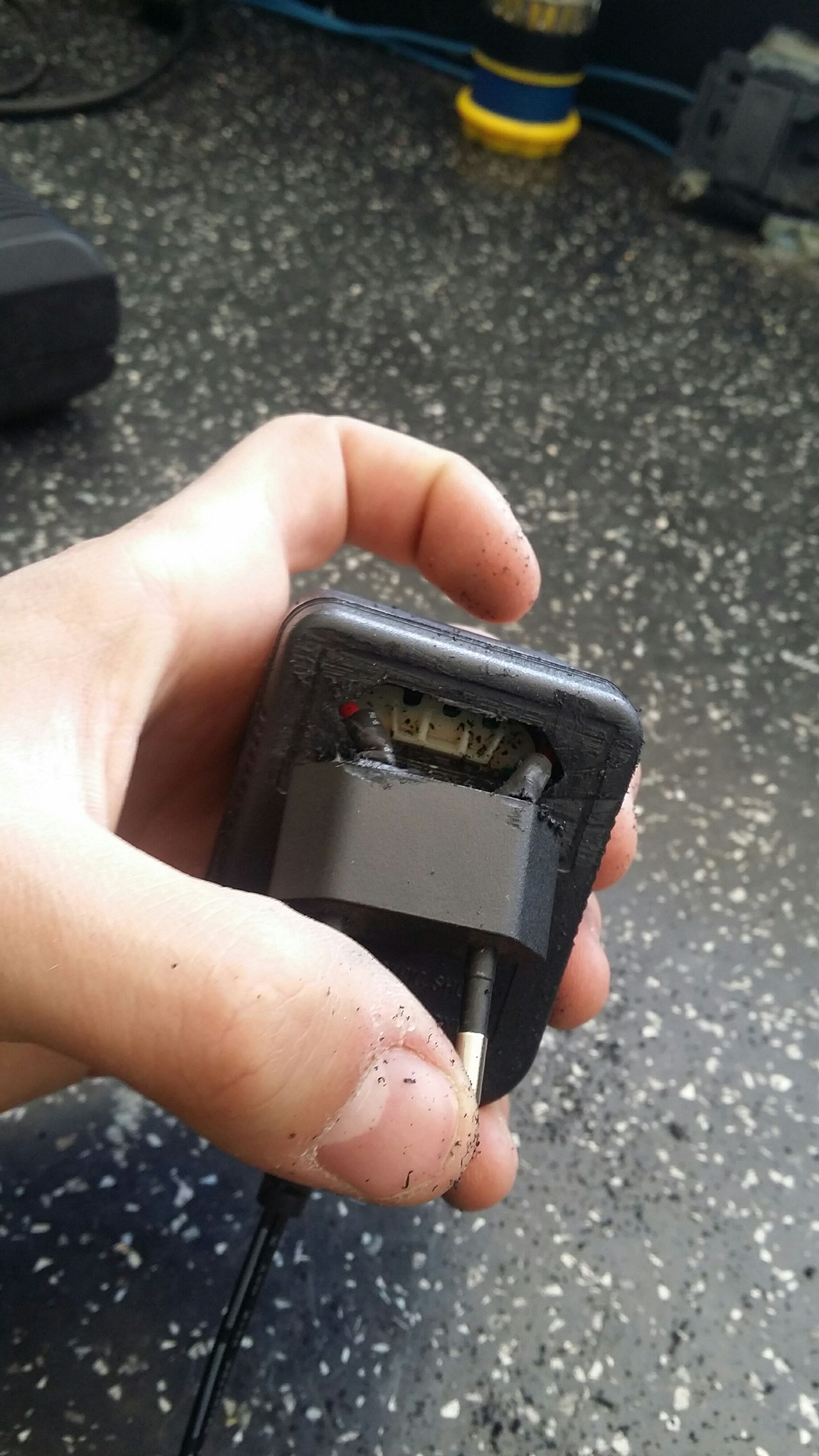

find a pease of plastic and cover the hole don't forget to add hot glue

Finish

all done now

One More Step

u can use this to repair other power supply heads
