Make a Mini Mag Smaller

by poiu12340 in Workshop > Lighting

6760 Views, 0 Favorites, 0 Comments

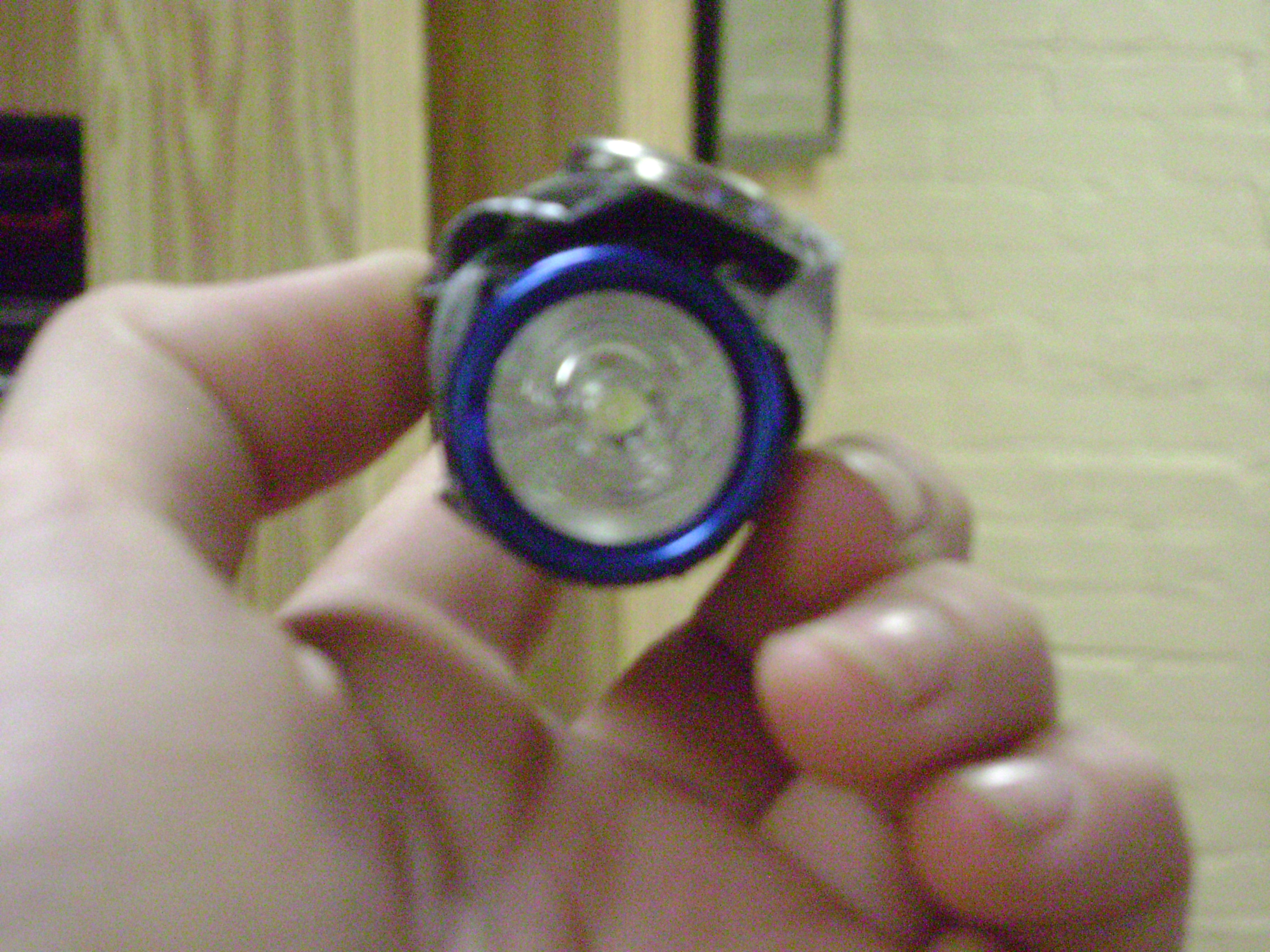

Make a Mini Mag Smaller

In this instructable I will show you how to make a mini mag flashlight smaller and brighter and even make it a headlamp. please vote for my instructable

Materials

You will need
mini mag flashlight

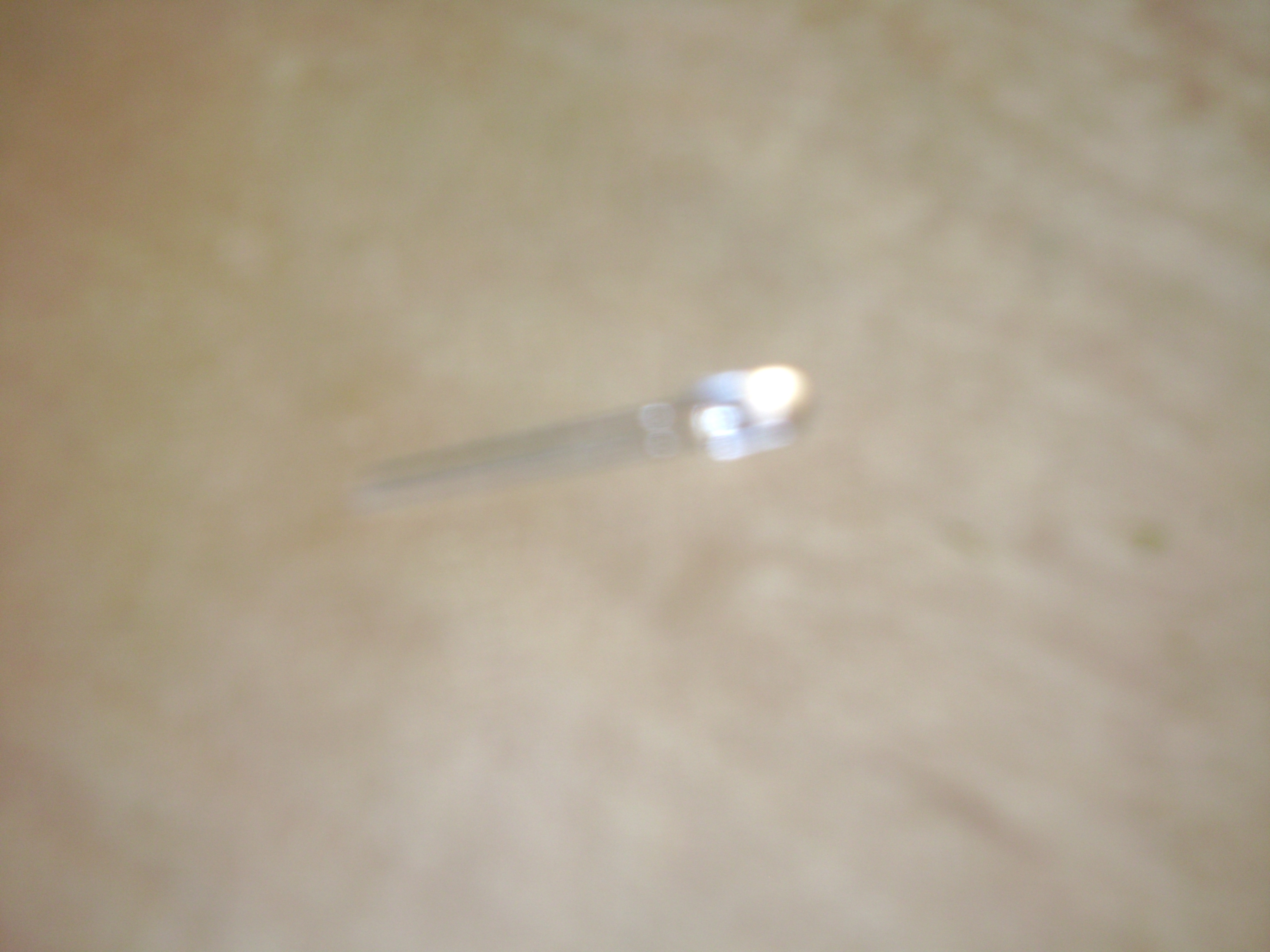

LED White bulb (I got mine at radio shack. Get the super bight white ones)
soldering iron with solder
copper wire
duck tape
watch battery (3 volts) (can be found at radio shack get a big one)

Instead of using a watch battery you can use 2 double A taped together with copper wire runing from one positive to one negative. (it is cheaper and it's a lot brighter) ( but it's bigger)

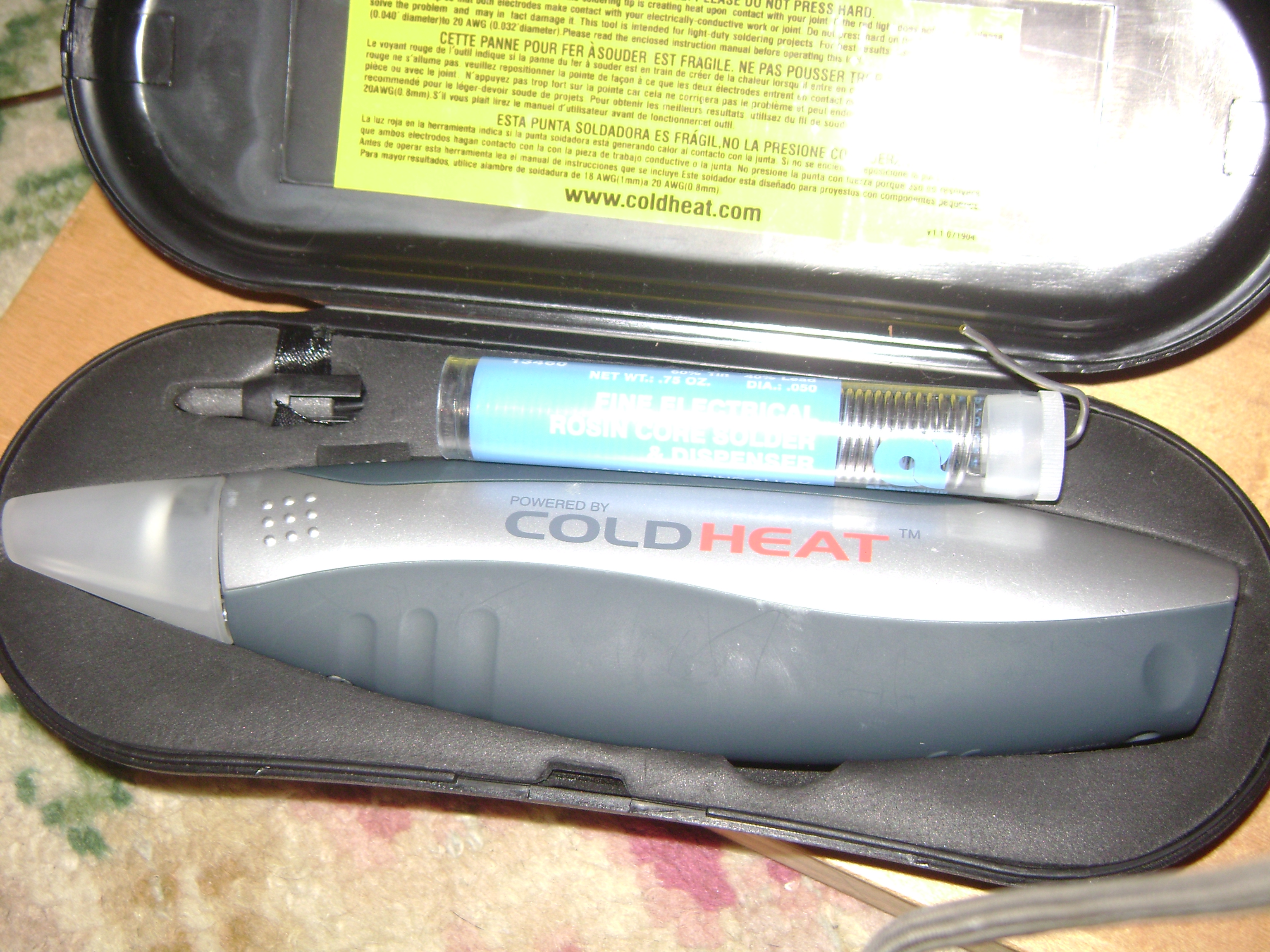

Sodering Iron

take some copper wire and solder it to one of the prongs on the LED make sure the wire is at least 4 inches long. Now do the same with the other prong.

The Casing

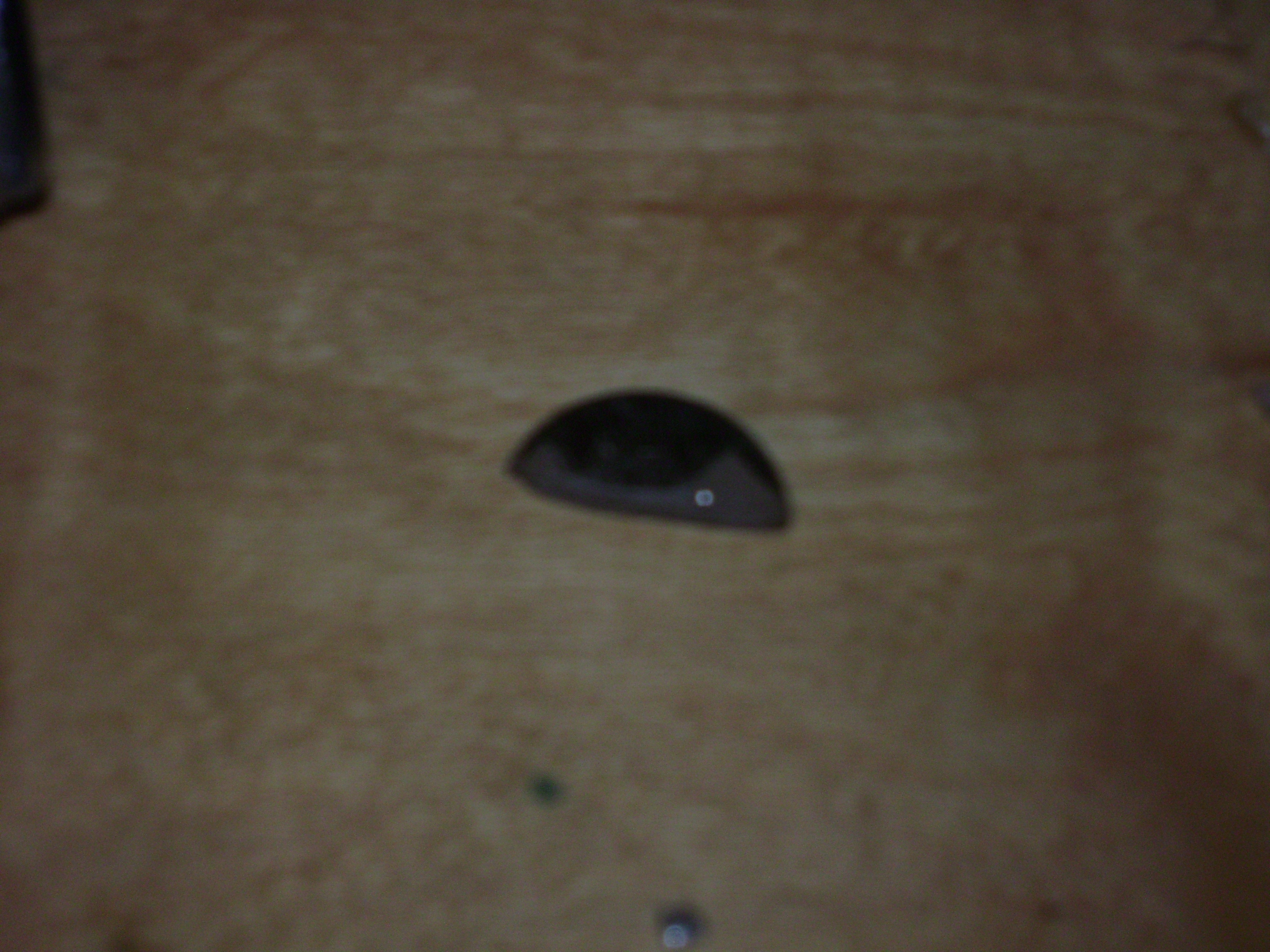

take apart the mag light you will need the reflector the head of the light and the plastic cover

Putting It Together

put the LED in the reflecting mirror put it in the casing so the wires are coming out the back. turn the wires to the sides and duck tape the back shut.

Battery

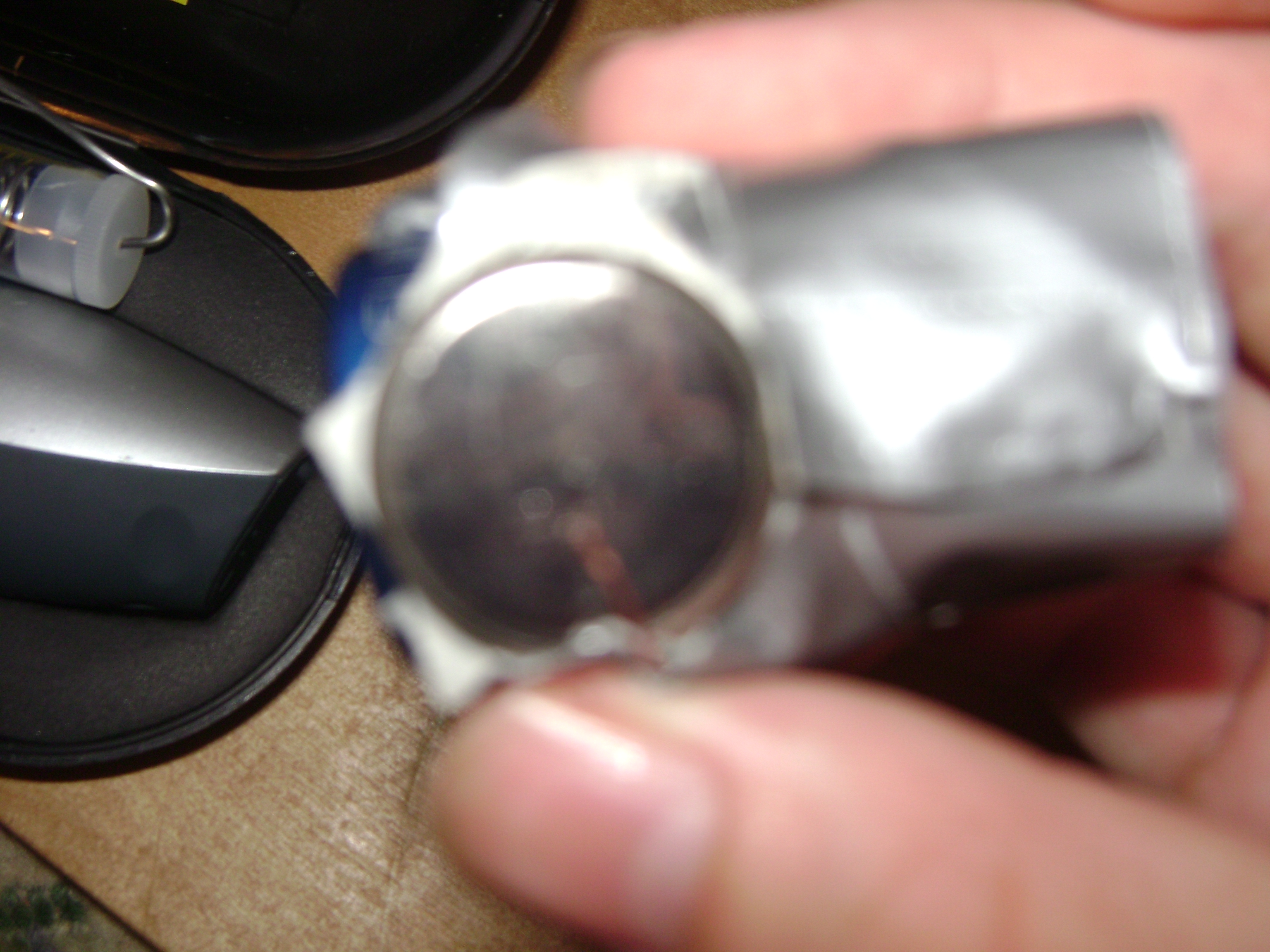

take the battery and figure out which wires make it light. take one of the sides and tape it to the battery. Then take some duck tape and tape it to the light make sure you can still turn it on

Final Step

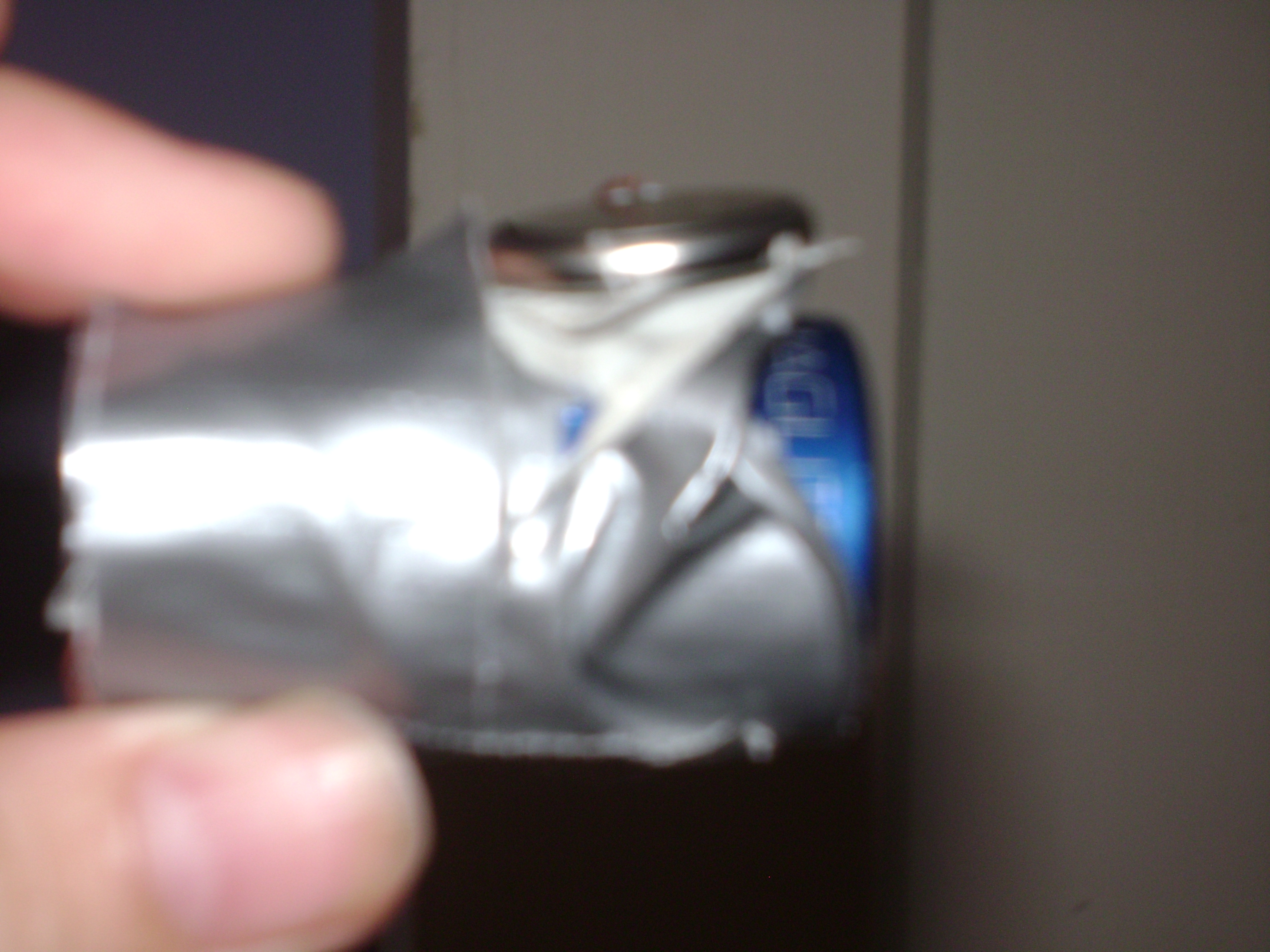

Now make the wire on the battery so when you press down so it lights up Then cover it with duck tape.
Try it out
