Little Controll Box
hello, this is a little project I've been wanting to do for a while, turned out good enough i decided to make a little instructable about it it can be used for plotters robots or other things, i mostly use it for prototyping and hot wiring
Why

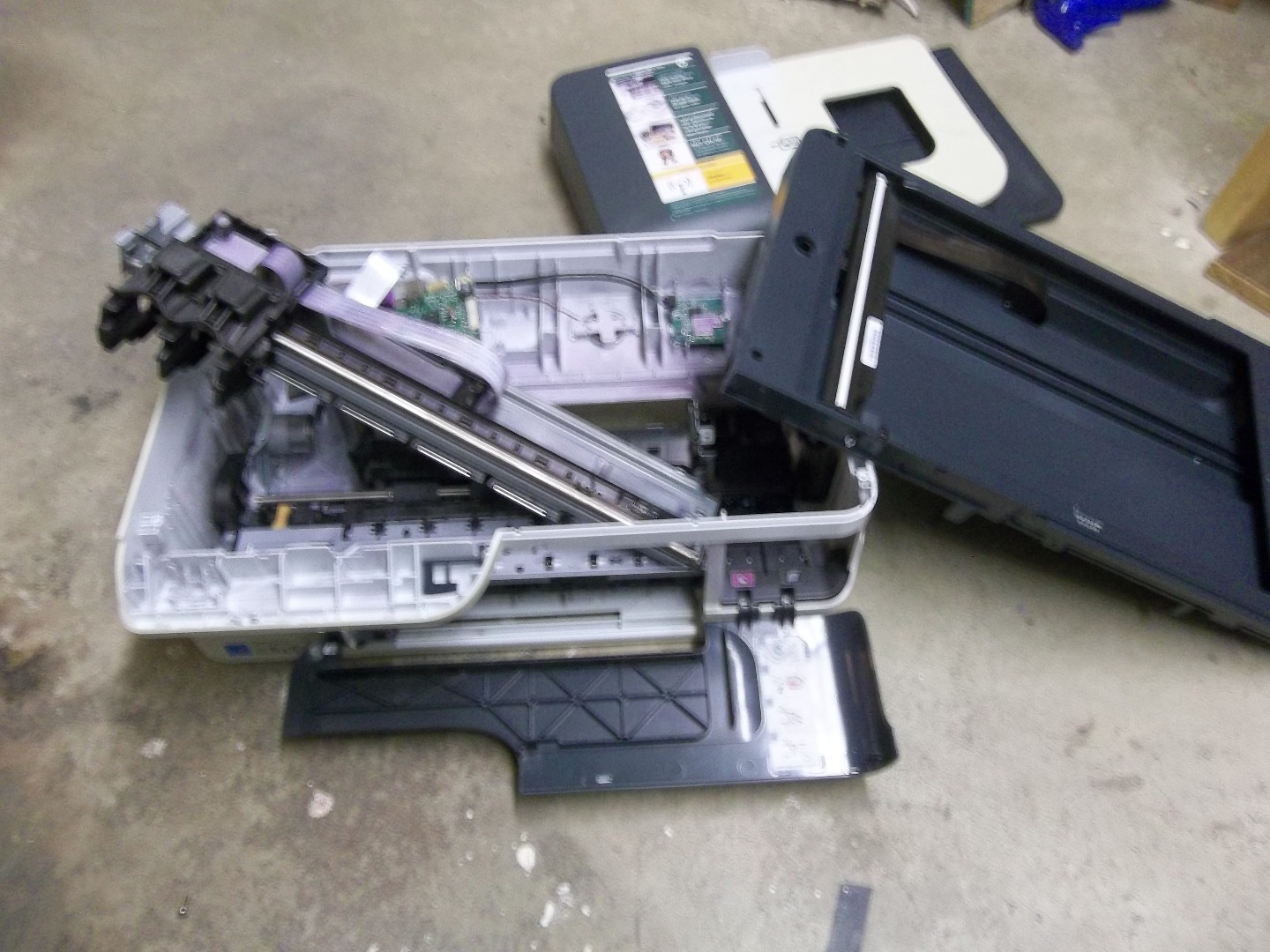

the idea came to me while i was taking apart a printer, one of the things i like to do when i take things apart is hot wire the motors or lights or whatever and play with it before completely salvaging the parts, trouble is if your playing with dc motors you have to flip the wires every time you switch direction
The Circut
sorry its a little crowded, this uses 2 DPDT switches but you can have as may as you want, i left a spot for expansion on mine
Assembly

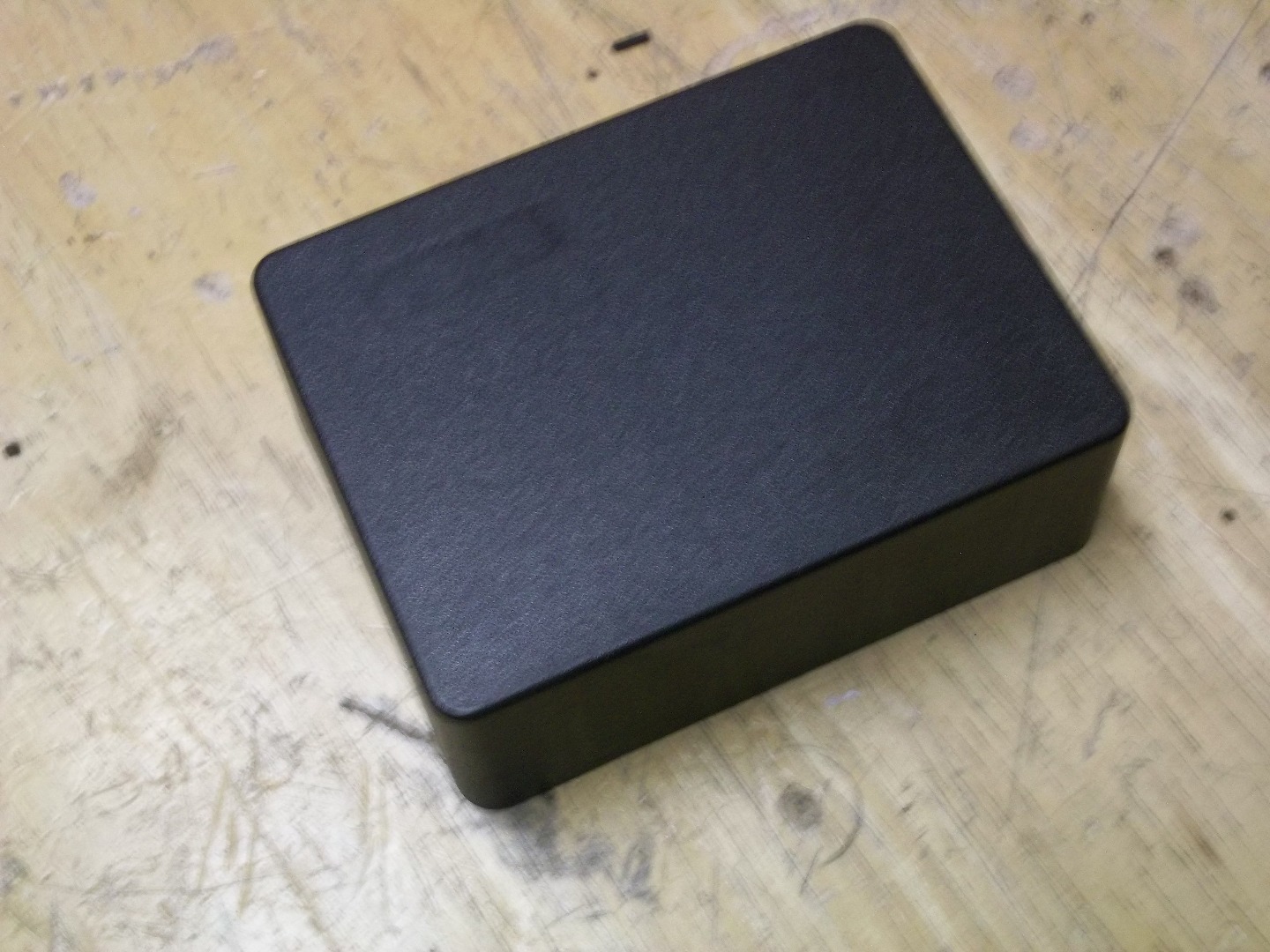

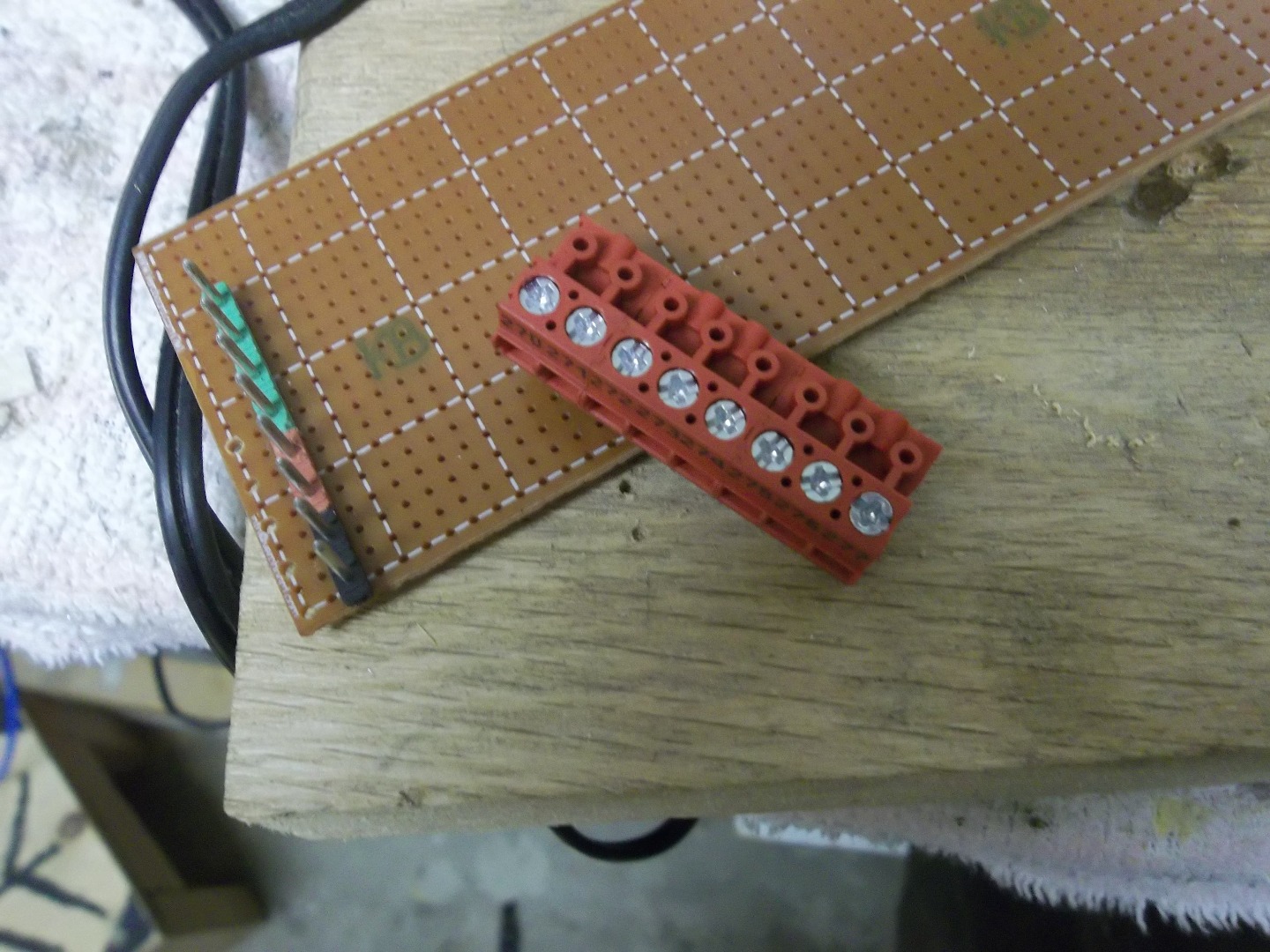

i found an old project box, a bus bar and a few other things in my scrap box, the only thing i had to buy were the switches
That's It
ok that finishes another one, be safe have fun
