Little Bits Bugs
Fun, buzzing, bugs.
Warning: may cause annoyance to other members of household.
Materials
little bits pieces;
p1 power
i5 slide dimmer
o6 buzzer
i16 pulse
o11 servo
screw driver
Craft materials;
bright pens
paper
scissors
tape or blue tack
Warning: may cause annoyance to other members of household.
Materials
little bits pieces;
p1 power
i5 slide dimmer
o6 buzzer
i16 pulse
o11 servo
screw driver
Craft materials;
bright pens
paper
scissors
tape or blue tack
Assemble Circuit

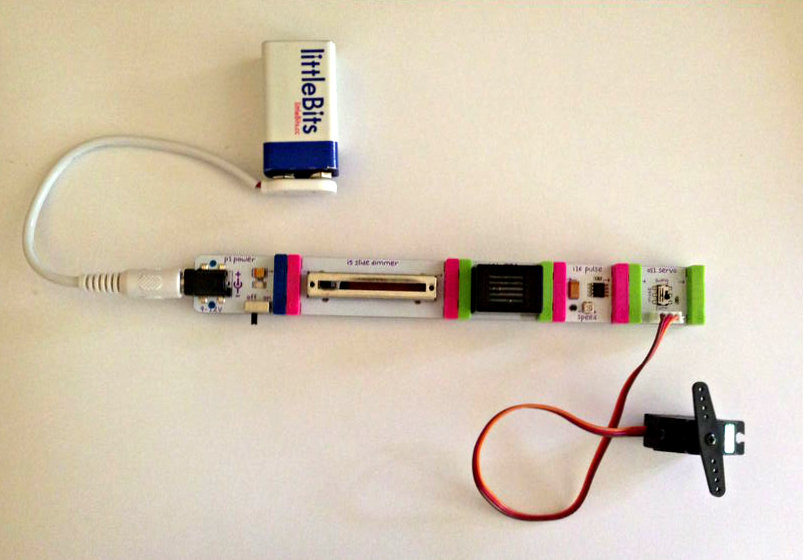

Assemble little bits in following order; power, slide dimer, buzzer, pulse, servo.
See picture.
See picture.
Adjustments
Test circuit, use screw driver to turn pulse to highest speed, put servo on turn mode.
Make Wings

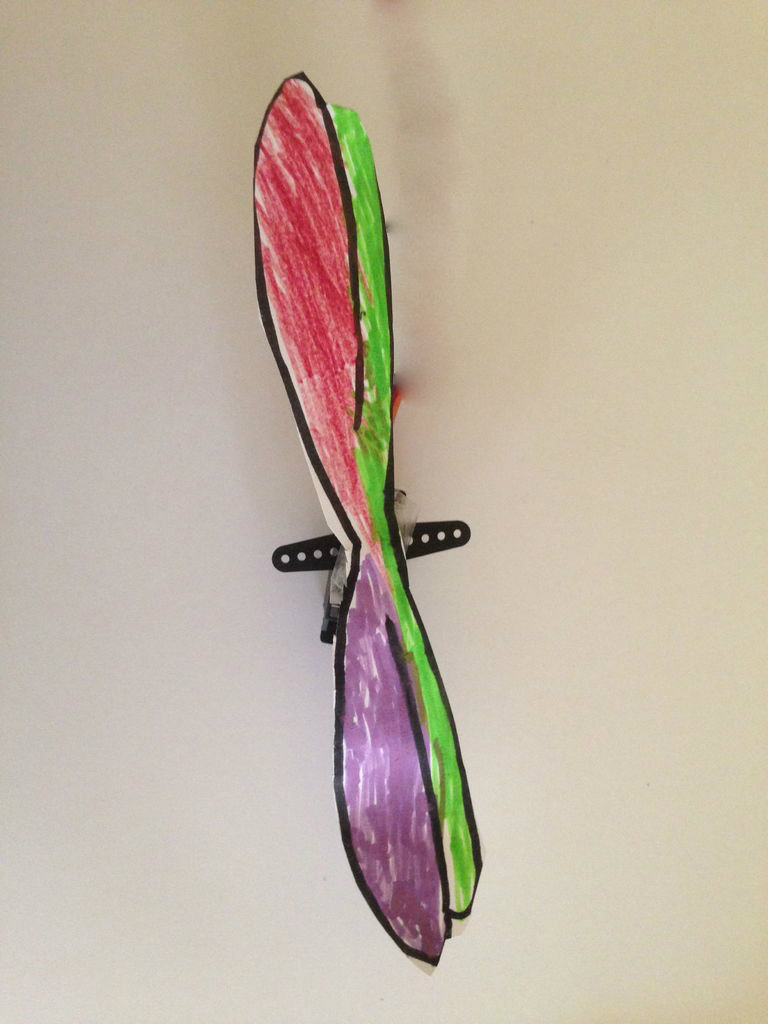

Cut out bug shaped wings and color with bright marker pens.

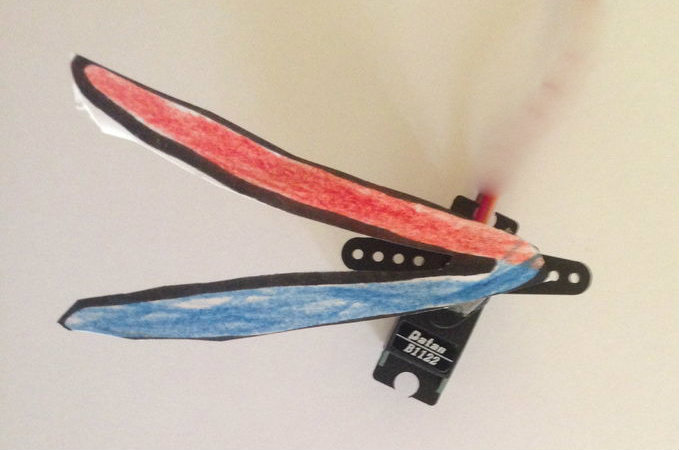

Use sticky tape to attach wigs to servo.
Feel free to print these wings. Alternatively you can tape on a pair of leaves.
Use sticky tape to attach wigs to servo.
Feel free to print these wings. Alternatively you can tape on a pair of leaves.
Use
Turn on at power and use slider to adjust buzzing and noise. Slide the slider up and down for mosquito like noise or slide to one third for a fly like drone.
