Led Strip Lamp

by vacomcom in Circuits > LEDs

7578 Views, 55 Favorites, 0 Comments

Led Strip Lamp

Things You Need to make your instructables
Old lamp
pvc tube
12v dc
1m led strip

Assembly the Lamp

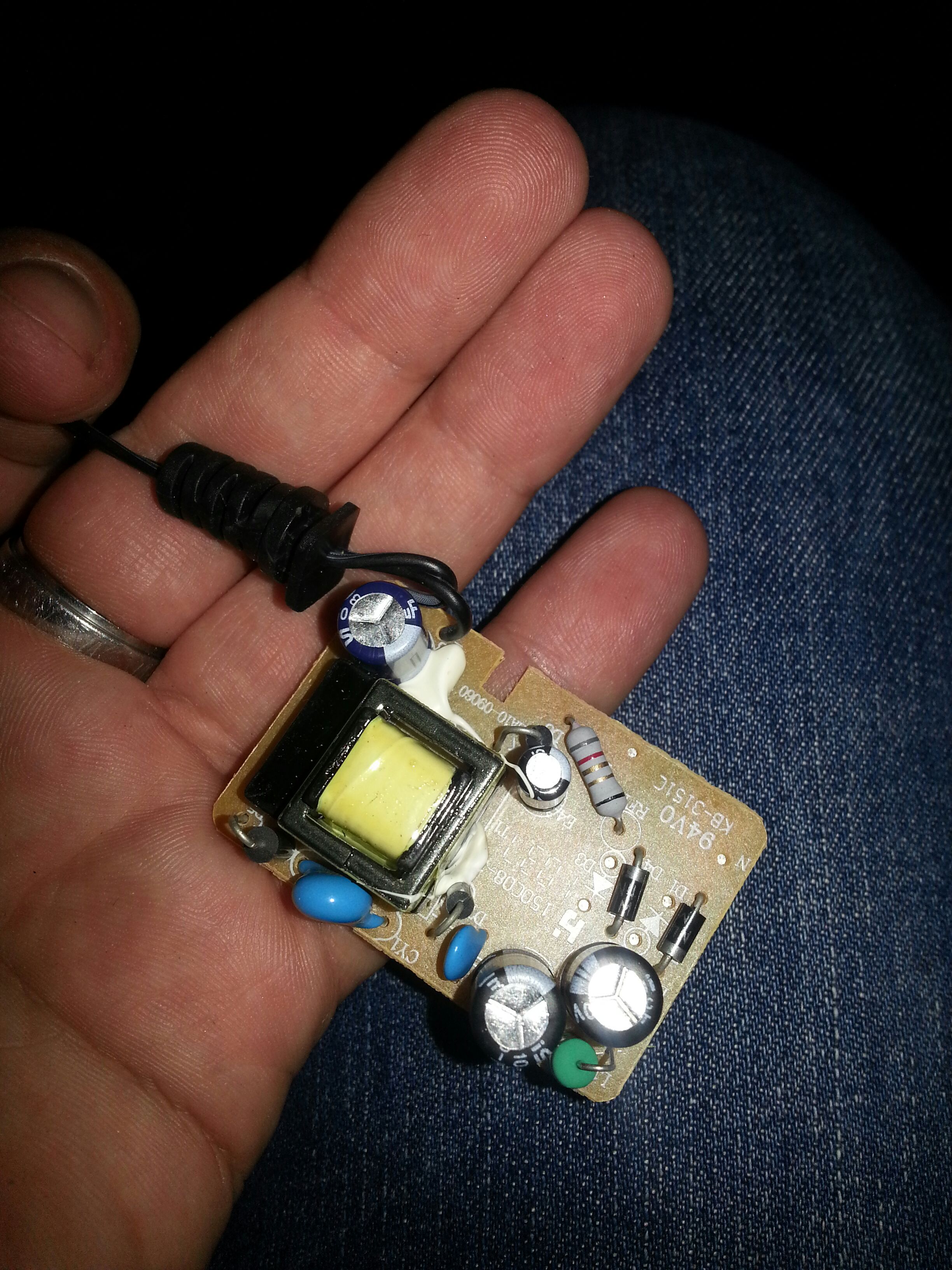

I used onely the cfl screwbase and conect it with 12v dc adapter
Conect 220v or 110v side of adapter on cfl and the 12v + - with led strip

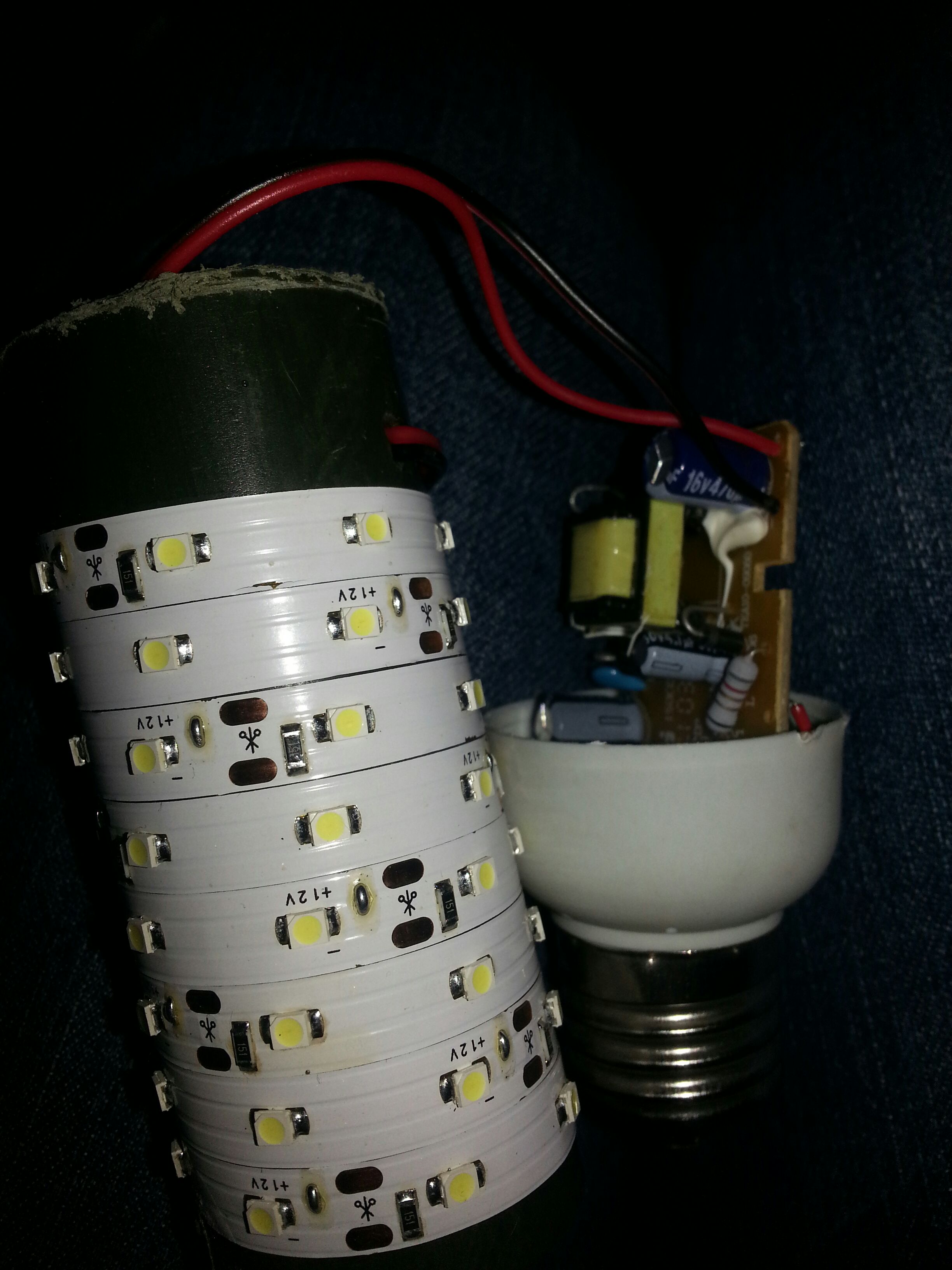

Add the Led

Conect the 12v + - with led strip

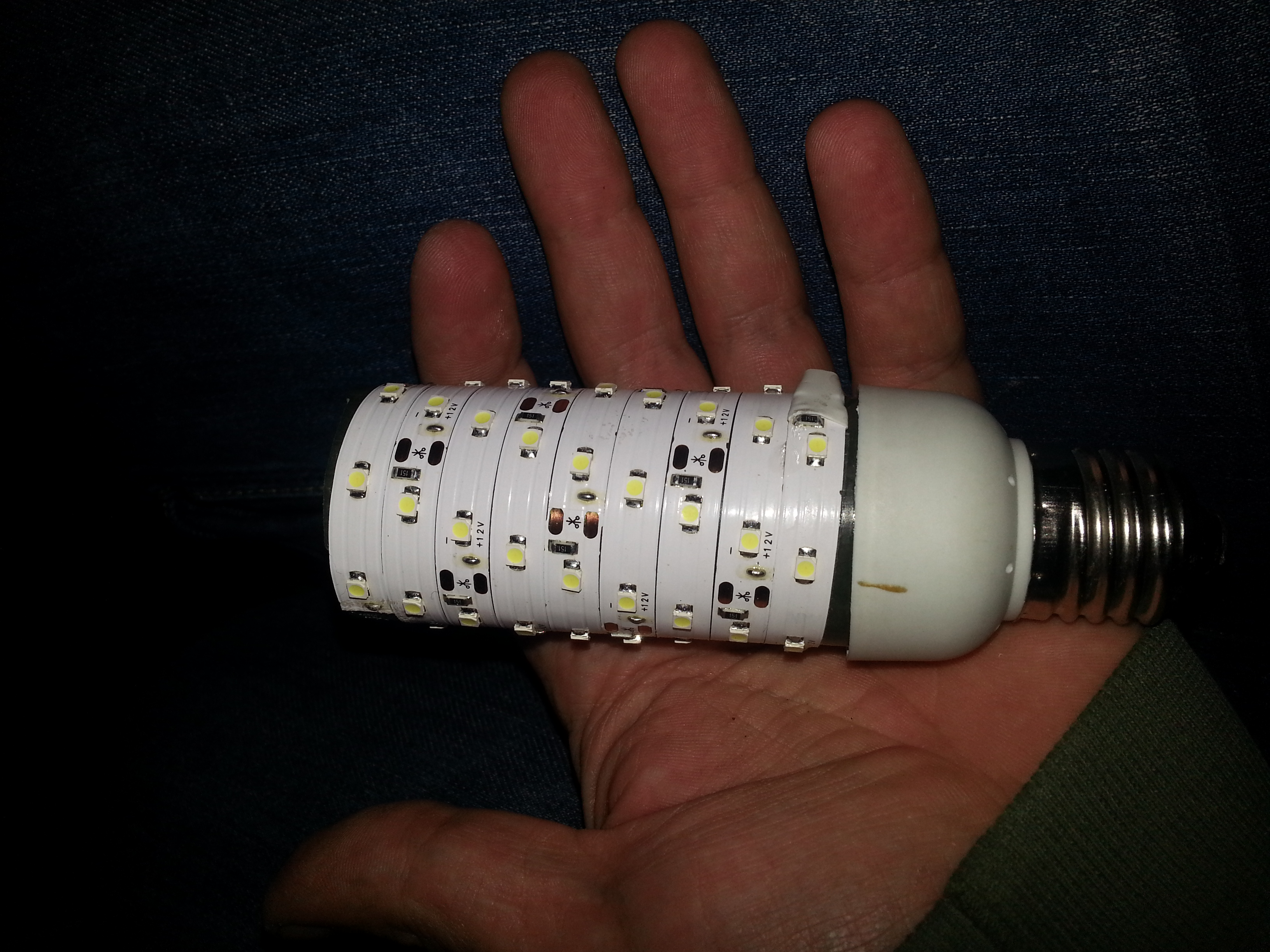

Finish the Job

The 150 lux lamp
