Laser Cutting Using 123d Make

by TristanB10 in Workshop > Laser Cutting

476 Views, 3 Favorites, 0 Comments

Laser Cutting Using 123d Make


Get ready

Screen Shot 2015-10-08 at 9.36.07 AM.png

Go www.thingaverse.com and click on explore or search something your thinking about making

Screen Shot 2015-10-08 at 9.35.44 AM.png

I found Gumby and decided i wanted to make him.

Screen Shot 2015-10-08 at 9.35.53 AM.png

Click on download thins thing so you can start creating.

Screen Shot 2015-10-08 at 9.34.29 AM.png

It then will take you to 123d make where it takes your download and puts it on this program so you can then laser cut it. on the left side of the screen theres a tab called "construction technique" click on that and choose stacked slices.

Screen Shot 2015-10-08 at 12.05.26 PM.png

export your thing as a dxf file

Screen Shot 2015-10-08 at 12.23.37 PM.png

then save your document as a dxf file so you can laser cut it. save it to your desktop.


Save your document onto a flash drive


pug the flashdrive into the big laser cutting computer

IMG_0443 (1).jpg

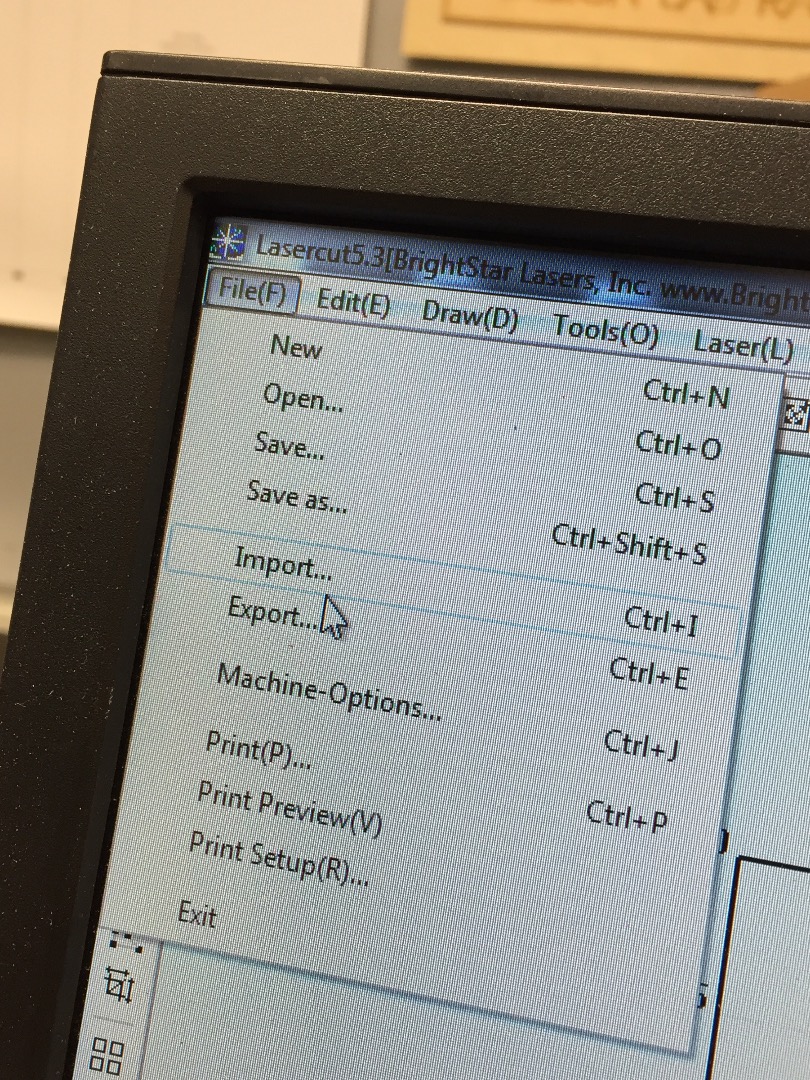

Import the document onto the computer

IMG_0442 (1).jpg

Click on your file and open it

IMG_0440 (1).jpg

make it any size you want it to be then download the document to the laser cutter


test the file to make sure it the right size you want it to be by pressing to test button. the click the start button 2

times and it should start


Watch and enjoy
