Laser Controled Leds for Your Key Bord

auto light up a array of LEDs with lasers. yeah
sorry for my bad engles i am dutch.

you need
1. a laser
2. a laser resiever
i got myn from a friend
3. leds(my a from a logitech g15 v2)
4.10k potensio meter
5. 5 v power suply(atx or some thing like that)
6.soldering iron
7.wire
8.cutter
9. screws
10. screw driver
11. 6x 150 ohm resistors
12. 6x leds(any color)
thats it

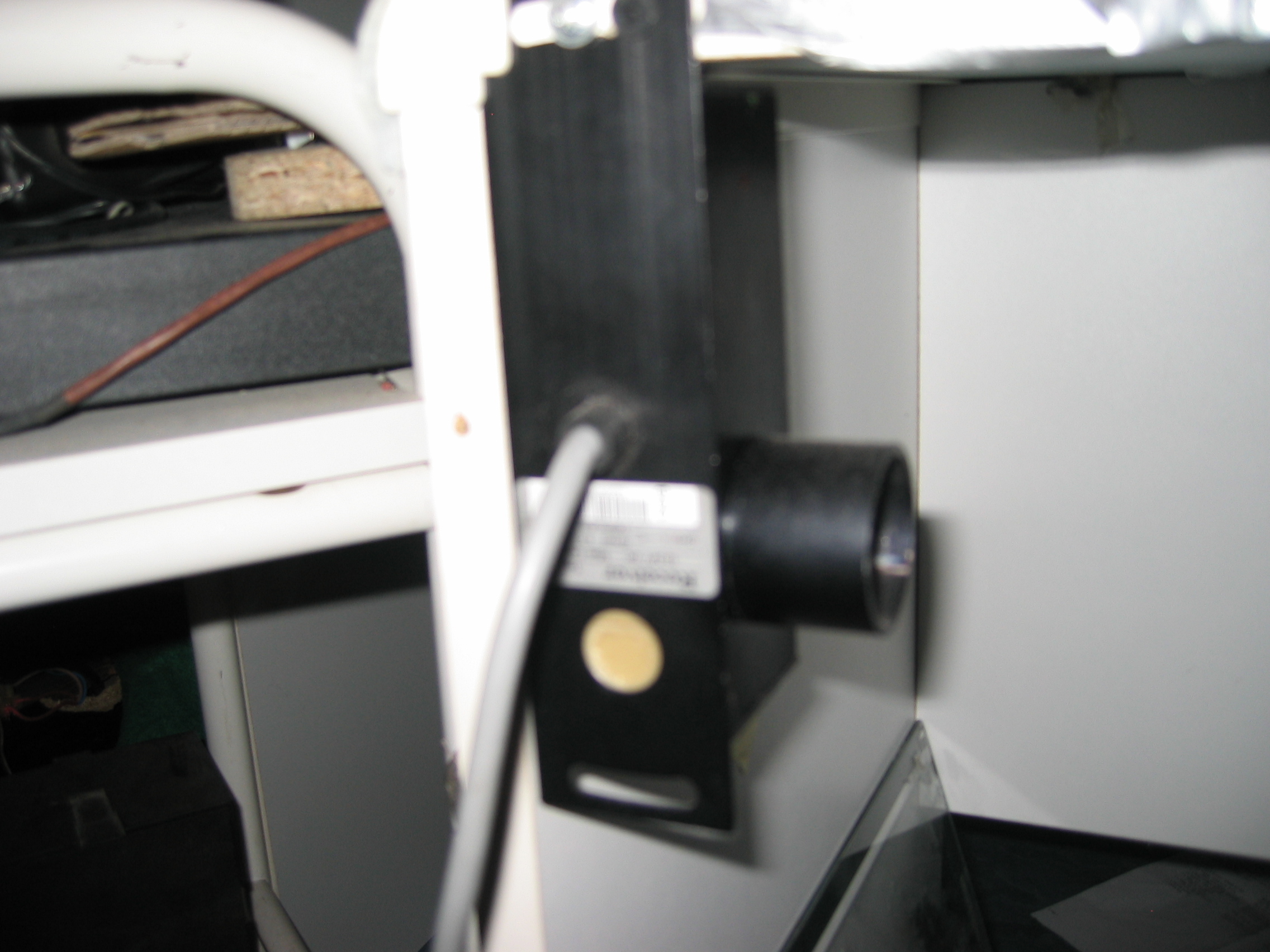

1. hang up the laser
2.and resiever
3. make the cirquit
4.hang up the leds

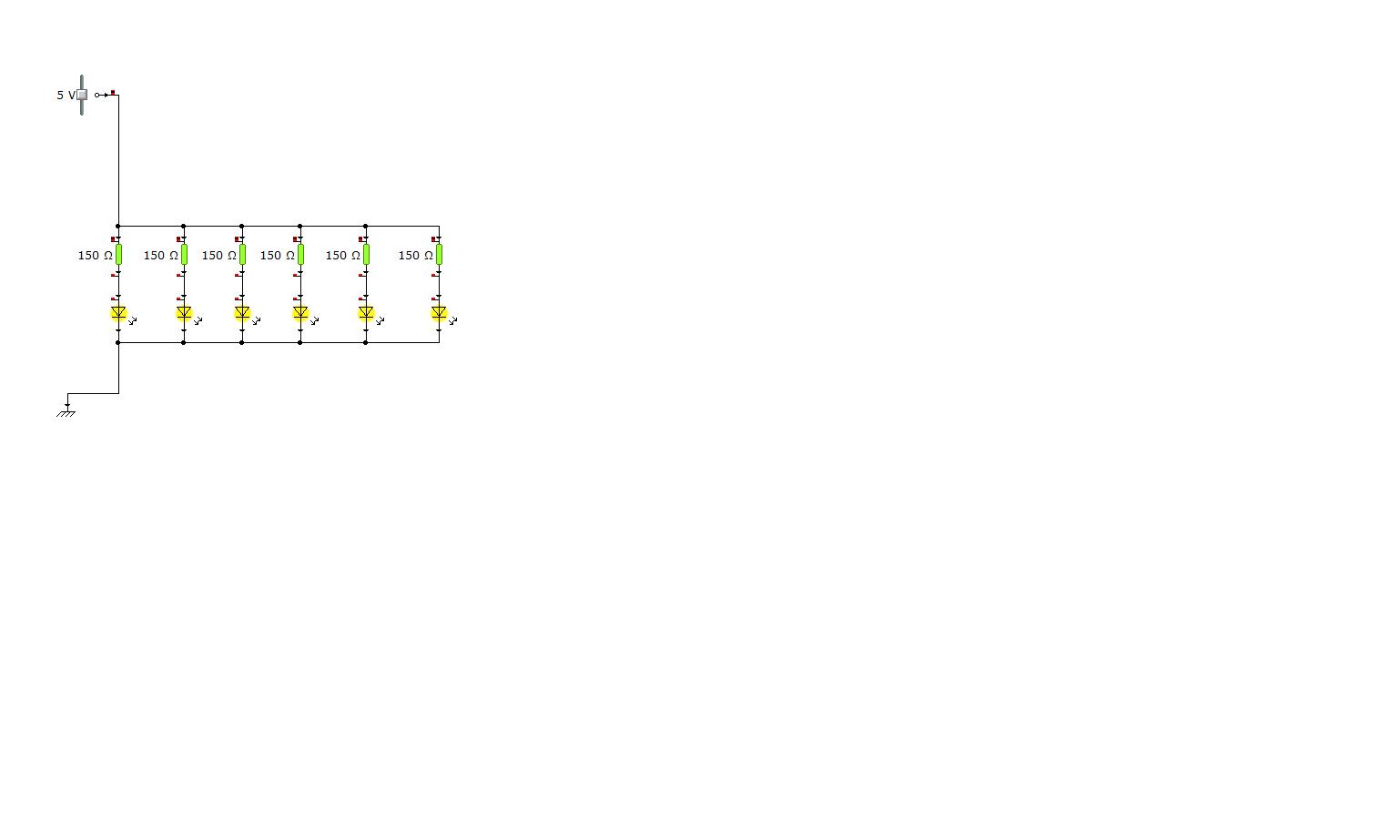

the led cirquit.

the whole cirquit
the program were i made this diagram didnt had a laser and resiver so i used a switch.

oke now you have a basic idea of the cirquit.

now to connect it up
first hook up the laser with 12v
now its a little bit harder
1. now connect the grey wire to the pot meter
2.and the green wire to the 5v
3.brown to 12v
4. white to -12v
5. connect the top pot meters pin to the leds
6.and the other end of the leds to the -5v
7.now youre done

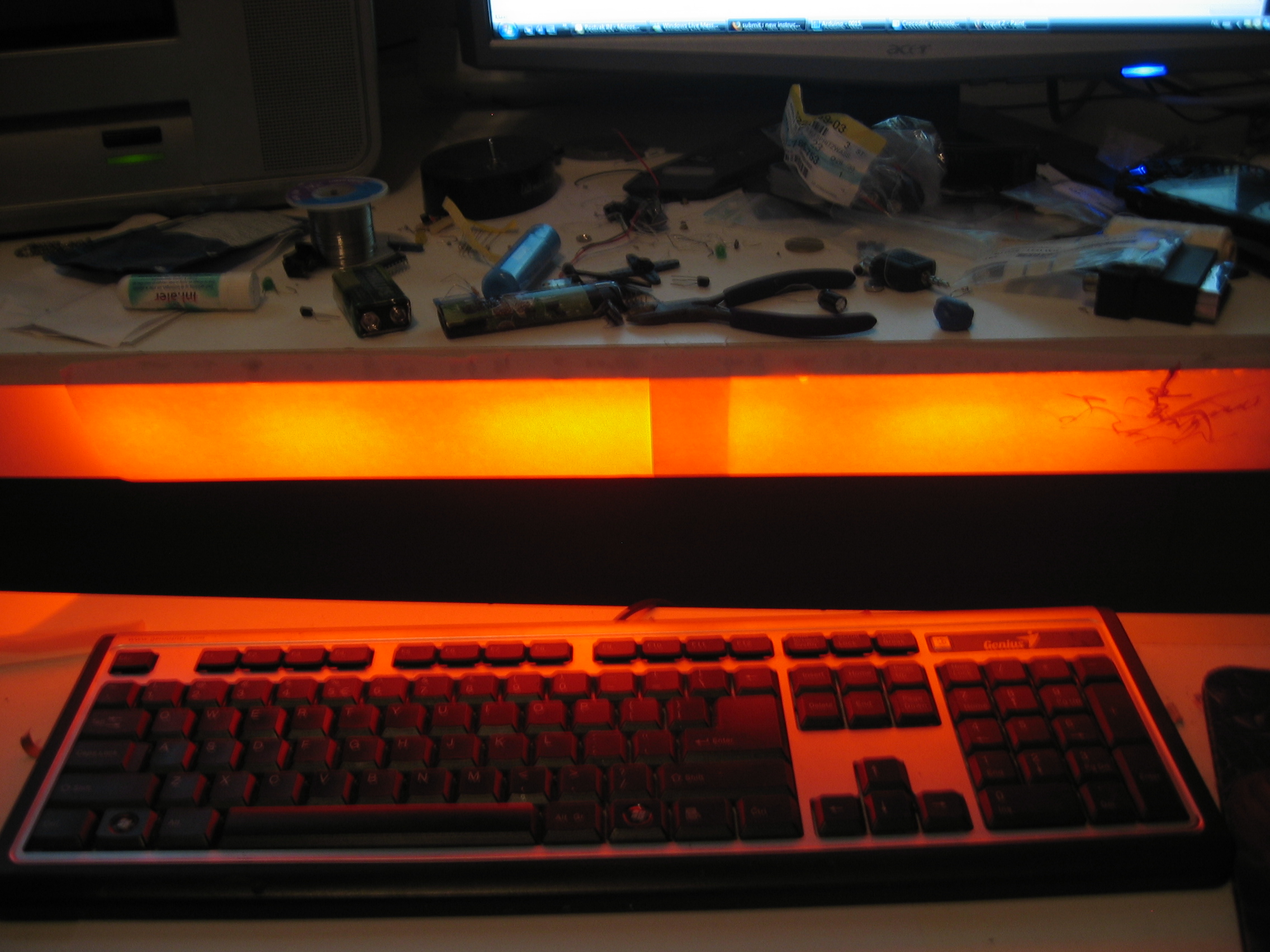

if you now sit on your desk the leds auto light up
have funs
