Reinventing the Knex Wheel
it is a big wheel that roles with a motor INSIDE
The Spokes
you need to make 16 of them
Rolling Strip
this touches the ground
you need to make it exactly as I say:
blue rod = b
white rod = w
and yellow connector = +
+b+b+w+b+b+b+b+b+w+b+b+b+b+b+w+b+w+b+b+b+b+b+w+b+b+b+b+w+b+b+b+b
and make it twiece
you need to make it exactly as I say:
blue rod = b
white rod = w
and yellow connector = +
+b+b+w+b+b+b+b+b+w+b+b+b+b+b+w+b+w+b+b+b+b+b+w+b+b+b+b+w+b+b+b+b
and make it twiece

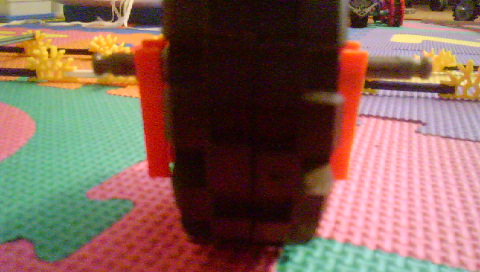

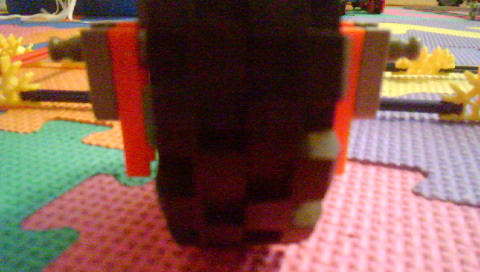

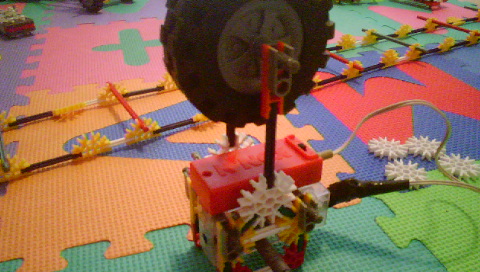

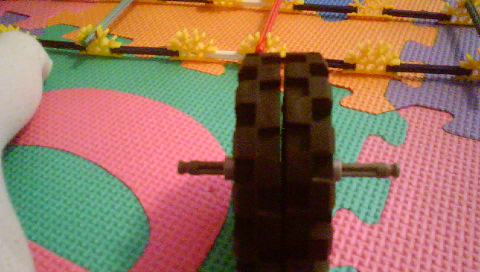

The Motor
just follow the pictures
picture 8: their are 4 grey spacers
picture 8: their are 4 grey spacers
Putting It Al Together
OK...
first place place those 16 spokes on the yellow connector with between two spokes a connector between. and the yellow connector you haf left, connect them to eachother with red rods.
second, you need two snowflocs for each side, adn put it togeter like this
third and last step, put the motor in and...
LETS ROLL
sorry for my bad english. Im from belgium
