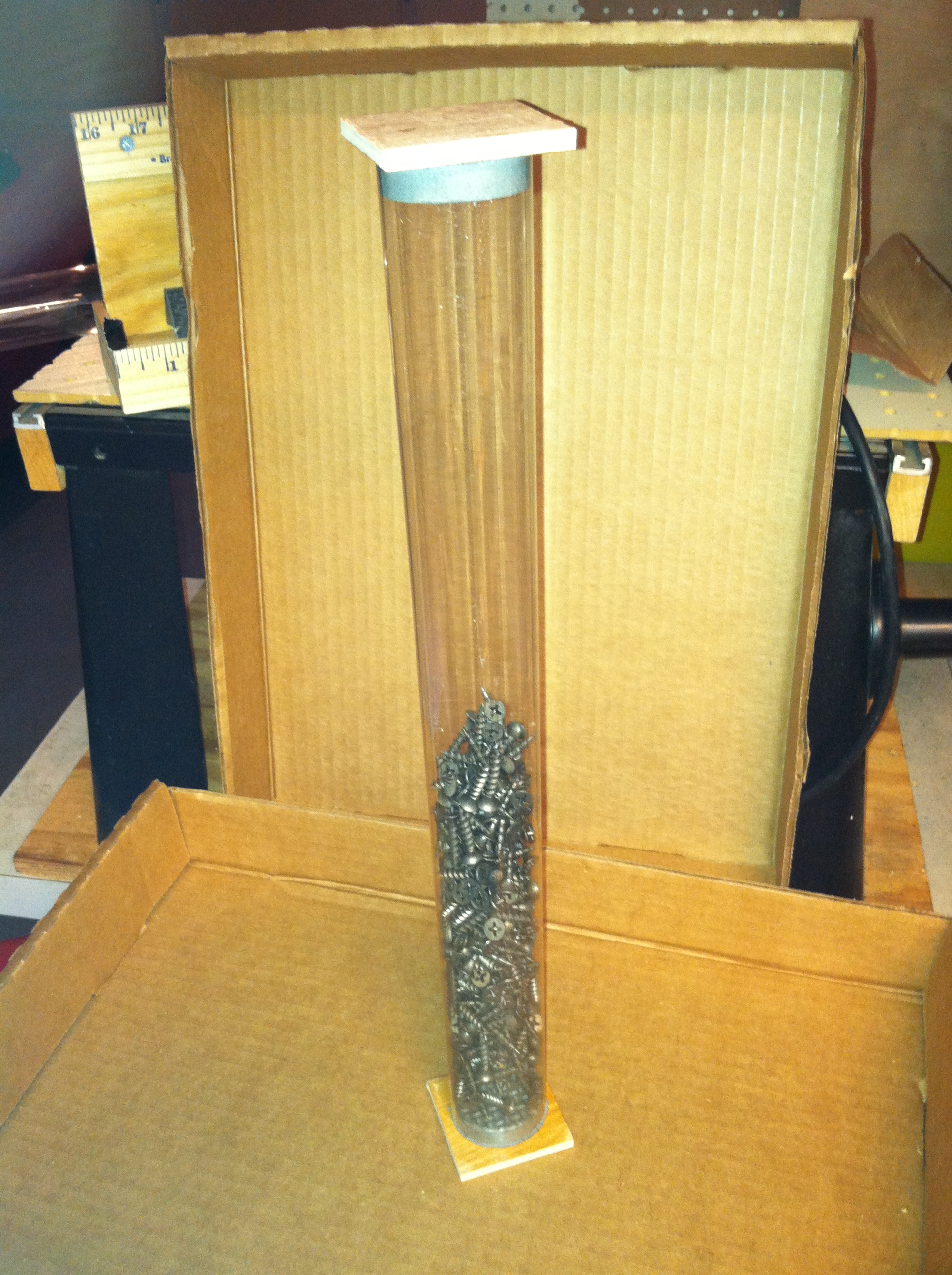

Make your own clear storage tubes with this easy inexpensive method. You decide the length (up to 8 feet). Similar products are available, but this has several advantages. Although utilitarian, these can look great in living spaces too.
The tubes can be cut to desired length. The square ends are effective handles which also prevent rolling. They can sit horizontally or vertically. Another big benefit is the view of these tubes is much better than some of the commercial products available. And lastly, this is a LOT cheaper than buying of the shelf items.
The tubes can be cut to desired length. The square ends are effective handles which also prevent rolling. They can sit horizontally or vertically. Another big benefit is the view of these tubes is much better than some of the commercial products available. And lastly, this is a LOT cheaper than buying of the shelf items.
Quick Instructions & Short Video
| MATERIALS | TOOLS |
| ¼” plywood | saw |
| foam flooring | hole saw |
| fluorescent tube guard | |
| super glue small piece of sheet metal |
| BASIC INSTRUCTIONS |
| 1) cut plywood into 2” squares (two for each tube) |
| 2) cut plastic tube to desired length (maybe 6”) |
| 3) cut foam flooring into circles a size that fits snugly inside the tube |
| 4) glue one foam circle to the center of each plywood square 5) let glue dry 6) install ends and use as you like |
