IRig Guitar Input (DIY)

you all know whats iRig and what it do and how to use it this is a simple diy that you can make on low cost

BF345C

20nf 39k

100pf

1.2k

4.7k

470pf

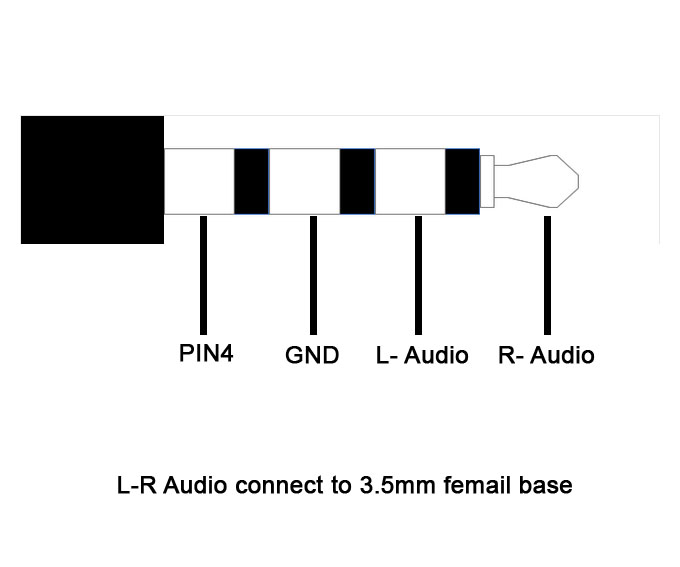

3.5mm 4pole male audio jack 3.5mm female base.

1/4 inch aux base for guitar connection piece of perf board.

you can add ferrite bead its optional if its hard to find you can make circuit without it

soldering iron

soldering led

wire cutter some wires

my final circuit is look like this don't know about yours ****

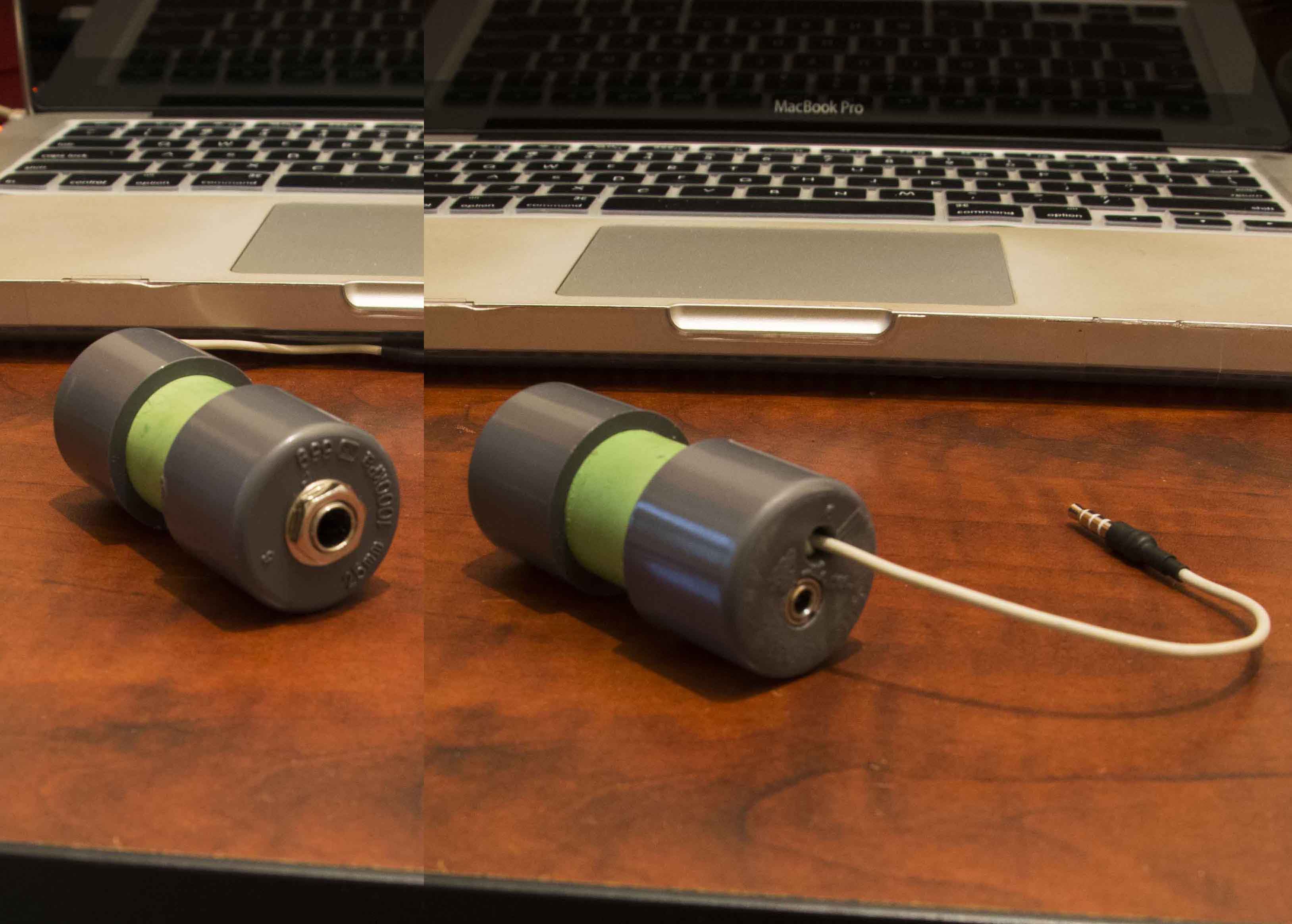

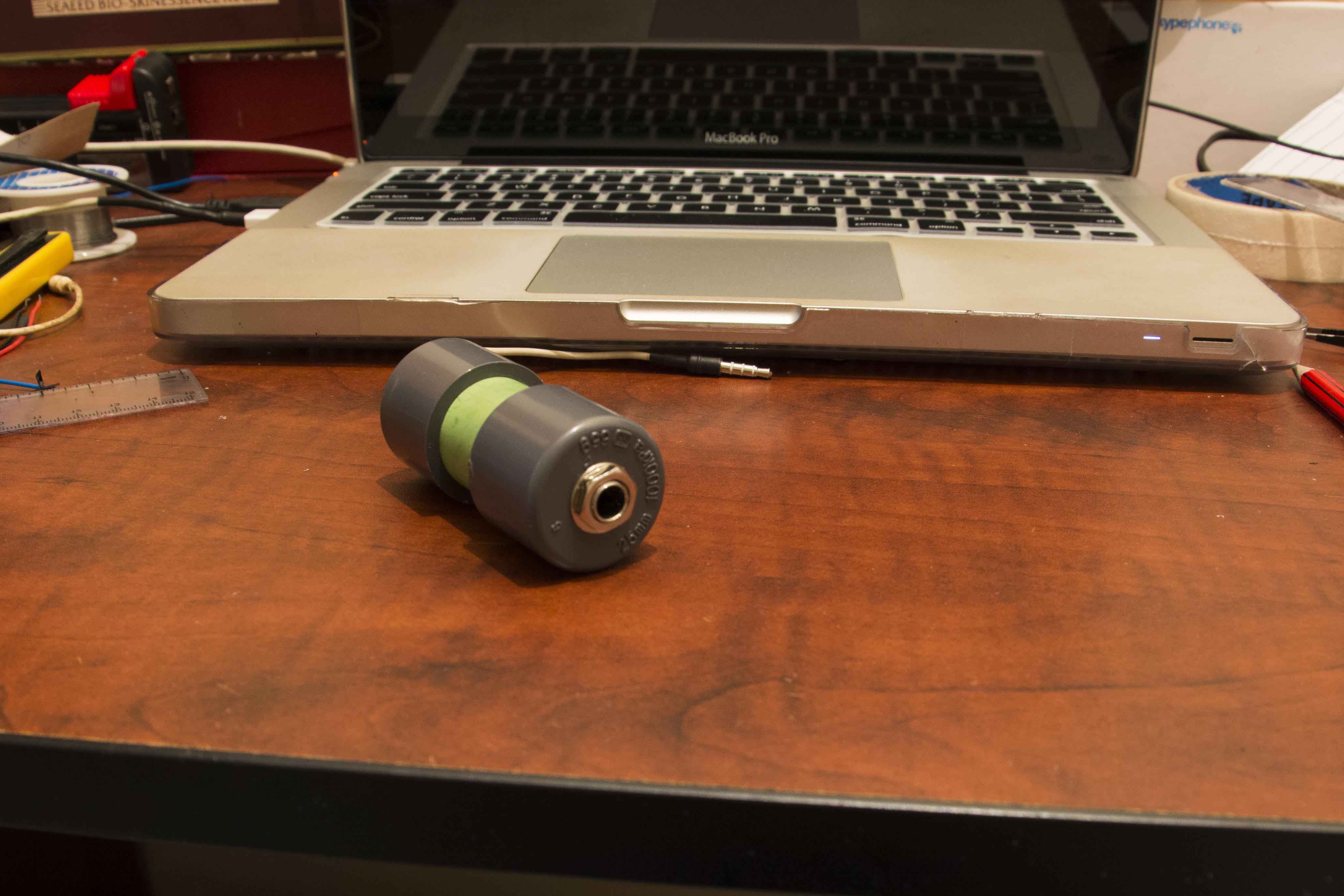

This is my iRig looks like make your own case for your iRig or 3D print one be creative and Good luck
