EL Wire Oxygen Mask
by sillyzombie666 in Craft > Costumes & Cosplay
10350 Views, 40 Favorites, 0 Comments
EL Wire Oxygen Mask
This all starts back in February after i got back surgery and i asked the nurses if I could keep my face mask. They gave me a weird look and i replied "i do haunted houses in October and I always tend to play a doctor of some sort" so they replied by filling a bag full of hospital stuff lol.
A few months ago a friend gave me an EL Wire dog leash but had pretty much striped it down to the bare EL Wire and battery box. So for months I was unable to think of any thing to use it with until I saw the EL Wire contest and finally figured out I could use it with my oxygen mask.
This instuctable should be easy enough for any one to do.
Also I would like to thank ever one who viewed and voted for my last submission for the usb contest
A few months ago a friend gave me an EL Wire dog leash but had pretty much striped it down to the bare EL Wire and battery box. So for months I was unable to think of any thing to use it with until I saw the EL Wire contest and finally figured out I could use it with my oxygen mask.
This instuctable should be easy enough for any one to do.
Also I would like to thank ever one who viewed and voted for my last submission for the usb contest
Lets Get Started, Gather Your Supplys
SUPPLY'S

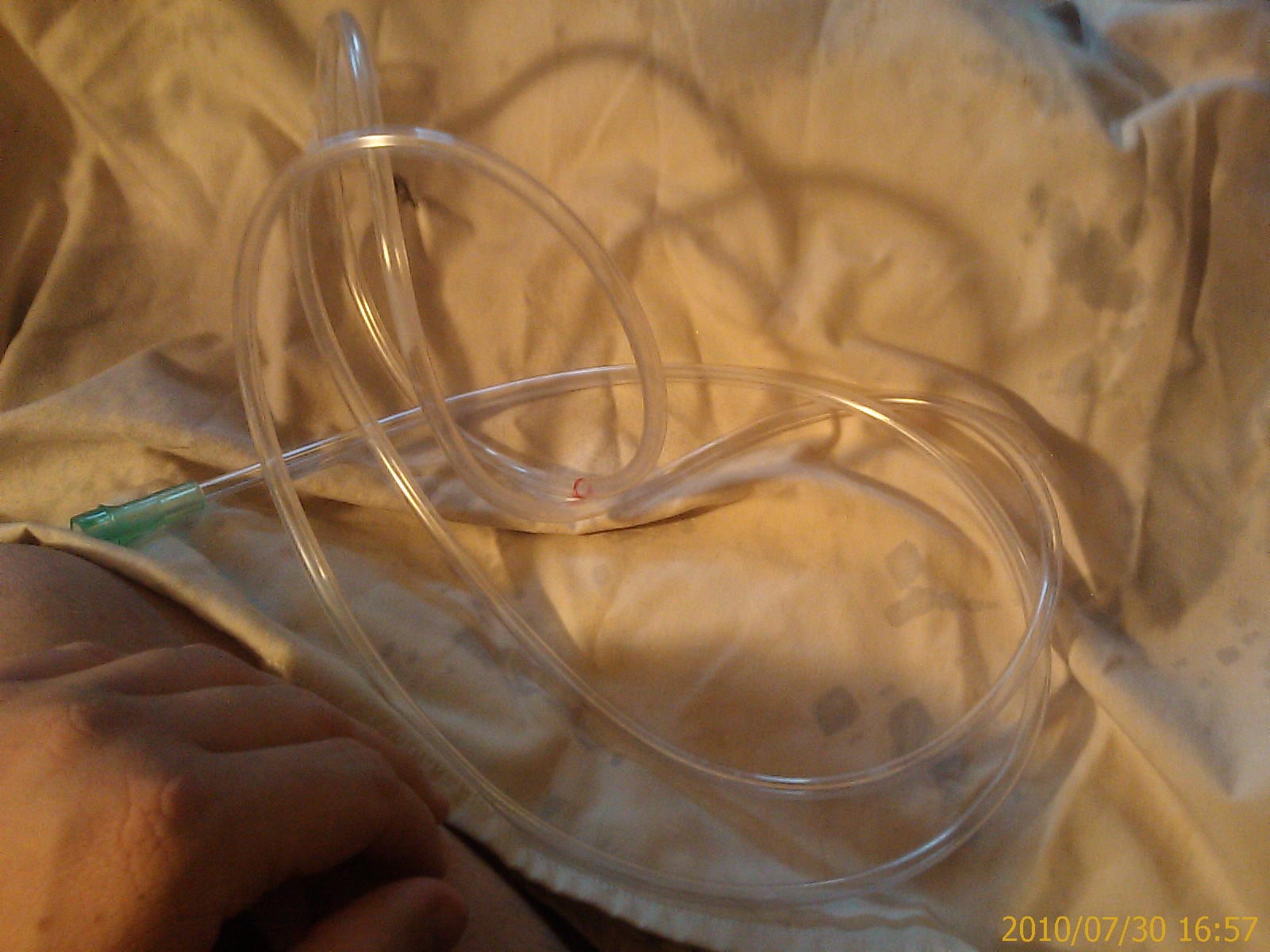

You'll need some sort of oxygen mask with a tube, just mask sure there are enough air hole in the mask since you will be plugging up the tube.
One EL Wire dog leash, or you can purchase EL Wire from http://thatscoolwire.com/ along with a battery pack.
TOOLS
scissors
marker (if you want)
ruler or tape measure (if you want)
hot glue gun
also you will need some epoxy with / instead of the hot glue (edit)
Now if you couldn't find the dog leash el wire you will need to contruct your own el wire with battery pack set up, but you should be able to find the dog leach for under $20.
One important note make sure the el wire is as long or shorter than the tube because its alot easier to cut the tube.
You'll need some sort of oxygen mask with a tube, just mask sure there are enough air hole in the mask since you will be plugging up the tube.
One EL Wire dog leash, or you can purchase EL Wire from http://thatscoolwire.com/ along with a battery pack.
TOOLS
scissors
marker (if you want)
ruler or tape measure (if you want)
hot glue gun
also you will need some epoxy with / instead of the hot glue (edit)
Now if you couldn't find the dog leash el wire you will need to contruct your own el wire with battery pack set up, but you should be able to find the dog leach for under $20.
One important note make sure the el wire is as long or shorter than the tube because its alot easier to cut the tube.
Disassembly / Assembly
I forgot to add this step but it is necessary if you use the dog leash, the only reason i forgot to add it is some one disassembled it for me. The only tips i can give you is be carefull not to kink any of the wire or it will short out like mine did
assembly
assembly
Measure Twice Cut Once....crap
Take the tube and EL Wire and put it side by side make sure it will have more than enough room to fit inside. Now you slide the EL Wire in as far as you can, but if you have trouble and it gets stuck grab the end of the EL Wire that is not connected to the battery pack. When you have a hold of the end in the tube pull on the length of the tube so it stretches and quickly pinch the end of the tube closest to the battery pack and let go of the end farthest away, now repeat the a hundred more time until you reach the end.
Now when you reach the end cut the tube about and inch or so way from the wire, in my case I needed yo leave a little room so i could stick the cap in from the cut portion of the tube. The cap is the part that connects the tube to the mask.
Now when you reach the end cut the tube about and inch or so way from the wire, in my case I needed yo leave a little room so i could stick the cap in from the cut portion of the tube. The cap is the part that connects the tube to the mask.
Glue It or Loose It

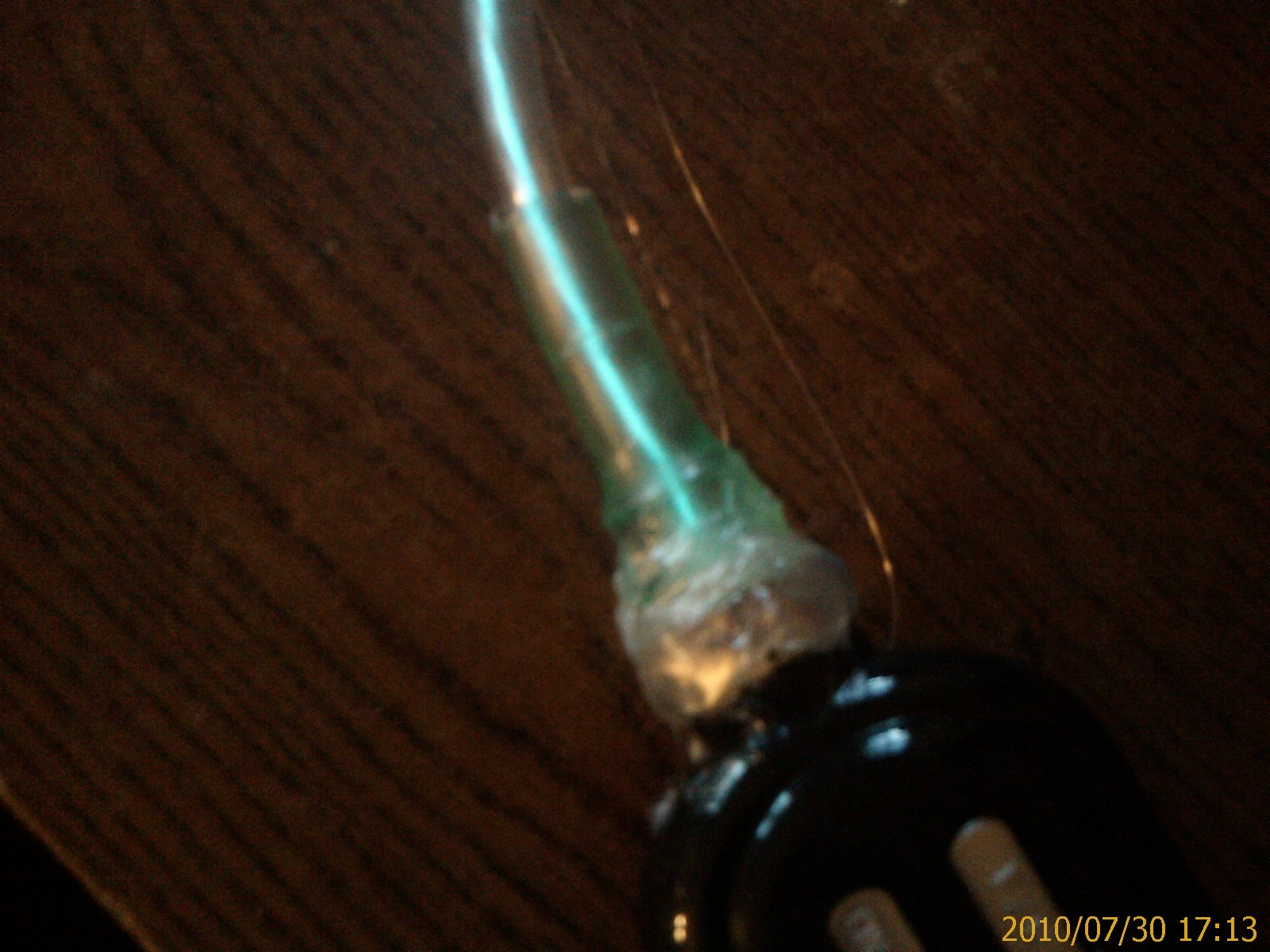

Now that you have the EL Wire inside of the tube you'll notice the wire will tend to slide out if you move it at all. so as you can see in the second picture i could not get the tube to sit flush against the battery pack at all so i took out my friend the hot glue gun and taged it into place as I uses my shimmy trick to press the tube against the battery pack (the same trick I used to get the wire into the tube). Now in picture 3 you'll see its all nicely and firmly glued in place, you can use epoxy on this step but only its the hot glue fails. (EDIT) you will need the epoxy for the base i just broke it tonight so i may have to cut the bad part of wire out
On the other end (picture 4) figure out how much you want between your wire and cap then trim off any excess tube you have fill the end of the tube with hot glue and jam the cap into spot holding it in until the glue cools down and hardens. I glued the end so no moisture will get into the wire as you breathing in this mask and trust me you get one hell of a shock from this.
On the other end (picture 4) figure out how much you want between your wire and cap then trim off any excess tube you have fill the end of the tube with hot glue and jam the cap into spot holding it in until the glue cools down and hardens. I glued the end so no moisture will get into the wire as you breathing in this mask and trust me you get one hell of a shock from this.
YOUR DONE

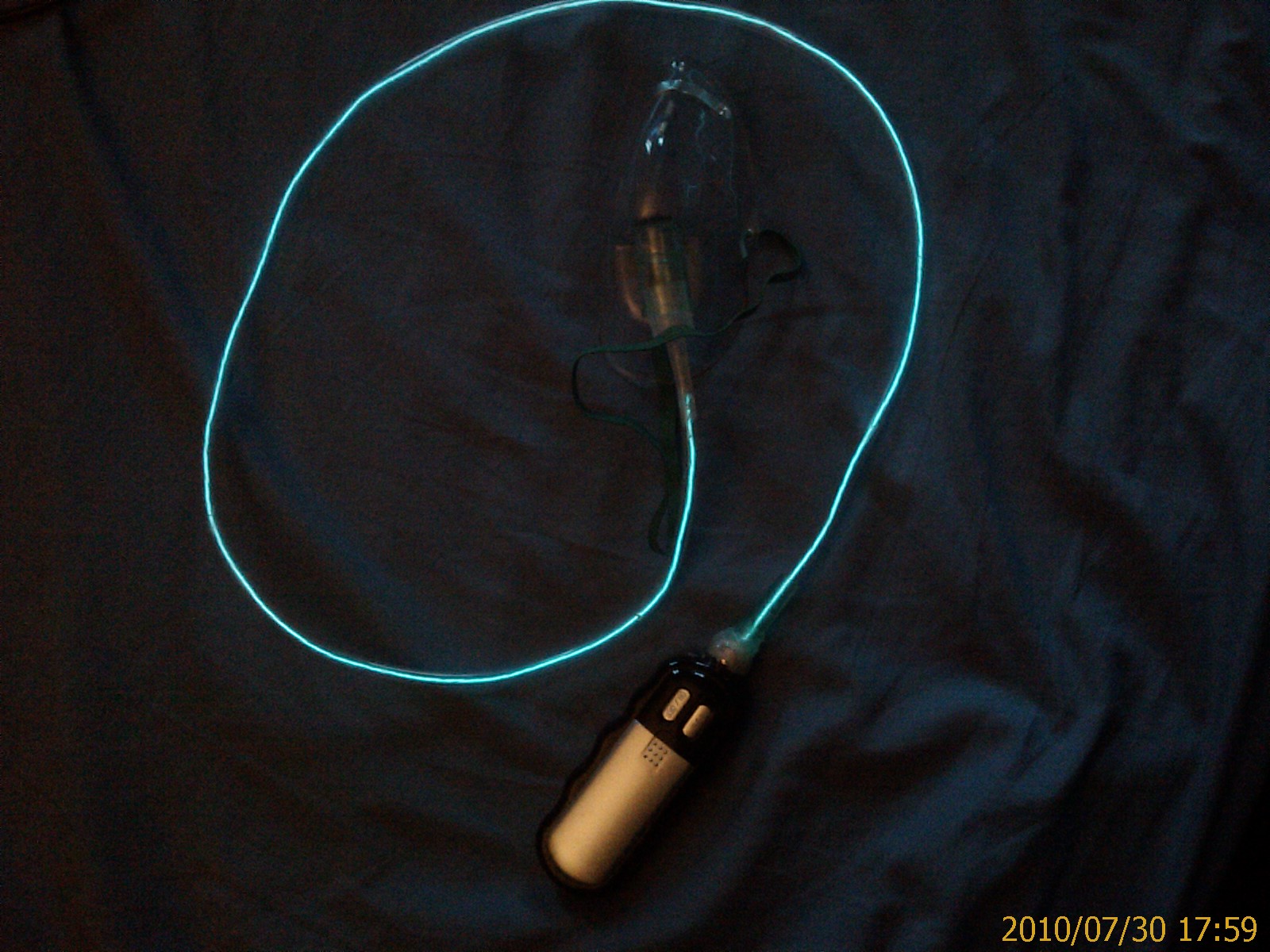

Now that you buttoned every thing up in the last step pop the cap end back into the mask, stick the battery pack into your pocket and show off your handy work
Depending on what your looking for you can keep going, spray paint the mask, glue some gears onto it, the sky is the limit.
The extra pictures are me wearing the mask an hour ago in some of my haunted house costume and the other 2 pictures are from last years haunted house showing how i'm updating the costume.
Feel free to ask me questions, give me suggestions this is only my second intructable so please give me some feed back.
edit i broke it tonight the wire is shorting its self out like it did when i first got it, but at least it lived long enough to be posted
Depending on what your looking for you can keep going, spray paint the mask, glue some gears onto it, the sky is the limit.
The extra pictures are me wearing the mask an hour ago in some of my haunted house costume and the other 2 pictures are from last years haunted house showing how i'm updating the costume.
Feel free to ask me questions, give me suggestions this is only my second intructable so please give me some feed back.
edit i broke it tonight the wire is shorting its self out like it did when i first got it, but at least it lived long enough to be posted
