Flexible LED ETextile Ribbon Array

Yet another method to create eTextiles and wearable computers: an easy sew flexible ribbon array for LEDs.

Want more eTextile How-To DIY eTextile videos, tutorials and projects?
Then visit The eTextile Lounge!

Ribbon
Thread
Needle
Scissors
Sewing Machine
LEDs
Power Source

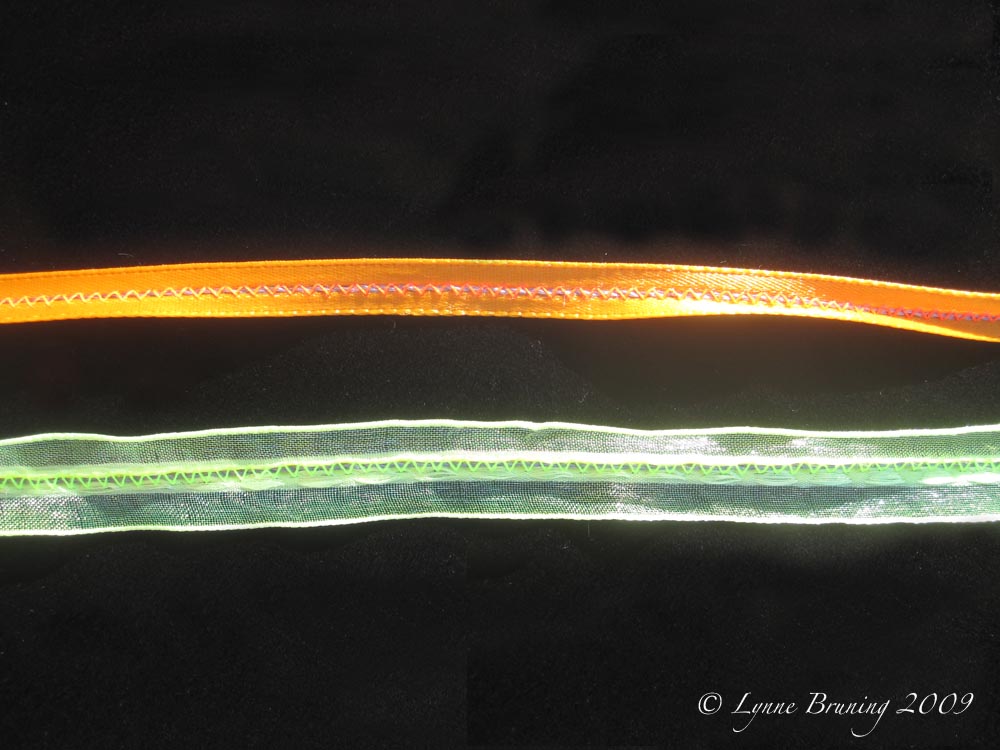

With a zig zag stitch sew conductive thread to ribbons.

Form an array by tailor tacking the conductive thread ribbons together.

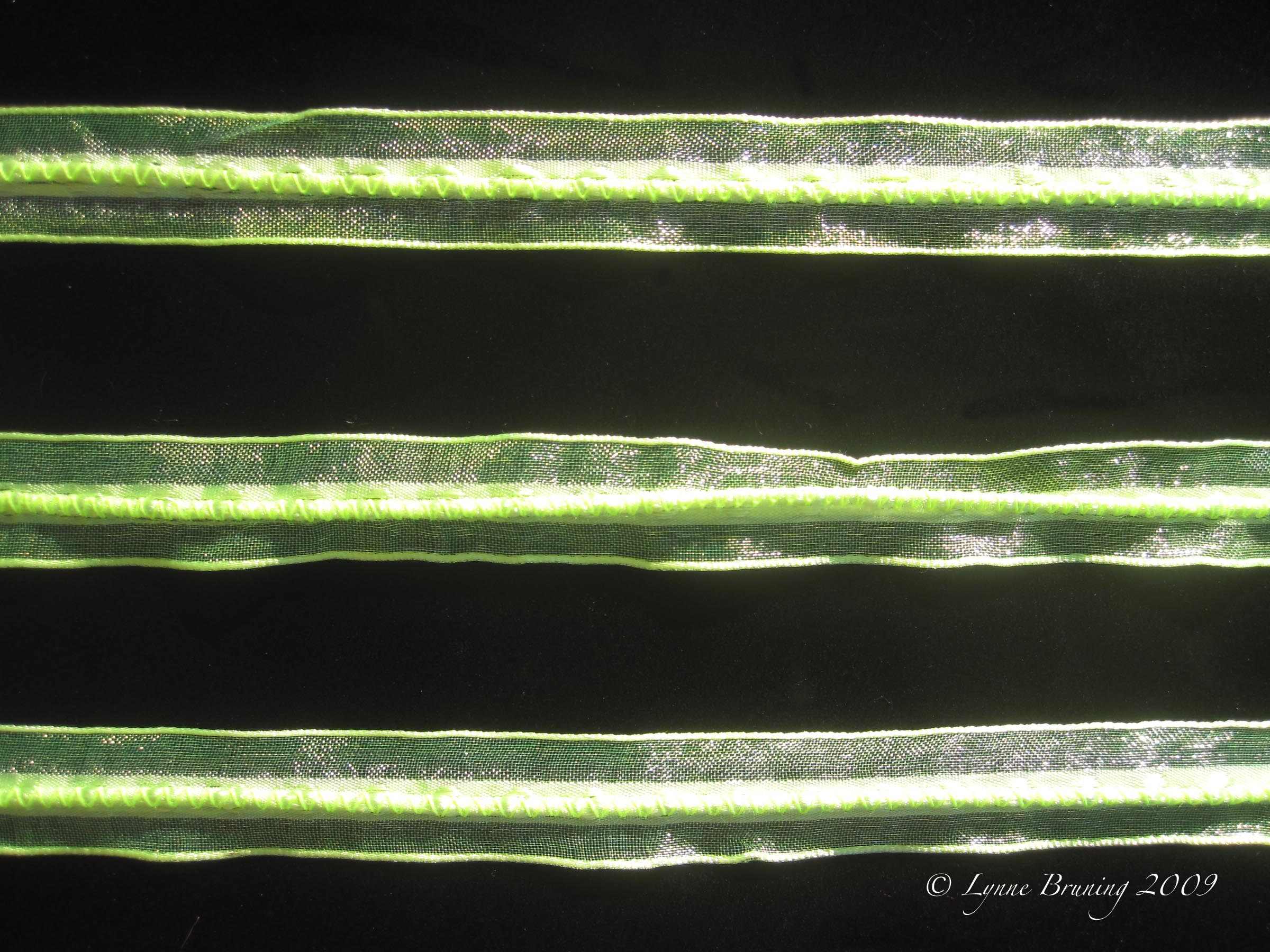

Negative ribbon with conductive thread facing down.
Positive ribbon with conductive thread facing up.

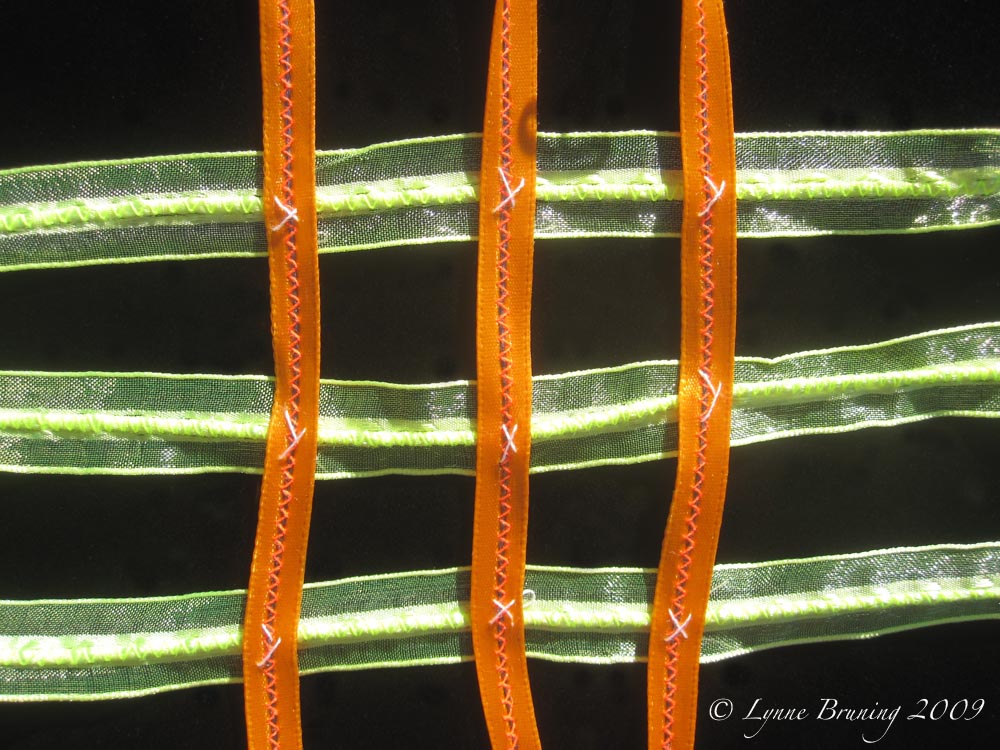

Loosely sew the ribbons together at crossing points.

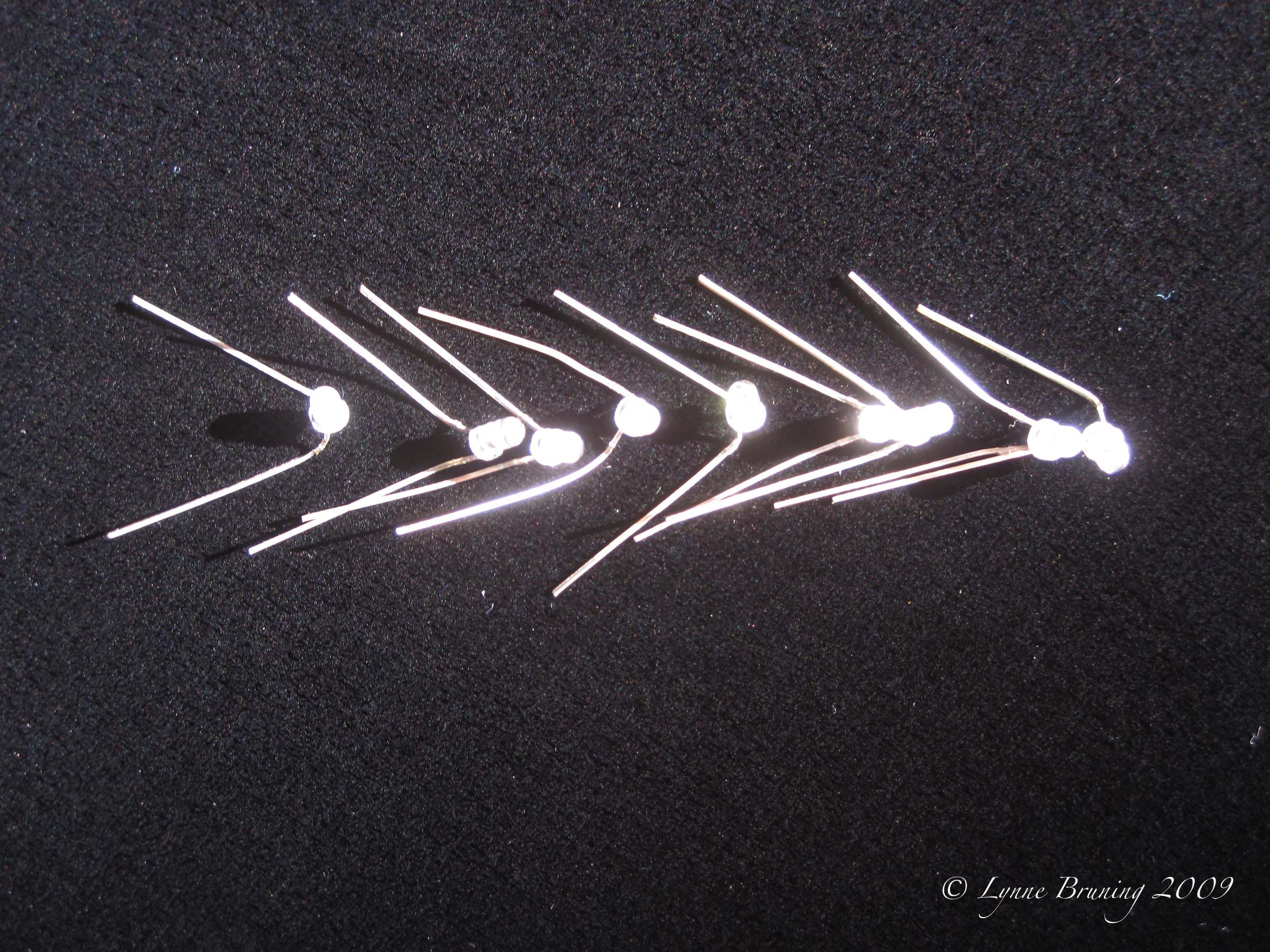

Gently bend the legs of the LEDs.
Slide negative leg into negative trace zig-zag by puncturing thru the ribbon to reach the conductive thread zig-zag channel.  Feed the negative leg thru the channel making contact with the conductive thread.

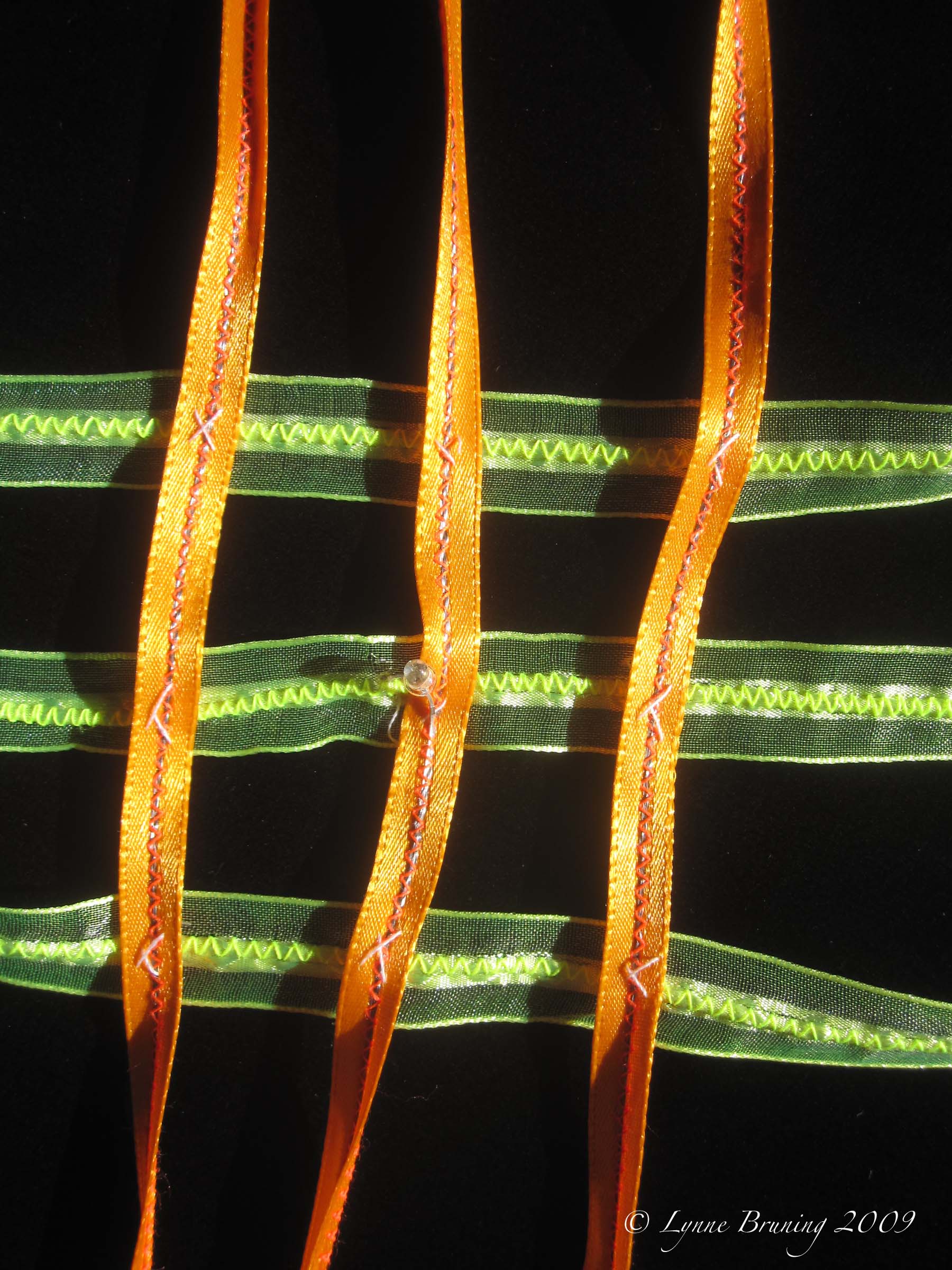

Slide positive leg into positive trace zig-zag channel making contact with the conductive thread.
Gentle snug the LED into their zag-zag channels.

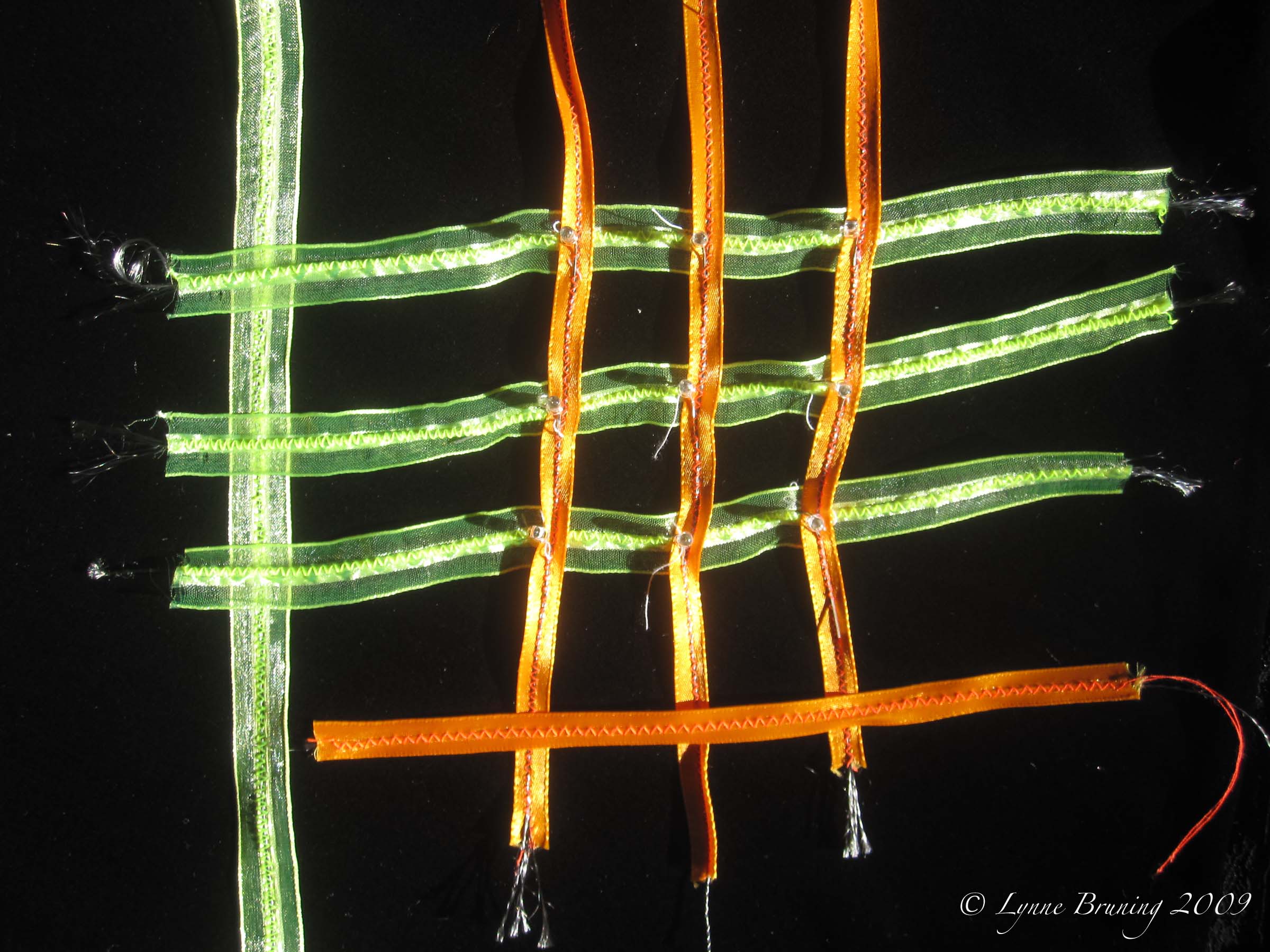

Make a master positive ribbon trace and a master negative ribbon trace.
Lay the master negative trace on the negative array ribbons with conductive thread touching.

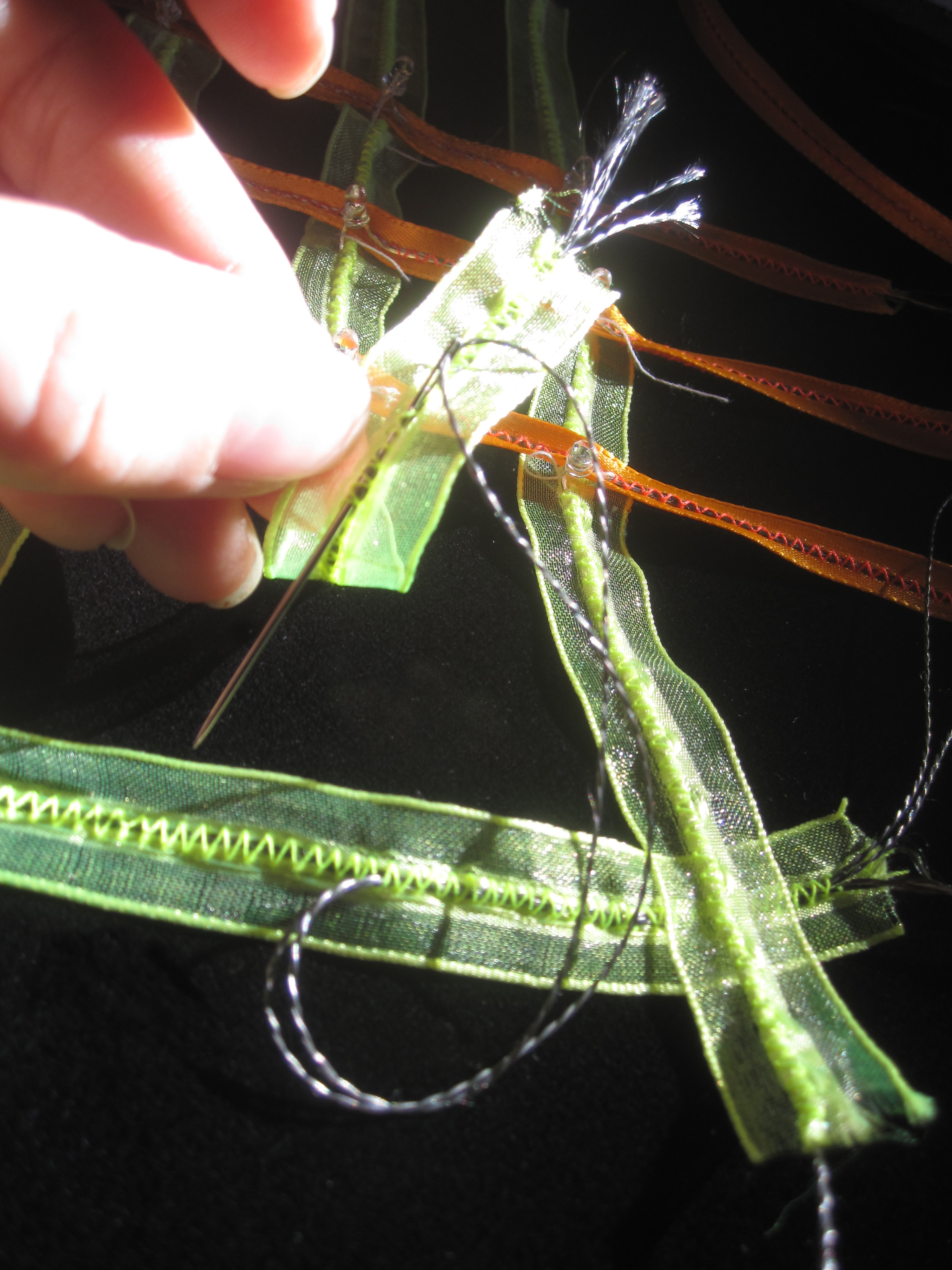

Using conductive thread sew the negative traces together.
Lay the master positive trace on the positive array ribbons with conductive thread touching.
Using conductive thread sew the positive traces together.

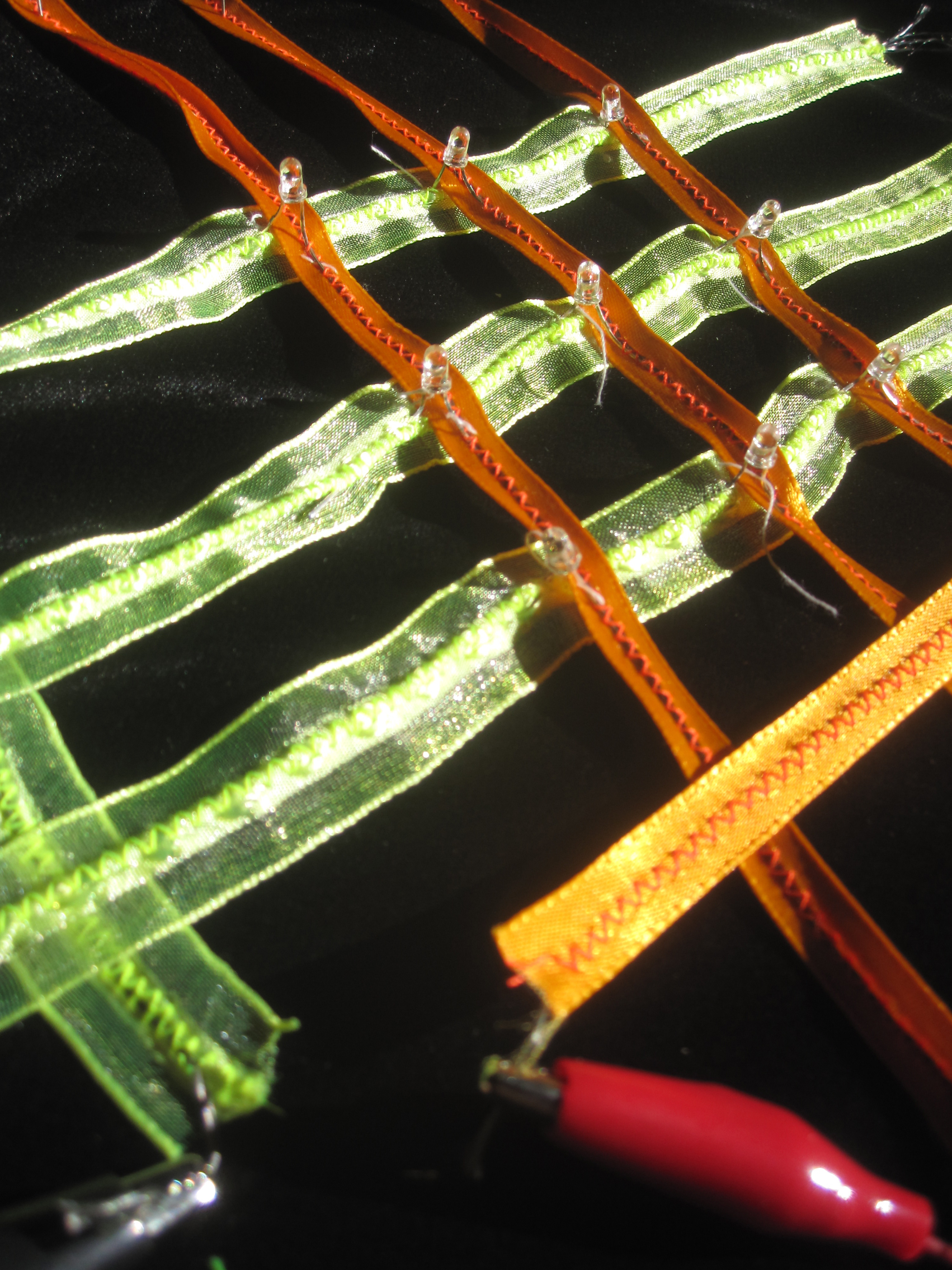

Connect master ribbon traces to power source.

Let there be light!

I used this eTextile method to create a UV LED illumination system inside a lobster bustle for Mrs. Mary Atkins-Holls' evening gown.

More about this Victorian raver black light ball gown - Mrs. Mary Atkins-Holl.
