Featherlamp

by Ruud van Koningsbrugge in Workshop > Lighting

8846 Views, 129 Favorites, 0 Comments

Featherlamp

DSCF2811 (Large).JPG
Lampshade made of empty dish soap bottles. You will need:
6 bottles,
one lid of a yoghurt or icecream pot,
16 tie-wraps, scissors,
small hacksaw or sharp knife,
sticky tape
cap of a big soap bottle
pencil
turret punch or awl
and of course a lamp, socket, and electric wire.

Open the Bottle

DSCF3785 (Large).JPG
DSCF3787 (Large).JPG

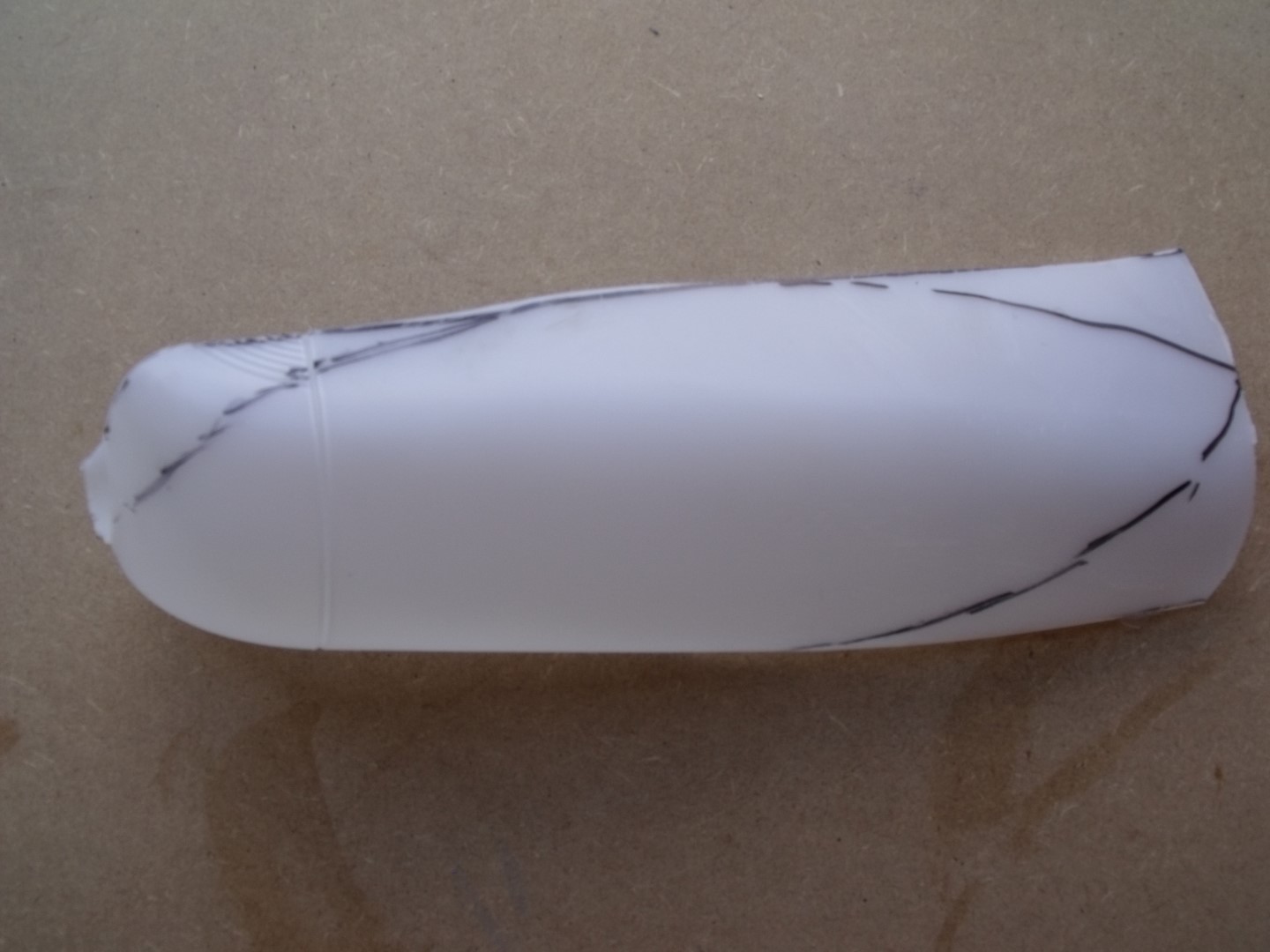

Draw three diagonal lines on the bottle.cut off the bottom and top. I like to use a small hacksaw

Feathershape

DSCF3789 (Large).JPG
DSCF3791 (Large).JPG
DSCF3794 (Large).JPG
Cut the bottle with a pair of scissors in three more or less equal parts. Draw a pointy shape on both ends of each part. Paste a small strip of tape down the center to guide further cutting.

DSCF3795 (Large).JPG
DSCF3796 (Large).JPG
Cut narrow fringes on each side of the feathers. Take notice of the diagonal direction.

The Center

Cut a circle from the lid or bottom of a yoghurt or ice pot. Make an opening in the center fitting round the socket. Divide the remaining iring in 8 equal parts with a pencil. Make small holes on the lines and in the middle of the parts. See all red dots in the drawing.
Make two corresponding holes in each feather

Almost Done

DSCF2810 (Large).JPG
DSCF2817 (Large).JPG

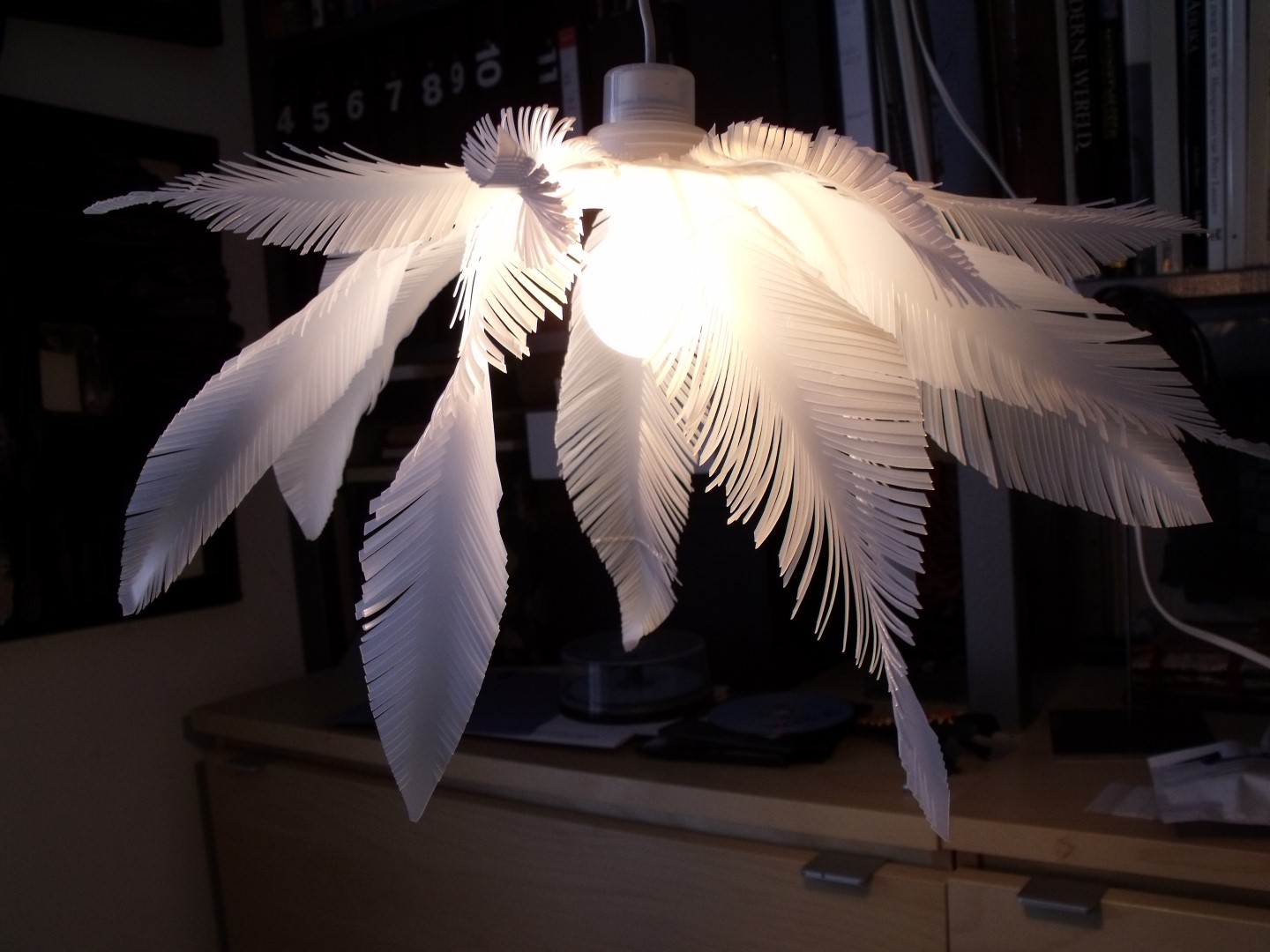

Attach 16 feathers with tie-wraps to the yoghurtpot ring. The best way to do this is to alternate. First the 8 "even"spaces, then the 8 remaining uneven spaces. Place the socket through the ring and screw on. ( most sockets come with a ring to attach).


DSCF5104 (Large).JPG
More idea's with plastic bottles are available on a free downloadable ebook on my website: www.ruudvankoningsbrugge.nl/flessenboek. Regrettable the website and book are in dutch, but with enough pictures and drawings to inspire. Take a look and if you do, please click the facebook "like"button.
