El Wire Clock

In this el wire clock instructable I will be showing you how to make a el wire clock using a old bell style clock.

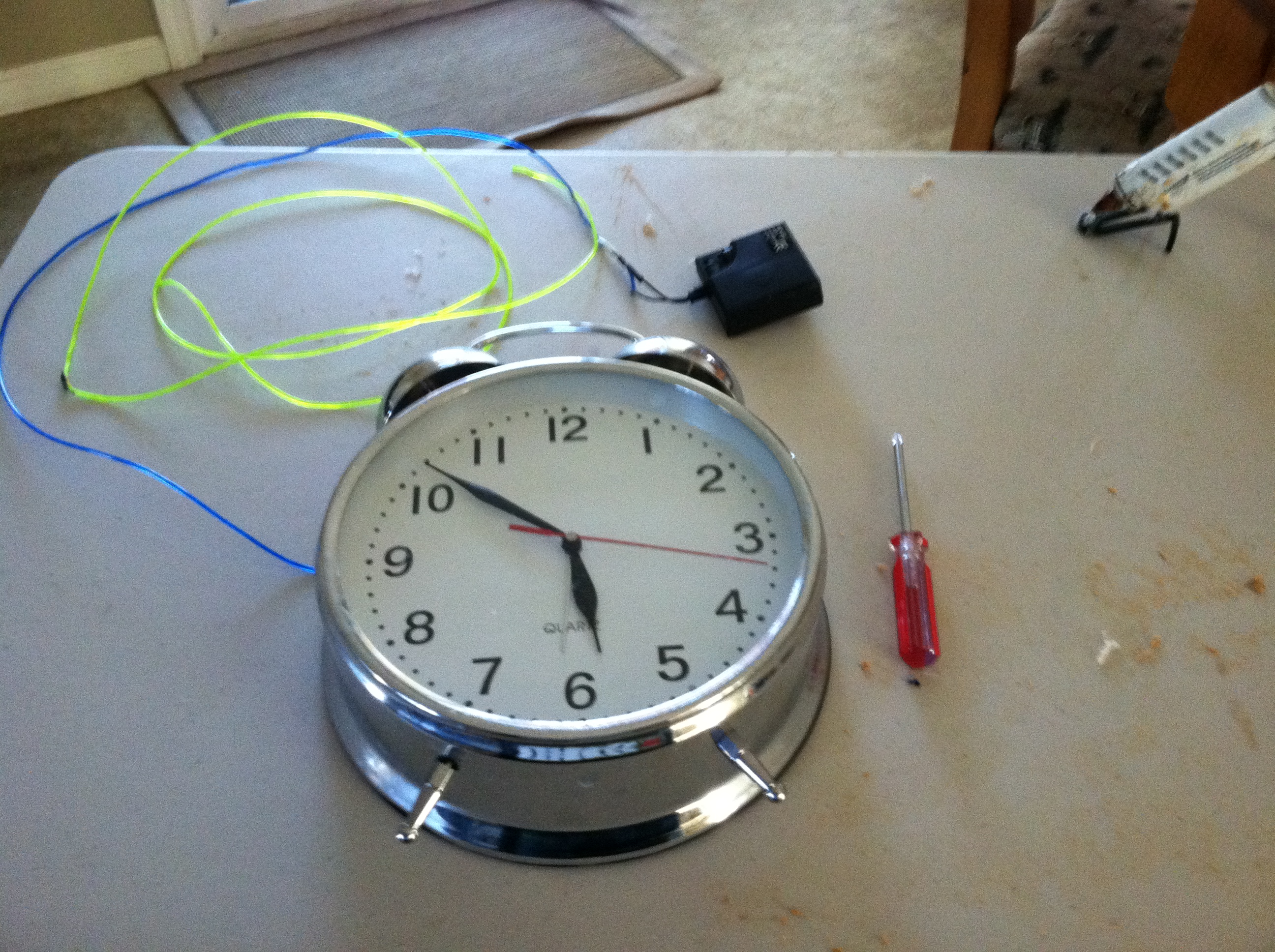

For this project you will need:
1. A old bell style alarm clock
2. 2 feet of a color of your choice el wire(with connecter already soldered)
3. 3 feet of a color of your choice el wire
4. A el wire inverter
5. Tape
6. Screw driver
7. Drill
8. Drill bits
9. Hot glue gun
10. Hot glue sticks








Taking the Guts Out

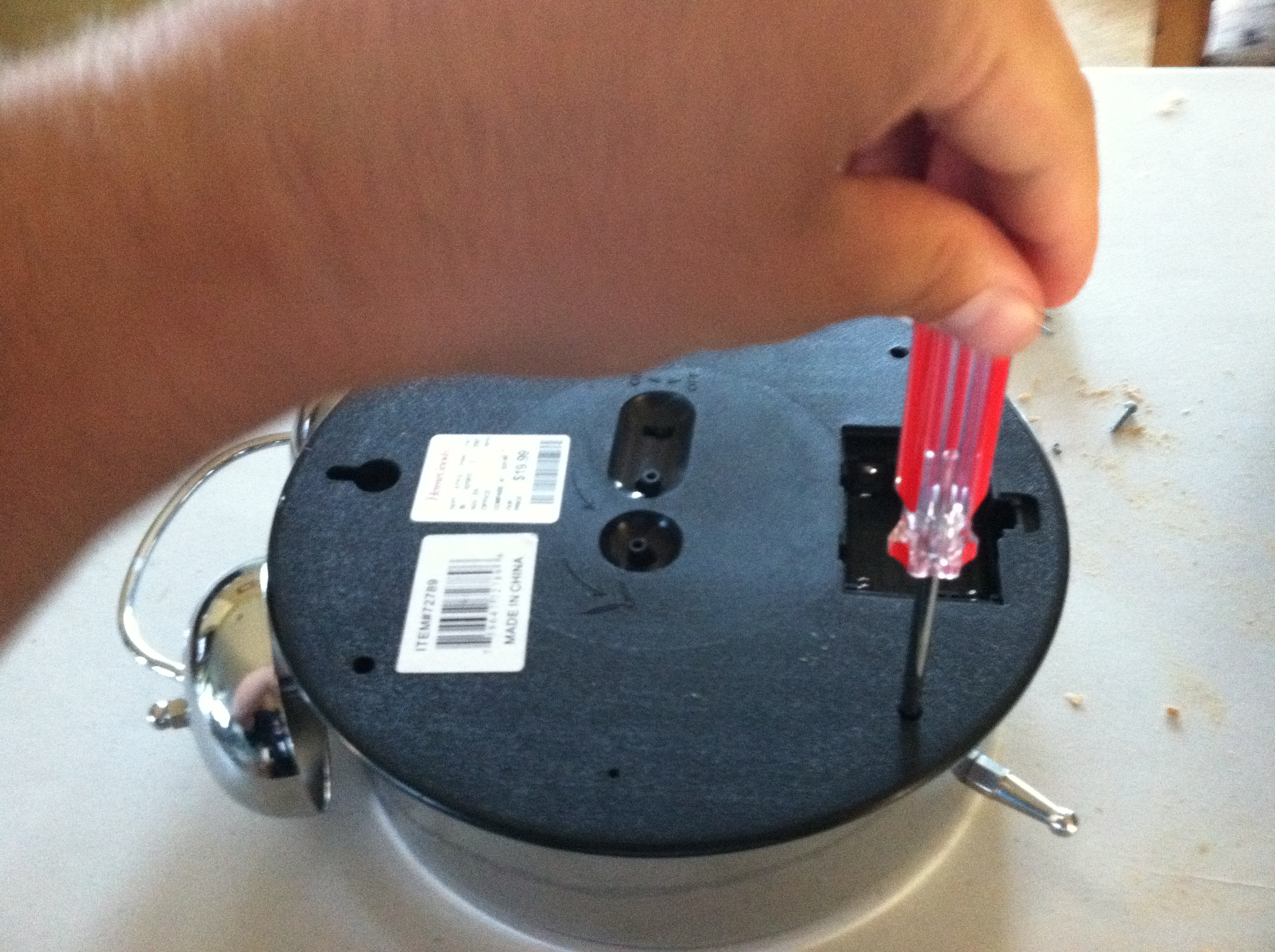

Unscrew the screws and remove the cover, then take off the bells and the legs so the unit will come out. Carefully remove the clock unit, and set aside.

Installing the El Wire Around the Clock

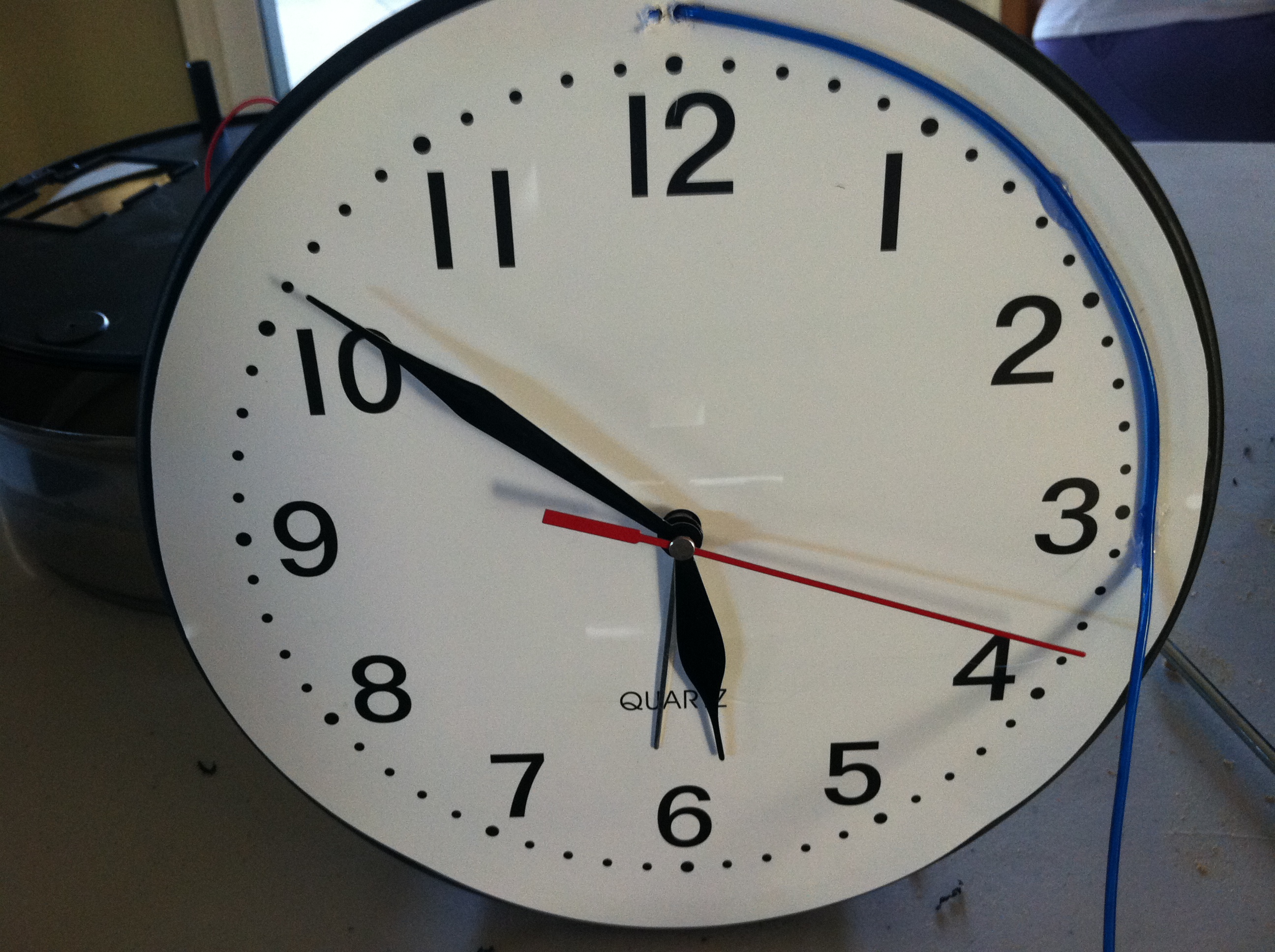

Start by drilling two holes next to each other on the top, feed the el wire through the first hole, then using hot glue make a circle around the clock and feed the wire through the second hole. Now secure the wire to the back with more hot glue.

Drilling the Holes for the Numbers and Installing the El Wire

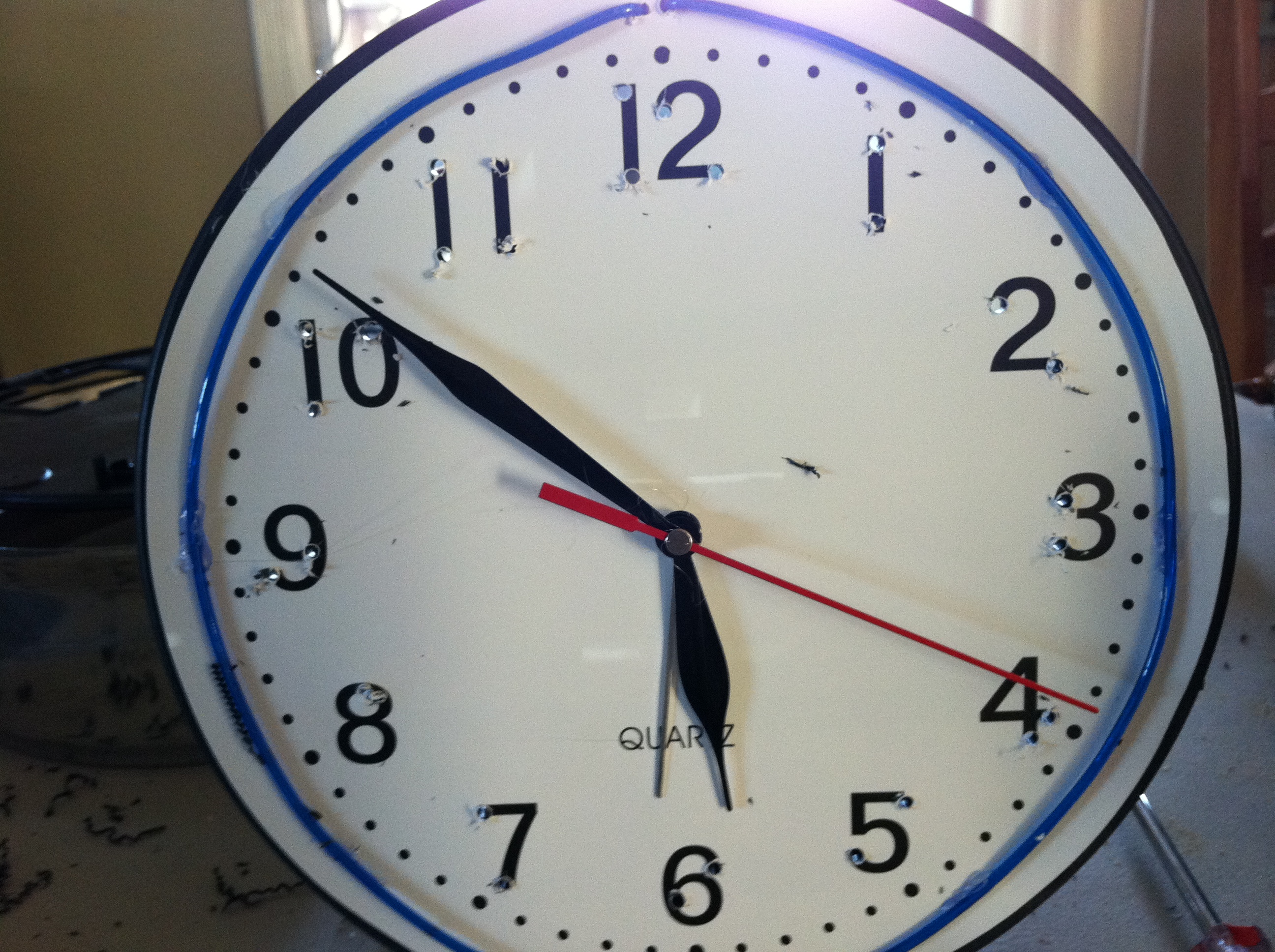

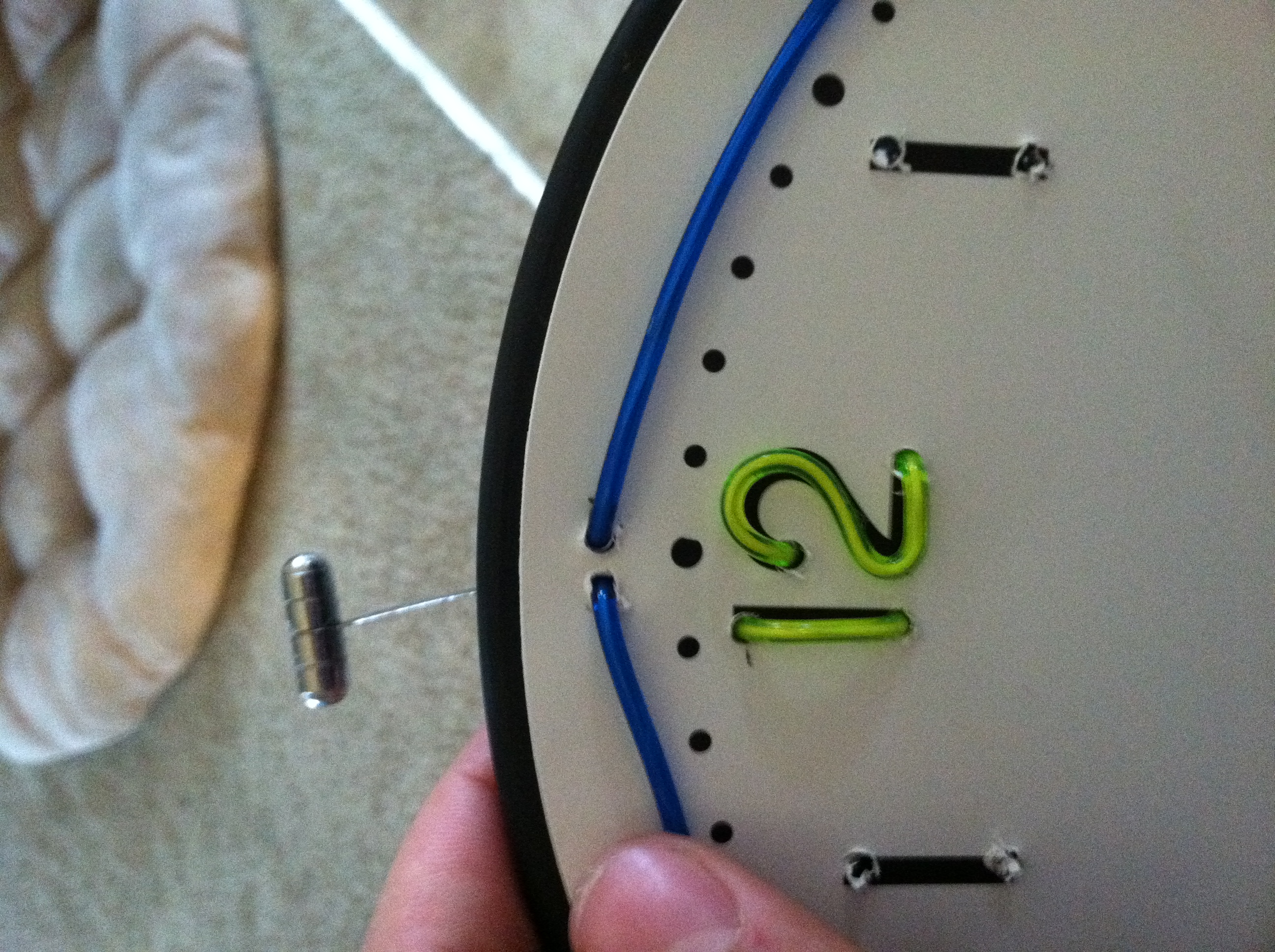

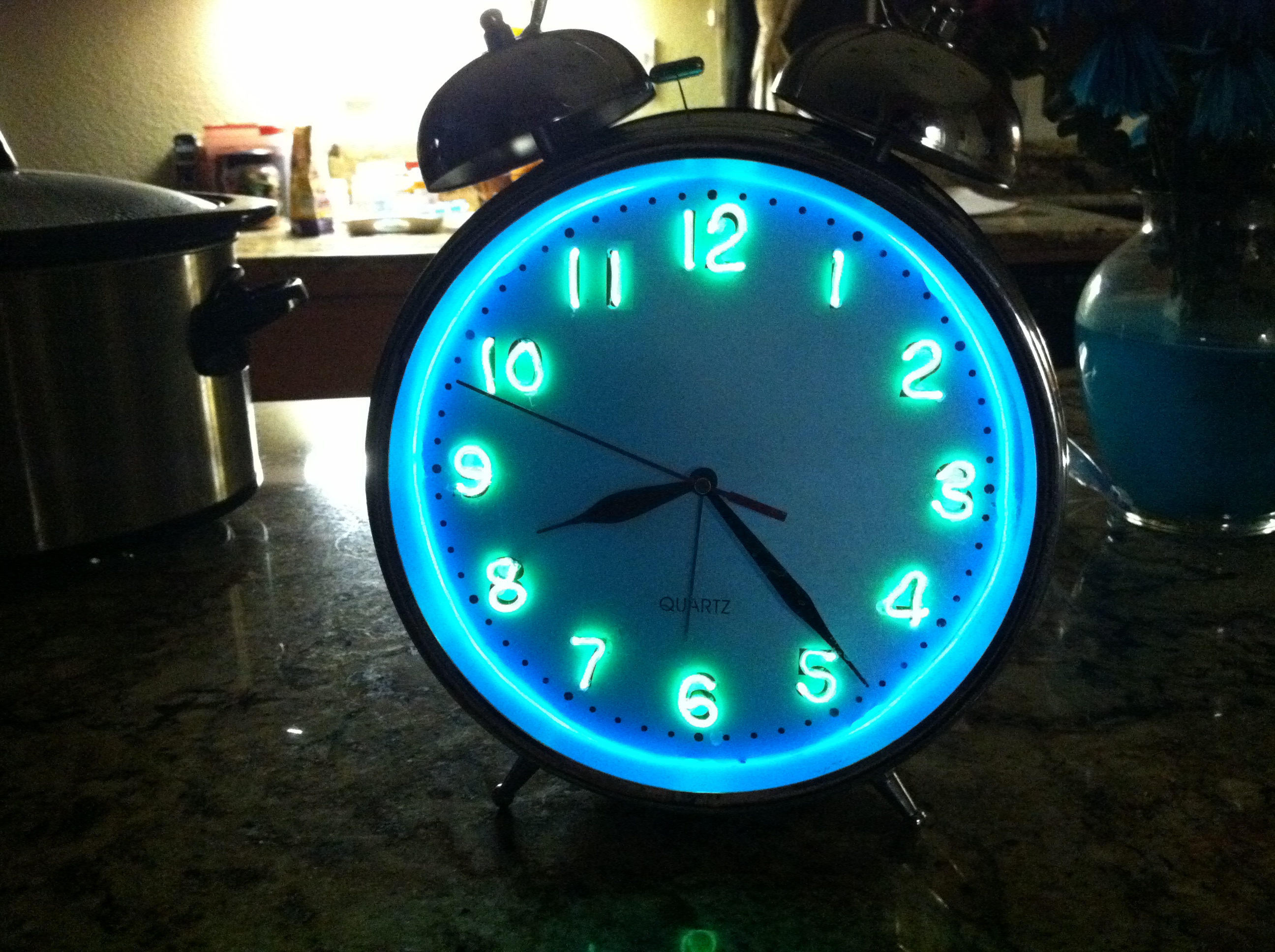

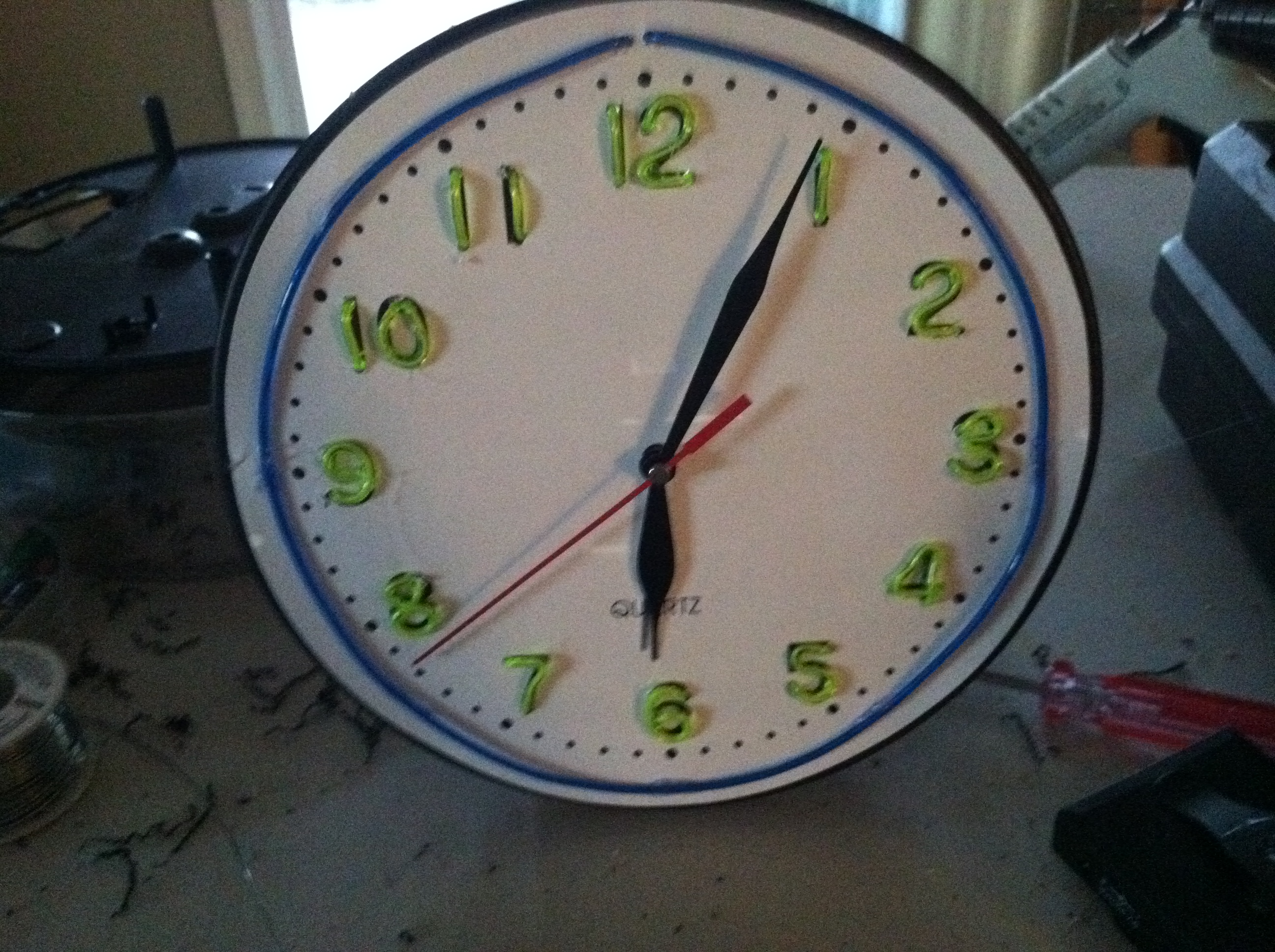

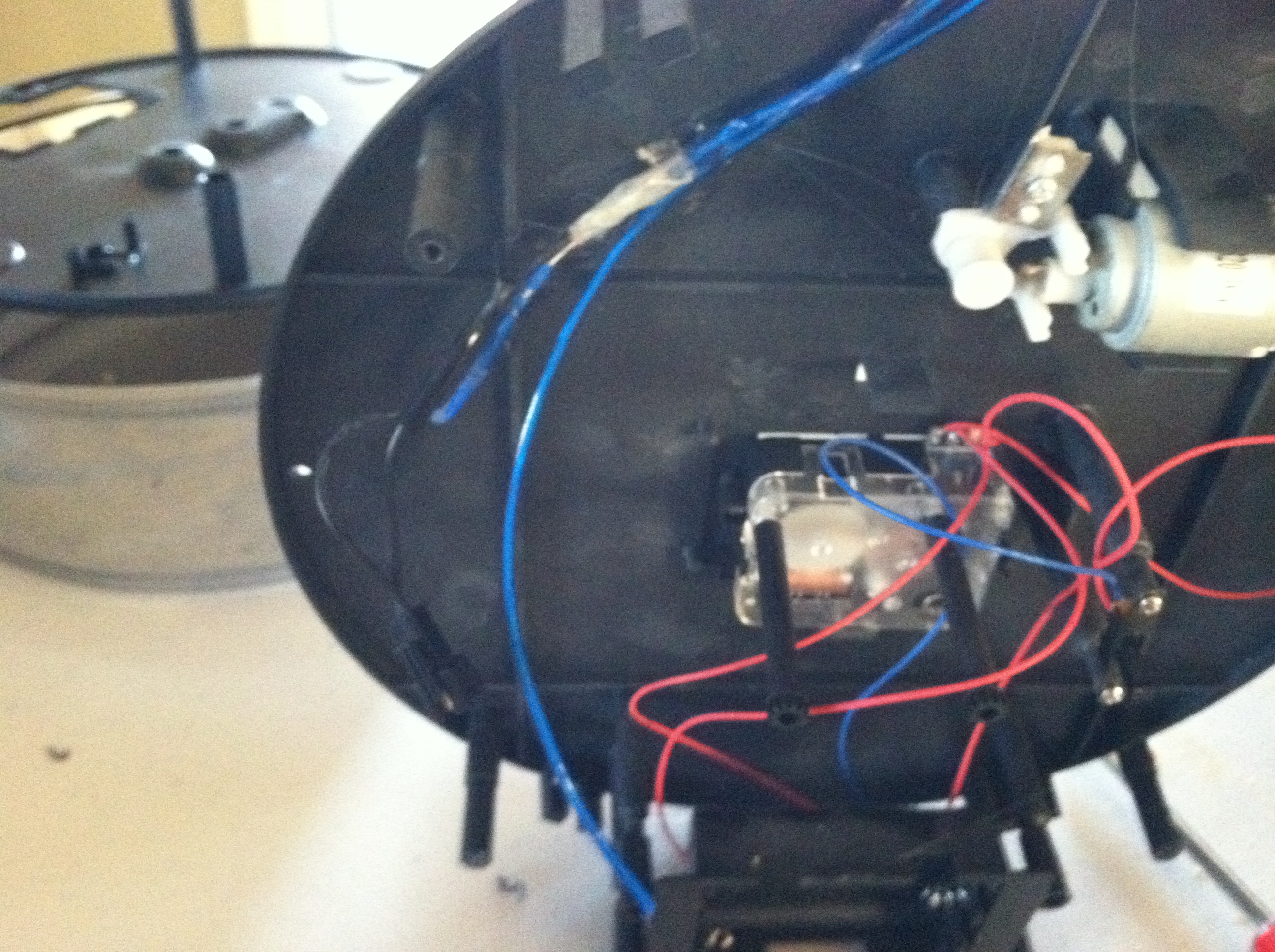

Start by drilling one hole at the begining of the number and one at the end, but for the numbers eight and ten just drill two holes right next to each other. Next you need to attach the two different colors of el wire together by soldering the angel hair wires and the main phosphorus coated wire together and cover with tape.  Now just feed the el wire through the first hole, bend the el wire to the correct shape, and feed it through the last hole, do that all the way around. Just check the clock hands now to make sure their not bent or anything like that, then reinstall the guts, drill a hole in the cover, feed the end of the el wire with the connecter on it through the hole, and attach the inverter. Enjoy.
