Easy Killswitch

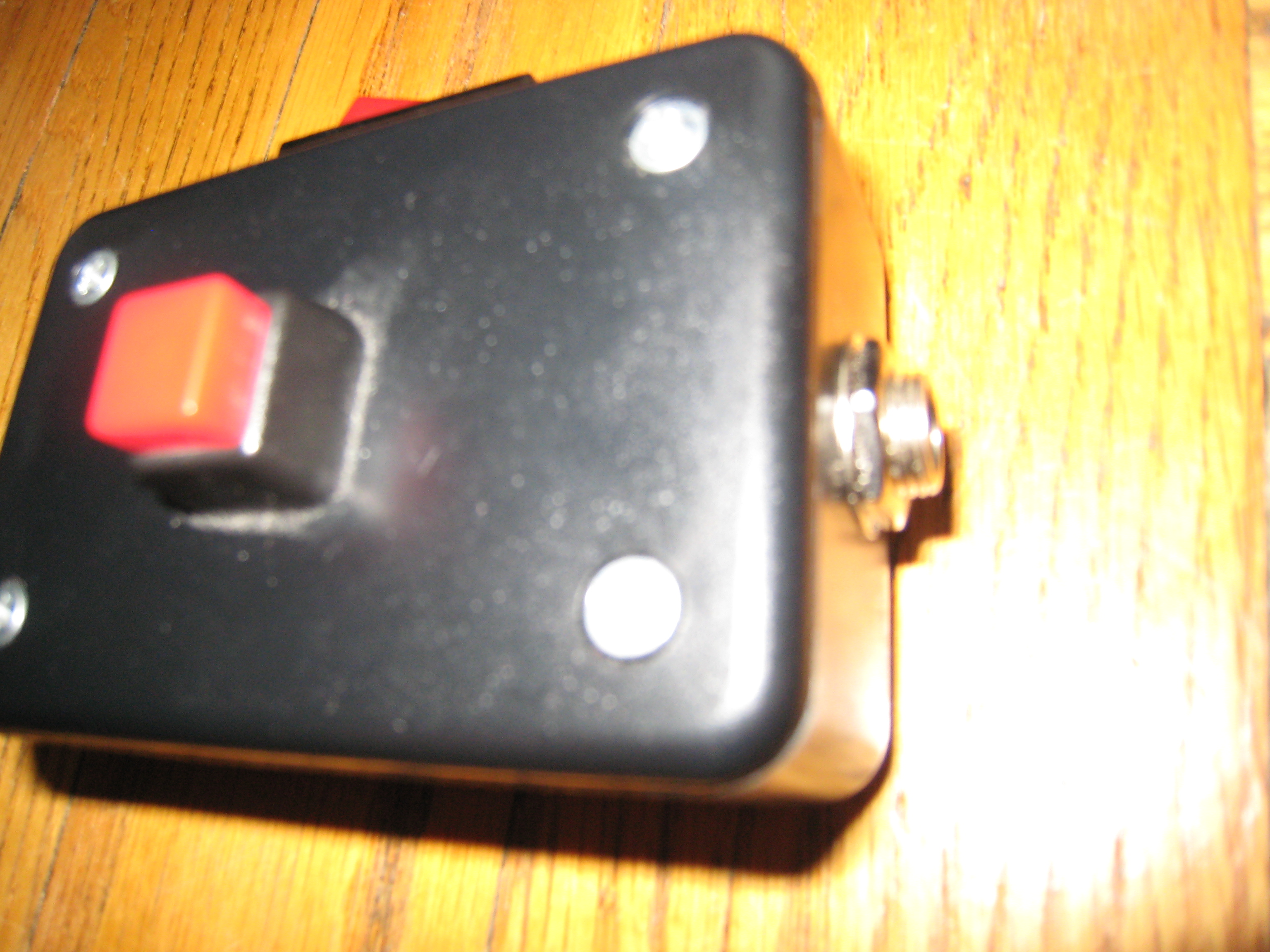

This killswitch is easy to make and only costs $9.27!
It can be uses on any thing that uses a 1/4 phone jack.
What a kill switch does for those who do not know is when pressed it kills the sound. the button on the top is a momentary on switch that when pushed reroutes the signal to the ground thus shutting off the sound for as long as you hold down the button. By pressing the butting rapidly you can create some cool studdering effects.

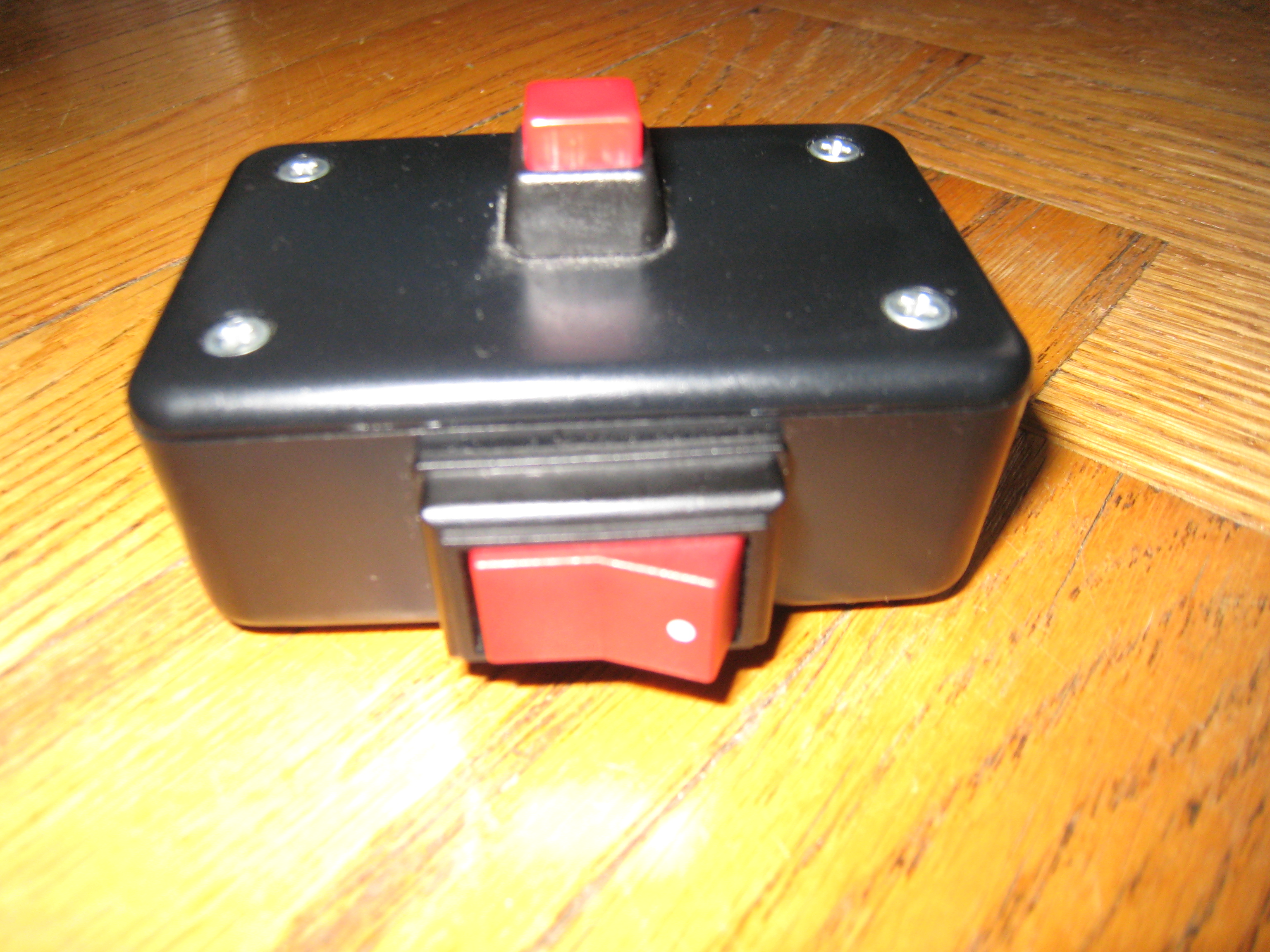

I'm going to show you two ways to make the killswitch. One way is just a killswitch and the other has a added rocker switch. If you record guitar or and thing else you can flip the rocker switch over(killing the noise)so there is complete silence well you wait for you part to come up then you can flip it off to bring the sound back. This makes it so when you are waiting there is not the sound of you hitting the strings or any thing else.
If any thing does not make sence to you feel free to PM me with a question.
Credit for the idea to make a kill switch goes to Super Cameraman though I did modify it a bit
:-]
Please leave a comment and rate my Instructable I like to know what need to be improved/changed.
It can be uses on any thing that uses a 1/4 phone jack.
What a kill switch does for those who do not know is when pressed it kills the sound. the button on the top is a momentary on switch that when pushed reroutes the signal to the ground thus shutting off the sound for as long as you hold down the button. By pressing the butting rapidly you can create some cool studdering effects.
I'm going to show you two ways to make the killswitch. One way is just a killswitch and the other has a added rocker switch. If you record guitar or and thing else you can flip the rocker switch over(killing the noise)so there is complete silence well you wait for you part to come up then you can flip it off to bring the sound back. This makes it so when you are waiting there is not the sound of you hitting the strings or any thing else.
If any thing does not make sence to you feel free to PM me with a question.
Credit for the idea to make a kill switch goes to Super Cameraman though I did modify it a bit
:-]
Please leave a comment and rate my Instructable I like to know what need to be improved/changed.
Materals
Stuff You Need:
Drill with bits
Wire
Soldering iron
solder
2 1/4 audio jacks
a momentary switch(push to turn on)
some sort of box to hold it all
Stuff I Bought:
1/4" Stereo Panel-Mount Audio Jack (2-Pack) $3.99
SPST"soft-touch"momentary pushbutton switch $2.99
3x2x1" Project Enclosure $2.29
rocker switch(optionanal) $2.99
total #1 $9.97
total #2(with rocker) $12.96
Drill with bits
Wire
Soldering iron
solder
2 1/4 audio jacks
a momentary switch(push to turn on)
some sort of box to hold it all
Stuff I Bought:
1/4" Stereo Panel-Mount Audio Jack (2-Pack) $3.99
SPST"soft-touch"momentary pushbutton switch $2.99
3x2x1" Project Enclosure $2.29
rocker switch(optionanal) $2.99
total #1 $9.97
total #2(with rocker) $12.96
Drilling
NOTE from here on there will be two sets of steps one for a progect with rocker switch and one with out.
With out rocker switch(pic one)
1 Drill 2 holes (one on either side)for the jacks.
2 Drill one hole in the center of the cover for the momentary
switch
With rocker switch(pic two)
1 Drill 2 holes (one on either side)for the jacks.
2 Drill one hole in the center of the cover for the momentary
switch
3 drill one hole in the front for the rocker switch.
With out rocker switch(pic one)
1 Drill 2 holes (one on either side)for the jacks.
2 Drill one hole in the center of the cover for the momentary
switch
With rocker switch(pic two)
1 Drill 2 holes (one on either side)for the jacks.
2 Drill one hole in the center of the cover for the momentary
switch
3 drill one hole in the front for the rocker switch.

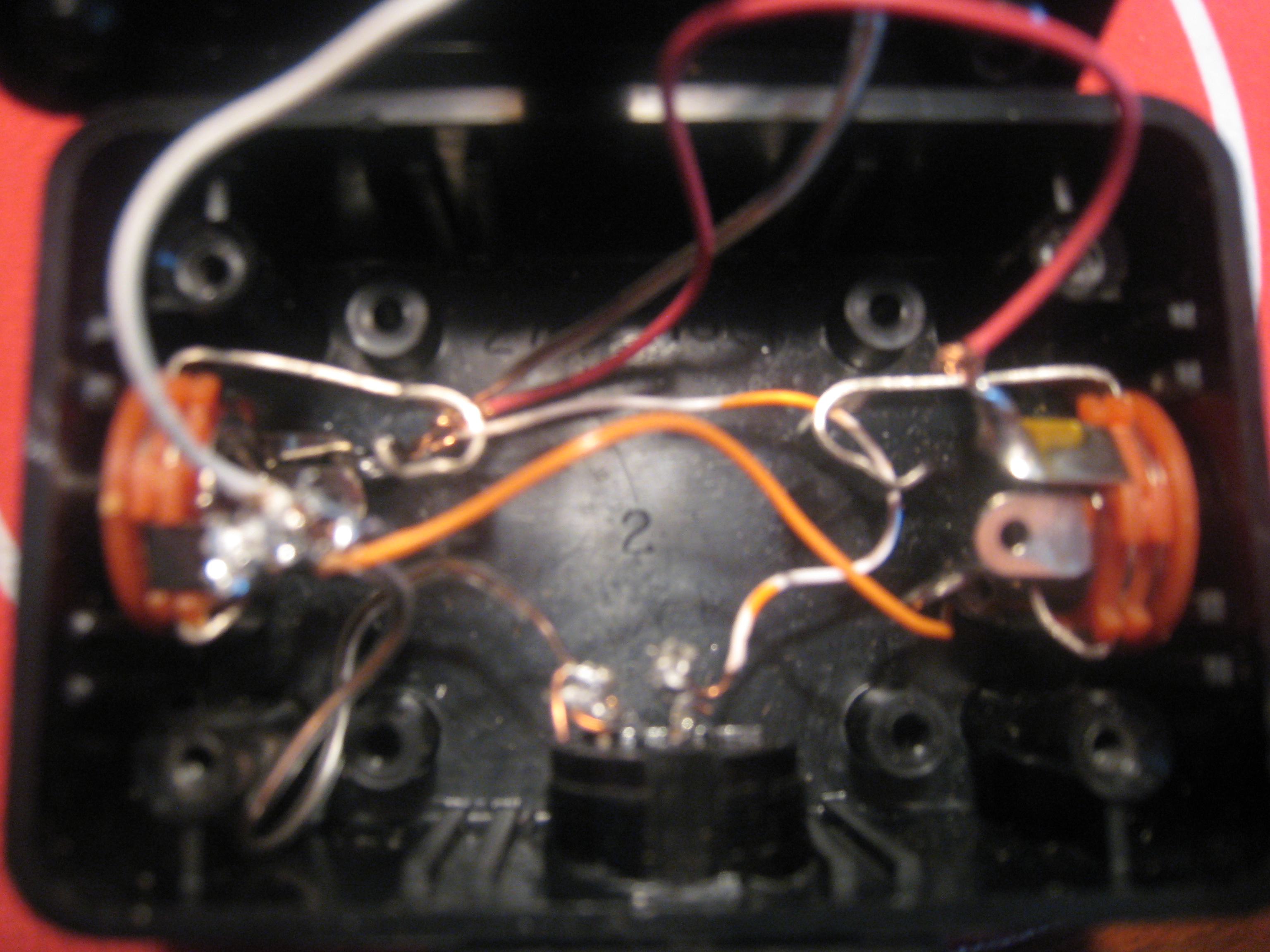

Wiring and Sodering
With out the rocker switch.(pic one)
1 Install the switch in its hole, tighten the nut on the momentary switch.
2 Solder a wire connecting the two short posts on the jacks
together
3 solder a wire go from the long jack post to the other long jack post
4 solder wire go from the amp side jack(left)long post to the momentary switch and a wire go from the momentary switch to the shoter post on the amp side jack.
5 insert the two jacks in there holes and tighten the nut on(make sure the long post is not touching the bottem of the box because when you plug in you will bend the jack.)
With Rocker switch(pic two and three)
1 Install the swiches in their holes, tighten the nut on the momentary switch and glue in the rocker switch if you can't get the nut on.
2 Solder a wire connecting the two short posts on the jacks
together
3 solder a wire go from the long jack post to the other long jack post
4 solder wire go from the amp side jack(left)long post to the momentary switch and a wire go from the momentary switch to the shoter post on the amp side jack.
5 solder wire go from the amp side jack(left)long post to the rocker switch and a wire go from the rocker switch to the shoter post on the amp side jack.
6 insert the two jacks in there holes and tighten the nut on(make sure the long post is not touching the bottem of the box because when you plug in you will bend the jack.)
1 Install the switch in its hole, tighten the nut on the momentary switch.
2 Solder a wire connecting the two short posts on the jacks
together
3 solder a wire go from the long jack post to the other long jack post
4 solder wire go from the amp side jack(left)long post to the momentary switch and a wire go from the momentary switch to the shoter post on the amp side jack.
5 insert the two jacks in there holes and tighten the nut on(make sure the long post is not touching the bottem of the box because when you plug in you will bend the jack.)
With Rocker switch(pic two and three)
1 Install the swiches in their holes, tighten the nut on the momentary switch and glue in the rocker switch if you can't get the nut on.
2 Solder a wire connecting the two short posts on the jacks
together
3 solder a wire go from the long jack post to the other long jack post
4 solder wire go from the amp side jack(left)long post to the momentary switch and a wire go from the momentary switch to the shoter post on the amp side jack.
5 solder wire go from the amp side jack(left)long post to the rocker switch and a wire go from the rocker switch to the shoter post on the amp side jack.
6 insert the two jacks in there holes and tighten the nut on(make sure the long post is not touching the bottem of the box because when you plug in you will bend the jack.)
Mounting and Playing
To finish the project up lable the sides some how so you know where the guitar plugs in and where the amp plugs in.

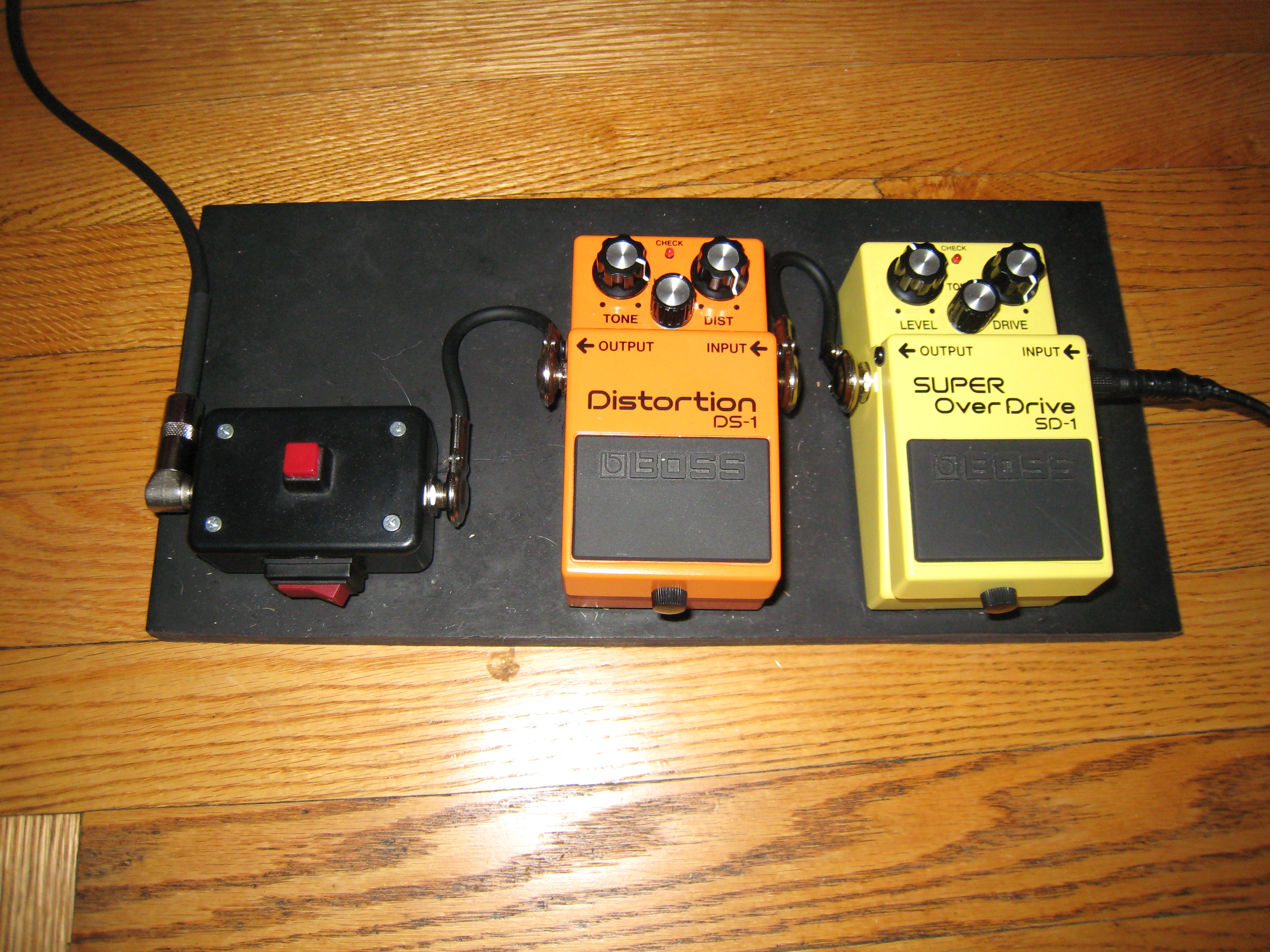

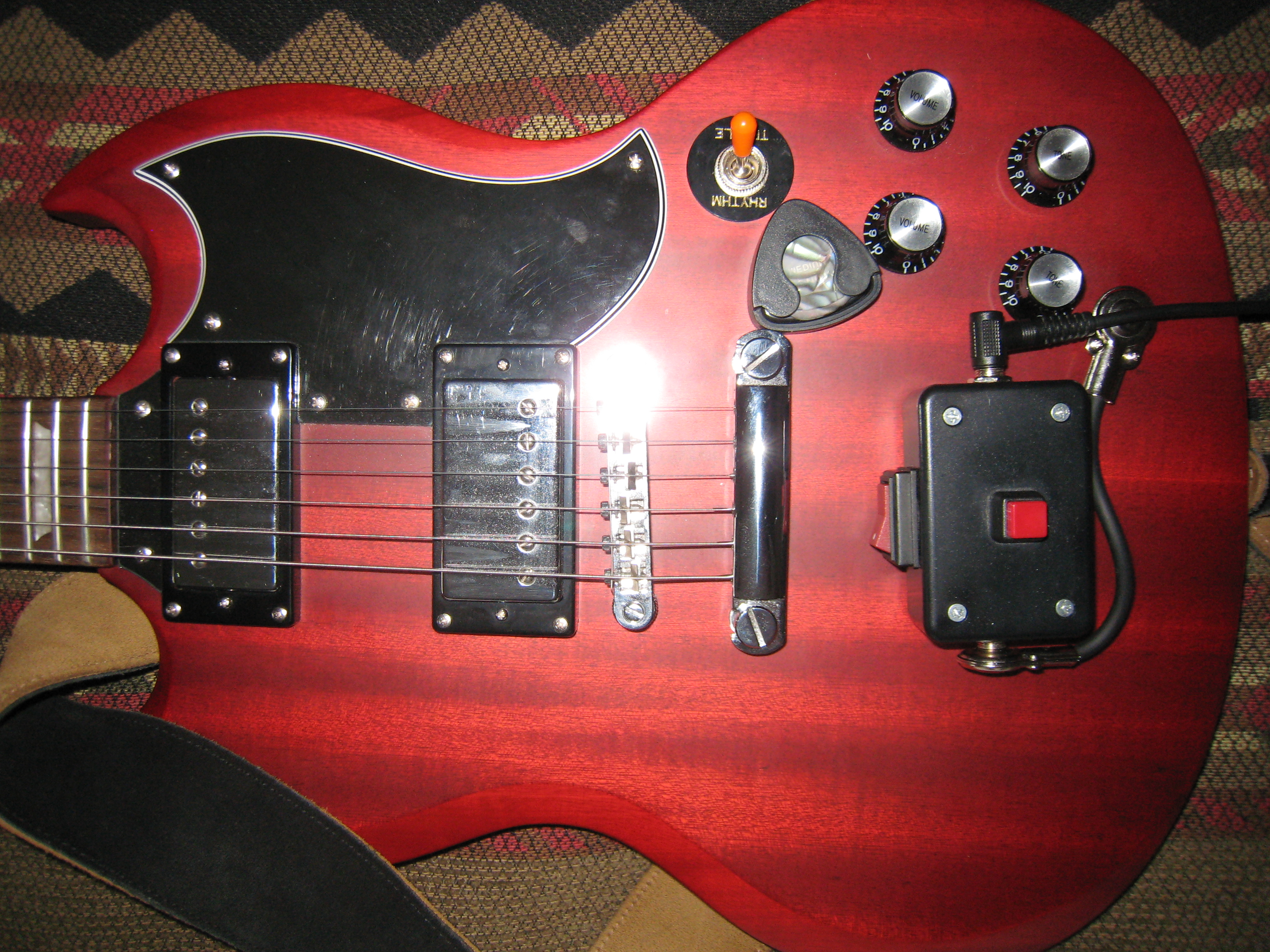

You can mount this killswitch any where and you can take it off if you don't need it. I keep mine velcroed to my pedal board but you can mount it to your guitar or keyboard. Jest about any thing that uses a 1/4 phone jack you can use this killswitch.
I hope you have a blast making all kinds of weird noises with this and I would love to hear and see pictures about how it came out. If you liked my instructable please rate it.
You can mount this killswitch any where and you can take it off if you don't need it. I keep mine velcroed to my pedal board but you can mount it to your guitar or keyboard. Jest about any thing that uses a 1/4 phone jack you can use this killswitch.
I hope you have a blast making all kinds of weird noises with this and I would love to hear and see pictures about how it came out. If you liked my instructable please rate it.
