Easiest Air Restrictor Removal From Nerf Dart Board Gun

I'm going to take out the air restrictors from the nerf dart board gun (sorry I doen't know its name)
!!AS A BONUS I'M ALSO GOING TO SHOW YOU HOW TO MAKE A FLIP CLIP OR KNOWN AS A FLIP CLIP!!


First im going to do the air restrictor mod. All you will need is a screw driver that can fit the gun, a pair of wire cutters, and the gun.

Know unscrew the gun. Once opened it should look like this. Take out the top orange part at the front of the gun where the bullet is loaded. This is the only thing you will touch in the gun.


The peace you pull out should look like this. open up the back side it should be very very easy


Once you opened the back some parts should fall out right away they look like this

take the part that has a rod sticking out. cut it with the wire cutters as close to the bottum of the rod as possible

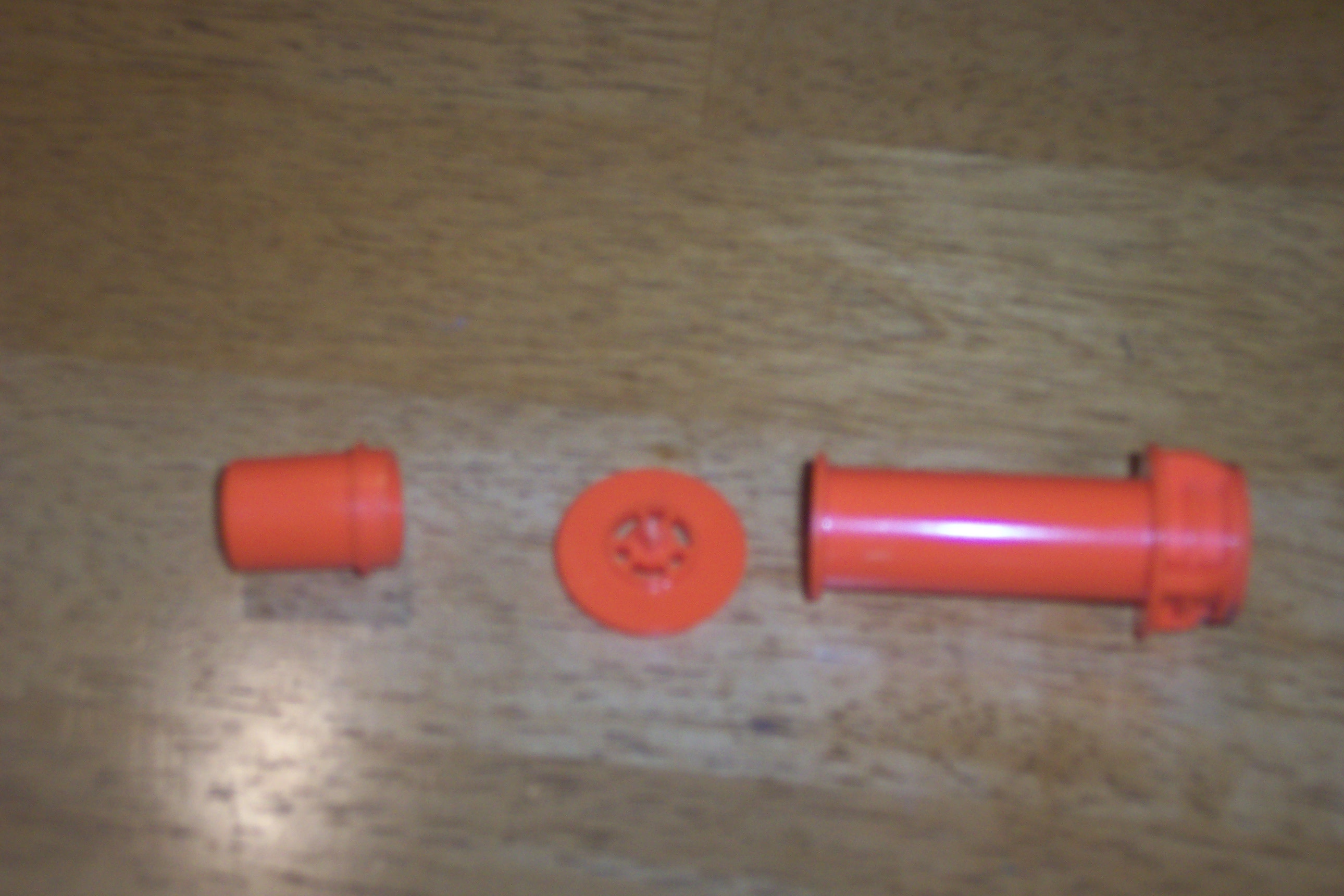

These should be the only parts that you need forget the little spring and the thing on it. put the peices back to normal only the ones in the picture should be used. Then after that put the gun back togather and put the screws back in so your gun looks like it was never touched.

Flip Clip Mod

know i will show you the flip clip mod

all you will need is duct tape and two nerf clips

put the two clips togather but make sure there is enough room between the the clip lines becuase it won't go in the gun if there to close

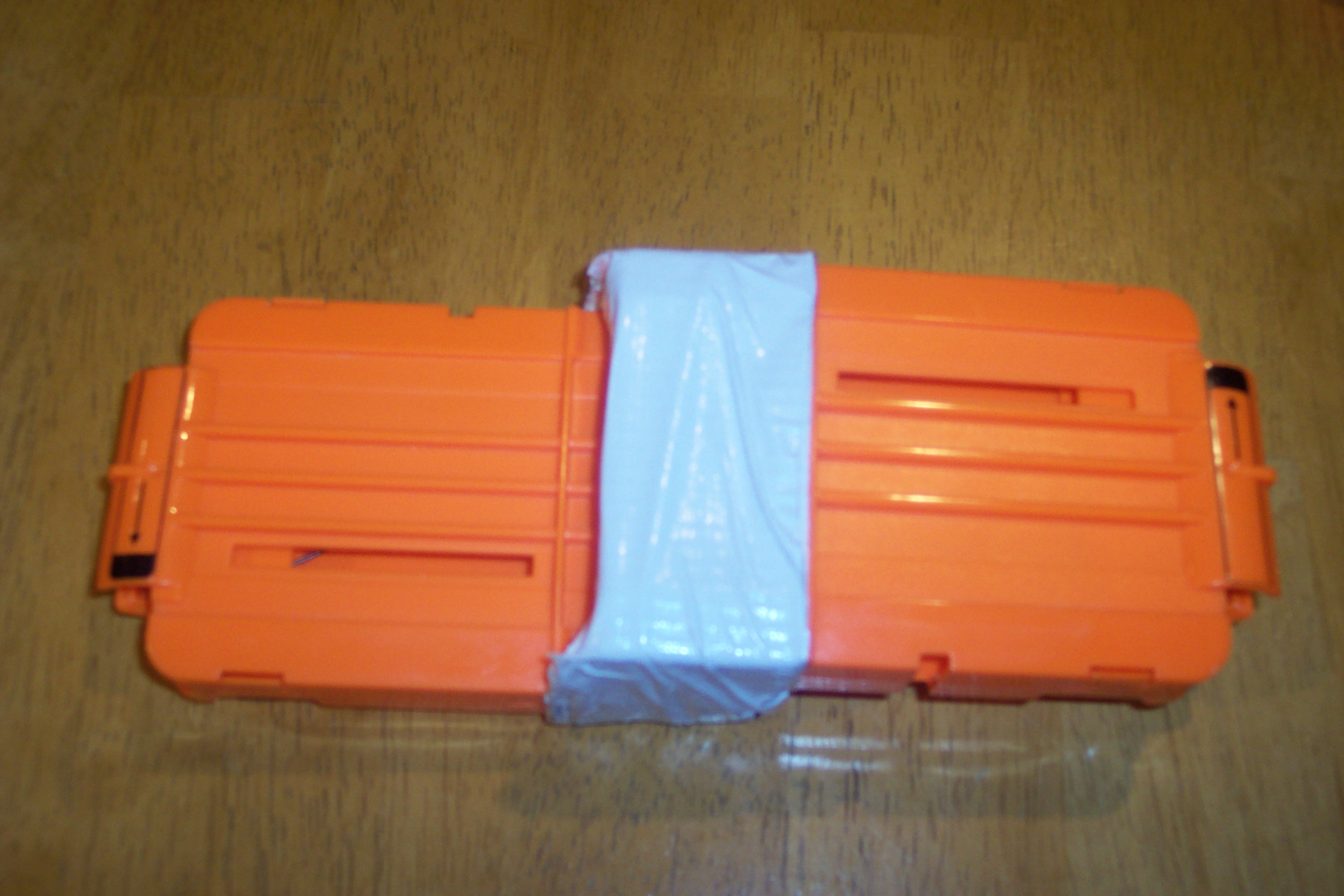

now take the tape and wrap it around the two clips make sure they are nice and tight so they doent move around. Tape around it alot to do this.
If peices of tape are sticking up just fold them over the edges of the tape.


Once you think the clips are nice and tight just cut it with some sicsors like so
