Children's Light Switch Tool

Problem:
my 4 year old daughter cannot reach the bathroom light switch at night; my wife or I have to get up to turn the light on.
Solution:
make a light switch tool that allows my daughter to turn the bathroom light on and off
Materials Required

chibitronics tape (copper tape with conductive adhesive)
chibitronics diode
duct tape
paper, pen, scissors
lime green acrylic
cr2032 battery(1 dollar for a pack of 10 at IKEA)
Draw Your Prototype

draw a diagram of what you want to make, drawing is a fast, easy way to generate prototype variations; this is the best book I've found related to drawing for insight:
Create the Circuit Wiring

place the copper strip with conductive adhesive on your device
Add the Diode

place the chibitronics diode so it matches up with your copper tape I made a short circuit which I then modified by cutting and adding copper tape (its about making it easy to do and then modifying rather than trying to get everything perfect the first time).
Add a Battery


add the cr2032 battery to your circuit
Duct Tape the Battery

duct tape battery in place
Modify the Circuit

add copper tape to circuit and back of wand

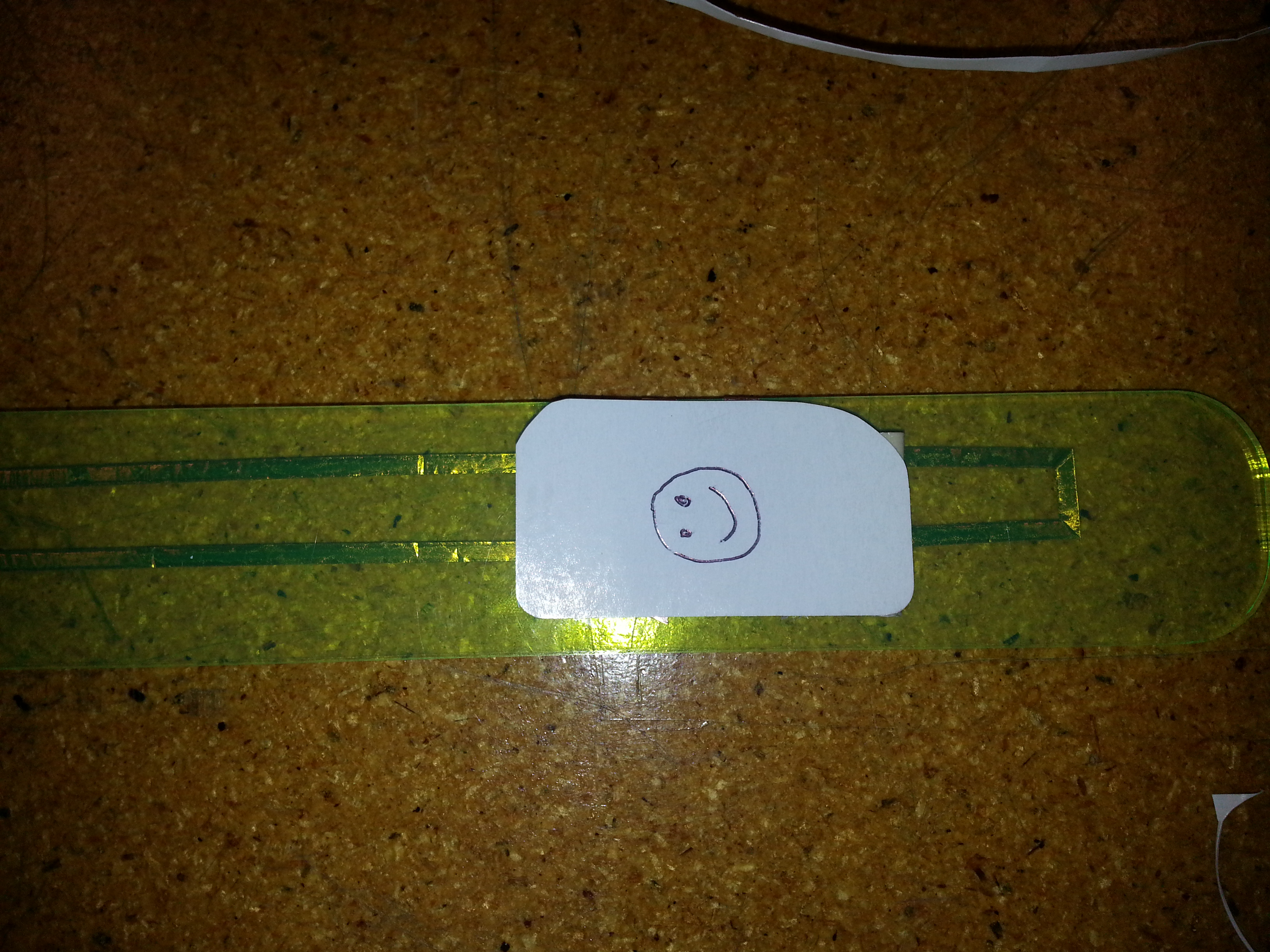

Creat and Add a Switch


add duct tape which will hold paper switch add copper to back of paper switch
Test

now, when the button is pressed, the diode light comes on and my daughter can see and activate the bathroom light switch
I made this at techshop chandler
