Airsoft Rocket Launcher

this is a guide on how to build an airsoft rocket launcher

DISCLAIMER: this is just a guide for how to make an airsoft rocket launcher, i am not responsible for any harm to yourself or others. if you do not follow directions fully, it might result in injury.

ps. i am sorry that i have no photos, as i have no camera, however, i will have 3d renderings.

for this instructable, you will need the following tools:

-hacksaw
-power drill
-5/8 in drill bit
-pvc glue
-pliers
-hammer

and materials:

~7 feet of 2" inner diameter pvc pipe (schedule 40)
-two 2" couplings
-two 2" to 1" reducers (threaded)
-one 2" pvc end cap
-two 1" diameter 1" nipple
-one 1" pvc ball valve
-one .625 in tubeless tire inflator nozzles

with your hacksaw, cut a 2 1/2' and a 1 1/2 peice of 2" pvc.

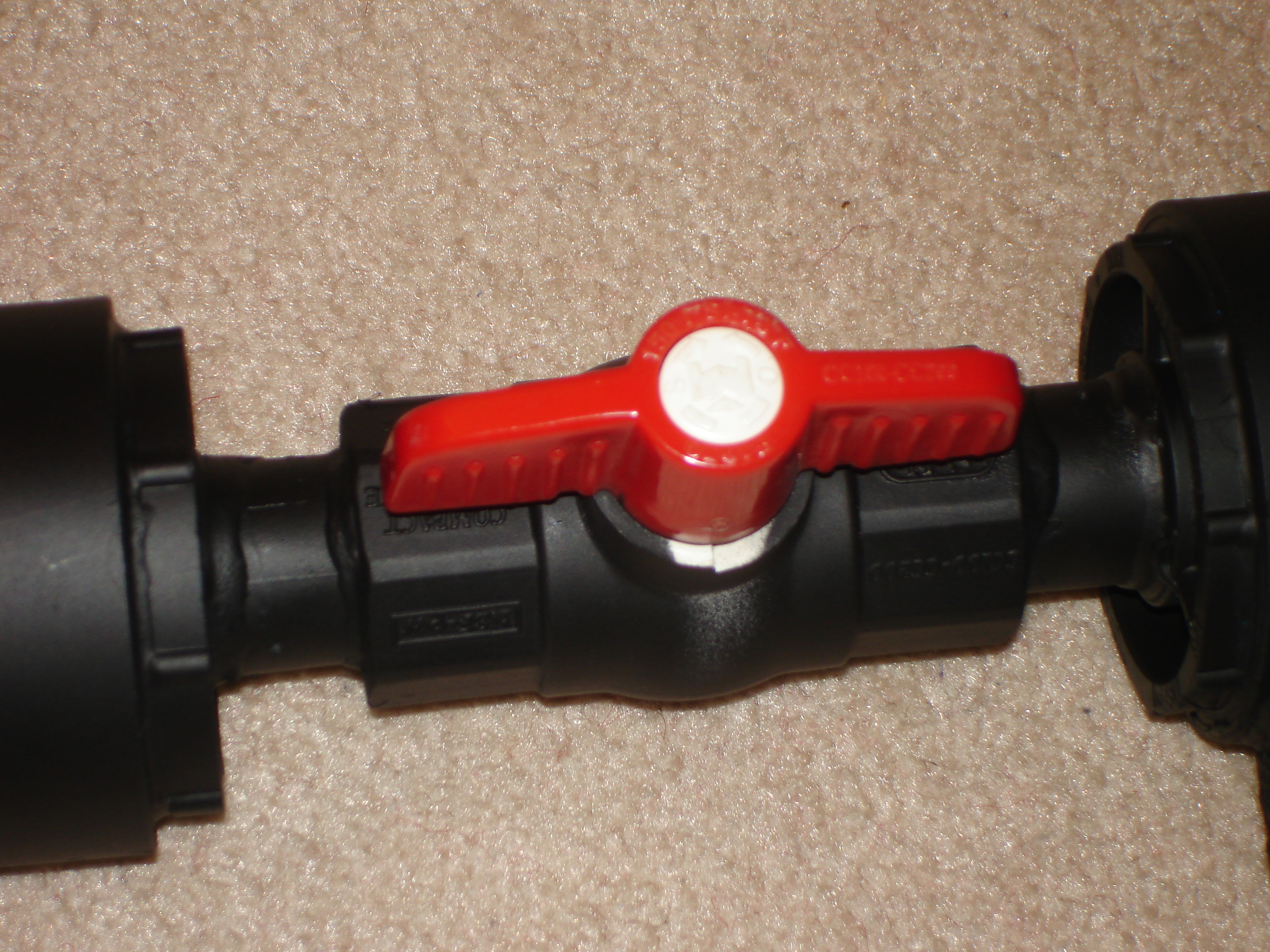

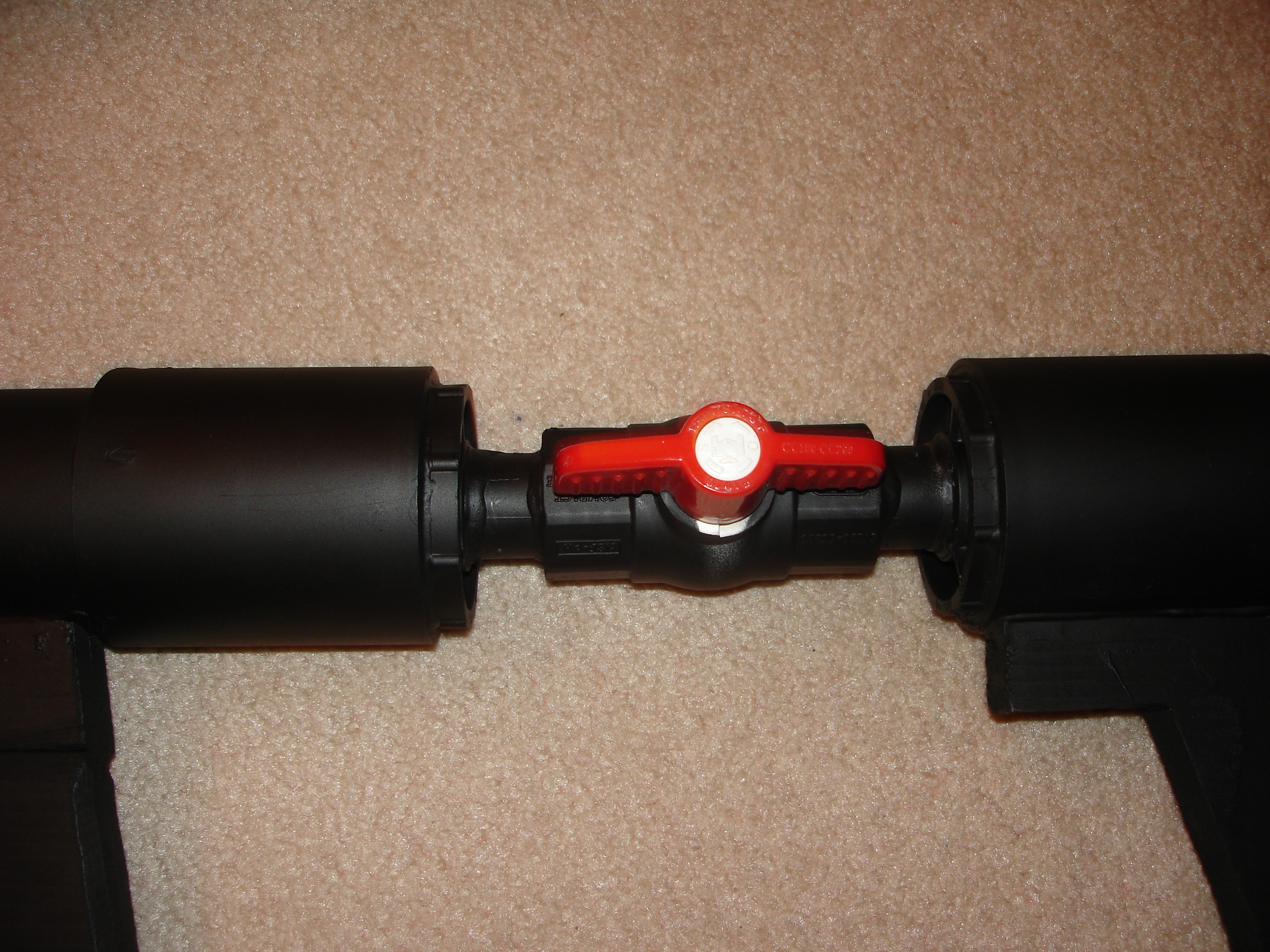

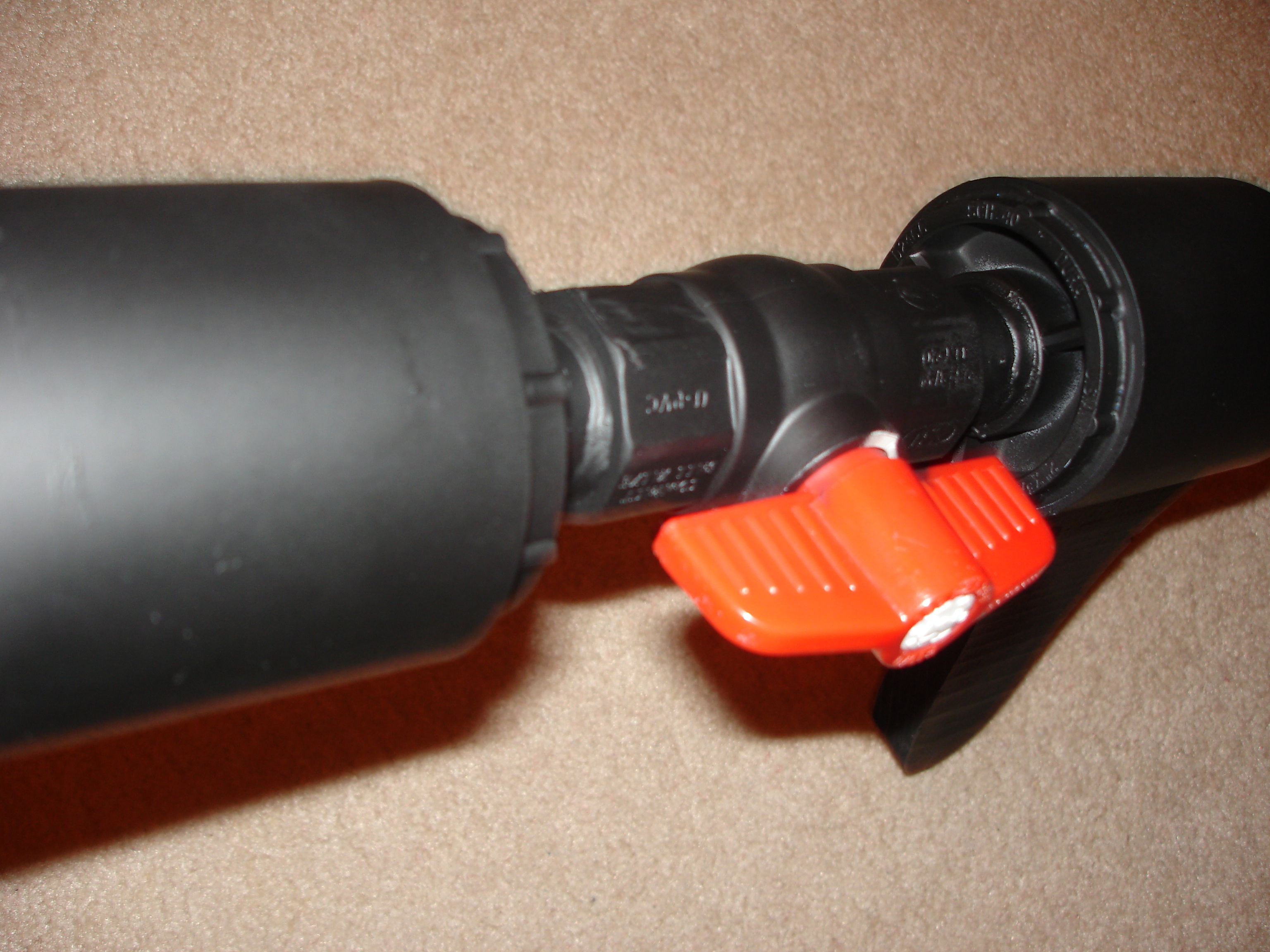

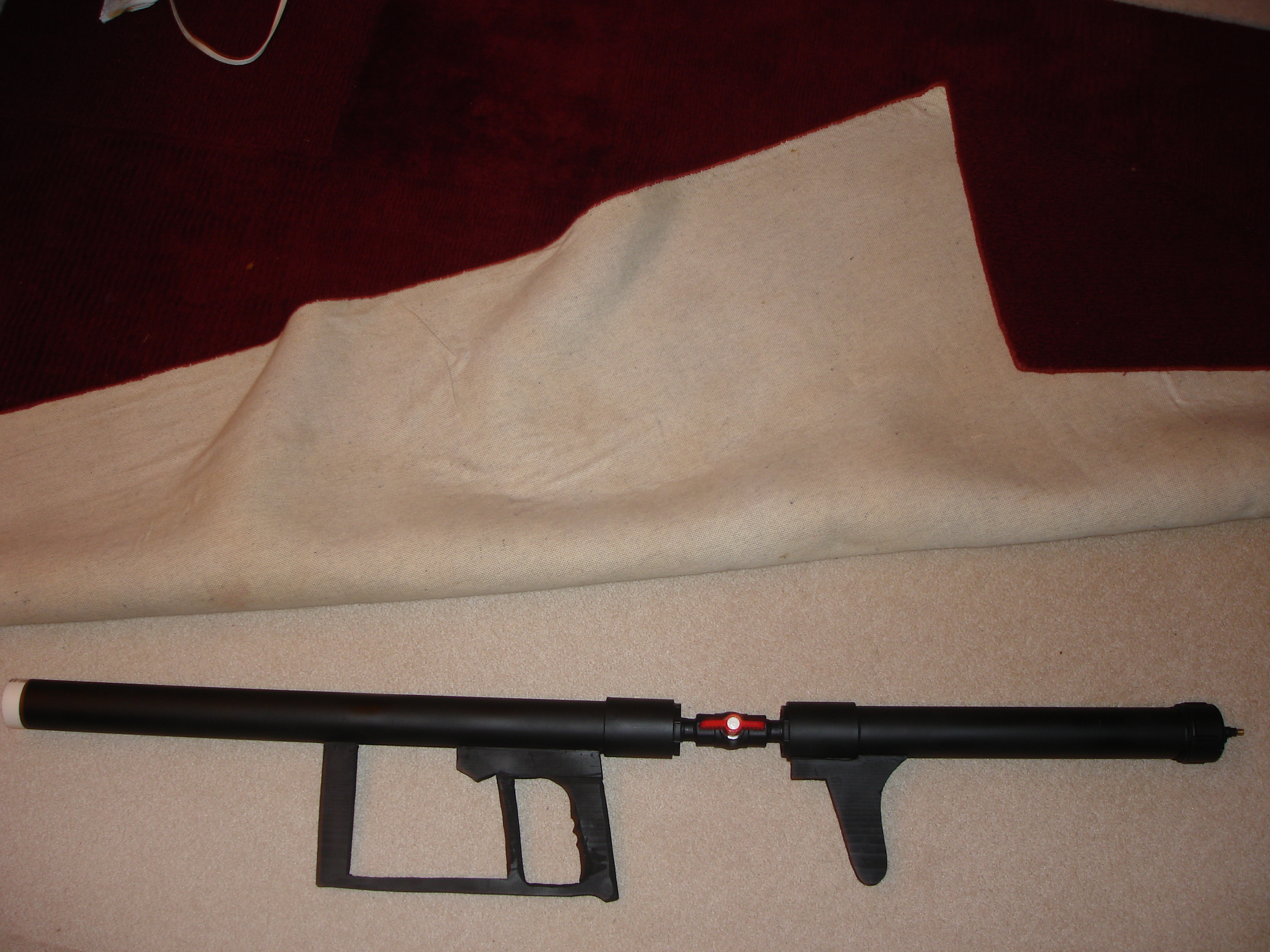

with the pipe glue, attach the pvc fittings in the following order: coupling, reducer, nipple, ball valve, nipple, reducer, coupling. this will create the firing/holding mechanism. now, take your drill and 5/8" drill bit, and drill a hole in the middle of the end cap. now, take the tire nozzle and push it in the hole as much as possible. now, with the hammer, gently hit the end of the nozzle until it is set in place. the nozzle should be set in place, but for reassurance use the pliers. when done, the 2 1/2' length of tube is the barrel, and the 1 1/2' length is the air chamber.

to load, drop any 2" projectile into the barrel, and turn the ball valve into the closed position, and attach a bike pump/air compressor to the tire nozzle. pump until the chamber reaches 80 psi, and turn the valve very quickly to fire.
