Zener Tester

Hello,

We will create an electronic device to test the zener diode voltage.

First , Theoretically we will learn how the Zener diode work?

Let's get started

The first thing to know is that the circuit symbol for zener diodes looks very similar to other diode symbols.

Make sure you don't get them confused because they behave very differently, and they are used for very different things! So what's special about zener diodes?

Regular diode VS Zener diode:

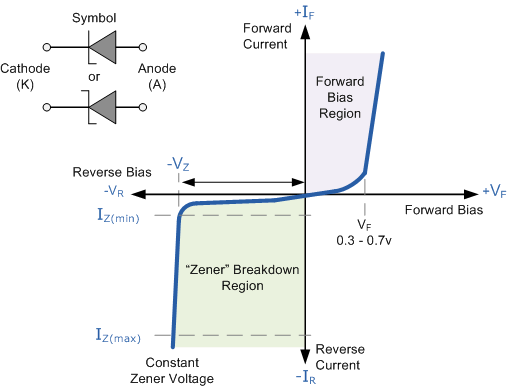

Step by step we will learn how it works and how Zener diode current passes in two directions?

Zener diodes work exactly like a standard diode, with the exception of one thing.

When the zener is on in the forward direction, we say it is "forward biased".

The diode won't even turn on and allow current to flow unless you have at least 0.7 volt with silicon diode and 0.3 volt with germanium diode.

But going the other way, In reverse biase.

Since current is flowing backwards, we say the Zener diode is "reverse biased". This property of having a predictable voltage drop is what makes Zener diodes useful.

This simple circuit show you how to measure the Zener diode.

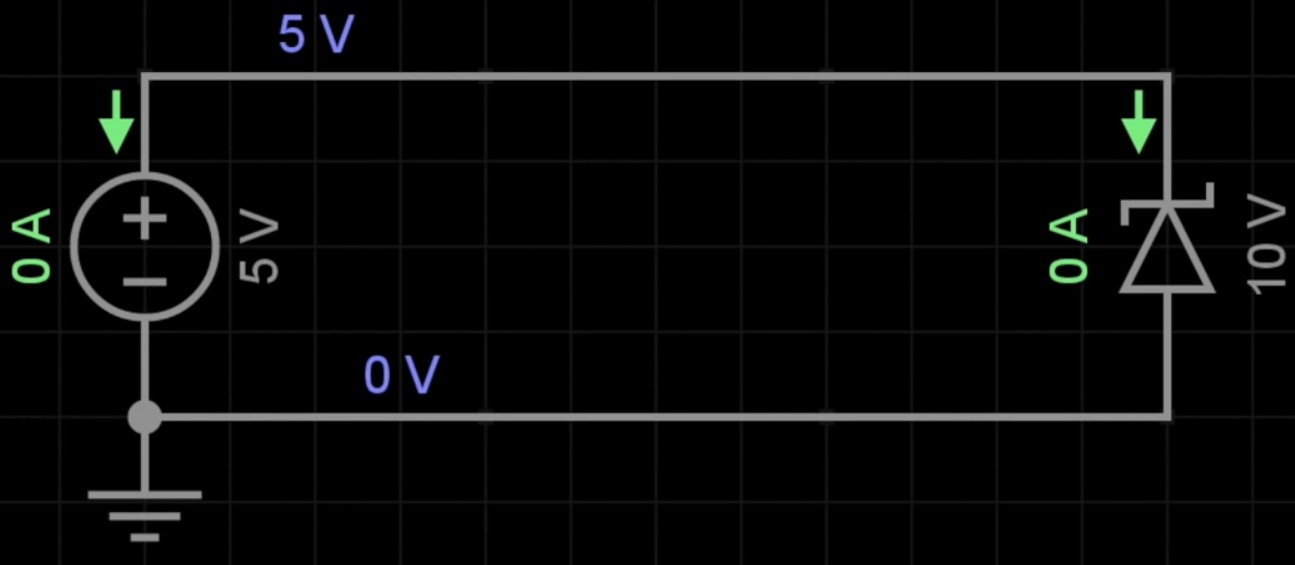

•The easiest way to measure the Zener voltage as shown by connecting 1K Ohm in series with the Zener diode.

•The battery or power supply must be larger than the voltage rating of the diode.

I have used 30 volts as a power supply to the circuit.

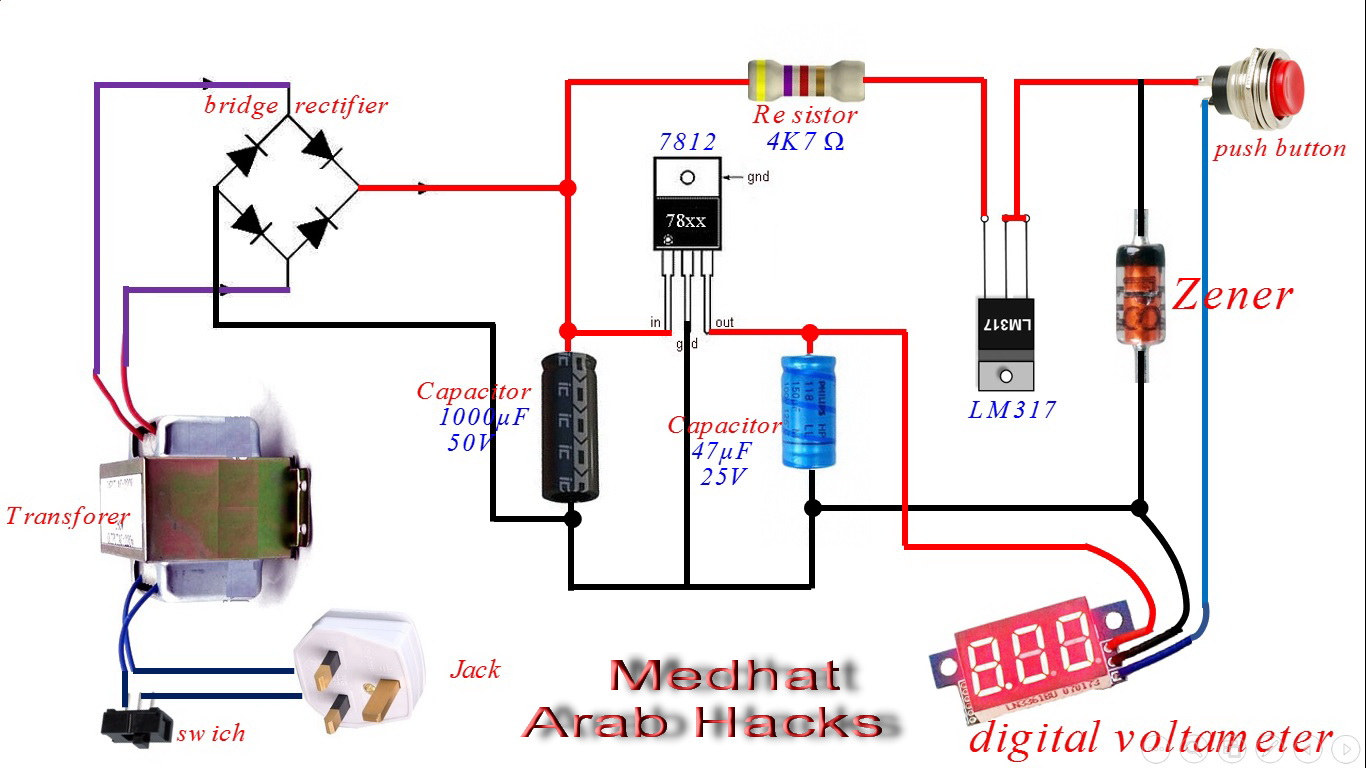

The second circuit i used a 30V transformer as a power supply.

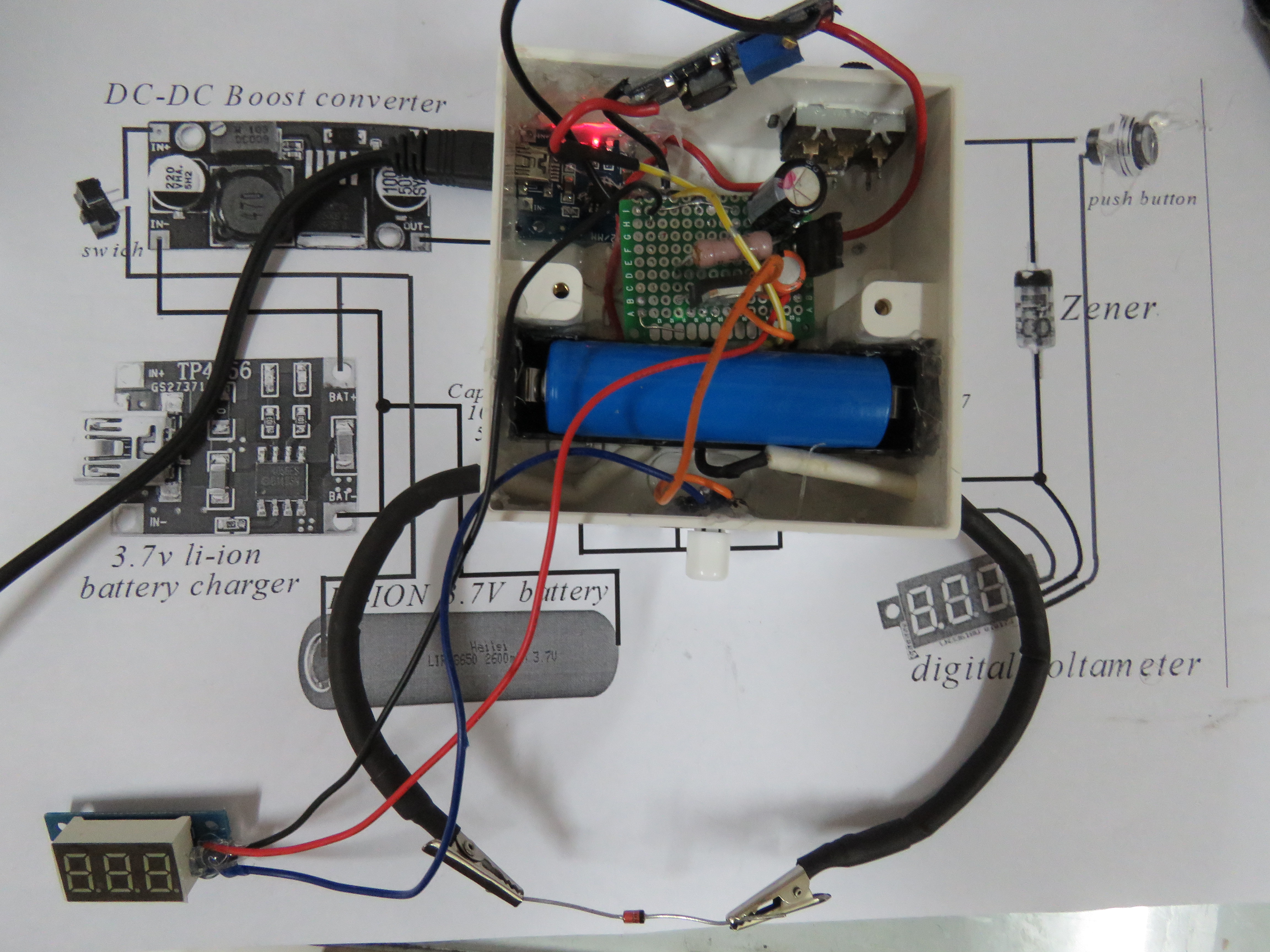

the third circuit i used ( 3.7 Li-Ion battery + charger + DC-DC boost converter) as a power supply

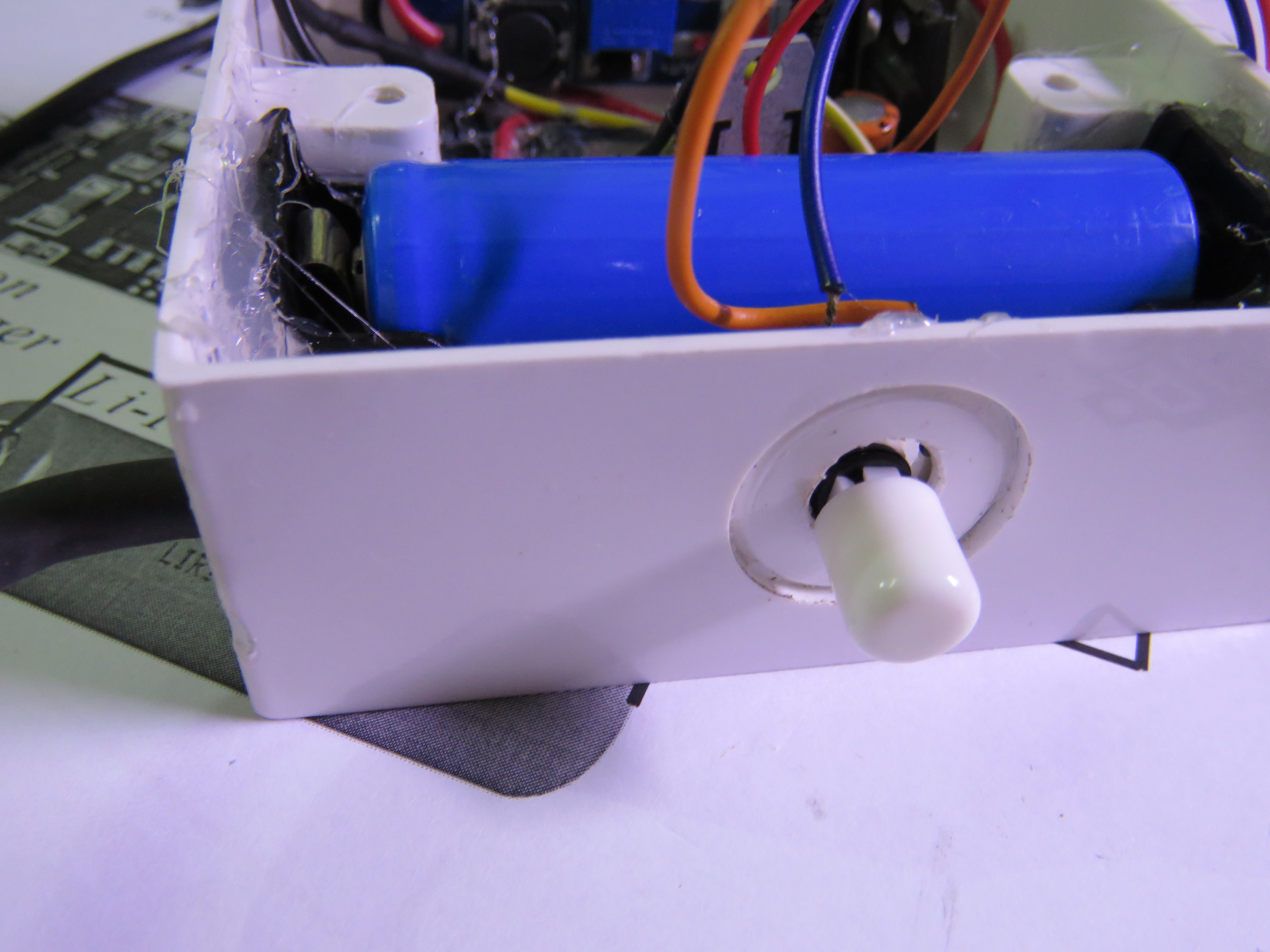

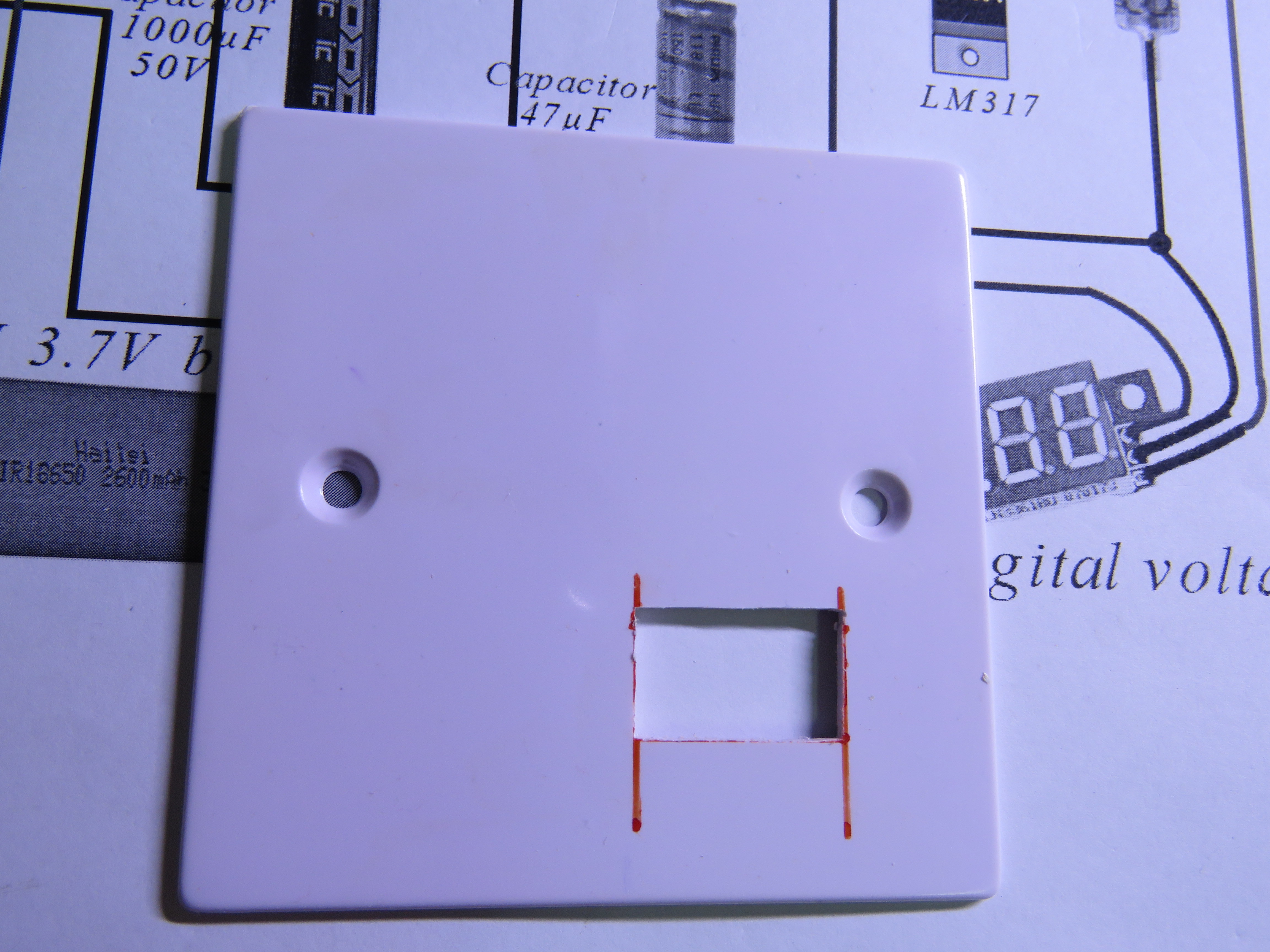

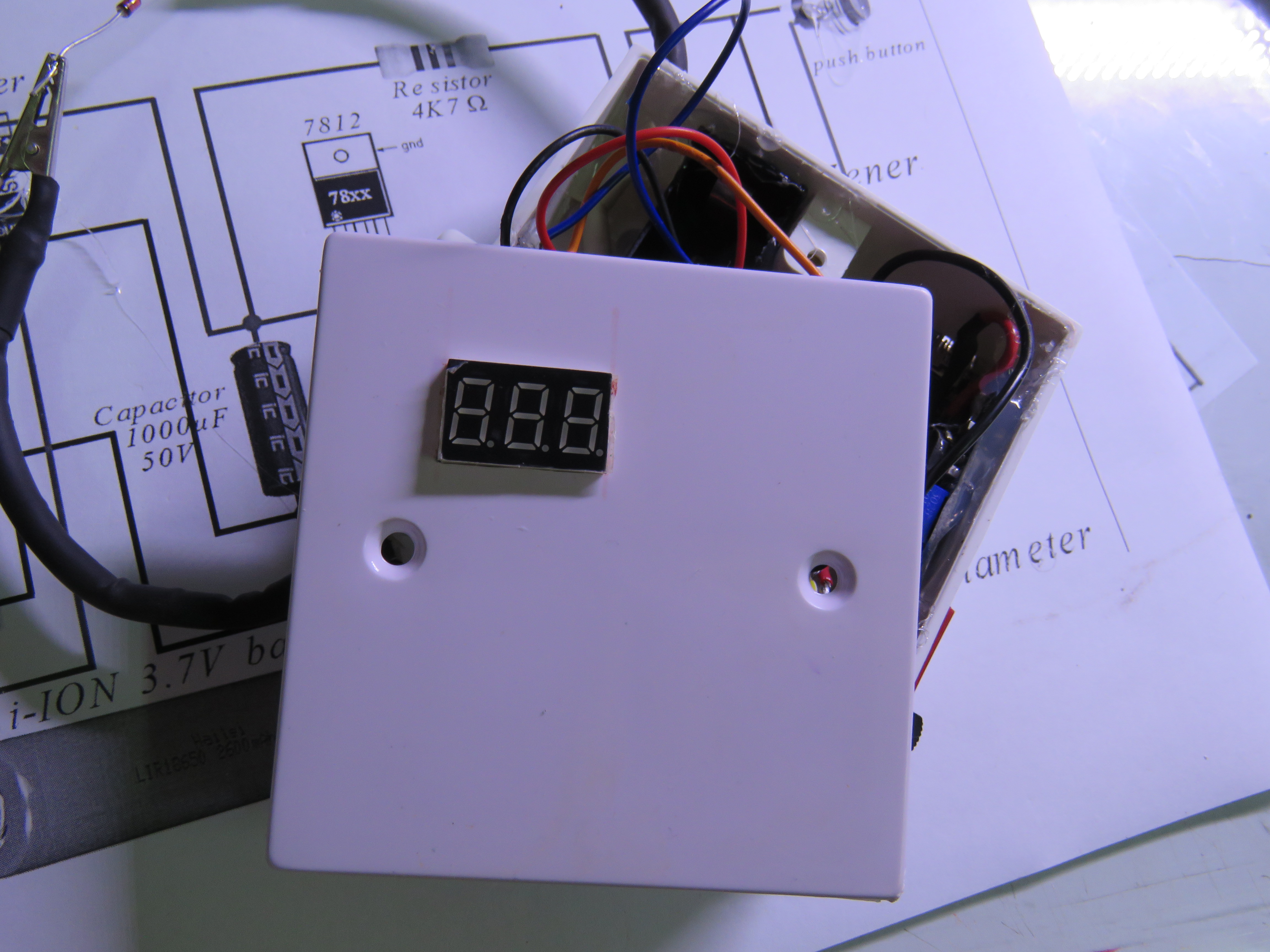

With photos and videos you can understand the steps of how to make a device measuring Zener diode voltage
