ZS-Z1, 3D Printed Wireless Zowie ZA13 Inspired Mouse Guide
by ZoroSeerus in Circuits > Electronics
1477 Views, 2 Favorites, 0 Comments
ZS-Z1, 3D Printed Wireless Zowie ZA13 Inspired Mouse Guide

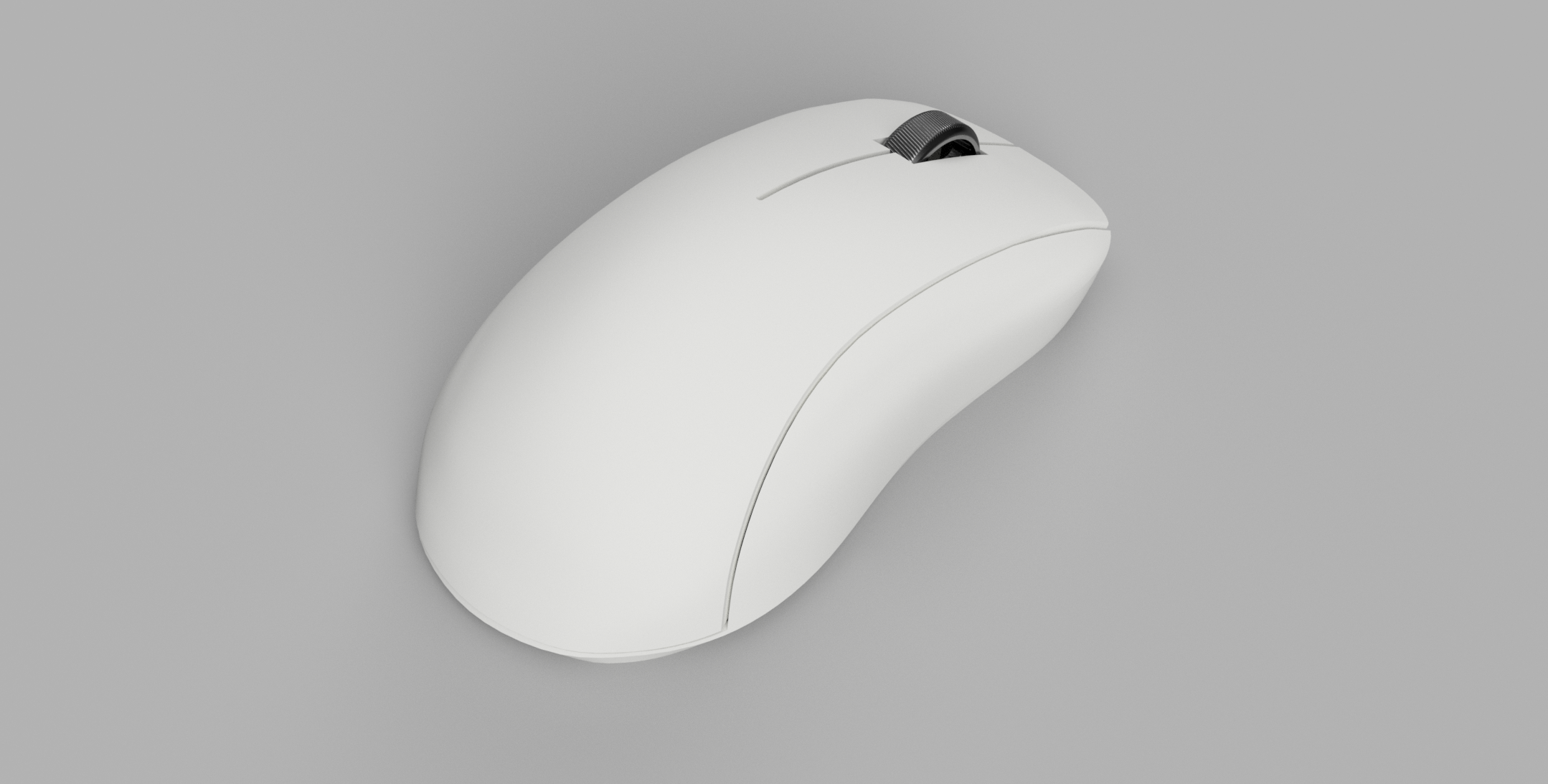

This mod uses the Logitech G305 PCB. Here are some renders, measurements, and example of a print.
Supplies
Patience
Basic troubleshooting steps
-G305
-3D Printer or Printed pieces
-Etsy Shop for files and prints: https://www.etsy.com/shop/ZoroSeerus
-Etsy shop file direct link: https://www.etsy.com/listing/1022879637/zs-x1-3d-p...
-Screwdriver
-Tape
-AAA Battery
-Magnets, 5x2mm in listing 4.9x1.7mm by my measurements:
https://www.amazon.com/gp/product/B08CN7J2S3/
-675 Batteries
https://www.amazon.com/gp/product/B07KRWCSRS
Cables I use: https://www.amazon.com/gp/product/B07RHVNFQ6
Battery I use: https://www.amazon.com/gp/product/B07QW531W2
-There are likely multiple combinations of chargers and batteries that work. These are the ones I use. The battery matters less than the connector since they'll only vary in weight and battery life. If you get a different battery make sure it's 1.5v.
Video demonstration of rechargeability:
Printing Instructions and Considerations
I have a YouTube video going over the slicing instructions and where everything goes if you prefer video format:
https://youtu.be/rDvaHEHZFi8
Here are the printing orientations I use. I've printed this on an Artillery Genius in PLA. My slicer is Superslic3r and I use some very basic 0.2mm profiles. The main points are to use "External Perimeters First" on the Bottom piece and I'd also suggest you "Avoid Crossing Perimeters".
I print the top piece between 55-85 degree rotation.

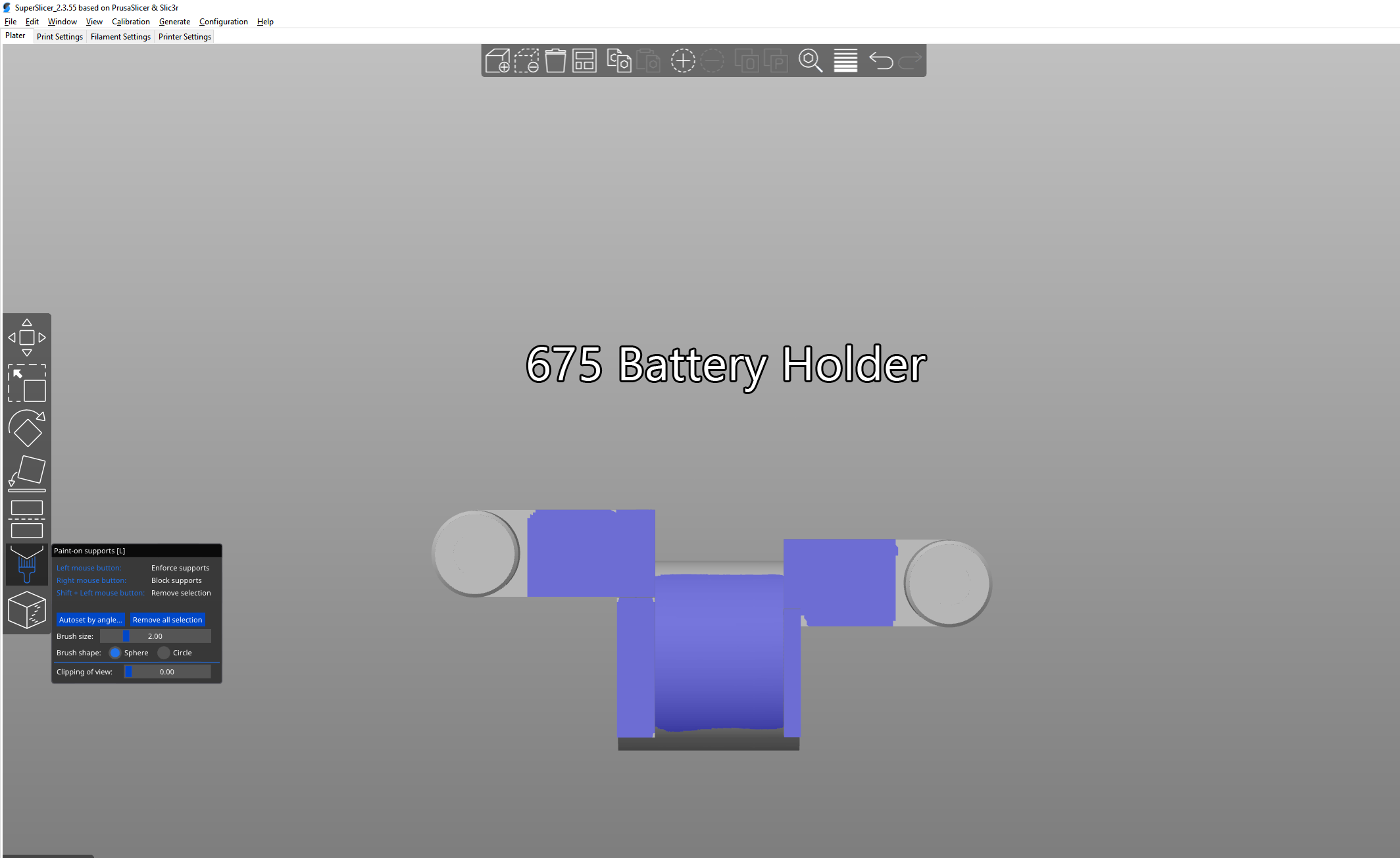

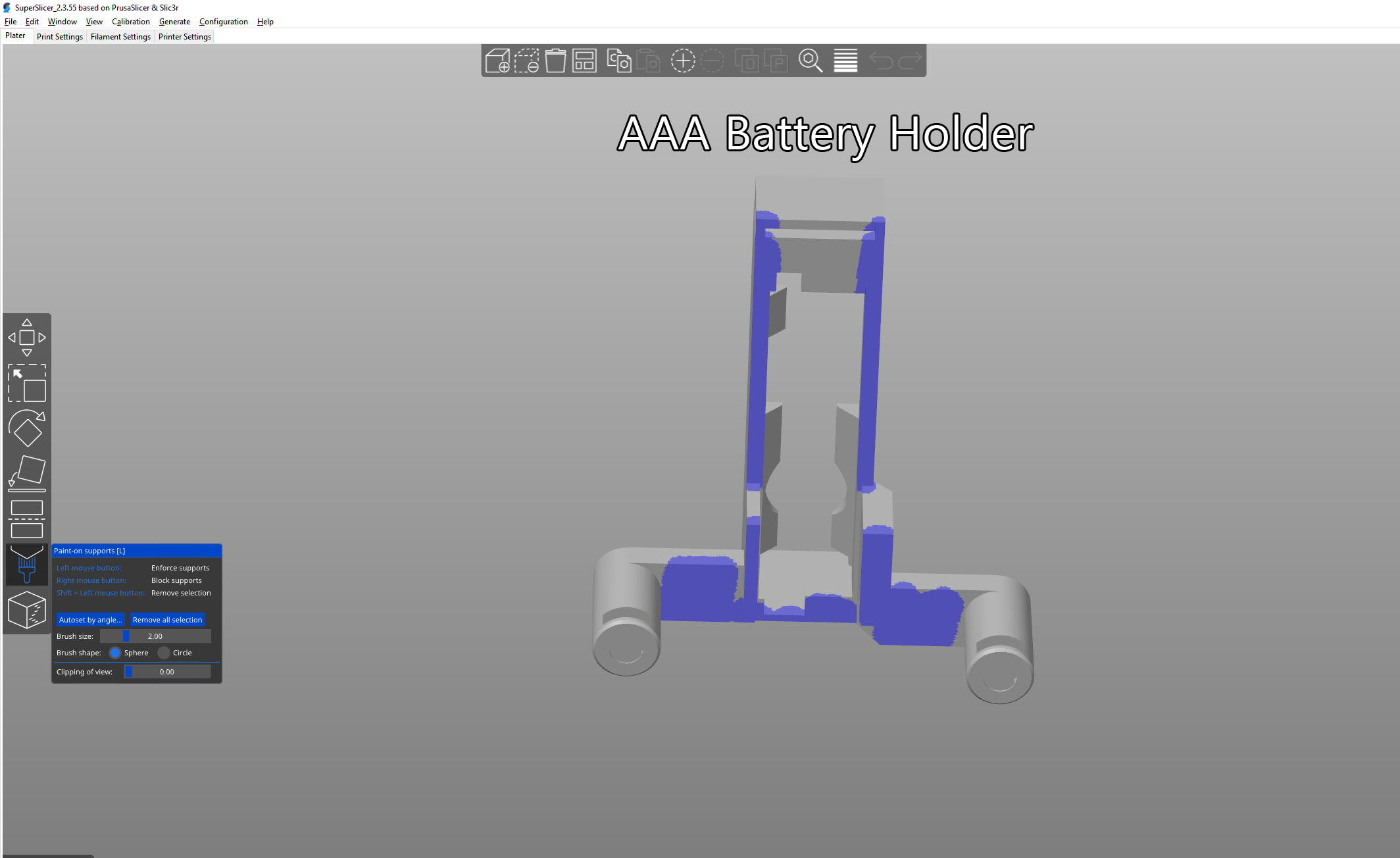

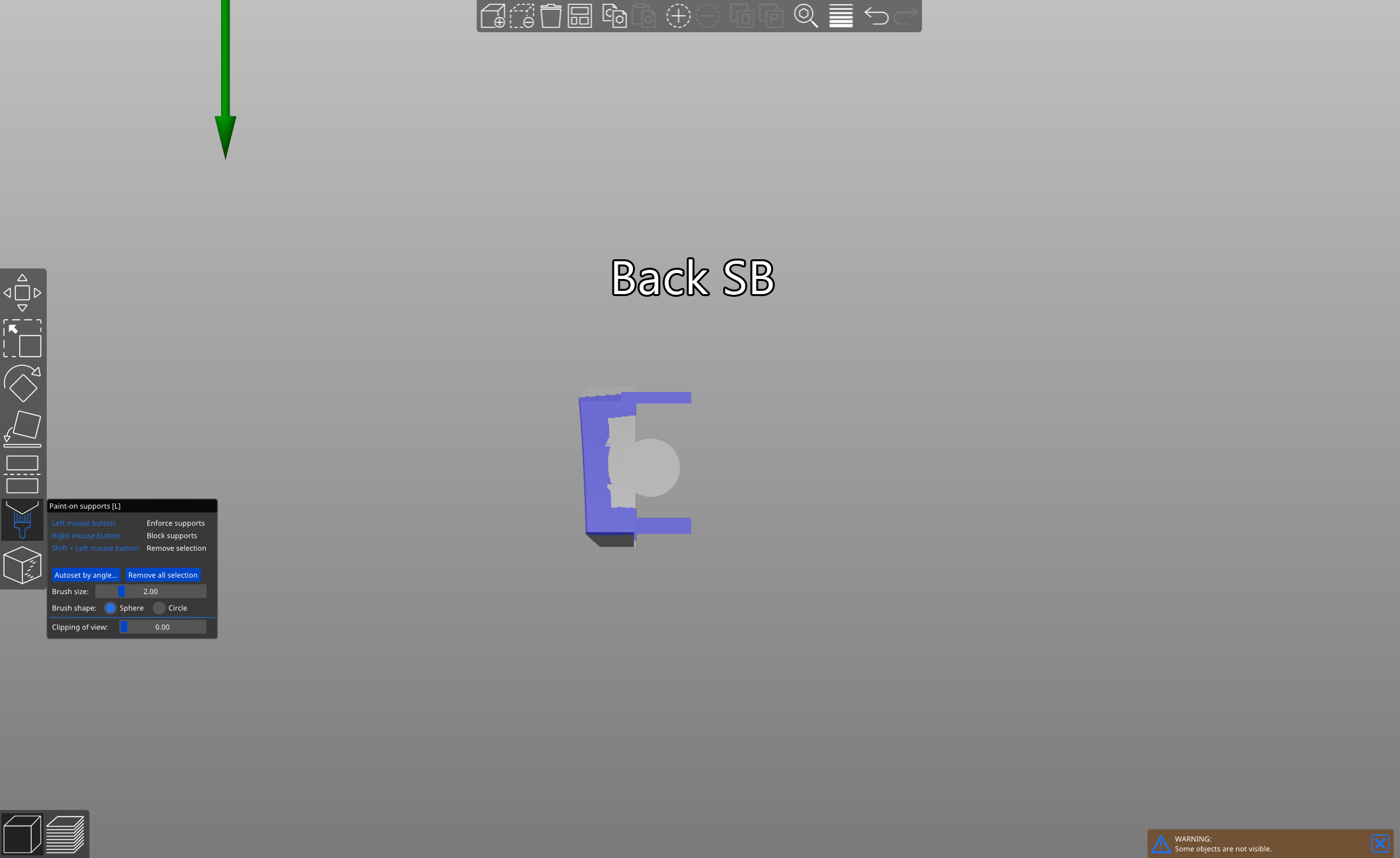

I manually paint supports mainly and I would avoid automatically generated ones unless you set the parameters yourself.
Your settings may vary but I have provided the settings I've sliced this at on my printer.
Magnets and Screws
The order for assembly is as follows:
Magnets
G305 Main PCB
G305 Main PCB Screws
Side Button Screws
Side Buttons into place with magnets. Place them backwards in their slots and rotate inwards into place
Main Button Switch PCBs
Main Button Switch PCB screws

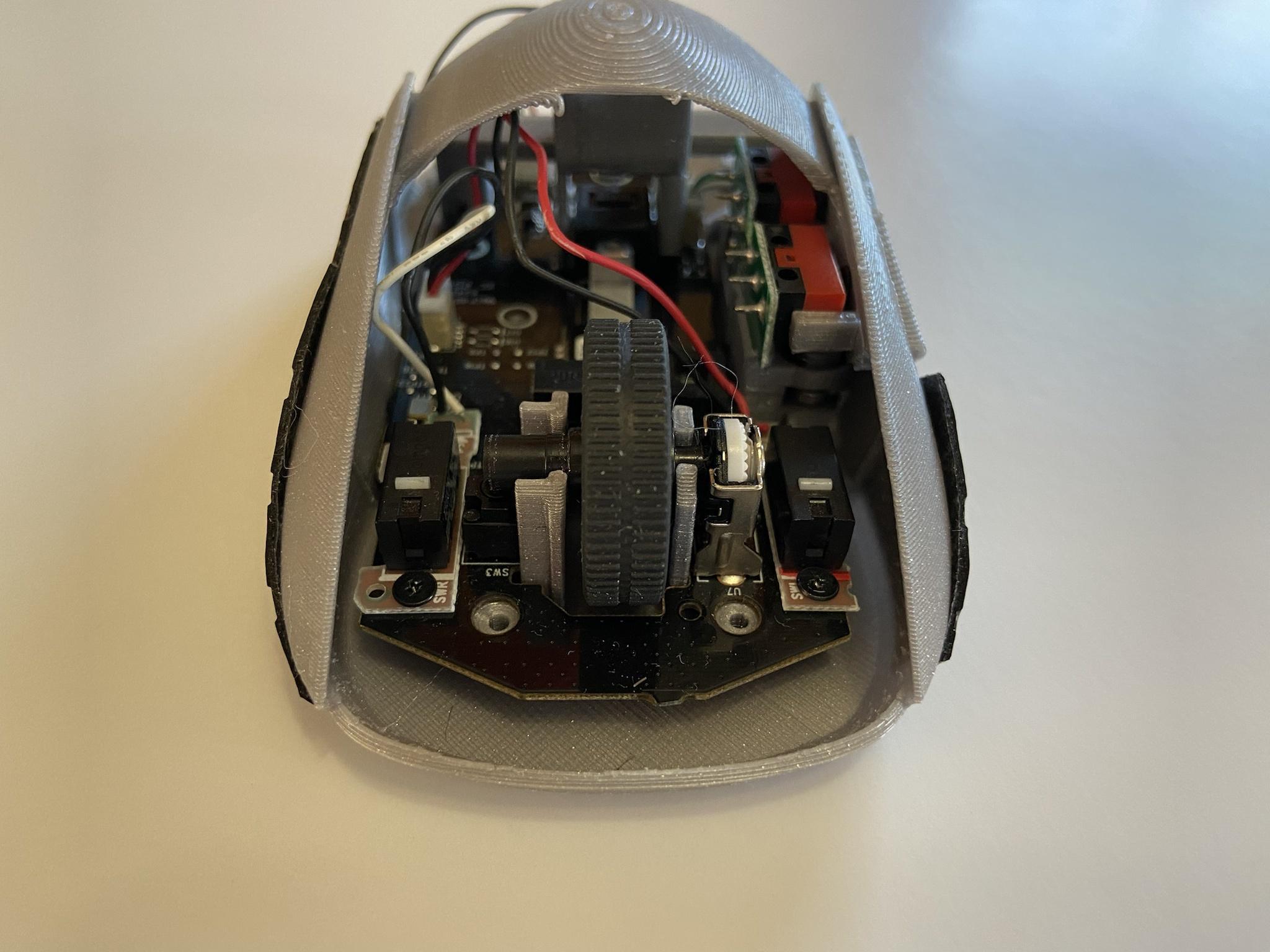

Side Button PCB. Take care to move the wiring through the path in the provided pictures as it can get in the way.
Battery Holder with Magnets
Top with Magnets

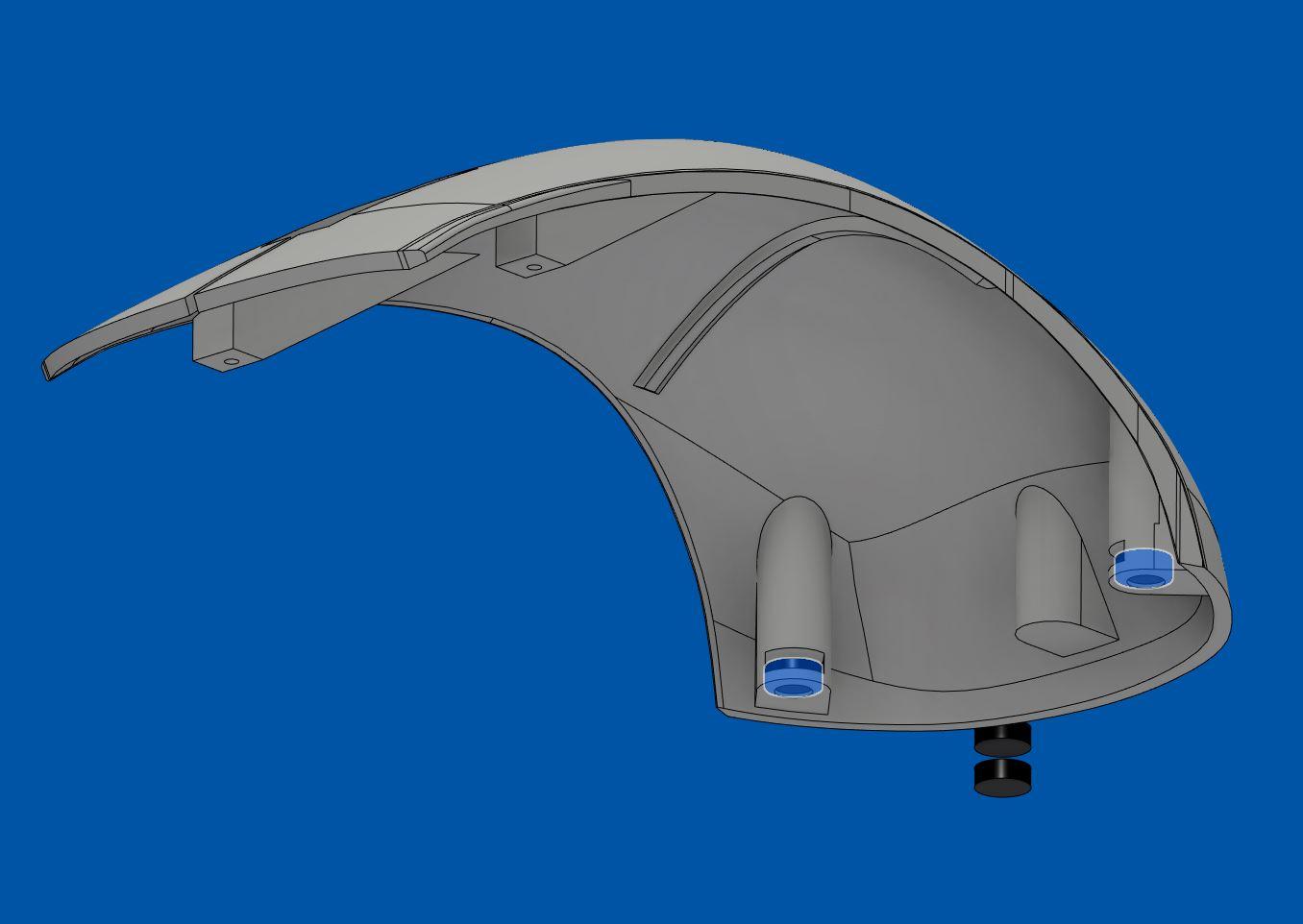

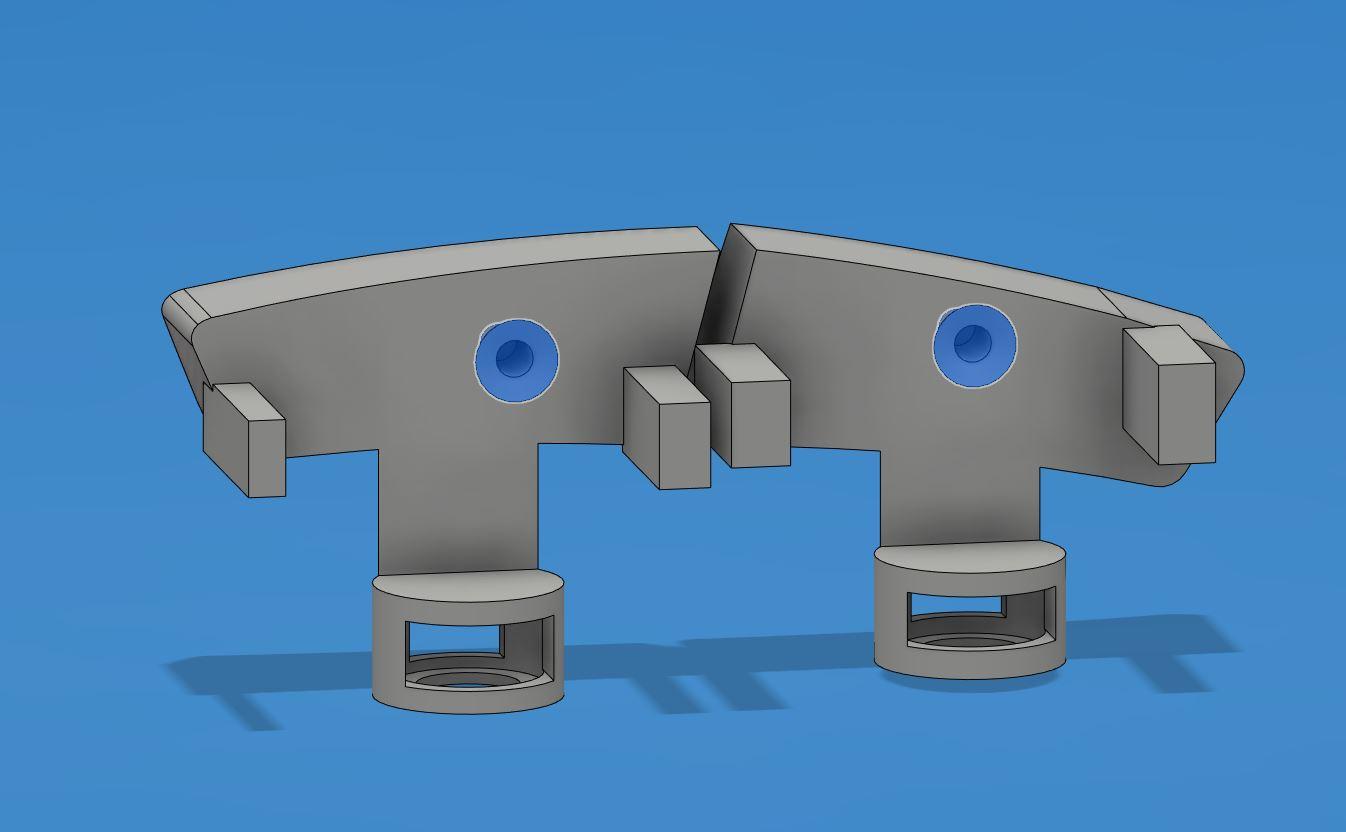

You'll use 10 magnets. 6 go on the bottom piece, 2 go on the top piece, and 1 each go in the side buttons.
I recommend you double check which side they're all facing and then once verified glue them in place to avoid any rattle.

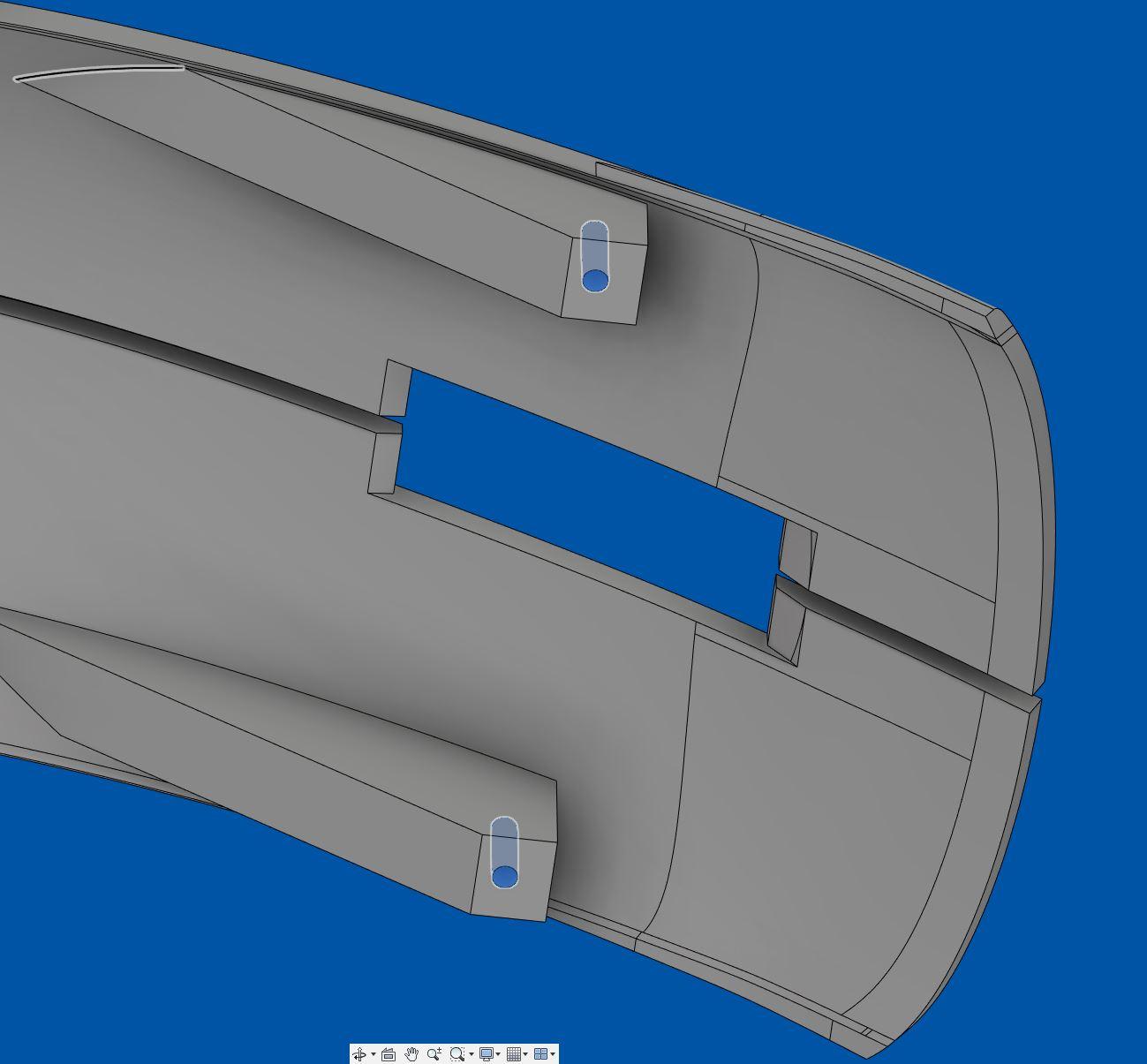

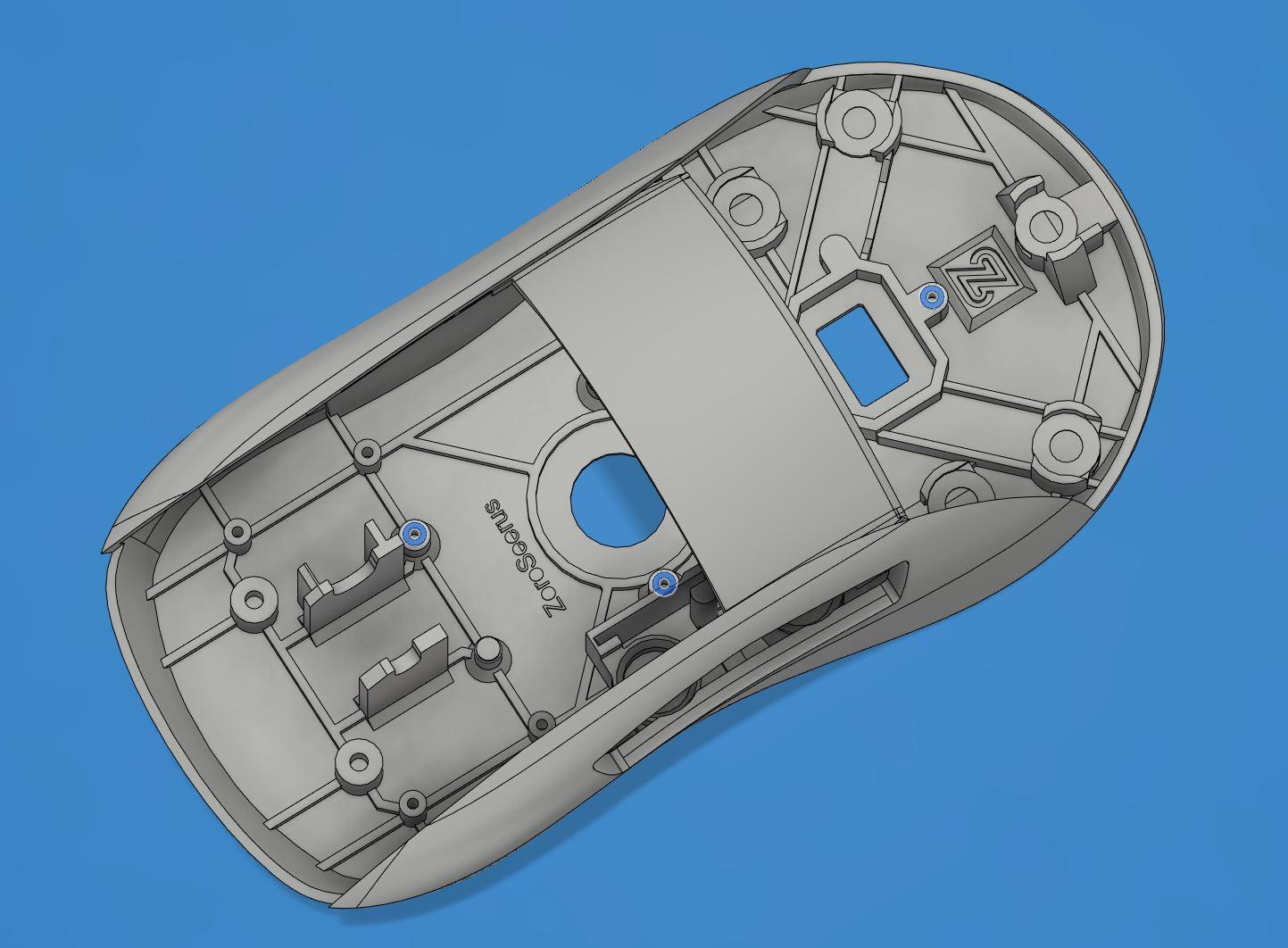

As far as screws go you'll need to put the G305 PCB into place and screw it in using only the 3 highlighted screw holes. The fourth is too difficult to reach so leave it be. Screw into each Side Button and the two holes in the Top piece as well. I screw it in as far as it goes and then back them out around 1-2 turns. You'll want to play with this distance to adjust pre-travel on each switch.
When doing this process you'll want to remove the side button PCB. It can be difficult, so use something as a level under the front and push up gently (I used flush cutters in the picture).
