Yu Gi Oh Draw Machine

This project was inspired by Yu-Gi-Oh's battlefield. In this anime, the character will draw with a grandiose movement and say some self-centered script which is quite embarrassing. But when I was young, I think it was cool and often do it while playing. However, the movement might mess up the battlefield, when I mess it up my brother often get angry and doesn't want to play with me anymore. So I have an idea about making this machine. This machine will be made out of three-part; the main machine, the electric part, and the outer shell. The basic idea of the machine is to use the motor to push the card out of the machine. By limiting the exit of the box or machine, there will only be one card out at a time.

Materials

Arduino Leonardo*1

multiple Jump wire

motor*1

cardboard

button*1

This is the blueprint of the machine, the machine will be about 15 cm high, 20 cm long, and 7cm wide.

Connect the wire and the motor as the following picture on the top.

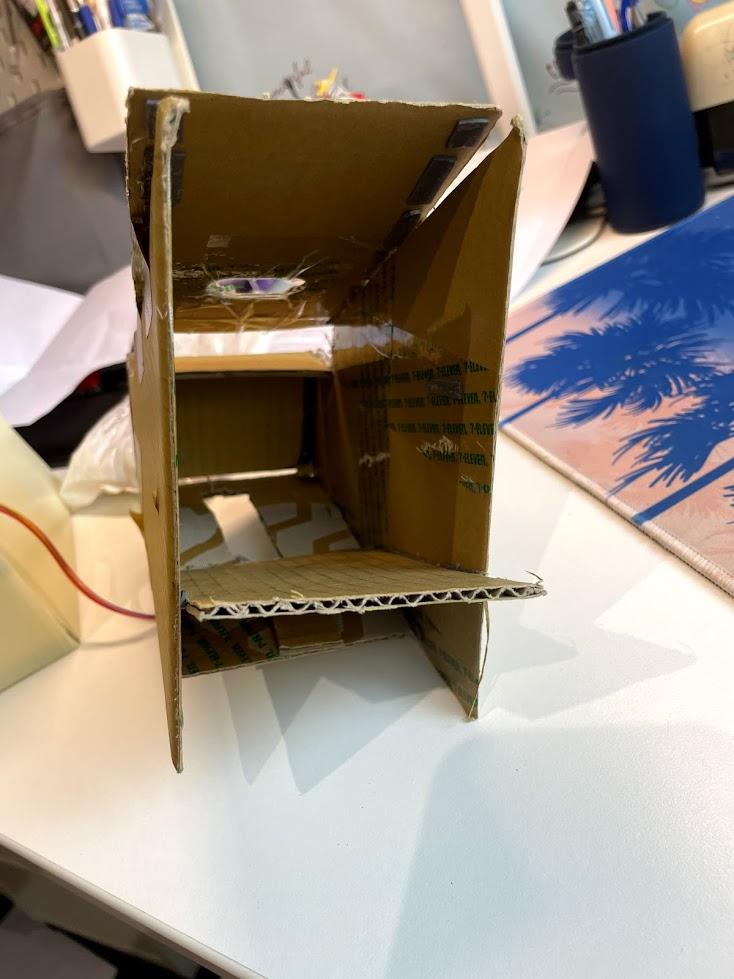

These are all the measurements of the different parts of the box. Cut them and glue them together using double side tape. When you finish the box, attach the motor to the hole on the bottom.

Make a box for the container of the breadboard and the wire. Next, cut a square hole for the motor and a smaller hole for the buttons and the power bank to connect the Arduino.

glue the two boxes together.
