You Stole My Heart Dress for the Experienced Sewer

This Instructable is meant for an experienced sewer. If you are a beginner sewer, I made a MUCH more in depth tutorial here: https://www.instructables.com/id/You-Stole-My-Heart-Dress-for-Absolute-Beginners/

Skills you need to know in order to make this dress, with this tutorial:

• how to draft a basic bodice pattern
• how to box pleat fabric
• how to install an invisible zipper

Important notes:

- Always overlock the edges of the fabric, so it won't fray

- Always Iron seams open

You will need:

• A T-shirt that fits you closely, but does not stretch much to accommodate your body. Make sure you like the way the armpit area fits for you! That's the most important part!
• Safety pins
• Measuring tape
• Ruler
• Pattern paper or newspaper + tape
• Pins
• Markers (multiple colors help)
• Scissors

Measurements Needed to Create This Dress

Please look at the picture. Here is the Key:

• A - Top of T-shirt collar to apex of breasts. (Usually the nipple line)
• B - Breast Circumfrence (Around the fullest part of breasts)
• C- Natural waist (Around the smallest part of waist)
• D- Hips (Around the largest part of your hips)

Make a basic bodice Piece

1) Measure the armpit area

2) Multiply it by 2

3) Add 4 inches

Example:

1) Armpit area = 8 inches

2) 8 X 2 = 16 inches

3) 16 + 4 = 20 inches is my measurement

NEXT:

make a rectangle of [measurement X 3.25 inches]

Example: my measurement is 20 inches I will make a rectangle of 20 X 3.25 inches

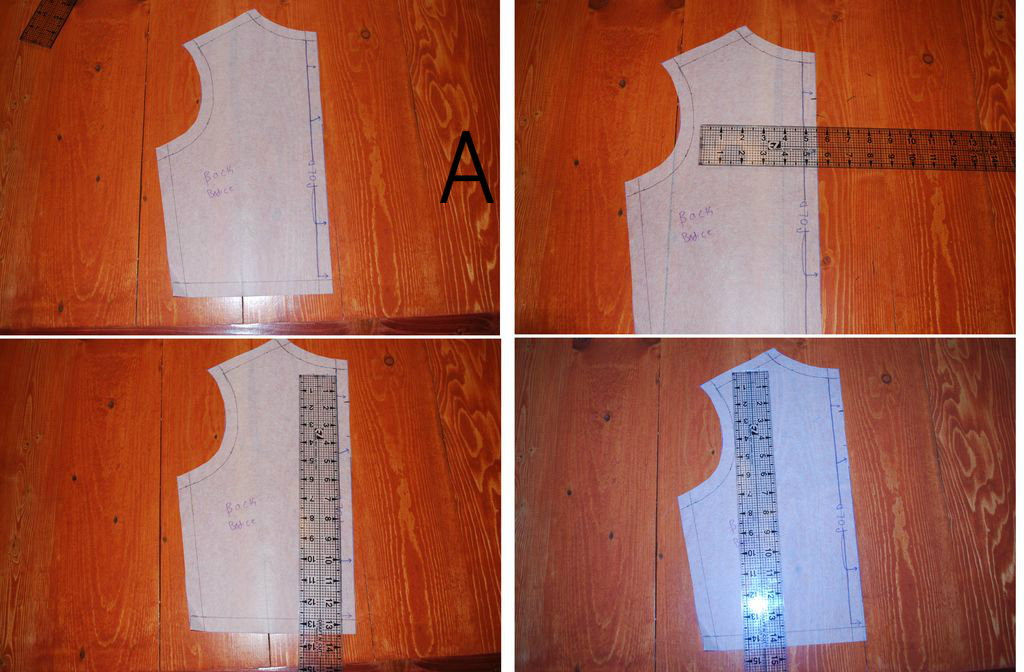

Step A

- Take the Back Bodice piece

- Re-draw the seam allowances

- Measure the space that you will be able to use for the heart

Step B

- Draw out a heart, keeping the measurements in mind. Keep redrawing until you get one you like!

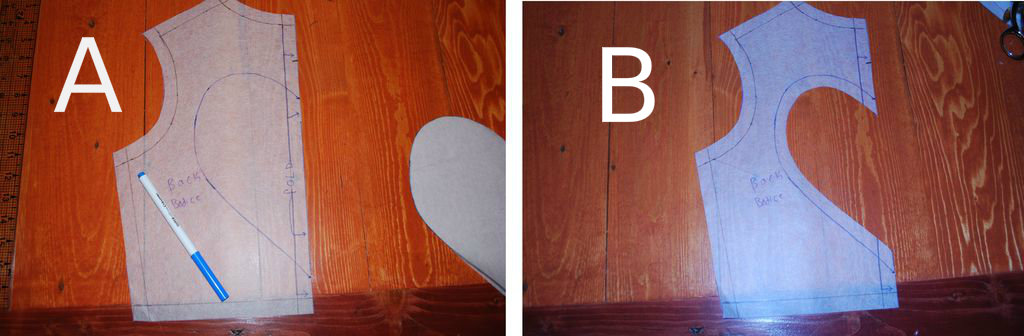

Step A

-Trace the heart onto the pattern piece

Step B

- Add seam allowance to the inside of the heart

- Cut out

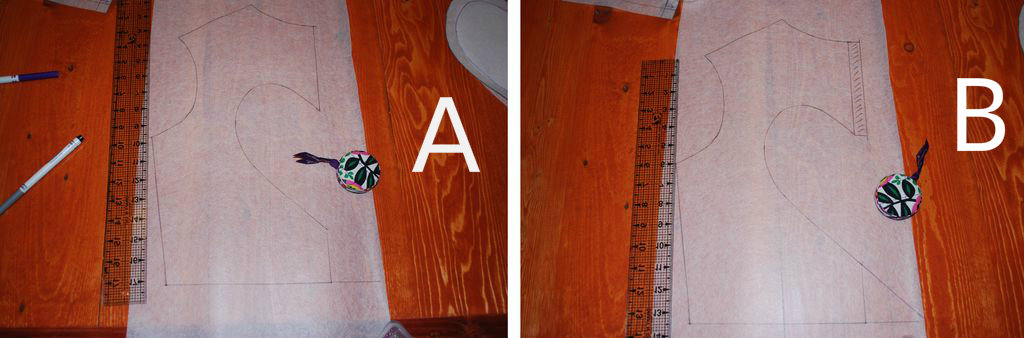

Step A

- Get a fresh piece of paper

- Trace the pattern piece

- Extend the bottom most line further to the right

Step B

- Add seam allowance to the top portion of the heart

- Extend the heart's point to the waistline

- Cut out

I am doing 3 inch box pleats

How to calculate how much to add for your box pleats

1) Width of pleat X 2 = How much fabric to add for every 1 pleat

2) Added Pleat fabric X # of pleats you want = how much extra you will add to waist measurement

Example: My Pleats will be 3 inches in width, with 6 pleats over all

1) [3] X 2 = 6 inches

2) [6 inches] X [6] = 36 inches I will add 36 inches over all, to accommodate for the pleats

Now what?

Take your waist measurement, and add the extra amount needed to create pleats

Example: My waist is 27 inches, I need to add 36 inches, to accommodate my box pleats

27 + 36 = 63 inches The width I will need to make the skirt is 63 inches wide

Now, add your seam allowance

Take the width you just calculated, and add seam allowances X 2

Example: I use 5/8 inch seam allowance, and my skirt width before adding seam allowance is 63 inches

( [5/8] X 2) + [63] = 64.25 My over all skirt width, including seam allowance, will be 64.25 inches!

Please see picture

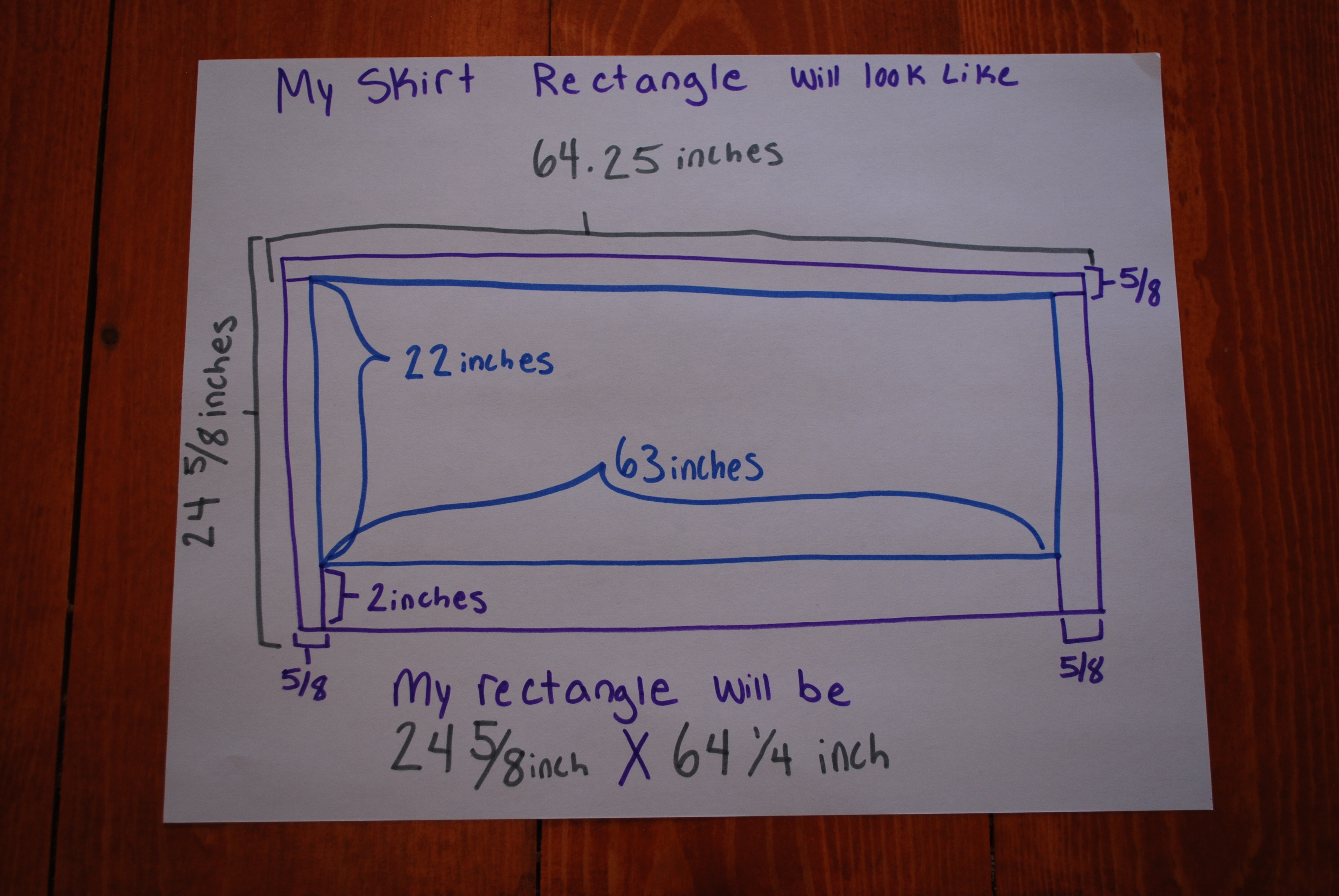

Calculating the over all skirt length

-Measure the length you want your skirt, starting from the natural waist

- Figure out how large you want the hem to be Then, plug in your numbers into the equation:

(Hem X 2) + Skirt length + Seam allowance = length of skirt

Example: I want my skirt to be 22 inches long, with a 1 inch hem, and my seam allowance is 5/8 inch

([1 inch] X 2) + [22 inch] + [0.625 inch] = 24 and 5/8 inches long!

I am multiplying the hem length by 2, because we will be doing a double fold hem.

So, I will be cutting my skirt out as a 64.25 inch X 24 and 5/8 inch rectangle!

Bodice front = Cut 2 on fold

Bodice back = Cut 4

Not shown:

- Skirt rectangle piece = cut 1

- Sleeve Rectangle Piece = cut 2

Alright! We are finally finished with drafting the pattern! Now lets get to sewing!

Supplies needed to sew the dress are:

• Non-stretch, medium weight fabric
• Invisible zipper
• Shank buttons (The buttons with the nubs, instead of holes)
• Trimming
• Pins
• Thread
• Fabric Scissors
• Chalk

Not shown, but still needed:

• Hand sewing needles
• Ruler
• Sewing machine
• The pattern pieces you created
• Iron
• Zipper Foot

Sleeve Rectangle Pieces: 2

Skirt Pieces: 1

Cut out:

Front Bodice Pieces: 2 on fold

Back Bodice Pieces: 4, not on fold

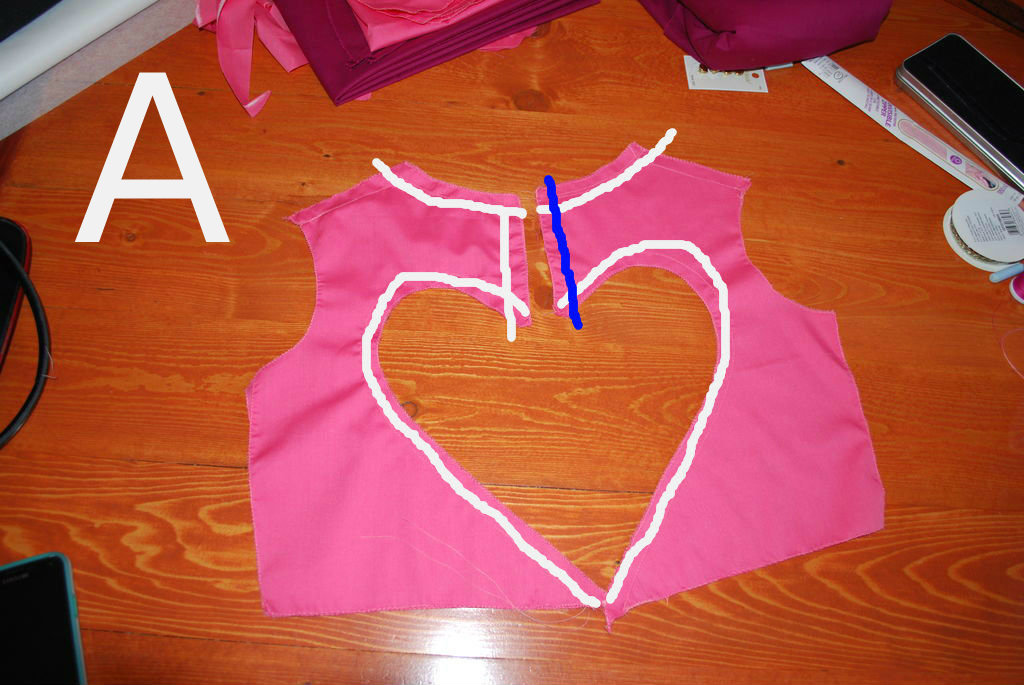

Step A

1) Grab 2 back bodice pieces, and line them up with right sides together

Repeat for the other side

2) Sew a normal stitch along the white lines

3) Sew a basting stitch along the blue line

NOTES:

- Do not sew the shoulders. I realize in my photo that the shoulders are sewn, but Do not sew the shoulders. It was a mistake

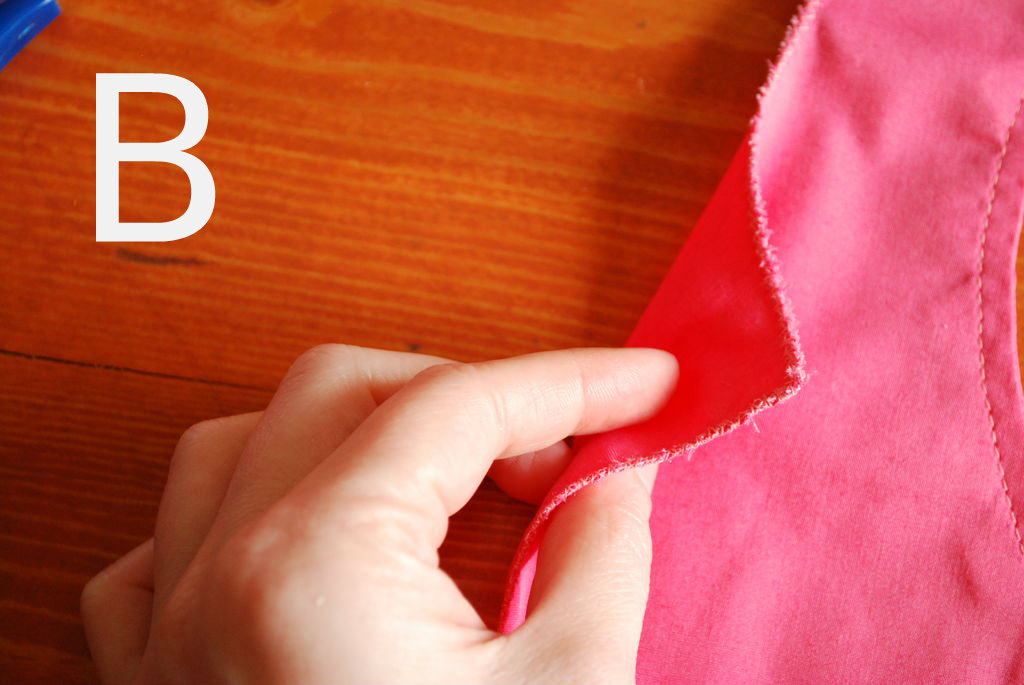

Step B

- Clip the curves

- Fold it right side out

- Iron

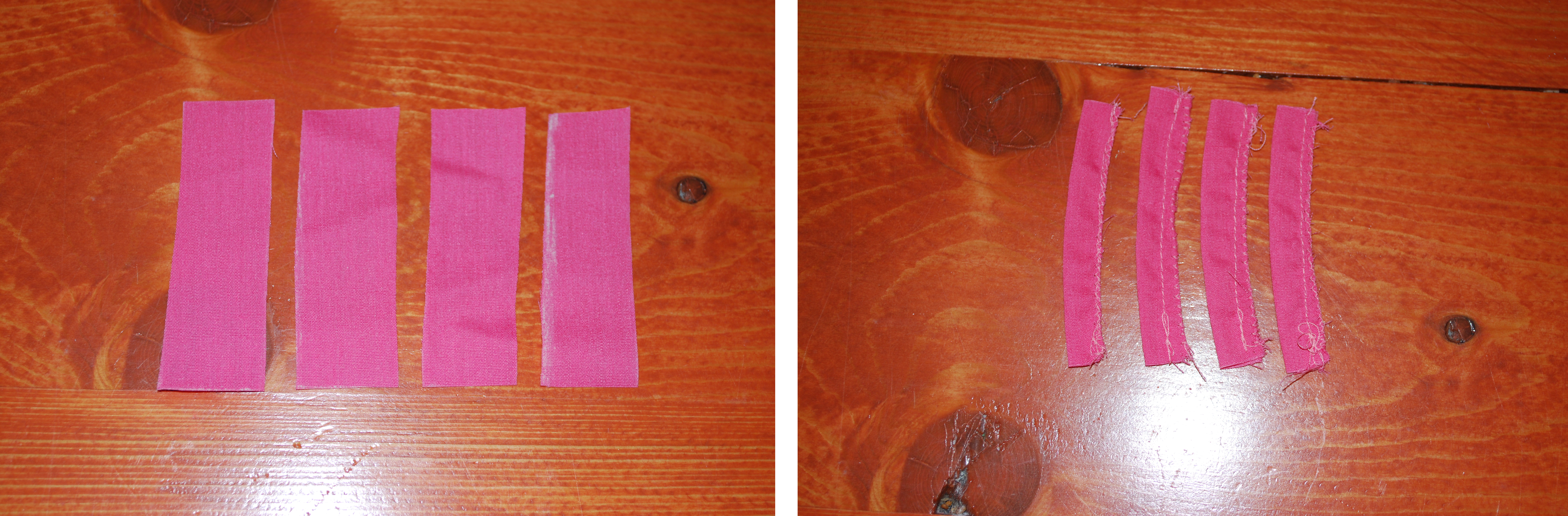

Assembling the button loops

- Cut out 4 rectangles, with dimensions of 0.5 X 3 inches

- Fold the strips in half, and sew

- Zigzag the edges too

- Flip the tubes inside out, and Iron

Attaching the button loops

- Seam rip the basting stitches you made

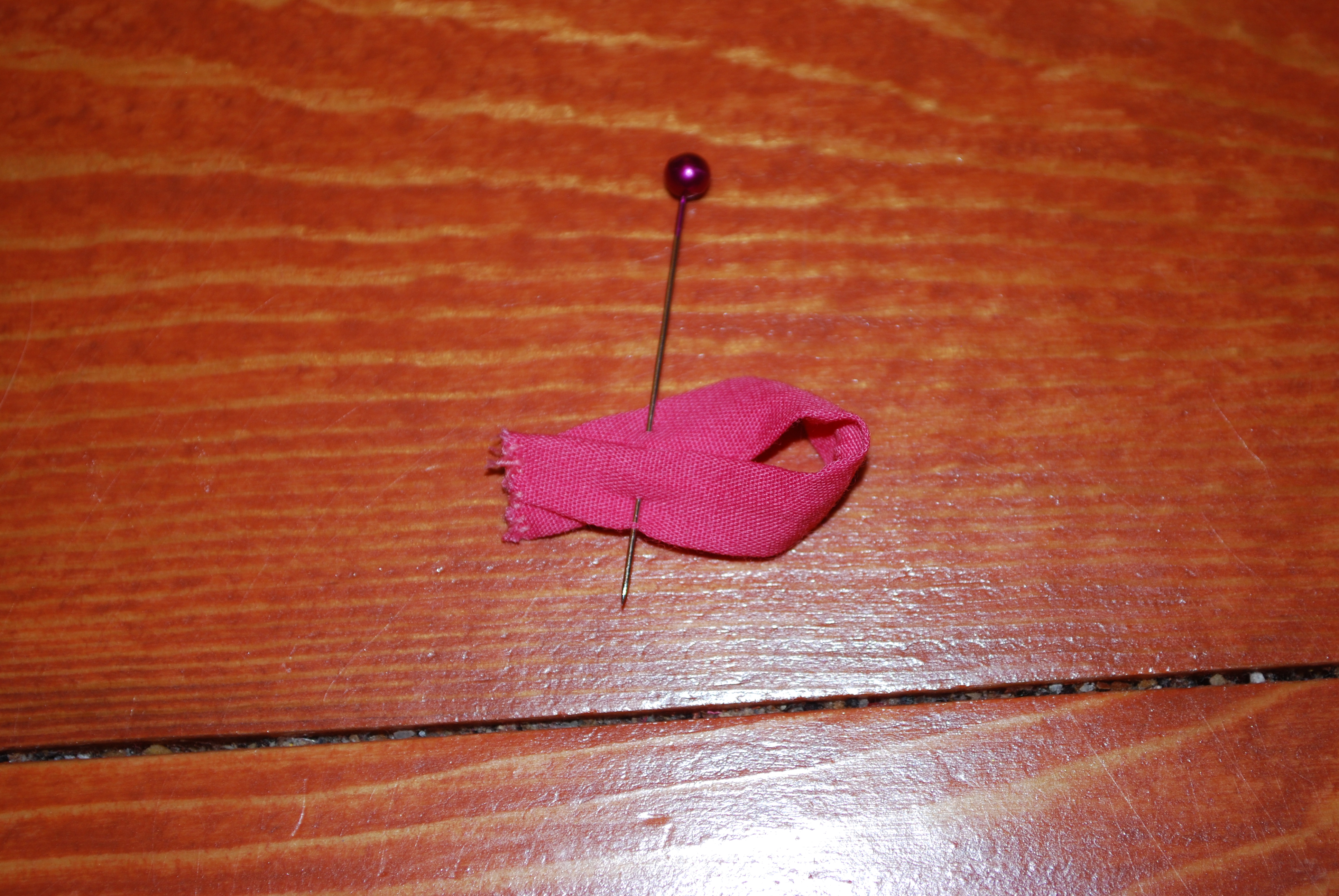

- Fold the button strip over, so it looks like the breast cancer symbol

- Pin the loops in place, sandwiching the loop between the 2 pieces you undid the stitches on

- Sew straight down

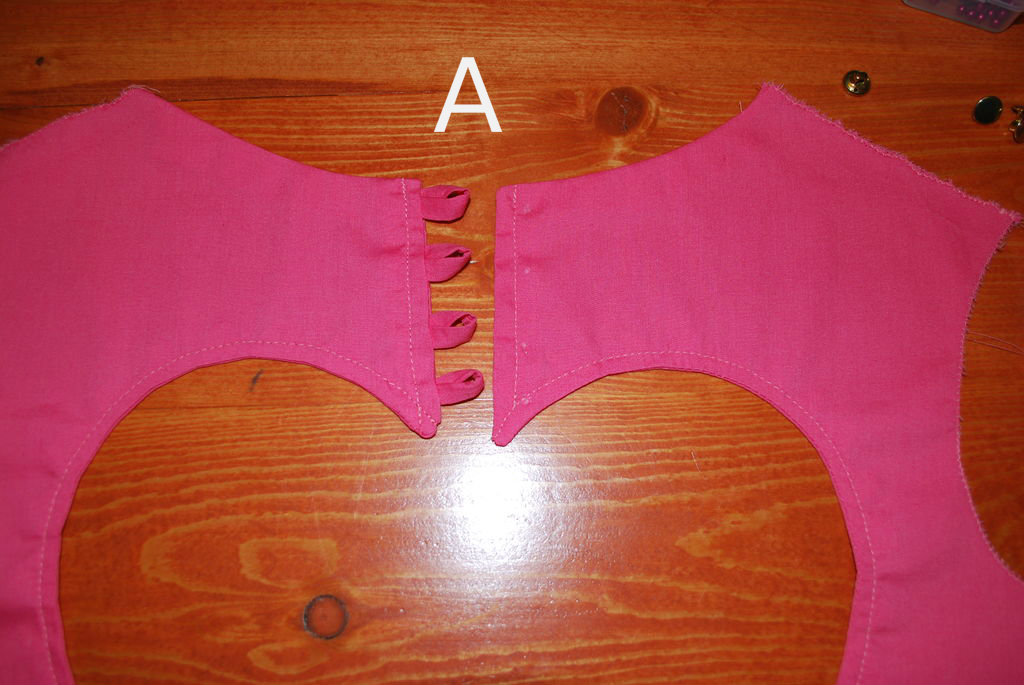

Step A

-Top stitch around the heart on both sides

- Top stitch the upper part of the heart on the other side

- Mark where the buttons will go

Now, the back will be mirrored

Step B

- Overlock the edges of the back bodice pieces together

- Now we can treat it as one piece of fabric

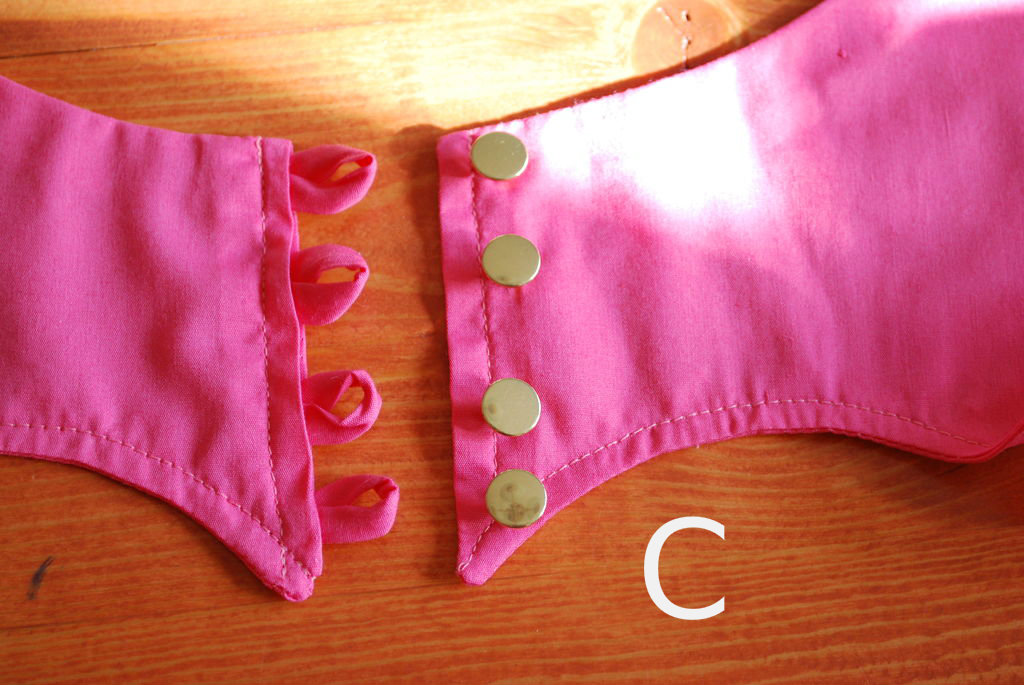

Step C

- Sew the buttons on

Step A

- Sew the neckline of the front bodice pieces together

- Clip the curve

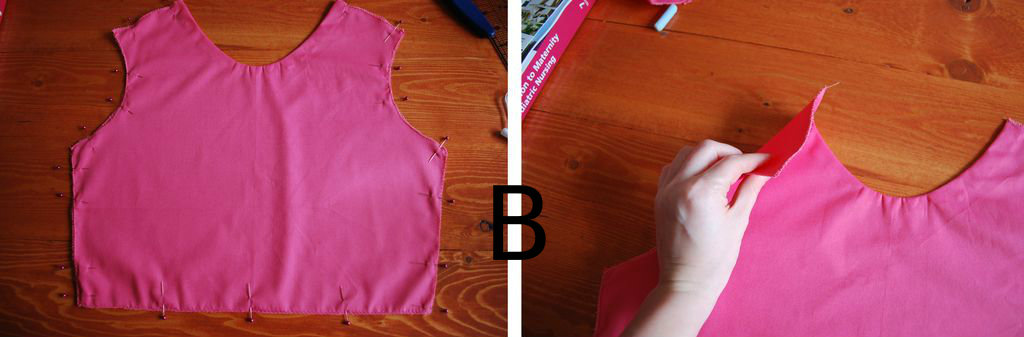

Step B

- Flip right side out and Iron

- Overlock the edges together

- Now we can treat this as one piece of fabric!

-Place the front and back bodice pieces right sides together

- Sew along the lines shown

- Leave one side open

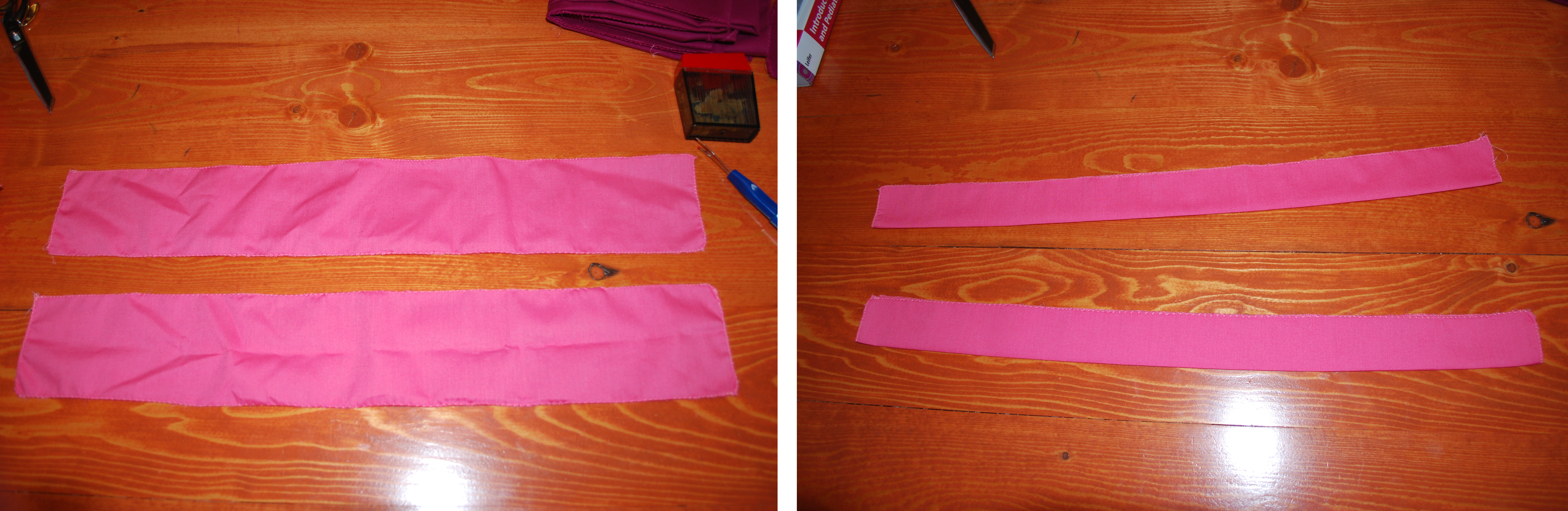

-Take your sleeve rectangles

- Iron them in half

-Sew onto the bodice piece

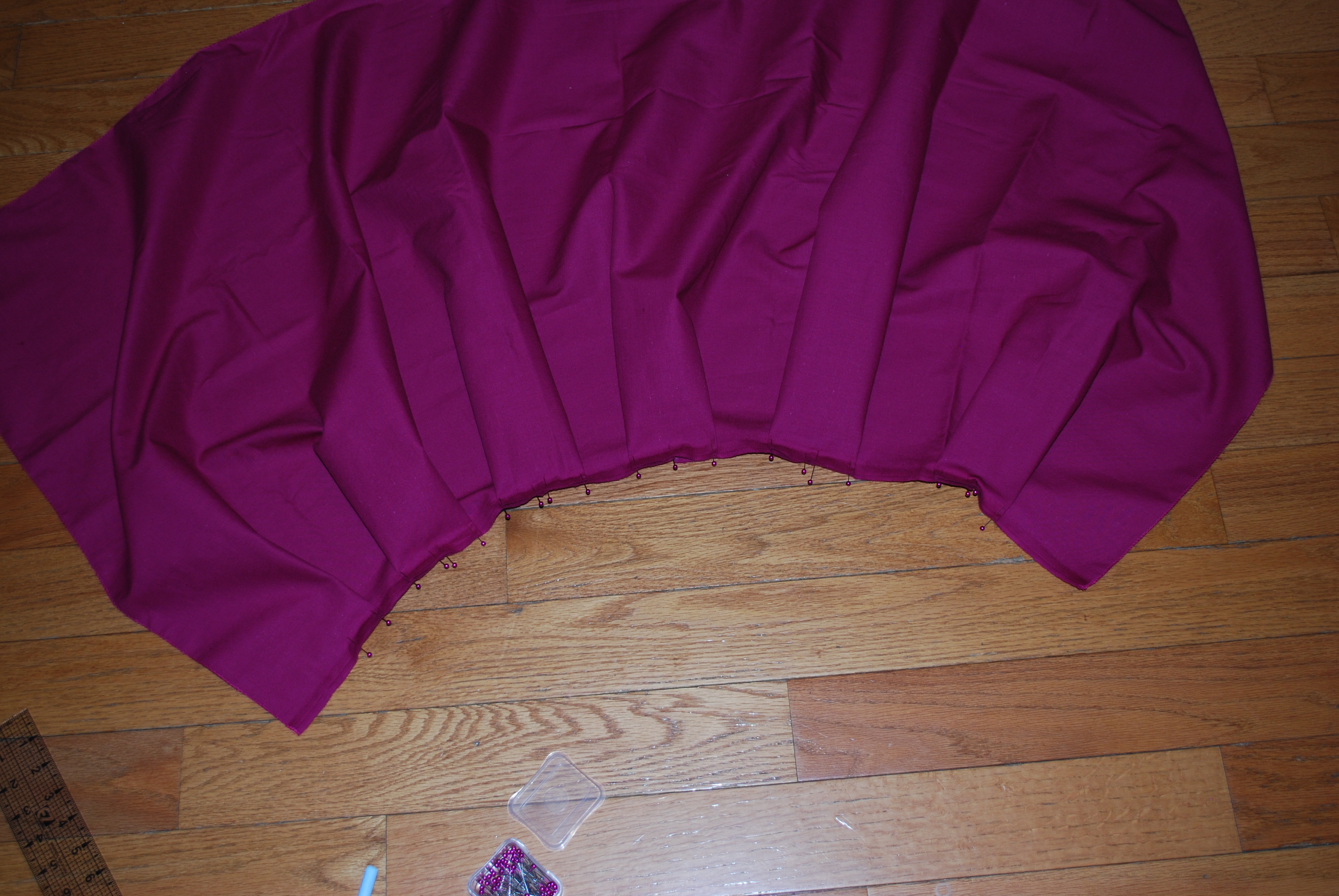

-Box Pleat the skirt

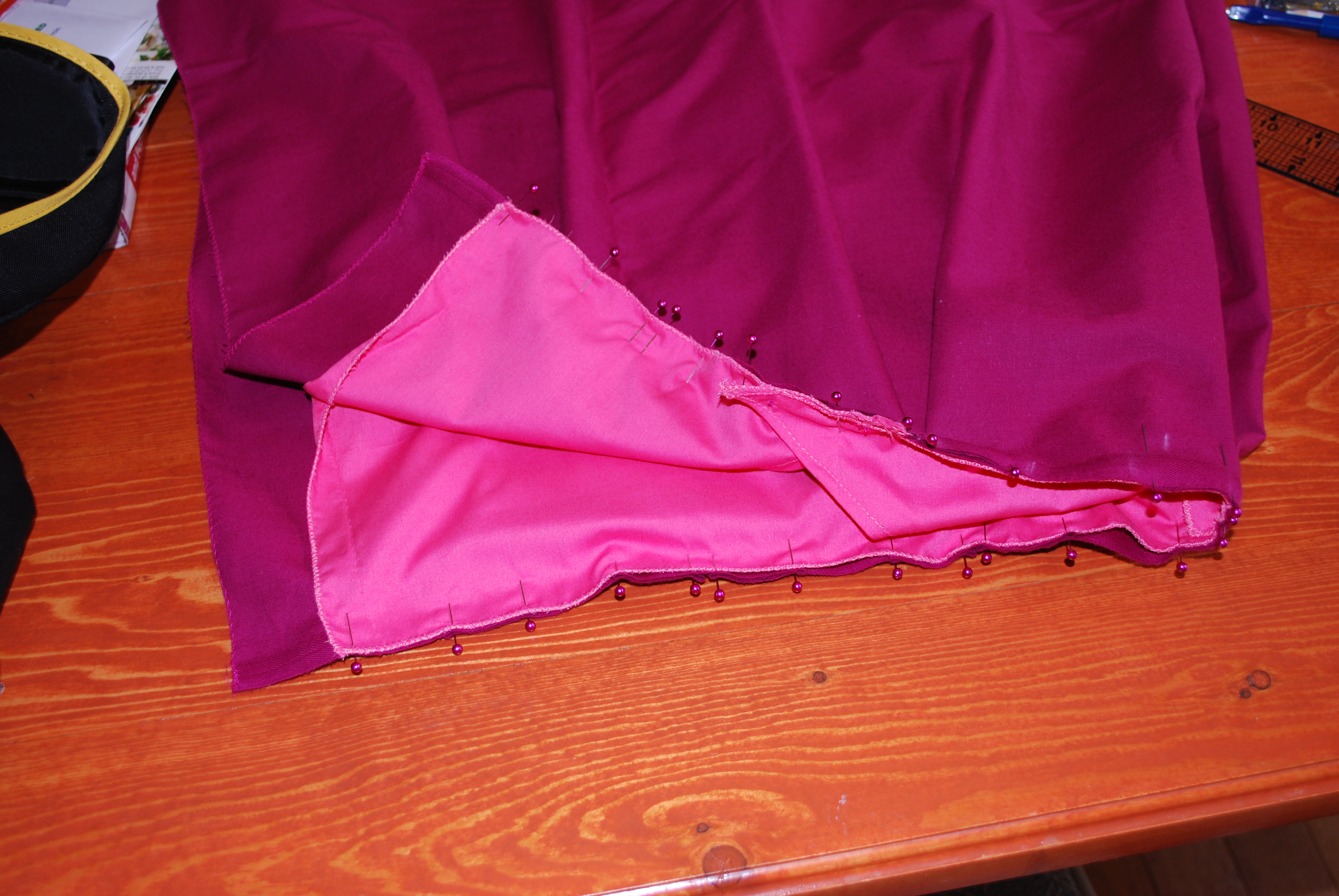

- Attach it to the bodice, making sure the open ends are on the same side

1) Install invisible zipper.

2) Hem dress

3) Add Trimming to sleeves and waistline

Congratulations! You finished the dress!

I found a great youtube tutorial on installing an invisible zipper with a regular zipper foot:
