"Y" SHAPED DOG TUG & TOSS TOY

by J3443RY in Living > Pets

95541 Views, 152 Favorites, 0 Comments

"Y" SHAPED DOG TUG & TOSS TOY

DOGS_WITH_TOY (9).JPG
Y dog toy (87).JPG
DOGS_WITH_TOY (1).JPG
SQ_KNOT_DOG_TOY [800x600] (116).JPG
DOGS_WITH_TOY (6).JPG
Y dog toy (85).JPG
DOGS_WITH_TOY (3).JPG
DOGS_WITH_TOY (4).JPG
DOGS_WITH_TOY (5).JPG
These easy to make colorful rope toys are great for any size dog.

"Y" SHAPED DOG TUG & TOSS TOYProject Cost $1.68
(100' of rope at $7.00 = $0.07 a foot; Project 24' x $0.07 = $1.68)

Check out my basic version of this toy at Dog Toys for Heavy Chewers

If you are having trouble tying the knot see my video BASIC KNOT VIDEO

(If you are concerned with your dog ingesting the nylon rope, natural 3/8" jute rope can be used instead)

WARNING

Please discard if toy becomes damaged or torn. Not intended for children. Should be used for chewing & playing only. Supervision is recommended when dogs are playing with toys.




Materials & Tools

Y dog toy (1).JPG
1. Materials & Tools Needed for “Y” Shaped Dog Tug & Toss Toy
•3/8” Rope
•Tape Measure
•Scissors
•3 Small Zip Ties
•Marker
•Needle-Nose Pliers or Hemostats
•Lighter

Cut Six 48" Long Pieces of Rope

Y dog toy (2).JPG
2. Cut six 48” lengths of rope, lightly melt ends of rope with lighter to prevent fraying
(1” finished project = approximately 4” of rope)

Find Center of Four 48" Ropes

Y dog toy (3).JPG
3. Take four of the 48” lengths of rope and fold in half, mark if needed with marker

Secure Center With Zip Tie

Y dog toy (4).JPG
4. Secure the four ropes with a small zip tie in the center (note: the zip tie will be removed later on in project)

Split Into Two Groups of Two

Y dog toy (5).JPG
5. From the zip tie split the four ropes into two groups of two

Insert Remaining Two 48" Ropes

Y dog toy (6).JPG
6. Take remaining two ropes divide in half, place center of ropes where you divided four ropes into two groups of two

Create Three Groups of Four

Y dog toy (7).JPG
Y dog toy (8).JPG
7. Secure with zip tie on each side creating three groups of four ropes each when finished

Grasp First Group of Four Ropes

Y dog toy (10).JPG
Y dog toy (9).JPG
8. Start with the first group of four ropes you created grasping at zip tie using a lightly closed fist with thumb extended

Position Ropes in Hand

Y dog toy (11).JPG
9. Spread the ropes out over the top of fist with one rope behind thumb

Wrap Rope 1 Around Thumb & Over Rope 2

Y dog toy (12).JPG
10. Take rope (rope 1) from behind thumb and wrap around it and over the next rope (rope 2)

Using Rope 2 Go Over Rope 1 & Over Rope 3

Y dog toy (13).JPG
11. Take second rope (rope 2) go over first rope (rope 1) and over next rope (rope 3) keeping first rope (rope 1) looped around thumb

Using Rope 3 Go Over Rope 2 & Over Rope 4

Y dog toy (14).JPG
12. Then take third rope (rope 3) go over second rope (rope 2) and over last rope (rope 4) again keeping first rope (rope 1) looped around thumb

Using Rope 4 Go Over Rope 3 & Thru Loop of Rope 1

Y dog toy (15).JPG
Y dog toy (16).JPG
13. Using last rope (rope 4) over third rope (rope 3) and thru loop of first rope (rope 1) that was looped around thumb

Tighten Up Knot

Y dog toy (17).JPG
14. Tighten up each length of rope

Create Tight Uniform Knot

Y dog toy (18).JPG
15. Continue tightening ropes until a uniformly tight knot is created

Repeat Steps 9 Thru 15

Y dog toy (18).JPG
Y dog toy (19).JPG
Y dog toy (20).JPG
Y dog toy (21).JPG
Y dog toy (22).JPG
Y dog toy (23).JPG
Y dog toy (24).JPG
Y dog toy (25).JPG
Y dog toy (35).JPG
Y dog toy (36).JPG
Y dog toy (37).JPG
Y dog toy (38).JPG
Y dog toy (39).JPG
Y dog toy (40).JPG
Y dog toy (41).JPG
Y dog toy (42).JPG
Y dog toy (43).JPG
Y dog toy (44).JPG

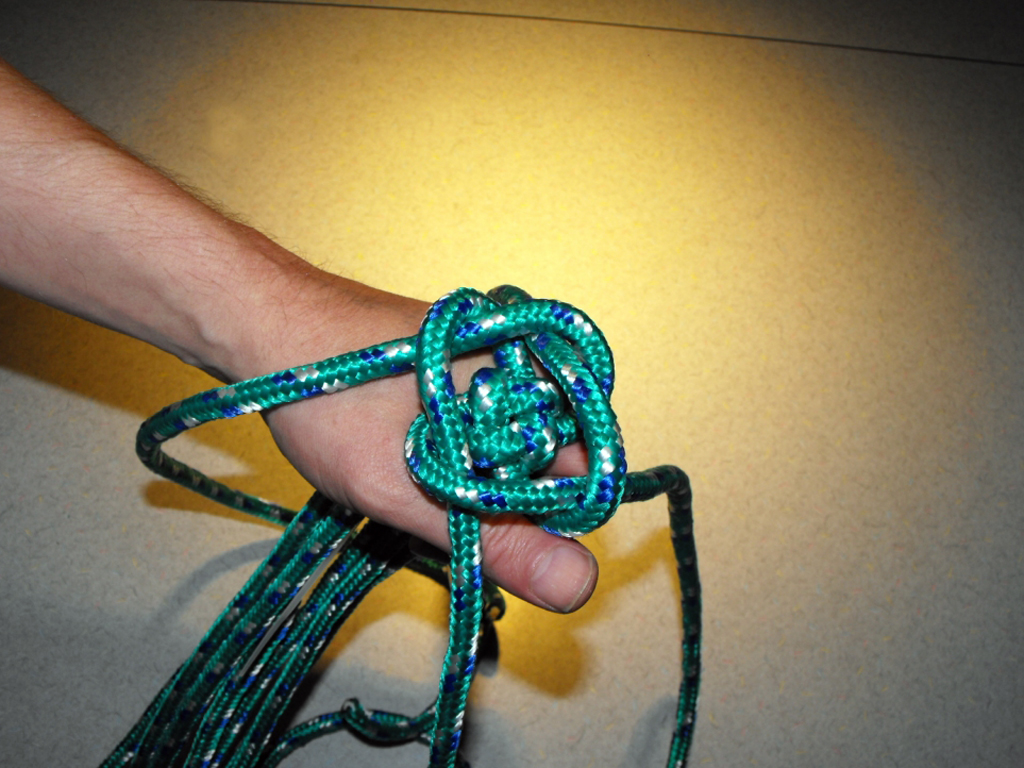

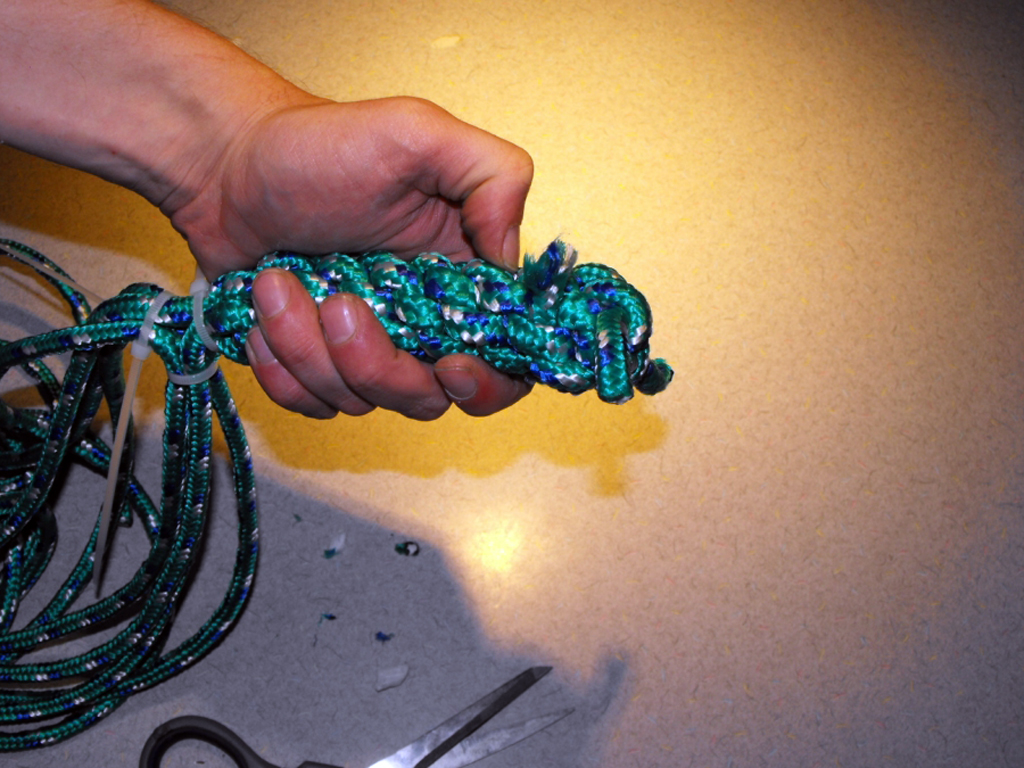

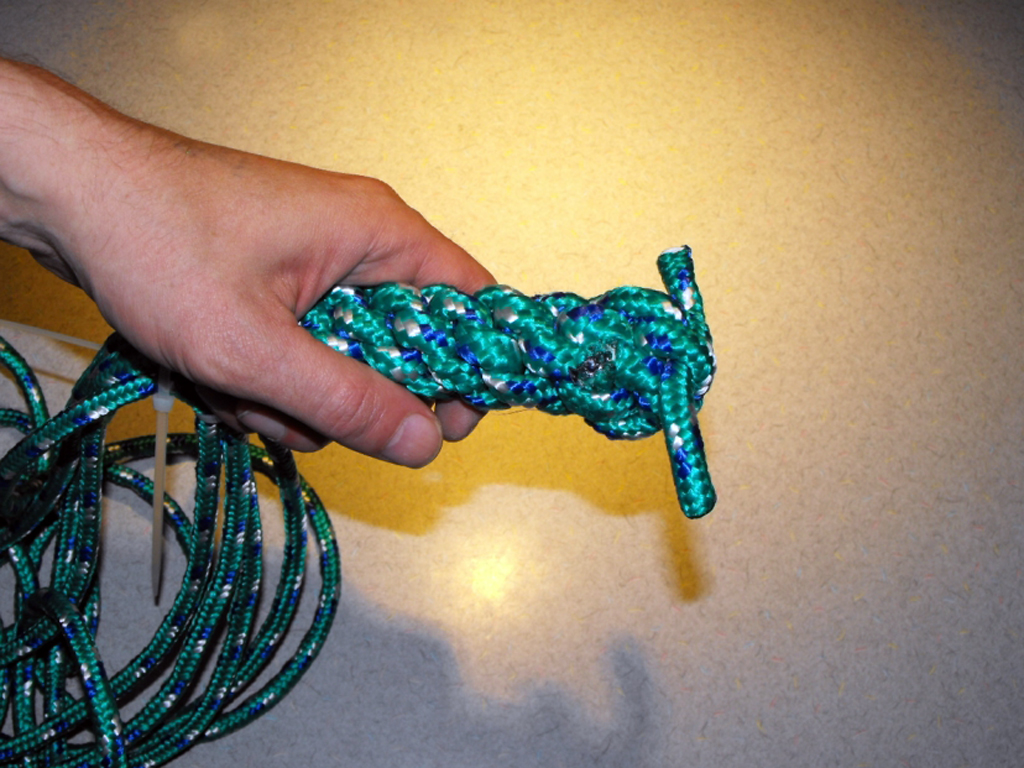

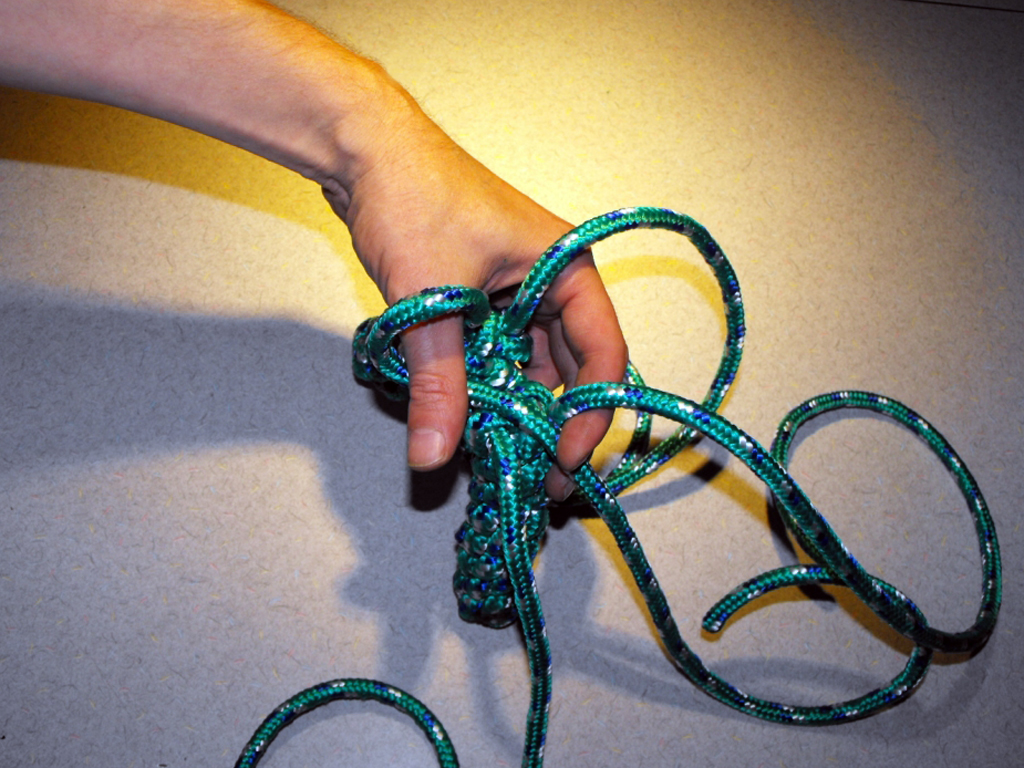

16. Repeat steps 9 thru 15

9. Spread the ropes out over the top of fist with one rope behind thumb

10. Take rope (rope 1) from behind thumb and wrap around it and over the next rope (rope 2)

11. Take second rope (rope 2) go over first rope (rope 1) and over next rope (rope 3) keeping first rope (rope 1) looped around thumb

12. Then take third rope (rope 3) go over second rope (rope 2) and over last rope (rope 4) again keeping first rope (rope 1) looped around thumb

13. Using last rope (rope 4) over third rope (rope 3) and thru loop of first rope (rope 1) that was looped around thumb

14. Tighten up each length of rope

15. Continue tightening ropes until a uniformly tight knot is created

repeat until six inches of finished length is reached or you have approximately 2” of rope remaining

Insert Pliers to Pull Rope Tail Thru

Y dog toy (45).JPG
17. Carefully insert pliers or hemostats thru finished knot using care not to disturb knot by going between sections of knot

Pull Rope Tail Thru Knot

Y dog toy (46).JPG
18. Grab tail of rope with pliers or hemostats and pull tail thru existing kno

Trim Rope Tail & Warm With Flame

Y dog toy (47).JPG
Y dog toy (48).JPG
Y dog toy (49).JPG
Y dog toy (50).JPG

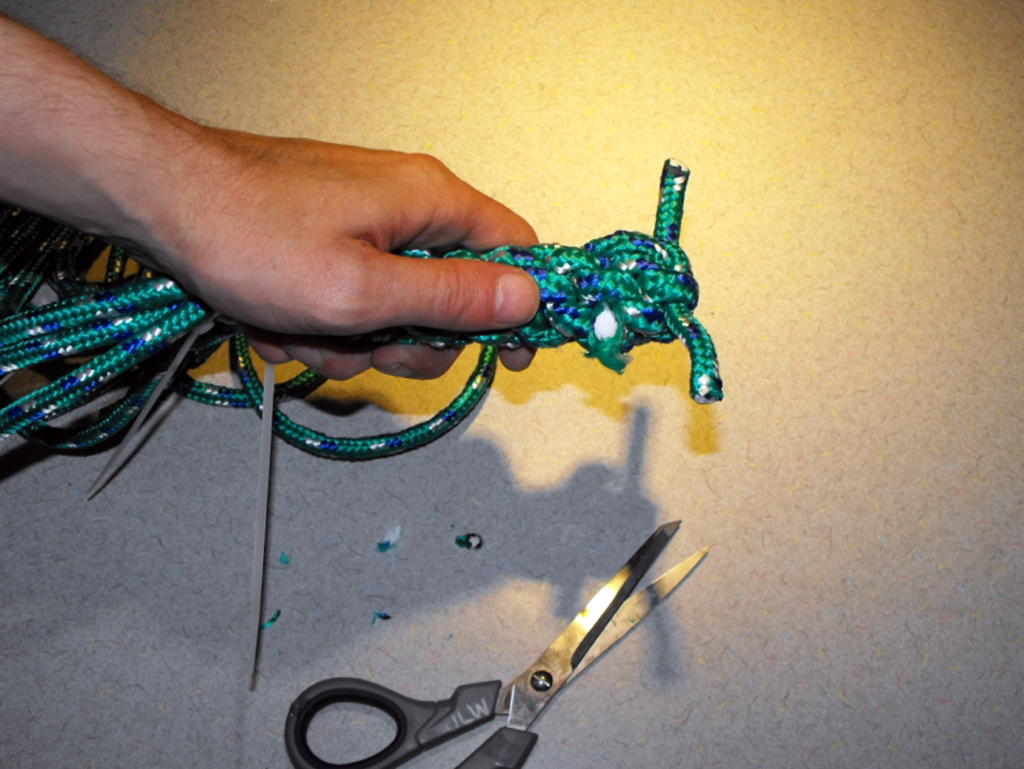

19. Trim excess from tail to 1/2” and warm with lighter

Press Tail Into Knot While Warm

Y dog toy (51).JPG
Y dog toy (52).JPG
20. While still warm use end of lighter to press tail flush into knot

Repeat on Remaining Tails

Y dog toy (53).JPG

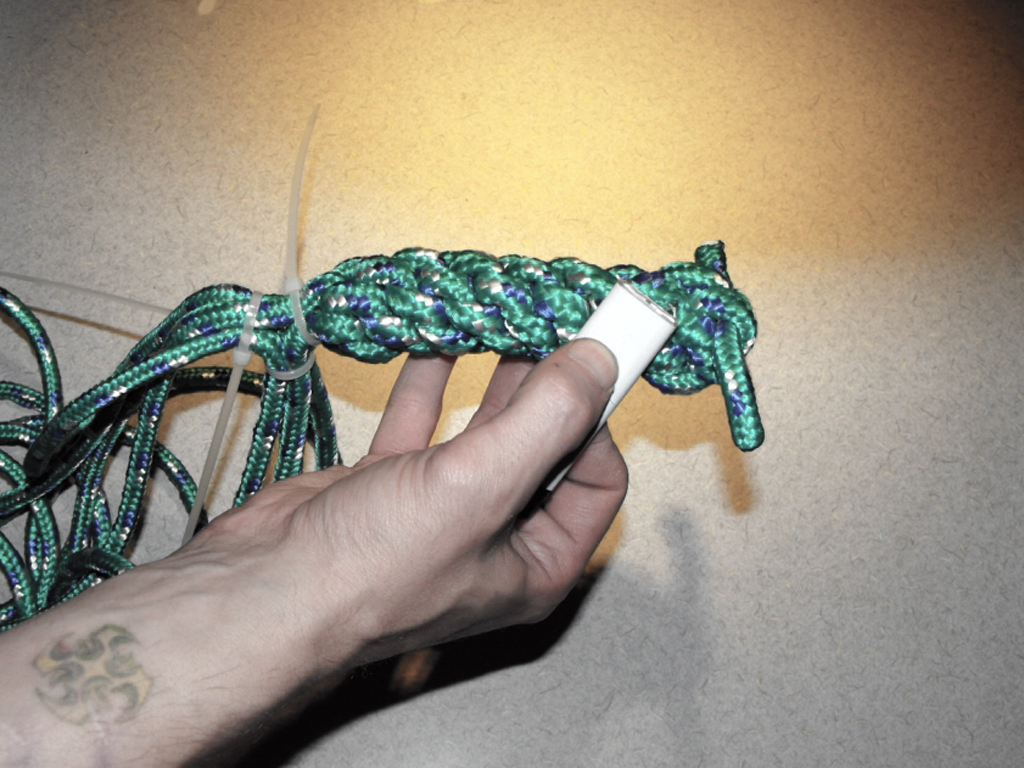

21. Repeat on remaining tails until all four are done and a finished 6” knotted length is created

Remove Zip Tie & Ready Next Four Lengths of Rope

Y dog toy (54).JPG
22. Remove zip tie from completed section and from the next section of four ropes leaving one zip tie in place holding the remaining four lengths of rope in place

Repeat Steps 9 Thru 15

Y dog toy (55).JPG
Y dog toy (56).JPG
Y dog toy (57).JPG
Y dog toy (58).JPG
Y dog toy (59).JPG
Y dog toy (60).JPG
Y dog toy (61).JPG
Y dog toy (62).JPG
Y dog toy (63).JPG
Y dog toy (64).JPG
Y dog toy (65).JPG
Y dog toy (66).JPG
Y dog toy (67).JPG
Y dog toy (68).JPG
Y dog toy (69).JPG
Y dog toy (70).JPG

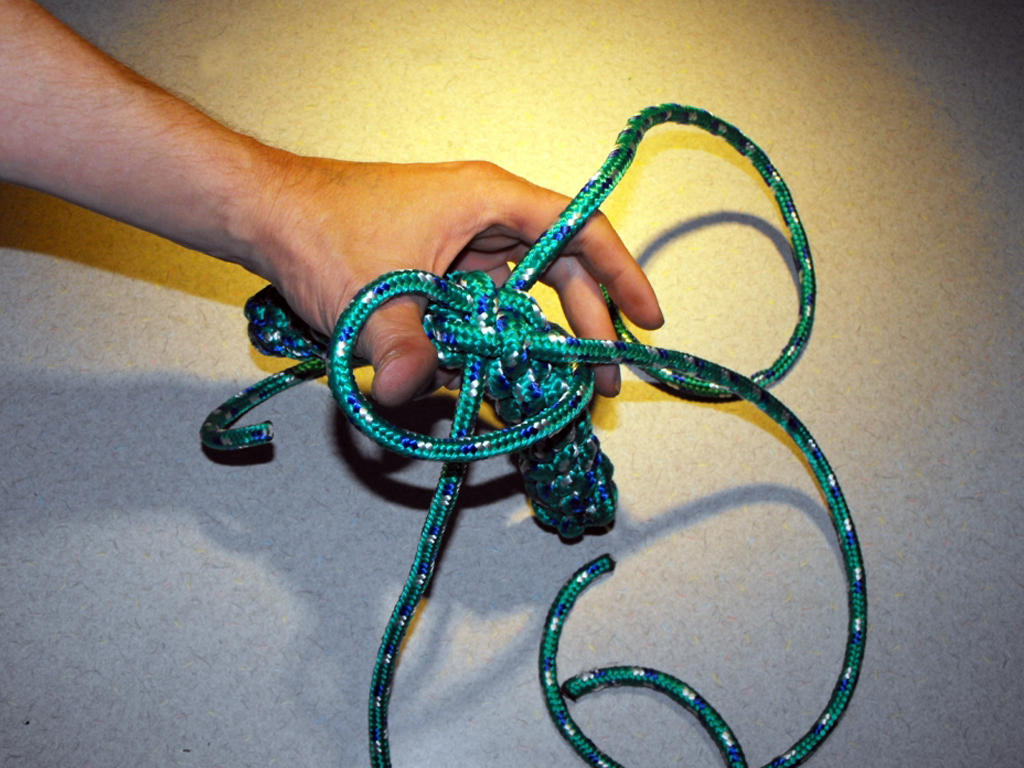

23. Using the four remaining ropes without the zip tie repeat to steps 9 thru 15

9. Spread the ropes out over the top of fist with one rope behind thumb

10. Take rope (rope 1) from behind thumb and wrap around it and over the next rope (rope 2)

11. Take second rope (rope 2) go over first rope (rope 1) and over next rope (rope 3) keeping first rope (rope 1) looped around thumb

12. Then take third rope (rope 3) go over second rope (rope 2) and over last rope (rope 4) again keeping first rope (rope 1) looped around thumb

13. Using last rope (rope 4) over third rope (rope 3) and thru loop of first rope (rope 1) that was looped around thumb

14. Tighten up each length of rope

15. Continue tightening ropes until a uniformly tight knot is created

repeat until six inches of finished length is reached or you have approximately 2” of rope remaining

Insert Pliers to Pull Rope Tail Thru

Y dog toy (45).JPG
24. Carefully insert pliers or hemostats thru finished knot using care not to disturb knot by going between sections of knot

Pull Rope Tail Thru Knot

Y dog toy (46).JPG
25. Grab tail with pliers or hemostats and pull tail thru existing knot

Trim Rope Tail & Warm With Flame

Y dog toy (47).JPG
Y dog toy (48).JPG
Y dog toy (49).JPG
Y dog toy (50).JPG
26. Trim excess from tail to 1/2” and warm with lighter

Press Tail Into Knot While Warm

Y dog toy (51).JPG
Y dog toy (52).JPG
27. While still warm use end of lighter to press tail flush into knot

Repeat on Remaining Tails

Y dog toy (70).JPG
28. Repeat on remaining tails until all four are done and a finished 6” knotted length is created

Two Completed Sections

Y dog toy (71).JPG

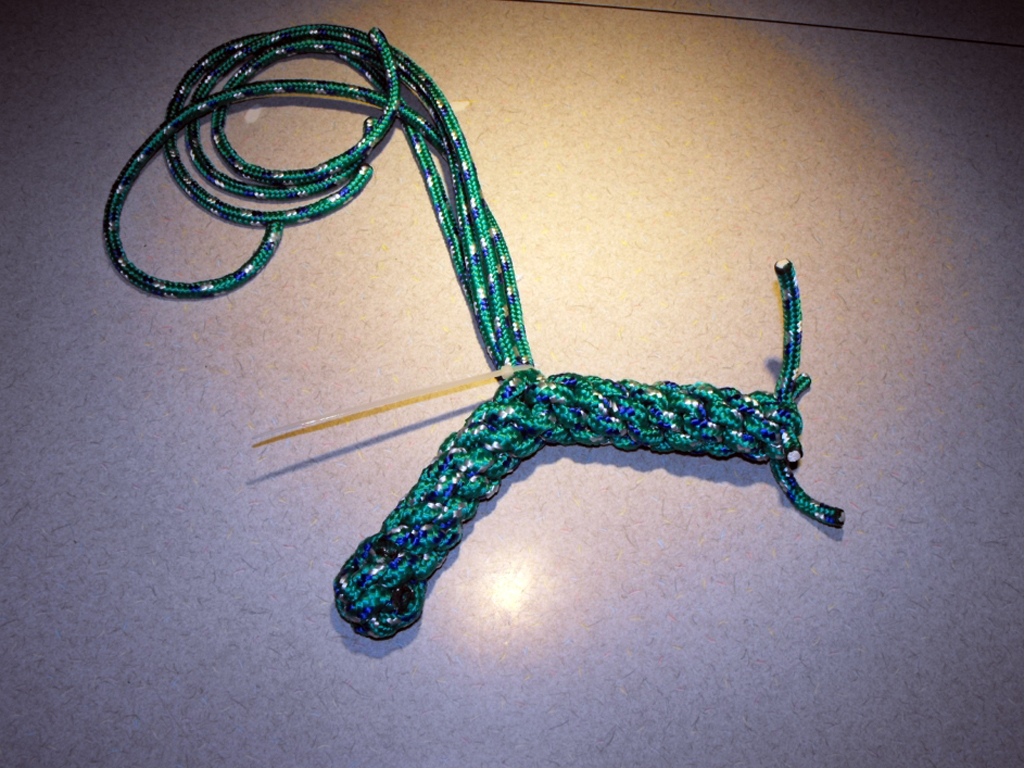

29. At this stage you should have 2 complete sections and four lengths of rope zip tied together

Remove Final Zip Tie

Y dog toy (71).JPG
30. Remove zip tie from final four lengths of rope

Repeat Steps 9 Thru 15

Y dog toy (72).JPG
Y dog toy (73).JPG
Y dog toy (74).JPG
Y dog toy (75).JPG
Y dog toy (76).JPG
Y dog toy (77).JPG
Y dog toy (78).JPG
Y dog toy (79).JPG
Y dog toy (80).JPG
Y dog toy (81).JPG
Y dog toy (82).JPG
Y dog toy (83).JPG
Y dog toy (84).JPG

31. Using the four remaining ropes without the zip tie repeat to steps 9 thru 15


9. Spread the ropes out over the top of fist with one rope behind thumb

10. Take rope (rope 1) from behind thumb and wrap around it and over the next rope (rope 2)

11. Take second rope (rope 2) go over first rope (rope 1) and over next rope (rope 3) keeping first rope (rope 1) looped around thumb

12. Then take third rope (rope 3) go over second rope (rope 2) and over last rope (rope 4) again keeping first rope (rope 1) looped around thumb

13. Using last rope (rope 4) over third rope (rope 3) and thru loop of first rope (rope 1) that was looped around thumb

14. Tighten up each length of rope

15. Continue tightening ropes until a uniformly tight knot is created

repeat until six inches of finished length is reached or you have approximately 2” of rope remaining

Insert Pliers to Pull Rope Tail Thru

Y dog toy (45).JPG
32. Carefully insert pliers or hemostats thru finished knot using care not to disturb knot by going between sections of knot

Pull Rope Tail Thru Knot

Y dog toy (46).JPG
33. Grab tail with pliers or hemostats and pull tail thru existing knot

Trim Rope Tail & Warm With Flame

Y dog toy (47).JPG
Y dog toy (48).JPG
Y dog toy (49).JPG
Y dog toy (50).JPG
34. Trim excess from tail to 1/2” and warm with lighter

Press Tail Into Knot While Warm

Y dog toy (51).JPG
Y dog toy (52).JPG
35. While still warm use end of lighter to press tail flush into knot

Repeat on Remaining Tails

Y dog toy (85).JPG
36. Repeat on remaining tails until all four are done and a finished 6” knotted length is created

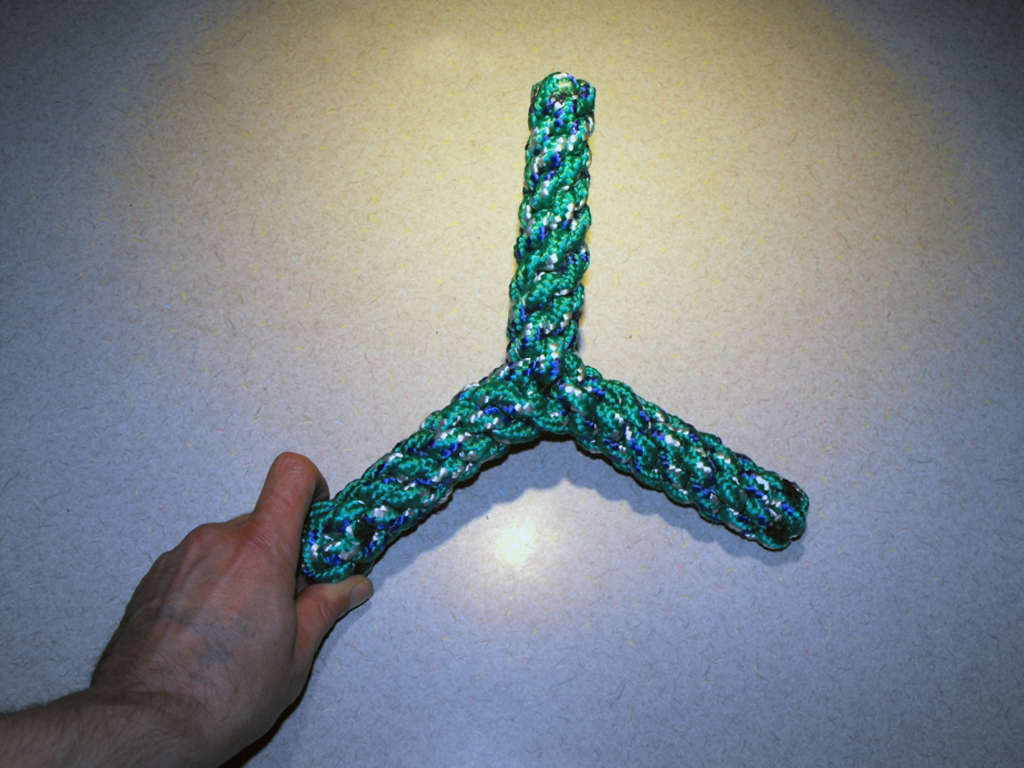

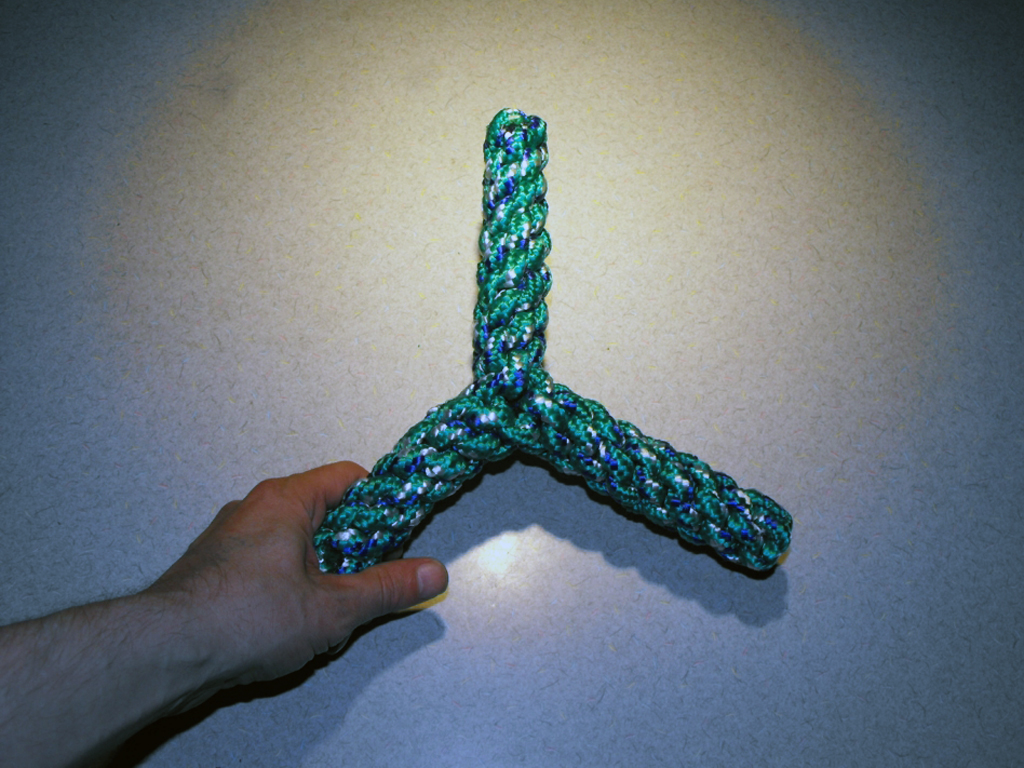

Finished "Y" Shaped Dog Toss & Tug Toy

Y dog toy (86).JPG
SQ_KNOT_DOG_TOY [800x600] (116).JPG
Y dog toy (87).JPG
37. Your new “Y” Shaped Dog Tug & Toss Toy should be complete and ready for your dog to enjoy
