Hey everyone, what's up?

Hey here's something helpful: a home automation shield designed for Seeed XIAO DEV boards with a single SPDT relay and inbuilt AC-DC power so we can run this board directly off an AC source.

It works with all XIAO boards, including the ESP32 C3 XIAO and the most recent ESP32 S1 XIAO.

This project is about how this simple home automation board was made and how you can use it for controlling XYZ loads, so let's start with the building process.

Supplies

These were the components used in this project.

  • Seeed XIAO DEV Board
  • Custom PCB
  • SPDT 5V Relay
  • Isolated Power supply 240V AC to 5V DC
  • M7 Diode
  • AO3400 N Channel mosfet
  • 10K Resistors

XIAO DEV Platform


The Seeed Xiao is a series of development boards that provide a compact and versatile platform for prototyping and building electronic projects. The Xiao boards are designed by Seeed Studio and come in different versions, each catering to specific requirements and functionalities.

The original Seeed Xiao board features an ARM Cortex-M0+ microcontroller and offers a rich set of I/O pins, including digital, analog, and specialized communication pins. It also has a built-in micro USB port for programming and power supply. Additionally, Seeed has released variants such as the Seeed Xiao Lite, which is a smaller and more affordable version, and the Seeed Xiao RP2040, which is based on the Raspberry Pi RP2040 microcontroller and offers enhanced processing power and connectivity options.

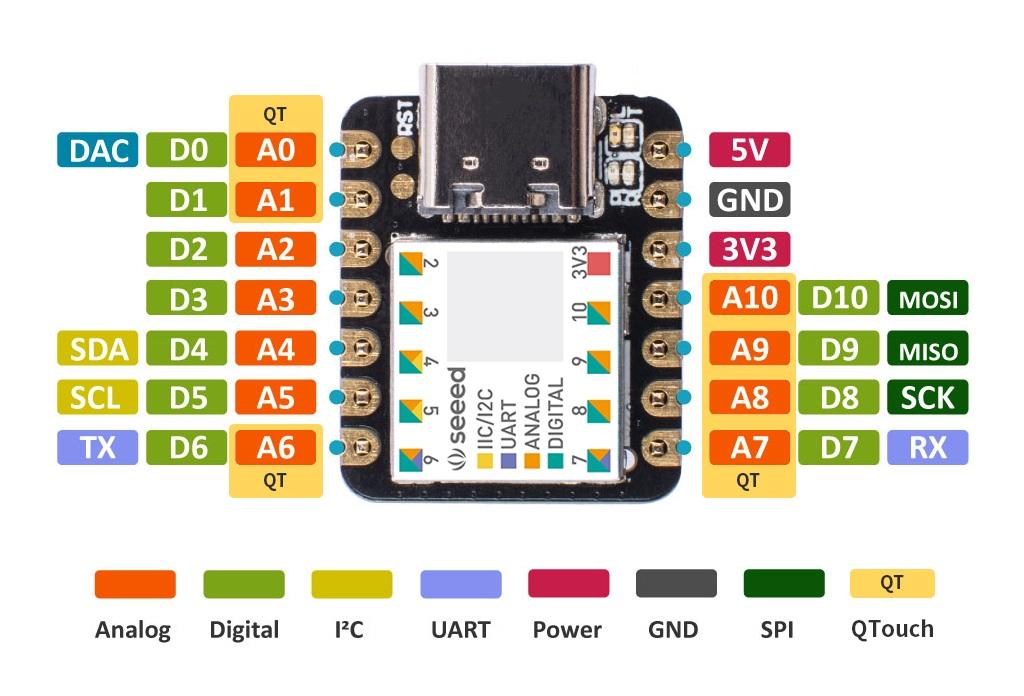

The newest XIAO ESP32S3 Sense from SEEED was just released; it features the ESP32S3 32-bit dual-core Xtensa processing chip, as well as an inbuilt camera module and a digital microphone.

Regardless of the version, Seeed Xiao development boards are popular choices among hobbyists, makers, and professionals alike due to their compact form factor, extensive I/O capabilities, and ease of use for a wide range of projects.

This project will utilize the XIAO M0 and XIAO ESP32 C3.

PCB Schematic


This board's PCB schematic, which is a straightforward one, was initially created.

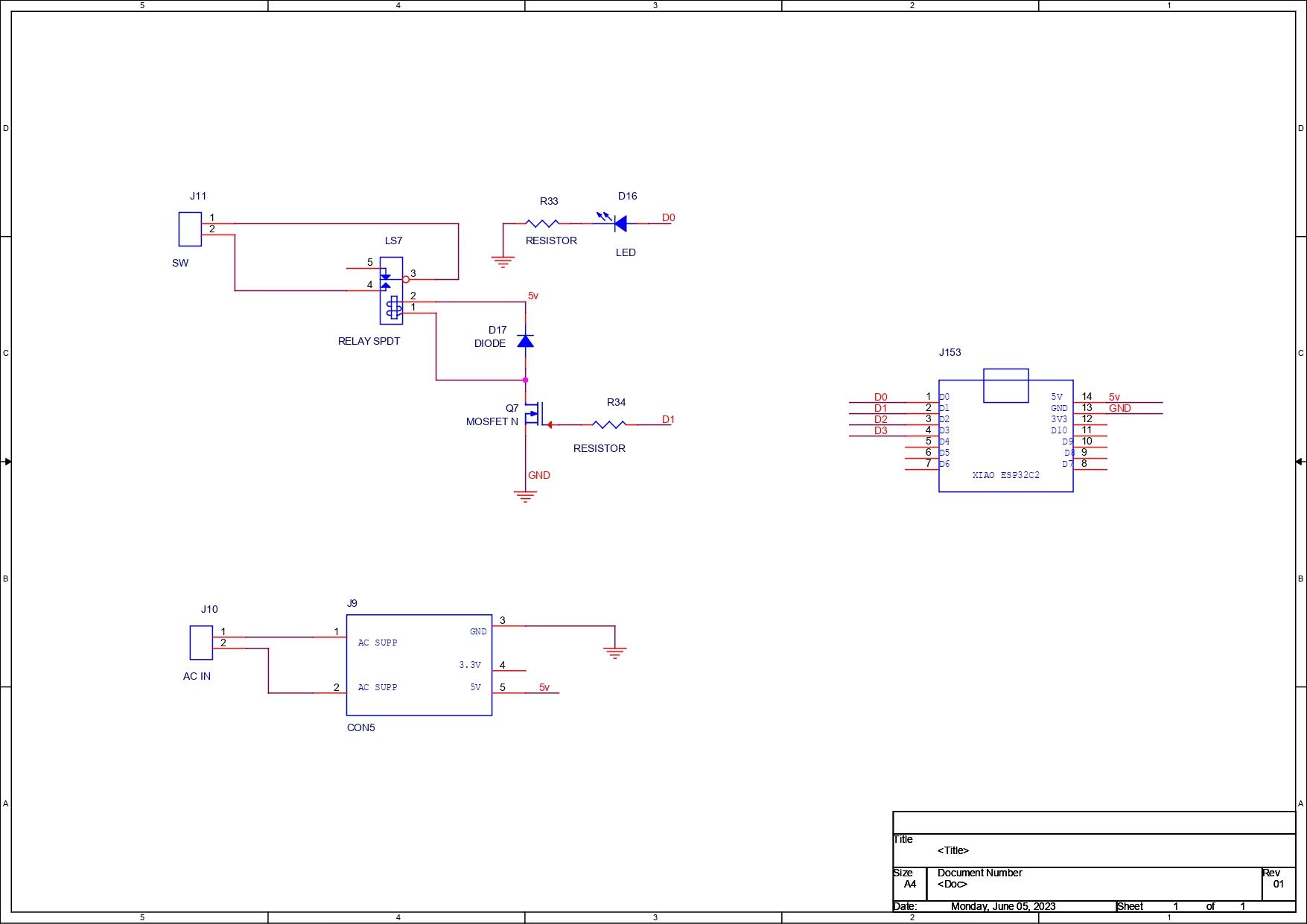

This circuit board has a mosfet configured as a switch that is connected to an SPDT relay. The mosfet's gate is connected to the XIAO D1 pin through a 10K resistor. In addition, the XIAO's GND and D0 pins are both connected to an LED.

The power supply's 5 volt output is attached to an XIAO and relay configuration, and there is also an isolated SMPS that is connected to a CON2 port and will be used to power this supply via an AC source.

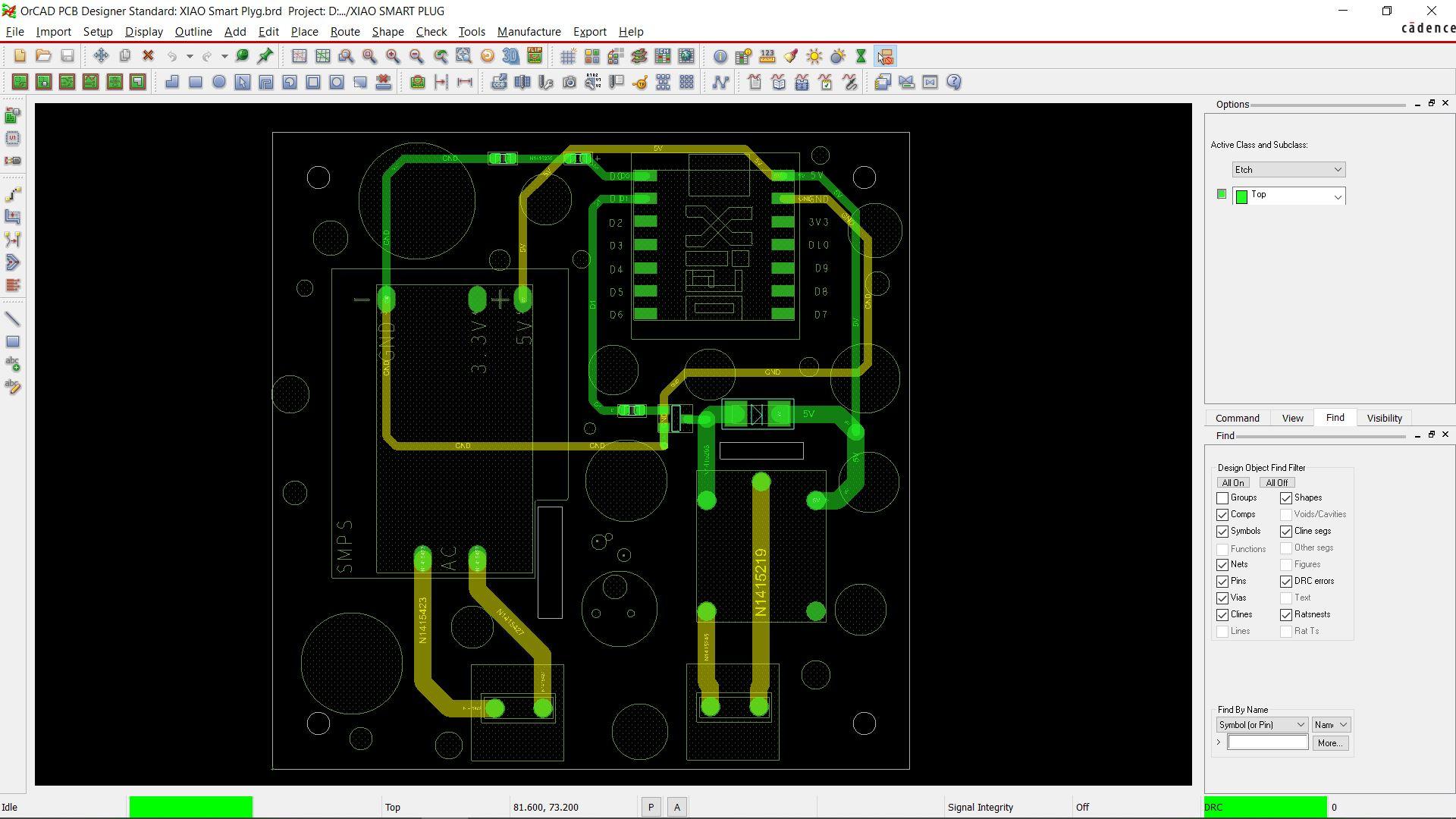

The board's schematic was converted into a PCB design when it was finished.

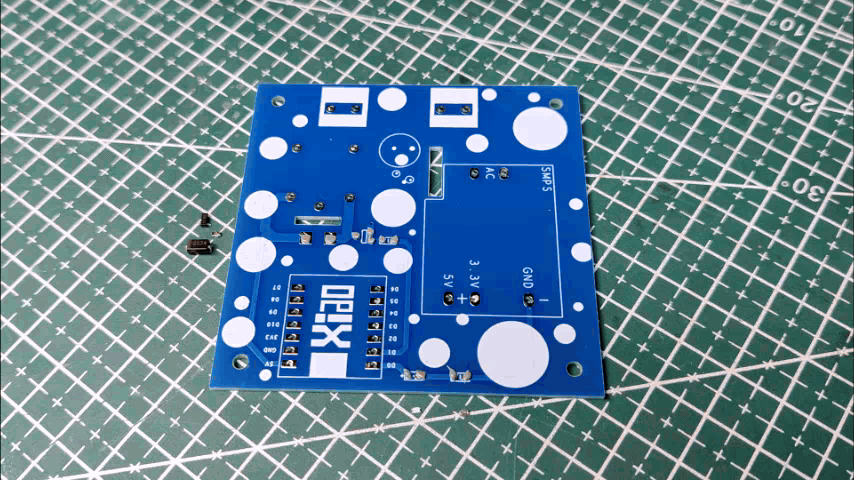

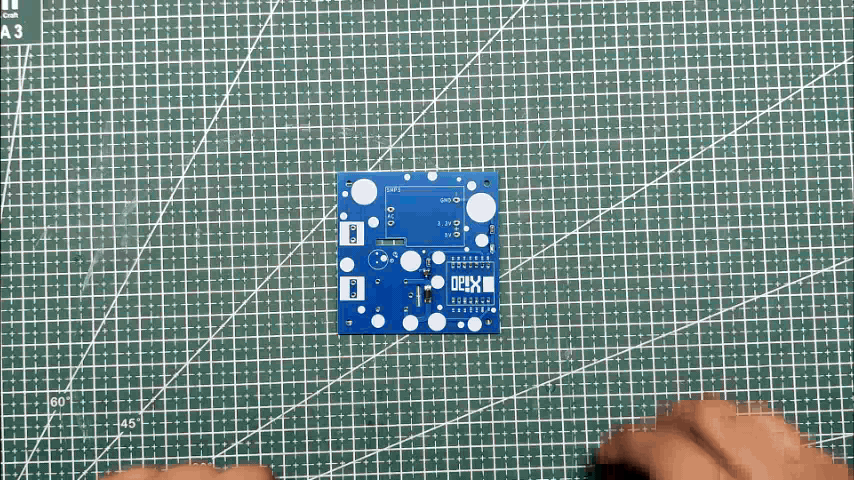

A board outline was created, with a relay and an isolated power supply on one side and XIAO on the other.

For aesthetic reasons, we put a round silkscreen to the PCB. Then, we produced the gerber data and sent it to Seeed Studio for samples.

Seeed Studio Fusion Service

01 (33).gif
02 (37).gif

After finalizing the PCB and generating its Gerber data, I sent it to SEEED STUDIO for samples.

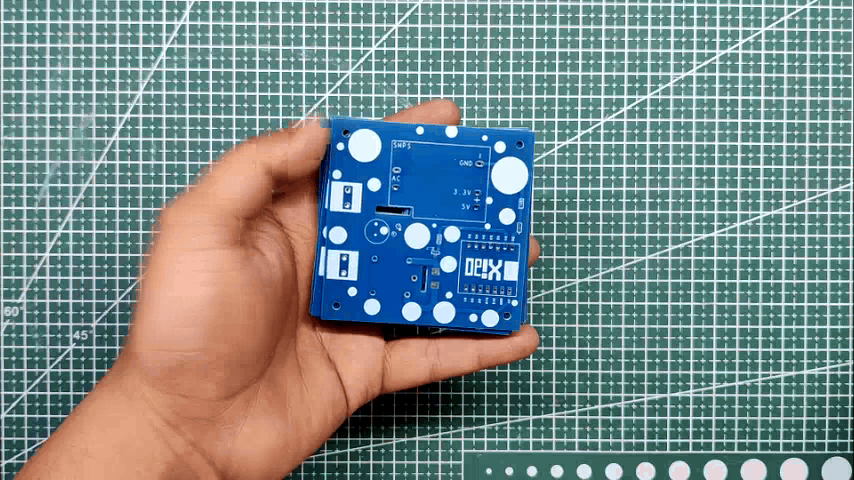

PCB was ordered in Blue solder mask with white silkscreen.

PCBs were received in a week, and their quality was super good considering the rate, which was also pretty low.

Seeed Fusion PCB Service offers one-stop prototyping for PCB manufacture and PCB assembly, and as a result, they produce superior quality PCBs and fast turnkey PCBAs within 7 working days.

PCB Quality of this HOME AUTOMATION SHIELD WAS SUPER!

Seeed Studio Fusion PCB Assembly Service takes care of the entire fabrication process, from Seeed Studio Fusion Agile manufacturing and Hardware Customization to parts sourcing, assembly, and testing services, so you can be sure that they are getting a quality product.

After gauging market interest and verifying a working prototype, Seeed Propagate Service can help you bring the product to market with professional guidance and a strong network of connections.

Next is the PCB assembly process.

PCB Assembly

03 (36).gif
04 (36).gif
05 (37).gif
06 (39).gif
07 (38).gif
08 (39).gif

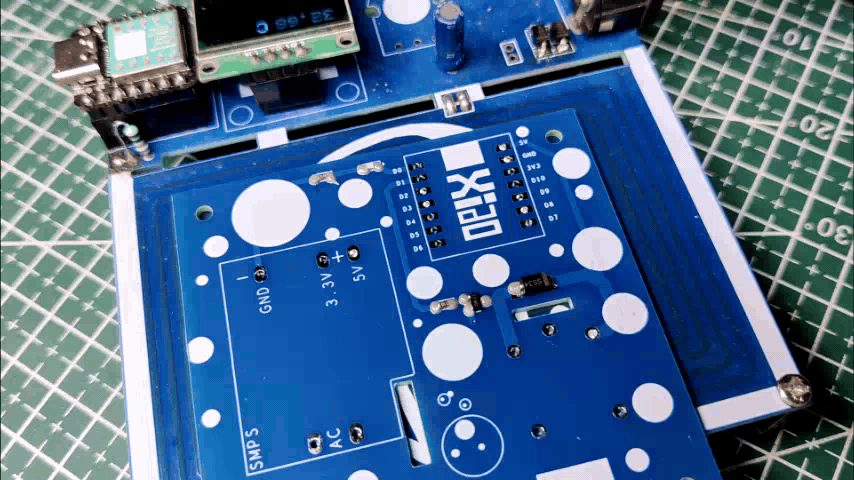

  • Board Assembly Process begins by first adding solder paste to each component pad one by one.

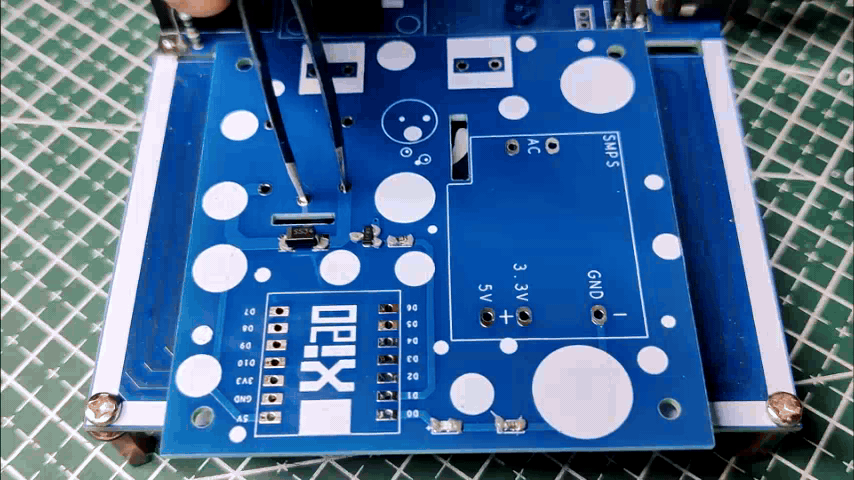

  • Next, using a tweezer, we pick and position each SMD component in its designated location.
  • Following that, we carefully lifted the entire circuit board and set it down on the SMT Hotplate, which heats the PCB from below up to the solder paste melting temperature. As soon as the PCB reaches that temperature, the solder paste melts, and all the components are connected to their pads.
  • Next, we add all the THT components, which include the relay, header pin, CON2 connector, and isolated power supply, to their locations and then solder their pads using a soldering iron.

The circuit is now complete.

CODE

Here's the main sketch for this project, a web server sketch that I modified from my previous home automation project; even the web page title is from that project, and it's easily changed by changing the lines below.

This sketch uses the XIAO ESP32 C3 board.

client.println("<body><h1>HOME AUTOMATION DUAL OUTPUT</h1>");
  • Copy this sketch and change the SSID and password before uploading it to the XIAO DEV Board; this setup will also work with any ESP32 or ESP8266 boards.
  • After uploading the sketch, we open the serial monitor and allow the ESP to connect to the local WIFI. Once connected, you will see its IP address in the serial monitor.
  • Copy the IP Address and open it into any browser which will let you access the Web page for controlling the RELAY.

Wiring and Use

10 (35).gif
11 (36).gif
12 (37).gif
13 (37).gif

We upload the sketch into the XIAO and connect it with the Web to toggle the relay.

For demonstration reasons, we attach two multimeter probes to CON2, then turn CON2 into a continuous mode. Multimeter probes connect, and continuity is seen when the relay is toggled.

Using this board, we may toggle any load, whether AC or DC, by using it as a switch to control XYZ loads.

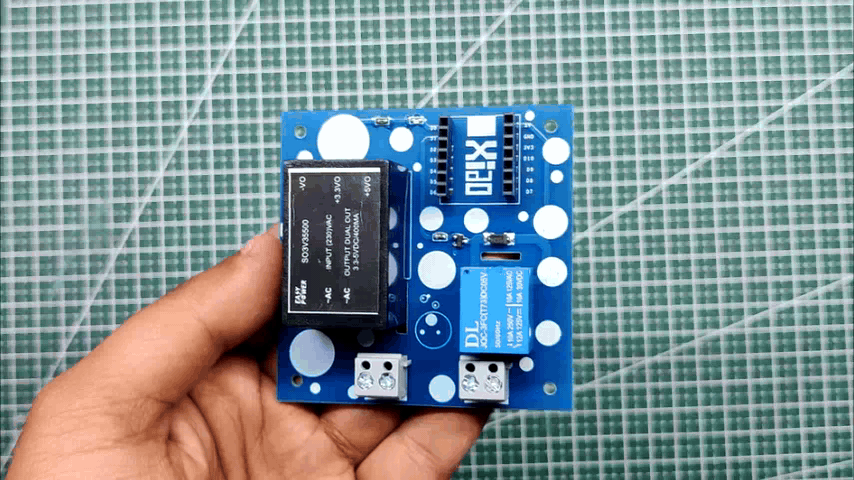

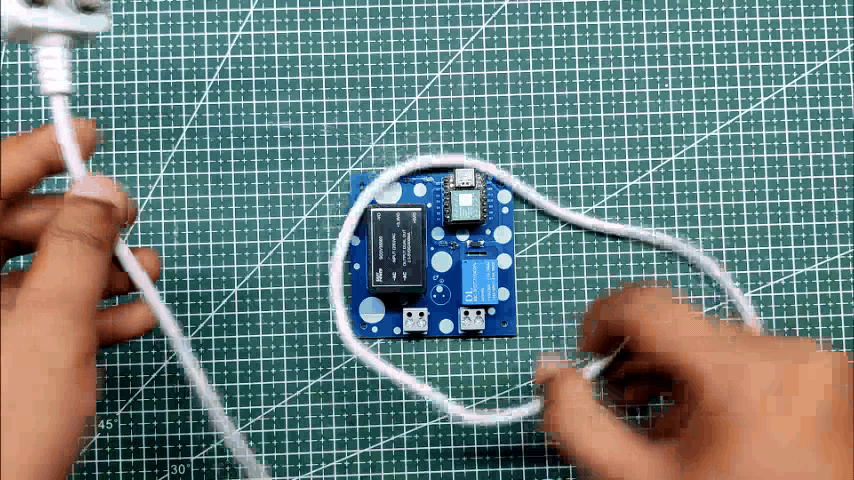

The best feature of this board is its built-in AC to DC power supply, which enables us to power this device using AC power. We simply put an AC cord into the CON2 port and then into an AC outlet to power the entire system without the need for a USB cable.

Do leave a comment if you need any help regarding this project.

This is it for today folks.

Thanks to Seeed Studio for supporting this project, you guys can check them out if you need great PCB and stencil service for less cost and great quality.

And I'll be back with a new project pretty soon!
