X101 Ultimate K'nex Slide Pistol

by Darth Trainman in Living > LEGO & K'NEX

5033 Views, 10 Favorites, 0 Comments

X101 Ultimate K'nex Slide Pistol

X101 Pistol (61).JPG
X101 Pistol (2).JPG
X101 Pistol (60).JPG
The best pistol ever. It's got a slide, A mag, and a true trigger. It has all the primary features of a shifle, in a tiny package. Plus it shoots pretty far and is easy to make. In other words, the beginner's gun to end all beginner guns. And Only 190 Pieces.

Pieces:
Gray Rods:3
Red Rods:2
Yellow Rods:5
Blue Rods:3
White Rods:21
Green Rods:15
White 8-Slot Connectors:2
Yellow 5-Slot Connectors: 27
Green 4-Slot Connectors:14
Red 3-Slot Connectors: 4
Orange 2-Slot Connectors: 8
Gray 1-Slot Connectors:24
Tan/Brown/Orange Tabbed Connectors:19
Blue Bearings:18
Silver Bearings:9
Hinges:4
Black Y Connectors:1
Total:190

The Handle

X101 Pistol (10).JPG
X101 Pistol (11).JPG
X101 Pistol (12).JPG
You hold this.

Pieces:
White Rods9
Green Rods:12
Yellow 5-Slot Connectors:6
Green 4-Slot Connectors:9
Gray 1-Slot Connectors:2
Blue Bearings:2
Total:40

The Back Handle

X101 Pistol (13).JPG
The Handle, part 2.

Pieces:
Blue Rods:4
White Rods:6
Green 4-Slot Connectors:3
Red 3-Slot Connectors:3
Total:16

The Trigger

X101 Pistol (14).JPG
X101 Pistol (15).JPG
You pull this.

Pieces:
Blue Rods:1
White Rods:1
Green Rods:3
Red 3-Slot Connectors:1
Orange 2-Slot Connectors:3
Total:9

The Connector

X101 Pistol (16).JPG
Connects the Trigger to the Barrel.

Pieces:
Blue Rods:1
Yellow 5-Slot Connectors:1
Gray 1-Slot Connectors:2
Tan/Brown/Orange Tabbed Connectors:2
Blue Bearings:3
Silver Bearings:1
Total:10

The Slide

X101 Pistol (17).JPG
A big heavy Slide.

Pieces:
Red Rods:2
Yellow 5-Slot Connectors: 17
Total:19

The Barrel

X101 Pistol (18).JPG
X101 Pistol (19).JPG
X101 Pistol (20).JPG
X101 Pistol (21).JPG
X101 Pistol (22).JPG
The part where the piece gets hit.
Pieces:
Gray Rods:3
White Rods:1
White 8-Slot Connectors:2
Yellow 5-Slot Connectors:1
Orange 2-Slot Connectors:1
Tan/Brown/Orange Tabbed Connectors:15
Blue Bearings:3
Hinges: 1
Black Y Connectors:1
Total:28

The Hopper

X101 Pistol (23).JPG
X101 Pistol (24).JPG
Here the ammo is stored.

Pieces:
Yellow Rods:5
Yellow 5-Slot Connectors:2
Orange 2-Slot Connectors:4
Gray 1-Slot Connectors:14
Total:25

The Hingey Trigger

X101 Pistol (25).JPG
The Second part.

Pieces:
White Rods:1
Green Rods:1
Hinges:3
Total:5

Spacers I

X101 Pistol (26).JPG
X101 Pistol (27).JPG
Some of Many.

Gray 1-Slot Connectors:2
Silver Spacers:8
Blue Spacers:2
Total:12

The Ram

X101 Pistol (28).JPG
X101 Pistol (29).JPG
X101 Pistol (38).JPG
X101 Pistol (40).JPG
Also the Rubber Bands.

Yellow Rods:1
Orange Connectors:1
Gray Connectors:2
Total:4

The Spacers II

X101 Pistol (30).JPG
More of many.
Blue Spacers: 8
Total: 8

The Blocky Thing

X101 Pistol (31).JPG
X101 Pistol (32).JPG
This Blocky object.
Pieces:
White Rods:2
Orange 2-Slot Connectors:1
Gray 1-Slot Connectors:2
Total:5

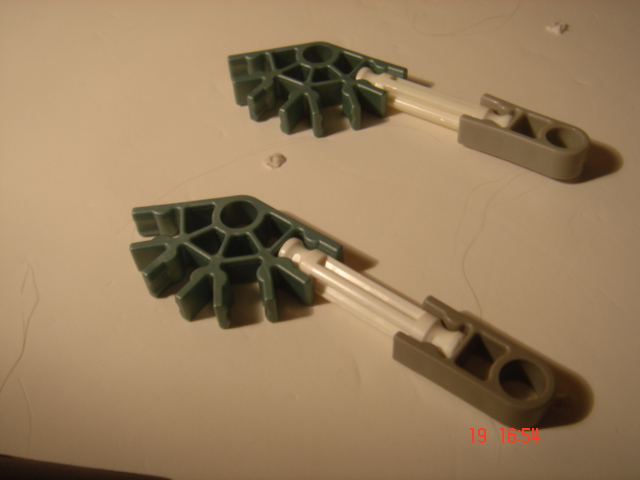

The Green Blocks Plus That

X101 Pistol (34).JPG
X101 Pistol (35).JPG
X101 Pistol (36).JPG
These Will stop the spacers.

Pieces:
White Rods:2
Green 4-Slot Connectors:2
Gray 1-Slot Connectors:3
Total:7

Assembly

X101 Pistol (43).JPG
X101 Pistol (44).JPG
X101 Pistol (45).JPG
X101 Pistol (46).JPG
X101 Pistol (47).JPG
X101 Pistol (48).JPG
X101 Pistol (49).JPG
X101 Pistol (50).JPG
X101 Pistol (51).JPG
X101 Pistol (52).JPG
X101 Pistol (53).JPG
X101 Pistol (54).JPG
X101 Pistol (56).JPG
X101 Pistol (55).JPG
X101 Pistol (57).JPG
X101 Pistol (58).JPG
Assemble as shown.

Use

X101 Pistol (63).JPG
X101 Pistol (65).JPG
X101 Pistol (66).JPG
X101 Pistol.JPG
Simple. Put in ammo, pull back, pull trigger.


HOWEVER, when pulling trigger, your hand must be on the slide to keep it from moving.
