Wu-Tang Can: Interactive Tipping

Cash rules everything around me.
C.R.E.A.M.
Get the money.

Arduinos are showing up everywhere. Even in space. But what about the lowly tip jar?
No.

Are Arduino projects giving the Wu-Tang Clan the proper respect they deserve?
Not even close!

Rectification.
That's what this is about.

Interactive tipping.
Dolla dolla bill y'all.

Here's what you need.

Materials:
Can - My can used to hold beans. I ate those beans and kept the can.
Arduino
Wave Shield - Adafruit
SD Card - For holding the sound files.
Audio Amplifier - The wave shield has a really low volume coming off of the shield. You need to amplify it.
Ultra Bright LED
Photoresistor
1K resistor
300 ohm resistor
Spray Paint - I used a matte black
2" speaker - Jameco
Scrap upholstery fabric for the speaker cover
M3-10 Bolts with Nuts

Tools used:
Soldering Iron
3D Printer
Laser Cutter
Hot glue gun

TL;DR Adafruit has all the documentation to do this.

I use the Wave Shield a lot. It is a fickle shield. I've spent so much time troubleshooting it that I've come across and overcome a lot of the limitations. I think it's because of this that I keep using it. Adafruit has told me that they are redesigning it. I'm looking forward to this.

Here's an earlier write up (step 2) on getting the Wave Shield soldered and tested.

The audio off the Wave Shield is enough for headphones but not nearly enough for the Wu-Tang Can. You could buy an small amplifier but I decided to make my own because I don't like to wait for shipments to arrive. It isn't conducive to my building method (as fast as possible to get it 95% finished and a few weeks of procrastination to finish the last 5%).

I used the standard (and simple) LM386 amplifier circuit. It has a gain of 20 which will be more than enough. If you max out the volume on the Wave Shield and the amplifier circuit, the audio will get very distorted. Clippin' ain't easy.

I also put in a toggle switch to turn it on (or off!).

The circuit below is for the LED and photoresistor coupling. When cash is deposited, it blocks the LED triggers the code to play the audio.

I used the laser cutter to cut out an electronics mounting plate to attach to lid. I used 1/8 inch plywood for this and attached it with a couple of random machine screws and bolts that I had laying around.

I also used the laser cut to cut out the "TIPS" stencil. I used card stock for this but something a little bit more flexible would work better. Of course the TIPS stencil had to be in true Wu-Tang style, therefore Bard font was used.

People need to know that it's for their monies. Tape the stencil onto the can and cover it up the rest of the can. I used a matte black primer.

Before assembling everything together, I took some scrap upholstery fabric and cut a circle out that was just a little bit larger than the diameter of the speaker. I'm hoping this will create a little bit a barrier between the speaker and some kid's finger. Mainly it was because I thought it would look classy.

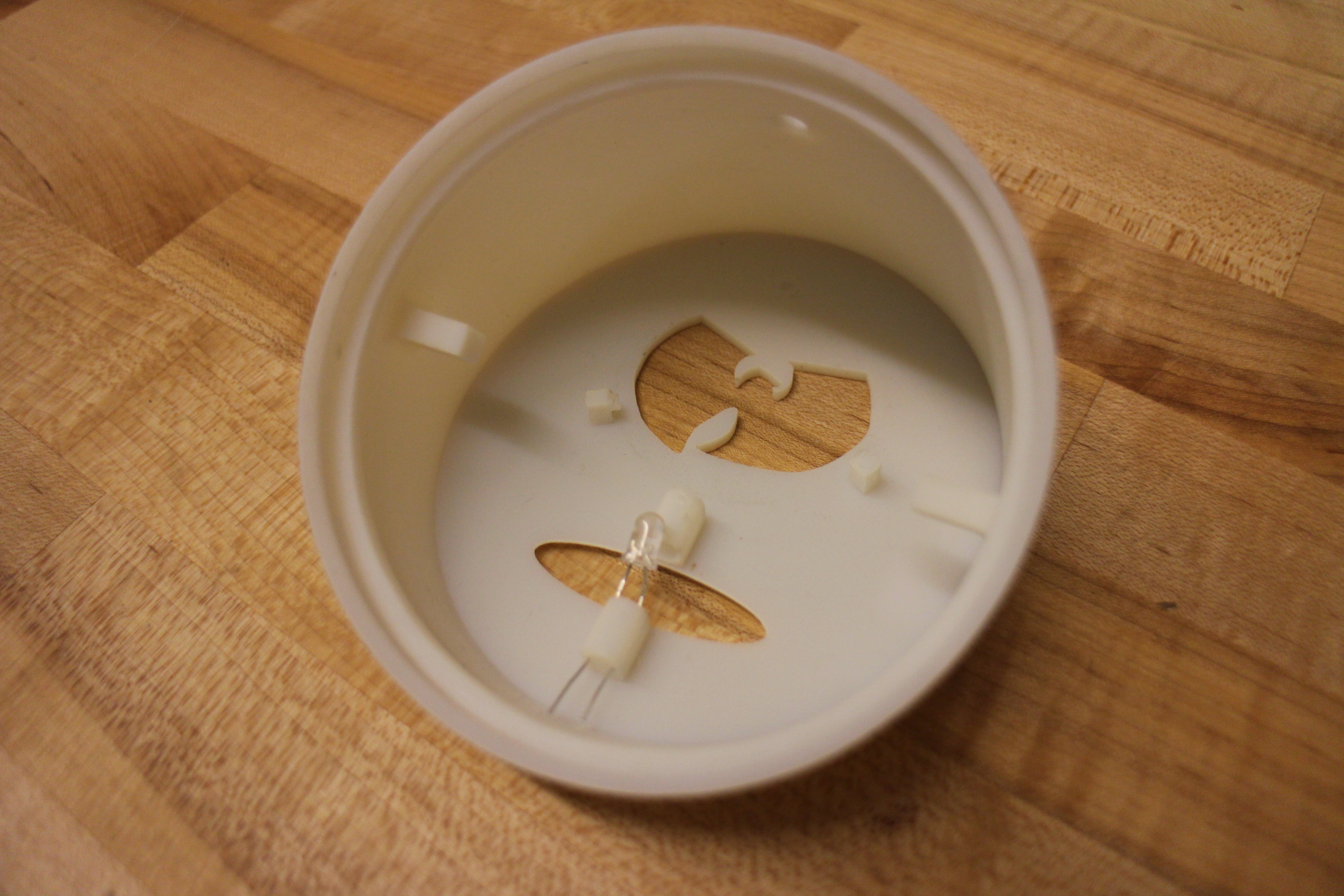

I used some Krazy Glue to attach the fabric to the bottom of the lid, underneath the Wu-Tang symbol and hot glued the speaker on top of the fabric.

The toggle switch slides into the hold on the back of the lid and has hardware to securer it.

The Arduino can be attached with the bolts onto the interior holes of the laser cut mounting plate. The mounting plate bolts onto two connectors on the lid.

Finally the lid should snap onto the can with the electronics inside. Turn it on and get the monies.
