Writing to LCD With CloudX

This simple project will teach you on how to write anything to LCD using CloudX Microcontroller, you don't need much component to write on the popular 16x2 alphanumeric LCD.

• CloudX M633 Microcontroller
• SoftCard
• Jumper Wires
• CloudX USB cable
• BreadBoard

You can get all this components from make Electronics NG website.

CloudX -------- LCD

GND -------- VSS
5V -------- VDD
GND -- though 1k resistor -- V0
Pin1 -------- RS
Pin2 -------- EN
GND -------- RW
Pin3 -------- D4
Pin4 -------- D5
Pin5 -------- D6
Pin6 -------- D7
5V -------- A
GND -------- K

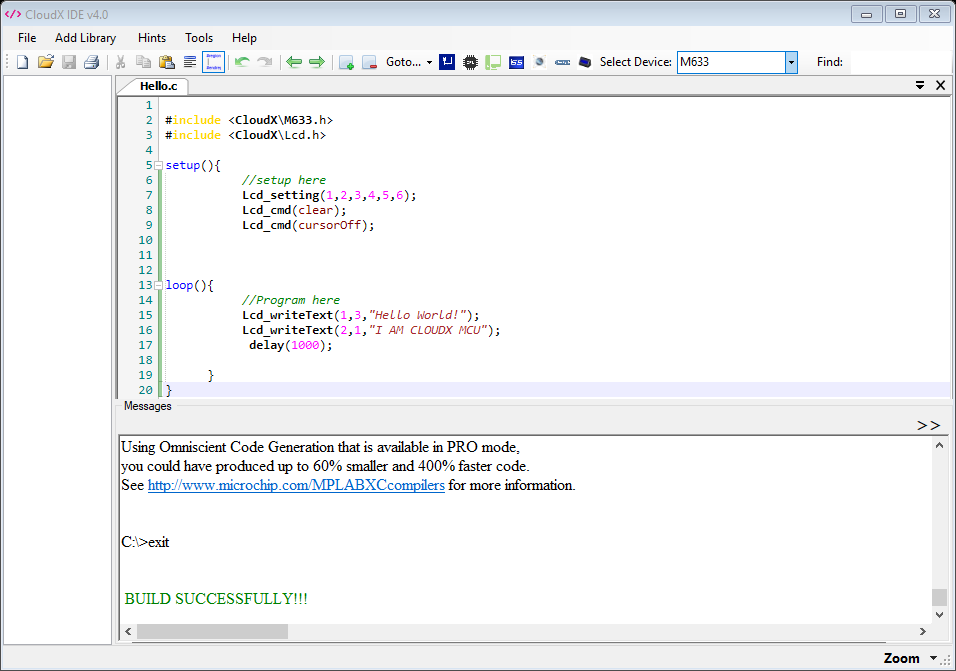

#include <CloudX\M633.h>
#include <CloudX\Lcd.h>

setup(){
           //setup here
           Lcd_setting(1,2,3,4,5,6); // Lcd_setting(RS,EN,D4,D5,D6,D7)
           Lcd_cmd(clear);           // Clear
           Lcd_cmd(cursorOff);       // Off Cursor
loop(){
            //Program here
           Lcd_writeText(1,3,"Hello World!");  //display on row 1 column 3
           Lcd_writeText(2,1,"I AM CLOUDX MCU");  // display on row 2 column 1
            delay(1000);     //wait for 1 second
               }
        }
