Woven Wire Bail Gemstone Pendant

by Rhonda Chase Design in Craft > Jewelry

12383 Views, 140 Favorites, 0 Comments

Woven Wire Bail Gemstone Pendant

44 Woven Bail FIN FIN.jpg
44b Woven Bail FIN FIN.jpg

After I published my basic wire weaving tutorial I wanted to show how to use the techniques in a simple jewelry project. Well, it's taken a while, but here is a great beginner project that will make you look like an expert. This tutorial uses a basic wire weave and a sturdy bail design to create a beautiful, rustic gemstone donut pendant. The techniques you’ll learn in here can be the starting point for lots of variation and creativity. I hope you have fun with it.

This is my own design. Please be respectful and use it only for personal and gift-giving jewelry. Thank You!!

What You Need

43 Woven Bail side.jpg

Materials:

1 – 45-50mm gemstone pendant

1 – 10.5 inch piece of 18 gauge, dead soft, round wire

8-10 feet of 24 gauge, dead soft, round wire

Tools:

Flat nose pliers

Round nose pliers

Wire cutters

Bail making pliers or mandrel

Marker

Ruler

Make the Frame

1 Woven Bail.jpg
2 Woven Bail.jpg

Bend the 18g wire in half with your round nose pliers. Make sure the curve fits through the hole in you donut. Adjust as needed.

Begin Weaving

13 CLOSE UPWoven Bail.jpg
4 Basic Weave.jpg
5 Basic Weave.jpg

This weave for this bail starts with a very simple, clean pattern. If you haven’t done much wire weaving, the straight pair of wires for this bail makes for easy practice. Essentially, you will loop the 24g wire back and forth around the 18g frame.

Cut 2-3 feet of the 24g wire and weave in the pattern. Begin close to the curve of the base wire frame.

Leaving a 1.5 inch tail (to hold on to) wrap the weaving wire (24g) around one base wire (18g) twice.

Hold the base wires so that the weaving wire ends on the top.

Continue

3 Basic Weave.jpg
13 Woven Bail.jpg
6 Basic Weave.jpg

Then wrap the weaving wire around the second base wire twice. This will also end on top.

Note:
How much weaving wire you cut at one time is determined by personal preference. Shorter lengths are easier to work with. Longer lengths require fewer pieces, which means fewer wire ends.

14 CLOSE UPWoven Bail.jpg
7 Basic Weave.jpg
8 Basic Weave.jpg
9 Basic Weave.jpg

Continue keeping the base wires apart and parallel with your fingers.

Bring the weaving wire under the opposite (first) base wire and wrap it twice.

The Pattern Takes Shape

14 Woven Bail.jpg
15 Woven Bail.jpg
11 Basic Weave.jpg
10 Basic Weave.jpg

Go back to the beginning of the pattern and keep weaving.

Nicely Woven

15 CLOSE UPWoven Bail.jpg
12 Basic Weave.jpg

Occasionally push the wires together with your fingers or pliers to keep the pattern close and tight.

Step by Step

Basic Weave Composite2.jpg

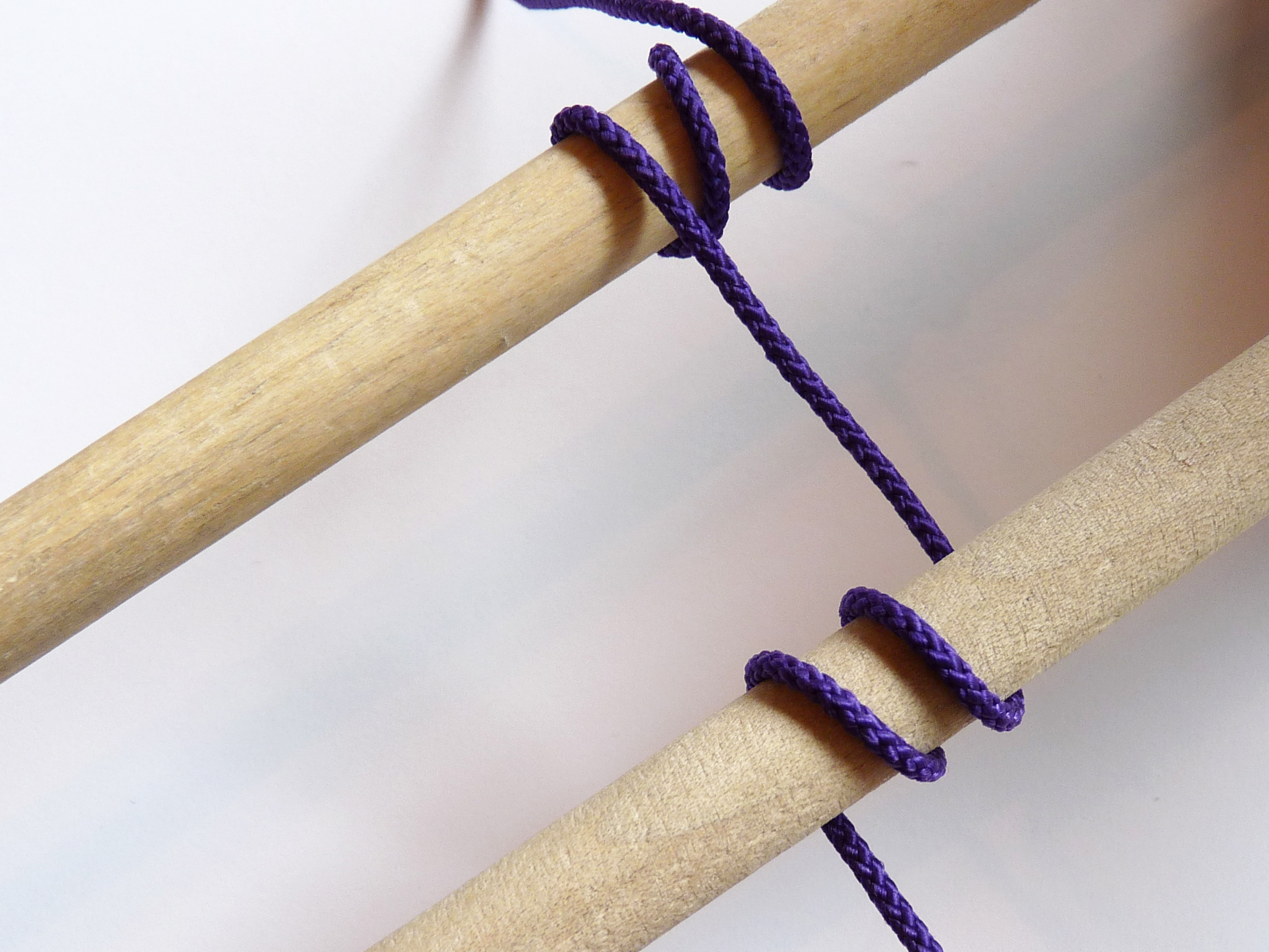

Here are the all the steps with purple cord representing the 24g weaving wire and wooden dowels representing the base wire.

16 CLOSE UPWoven Bail.jpg
16 Woven Bail.jpg

Weave until you have about 1.25 inches done.

17 Woven Bail.jpg
18 CLOSE UPWoven Bail.jpg

The section from the bottom of the base wire curve to the top of the weaving you just did should equal half the diameter of the donut. Leave the weaving wire end for now.

The Other End

19 CLOSE UPWoven Bail.jpg
18 Woven Bail.jpg

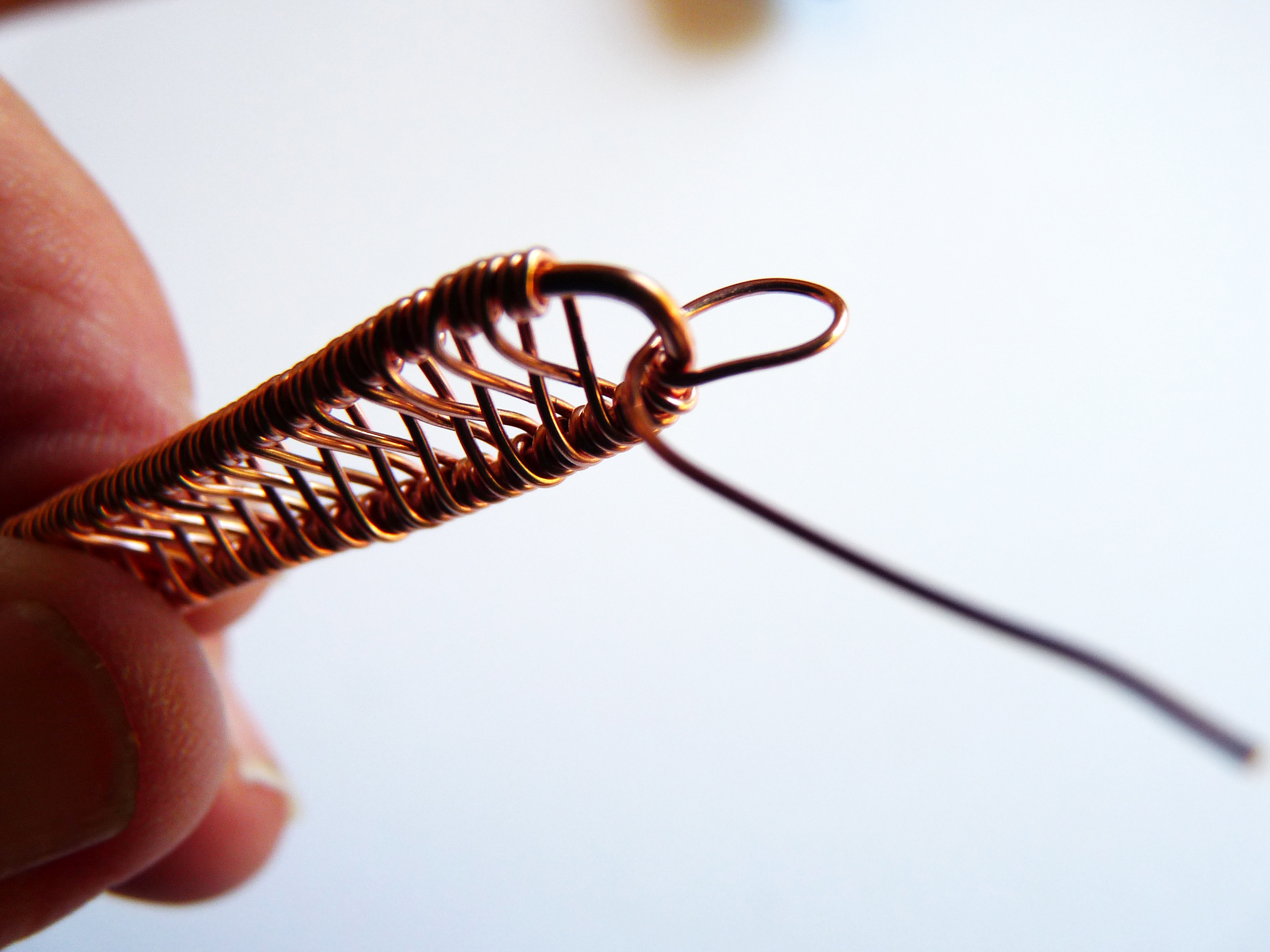

Wind the weaving wire “tail” at the base of the curve around the 18g wire bare spot. Use pliers to pull the wire through.

Finish the Curve

19 Woven Bail.jpg
20 Woven Bail.jpg

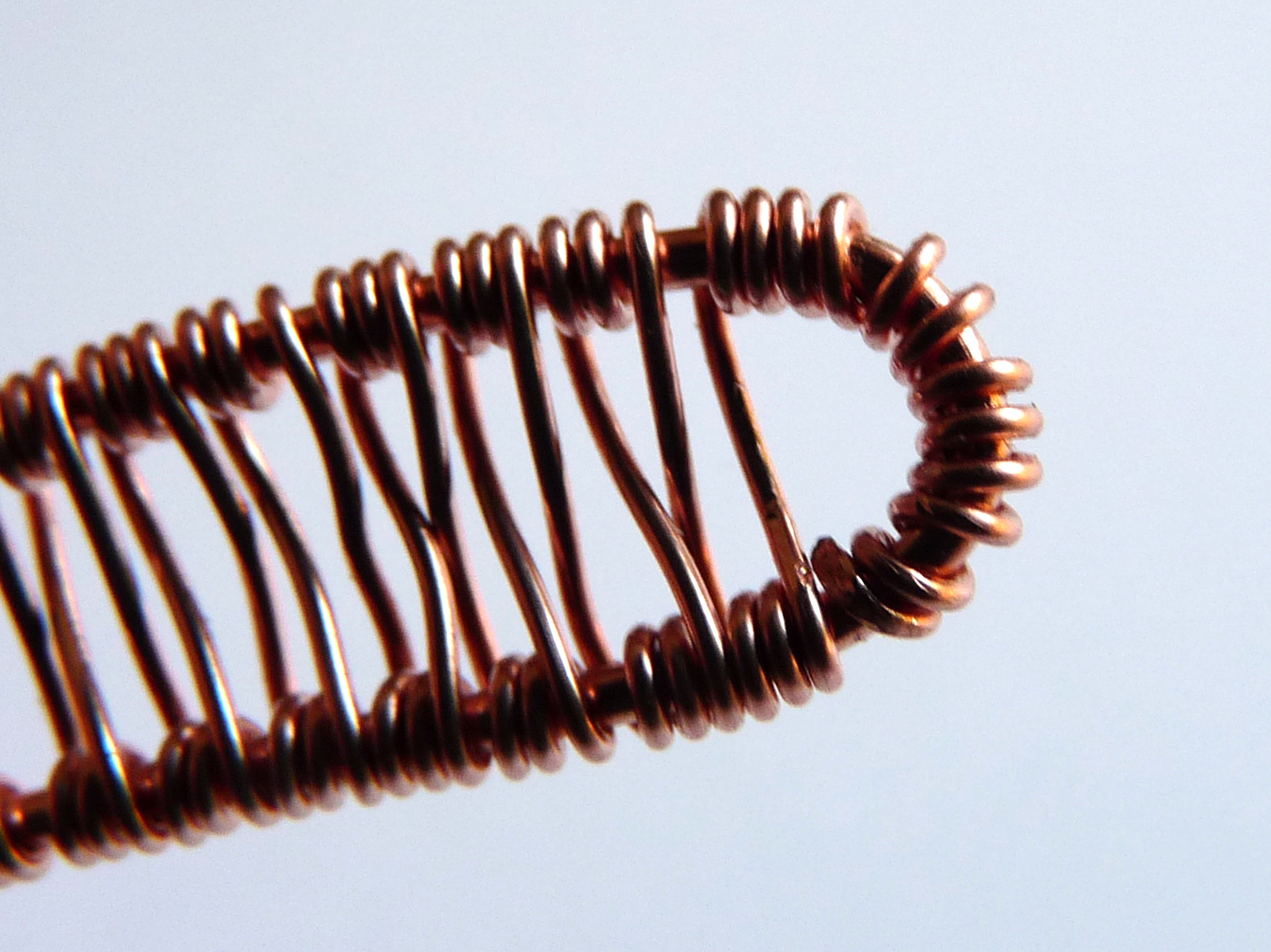

Cover the whole curve and trim any extra wire. Make sure the 24g wire end is on the inside of the curve so there’s no scratchy piece sticking out. You can use chain nose pliers to secure the end. (If you ran out of wire before covering the whole curve, just spread out the loops you made.)

This end is done.

Anytime you run out of 24g wire you will end the old wire and begin the new wire as described above. When you don’t need the tail wire for your design, trim as close as possible to the inside of the base wire and tighten with pliers. Always trim AFTER the weave is secure.

Change the Shape

21 Woven Bail.jpg
22 Woven Bail.jpg

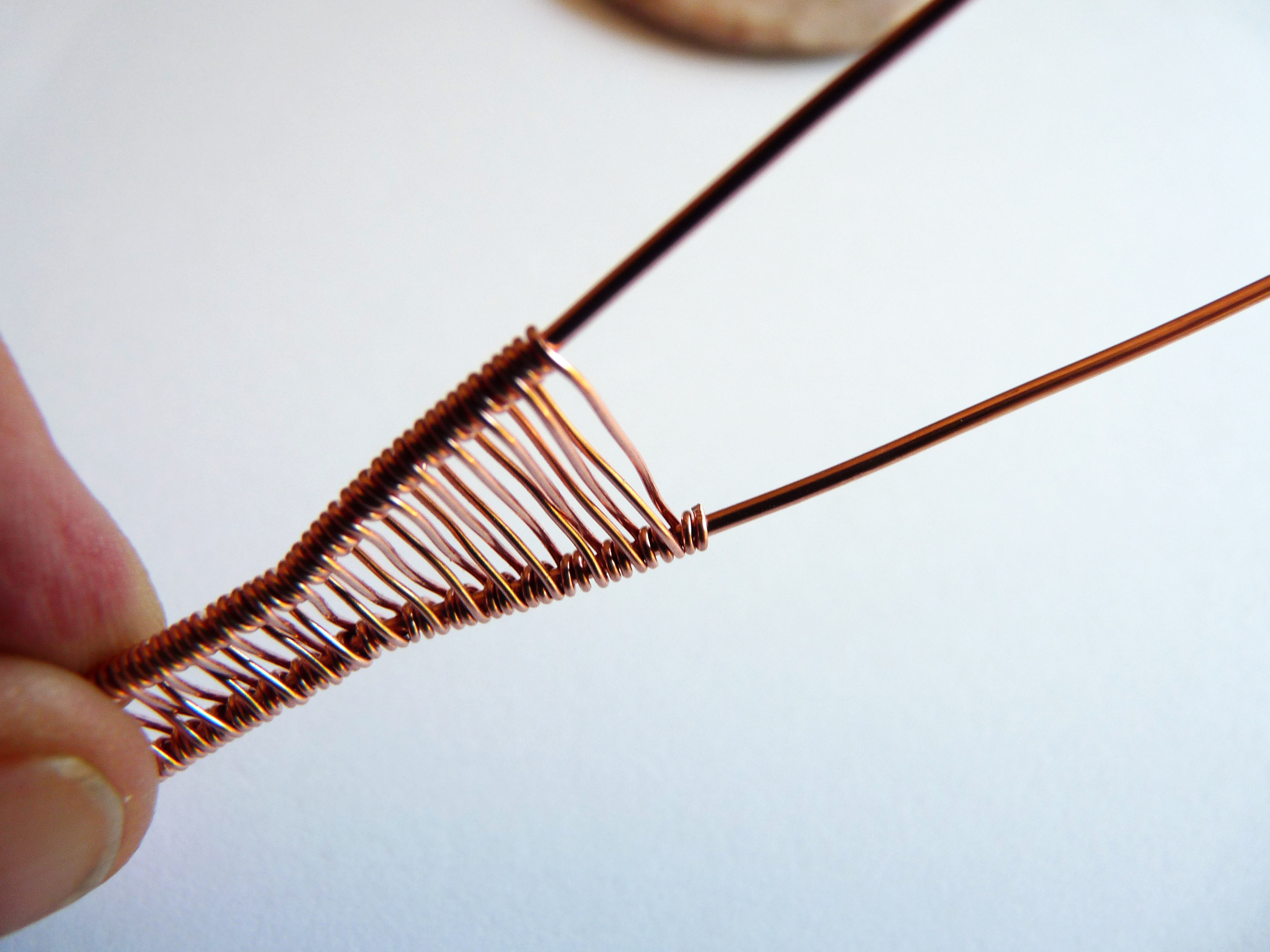

Angle the base wires out 5-10 degrees at the point where the weave stops. Continue weaving, taking care to keep the new angles of the base wire. The weaving wire will get used up much faster as the space in between the base wires increases. Add more new 24g wire as needed.

Weave, Trim, Add Wire

23 Woven Bail.jpg
24 Woven Bail.jpg
25 Woven Bail.jpg

Keep weaving, adding and trimming 24g wire. When you have about 1 inch of angled weaving, test the sizing as follows.

Shape the Bail

27 Woven Bail.jpg
26 Woven Bail.jpg

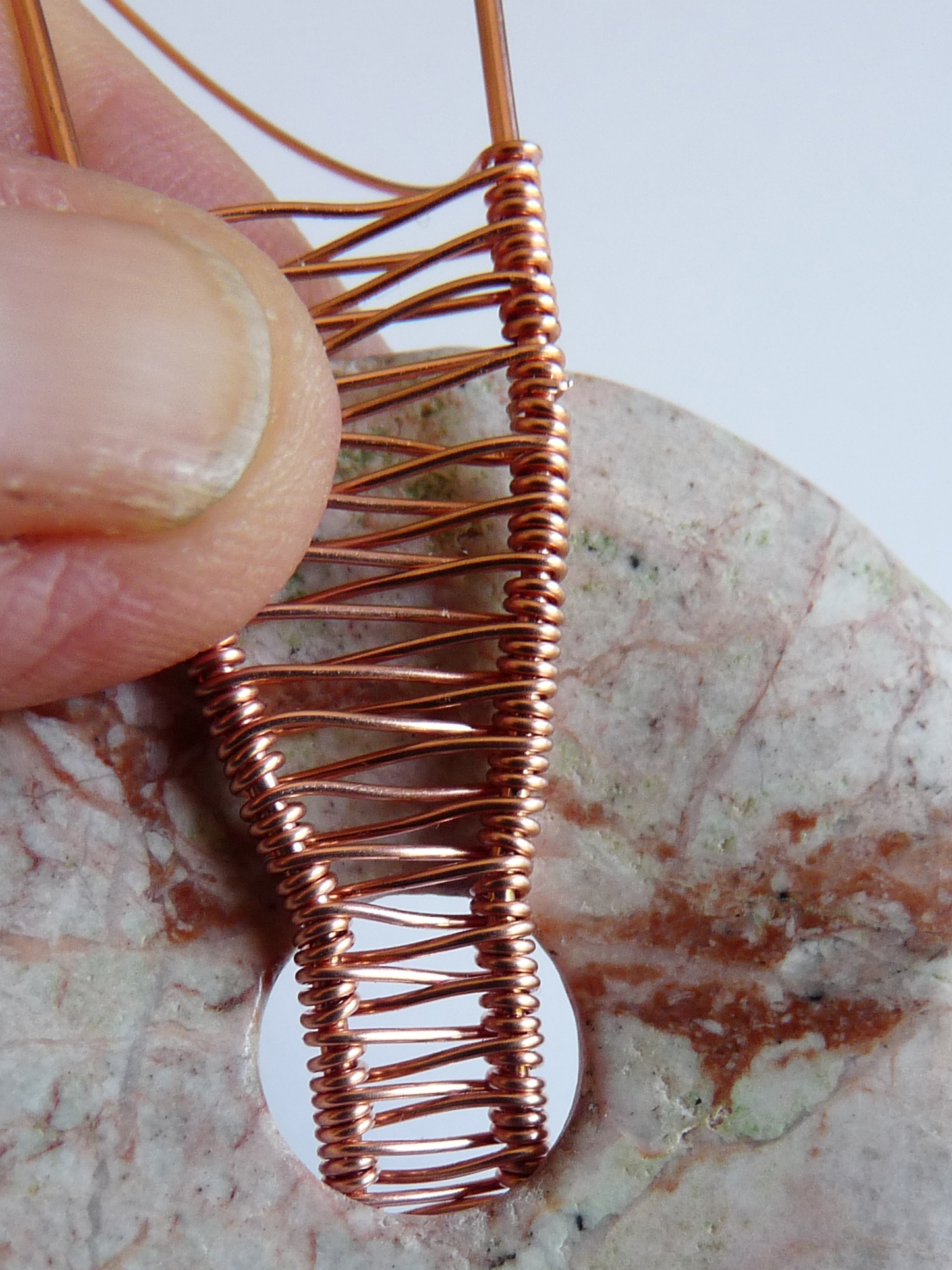

Put the straight part of your weaving through the donut hole. Bend the whole frame up where the angles start. The angled weaving will be the front of your pendant.

Secure the Bail

28 Woven Bail.jpg

Next, bend the bottom curve over the top of the donut with flat nose pliers. You now have a donut secured in wire weaving.

Continue Weaving

29 Woven Bail.jpg
30 Woven Bail.jpg

Go back to weaving up the angled wires until your weaving goes ¾ inch above the top of the donut. Using your fingers, bend the angled part of the weaving slightly, away from the donut.

Shape the Top of the Bail

31 Woven Bail.jpg
32 Woven Bail.jpg

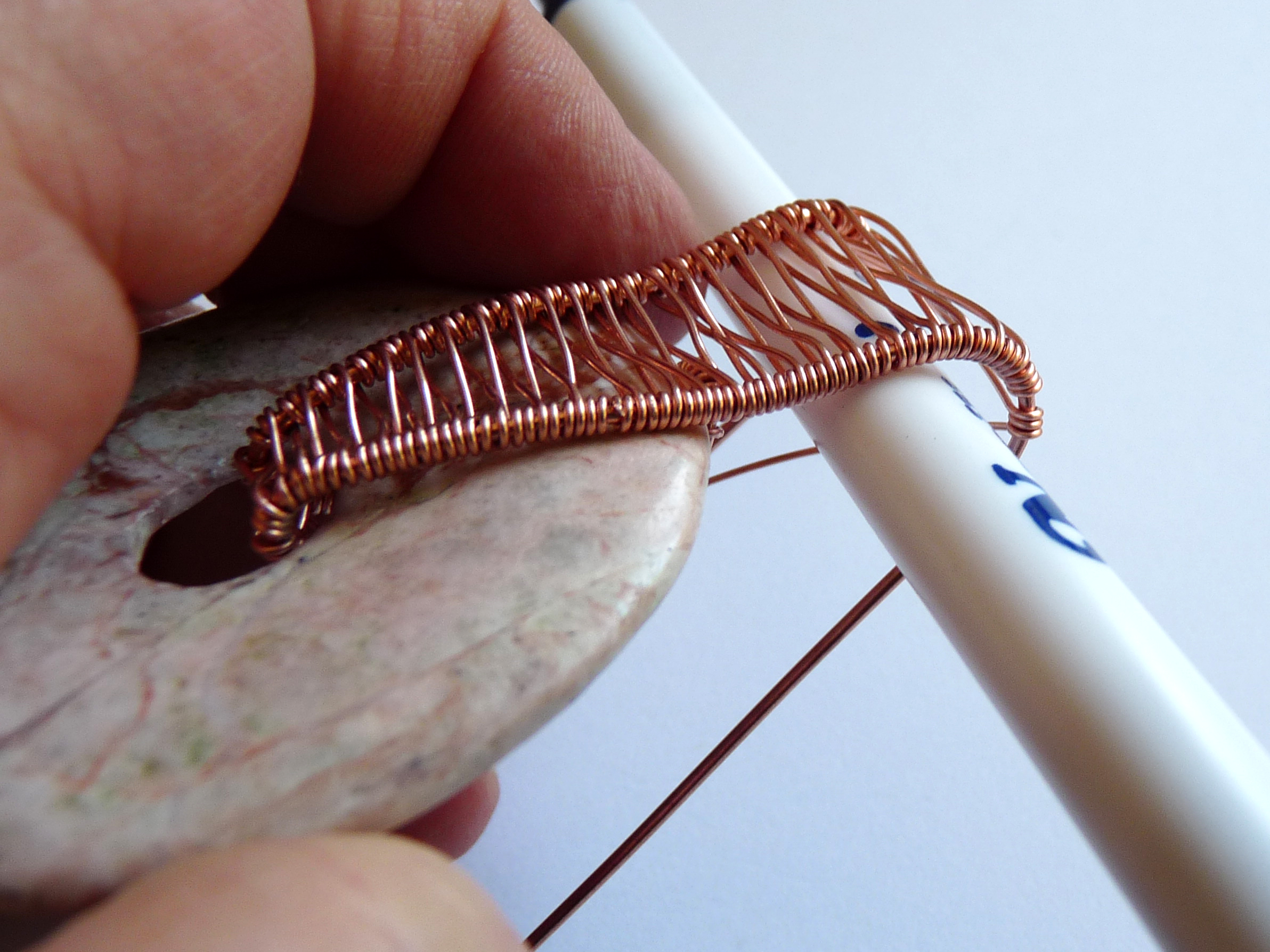

Then bend the top of the angled weave over a mandrel, bail pliers or pen towards the back of the pendant. This will be your bail shape.

Keep the weave going. With the base wires angled in, weaving will get much harder. You will need to keep holding onto the 24g wire to keep it from slipping down. You will also need to keep pushing the weave back together again. Be patient – it will look great!

Finishing the Bail

33 Woven Bail.jpg
34 Woven Bail.jpg

Weave until the woven section is in line with the top of the back of the donut.

Weave another ¼ inch.

Press the bottom of the weave closer to the pendant front.

Starting the Decorative Part

35 Woven Bail.jpg
37 Woven Bail.jpg
38 Woven Bail.jpg
36 Woven Bail.jpg

Angle the base wires 90 degrees as shown.

Wind the 24g weaving wire around 1 of the 18g wires tightly. Trim the extra 24g wire.

Add a piece of 24g wire (about a foot and a half) to the other base wire and repeat.

Putting the mandrel back in the bail, press the top of the bail into a round shape.

Fancy

39 Woven Bail.jpg

Spiral the covered base wires in opposite directions with the round nose and flat nose pliers. Do this gently so you don't scratch your wires.

40 Woven Bail.jpg
42 Woven Bail side.jpg

Bend one spiral over the front of the bail with flat nose pliers. Squeeze gently into place. Repeat with the other spiral.

The Back

41 Woven Bail back.jpg

Make sure you have filed or tucked any sharp edges under.

Done!

44 Woven Bail FIN.jpg
44c Woven Bail FIN FIN.jpg
45 Woven Bail FIN2.jpg

Finish with patina and sealer if you want.

Please post your pendants - I'd love to see them!
