Worlds Smallest Power Supply !

Have you ever wanted tiny sized power supply that still pack lots of power, here's world's smallest power supply you can make under 6$ !!! Following Features will impress you that's for sure so why not make one ?

# Features

1. 3-25v Adjustable Voltage Output

2. Built in 720mAh Battery Backup

3. 2 Amp Max Current

4. Built in Live LED Voltmeter

5. Built in Voltmeter For Quick Measurement

6. In Built 3.7v Battery Charger

1. Power Supply (OTG) on the go !

2. Measure voltage with it.

3. Do the Job of Many Power supplies 3v, 5v,9v,12v,19v,24v...

4. Charge 3.7v Batteries on the go.

★☆★ Buy Parts from your online local store ★☆★

1. 3.7v Li-po Battery http://geni.us/okAOH

2. TP4056 Lithium Battery Charger http://geni.us/f6uQJ

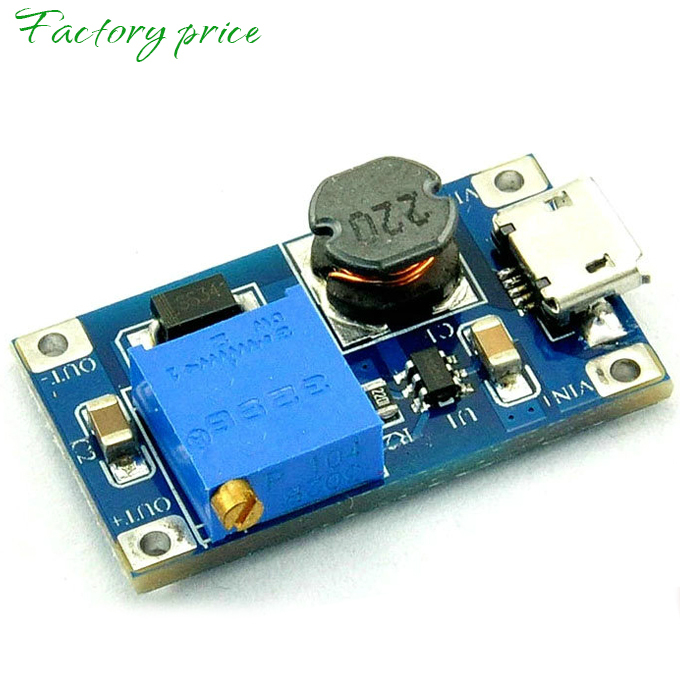

3. Micro Usb 2A 25v Step Up Converter http://geni.us/jbMwyB

4. LED Voltmeter http://geni.us/to6Ap9p

Watch Full Tutorial Here

https://youtu.be/0I_GVAxdO9M

LED Voltmeter and Dc-Dc Converter has few leads which may puncture the battery and take up lot of extra space, so use dremel tool or sand paper to make these pcb's flat at the bottom so that battery can be effectively installed here

Or Yo can use flathead pcb wire cutter to do this job , just don't apply too much force otherwise pcb tracks will be damaged.

Make The connections As Showed In This Block Diagram.

1. Connect the tp4056 board to the battery

2. Connect the negative terminal of the battery to the dc-dc converter

3. Connect switch between positive terminal of the battery and dc-dc converter

4. Connect LED Voltmeter at the output of dc-dc converter

Well Done Your Connections are finished !

Now Stick all the parts togather in a compact form factor as i've done in this picture.

If you like this instructibles ,then check out my Youtube Channel .

1. As you are dealing with li-po battery's , make sure not to puncture,smash,tear or casue any kind of damage to the battery it may cause fire hazard. Do it at your own risks.

2. Don't try to measure voltage grater than 24v with this power supply's voltmeter It can damage the dc-dc converter.

3. If you connect any inductive load ,there is chance of causing damage to dc-dc converter , so connect diode at the output. diode will drop 0.7v but save your power supply.
