Worlds First Remote Control Human Through the Internet

I have been recently studying this thing called Electrical Muscle Stimulation (EMS) which is basically using electricity to cause muscles to move. After learning about this I decided to incorporate this into my Hackster I.O. project by building a remote control human. To summarize my project, I will be using an EMS device connected to an Arduino, connected to my computer through Wi-Fi to control the person who is wearing the EMS device remotely. Enjoy you silly humans!

Thank you for all your support, and tips to help me improve my Instructables. Without you guys I wouldn't be doing this right now, you can expect many more Instructables in the future so don't forget to follow me and/or favorite this Instructable. If you have any question or concerns then be sure to comment, or if you just want tell me how awesome this is, that's fine too! Here it is, hope you enjoy it and once again thank you.
Check me out on: YouTube: https://www.youtube.com/channel/UCp1Iy_qqZl-TBWrwO...

Facebook: https://www.facebook.com/PureCarbonchannel/?ref=ay...

Twitter: https://twitter.com/Pure_Carbo

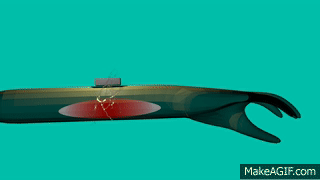

EMS also known as Electrical Muscle Stimulation is the process of using electricity contract muscles. It was first discovered by Luigi Galvani by attaching electrodes to the legs of dead frogs. During this time many people were working with EMS which helped to inspire the author Mary Shelly to wright the novel Frankenstein. In recent years it has gained popularity because of potential use as a strength training tool.

To do this project you will need the following items:

Materials:

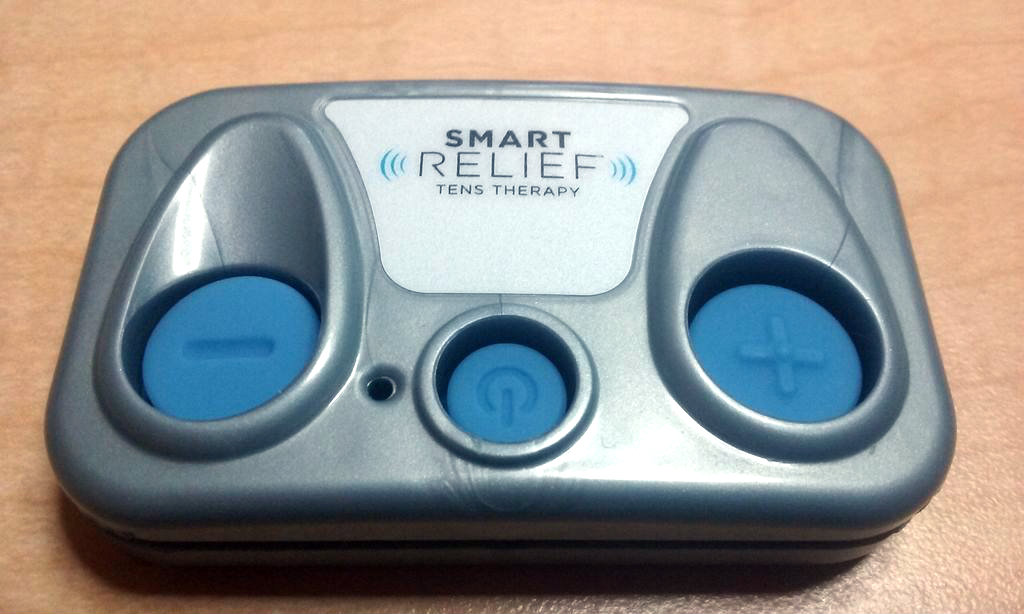

• EMS Device

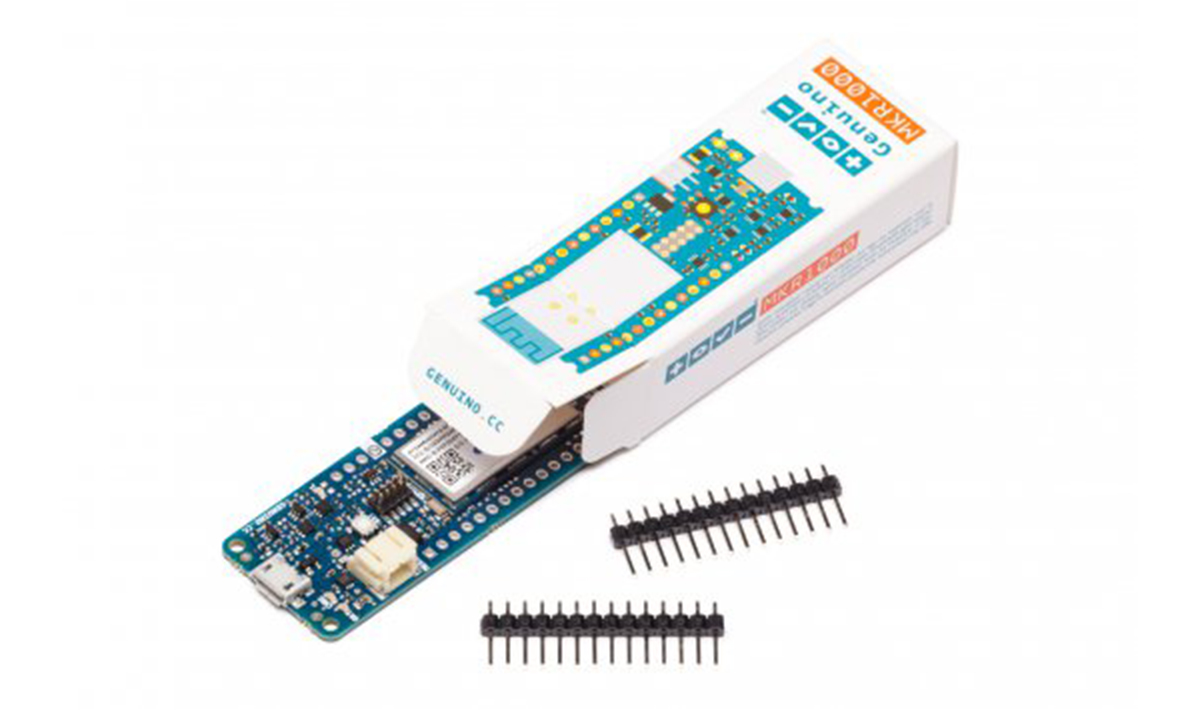

• MKR 1000 or an Arduino that can connect to Wi-Fi
• Proto Board
• LiPo battery

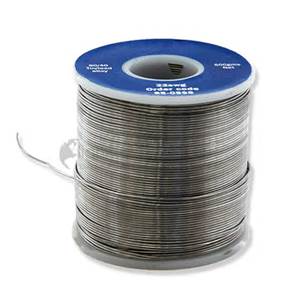

• Solder
• Solid Core Wire
• 2x NPN Transistors
• Female header pins

• Soldering Iron
• Multimeter

The circuit is simple, it's basically two NPN transistors where the base pins are connected to pins 2 and 3 on the Arduino MKR 1000. The collectors are connected to the buttons on the EMS device and the emitters are connected to ground.

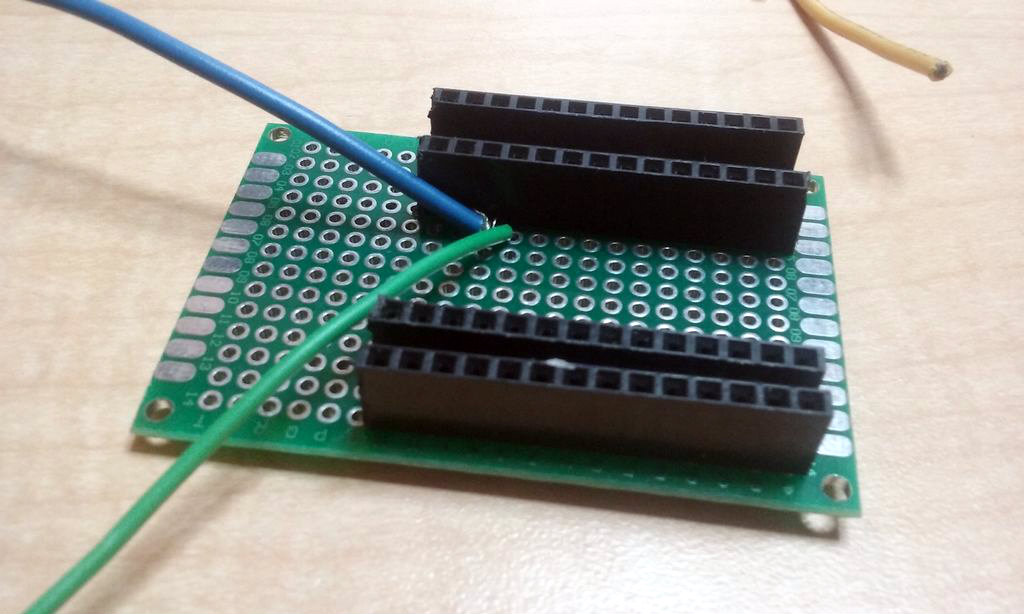

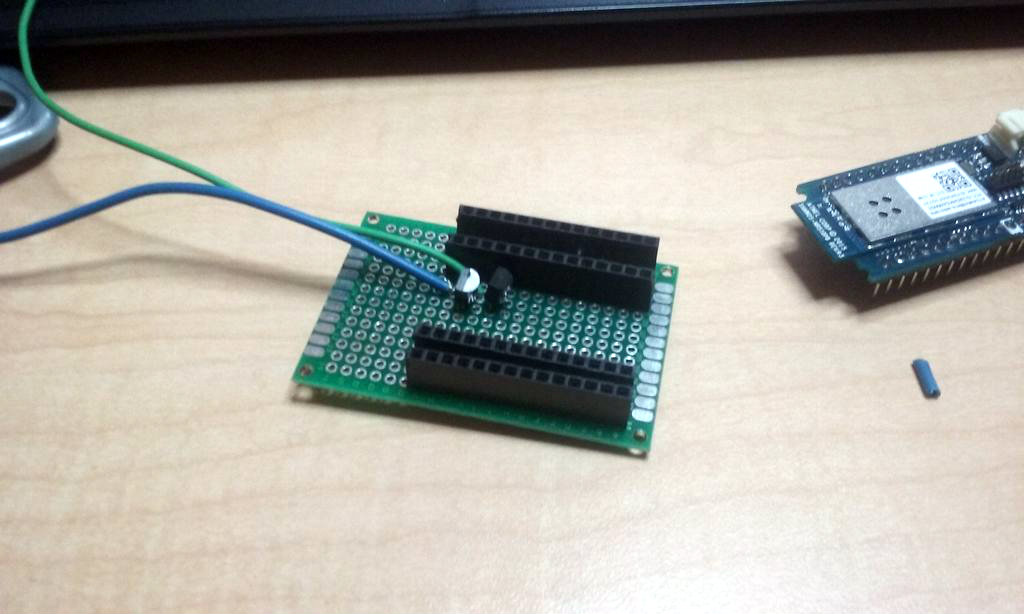

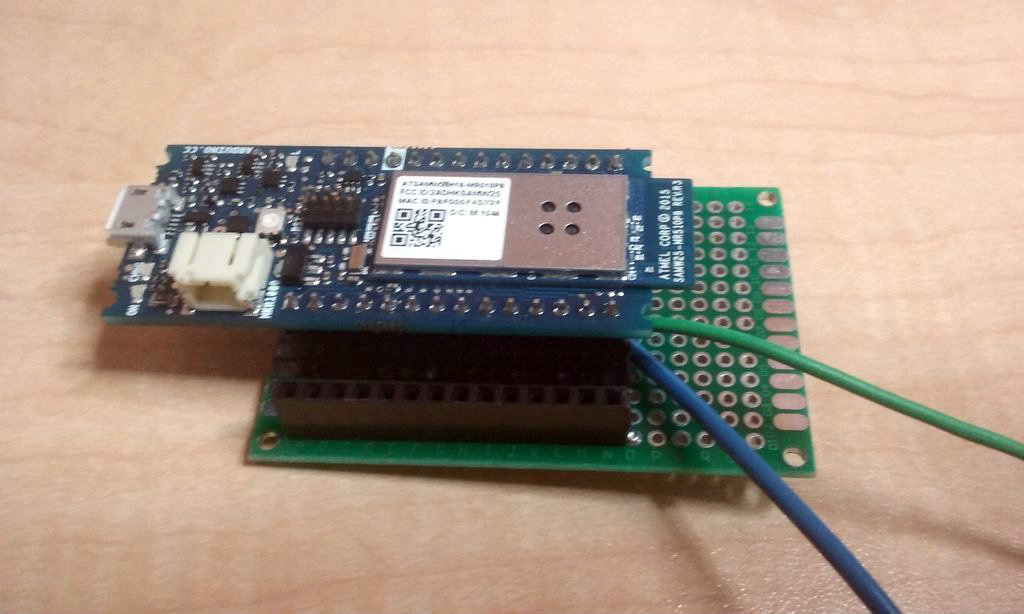

Building the circuit is also very simple. Start by connecting the Female header pins to your MKR 1000 and trim them so all the pins are taken. Next solder the Female header pins to the Proto Board and solder the NPN transistors in the spots where the bases can connect to pins 2 and 3 on the Arduino. Then solder two wires to the collector pins and solder a wire connecting the two emitter pins to ground.

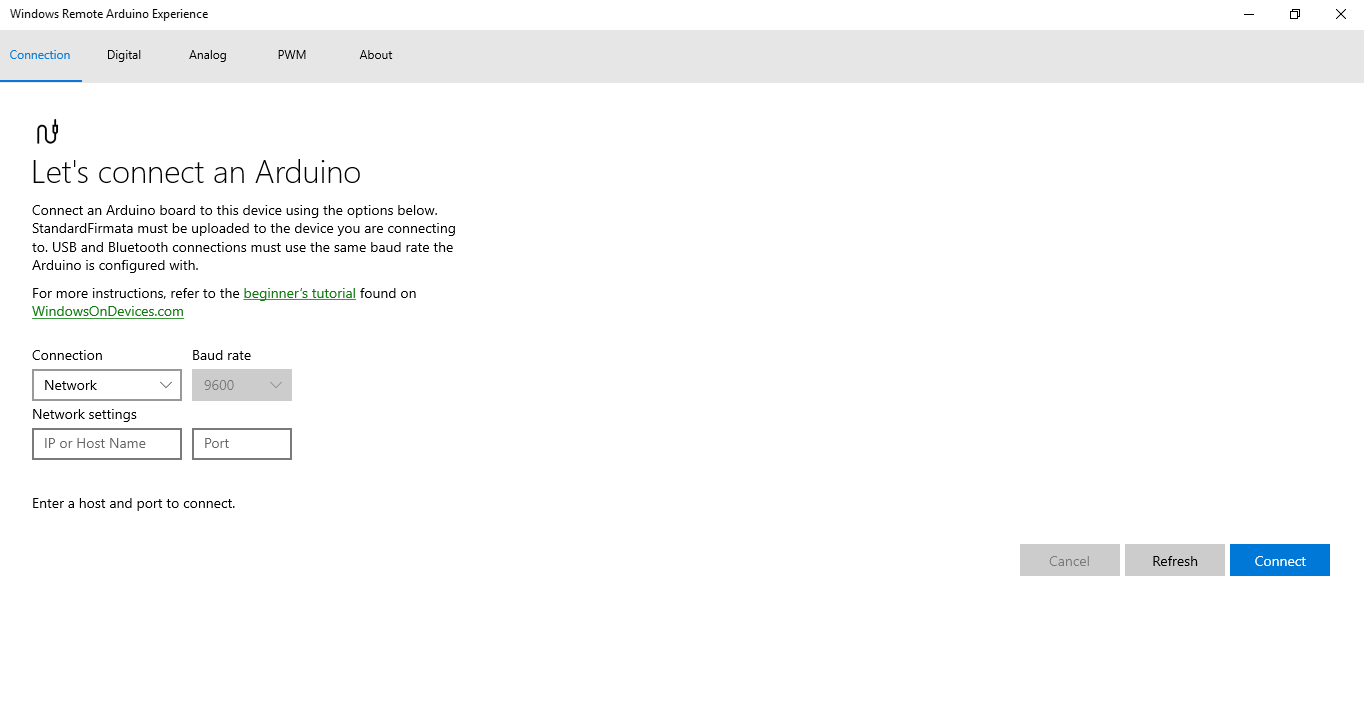

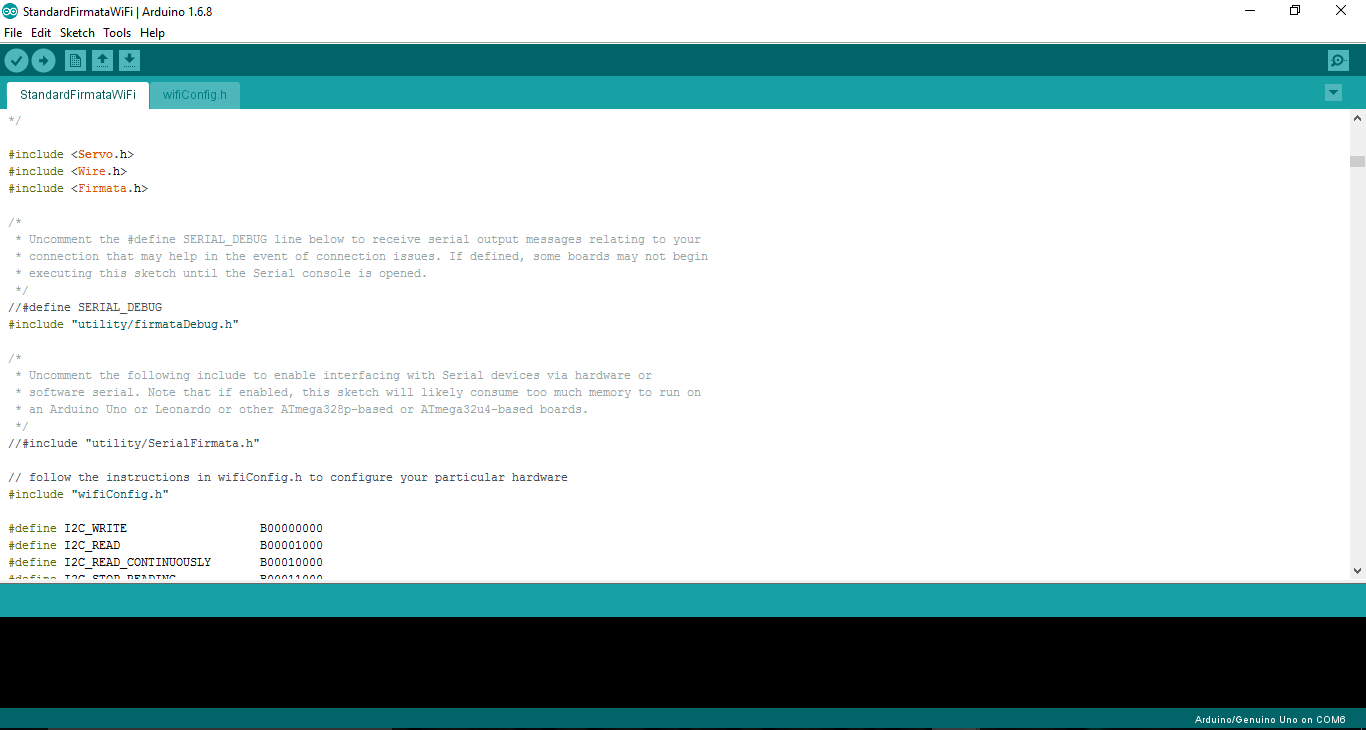

To control the MKR 1000 I used the Windows Arduino Remote App which allows you to control the Arduino through Wi-Fi, Blue Tooth, or USB.

Here's a link to a guide on how to set it up and use it:

http://ms-iot.github.io/content/en-US/win10/WRA.ht...

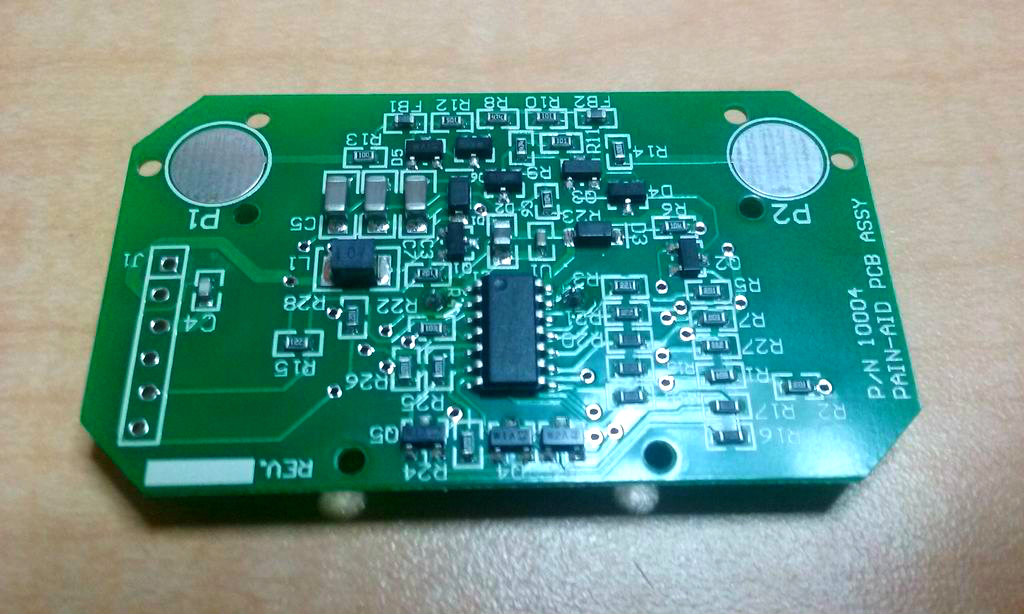

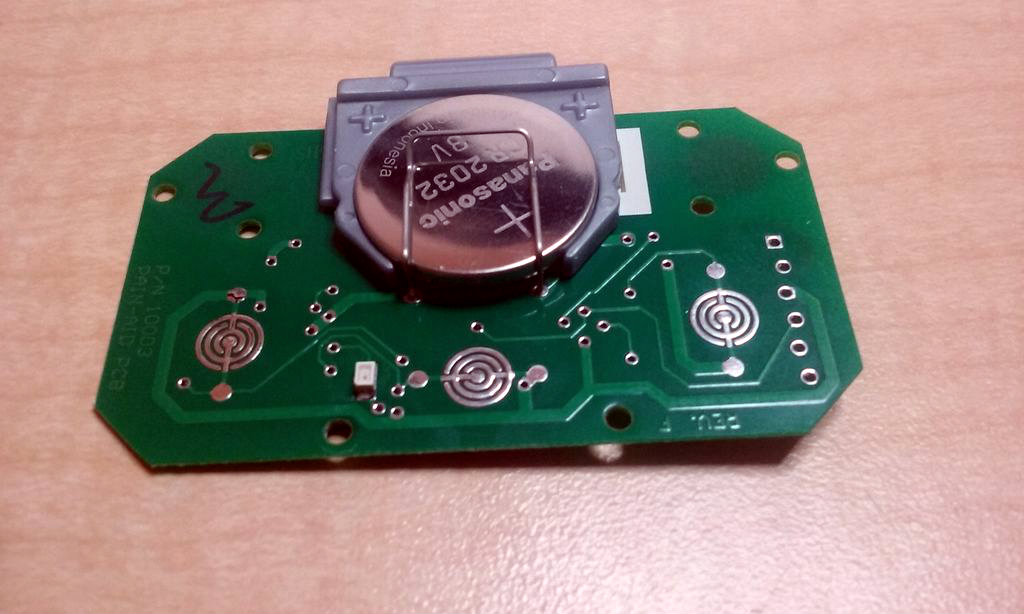

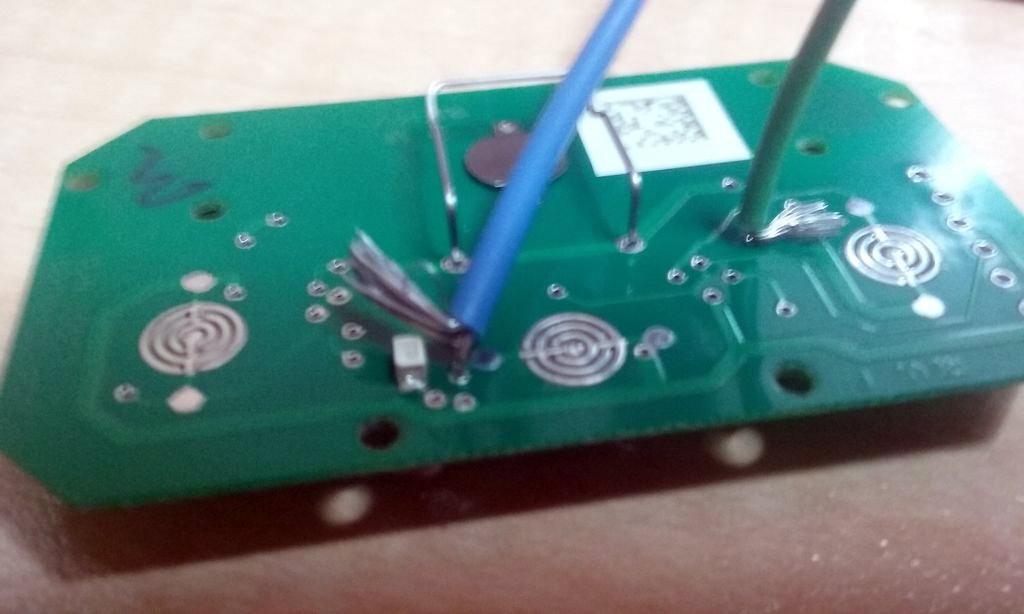

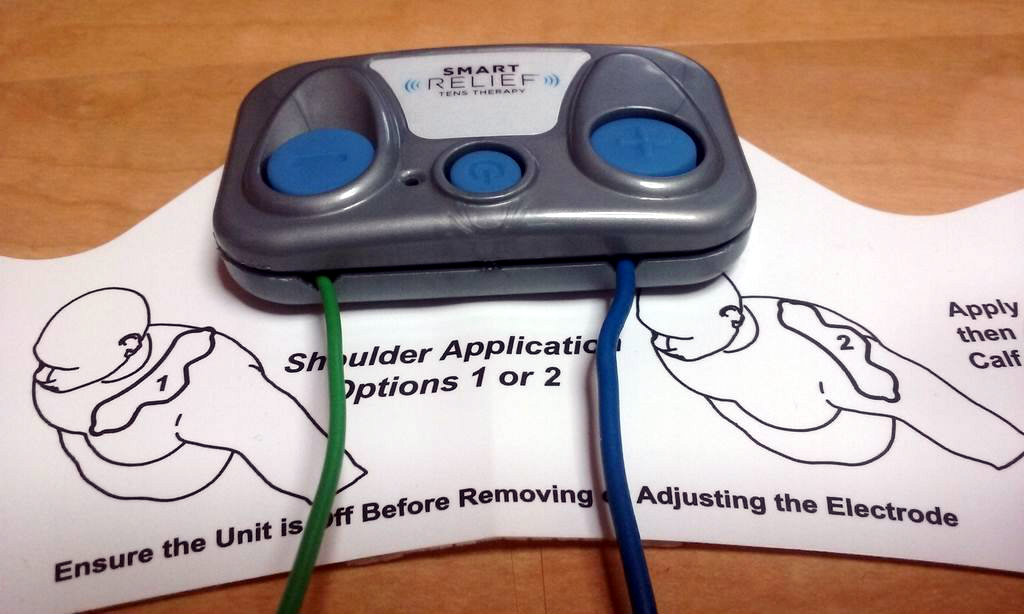

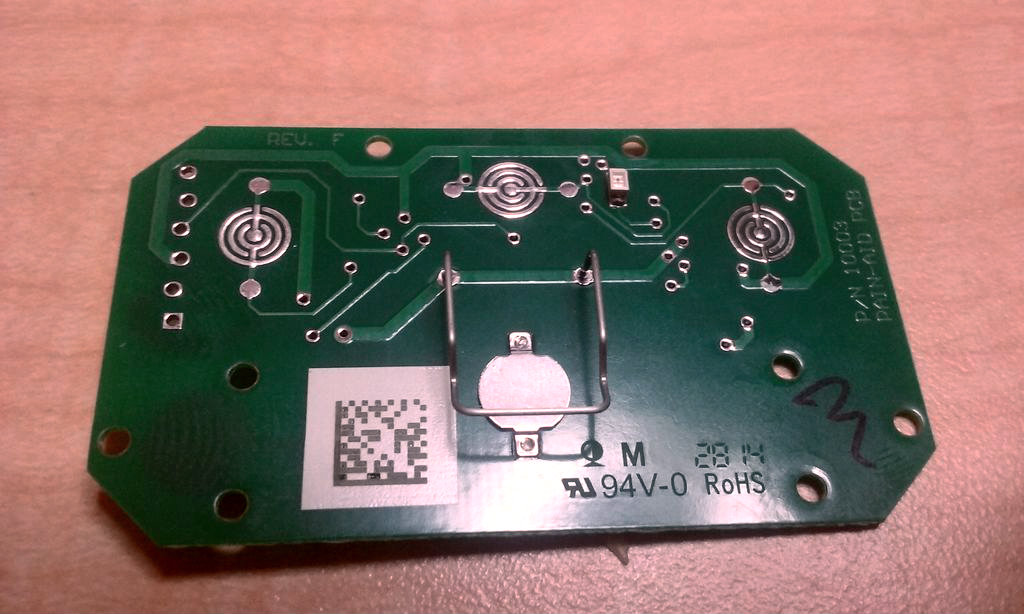

Next I need connected the circuit to the EMS device by first taking apart the EMS device where I then used a multimeter to find the positive leads on it. There were some holes that I could easily solder wires to, to connect the board to the circuit.

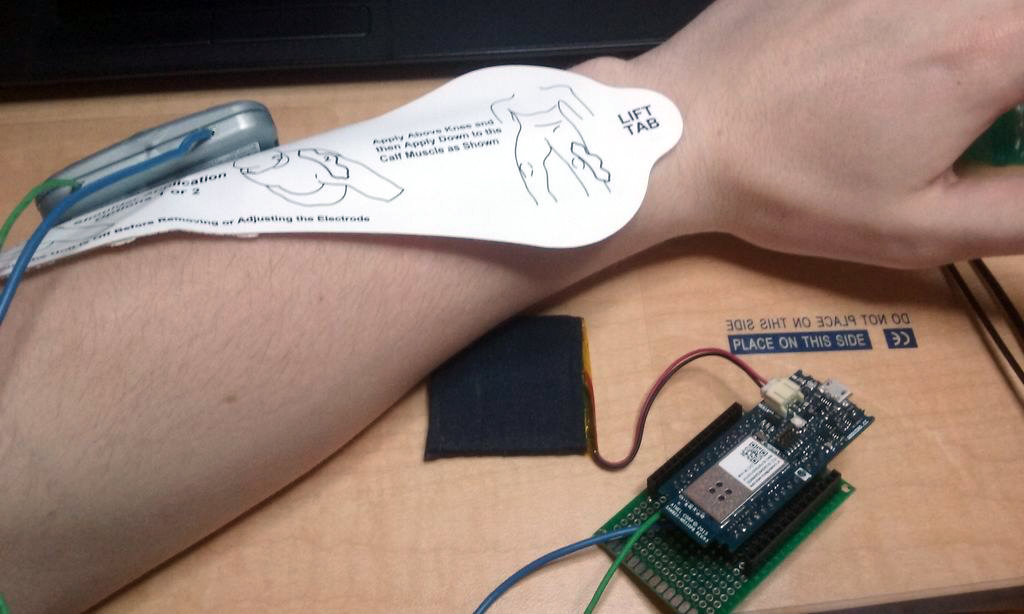

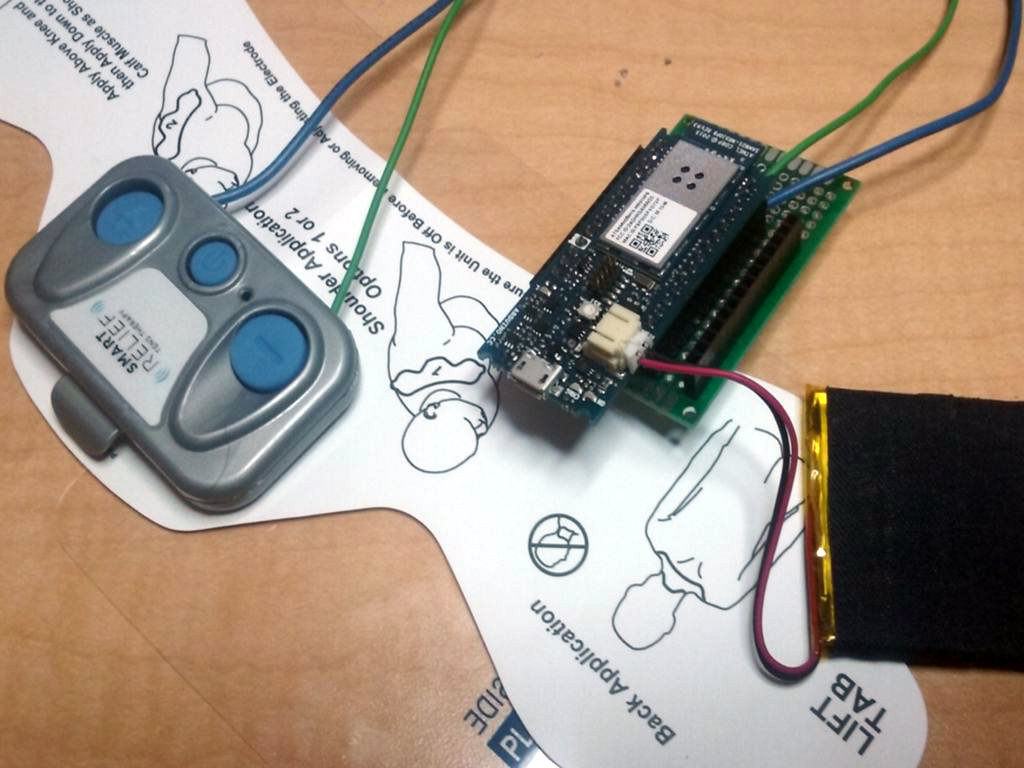

Once everything is done you can hook everything up and test it to see if it works. The positioning of the EMS device may be tricky so you will need to play around with its positioning to cause it to start contracting you muscles. Other then that you're done!
