World Map Table Top (Lift Up Lid)

In this Instructbles build, I will show how I built the table, the table storage

and the world map on top.

I am entering this into the 'Make it Move' contest.

The movement being in the hinged, lift up lid.

My boys are home schooled, so I have slowly been turning our outdoor room

into a comfortable and practical school room.

If you wanted to see how I made the 'Booth Seating area'.

Then you can check that video out here ▲

First up we need to create a solid frame.
I attached a length of 70x35mm timber either side.

And made sure they were level.

Before attaching those pieces I pre-drilled pocket holes

so the screws can be hidden from the front face.

I ran the lengths of 70 x 35 through the thickness planer

to remove the fine edges from the visible faces.

And stained them before attaching.

Now to cover in the underside of the table.
I pre-cut and drilled all my lengths before climbing in underneath.

The more I attached the more boxed in and cramped I was getting under there.
I am glad I am not claustrophobic, because I got stuck and needed to do some

wiggling and readjusting to get back out of there.

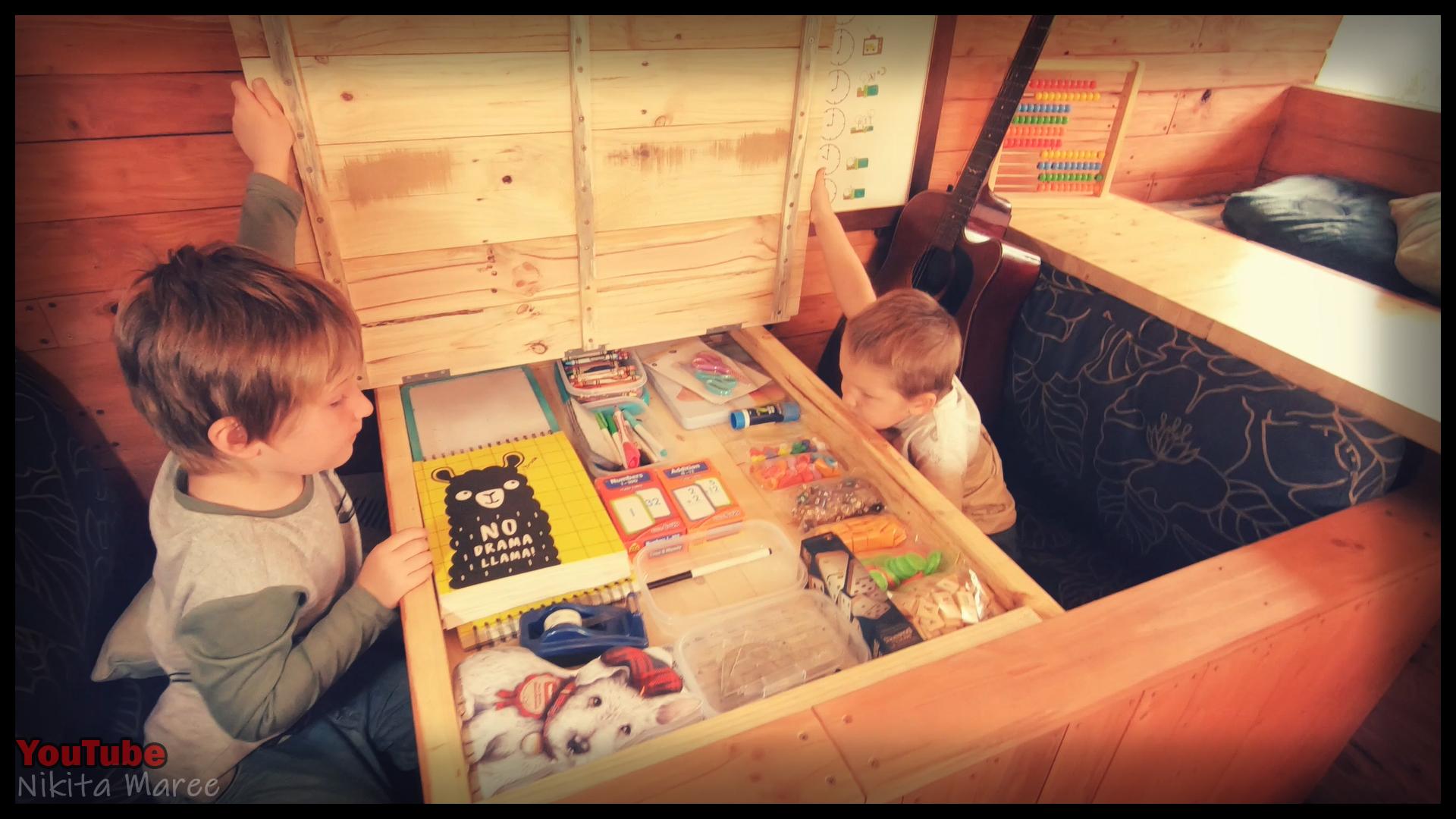

For the hinge up lid I first attached three hinges between two of the pre-cut palings.

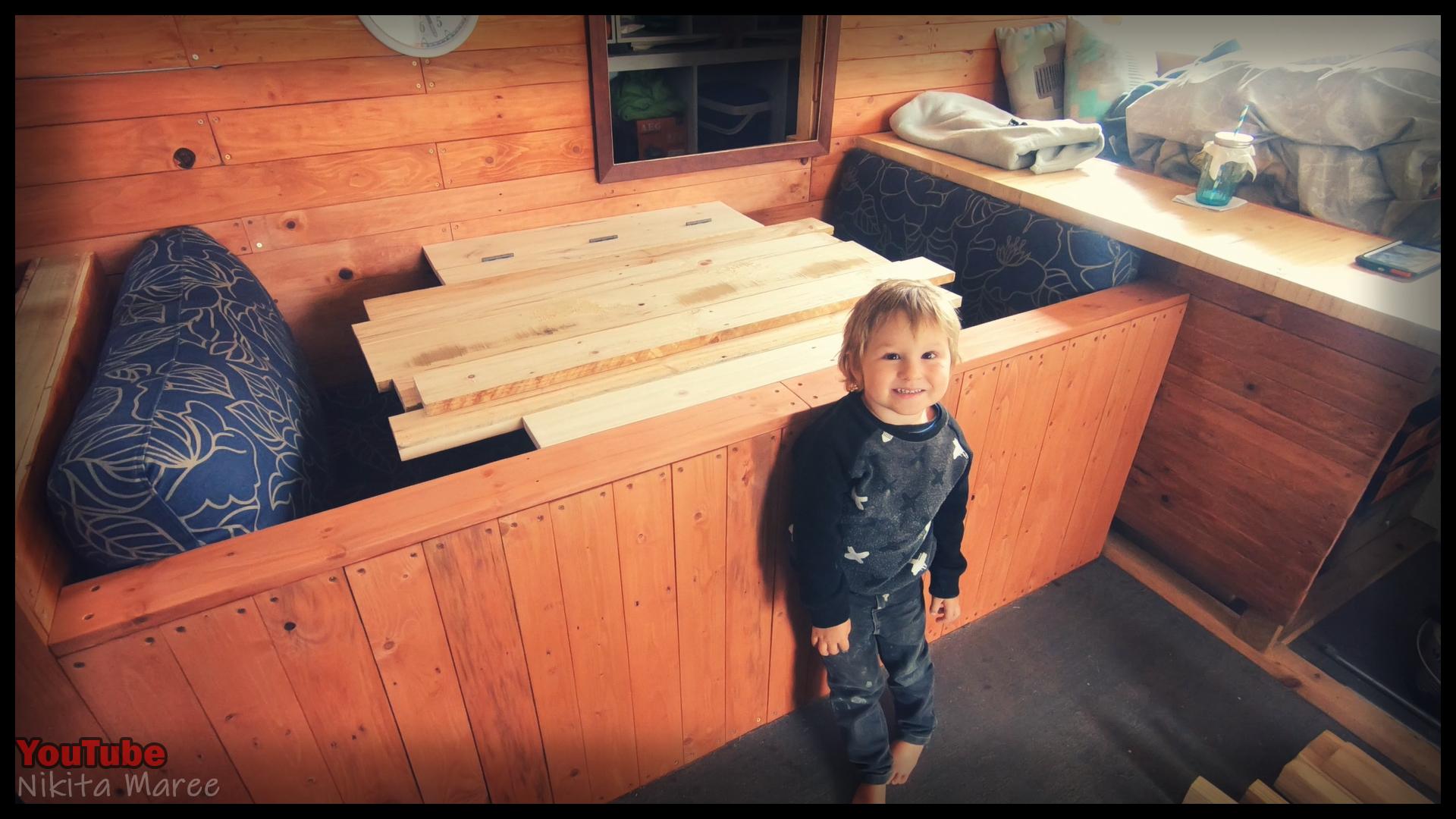

I laid the rest of the palings in place,
then cut all those to length.

I ripped some palings down the center
to create the supports for the underside of the table-top.

Laid them on top to mark the holes and my overall length.

Pre-drilled and chamfered.

Then attached them to the underside of the table top.

For the map. I first measured the length of the table,

worked out how many sheets of A4 paper would fit and in what orientation.

Then took a basic map from google images into Photoshop

and stretched it out over 9 sheets of paper.

Printed it out, taped it together
and taped it to the bench.

Grab a strong pencil, one that is not going to keep breaking under pressure

and start tracing back and forth over the lines.

This will leave a slight indentation on the tabletop.

Instead of using the "Indentation method".
You might prefer the "carbon paper method" I used in this video ▲

Timestamp 03:13

Then I very gently paint in the grooves with dark brown acrylic paint.

I use cheap acrylic paint mixed with a drying retardant

so I could leave the paint out all day without it drying out.

Added the finishing touches of the bench
and it is done.
