Workshop Chair With Air Compressor From Scrap
by Thomas Workshop in Workshop > Metalworking
4929 Views, 50 Favorites, 0 Comments
Workshop Chair With Air Compressor From Scrap

Hello everyone, in this project I wanna show you how to make Workshop Chair with Air Compressor inside. All parts to make this project I found in scrap. I made video and step by step instruction how to make it.
Materials :
- 2 old car's rims
- 3 small wheels
- steel profile
- screws amd nuts
- air compressor
- piece of wood
- clear varnish
Tools :
- welder machine
- hamer
- pencil
- belt sander
- table saw (or bandsaw)
- grinder machine
- pliers
- brush
If you have any questions, please leave comment below.
I hope you enjoy and thanks for watching :)
Make Tamplate of Rim's Edge

Make template of rim's edge, it is very helpful with cutting steel profile.
Cut and Weld Legs



I prepered 3 legs to my chair, angle between them is 120 degree. Draw path using templates and cut a shape. When your legs are well matched to rim, just weld them.
Wheels

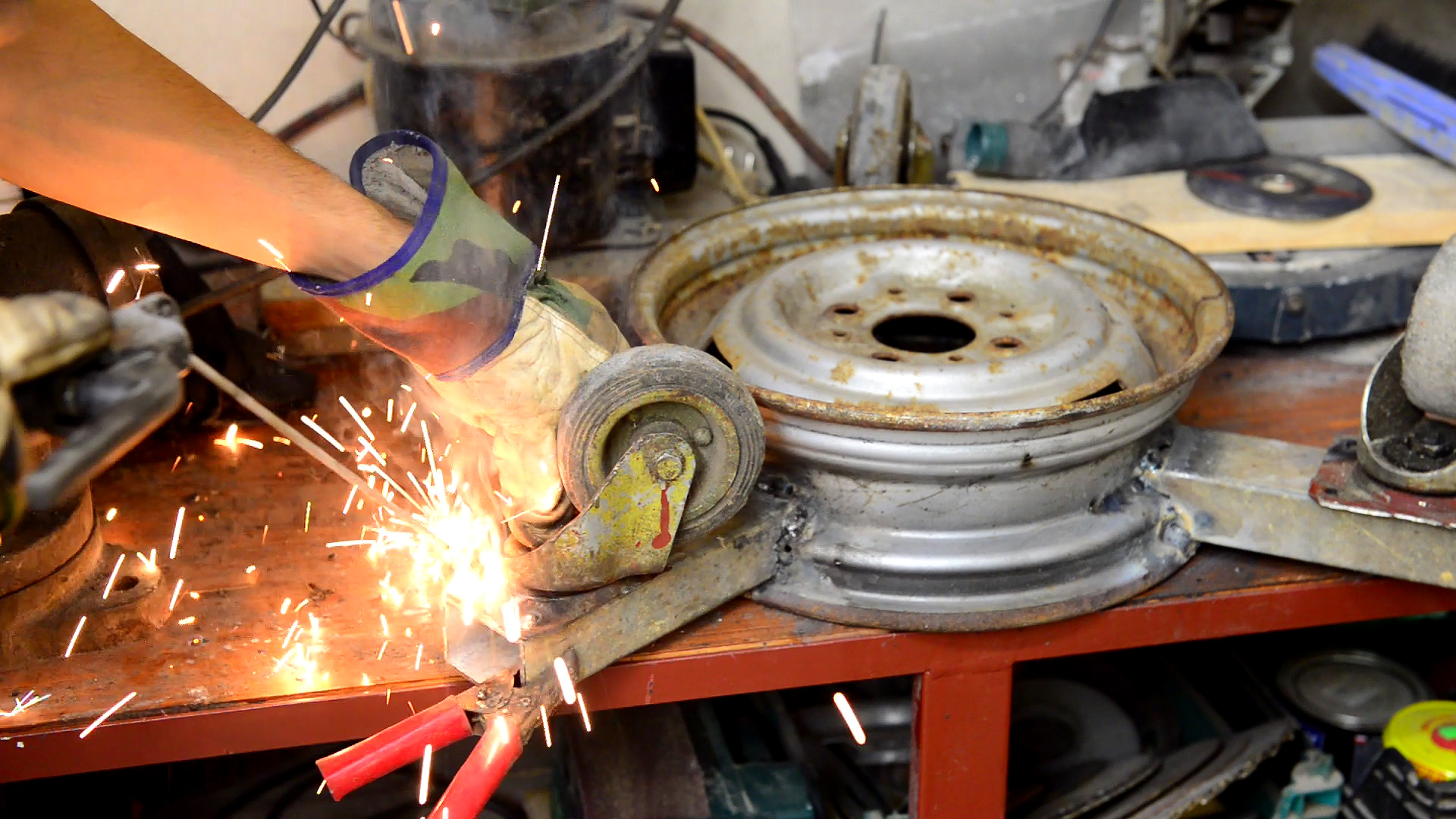

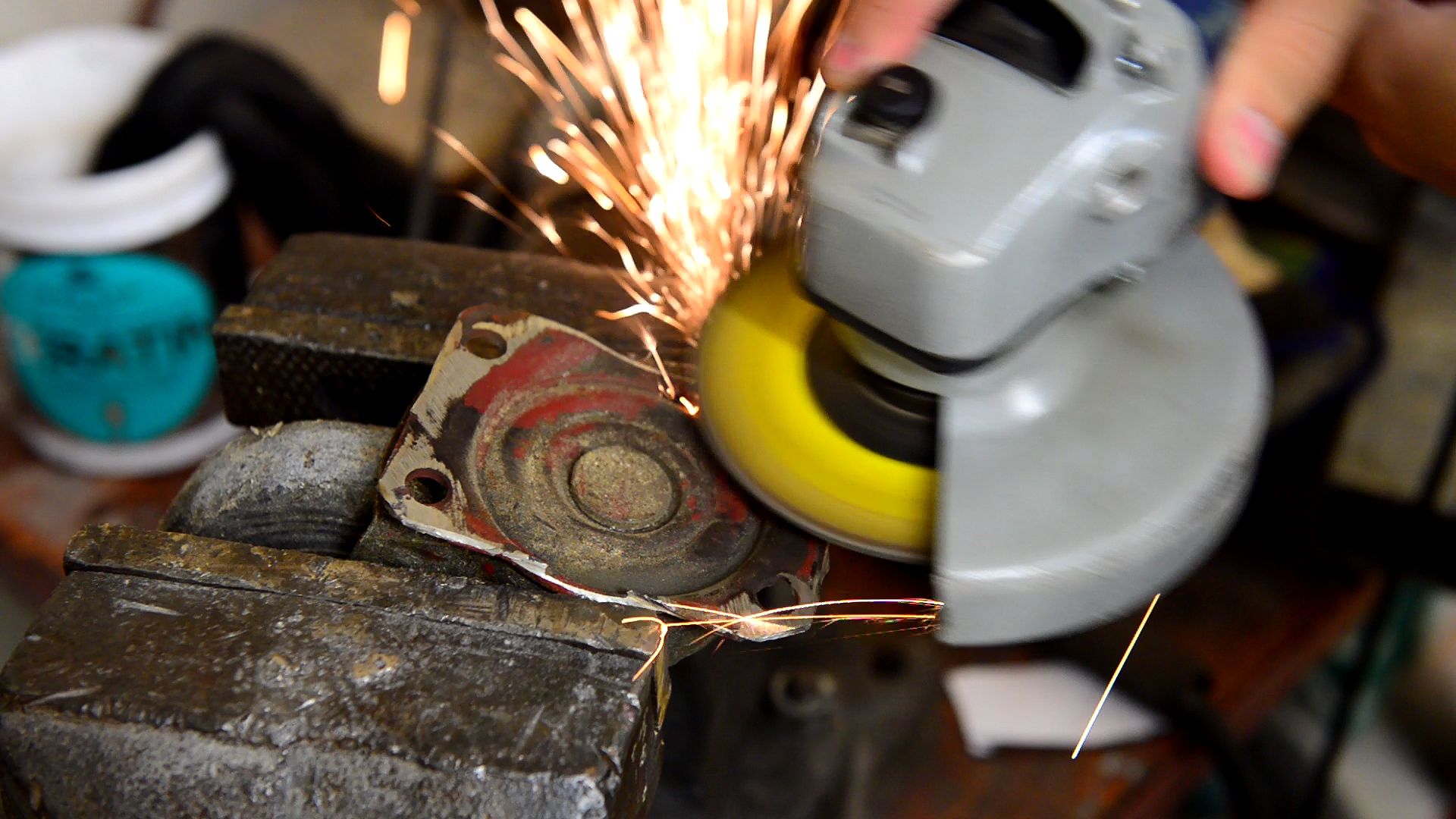

Now prepare wheels to welding. I had to improve them a little bit. When wheels are ready, just weld them to legs.
Time for Air Compressor




I used compressor from old fridge. To connect compressor with rim use bolts with nuts. When everything is in place, weld second rim on top.
Make a Little Hook


Make a little hook and weld it to the chair. Hook will help organize cables.
Cut Circle From Wood






Now take some piece of wood to make a seat. Clean surface (I used belt sander) and draw a circle using beam compass. Cut circle and improve the edges. After that screw seat to chair.
Paint and Done :)


When chair is assembled you can start paint . I painted only wooden circle (clear varnish). I not painted the other parts, because I like rusty style.
Now your chair is finished ready to use :)
I hope you enjoy.
