Woodturning Spin Tops

by HPandLOTR in Workshop > Woodworking

7682 Views, 56 Favorites, 0 Comments

Woodturning Spin Tops

Screen Shot 2015-08-04 at 7.51.25 AM.png
Screen Shot 2015-08-04 at 7.51.44 AM.png
woodturning-tops

Hello again! Every year my woodturning club will turn tops for a children's hospital. Last year we turned over 3500 tops from July to December. This year the goal is 4000 tops. Every weekend they are holding top-a-thons where maybe 5-10 guys (including myself) will get together and just turn as many tops as we can. A single top will only take 5 minutes...when you do it about a hundred times (which I have) it only takes a minute. Whether you are turning tops for charity or just for the kiddos to play with, this tutorial should break everything down step by step for you. Let's get started!

The Blank

Screen Shot 2015-08-04 at 7.47.53 AM.png

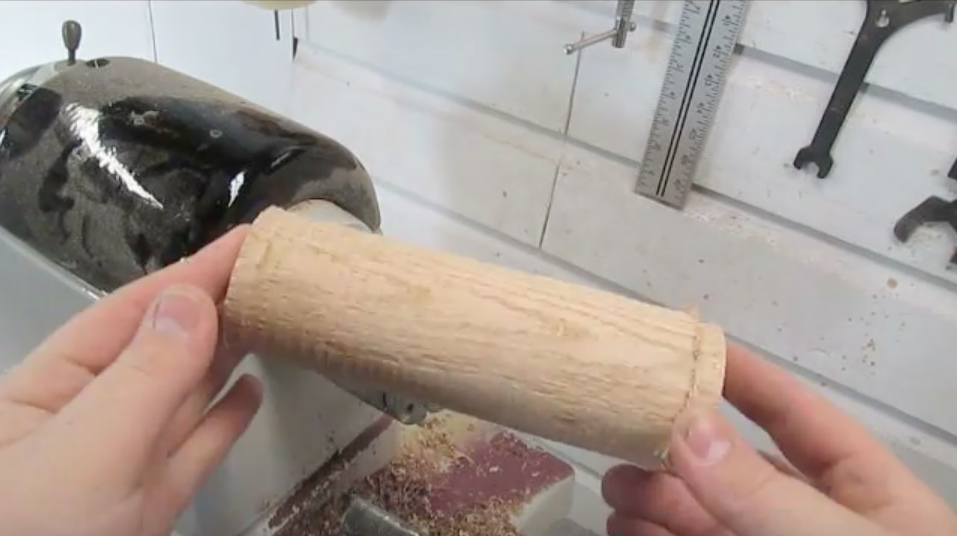

My woodturning club gives away pieces of Oak stock that are maybe 2 or 3 inches square and 5 or 6 inches long. First, I put them in between centers and rough it down. I also put a small tenon on one end to hold it in the chuck.

Turning Your Top

Screen Shot 2015-08-04 at 7.48.26 AM.png
Screen Shot 2015-08-04 at 7.48.48 AM.png

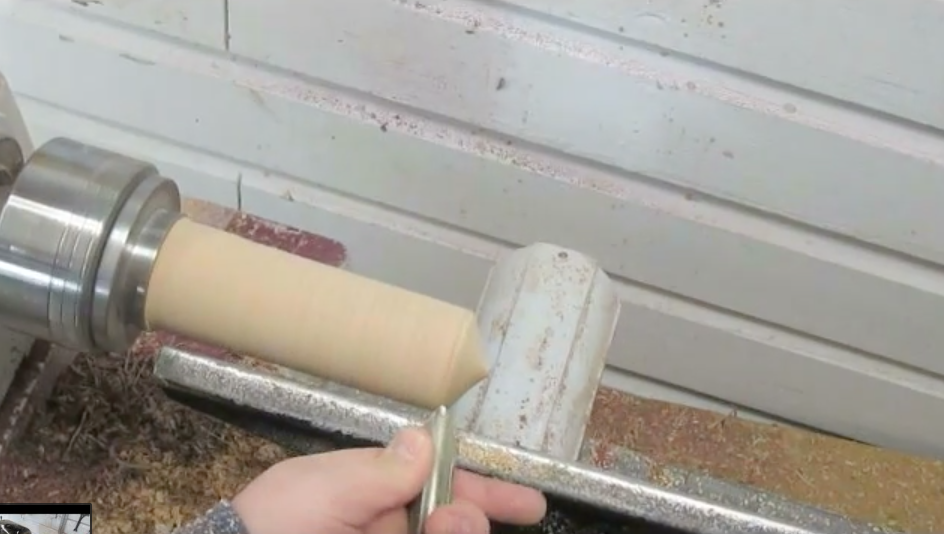

I put the blank in my Nova G3 chuck. Once secured, I turn the end into a point with my 5/8" bowl gouge. I sometimes use a spindle gouge for this. You don't want the top to be to tall otherwise it will never spin right. You also don't want it to be too low because it will not spin right also. I go for a 45ish degree angle.

More Turning!

Screen Shot 2015-08-04 at 7.49.08 AM.png
Screen Shot 2015-08-04 at 7.49.27 AM.png
Screen Shot 2015-08-04 at 7.49.40 AM.png

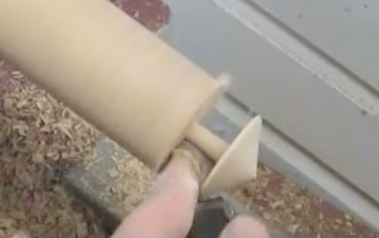

I always use my parting tool to bring down the shaft. I start my first pass closest to the top and continue to bring down more material, working my way away from the point. Doing that in that order will reduce vibrations.

Sanding and Finishing

Screen Shot 2015-08-04 at 7.49.57 AM.png
Screen Shot 2015-08-04 at 7.50.16 AM.png
Screen Shot 2015-08-04 at 7.50.36 AM.png
Screen Shot 2015-08-04 at 7.50.51 AM.png
Screen Shot 2015-08-04 at 7.51.04 AM.png

I don't dilly dally with sanding up to 800. Truthfully, when you turn about 30 of these at a time, you don't want to waste a lot of time with sanding, so I just give it a quick rub with 180, 240, and 320. For finish, my woodturning club makes us use a mineral oil and beeswax finish because that's the simplest finish and the hospital we donate these to doesn't need any specs sheets about what chemicals are in the finish. Just mineral oil and beeswax. This finish just needs some friction to really soak into the wood so crank up your speed and polish your top up. After doing so, I part it off with a skew but you can use a parting tool, hack saw, or whatever you're comfortable with. Now, you are done!
