Wooden Bluetooth Speaker


I will be demonstrating how to build a wooden speaker out of old computer speakers and wood.

Supplies


The supplies that you will need are the following:

  1. Old discarded piece of wood
  2. Old speakers
  3. Old Bluetooth mother board
  4. wire
  5. screws
  6. lithium battery

The tools needed are the following:

  1. Drill
  2. Drill bit
  3. sander
  4. jigsaw
  5. Hole saw
  6. tape measurer
  7. hand saw

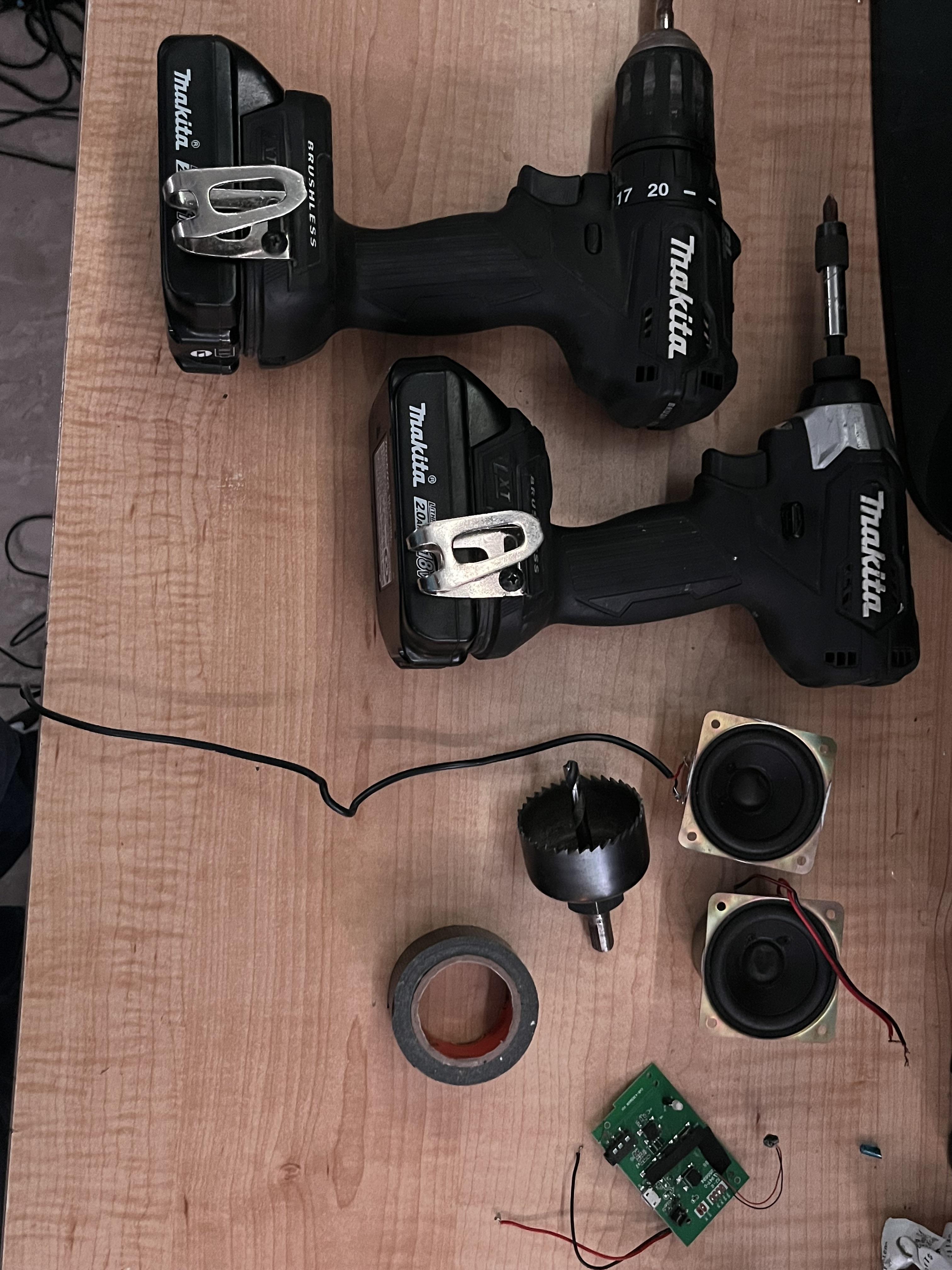

Gather Materials


First, gather all materials.

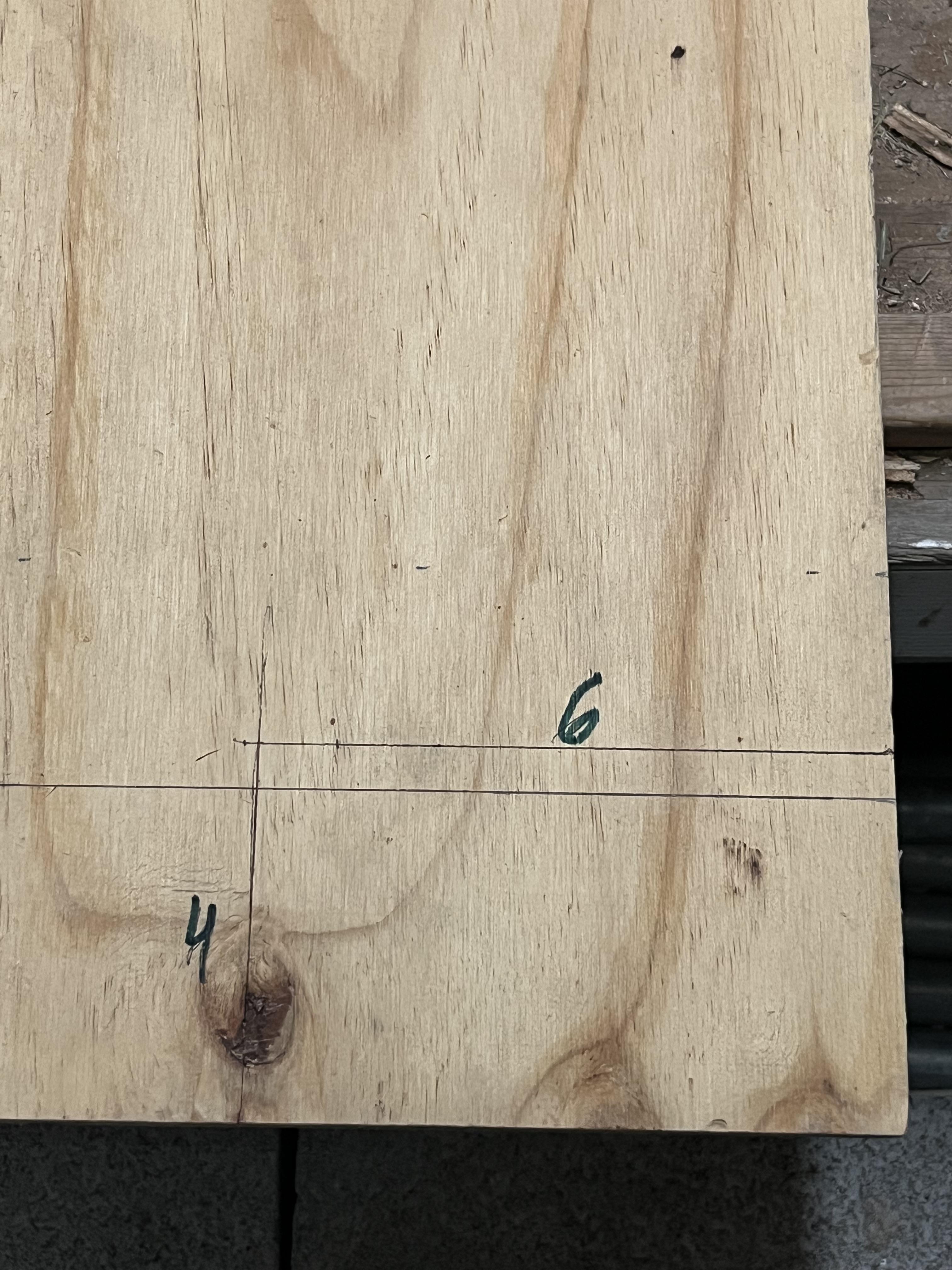

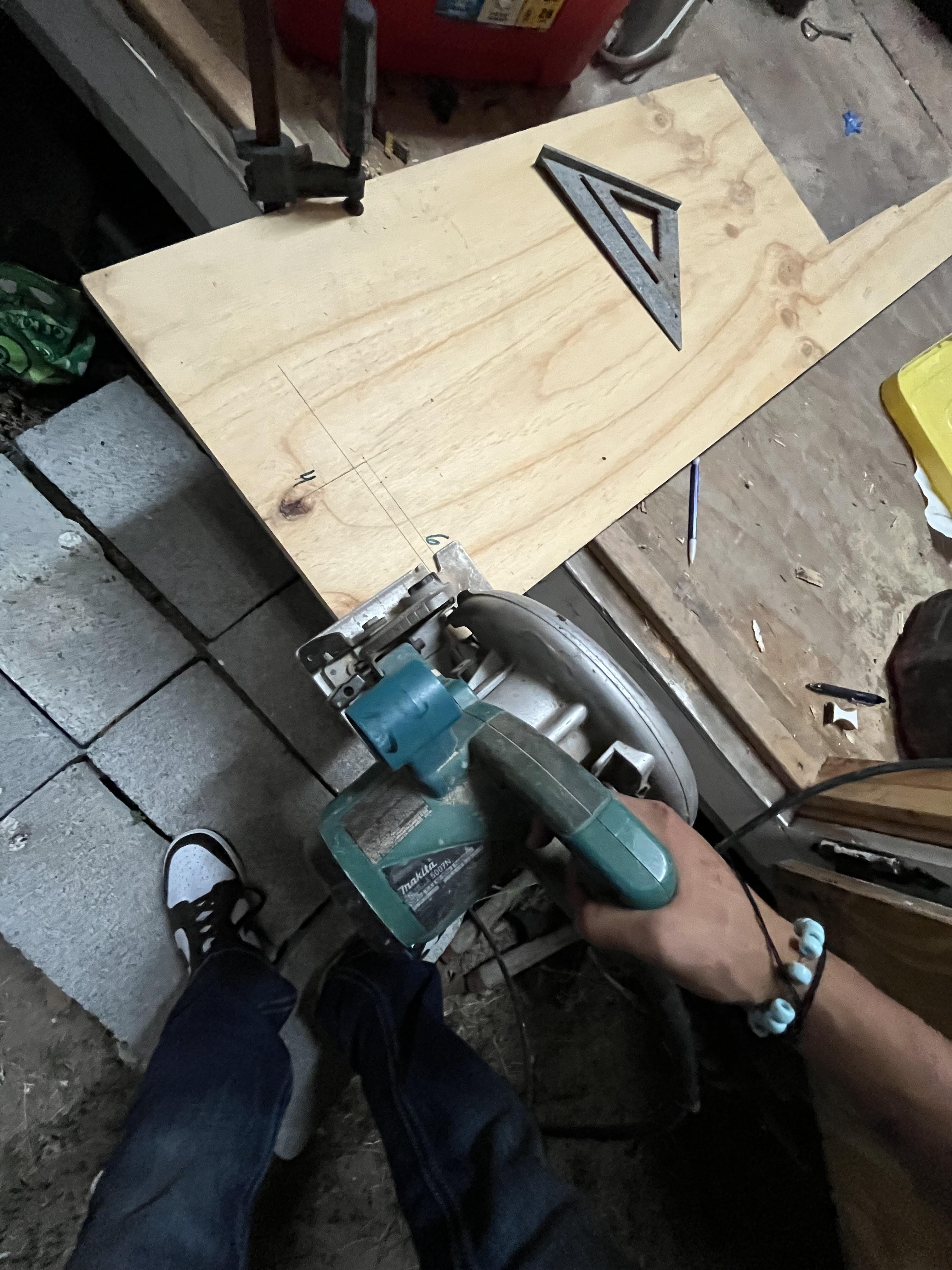

Measure and Cut the Wood


measure the wood to an appropriate size for the speakers.

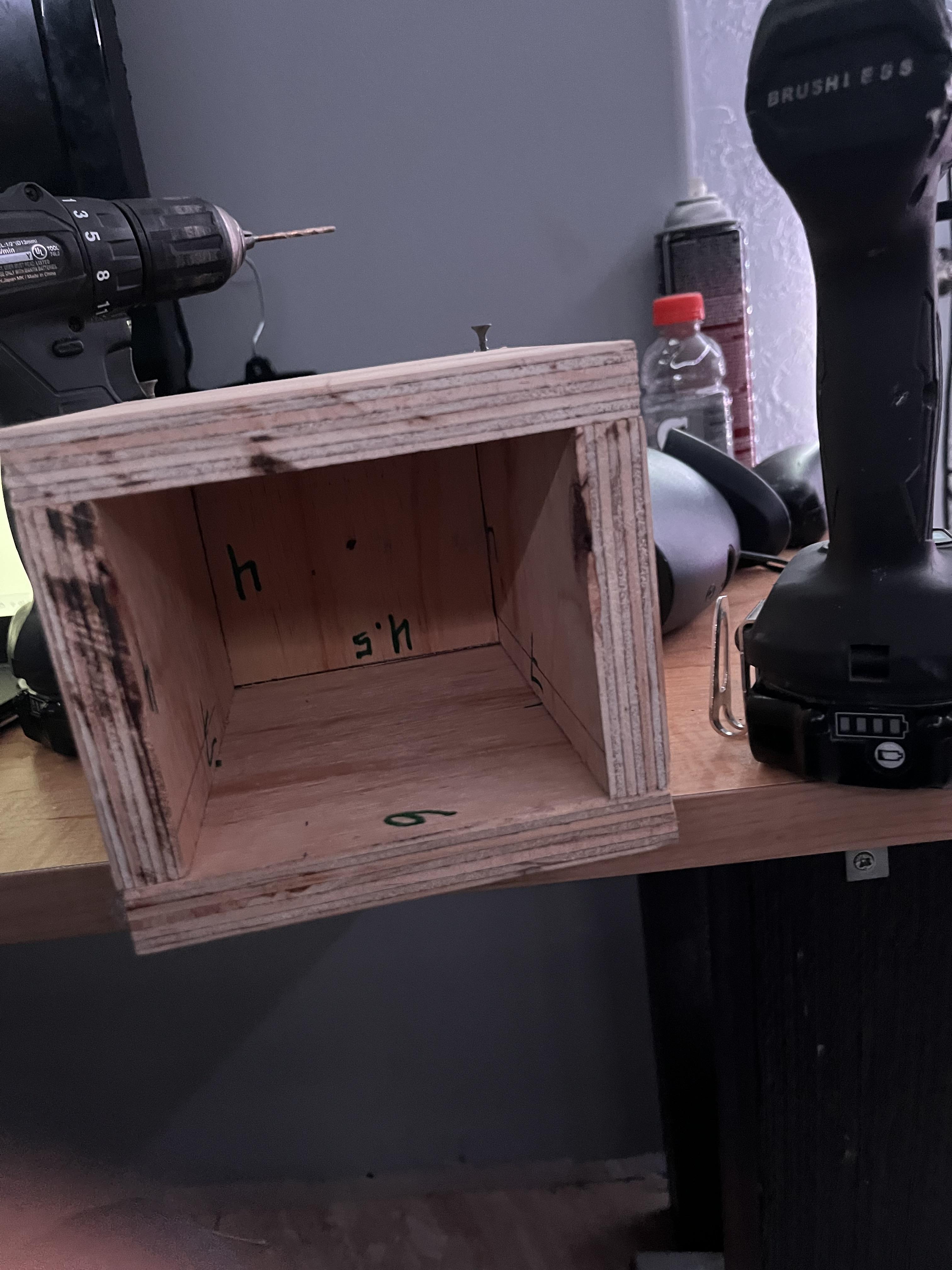

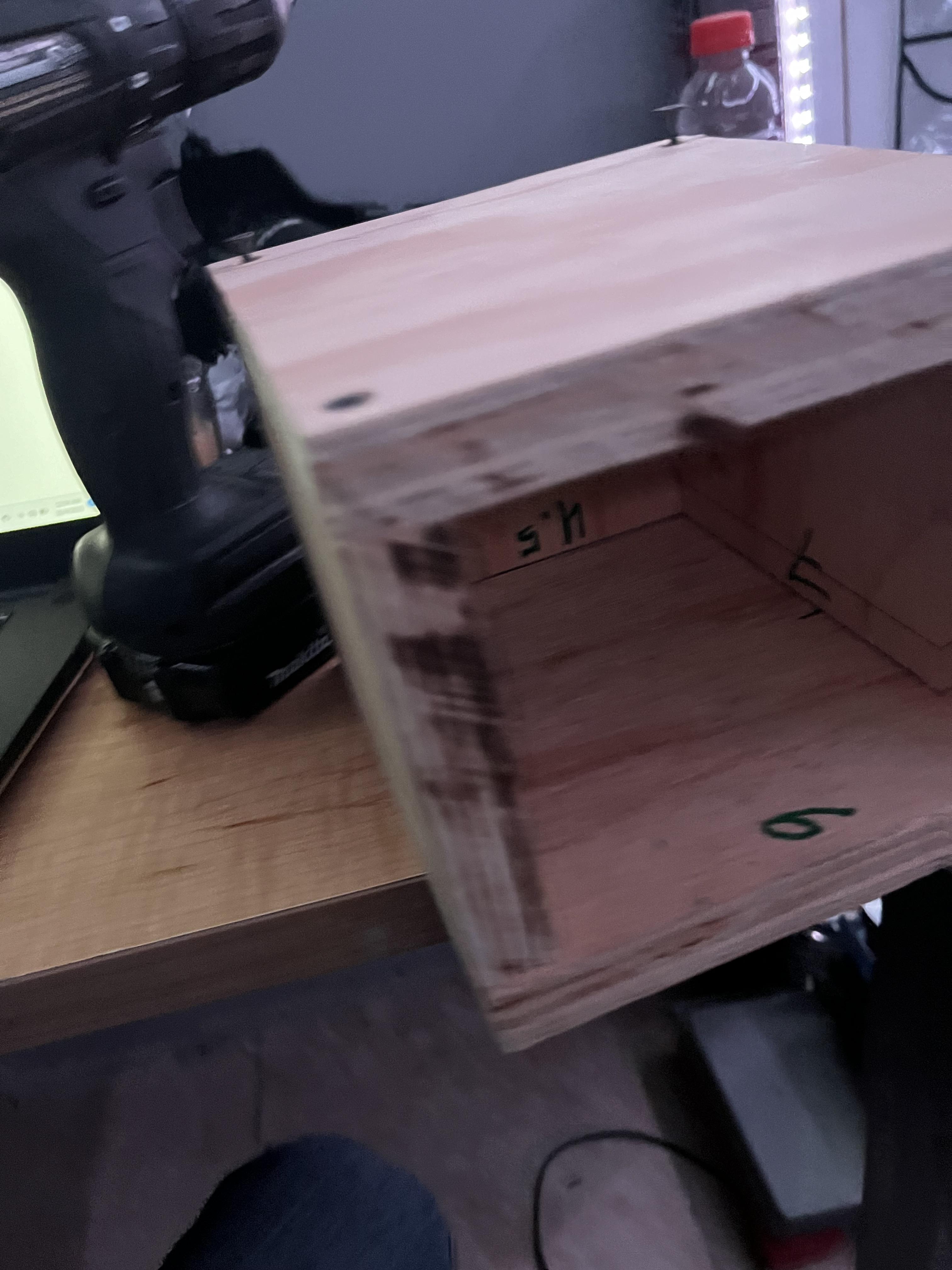

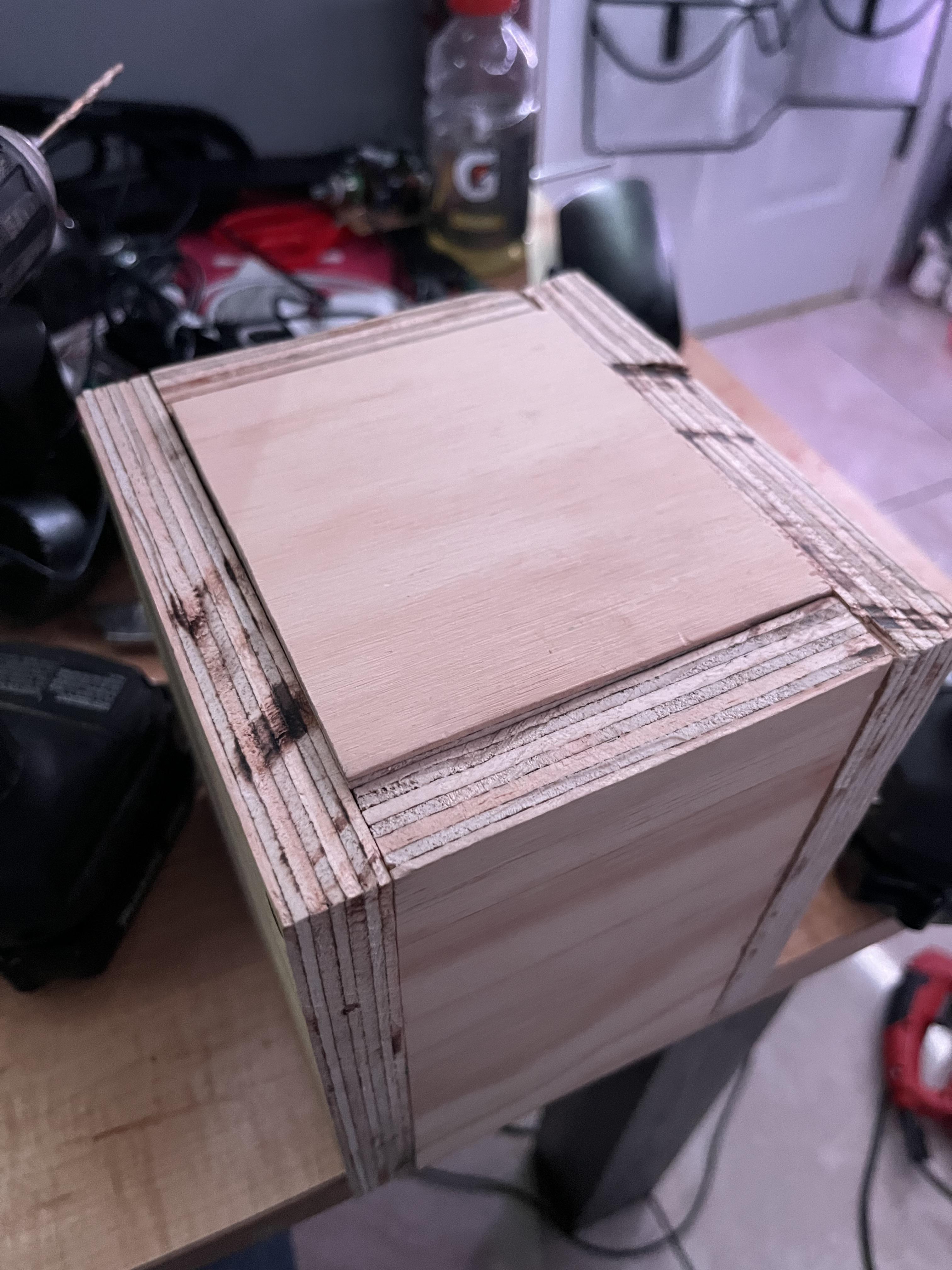

Put the Box Together

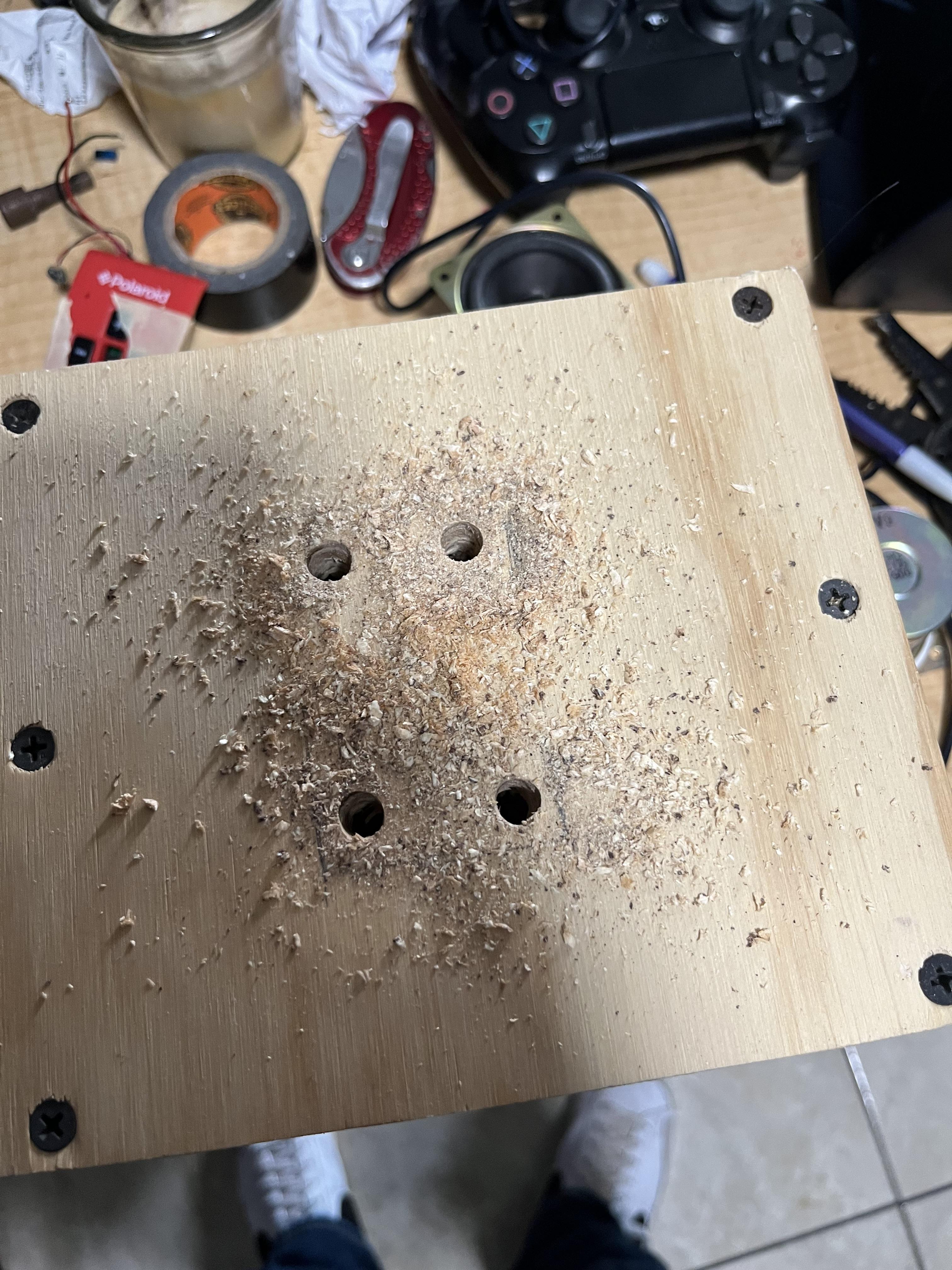

Use the drill bit to drill pilot holes for the screws so that the wood doesn't crack and mess the wood you are using up.

Draw and Outline for the Speakers and the Motherboard


Draw an outline of more or less where you want the speakers and the motherboard to go.

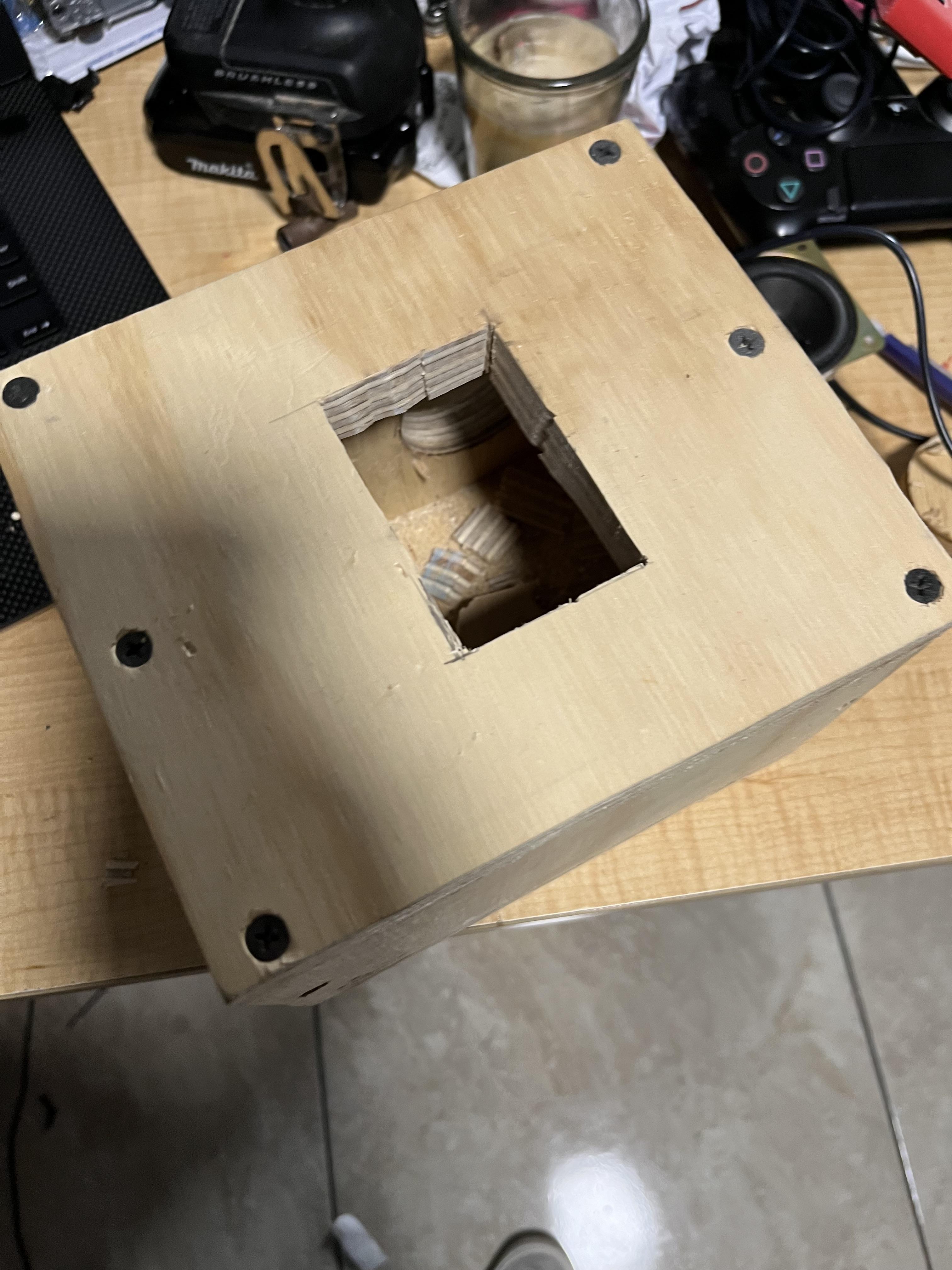

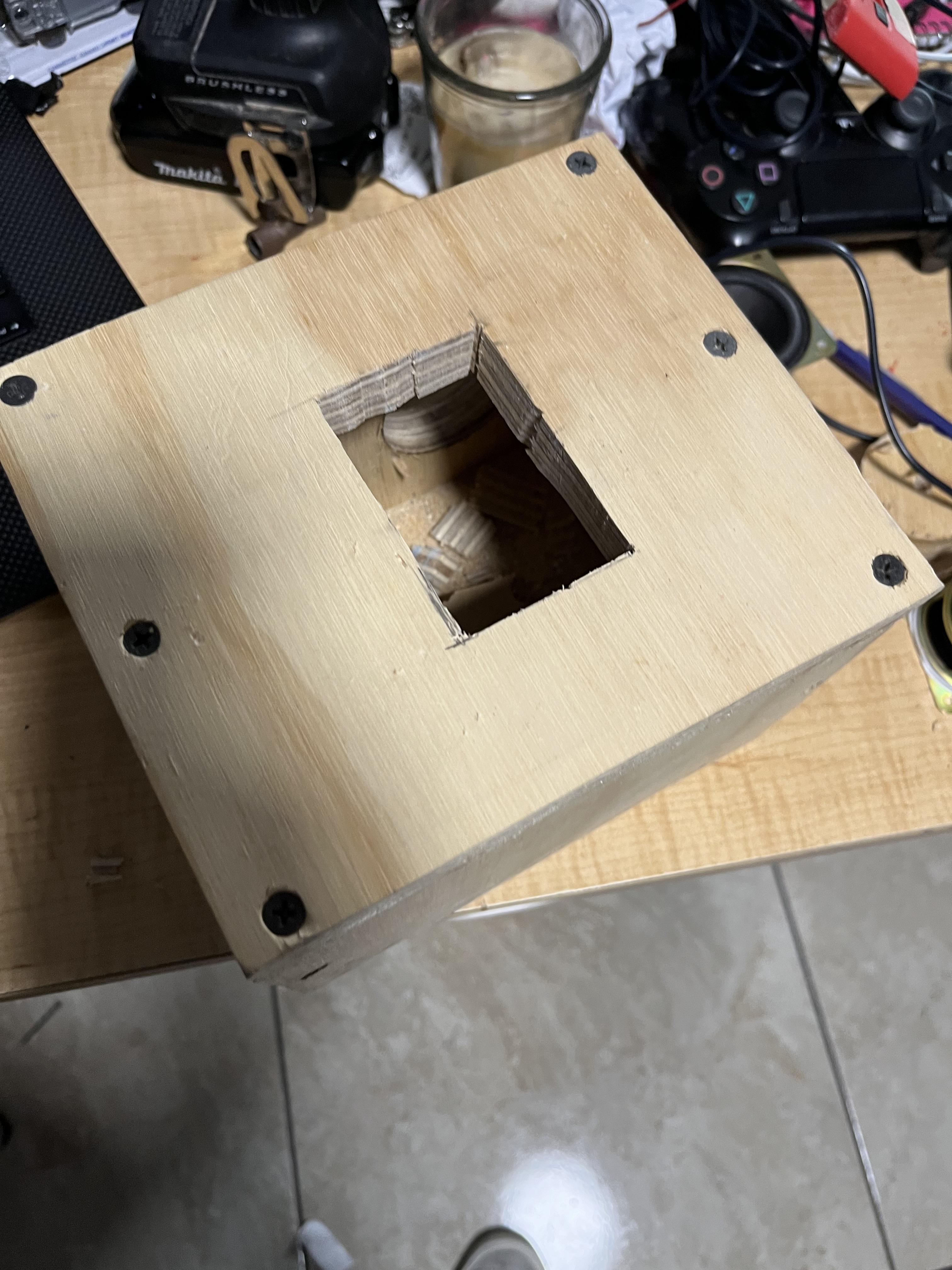

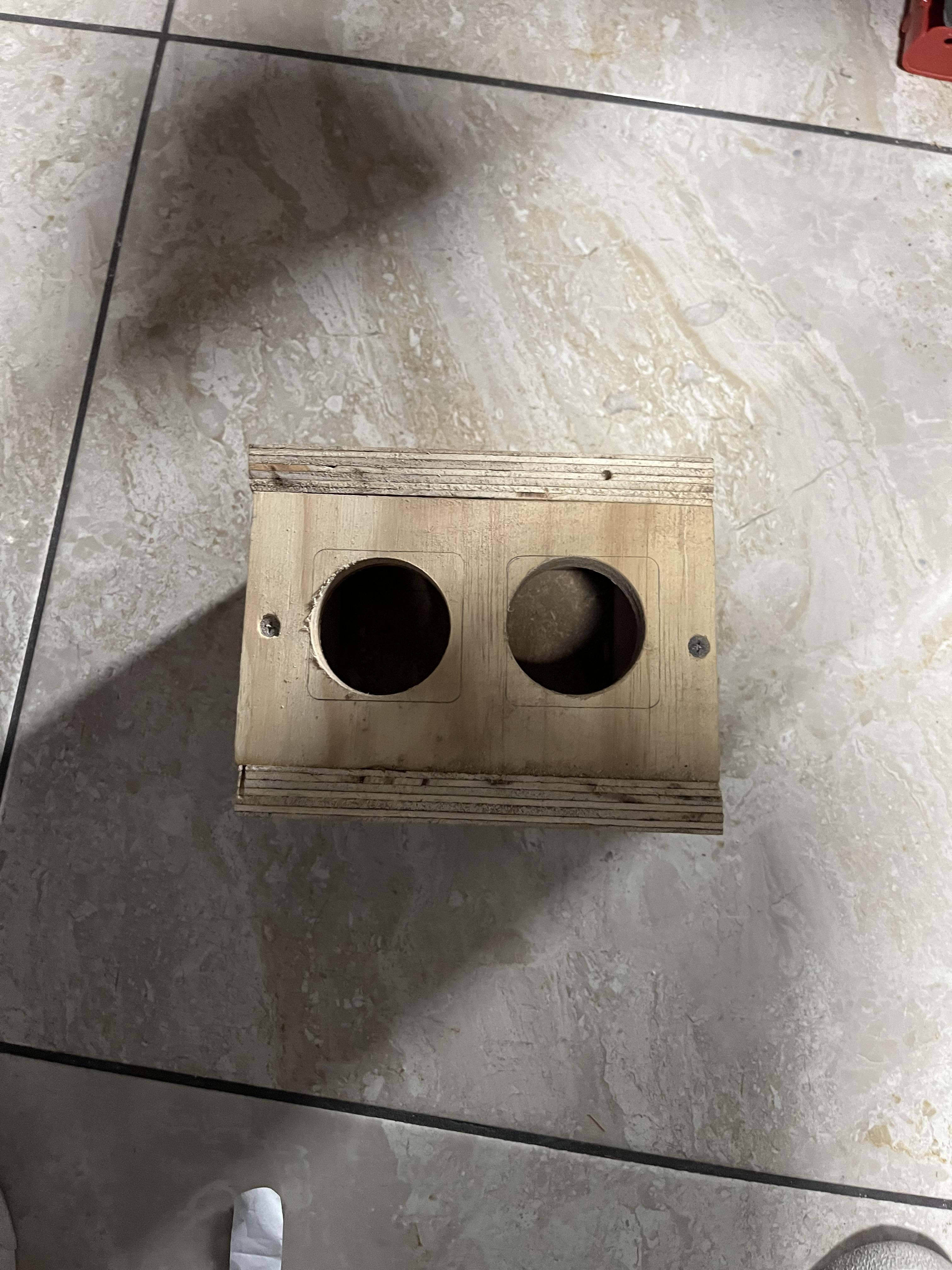

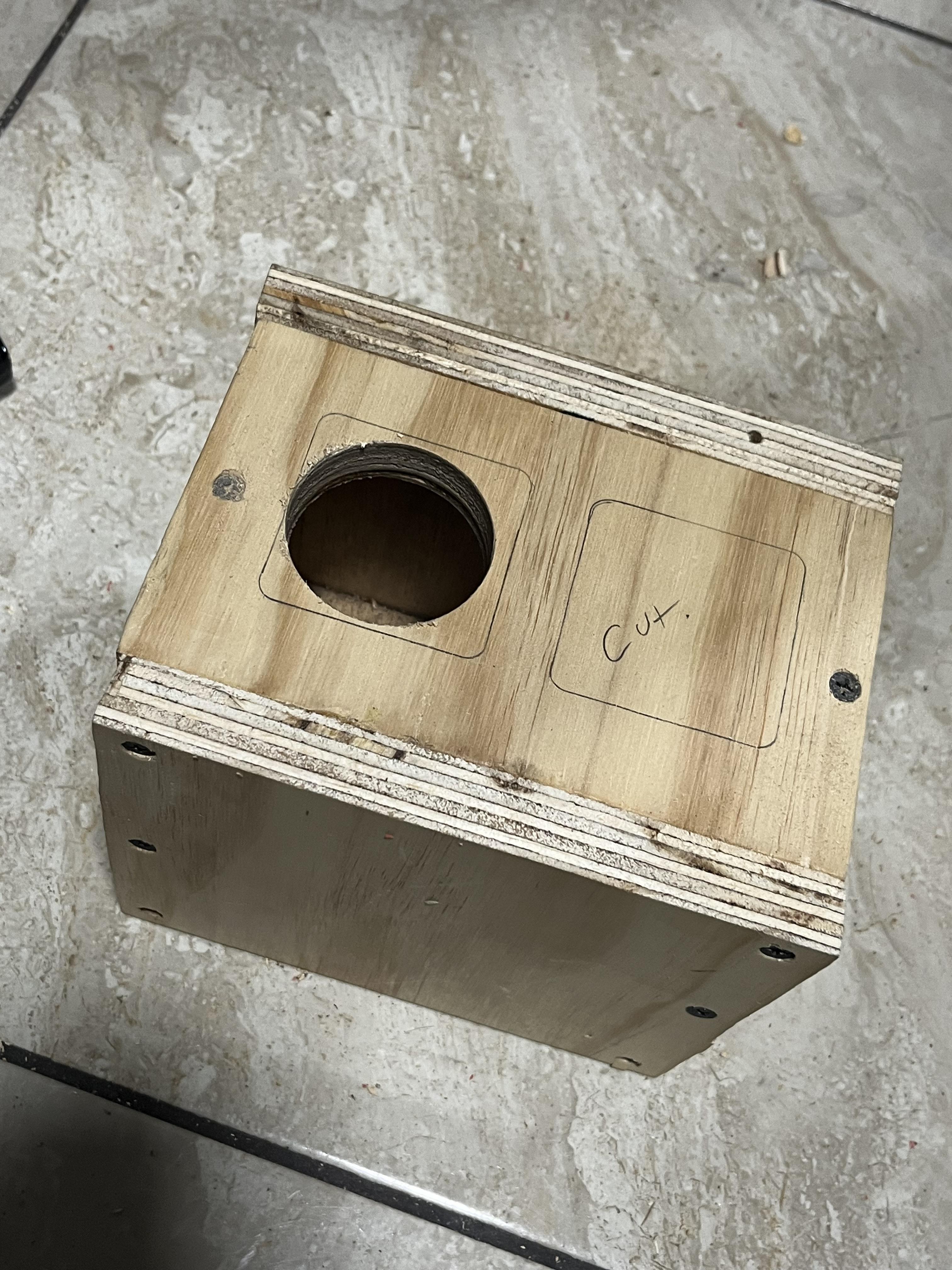

Cut Out the Holes That You Drew


Cut the holes a little bit smaller so that the speakers can fit tight and not be loose.

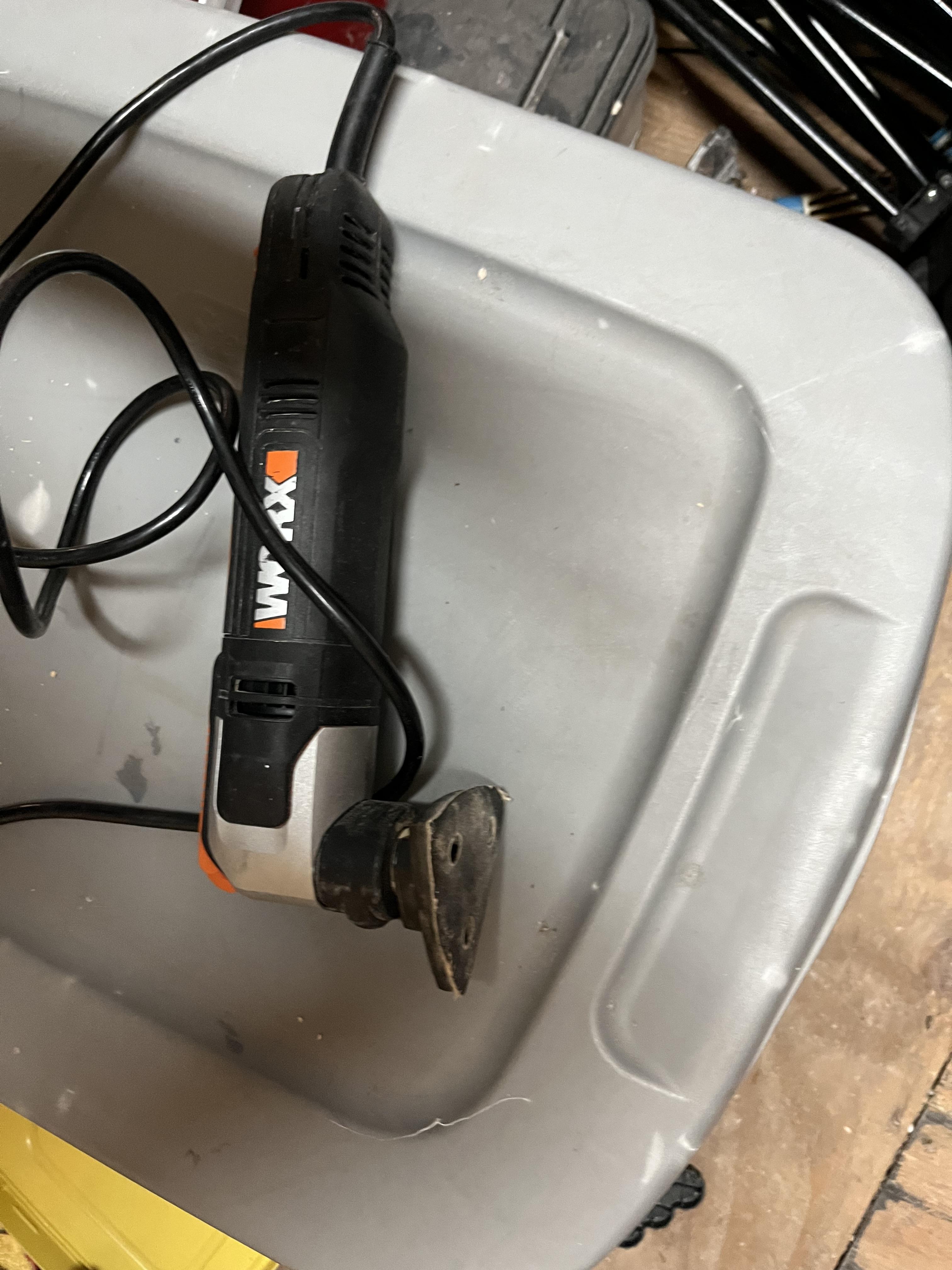

Sand the Box


Sand the box until you feel all surfaces to be smooth.

Insert the Speakers and Mother Board Into the Holes and Screw Them In.


Make sure that when you are screwing in the speakers to be careful that you don't mess up the speakers.

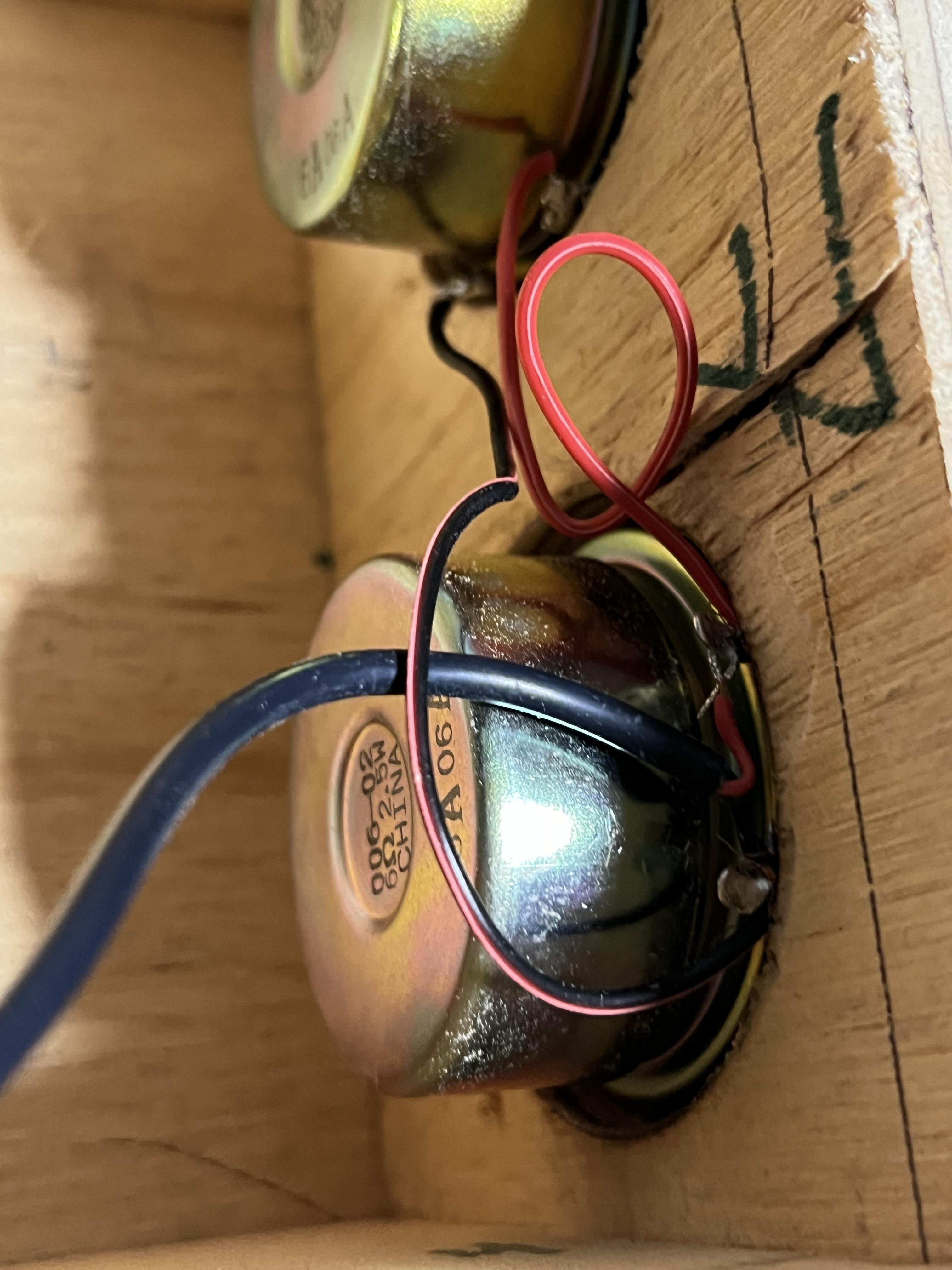

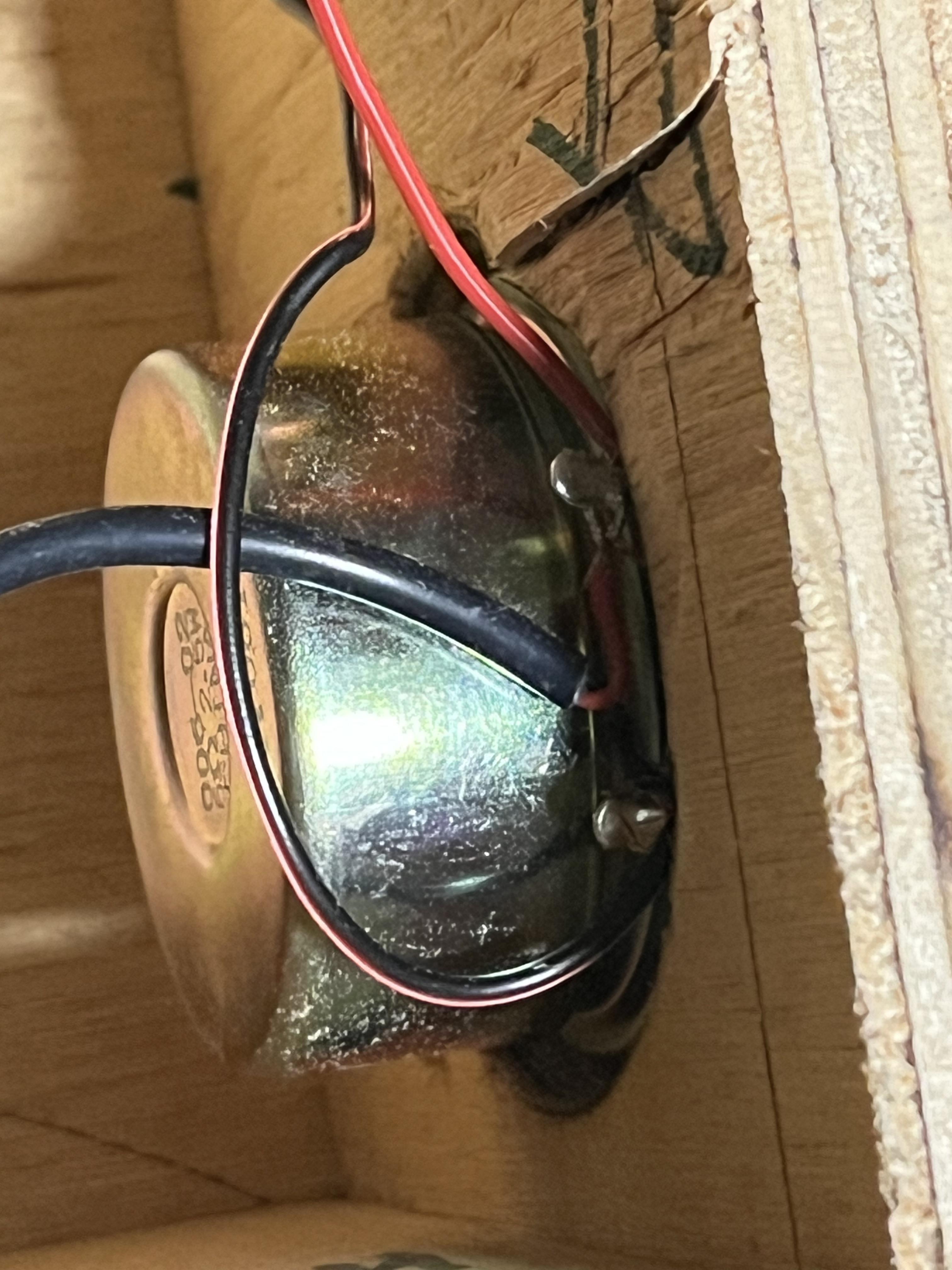

Take Off a Side Panel So That You Can Wire the Speakers to the Mother Board


Wire speakers according to the mother board. (+) with (+) and (-) with (-).

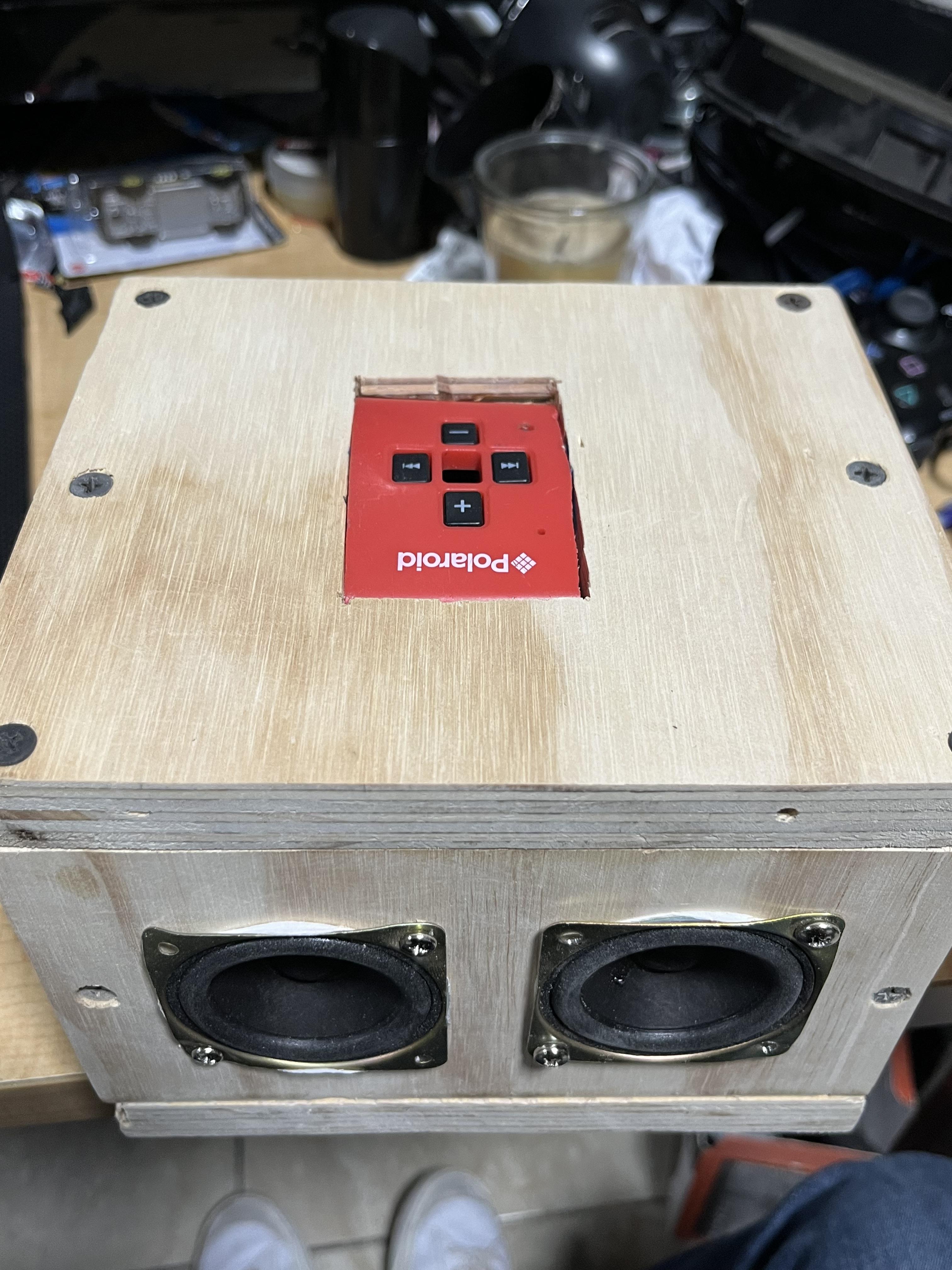

Put the Panel Back on and Enjoy Your New Speaker.


make sure to no get any wires stuck between the wood when putting it back together.
