Wooden Katana

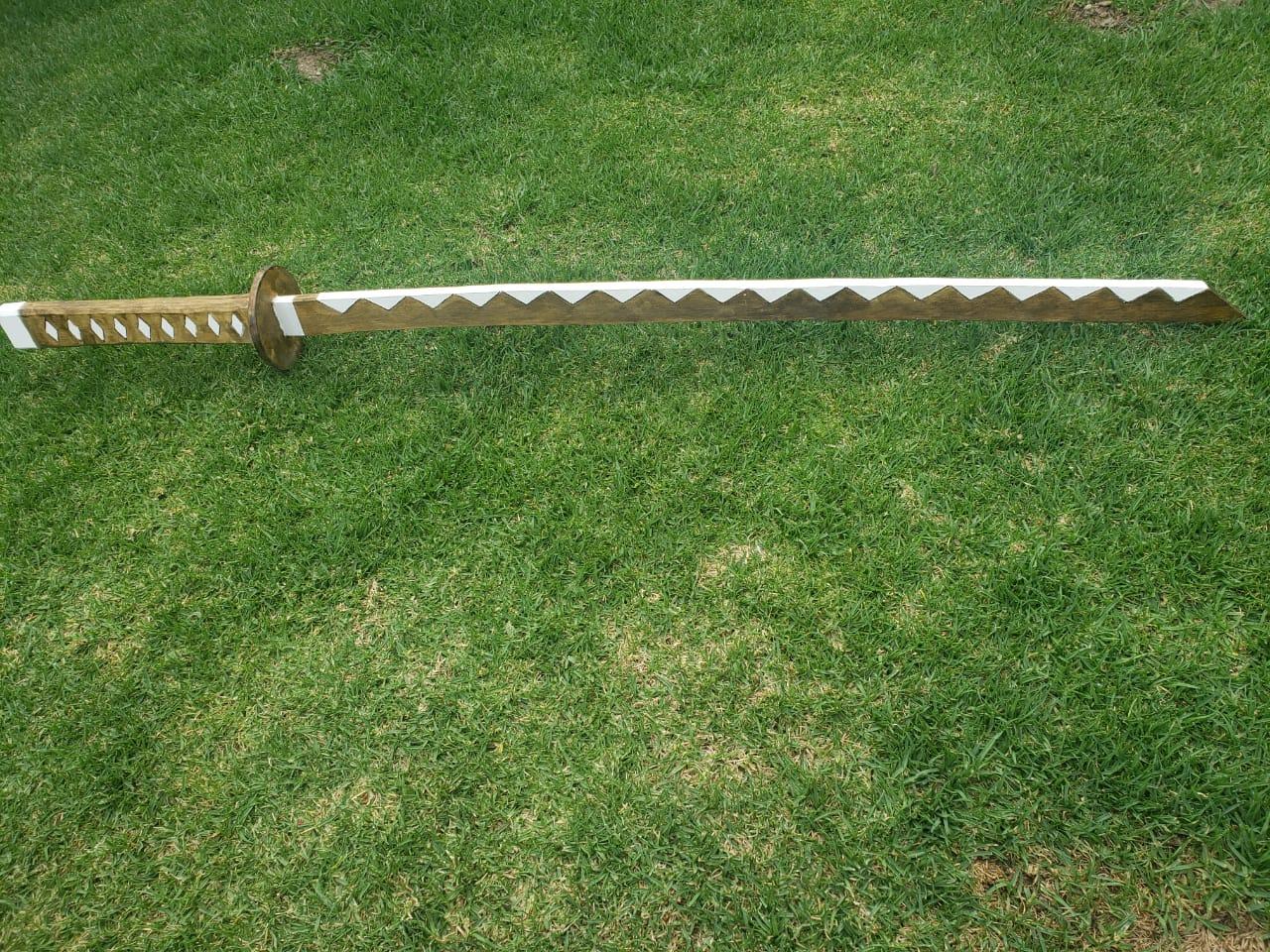

I have always liked how katanas looked in movies and comics. Therefore, I decided to make one. I don't have a lot of tools, so it was a challenge to create a good product with the things that I have. The final product is a wooden katana made for decoration, it won't have a cutting edge in order for it to be safe to manipulate and carry.

For this project I used:

1 Plank of plywood (1cm x 1m x 2m)

1 Wood plank (optional) (1cm x 25cm x 15 cm)

Paint

Wood healer

Jigsaw

Router

Wood engraver

Sander

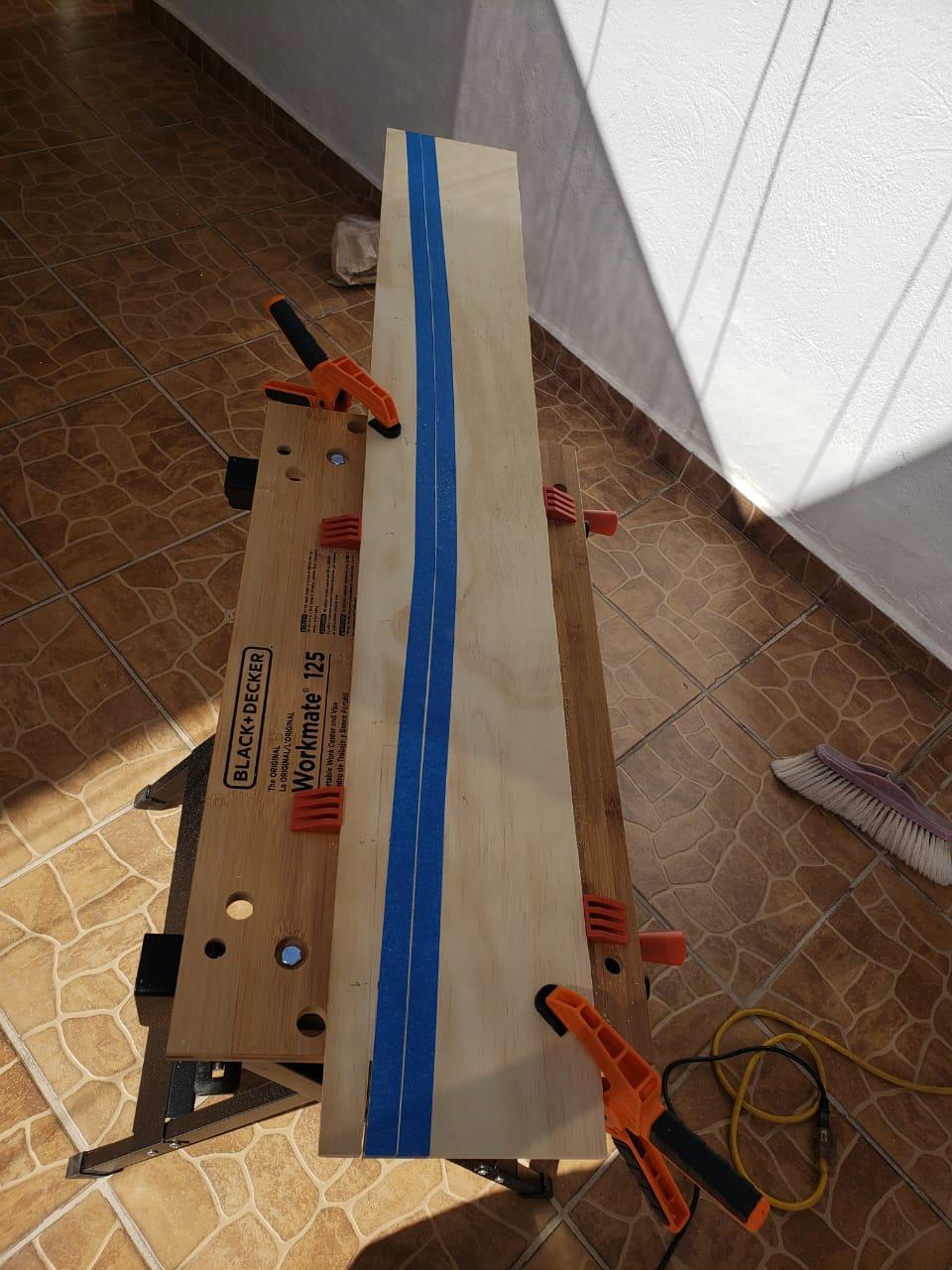

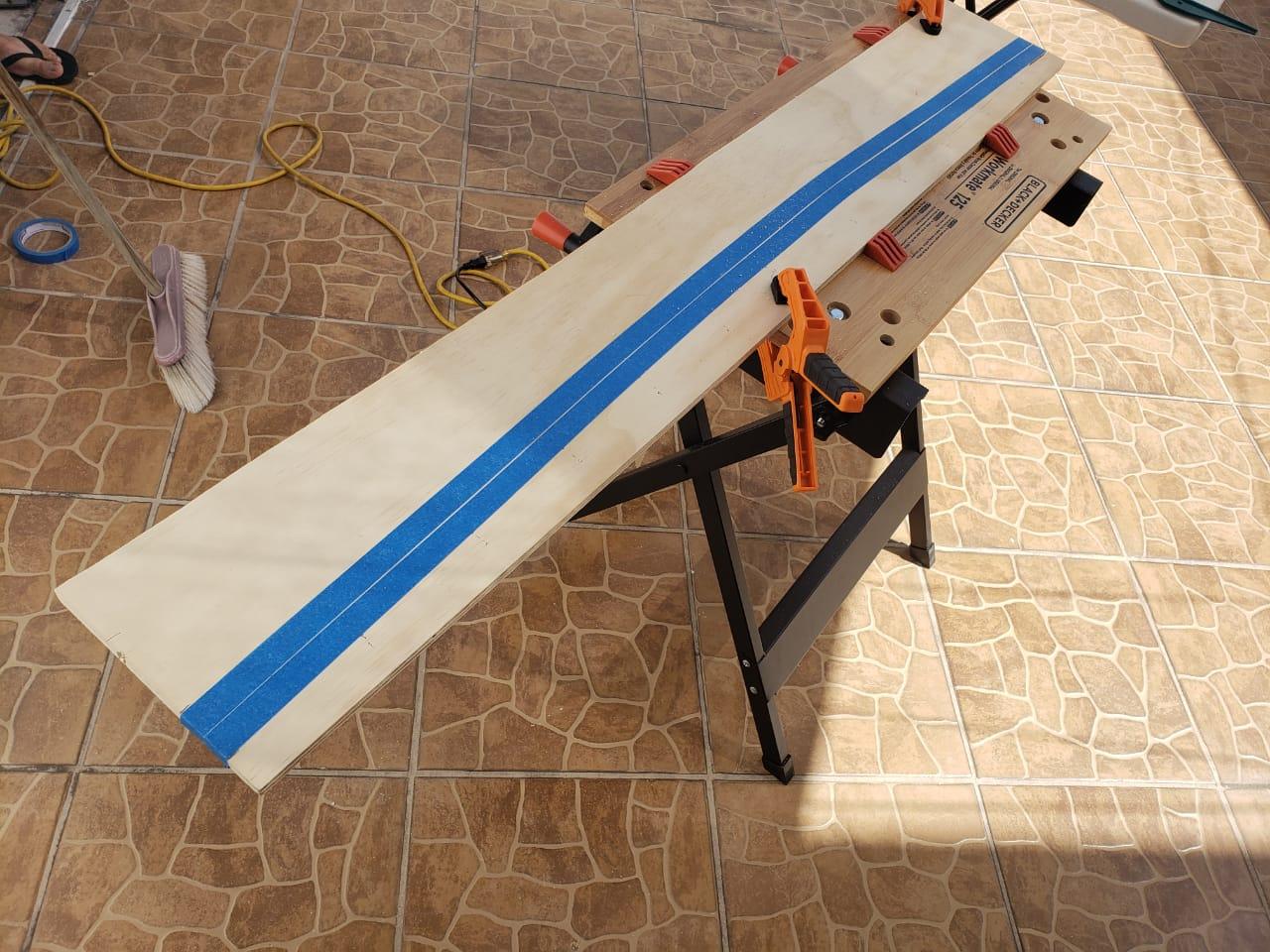

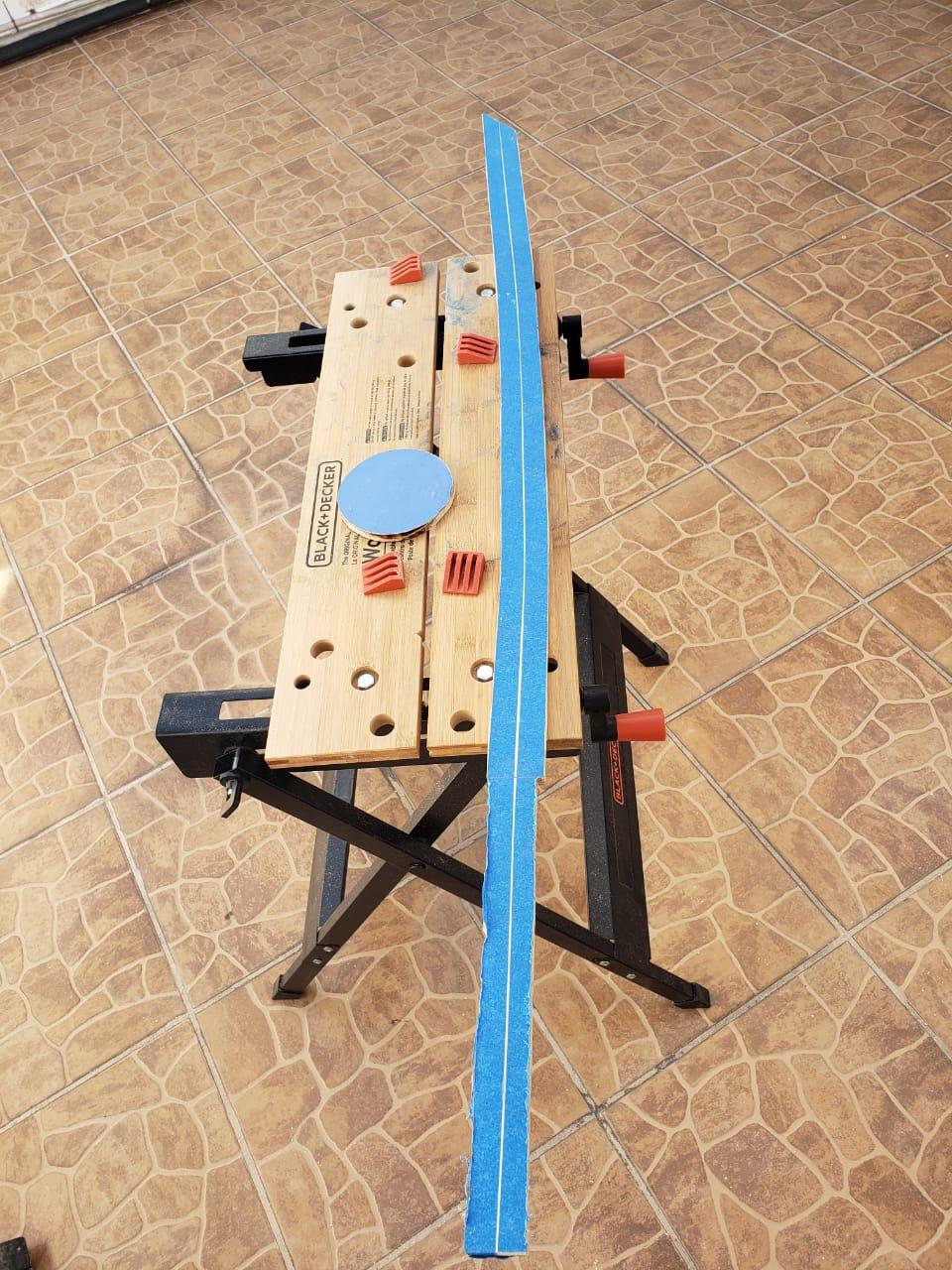

First I made the blade. I found different measures online, that is based on your height. My katana is 30" for the blade and 11" in the handle. It has a thickness of 1 1/2 ". I made it curved and a little tip at the end.

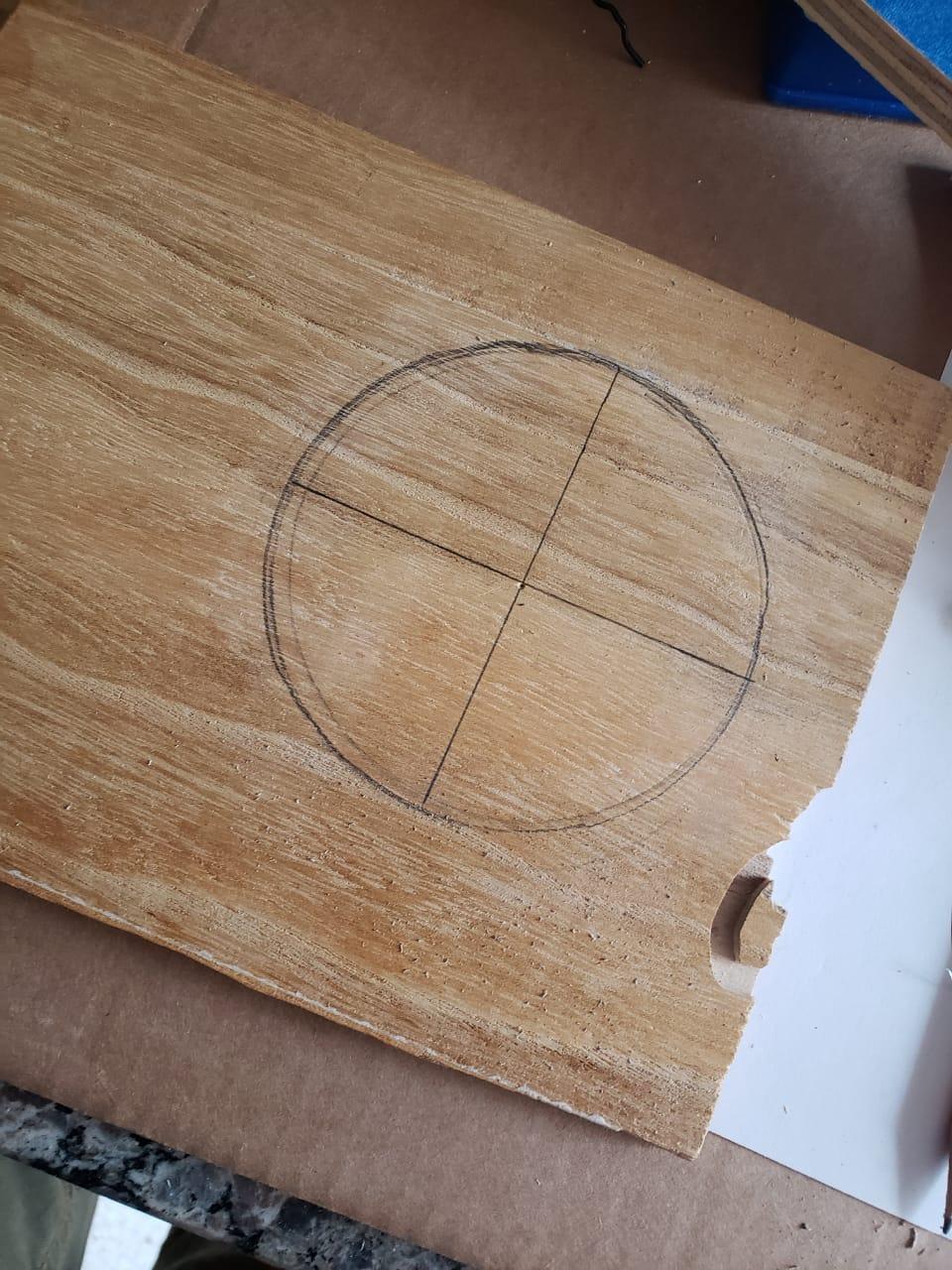

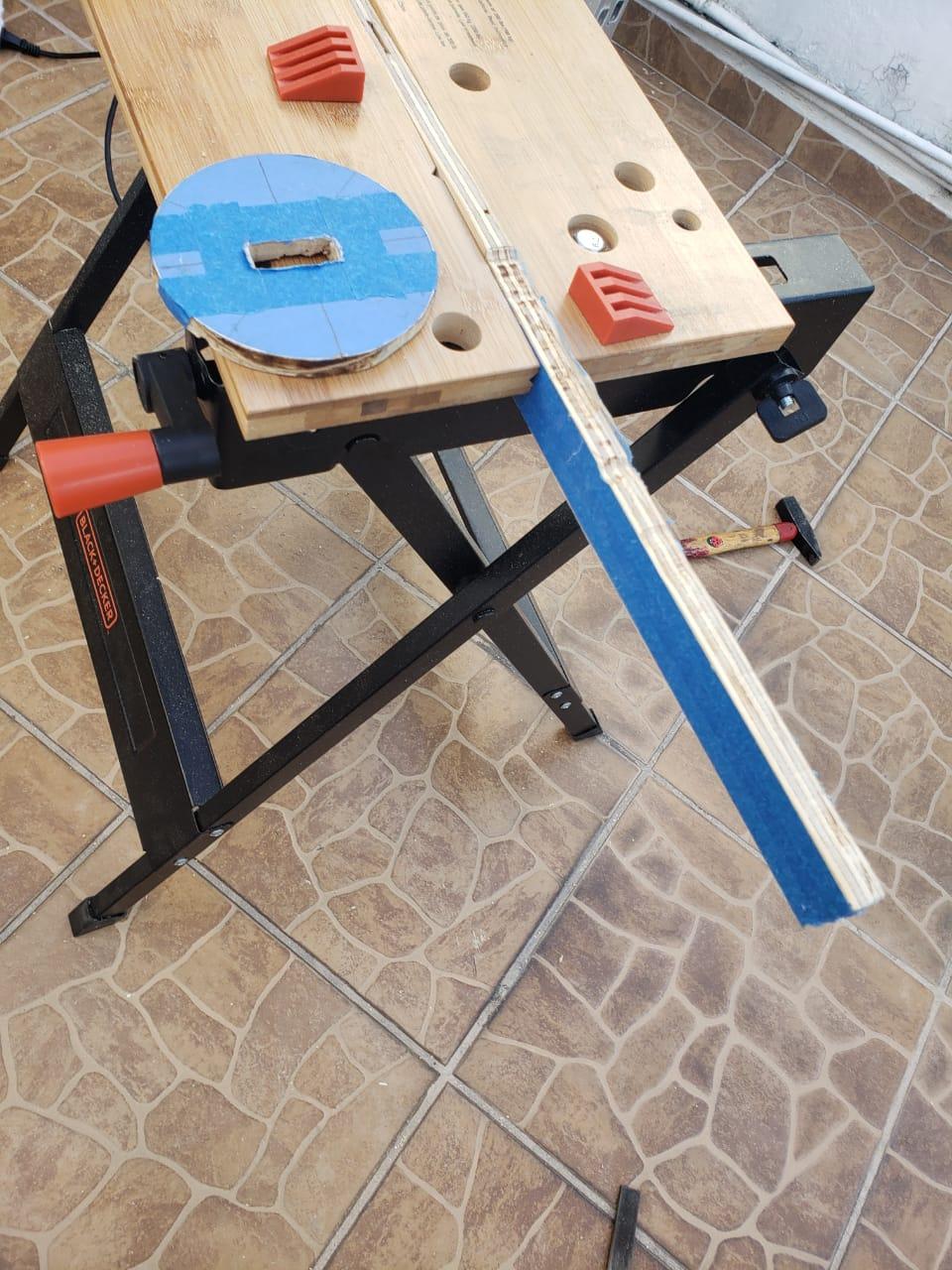

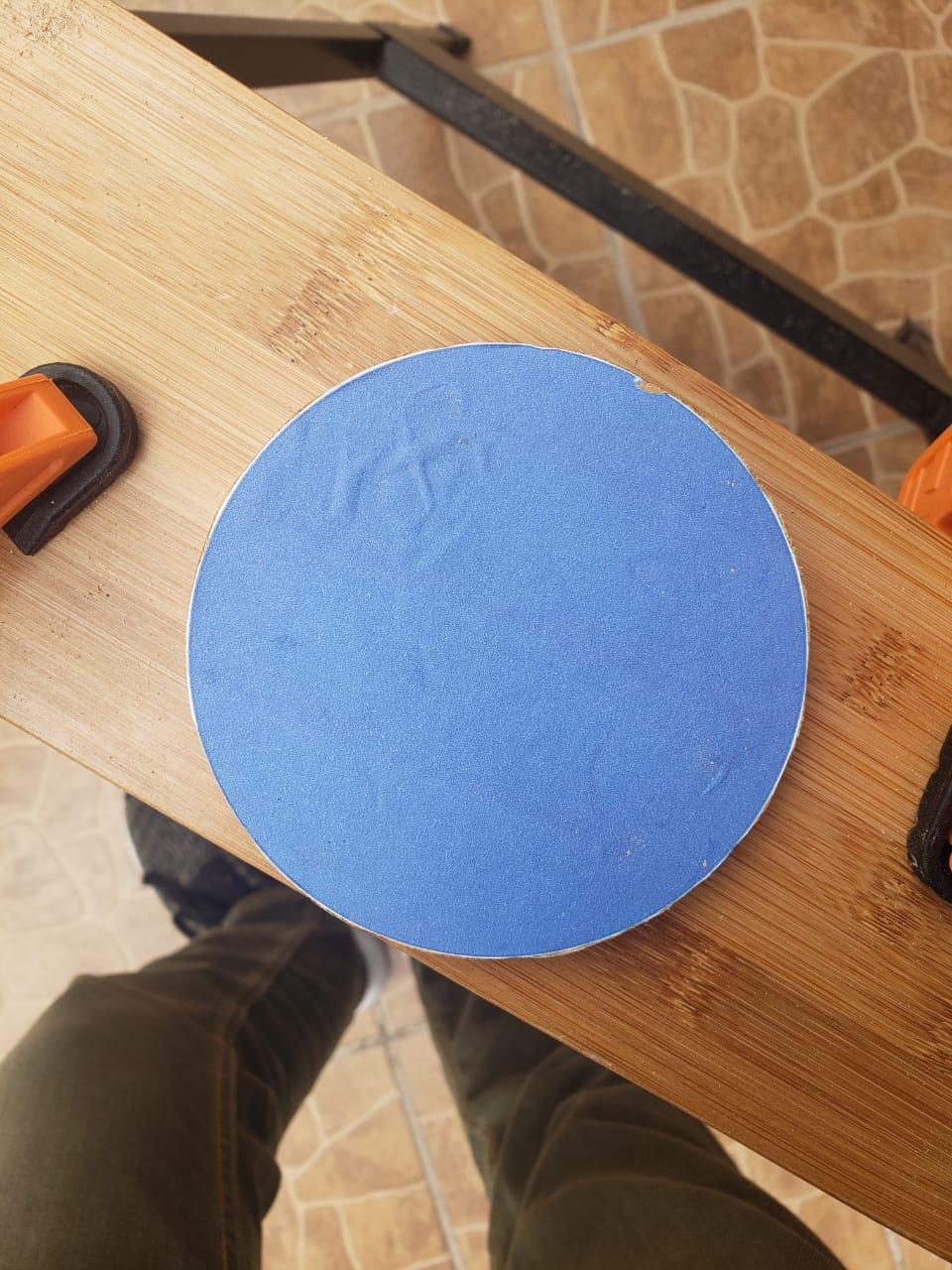

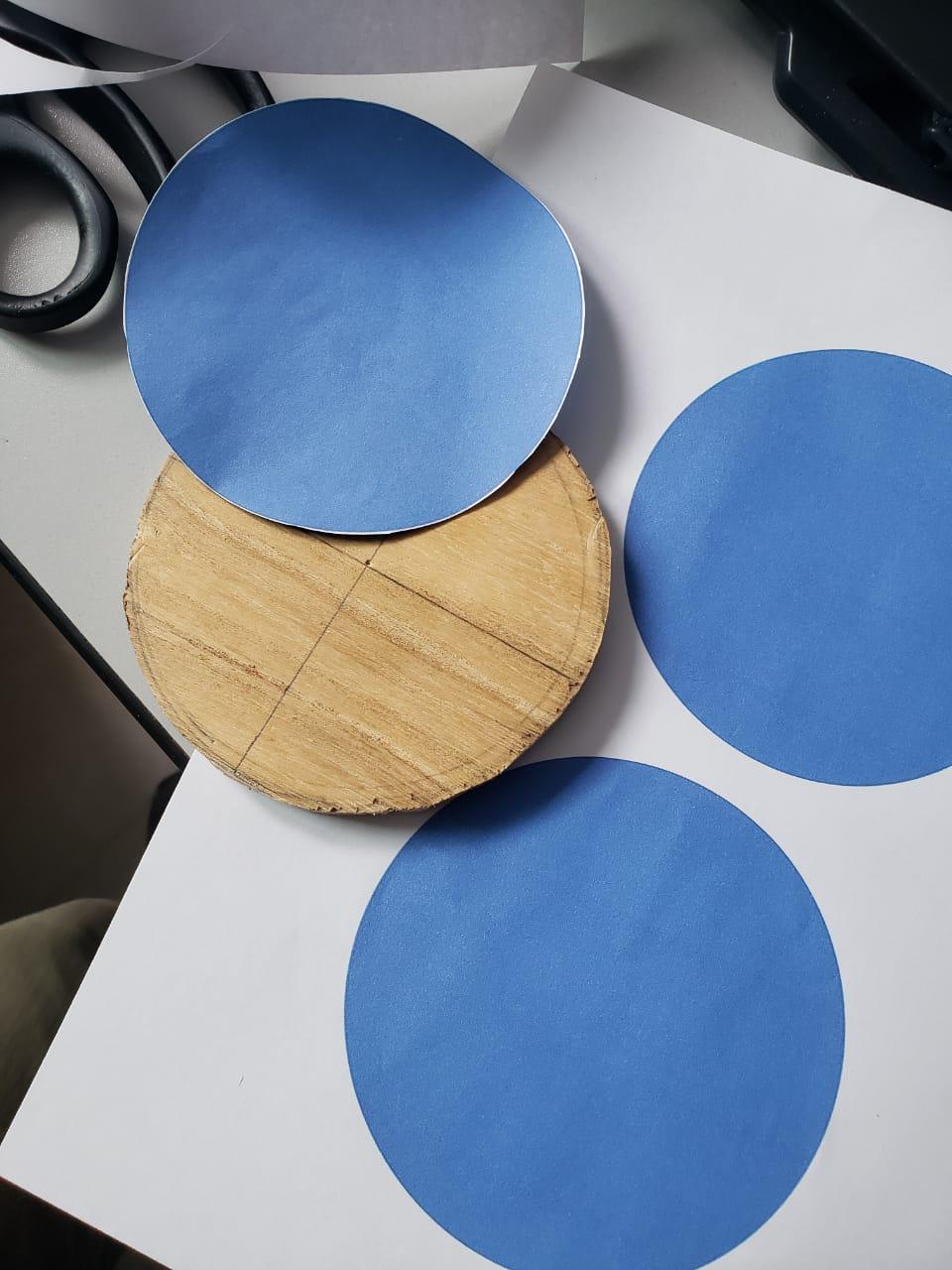

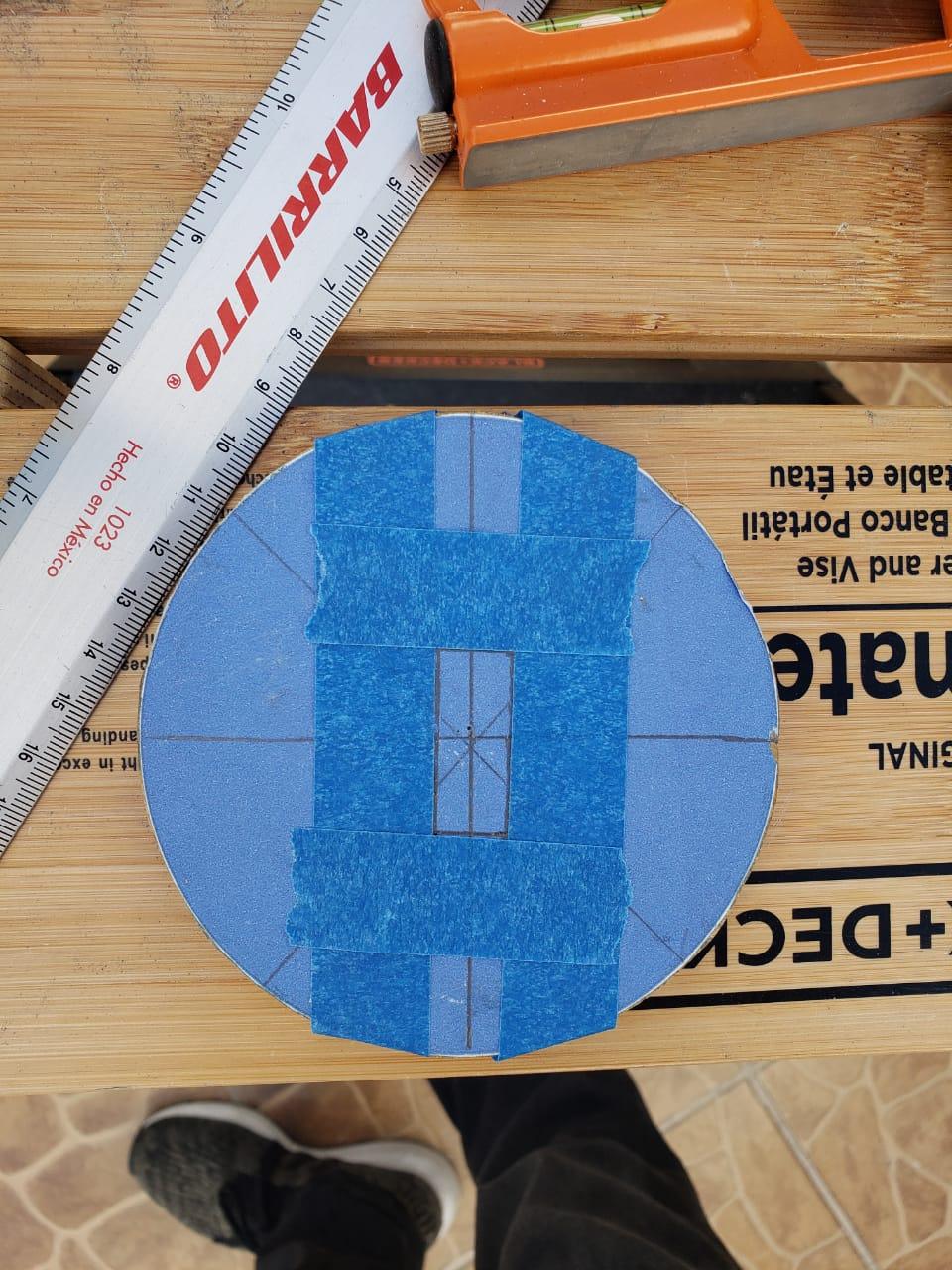

For the collar I made a circle, cut it and then I pasted a circle on top to sand it evenly. After that, I took the blade and reduced the thickness by half an inch on both sides. I cut the collar to fit in the blade.

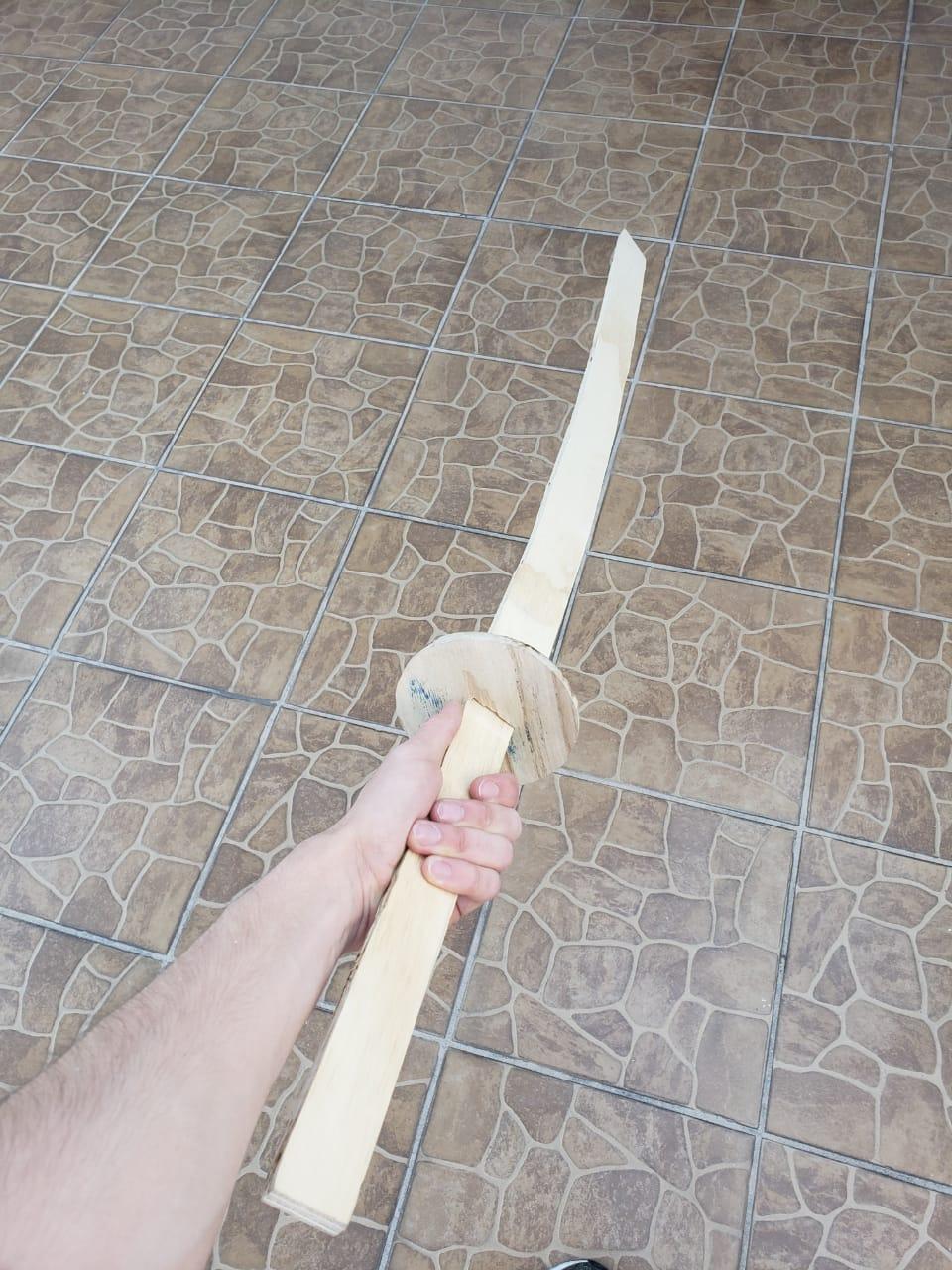

After I made the reduction of the thickness I fitted the collar in the blade. In some parts, I sanded the handle so it could pass.

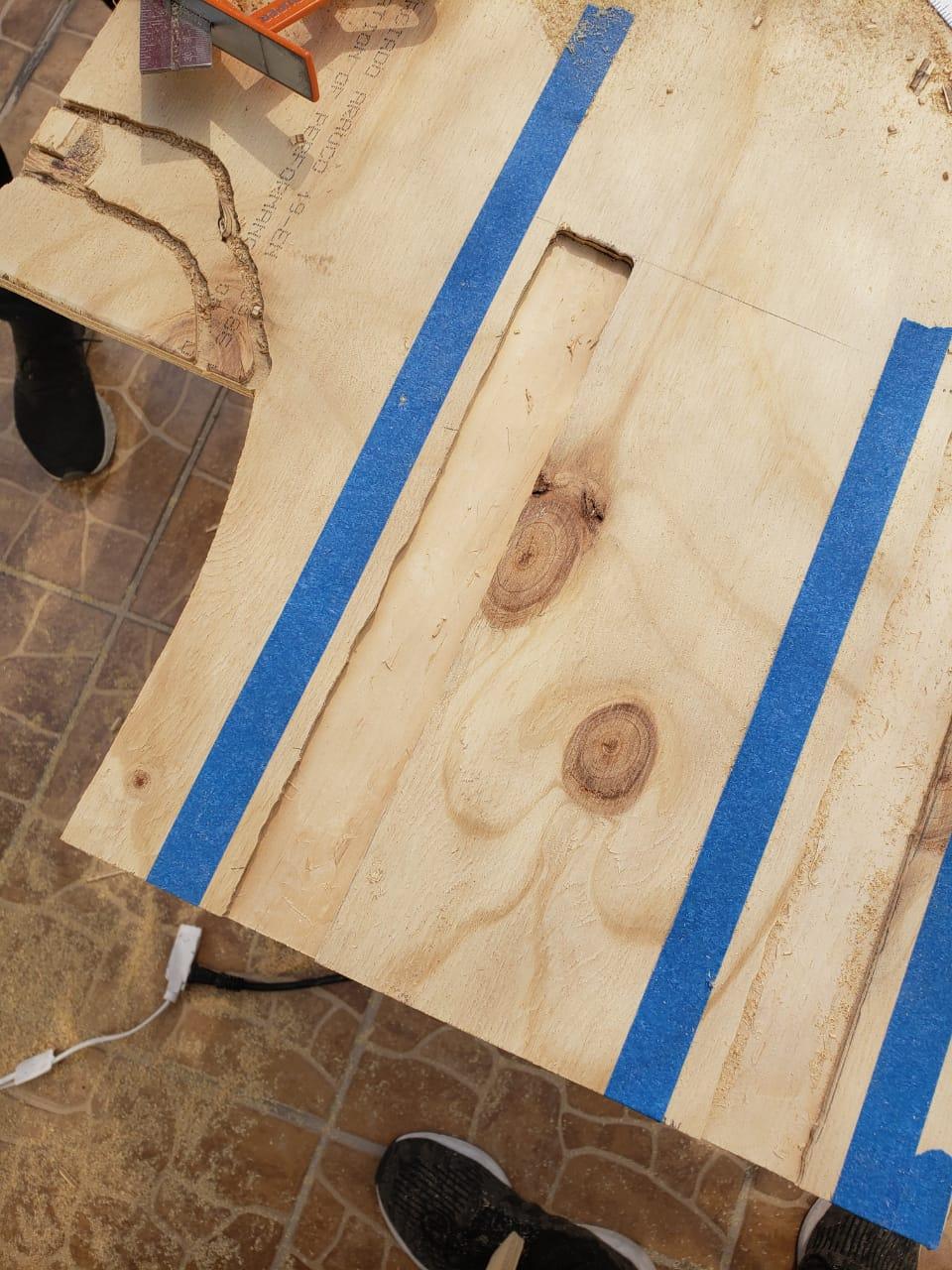

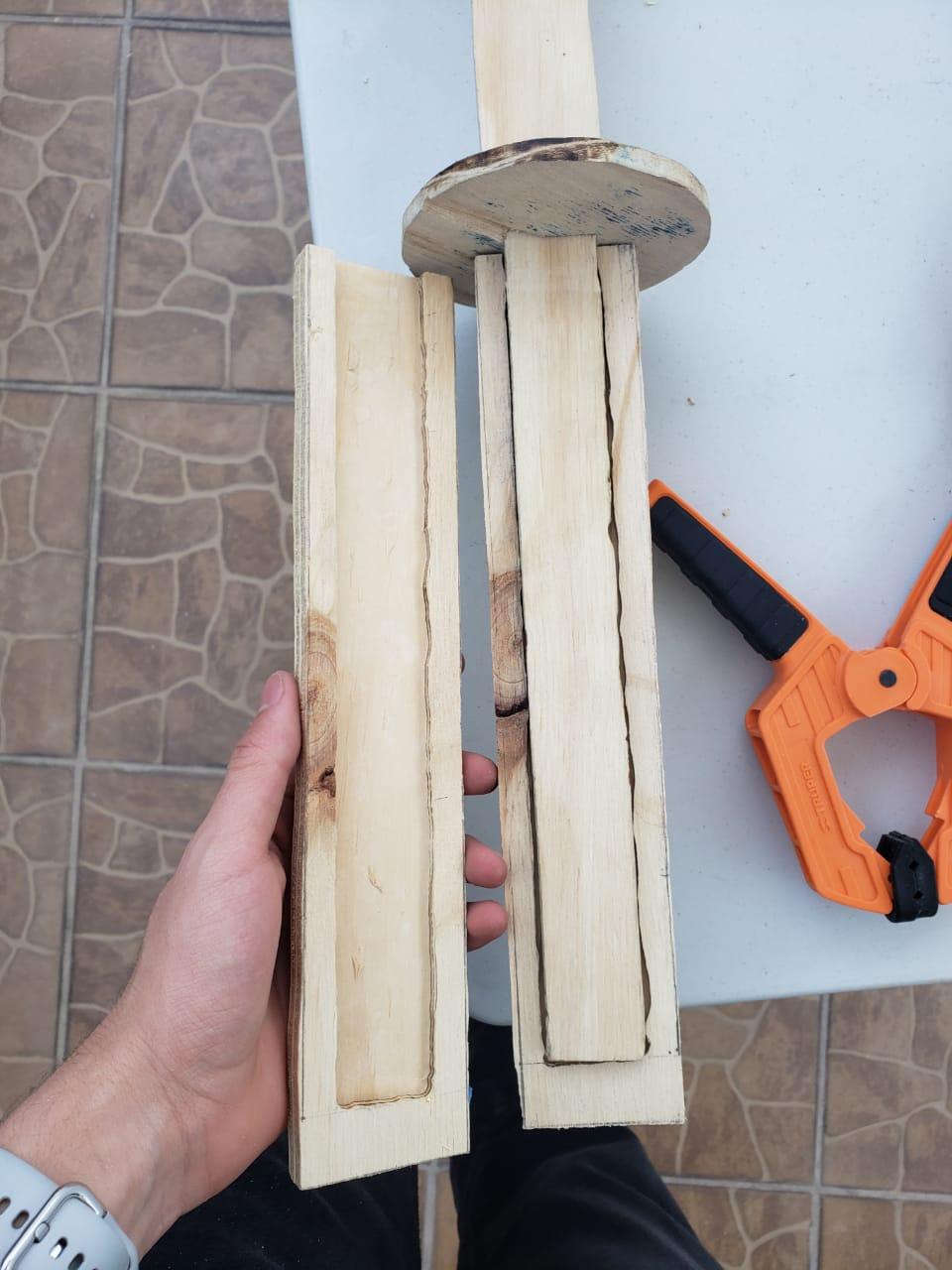

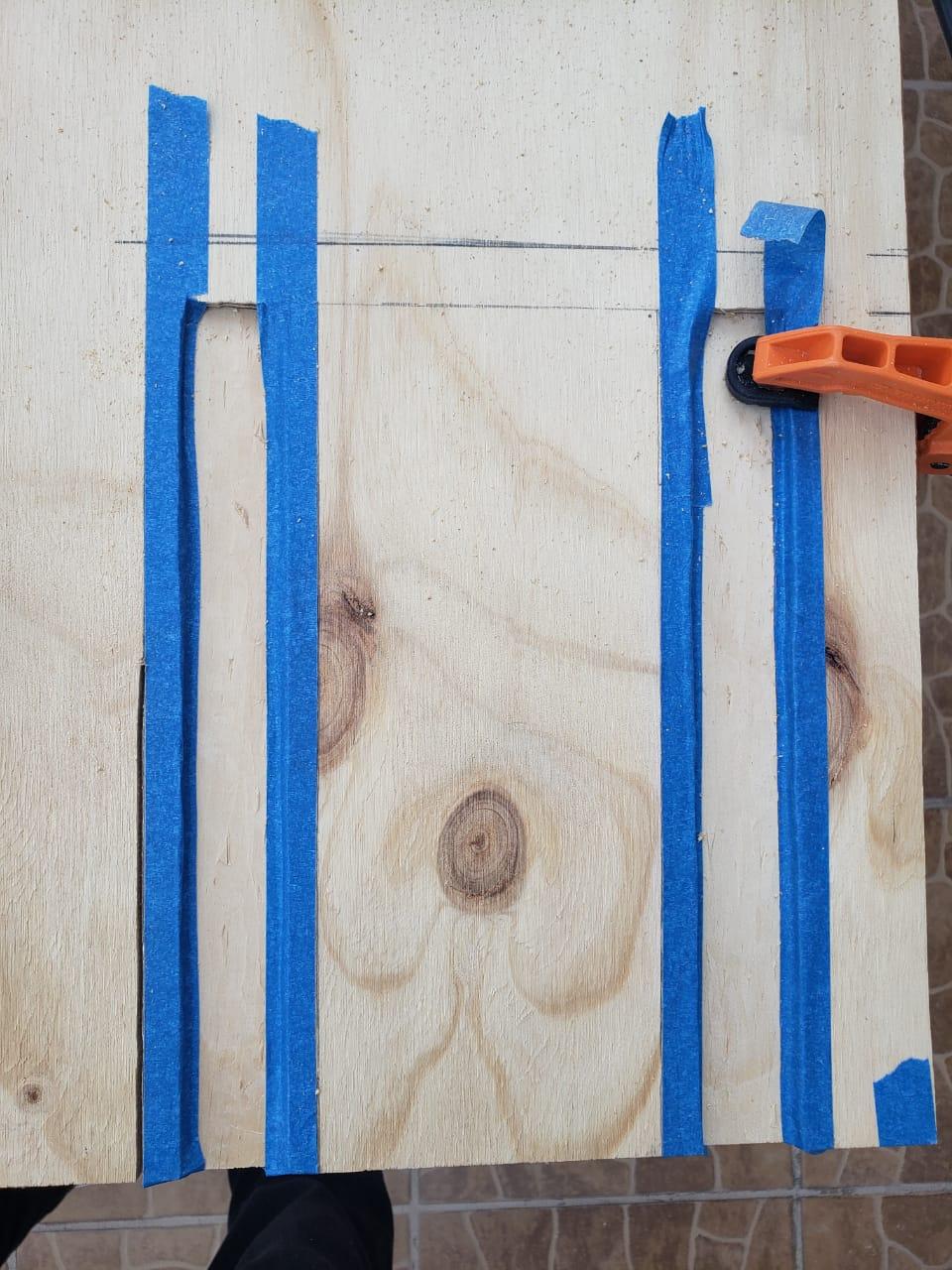

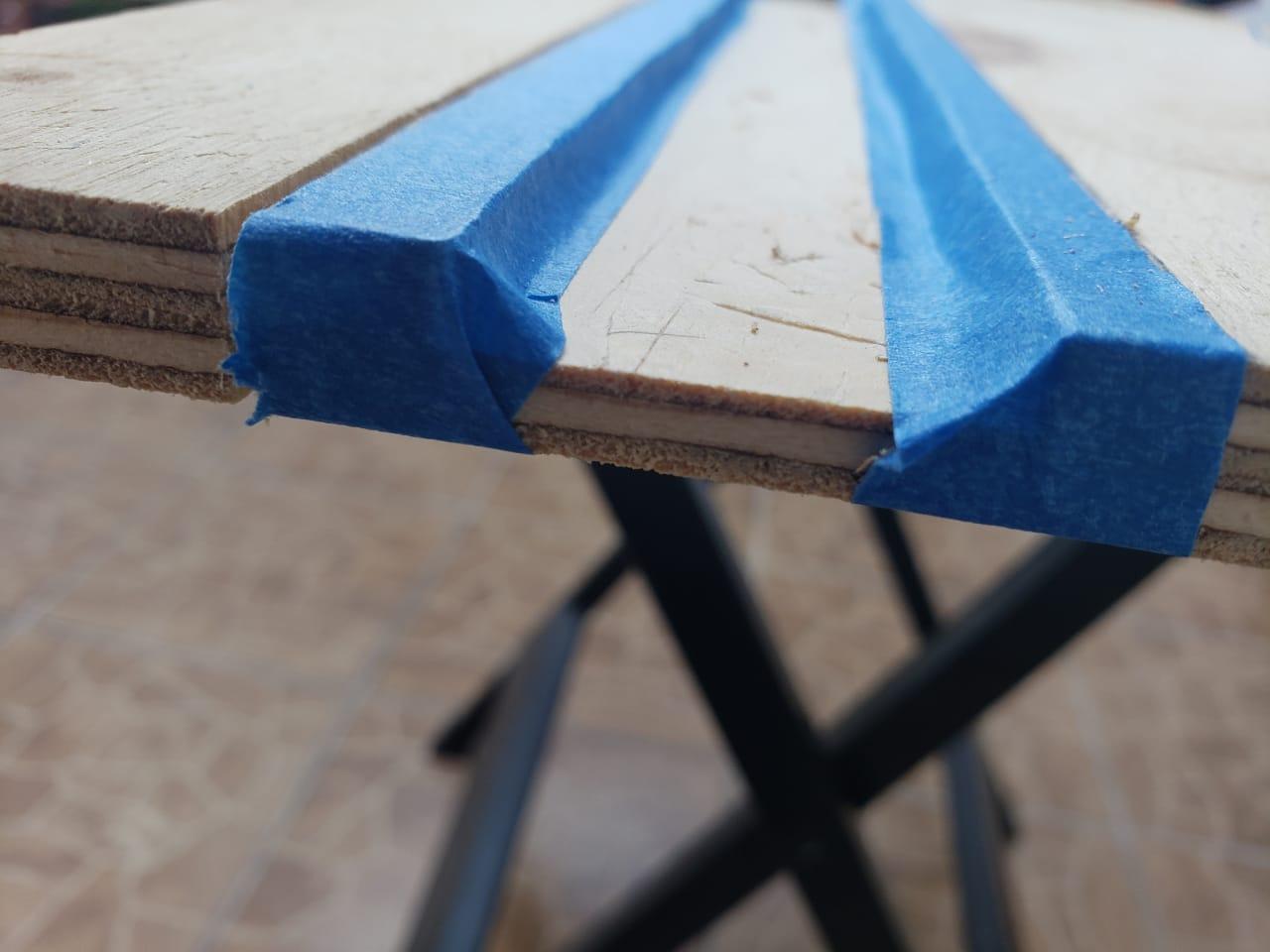

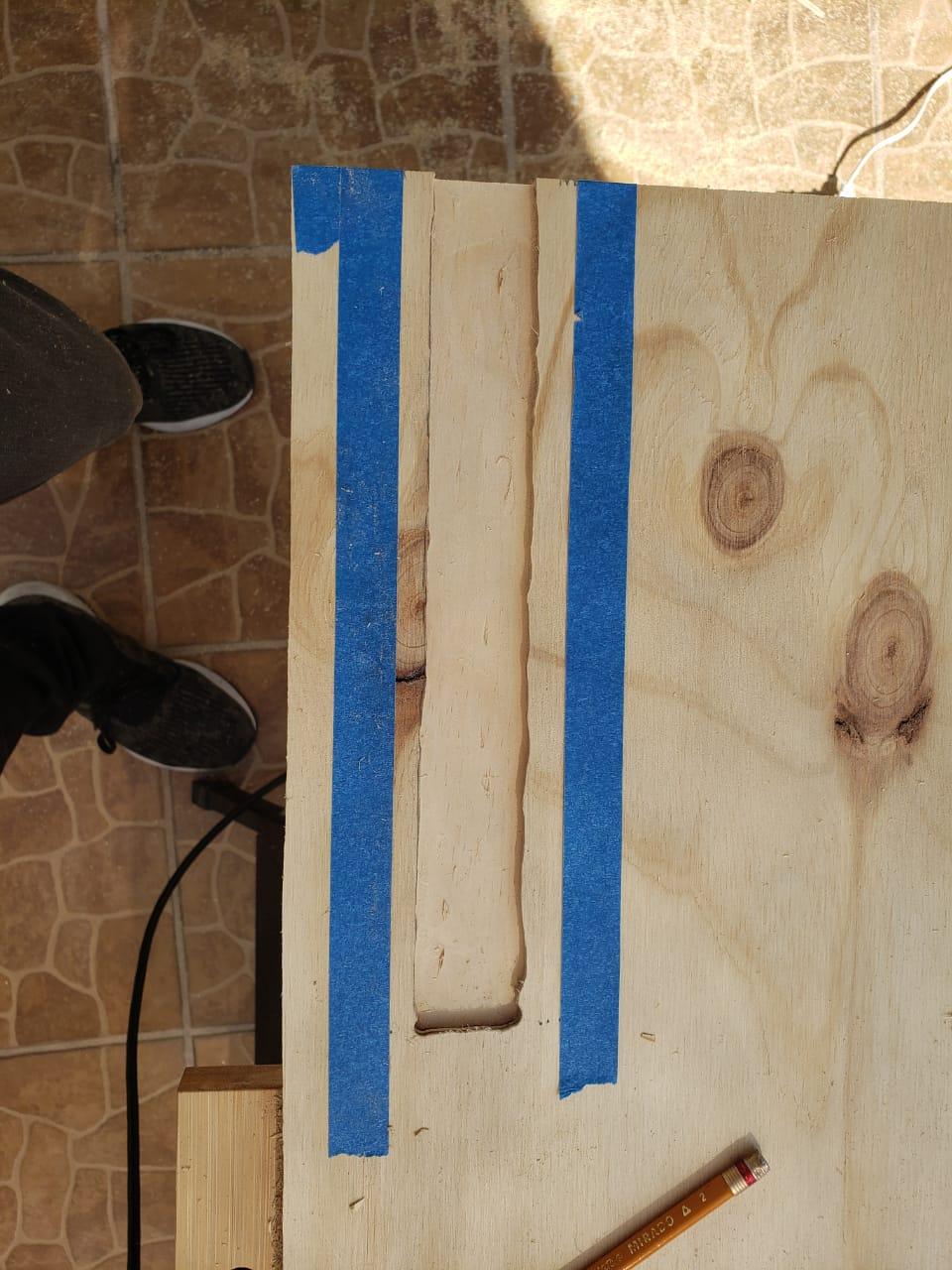

To make the handle I made 2 rectangles that would stack in the blade like a sandwich. I made them 1/2" thicker on both sides and 1 inch larger. After that, I reduced the depth of the wood by 1/2".

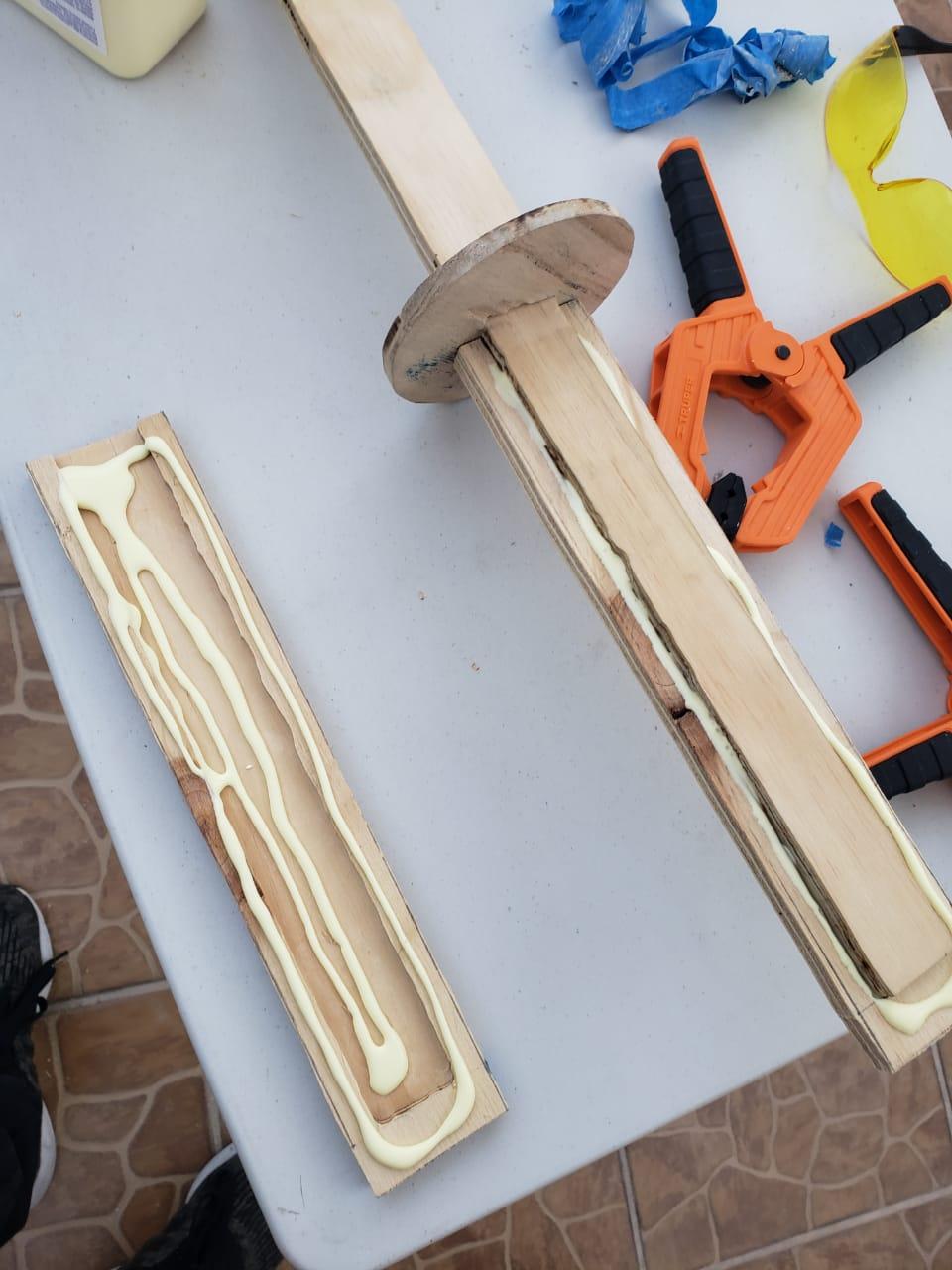

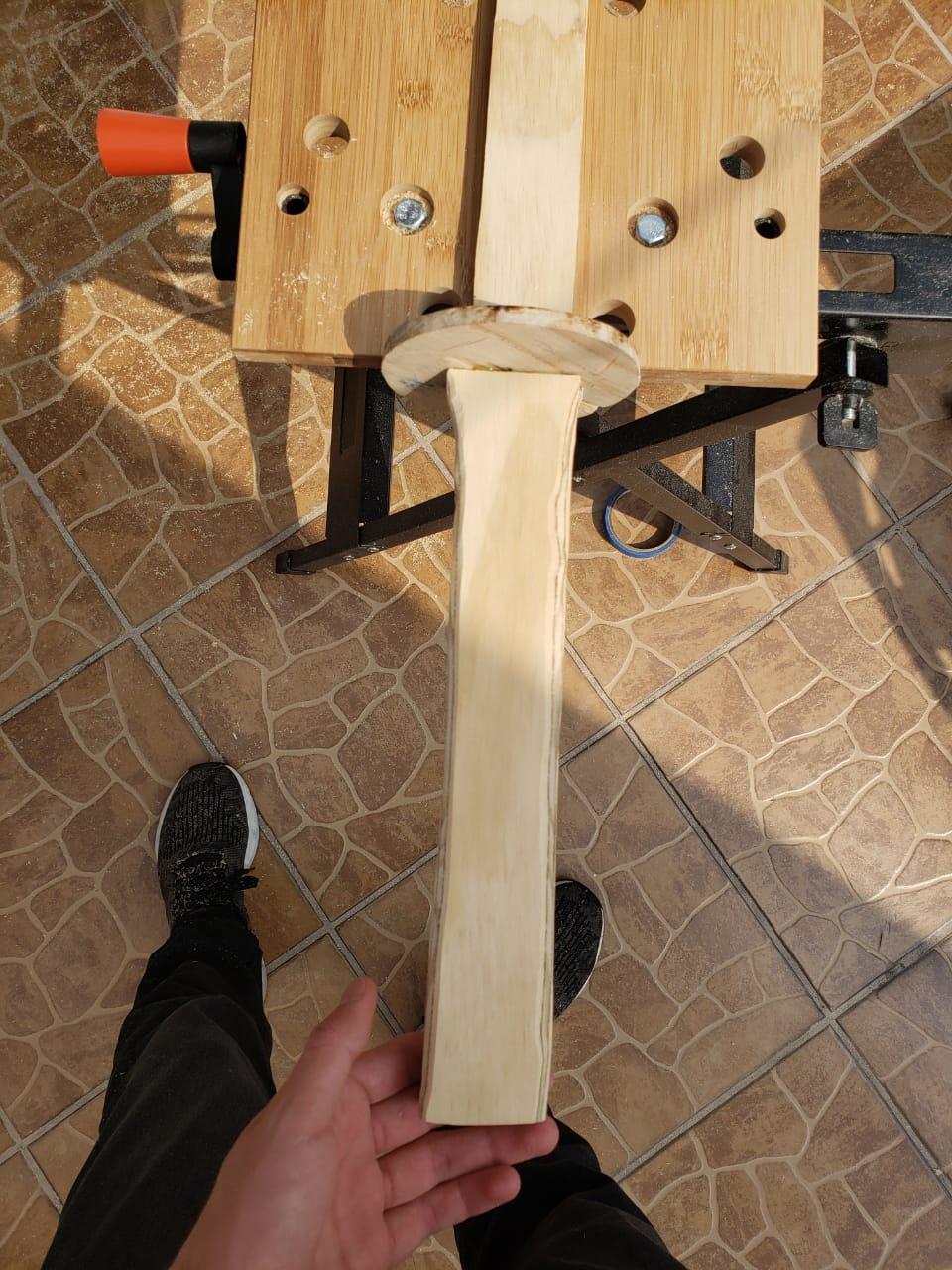

After that, I glued both parts of the handle.

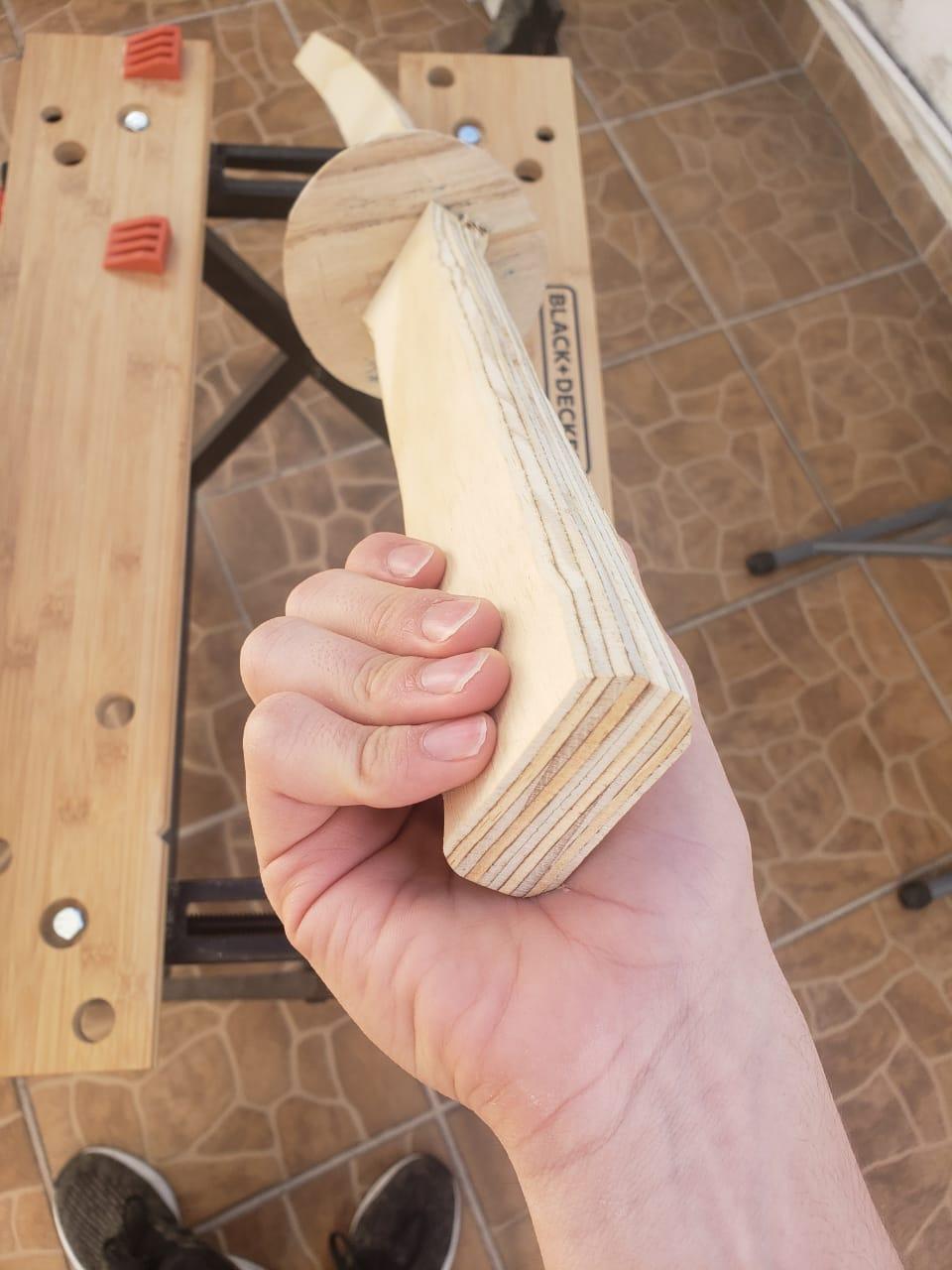

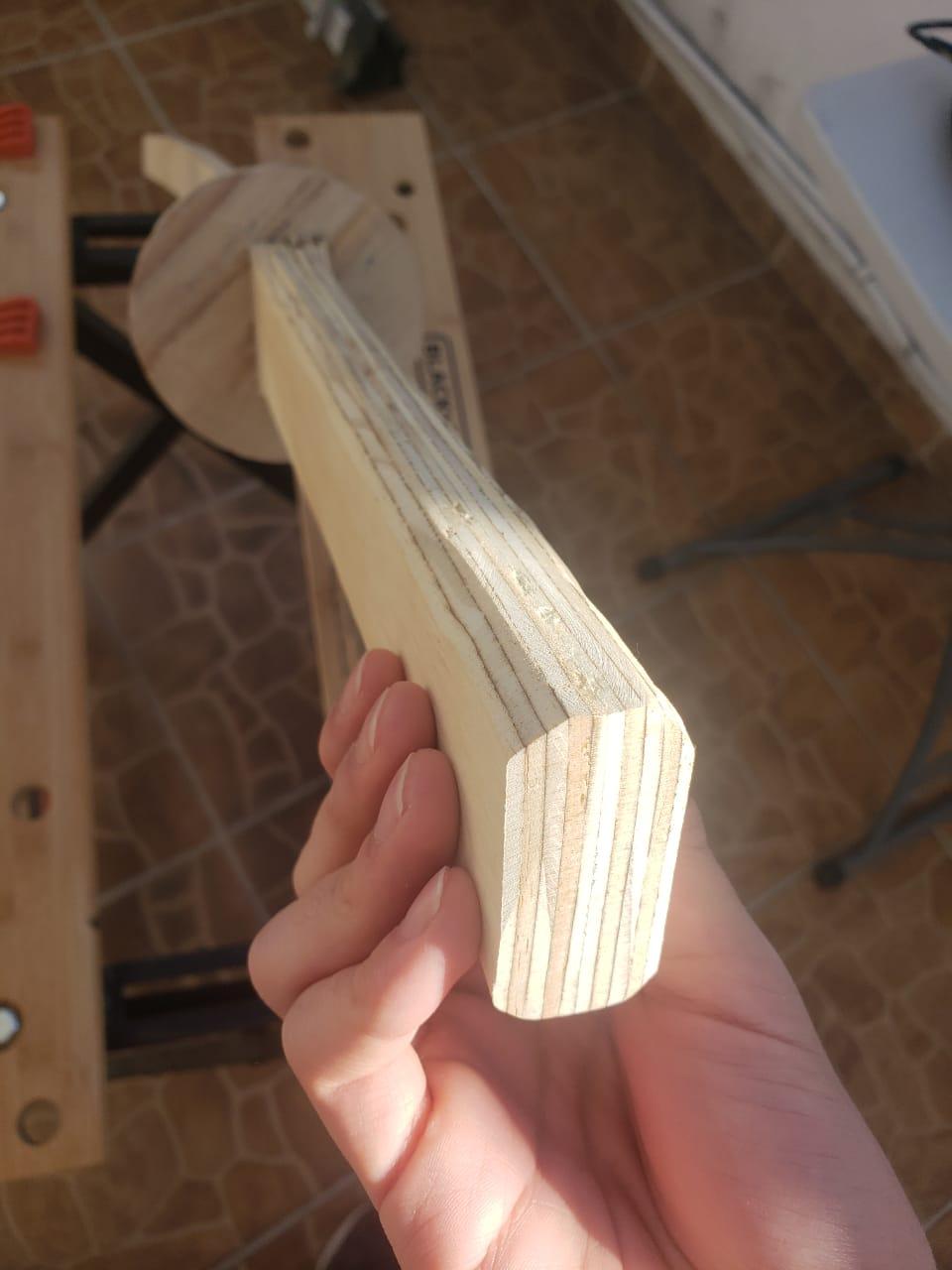

I started sanding the handle into an oval. I made it in a way that it's comfortable to the hand.

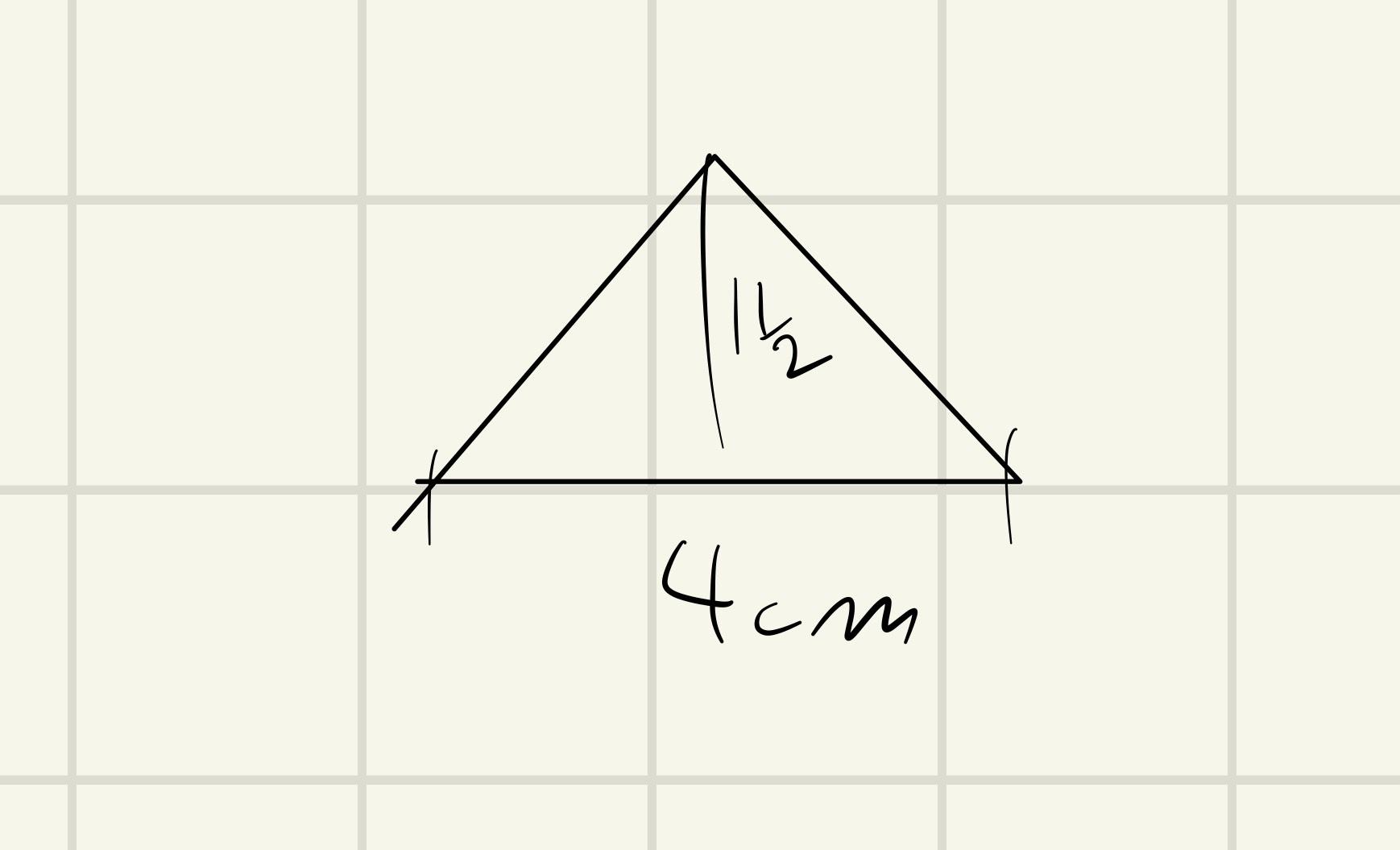

I engraved 18 triangles on the blade, the dimensions are in the image. After that, I engraved 9 rhombuses (1/2" wide) on both sides of the handle.

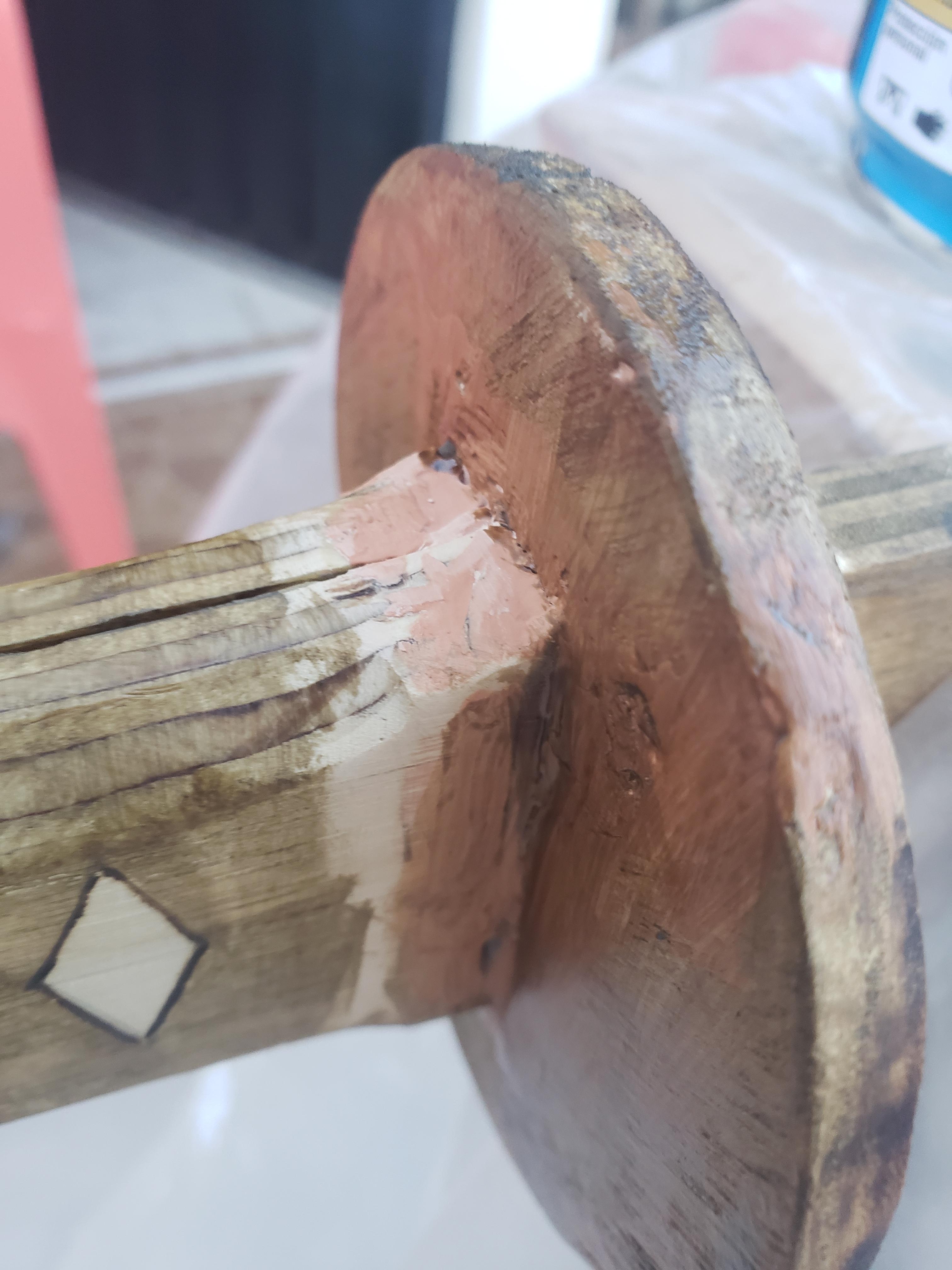

When working I made few mistakes, therefore I applied a wood healer so the gaps that the plywood would not appear.

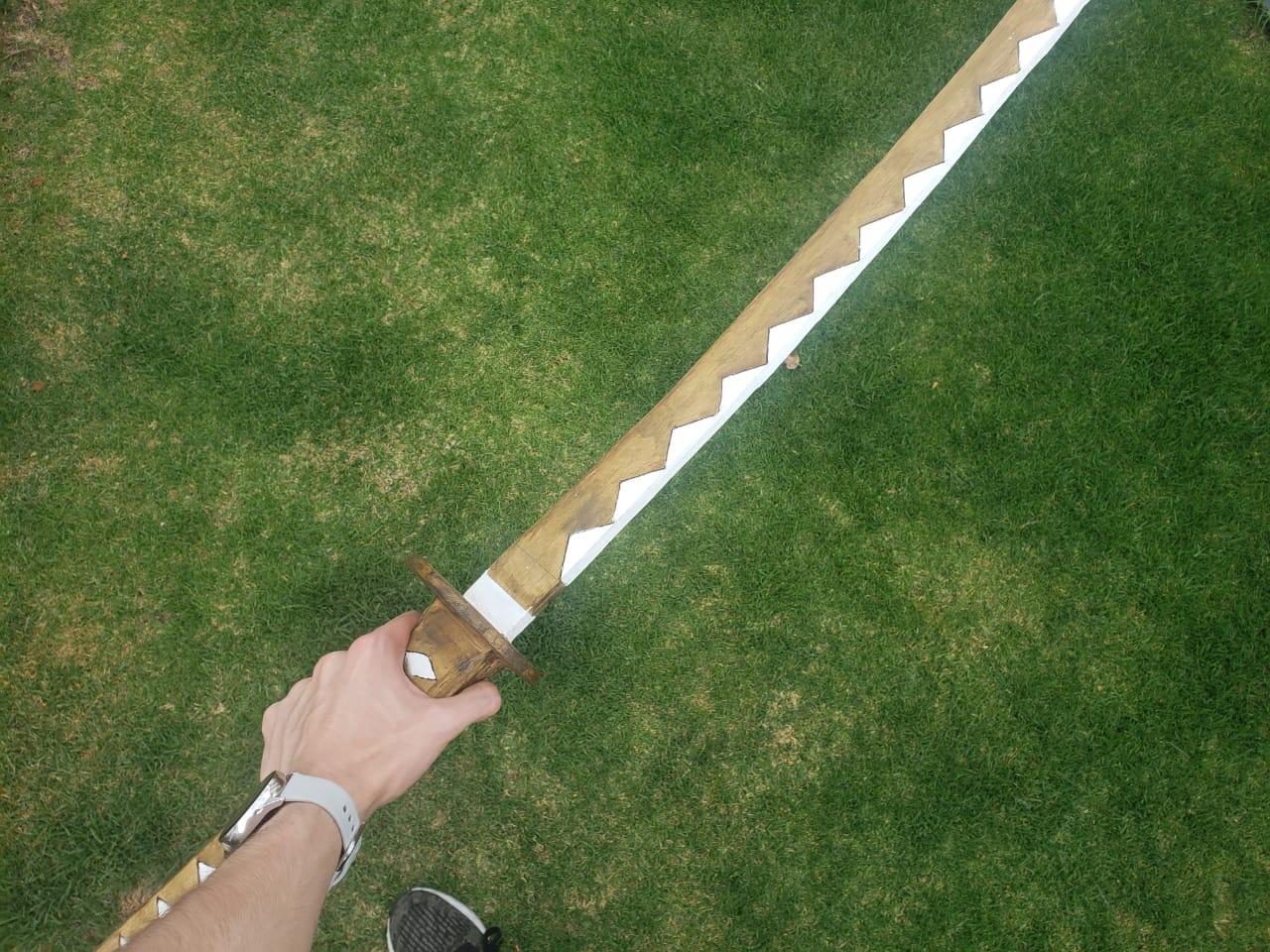

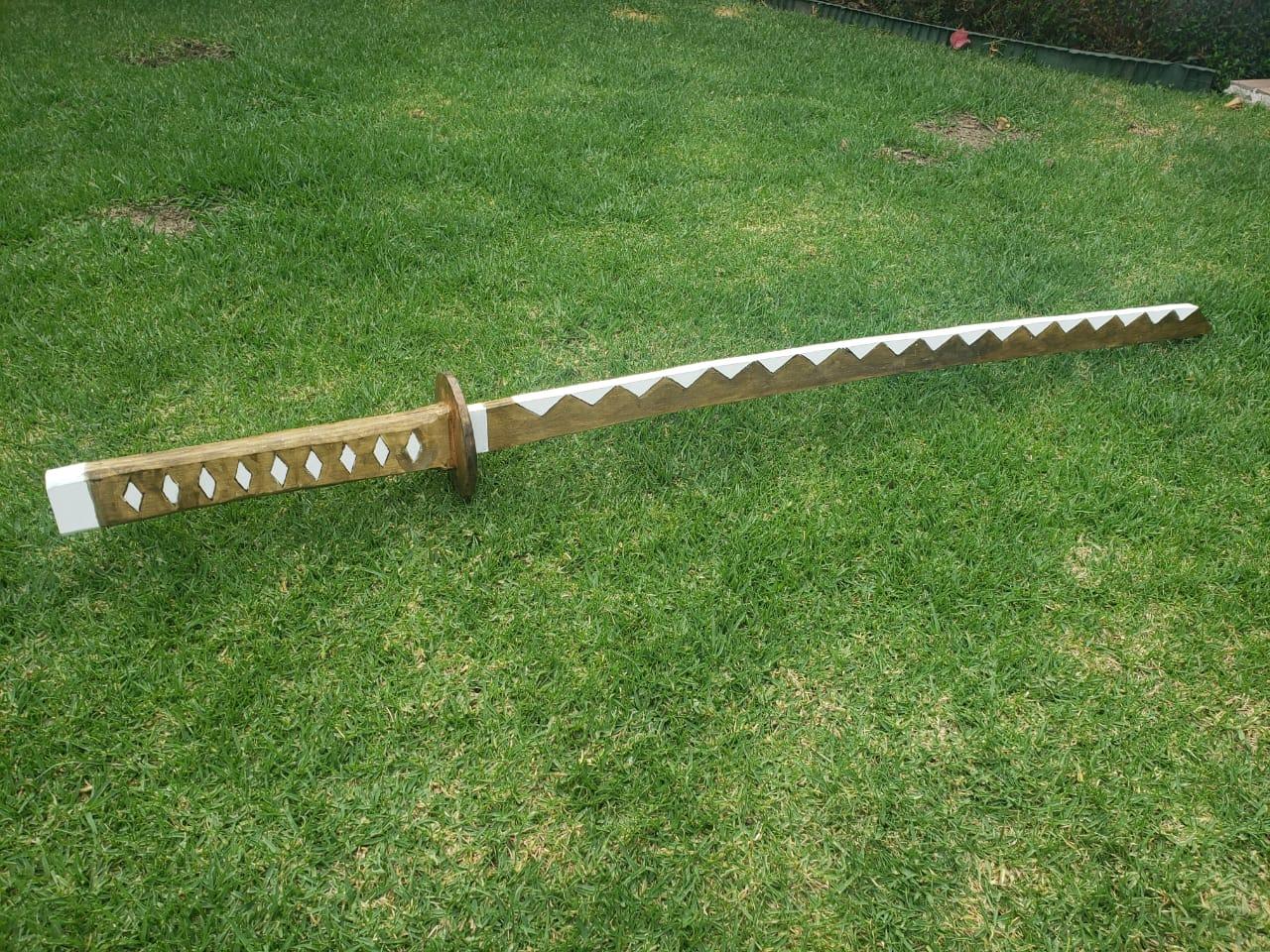

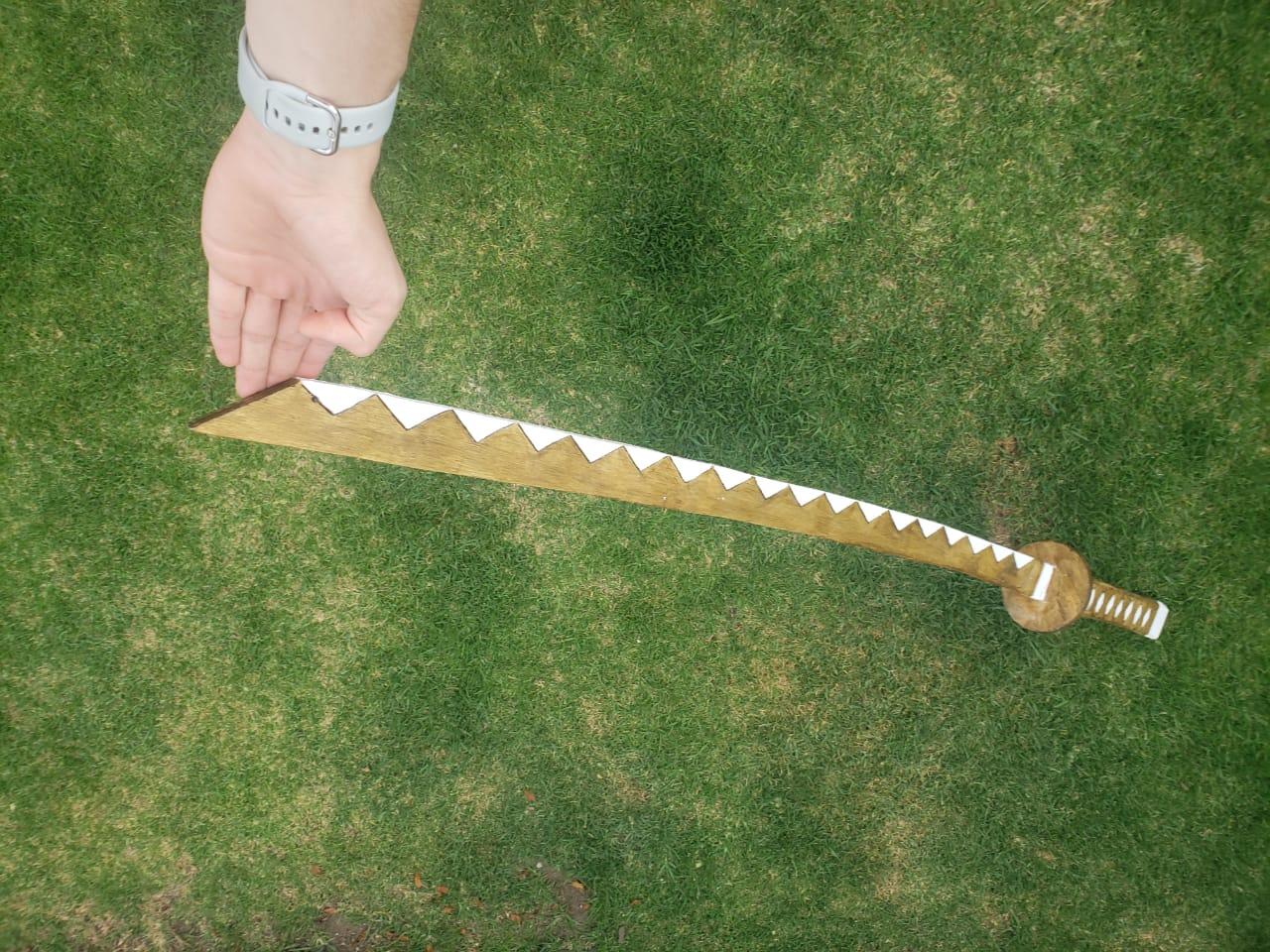

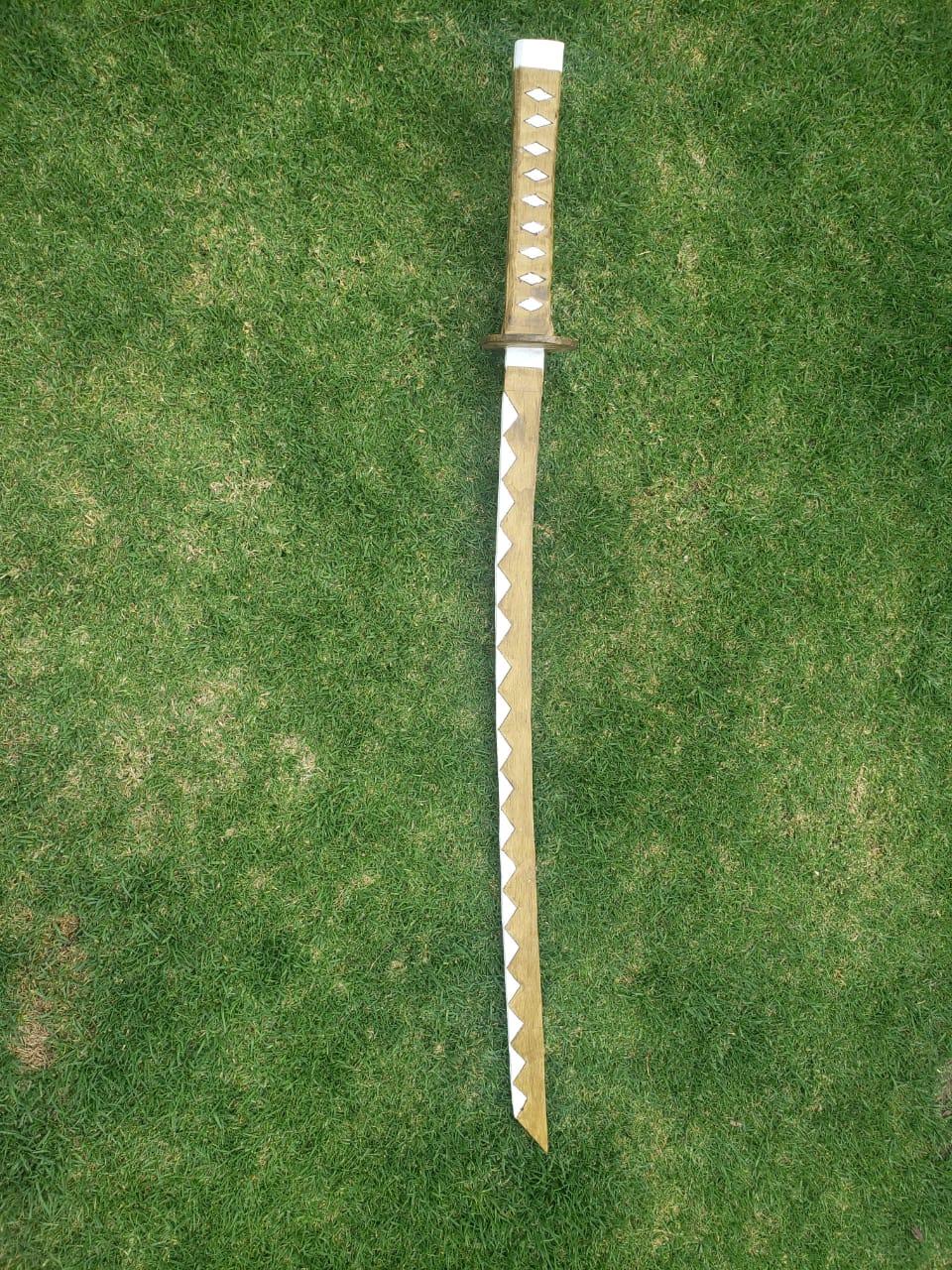

To finish the katana I painted the sword, as an optional step I painted 2 rectangles (one in the handle and one above the collar), which mimic the parts of a katana.
