Wooden Google Logo
![20170128_140640.jpg](/proxy/?url=https://content.instructables.com/FK3/FDQP/IYGFQBG3/FK3FDQPIYGFQBG3.jpg&filename=20170128_140640.jpg)
![IMG_1273.jpg](/proxy/?url=https://content.instructables.com/F11/0GDR/IYGFQA5S/F110GDRIYGFQA5S.jpg&filename=IMG_1273.jpg)
![IMG_1274.jpg](/proxy/?url=https://content.instructables.com/FZH/ESG5/IYGFQA5T/FZHESG5IYGFQA5T.jpg&filename=IMG_1274.jpg)
![IMG_1275.jpg](/proxy/?url=https://content.instructables.com/FSL/BV4B/IYGFQA6L/FSLBV4BIYGFQA6L.jpg&filename=IMG_1275.jpg)
Cut three 450 mm pieces off from a planed 125x25 mm board using a miter saw.
Cut it along into 50x25x450 mm work-pieces using a disk saw.
Work one side of each work-piece with a hand router equipped with a DIY tool.
Glue the Pieces Together
![IMG_1276.jpg](/proxy/?url=https://content.instructables.com/FFZ/TT4F/IYGFQA5W/FFZTT4FIYGFQA5W.jpg&filename=IMG_1276.jpg)
![IMG_1277.jpg](/proxy/?url=https://content.instructables.com/FQ3/AEP3/IYGFQA5Z/FQ3AEP3IYGFQA5Z.jpg&filename=IMG_1277.jpg)
![IMG_1278.jpg](/proxy/?url=https://content.instructables.com/F3F/XNGD/IYGFQA62/F3FXNGDIYGFQA62.jpg&filename=IMG_1278.jpg)
![IMG_1280.jpg](/proxy/?url=https://content.instructables.com/F4S/4GLL/IYGFQA67/F4S4GLLIYGFQA67.jpg&filename=IMG_1280.jpg)

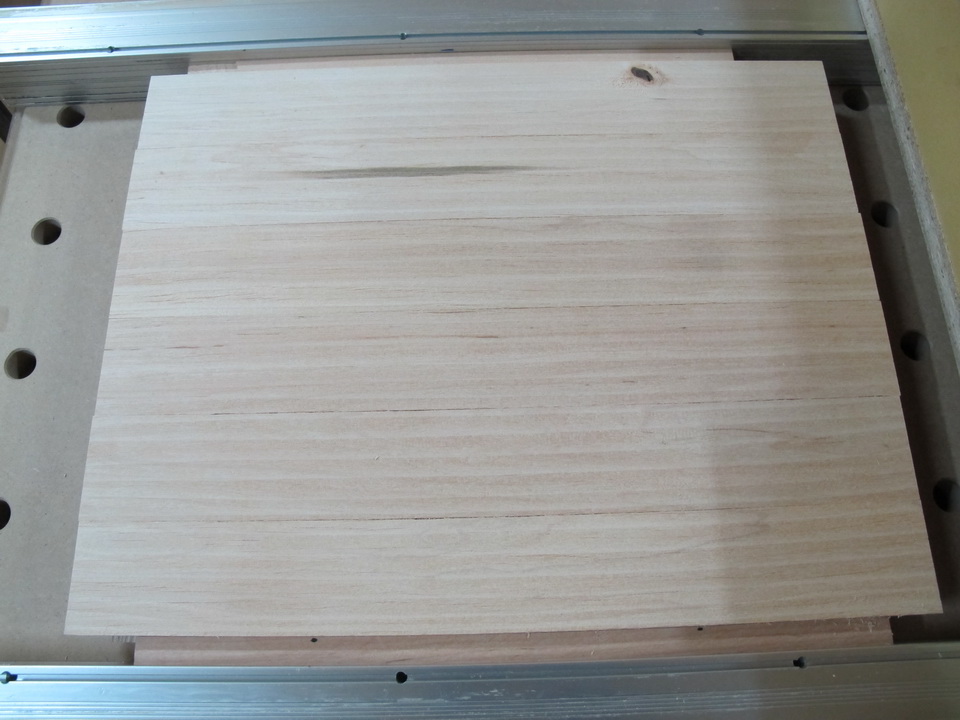

Put the resulting work-pieces together into what will be a board. Please, match color and fiber direction. Mark the face.
Plane the pieces using a hand planer and put them together.

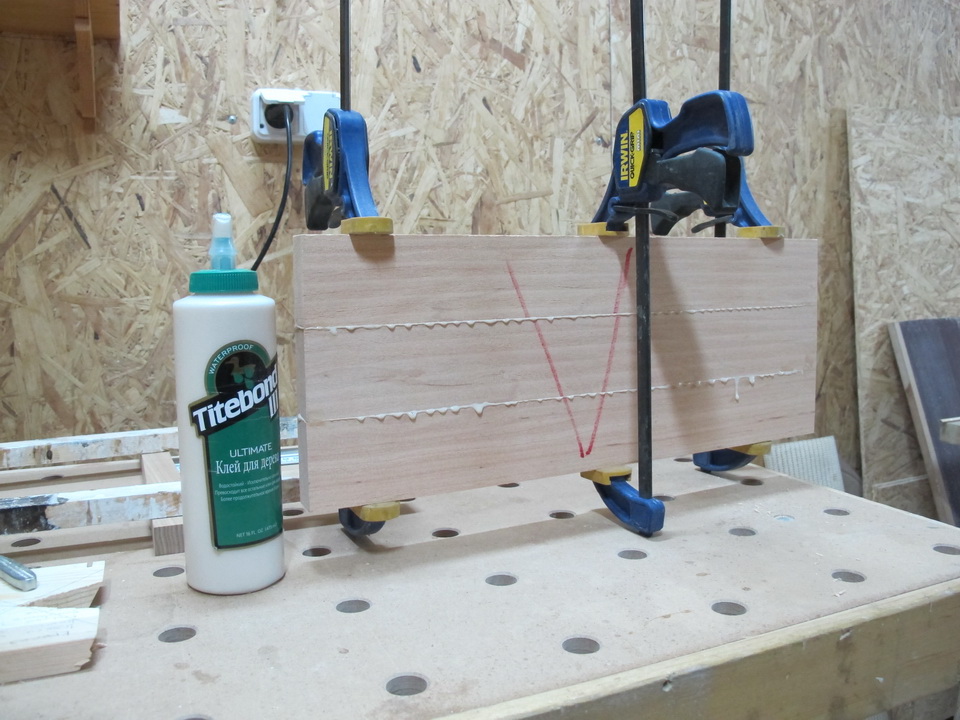

Glue the pieces together into a single board. Remove excess glue with a damp sponge. Wait until the glue dries.

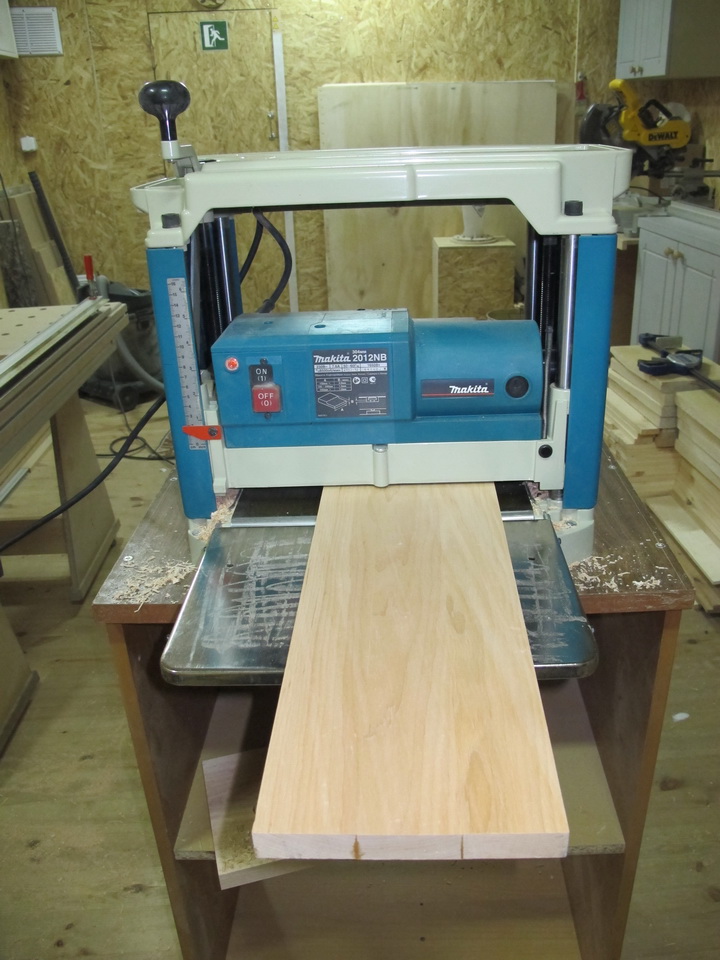

Process the board on a thickness planer until it is 20 mm thick.
Cut Out the Logo
![IMG_1289.jpg](/proxy/?url=https://content.instructables.com/FL1/77CG/IYGFQA68/FL177CGIYGFQA68.jpg&filename=IMG_1289.jpg)
![IMG_1291.jpg](/proxy/?url=https://content.instructables.com/FL3/IP1H/IYGFQA6B/FL3IP1HIYGFQA6B.jpg&filename=IMG_1291.jpg)
![IMG_1292.jpg](/proxy/?url=https://content.instructables.com/FG8/SOG5/IYGFQA6C/FG8SOG5IYGFQA6C.jpg&filename=IMG_1292.jpg)
![IMG_1293.jpg](/proxy/?url=https://content.instructables.com/FZB/CUES/IYGFQA6F/FZBCUESIYGFQA6F.jpg&filename=IMG_1293.jpg)
![IMG_1294.jpg](/proxy/?url=https://content.instructables.com/FCU/I5RX/IYGFQA6K/FCUI5RXIYGFQA6K.jpg&filename=IMG_1294.jpg)

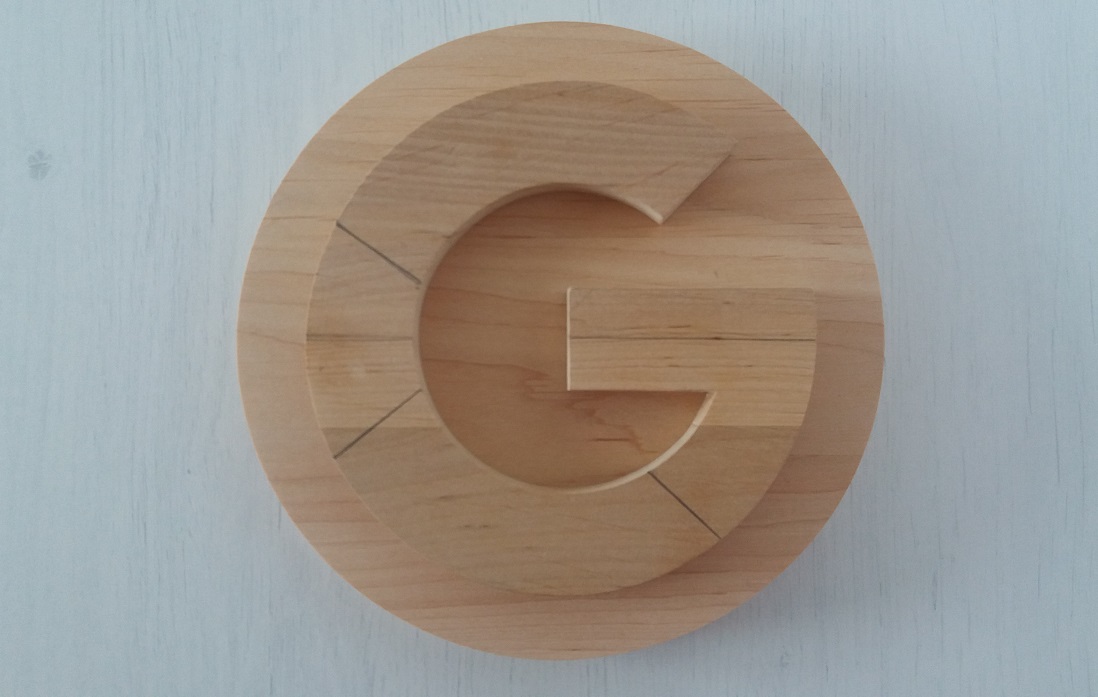

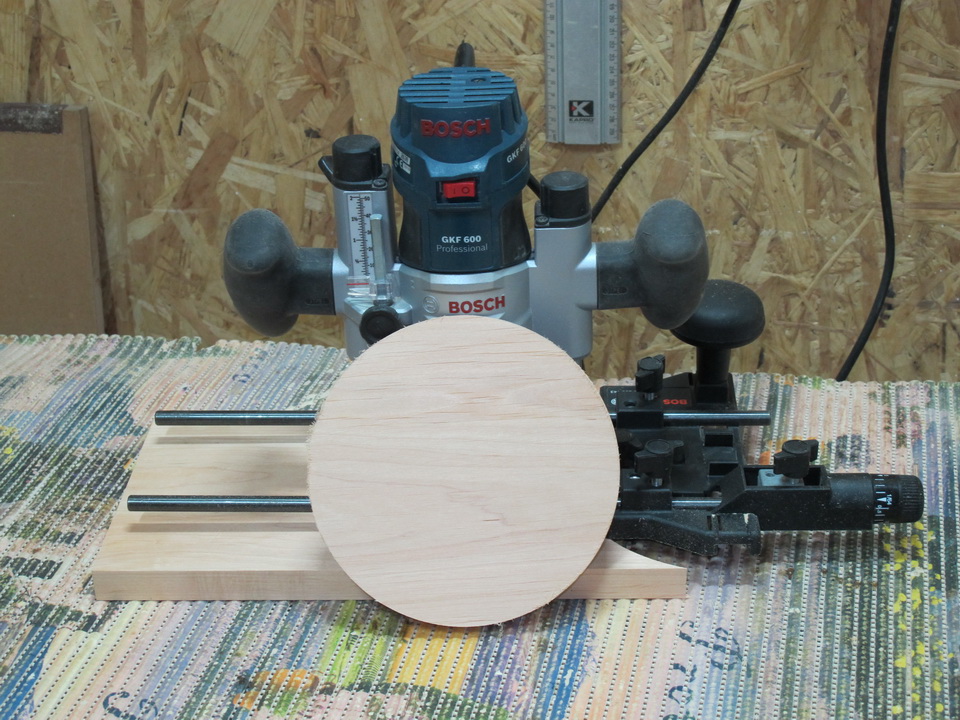

Cut out a circular base for your future logo using a hand router equipped with a compass.
Plane the remaining part of the board until it is 12 mm thick.

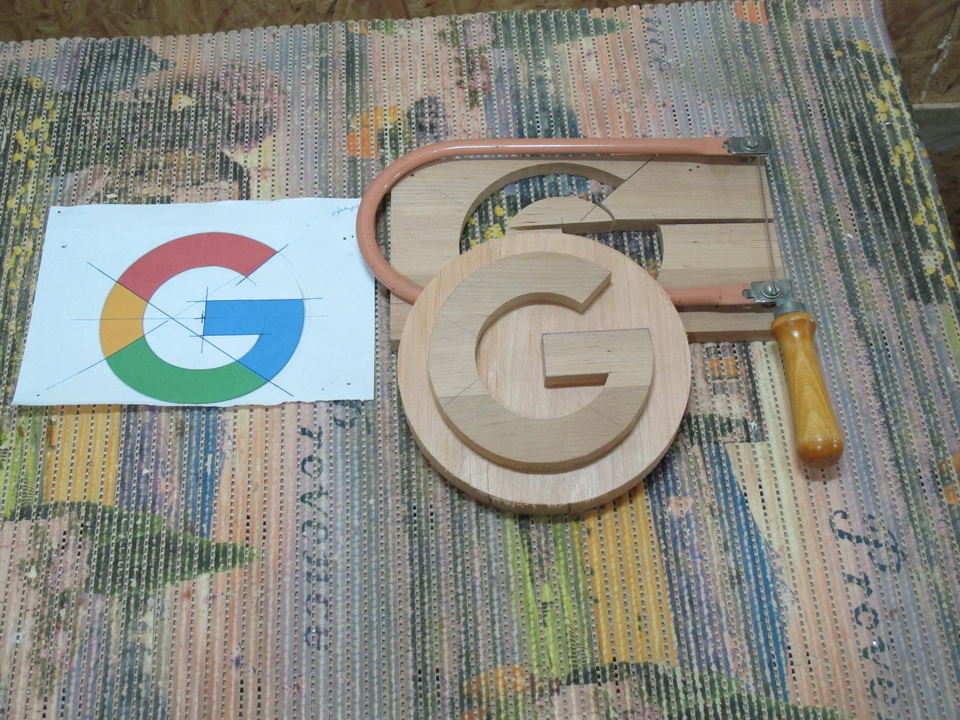

Cut out the Google logo using a portable jig saw.
To prepare the parts for painting, sand them manually.
Paint
![20170128_140128.jpg](/proxy/?url=https://content.instructables.com/F9Z/93TC/IYGFQA56/F9Z93TCIYGFQA56.jpg&filename=20170128_140128.jpg)
![20170128_130738.jpg](/proxy/?url=https://content.instructables.com/FI6/WJQC/IYGFQA45/FI6WJQCIYGFQA45.jpg&filename=20170128_130738.jpg)
![20170128_132226.jpg](/proxy/?url=https://content.instructables.com/FCY/BDZN/IYGFQA4W/FCYBDZNIYGFQA4W.jpg&filename=20170128_132226.jpg)
![20170128_140113.jpg](/proxy/?url=https://content.instructables.com/FZM/ETO9/IYGFQA50/FZMETO9IYGFQA50.jpg&filename=20170128_140113.jpg)

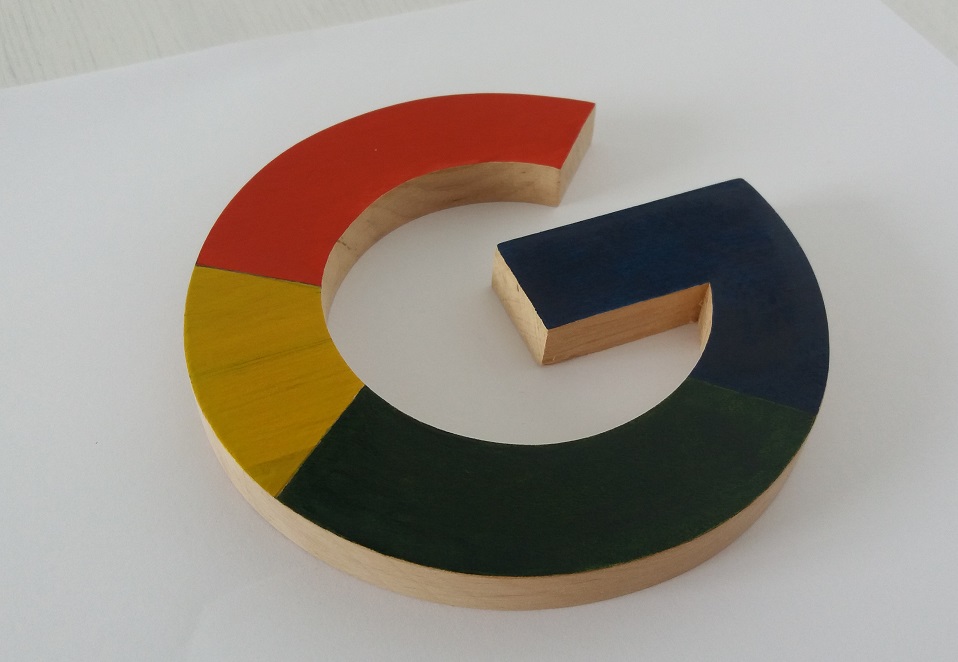

Mark out the piece with a pencil. Paint the Google logo with a brush. Apply the original color pattern.
Google's favicon shows a capital letter "G", in the tailor-made font for the new logo, with segments colored red, yellow, green, and blue.
