Wooden Cutting Box and Clamp
![20220714_094201.jpg](/proxy/?url=https://content.instructables.com/FIX/QKI4/L5JM6WD2/FIXQKI4L5JM6WD2.jpg&filename=20220714_094201.jpg)
![20220708_121409.jpg](/proxy/?url=https://content.instructables.com/FTF/NK46/L5GRBHTS/FTFNK46L5GRBHTS.jpg&filename=20220708_121409.jpg)
Cutting pipe can be difficult as it can roll around. Sure you could secure the pipe in a engineering vice (if you had one) but this can mark the pipe with it's metal jaws.
This tutorial shows you how to make a wooden cutting box and clamp which will allow you to cut pipe or other stuff. It is inexpensive to make. I built it from a length of wood I found discarded (i.e. made it for free).
Supplies
Cut and Glue
![20220708_121331.jpg](/proxy/?url=https://content.instructables.com/FU3/YPR4/L5GRBHTW/FU3YPR4L5GRBHTW.jpg&filename=20220708_121331.jpg)
![20220708_121821.jpg](/proxy/?url=https://content.instructables.com/FFO/BSAH/L5GRBHU2/FFOBSAHL5GRBHU2.jpg&filename=20220708_121821.jpg)
![20220708_122431.jpg](/proxy/?url=https://content.instructables.com/F56/UDTL/L5GRBHU7/F56UDTLL5GRBHU7.jpg&filename=20220708_122431.jpg)

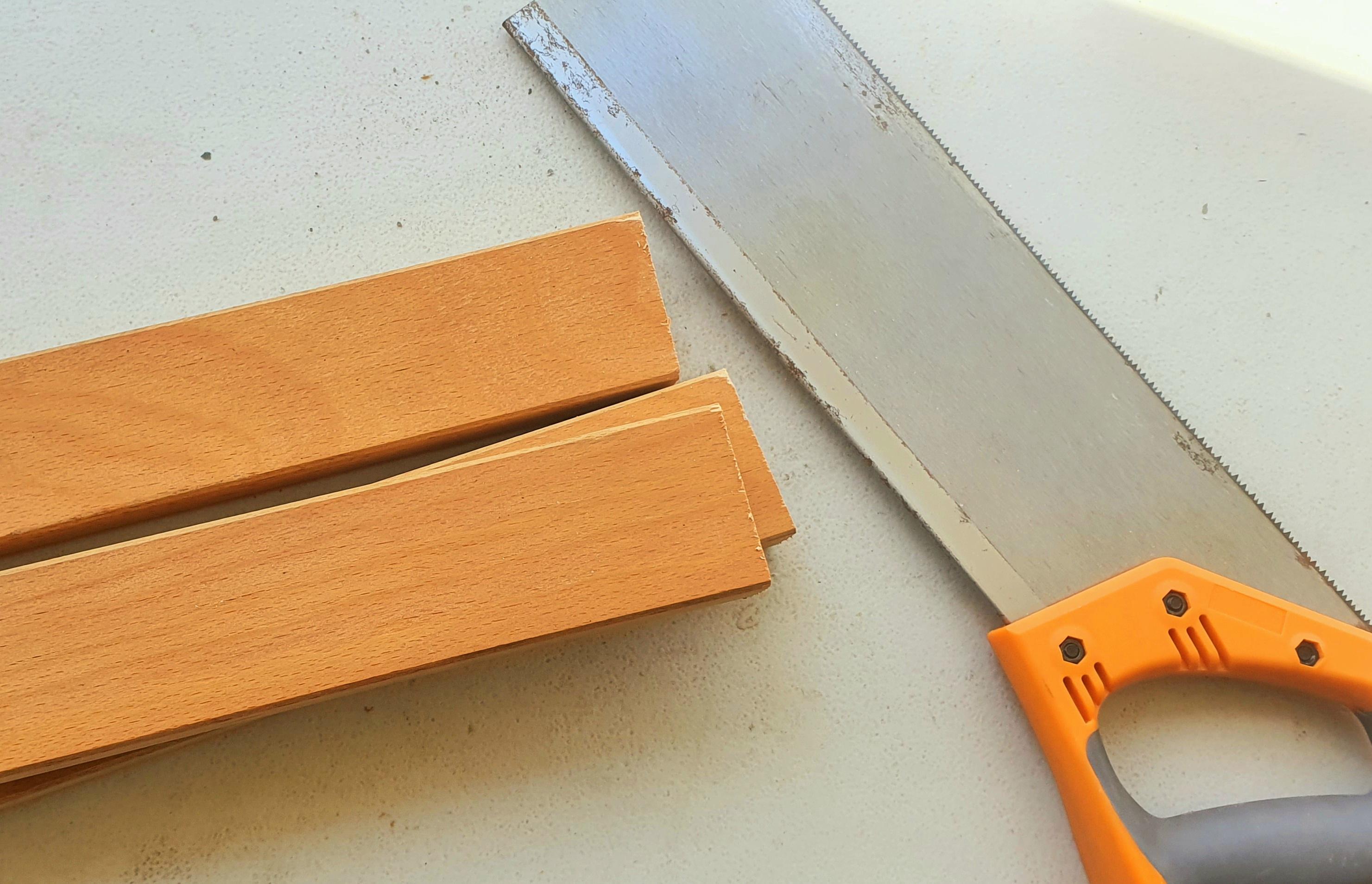

- Cut 3 lengths of timber 35 Centimetres long.

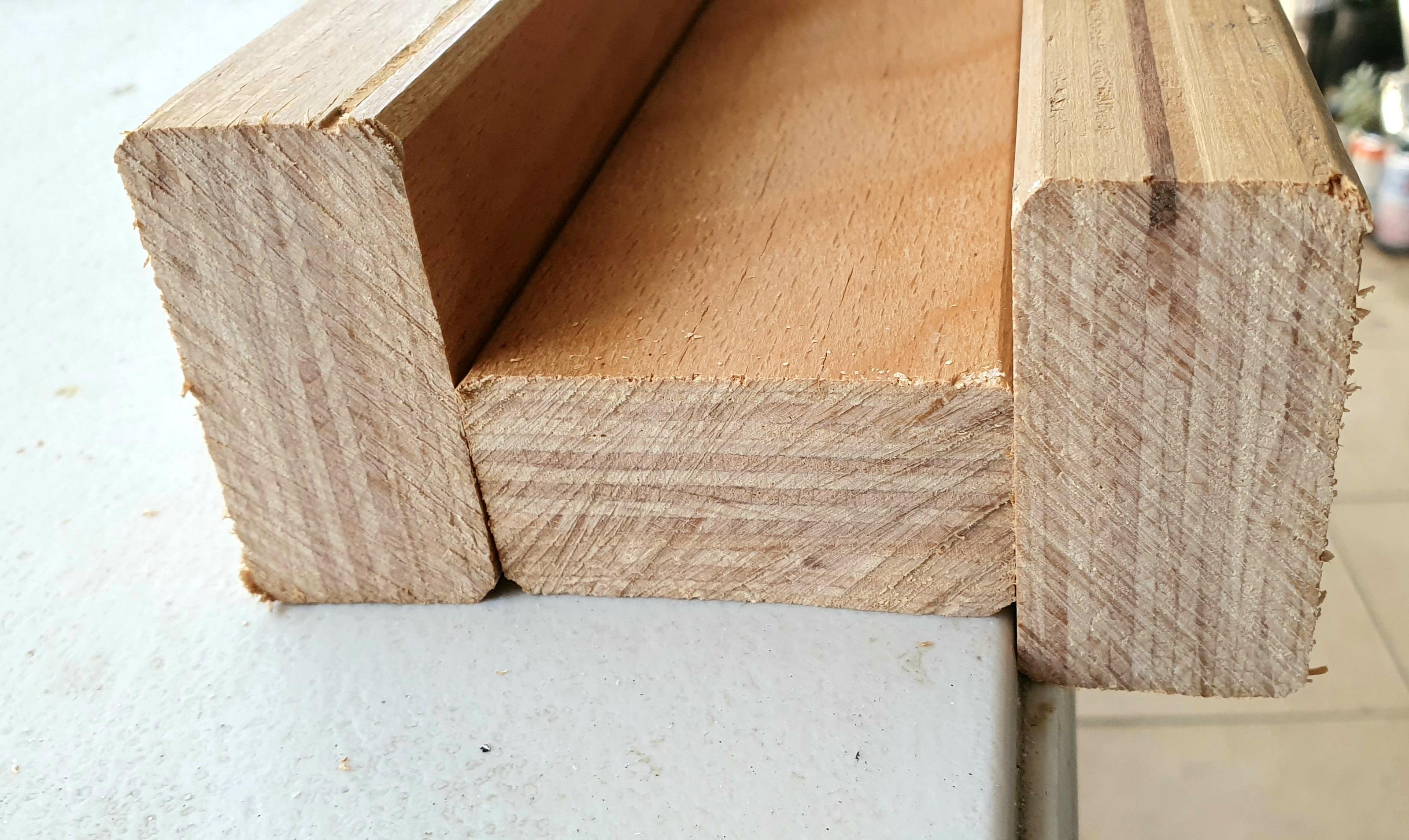

- Glue together with PVA glue to make a cutting box. Have one edge slightly lower than the cross member. This is so it can catch on the work bench when it is being used.
- Hold the pieces together with removable tape.
Vice
![20220714_093305.jpg](/proxy/?url=https://content.instructables.com/F3R/ZGEQ/L5JM6WDJ/F3RZGEQL5JM6WDJ.jpg&filename=20220714_093305.jpg)
![20220714_093416.jpg](/proxy/?url=https://content.instructables.com/FC0/M508/L5JM6WDQ/FC0M508L5JM6WDQ.jpg&filename=20220714_093416.jpg)
- Make a cut in the cutting box at 90 degrees - this will be used to guild the saw when it is in use.
- Make two door wedges as described in this link
Operation
![20220714_093836.jpg](/proxy/?url=https://content.instructables.com/FSC/QUTE/L5JM6WET/FSCQUTEL5JM6WET.jpg&filename=20220714_093836.jpg)
![20220714_093533.jpg](/proxy/?url=https://content.instructables.com/FYG/9BR5/L5JM6WEK/FYG9BR5L5JM6WEK.jpg&filename=20220714_093533.jpg)

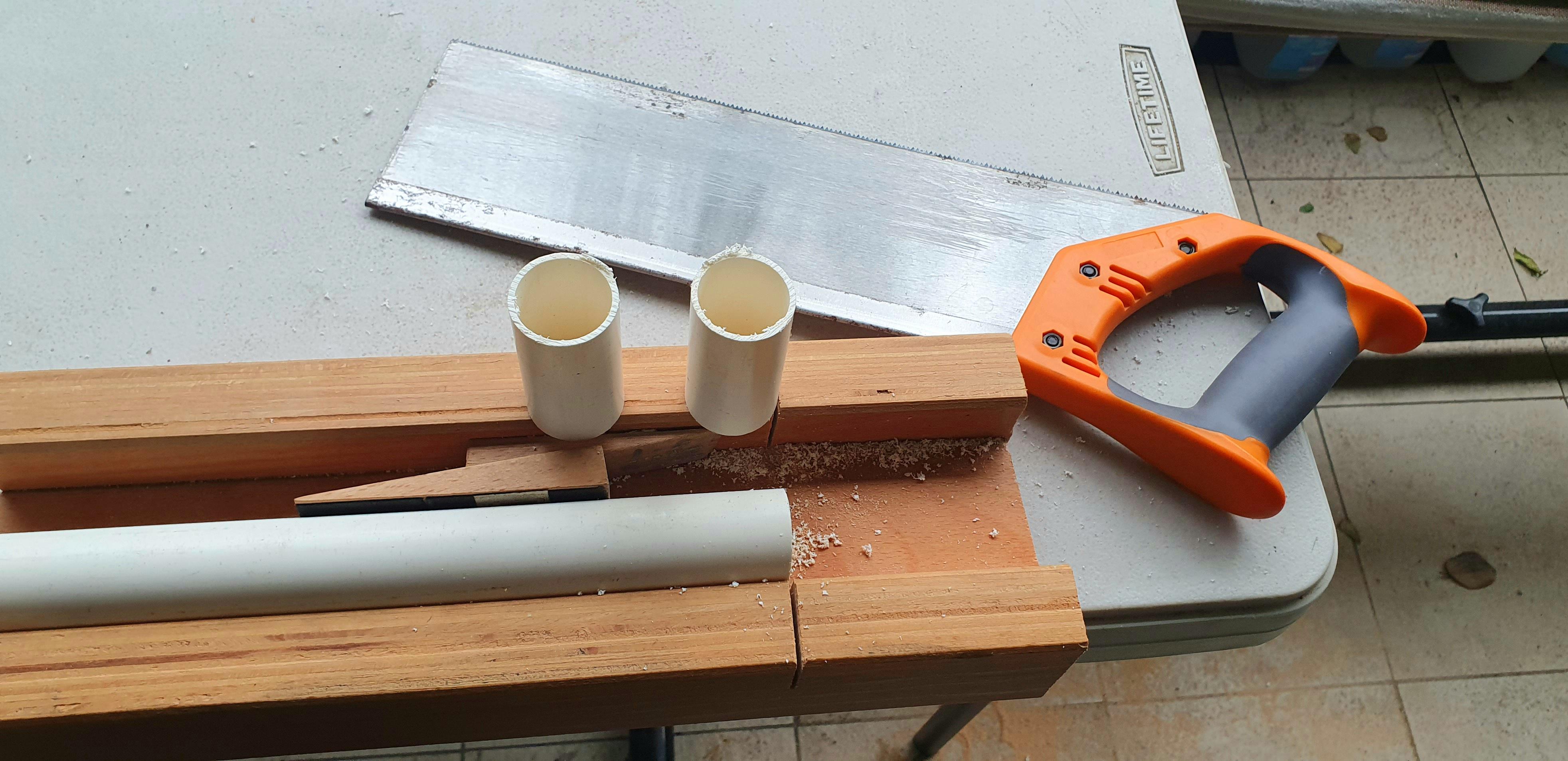

- Place the pipe in the cutting box.
- Clamp in place with the triangular door stops moving against each other, use a spacer if required.
- Cut the pipe.
- It will also cut wooden dowelling.
