Wooden Circle Ceiling Light

This is a very simple project for a minimalist design. But I like it :-)

I've used a cnc router to make the circle, because I have one and it is convenient. But I can be made with casual tools if you have skills.

BOM :

• 18mm oak plate
• beautiful electric wire
• e14 or e27 socket
• a bulb light
• 10mm hollow threaded tube (for the socket)
• 3mm nylon screw
• 3mm drill and tap

Make the circle : the outer diameter is 250mm, inner 210mm.

Drill a hole like on the photo, this will be used to pass the 10mm hollow tube.

Drill the 10mm hollow tube and tap it (3mm).

A nylon set screw will be used to fix the electric wires inside the tube.

• Fix the electric wires inside the socket
• Pass the wire inside the tube
• Screw the tube to the socket
• Screw the nylon set screw to fix the wire
• Pass the tube through the wood
• Assemble the ceiling rose according to the manual from of the manufacturer

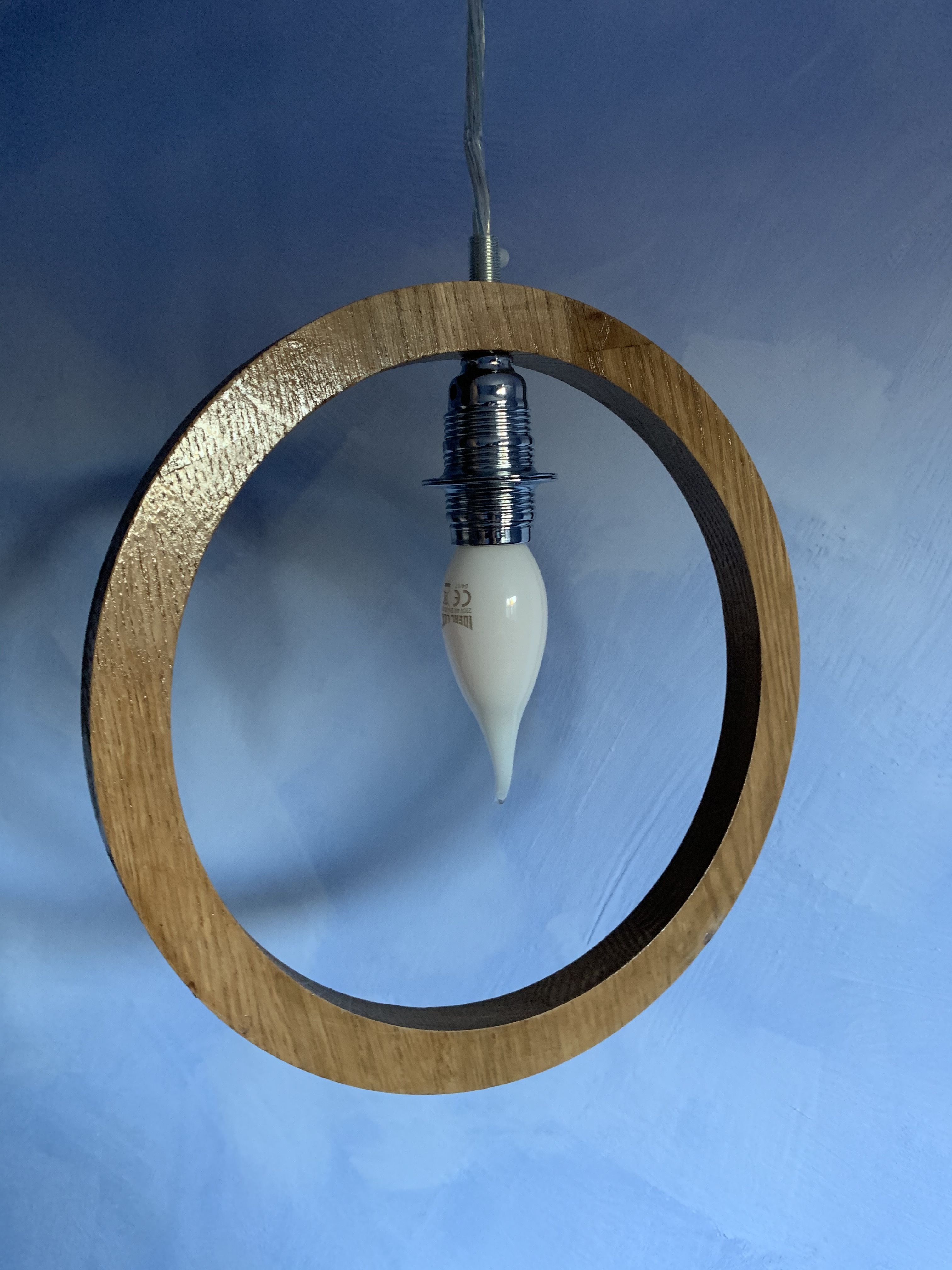

You will have a nice design. I didn't find the same online, so it is probably 100% original even if it is so simple. Like an apple ;-)

I will add photos as soon I will have time to fix it on my ceiling. But I couldn't wait to share this project with you.
