Wooden Chainsaw Mill

At the end of the summer, a hurricane plowed through my area and knocked down a ton of trees.

I hated to see all of that wood go to waste and wanted a way to harvest some of it for future use.

Using only materials I had on hand, I assembled a chainsaw mill inspired by Izzy Swan's videos.

You can follow this exactly or make modifications.

SAFETY:

Chainsaws are built to remove a lot of material quickly. Always keep safety in mind and keep body parts away from sharp moving parts. Eye protection, hearing protection, and lung protection are all recommended.

Materials:
3/4" plywood (2'x6')

1"x12" (two 6' lengths)

2"x4" (~18' total)

screws

Tools:

Chainsaw

Screwdriver or Drill/Driver

Saw (a hand saw is sufficient but a miter saw and/or circular saw will make the cuts much easier)

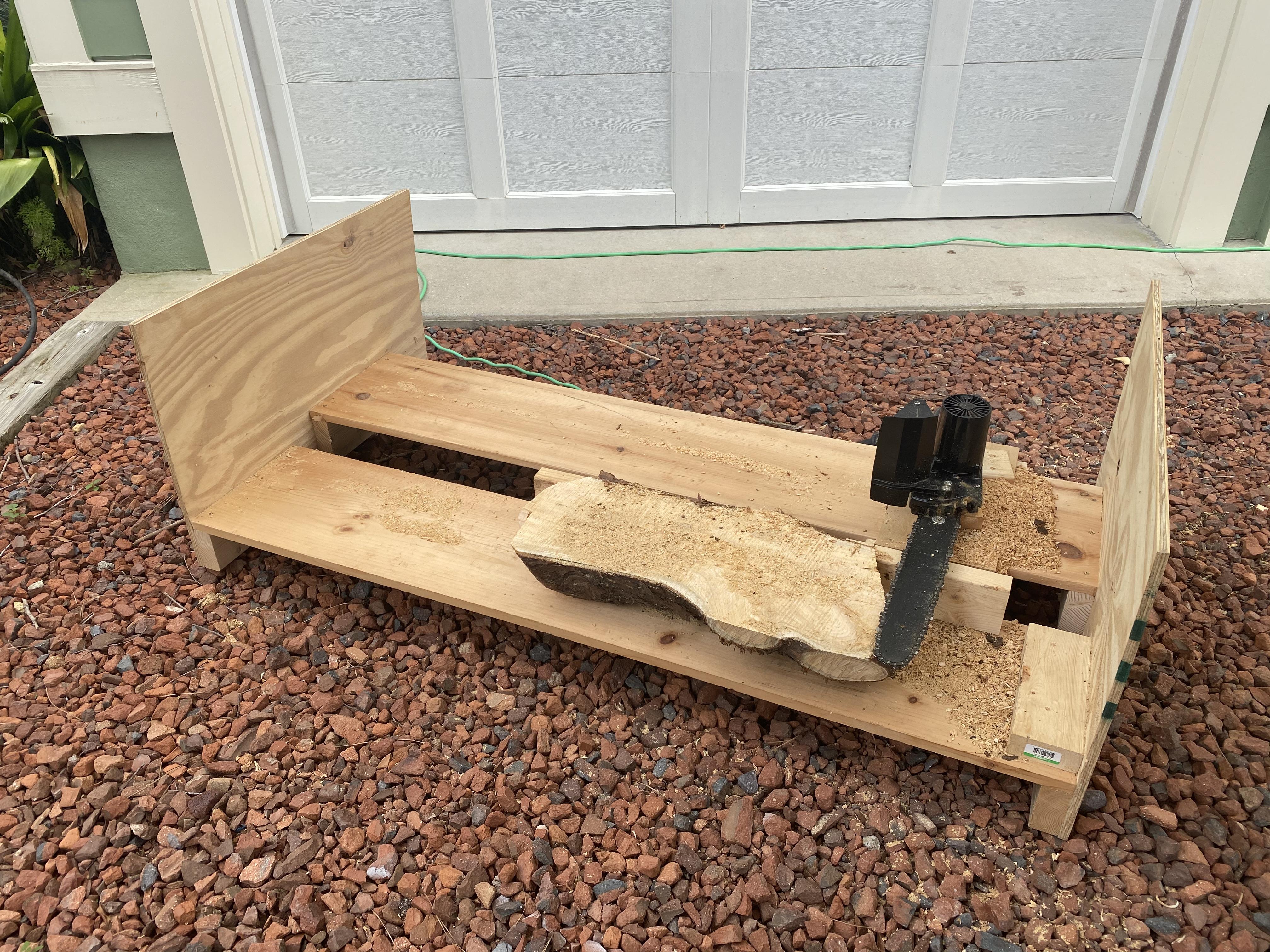

First step is to build the rails that our chainsaw sled will slide along and the support for the log.

Cuts

1) Cut the 1x12 to equal lengths. You want a length that will is about 12 inches longer than your longest so that your chainsaw blade has clearance on both ends of the log. [I cut mine to 72"]

2) Cut four (4) pieces of 2x4 at 11.5 inches long. These will support the width of the 1x12 and help to mount the rails to the end braces.

3) Cut two (2) pieces of 2x4 at 3 inches shorter than your 1x12. These will support the length of the 1x12. [I cut mine to 69"]

Assemble

1) Screw the 2x4 to the bottom of the 1x12 by screwing through the top of the 1x12 and into the 2x4

Next step is to construct the sled that will hold the chainsaw and run along the 1x12 rail.

The exact design will need to be customized to your chainsaw, but I will outline the basic principles.

Regardless of the chainsaw shape, you need to have a sled that will slide along the rail.

1. Cut a piece of plywood to 14.5" x 8"
2. Cut two lengths of 2x4 to 8"
3. Using screws, attach the 2x4s to the bottom of the plywood, at opposite ends. The 1x12 should fit snuggly between the 2x4s

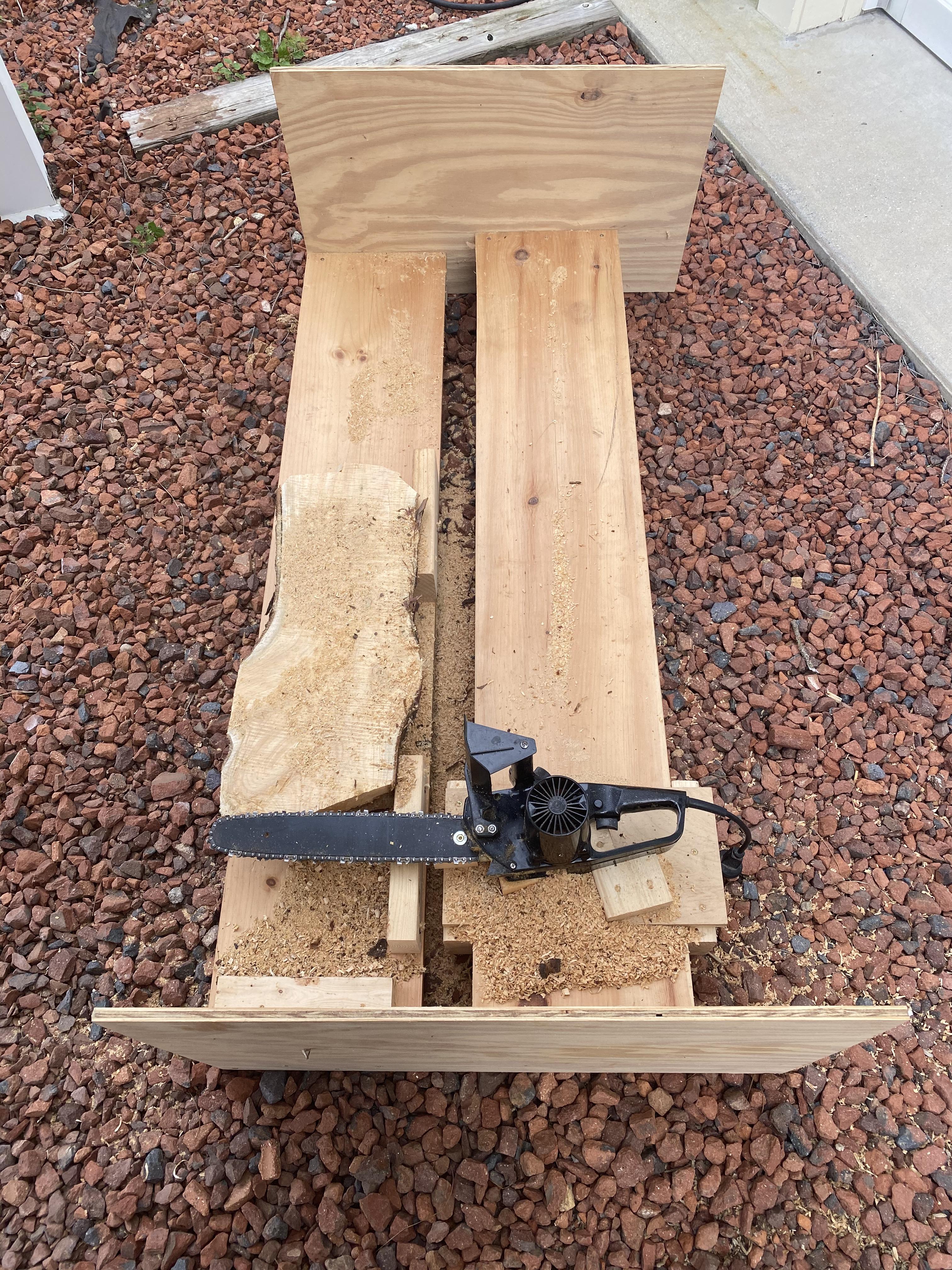

Now, it's time to to get creative. The goal is to attach the chainsaw to the plywood so that the chainsaw bar will run perpendicular to the 1x12 rail. We want the plane of the bar to be perfectly parallel to the plane of the 1x12. We want the chainsaw to remain attached to the sled and not rotate forward/backward or tip up/down. I did this by attaching 2x4 blocks to hold the handle in place and adding a 2x4 support that sits underneath the bar and holds the blade in place with a screw. Once attached, my chainsaw will only move with the sled. Keep in mind, you want to be able to safely hold the trigger and engage the safety button.

Cut two pieces of plywood to 24"x30".

Attach the rails to the plywood end supports using screws. The rail and the log support should be parallel and level. However, you can adjust the heights to specify the thickness of the cut.

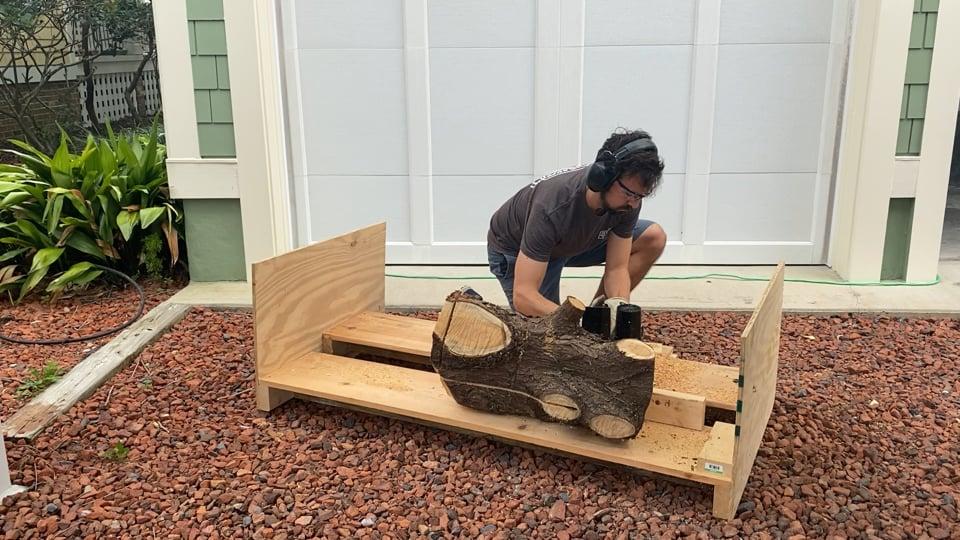

To prevent the log from rolling while using the chainsaw mill, I added 2x4 supports to the log support and screwed the log to those 2x4s. This holds the log in place, adding an element of safety and reducing cutting errors and waste.

Ensure you have enough clearance on the front and end of the log for the chainsaw and the sled. Also ensure that the chainsaw is long enough to cut the entire width of the log.

Have some shims handy to prop up the log as you progress through the cut. This prevents the log from binding on the chainsaw and reduces the risk of kickback.

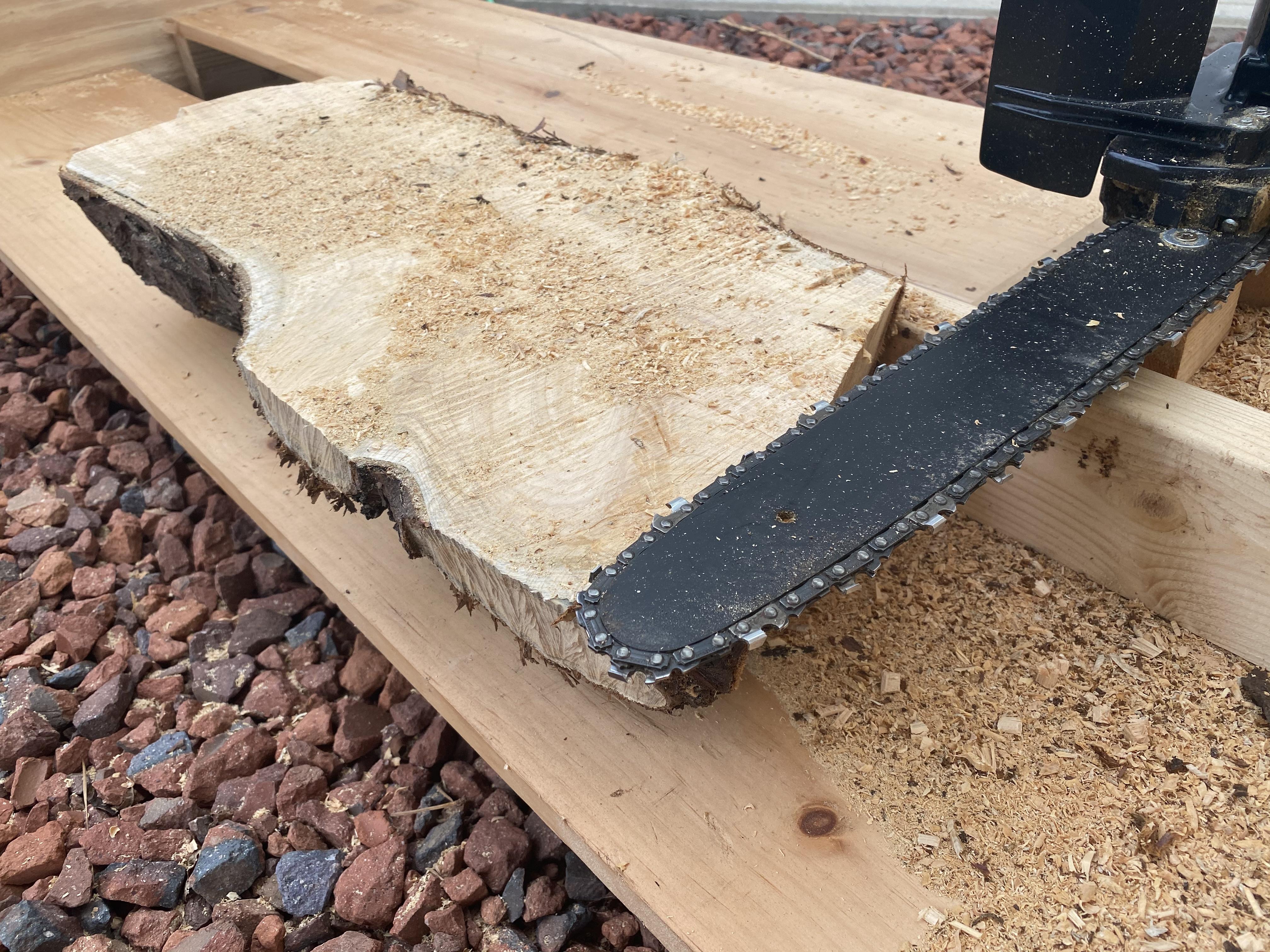

Make sure everything is clear, from the path of the chainsaw and begin your cut. Proceed slowly, oil the saw as needed, and let the saw do the work.

Stack the boards and let them dry to get ready for your next project!
