Wooden Catapult_Arduino
This is my school project, I think this mechanism can be improved a lot, and I have to spend more time on it to make it better.
Youtube video link:
Supplies
Required
Tools
- Square ruler
- Regular ruler
- Line drawer
- Chisel (12mm and 6mm)
- Cabinet plane
- Hammer
Material
- Pine wood pieces (about 7mm)
- Arduino Leonardo
- Servo motors (blue) x3
- Switch
- Computer
- Rubber bands
- Marble 13mm
- Screw 2mm
- Circuit board(mini)
Setup
Required tools
- Cabinet plane
- Line drawer
Flatten the wood:
All sides and area have to be flattened by cabinet plane
Caution:
Make sure the sides are flatted with right angle
The edge of the annual ring side might crack

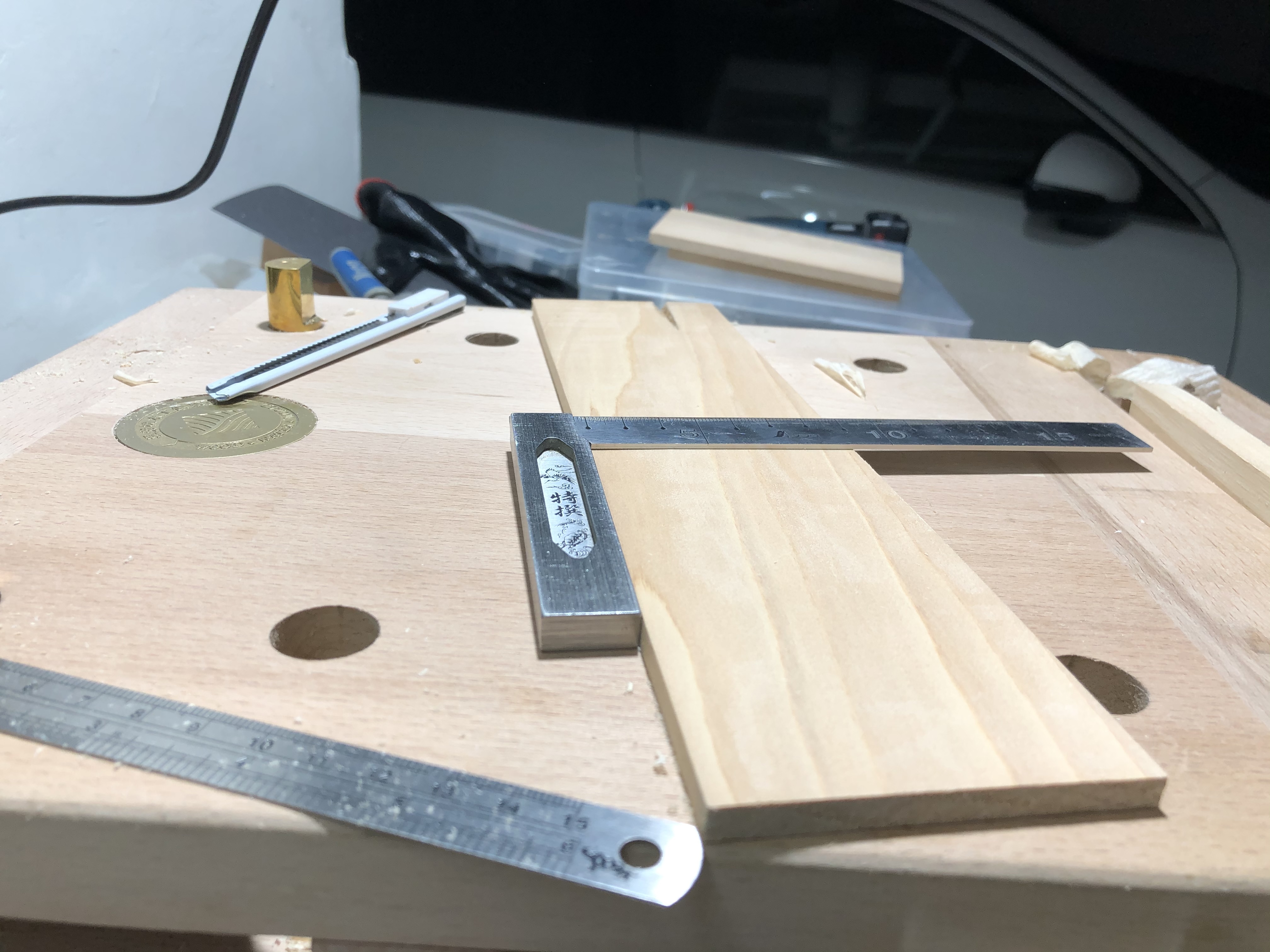

Draw lines:

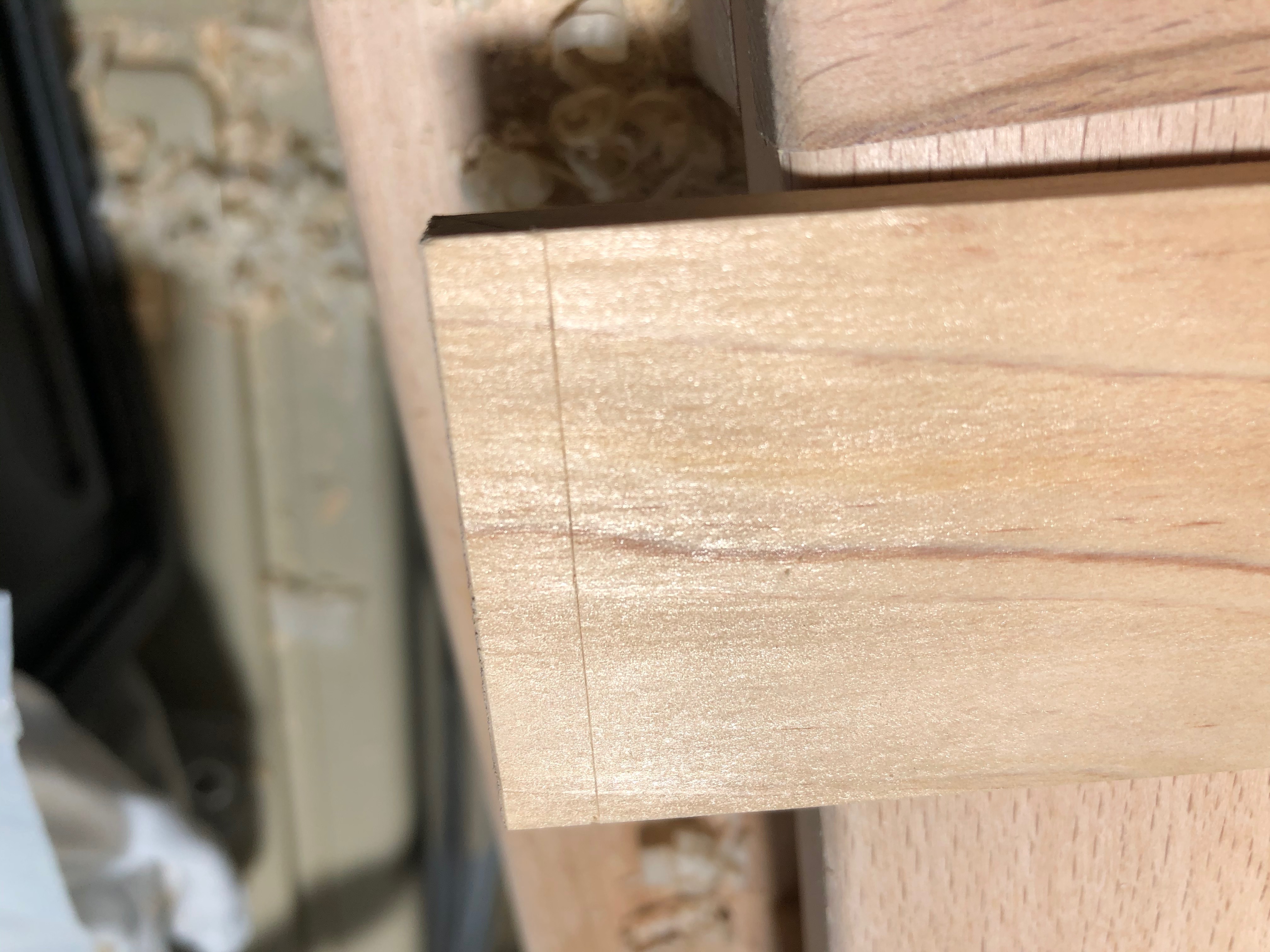

Use the line drawer to draw straight lines (like the picture shown)
Draw 3mm line away from the annual ring side line
Draw 440mm line away from the side line

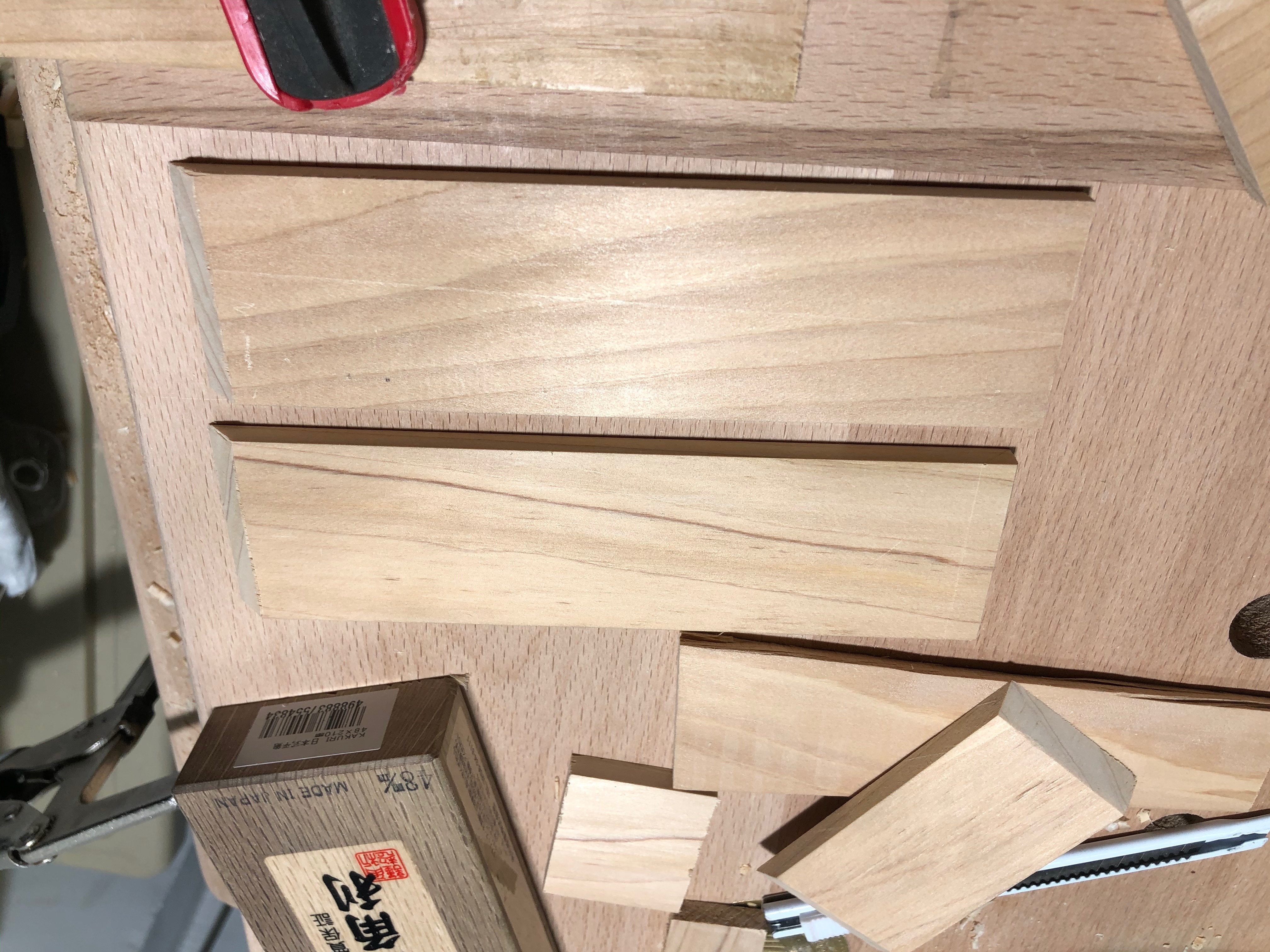

Cut
Use a hand saw to cut
- 150mm x 70mm
- 160mm x 44mm
- 84mm x 44mm
- pic 2 20mm x 30mm ten crave into that shape

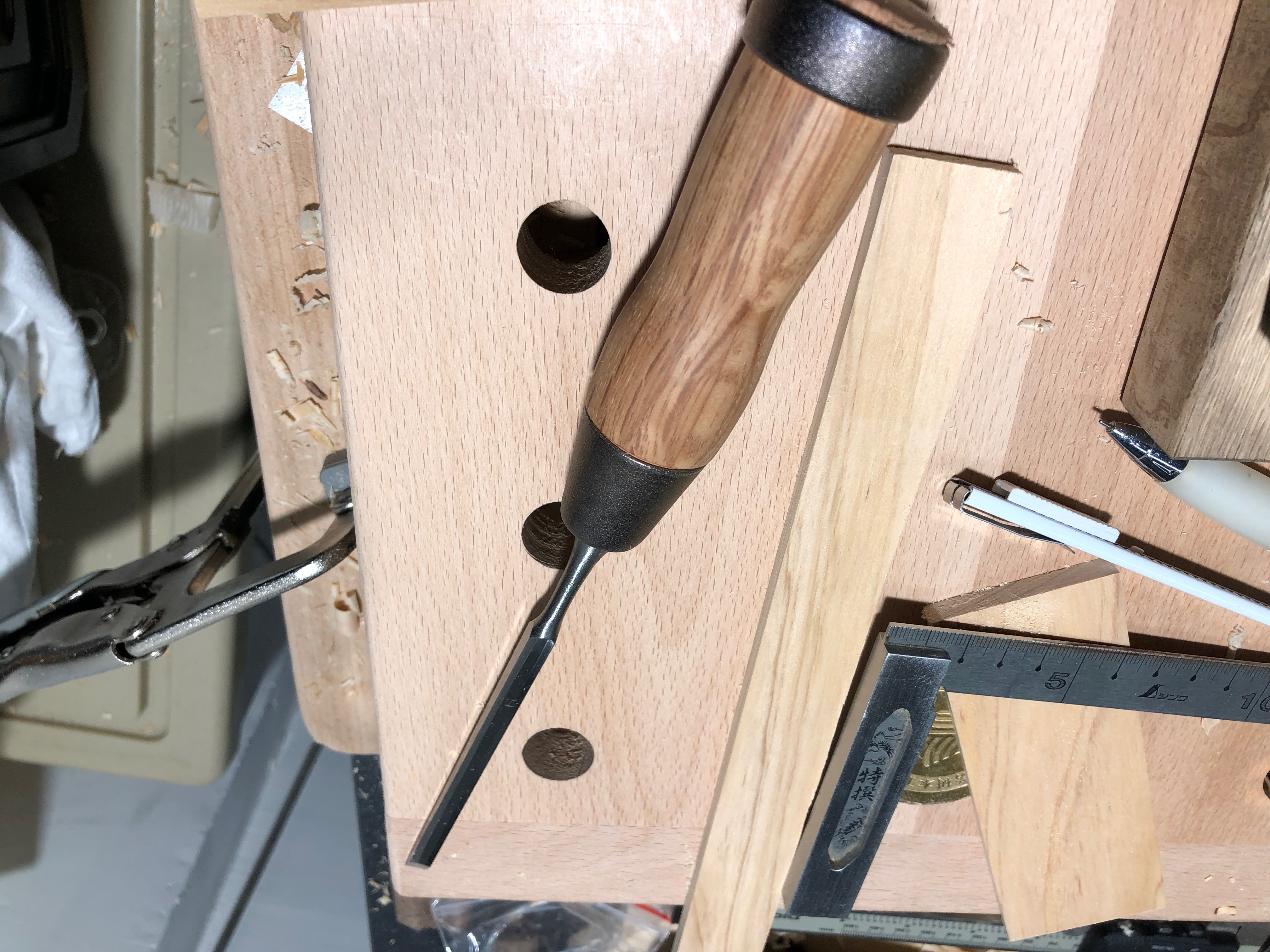

Use a Chisel 6mm

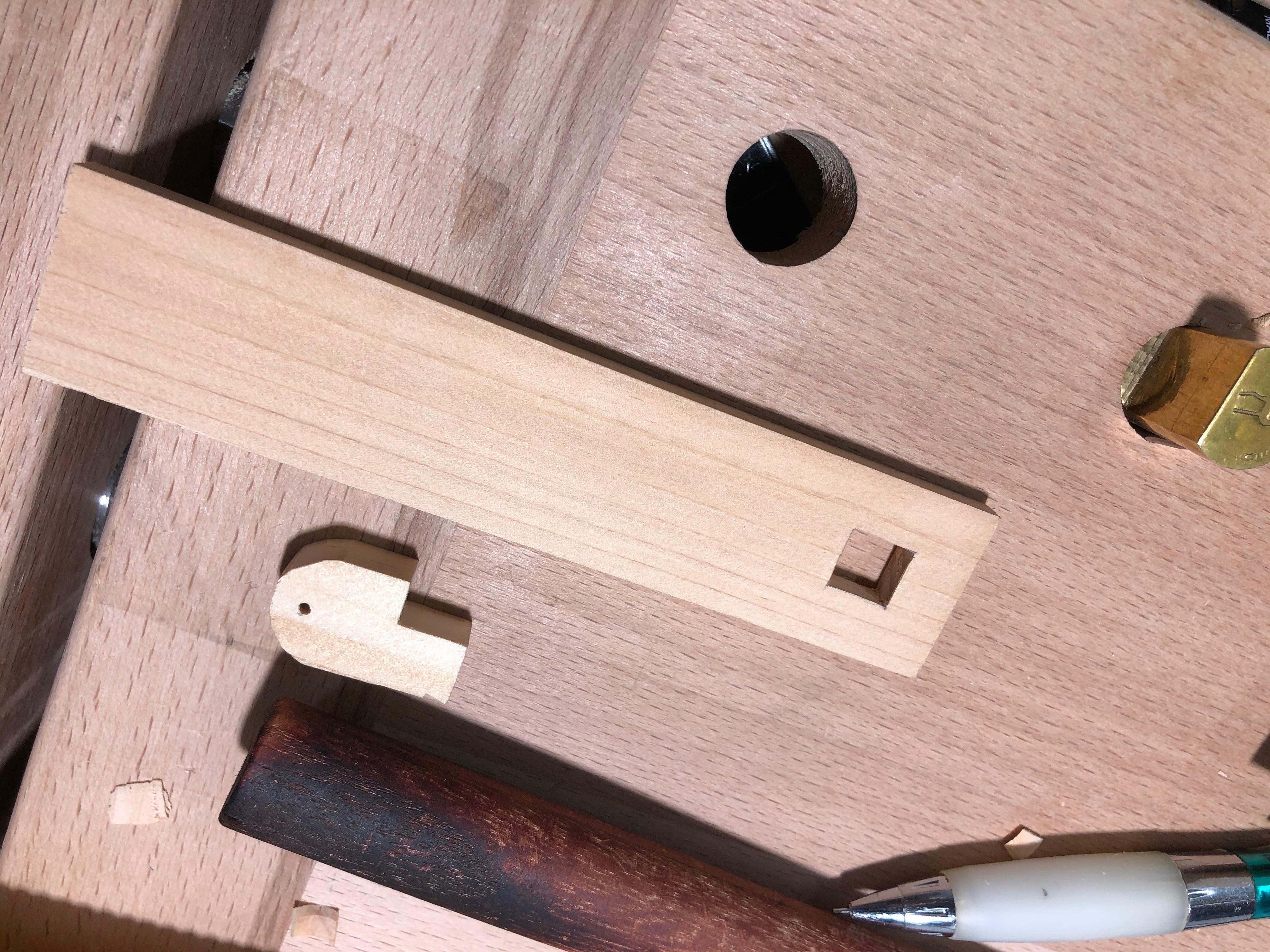

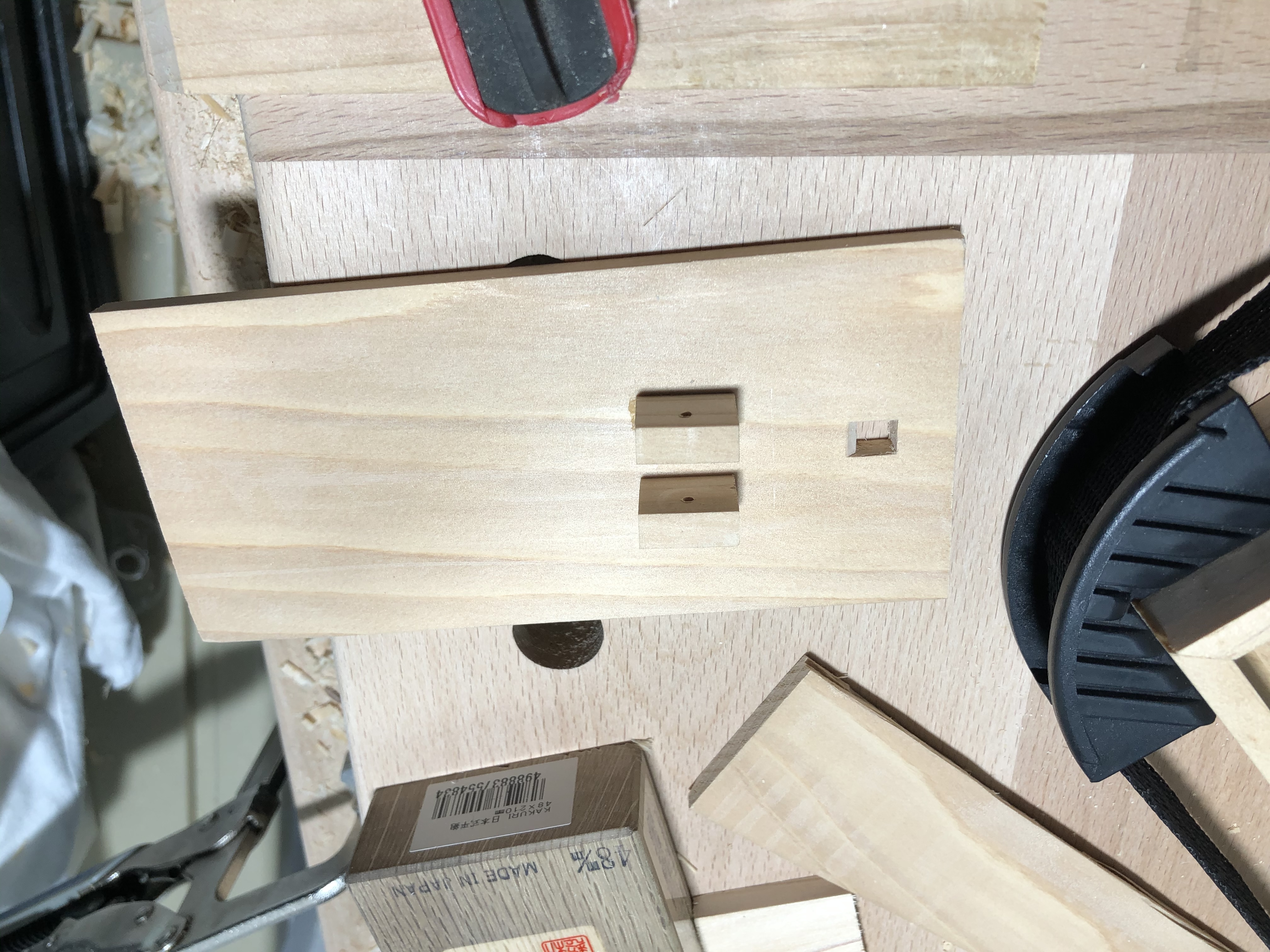

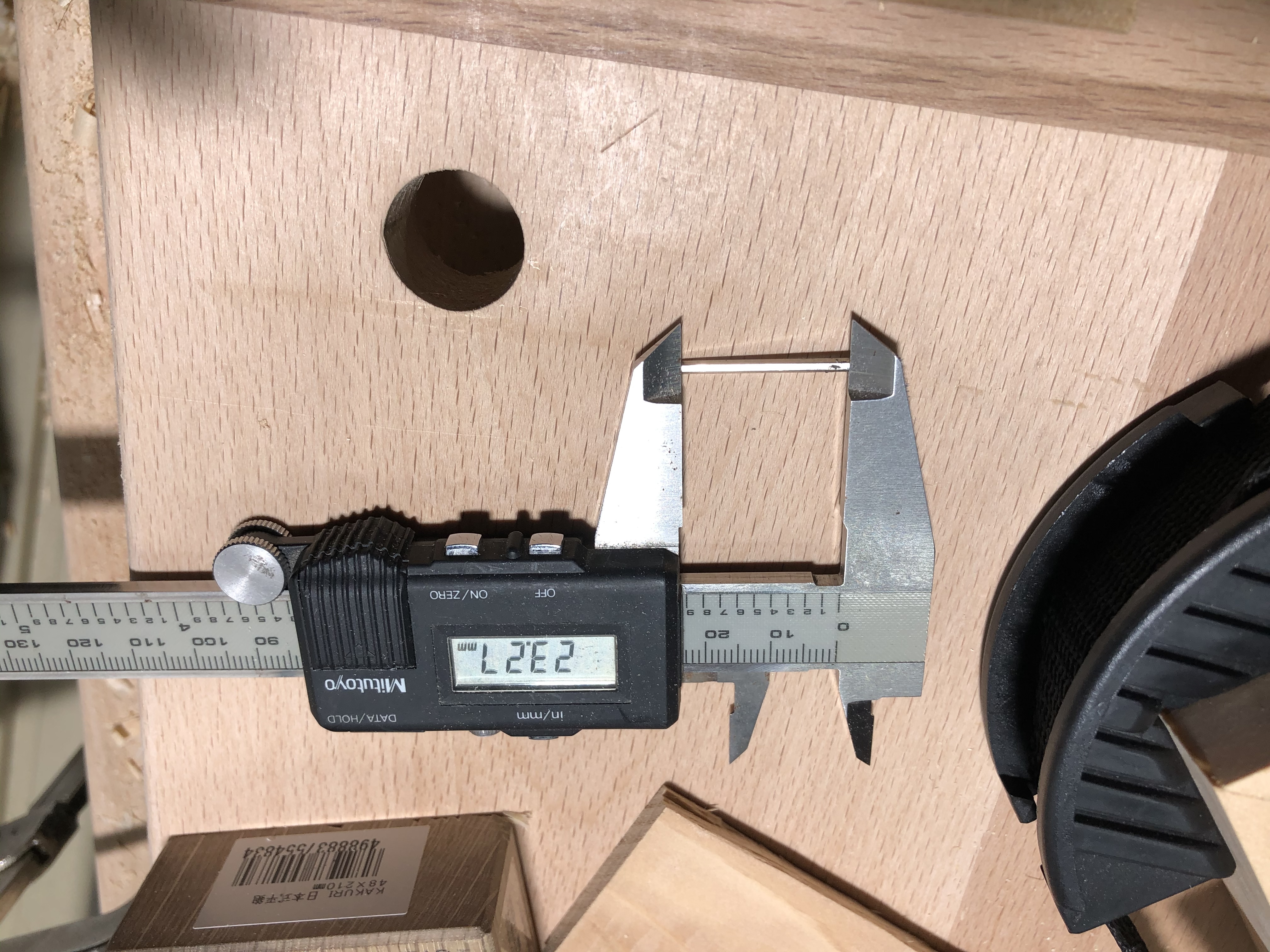

- make a 6mm x 6mm square hole at the middle of the annual ring side line and 10mm away from that line (pic3)
- make the side that will contact with
Use a plane

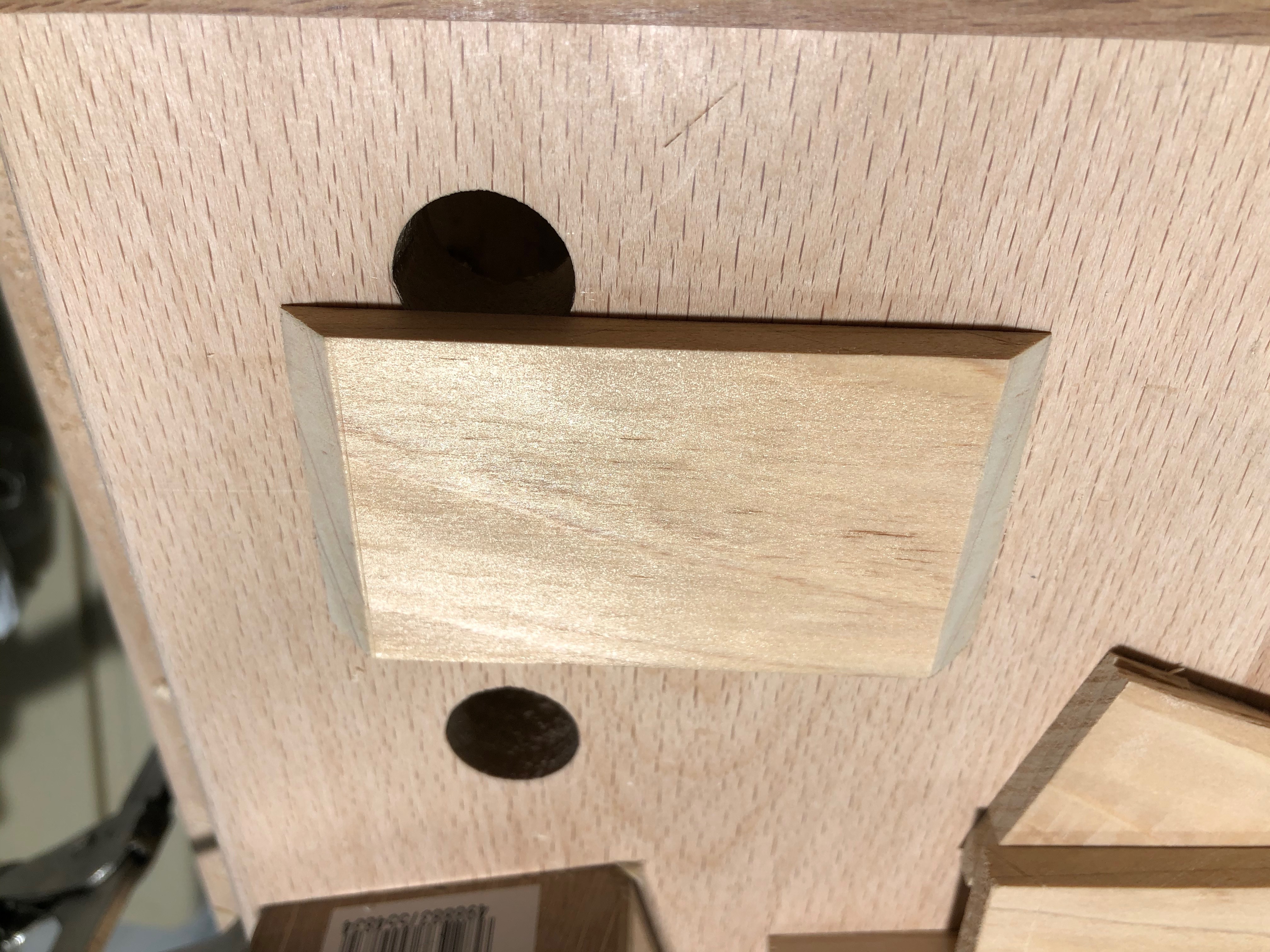

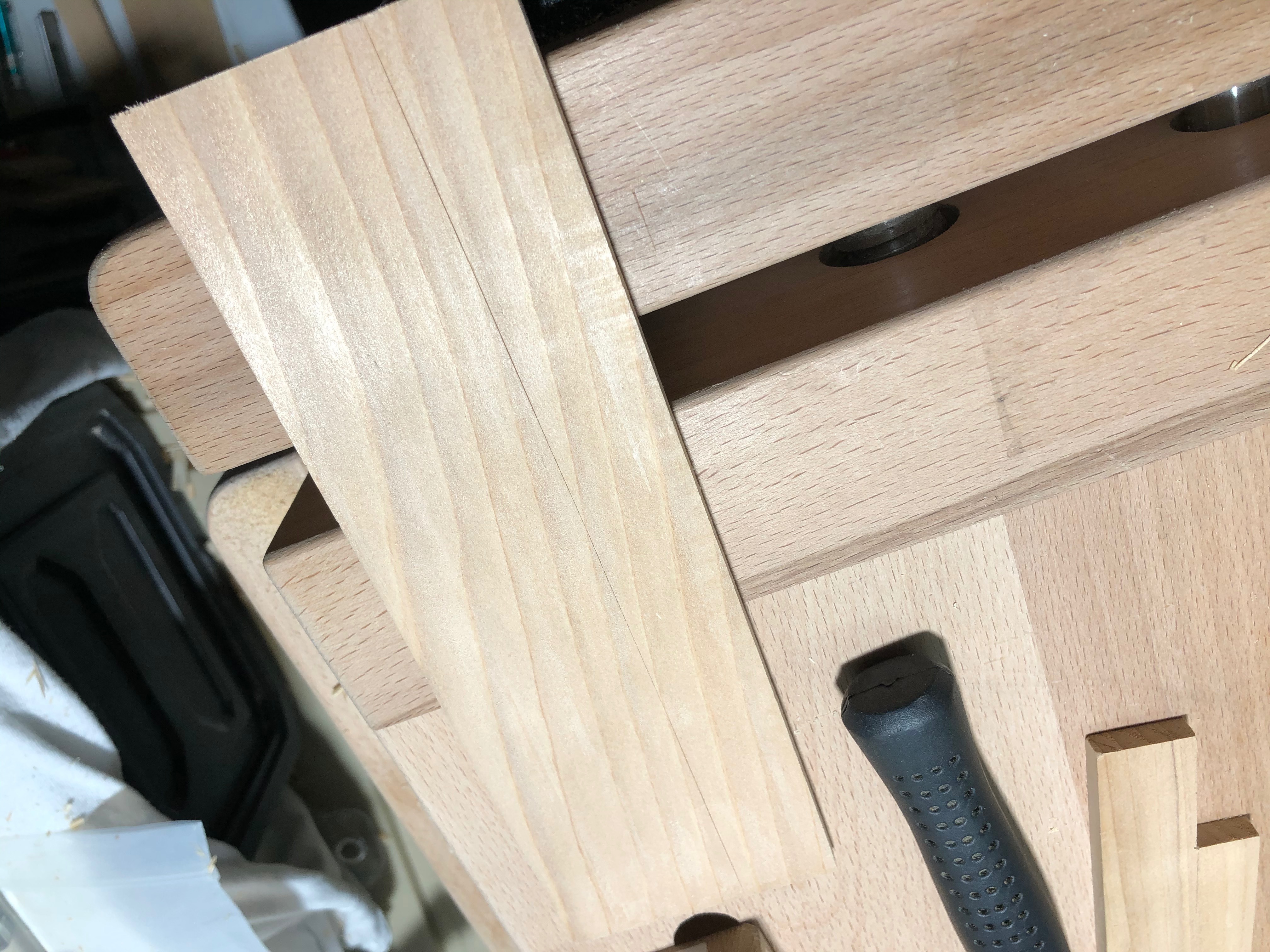

- make 160mm x 44mm and 84mm x 44mm piece annual ring side into 45 degrees (pic4, 5)
Combine
Use wood glue to combine the woods together

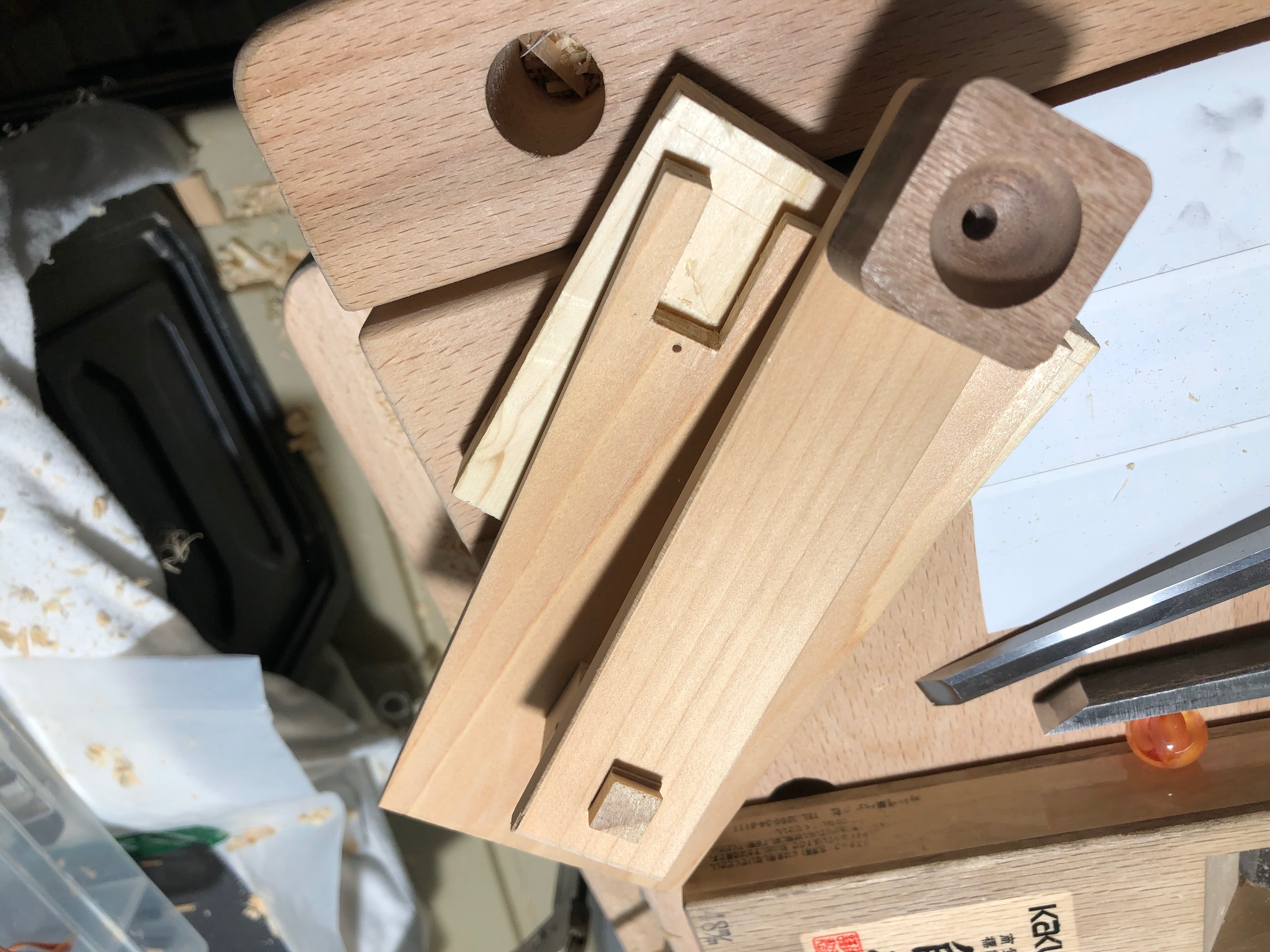

Combine the thing in pic(1, 2) with the thing in pic(6) by an axle pic(4)
The brown wood cup pic(1, 2) is made by CNC
Cup 3D design (rhino): https://drive.google.com/open?id=17_owHZdLX5qWaqXg...
Combine With Arduino

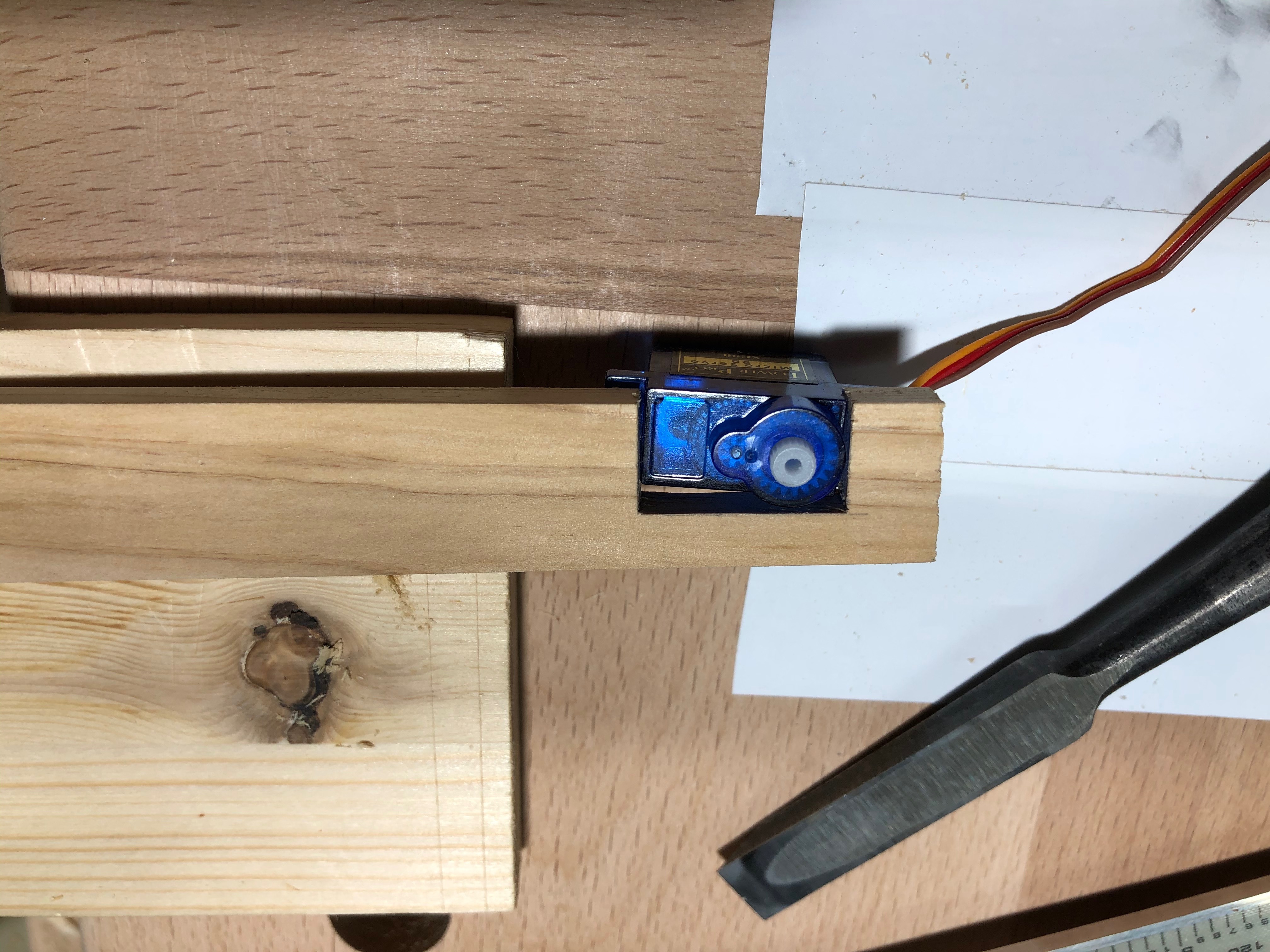

Combine the wood piece in pic(3) with servo motor by a 2mm screw pic(1)

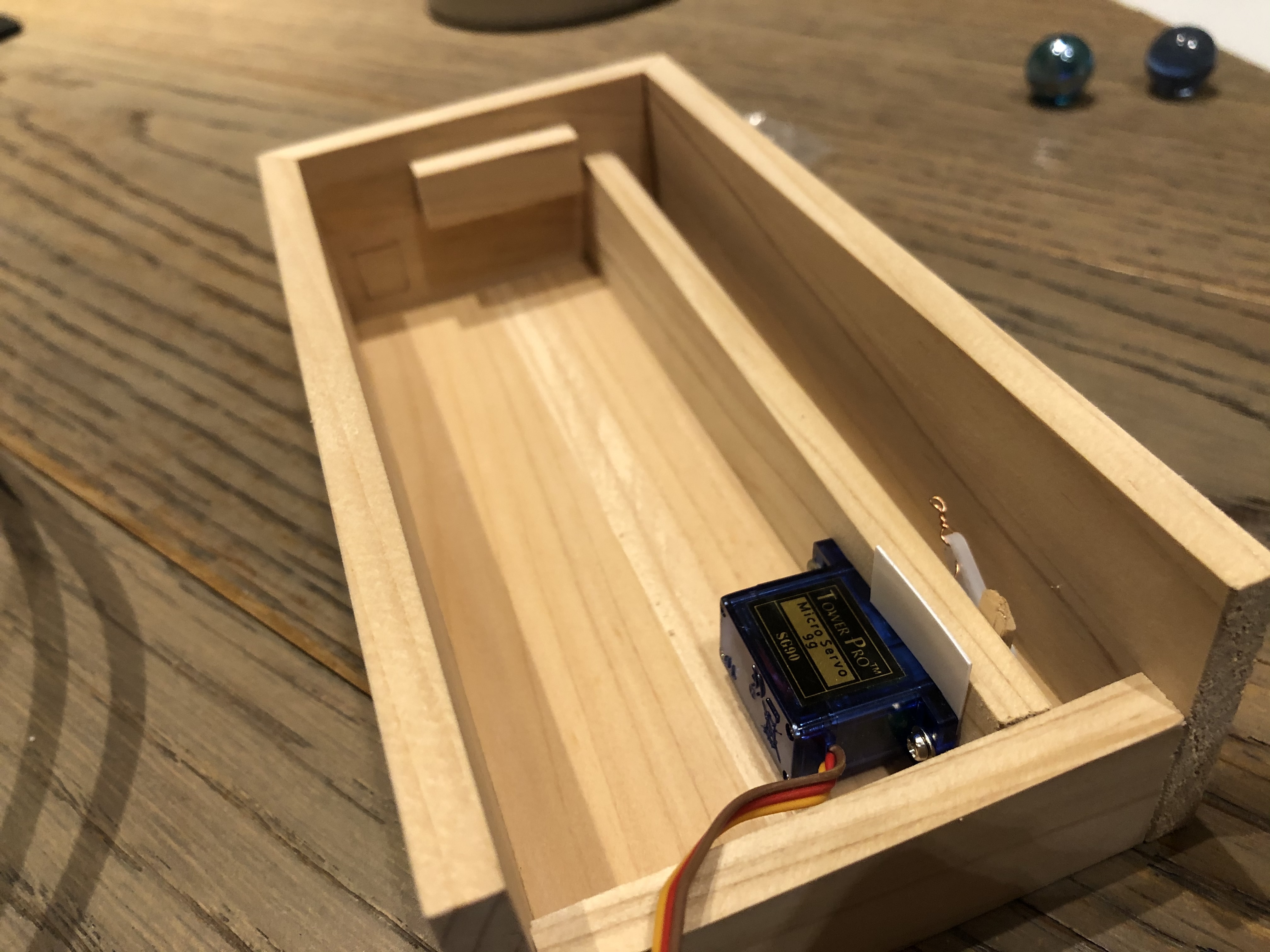

Combine pic(7) with servo motor to become pic(5)

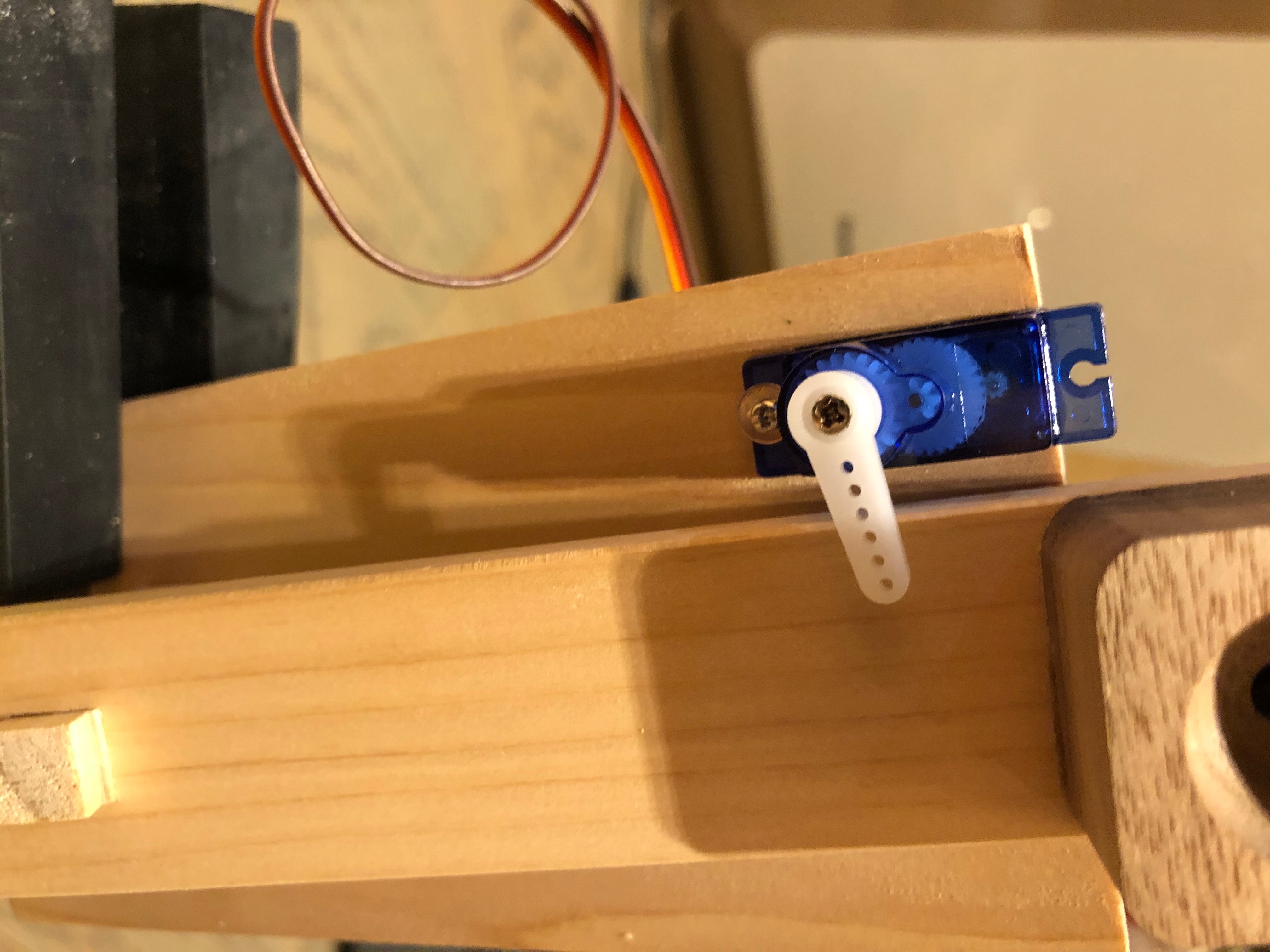

Combine pic(4) with servo motor
Place Arduino Leonardo on the 150mm x 70mm wood piece
Circuit
Switch
- Press/On
- D-pin(7)
- Pull rubber band D-pin(6)
- Lock D-pin(9)
- Push ball D-pin(10)
Finish!
combine the rubber band on the servo motor (previous page pic 4) with (previous previous page pic 1,2)
Place marble diameter 13mm inside the machine on (previous page pic 6)
