When I moved into my apartment I was the owner of a great completely worn Ikea table.
With a heavy heart, I had to go in search of a new table.
Unfortunately, there was no table that met my expectations of the design as well as the price.
Accordingly, I made a plan to create my own.
I made several drawings that changed in the practical process.
In my father's basement I started the construction...
Supplies
Tools:
- Drilling machine
- Jigsaw
- Hole saw for the drill
- Handsaw
- File
- Grinder
- Band saw
- Screw clamps
- Sand paper
Material:
- 60cm x 100cm Wood multiplex plate (Width 2x 1cm; 1x 3cm)
- 400cm x 12cm Ground wooden strip
- 10cm x 10cm Wooden blocks
- Miscellaneous waste wood
- Steel table legs
- Wood Screws
- Brown painting
- Vanish
Drawing & Cutting Single Parts
![IMG_20161025_163415.jpg](/proxy/?url=https://content.instructables.com/FTV/15FS/L1XL5CMA/FTV15FSL1XL5CMA.jpg&filename=IMG_20161025_163415.jpg)
![IMG_20161025_170530.jpg](/proxy/?url=https://content.instructables.com/FUM/5MZ5/L1XL5CMB/FUM5MZ5L1XL5CMB.jpg&filename=IMG_20161025_170530.jpg)
I started cutting the wood panels to the right size.
Then I drew the individual parts to save as much material as possible.
The individual parts saved possible milling and thus creates the required 3D effect.
I sawed the radius for the wooden corners with a sturdy band saw.
Initially, I had considered sawing out the holes with a jigsaw, but unfortunately I did not produce a clean cut.
Accordingly, I bought myself hole saws in the largest size I could find.
You had to be extremely careful not to get jammed with a strong drill.
The first very positive impressions I gained when I put the different parts on top of each other...
Gluing & Clamping
![IMG_20161025_171912.jpg](/proxy/?url=https://content.instructables.com/FS9/SE0Q/L1XL5CMC/FS9SE0QL1XL5CMC.jpg&filename=IMG_20161025_171912.jpg)
![IMG_20161027_171637.jpg](/proxy/?url=https://content.instructables.com/FAK/B784/L1XL5CME/FAKB784L1XL5CME.jpg&filename=IMG_20161027_171637.jpg)
![WhatsApp Image 2022-04-21 at 07.15.06.jpeg](/proxy/?url=https://content.instructables.com/F6U/KNXM/L27US7D1/F6UKNXML27US7D1.jpg&filename=WhatsApp Image 2022-04-21 at 07.15.06.jpeg)
I started gluing the corner blocks to the base plate.
Then I adjusted the side panels by a few millimeters and glued them in place.
This was another project where you could see.... You never have enough screw clamps.
Making the Audio Tape
![IMG_20161102_171744.jpg](/proxy/?url=https://content.instructables.com/FWF/BRF2/L1XL5CMF/FWFBRF2L1XL5CMF.jpg&filename=IMG_20161102_171744.jpg)
![WhatsApp Image 2022-04-21 at 07.15.05 (1).jpeg](/proxy/?url=https://content.instructables.com/F71/M8EK/L27US7CW/F71M8EKL27US7CW.jpg&filename=WhatsApp Image 2022-04-21 at 07.15.05 (1).jpeg)
![WhatsApp Image 2022-04-21 at 07.15.08.jpeg](/proxy/?url=https://content.instructables.com/FUM/PK5I/L27US7D6/FUMPK5IL27US7D6.jpg&filename=WhatsApp Image 2022-04-21 at 07.15.08.jpeg)

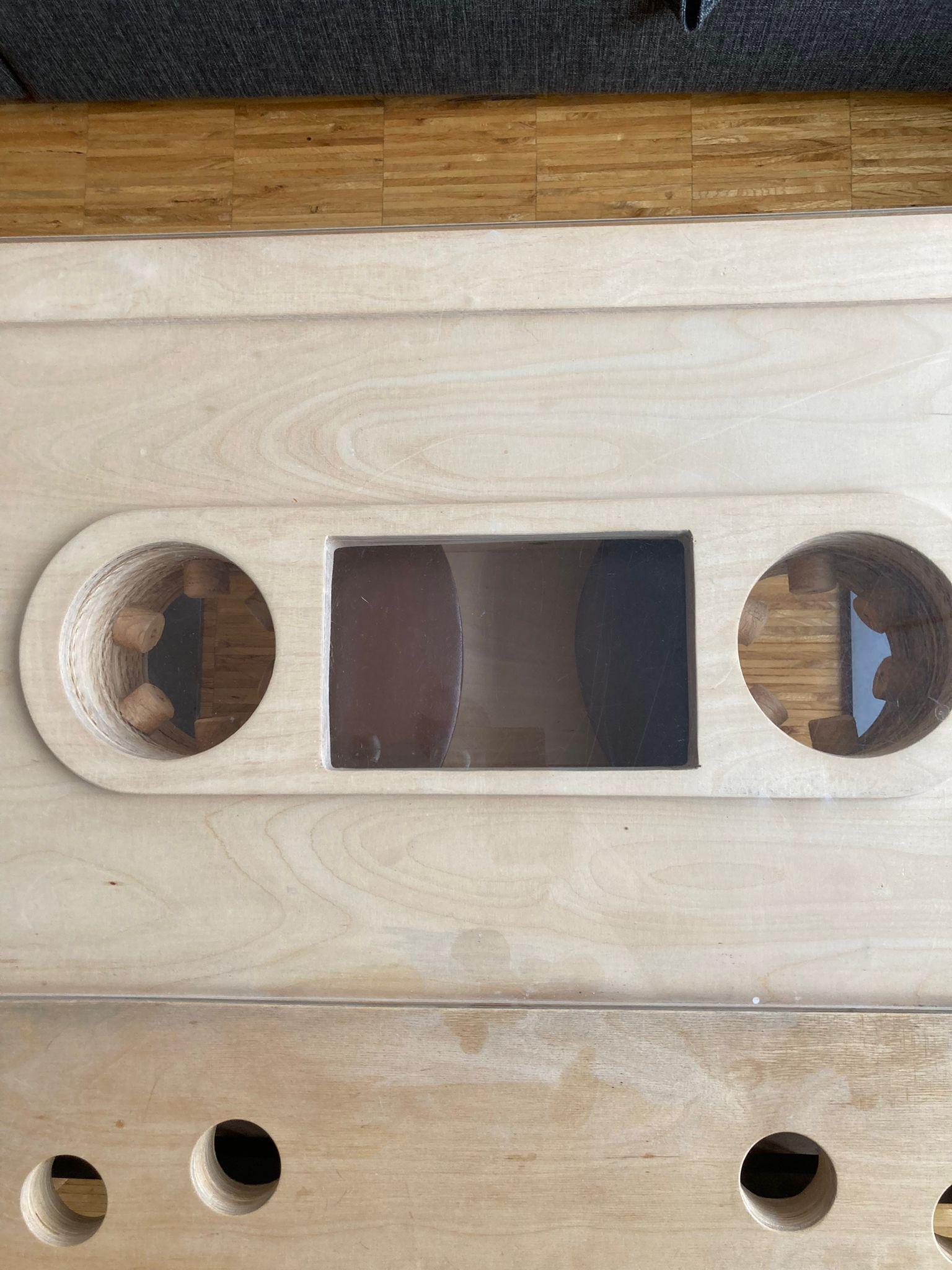

For the Tape of the cassette I thought long how I can make them.
The easiest way after long consideration was to put several plates on top of each other and drill the appropriate hole each time.
Unfortunately, this consumed a lot of material, but then you had a very massive table.
For the "gear teeth" I simply sawed out individual cylinders with a small hole saw.
These I simply glued in.
I created a kind of recess for the tape.
Here came the first time color in the project.
I painted a cut slim piece of wood and glued it into the recess.
For the sound coil, I cut a piece of wood with an approximate radius.
This was to simulate the rolled up tape.

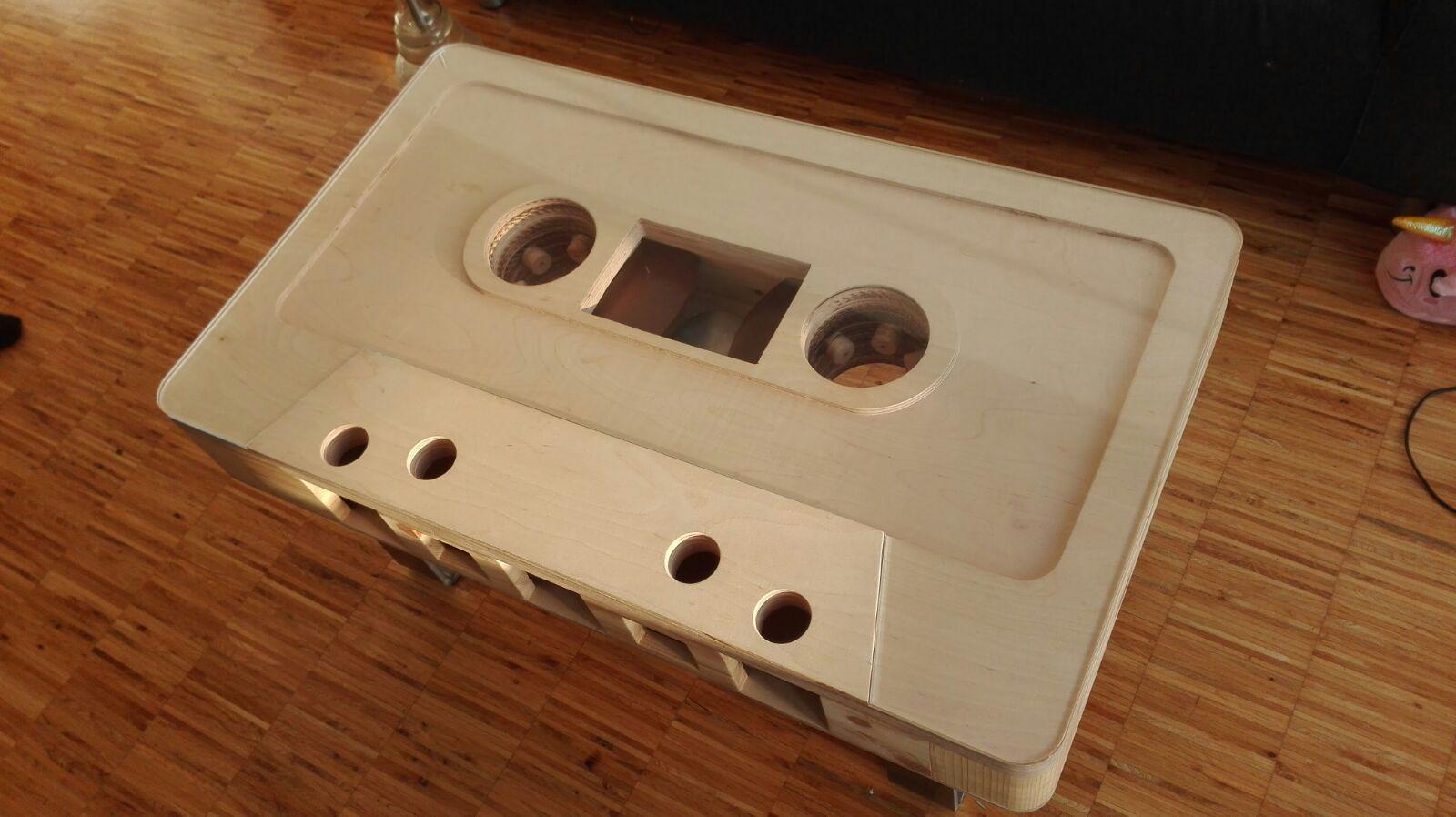

I have smoothed all contours with sandpaper and then coated with a varnish
Table Frames
![WhatsApp Image 2022-04-21 at 07.15.03.jpeg](/proxy/?url=https://content.instructables.com/FLA/H0Z3/L27US7CV/FLAH0Z3L27US7CV.jpg&filename=WhatsApp Image 2022-04-21 at 07.15.03.jpeg)
![Tischbeine.png](/proxy/?url=https://content.instructables.com/FYQ/5BFE/L27US7S9/FYQ5BFEL27US7S9.png&filename=Tischbeine.png)

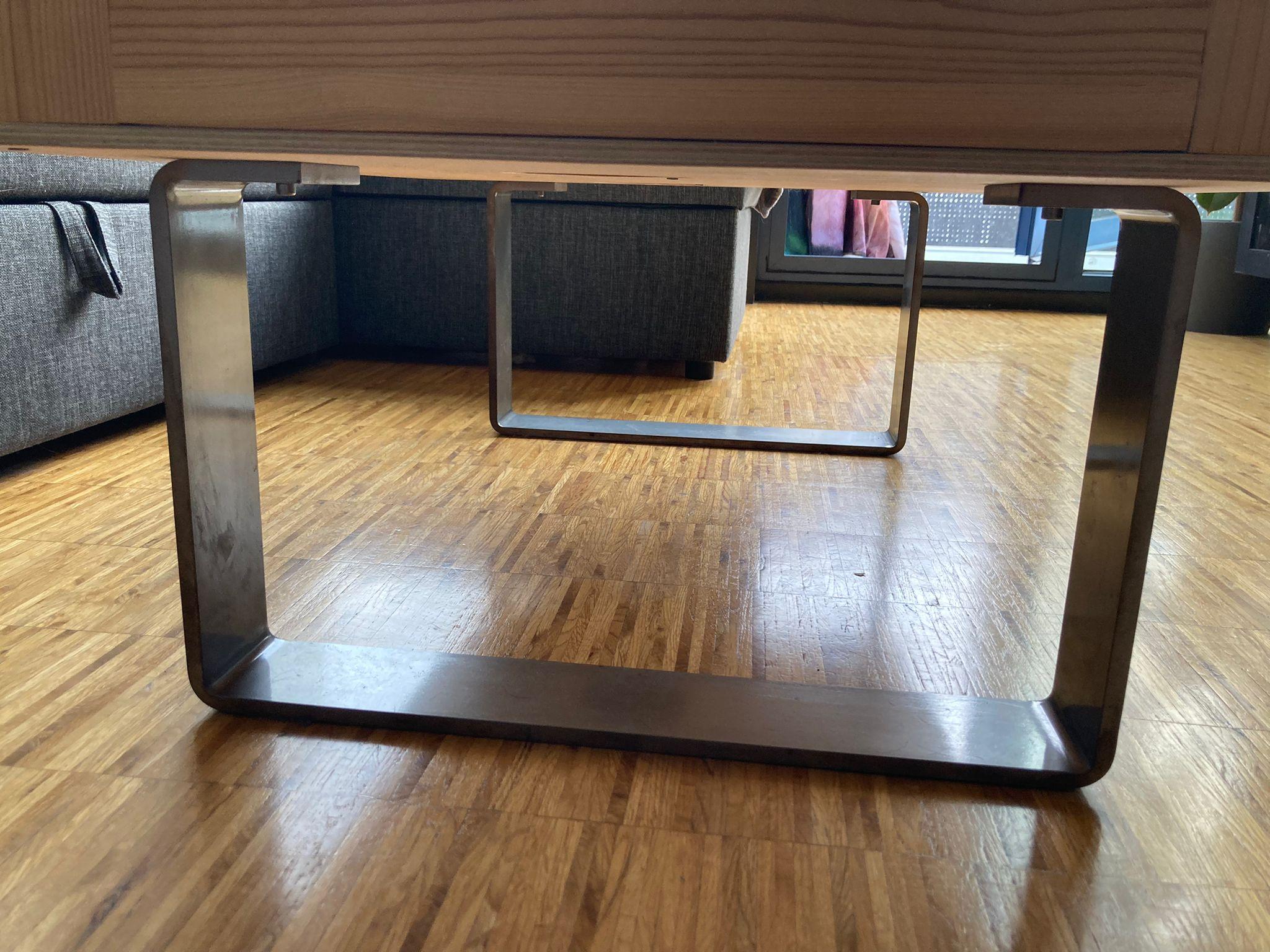

Since I hadn't found any table legs/frames for my table, I ordered them made from a drawing I had made.
I attached this frame to the back plate of the table with metric bolts and nuts I found in the basement.
The places where the holes for the racks were, I reinforced inside with more wood scraps.
I screwed the back plate with the table frames to the main side.
Table Top
![WhatsApp Image 2022-04-21 at 07.15.06 (2).jpeg](/proxy/?url=https://content.instructables.com/FF6/NX2I/L27US7D0/FF6NX2IL27US7D0.jpg&filename=WhatsApp Image 2022-04-21 at 07.15.06 (2).jpeg)
![WhatsApp Image 2017-01-27 at 12.47.04.jpeg](/proxy/?url=https://content.instructables.com/F8W/F726/L1XL5CMG/F8WF726L1XL5CMG.jpg&filename=WhatsApp Image 2017-01-27 at 12.47.04.jpeg)

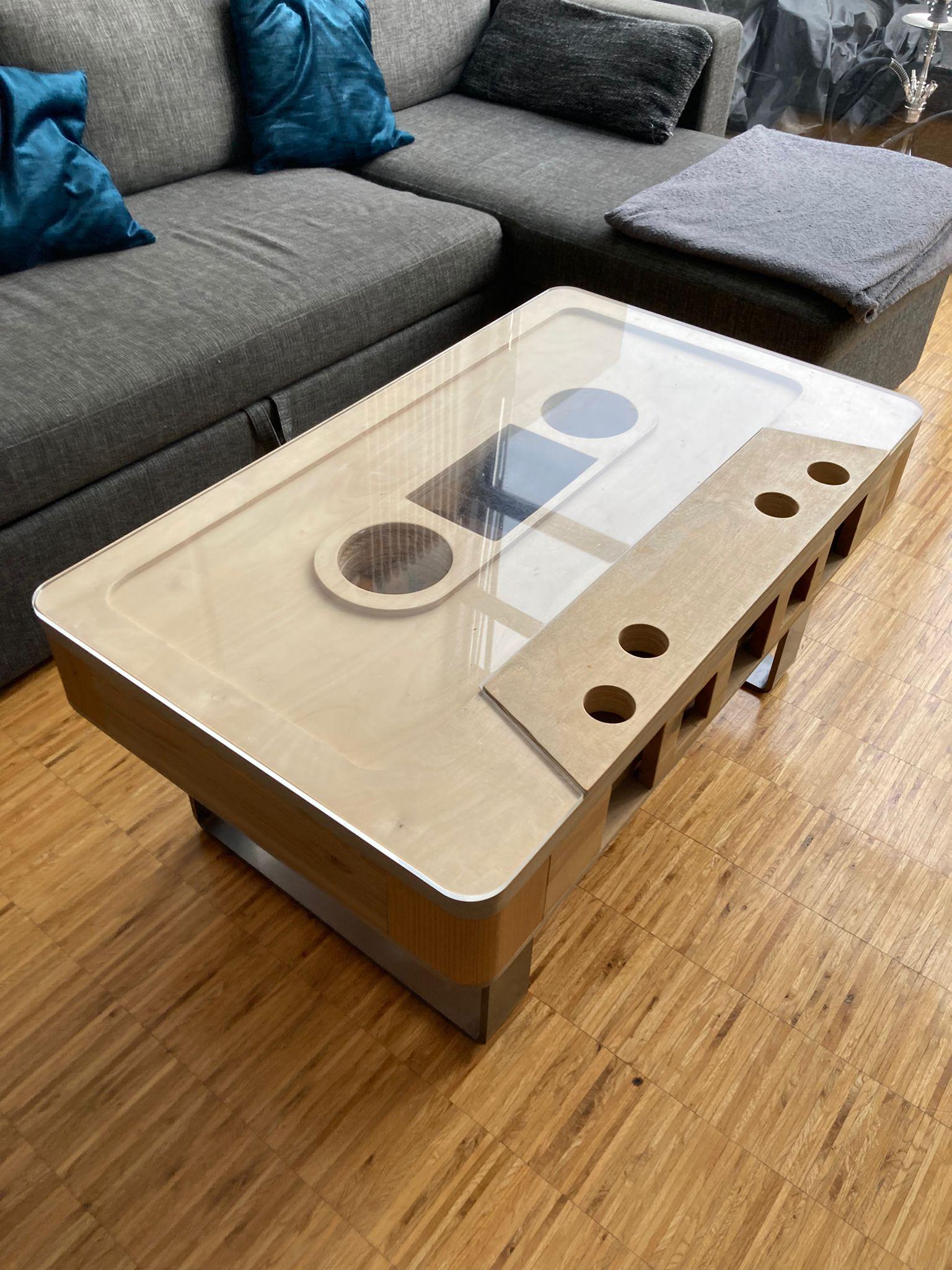

The contours of the cassette made it difficult to use the table.
For this reason, I was looking for a tabletop that could be provided with one.
For this I had an acrylic plate made.
This I could easily make over a specialty retailer on the Internet.
Unfortunately, a customized glass plate for this table was too expensive.
Acrylic: 70€ - 80€
Glass: 450€ - 550€
